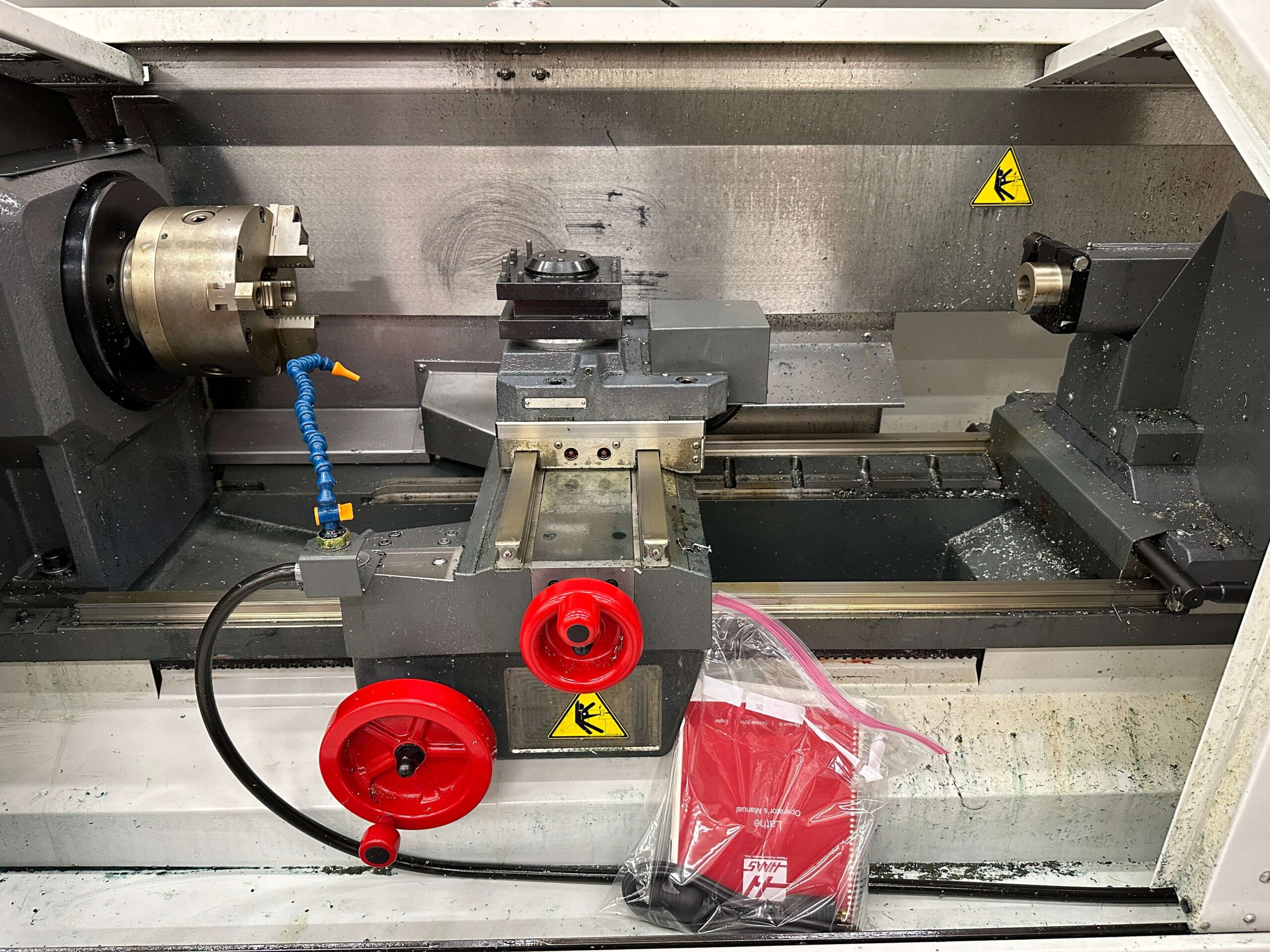

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | TL-1 |
| Year: | 2014 |
| Machine Type: | CNC Toolroom Lathe |
| Equipped With: |
|---|
| 8″ 3-Jaw Chuck |
| 4-Station Automatic Tool Turret |
| Manual Tailstock |
| Electronic Handwheels |
| Quick Code |
| Intuitive Programming System |
| USB Port |
| Chip Enclosure Kit |
| Coolant Pump Kit |
| Work Light |
| Capacity: |
|---|
| Chuck Size: 8″ |
| Chuck Type: 3-Jaw |
| Maximum Swing Over Bed: 16″ |
| Maximum Swing Over Cross Slide: 9.5″ – 11″ |
| Maximum Cutting Diameter: 16″ |
| Maximum Cutting Length: 30″ |
| Distance Between Centers: 30″ |
| Bar Capacity: 2.3″ |
| Spindle Bore: 2.3″ |
| Travels: |
|---|
| X-Axis Travel: 8″ |
| Z-Axis Travel: 30″ |
| X-Axis Rapid: 450 IPM |
| Z-Axis Rapid: 450 IPM |
| Spindle: |
|---|
| Maximum Spindle Speed: 2,000 RPM |
| Spindle Nose: A2-5 |
| Spindle Motor: 10 HP |
| Spindle Bore: 2.3″ |
| Spindle Hours: 361 |
| Turret: |
|---|
| Turret Type: Automatic Tool Turret |
| Number of Stations: 4 |
| Tool Post: 4-Station Automatic Turret |
| Tailstock: |
|---|
| Tailstock: Yes |
| Type: Manual Tailstock |
| General: |
|---|
| Machine Dimensions (Approx.): 105″ W × 68″ D × 79″ H |
| Machine Weight (Approx.): 4,500 lbs. |
