*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

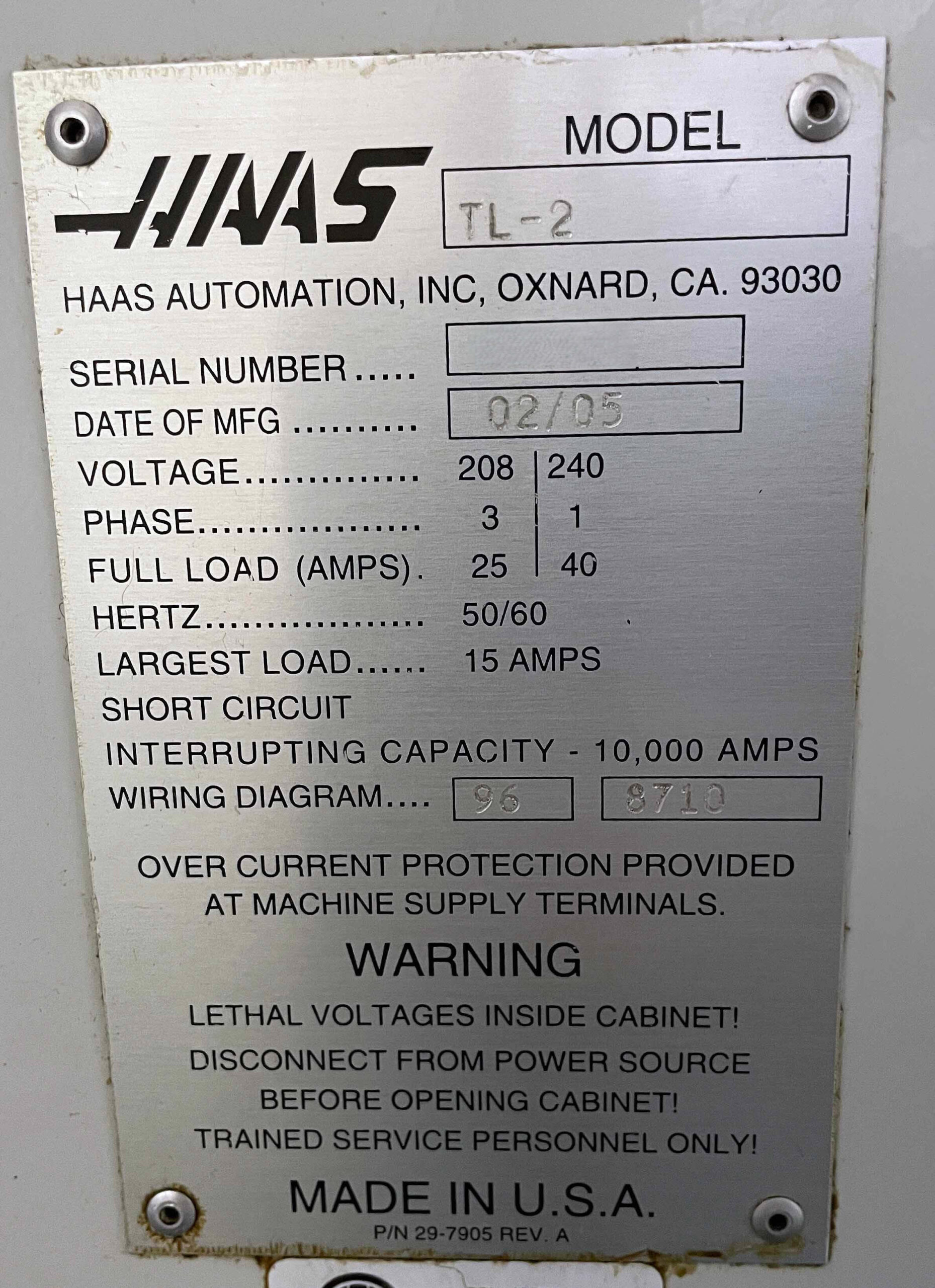

| Make: | HAAS |
| Model: | TL-2 |
| Year: | 2005 |
| Machine Type: | CNC Toolroom Lathe |

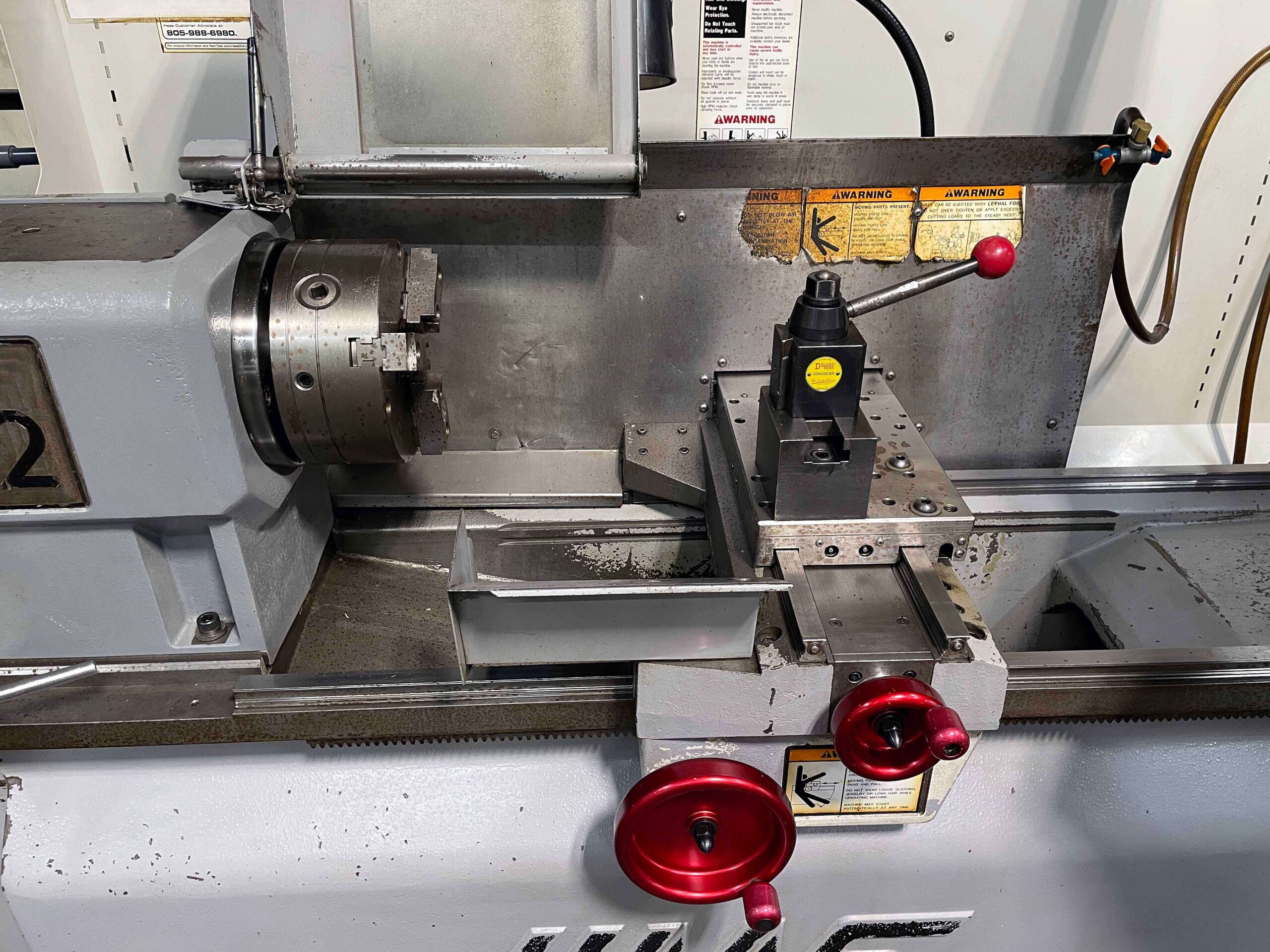

| Equipped With: |
|---|
| Haas CNC Control |
| 10″ 3-Jaw Chuck |
| Manual Tool Post |
| Manual Tailstock |
| Manual Handwheels |
| Chip Guard / Splash Guard |
| Coolant System |
| Work Light |
| Capacity: |
|---|
| Maximum Swing Over Bed: 20″ |
| Swing Over Cross Slide: 11″ |
| Maximum Cutting Diameter: 16″ |
| Maximum Cutting Length: 48″ |
| Distance Between Centers: 48″ |
| Chuck Size: 10″ |
| Bar Capacity: 3″ |
| Spindle Bore: 3″ |
| Travels: |
|---|
| X-Axis Travel: 8″ |
| Z-Axis Travel: 48″ |
| X-Axis Rapid: 450 IPM |
| Z-Axis Rapid: 450 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3″ |
| Spindle Motor: 12 HP |
| Maximum Spindle Speed: 2,000 RPM |
| Tailstock: |
|---|
| Tailstock Type: Manual |
| Center Support: Included |
| General: |
|---|
| Machine Dimensions (Approx.): 109″ L × 69″ W × 83″ H |
| Machine Weight (Approx.): 4,600 lbs. |
| Power Source: 208/240V / 3-Phase / 50/60 Hz |
