Sold
Haas UMC-500SS 5 Axis CNC Machining Center
Out of stock
| SKU: | 11542 |
| Make/Model: | Haas UMC-500SS |
| Year: | 2021 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Manufacturer: | Haas |
| Model: | UMC-500SS |
| Year: | 2021 |
| Machine Type: | 5-Axis CNC Universal Machining Center |

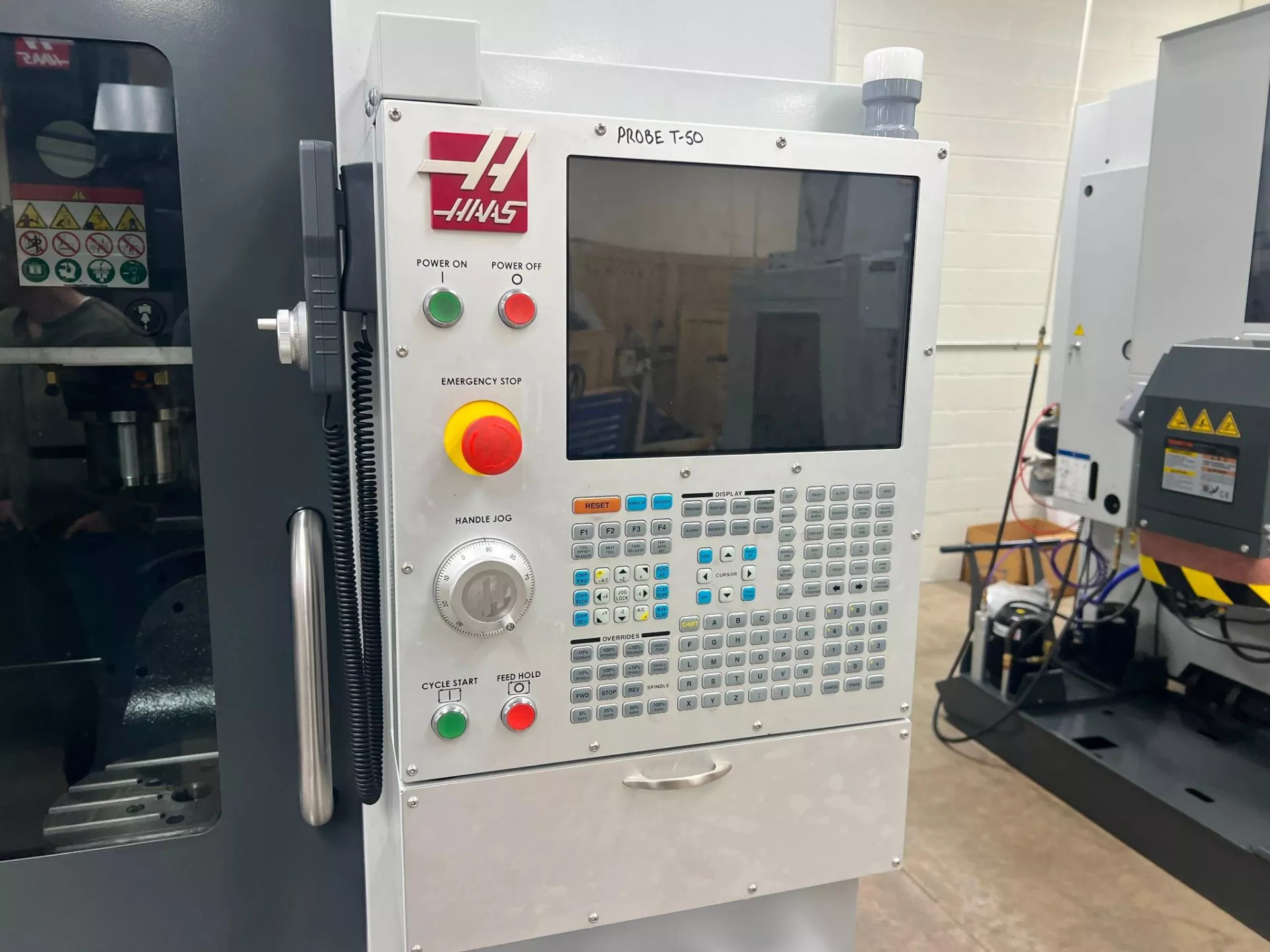

| Control: | Haas Next Generation CNC Control |
| Country of Origin: | USA |
| Features: |
|---|
| 5-Axis Simultaneous Machining |
| Through Spindle Coolant – 300 PSI (21 BAR) |
| Wireless Intuitive Probing System (WIPS) |
| WiFi Camera |
| High-Speed Side Mount Tool Changer |
| Belt-Type Chip Conveyor |
| Enclosure Exhaust System |
| 32 GB Expanded Memory |
| Air Vise Ready Provision |
| Hydraulic Vise Ready |
| Low Hours |
| Capacity: |
|---|
| Table Diameter: 15.7″ |
| Maximum Table Load Capacity: 500 lbs |
| Travels: |
|---|
| X-Axis Travel: 24″ |
| Y-Axis Travel: 16″ |
| Z-Axis Travel: 16″ |
| Spindle: |
|---|
| Spindle Speed: 15,000 RPM |
| Spindle Motor: 30 HP Vector Drive |
| Spindle Taper: CAT 40 |
| Automatic Tool Changer: |
|---|

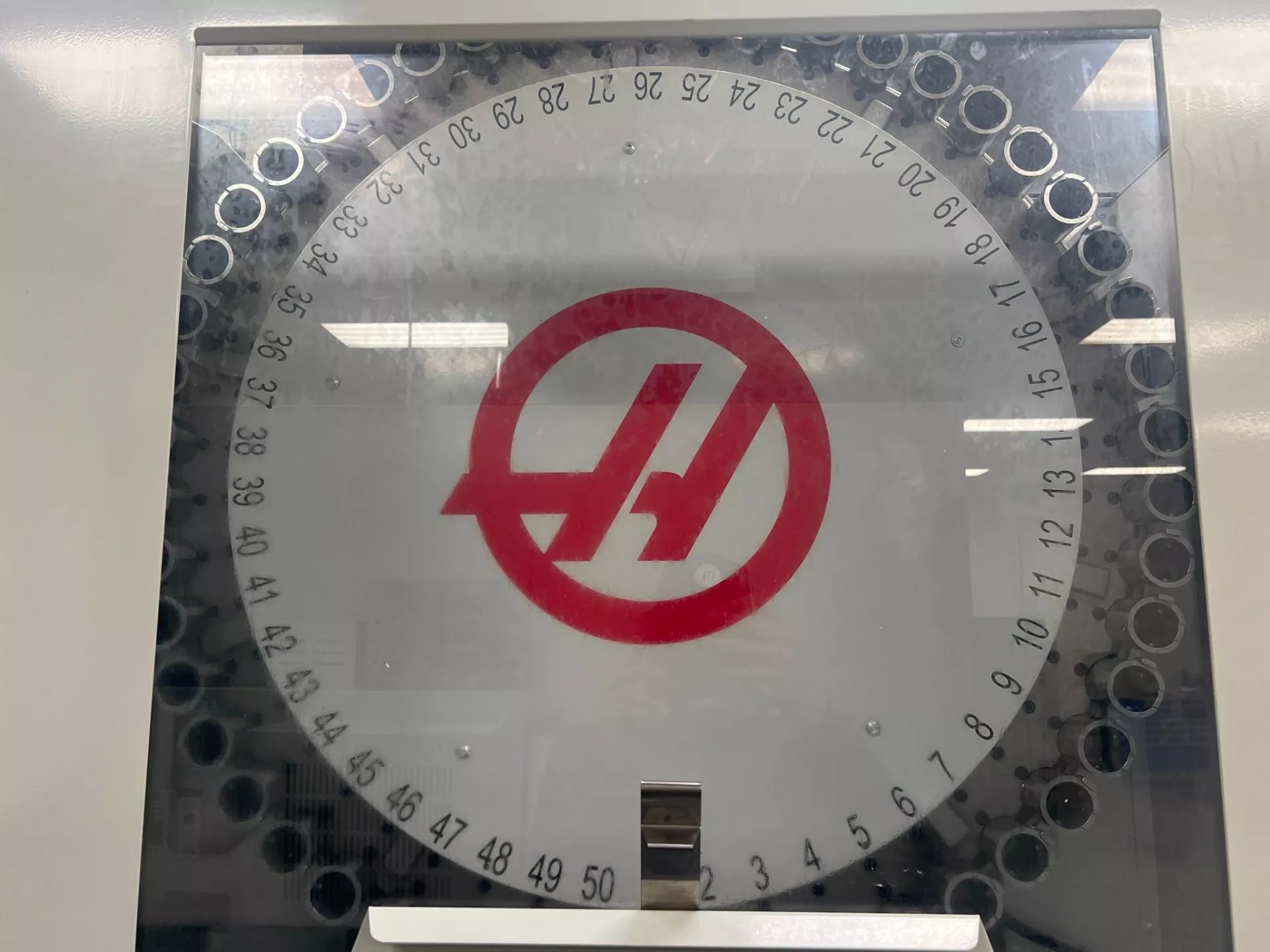

| Tool Changer Capacity: 50+1 Tools |
| High-Speed Side Mount Automatic Tool Changer |
| 40 Taper Tooling System |
| Electrical: |
|---|
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Full Load Current: 78 Amps |
| Largest Load: 69 Amps |
| General: |
|---|
| Machine Weight: Approx. 13,500 LBS |
| Overall Dimensions: Approx. 120″ x 95″ x 105″ |
| Categories | CNC Multi Axis Machining Center |
|---|---|
| Make | |
| Model | UMC-500SS |
