| Equipped With: |
|---|

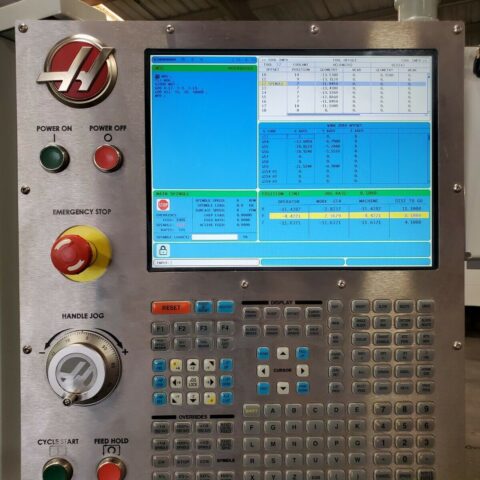

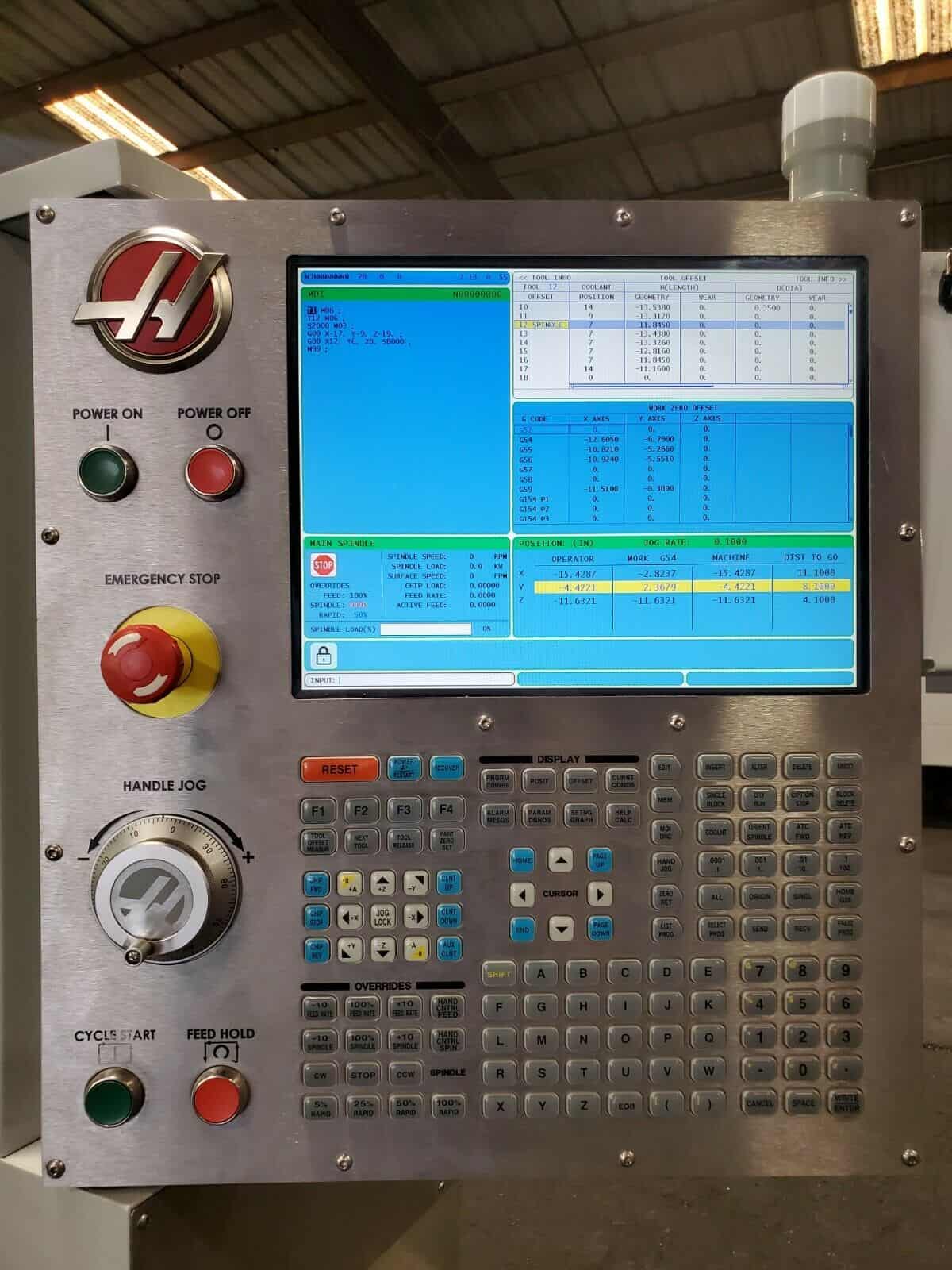

| Haas New Generation CNC Control |
| 12000 RPM Inline Direct Drive |
| 24 Side Mount Automatic tool changer |
| 1400 inch per minute rapids |
| Quick Code Porgramming |
| Coordinate Scale |
| Rigid Tapping |
| Spindle Orientation |
| Programmable Coolant |
| Tooling Shelves |
| Coolant Tank |
| Chip auger |
| Specifications: |
|---|

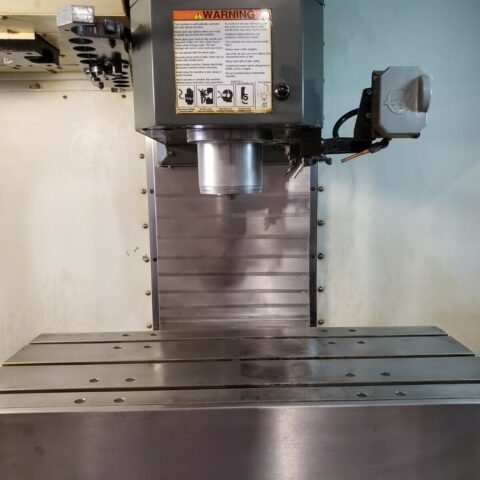

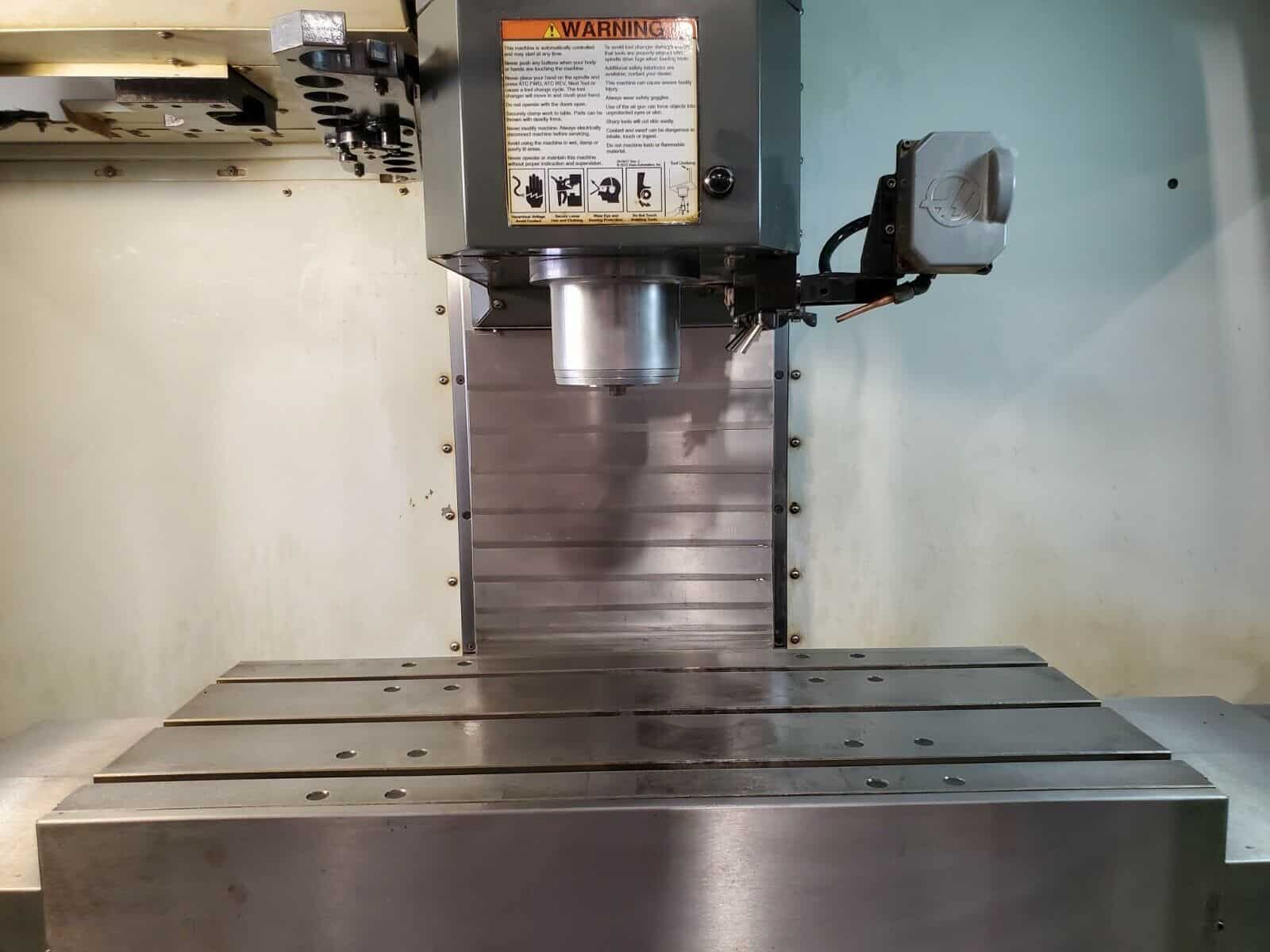

| Table: |
| Length: 36.0″ |
| Width: 14.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1500 lbs |
| Travel: |
|---|
| X-Axis: 30″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 1417 Inch Per Minute |
| Cutting Feed Rates: 630 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4.2″ – 24.2″ |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Vector Dual Drive Max Torque: 90ft-lb @ 2000RPM |

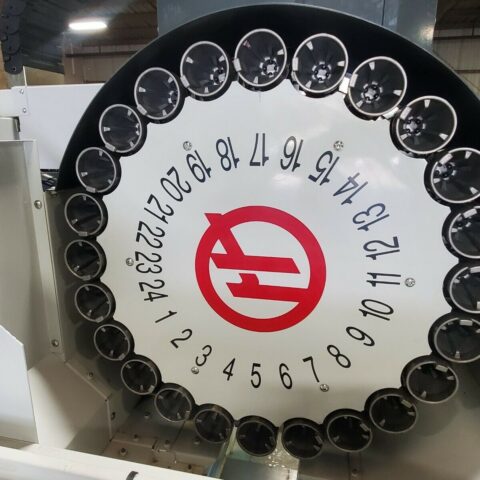

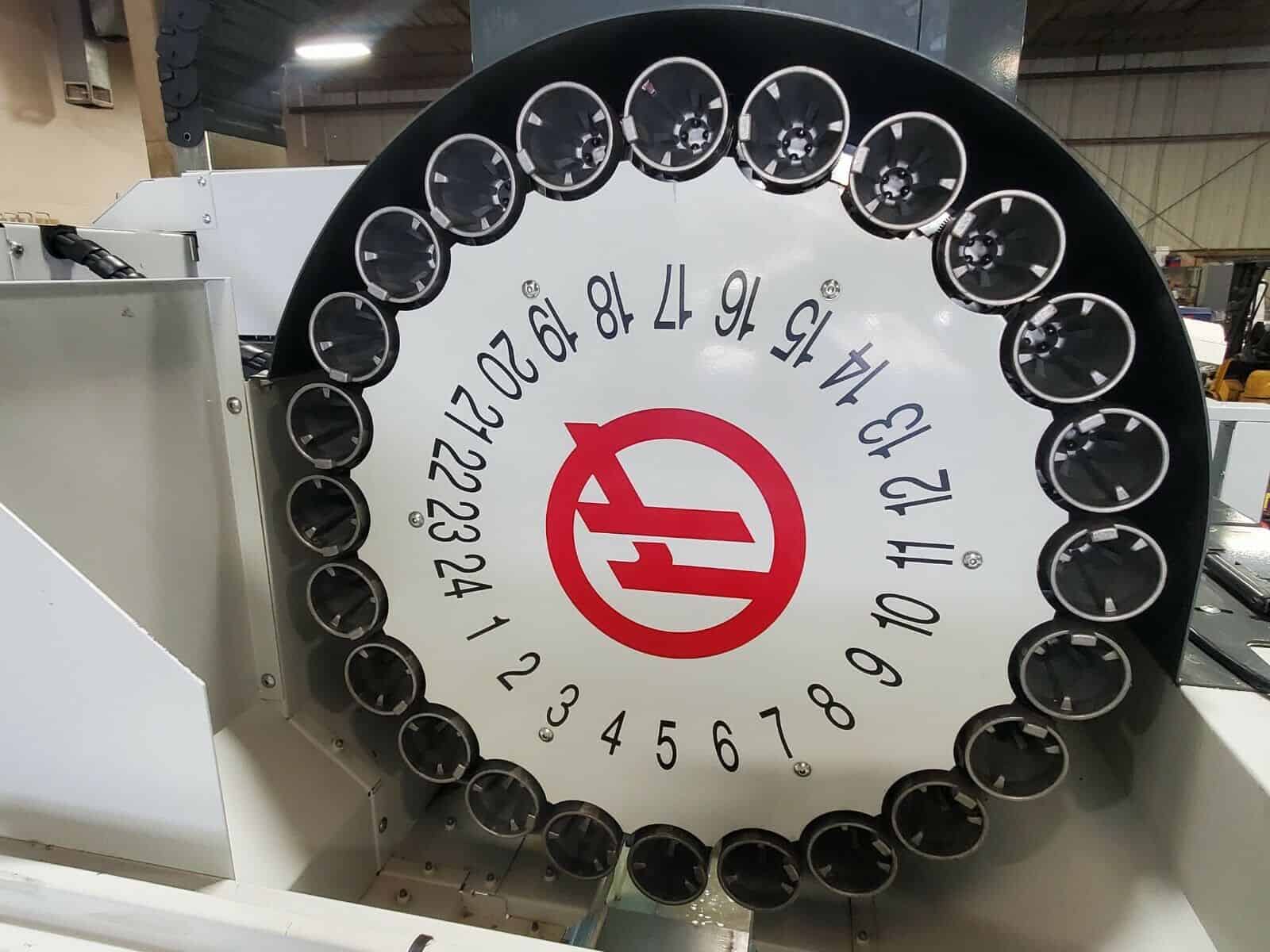

| Automatic Tool Changer: |
|---|
| Capacity: 24+1 |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 5.0″ |
| Max Tool Length: 13″ |
| Tool Changing Time: 1.6 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

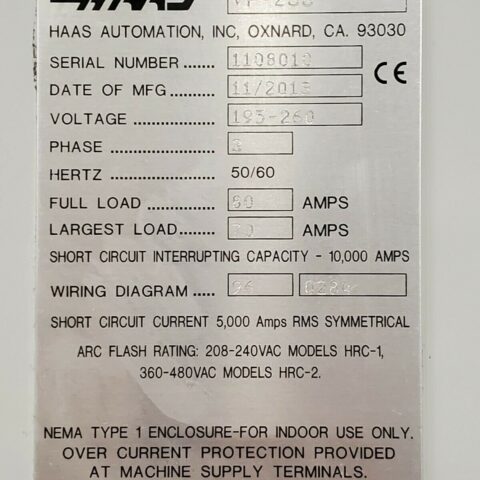

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 90″ x 92″ x 100″ High |
| Weight: 9200 lbs |
