*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

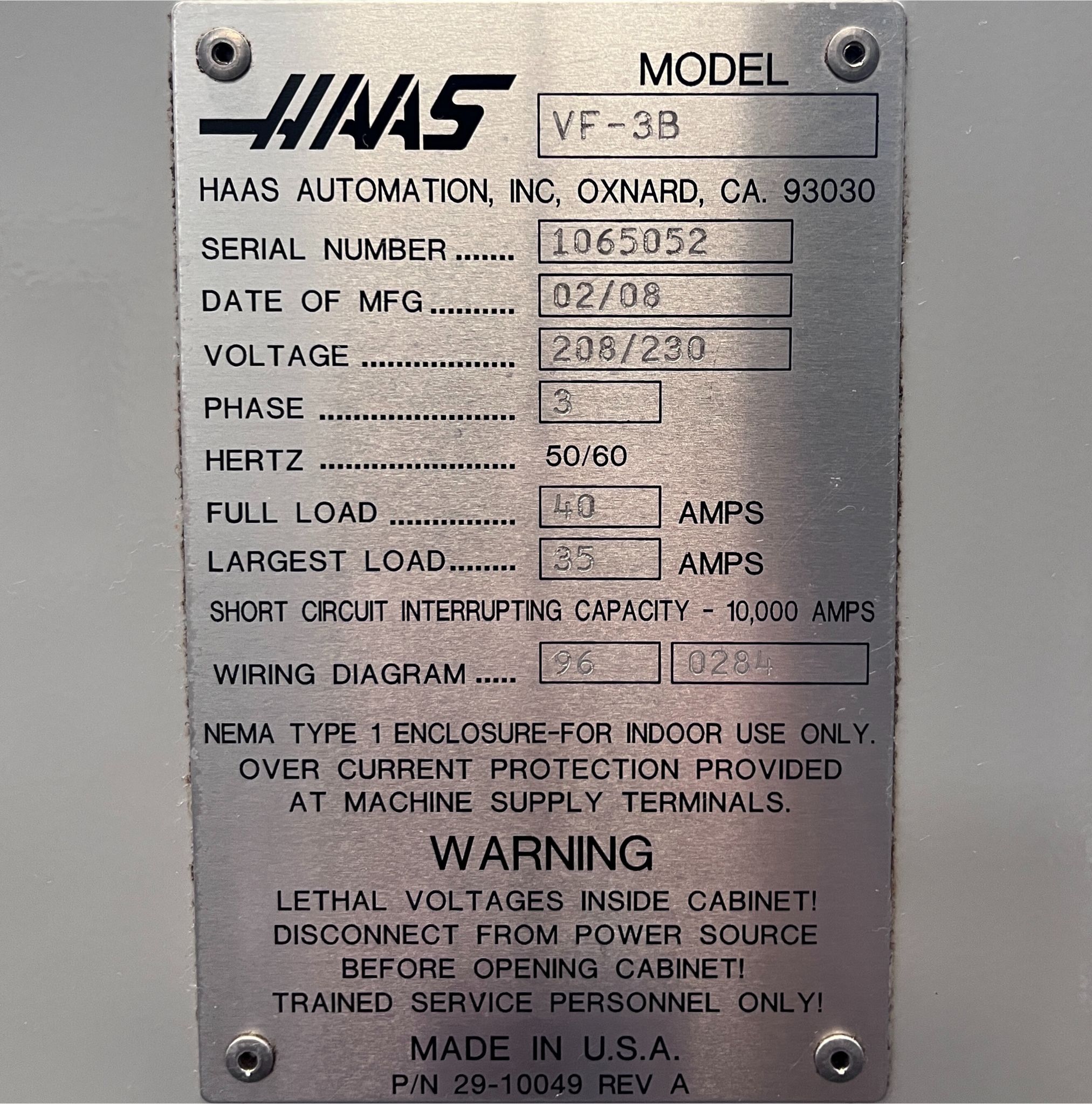

| Make: | Haas |
| Model: | VF3B |
| Year: | 2008 |
-

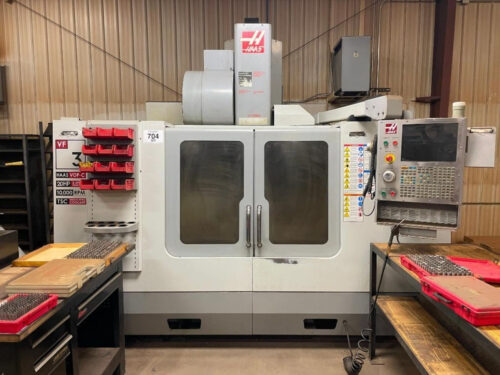

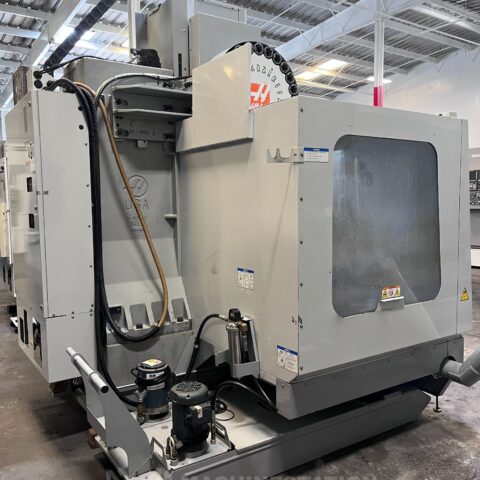

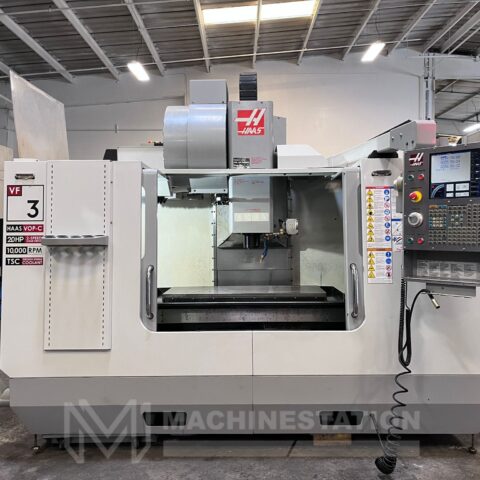

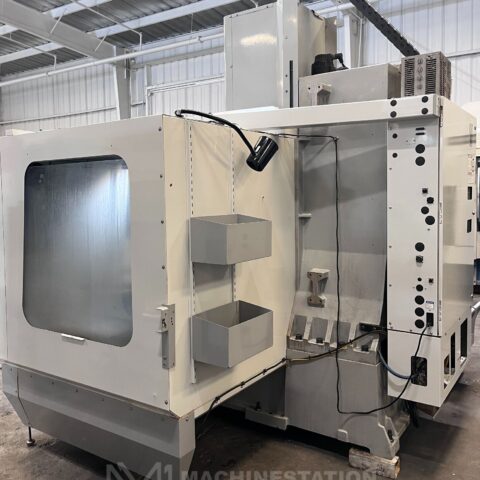

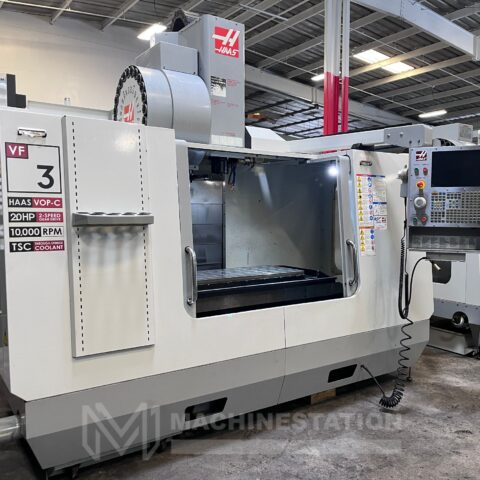

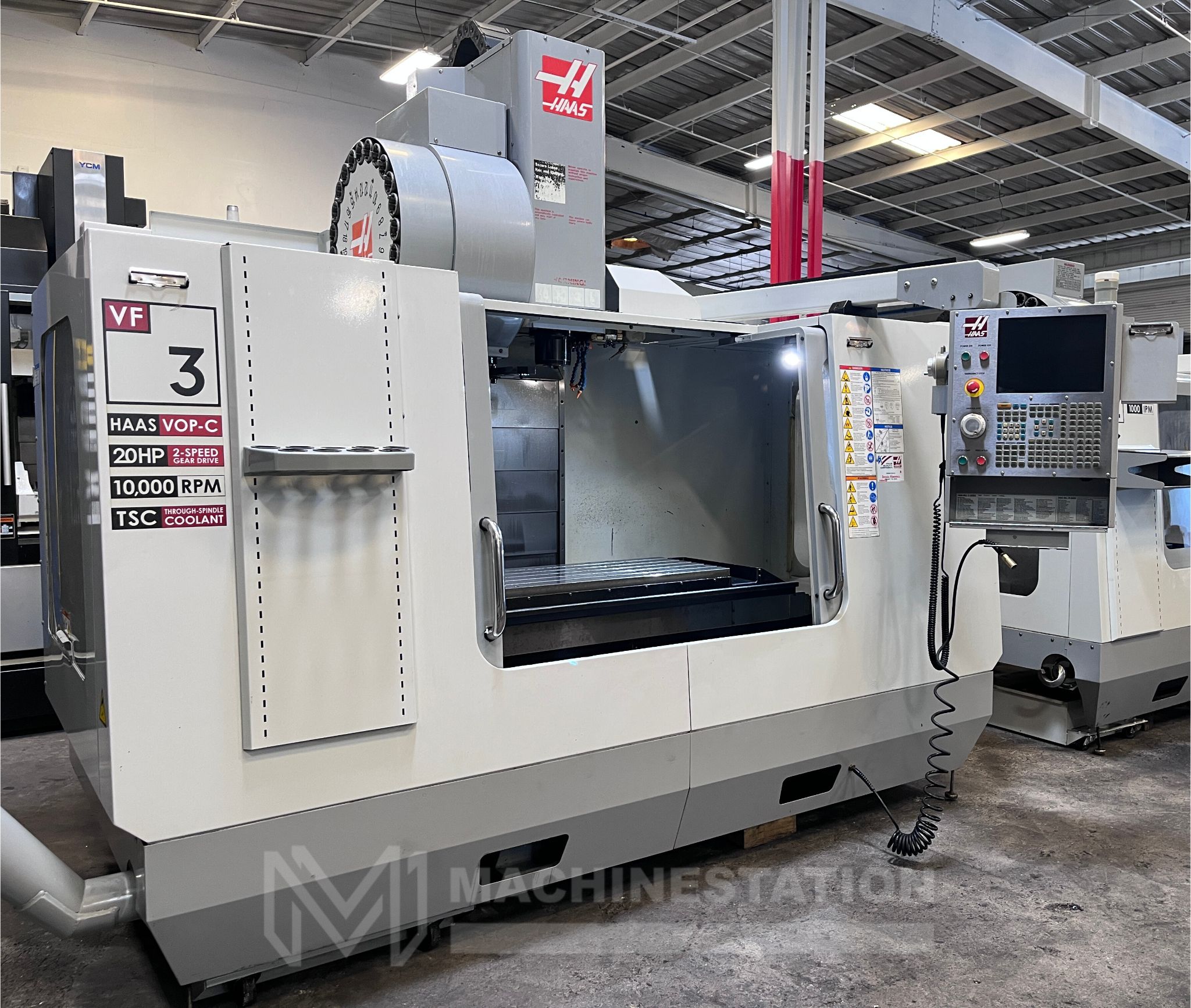

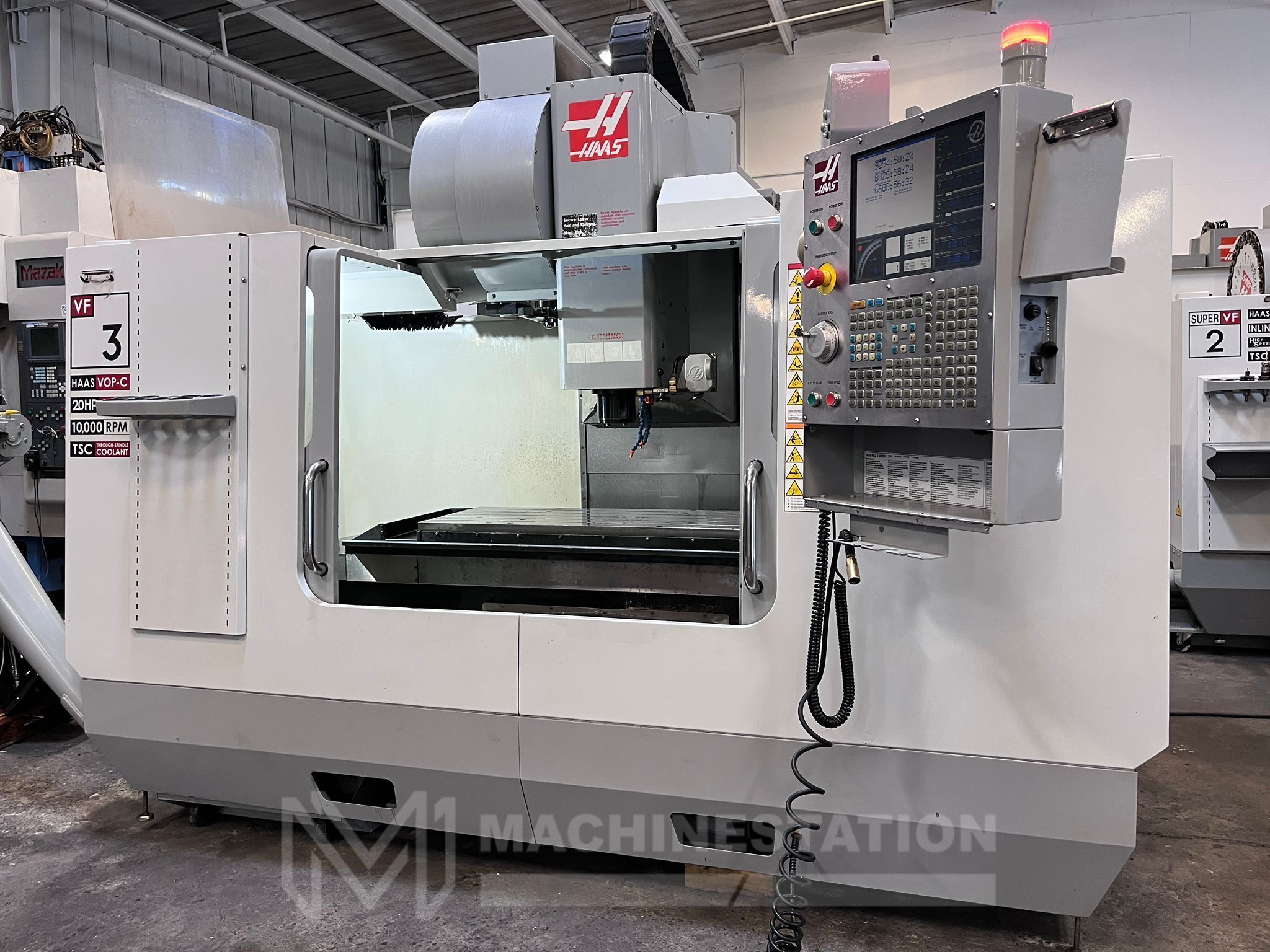

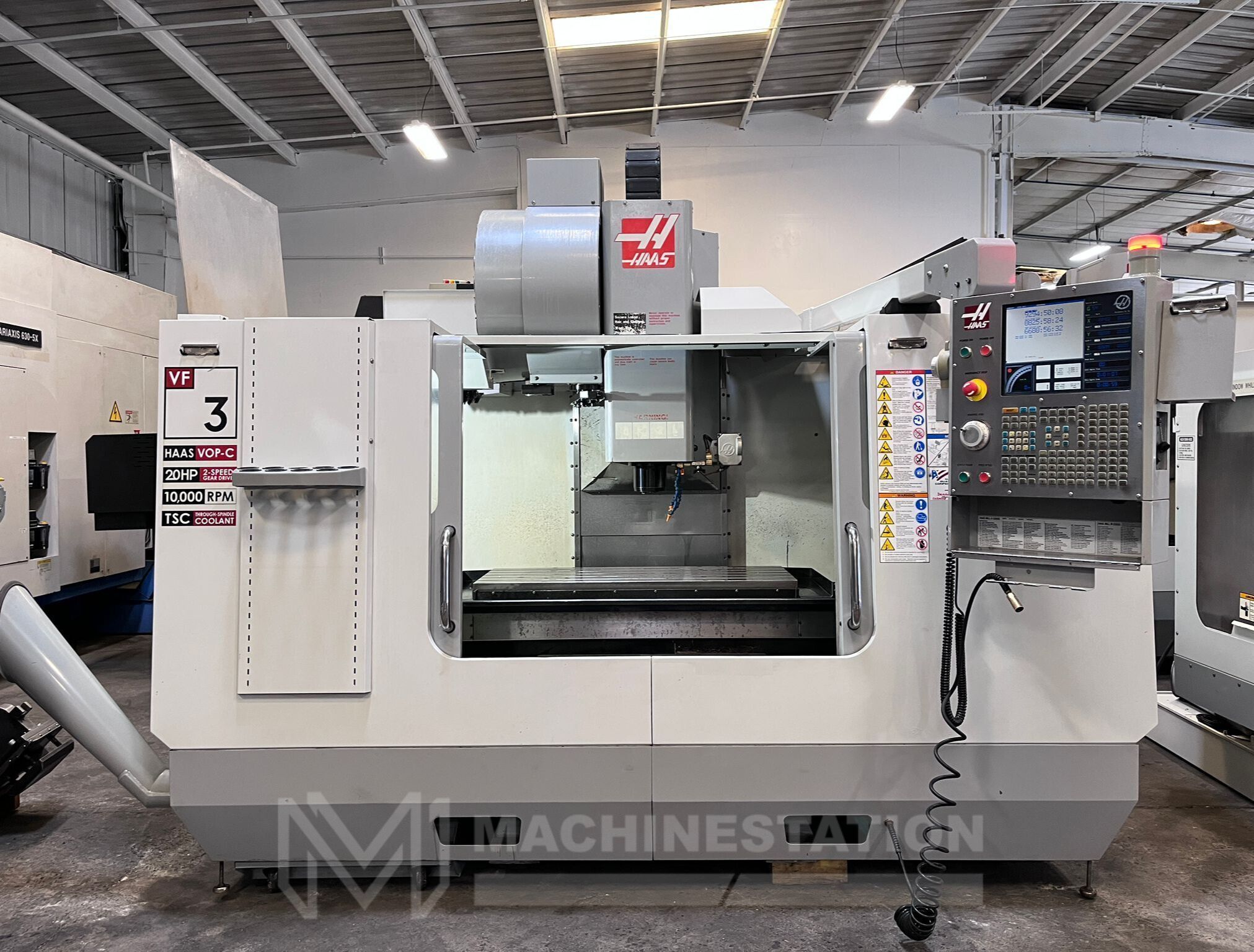

Key Features of the Haas VF-3B

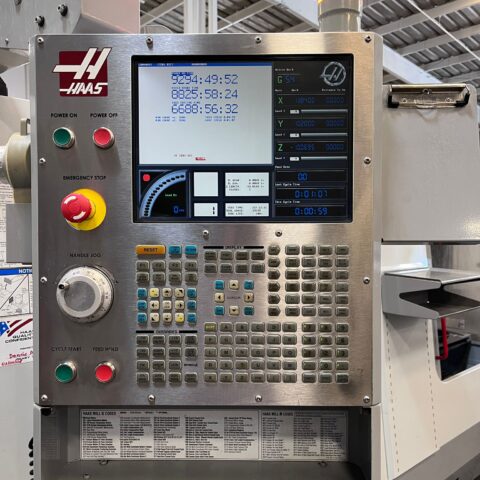

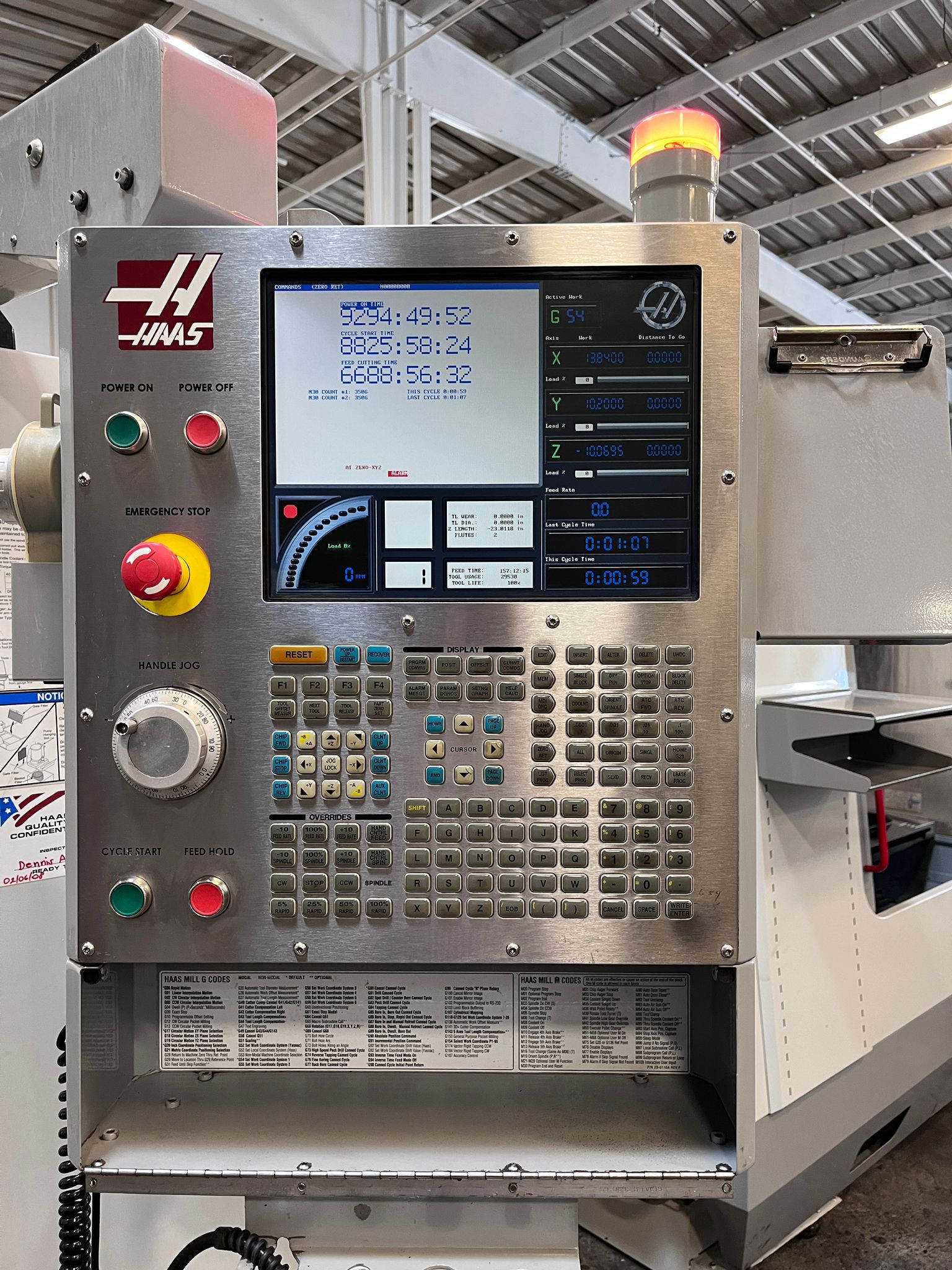

- Haas CNC Control
- Haas VOP-C Package
- 10,000 RPM High-Speed Spindle

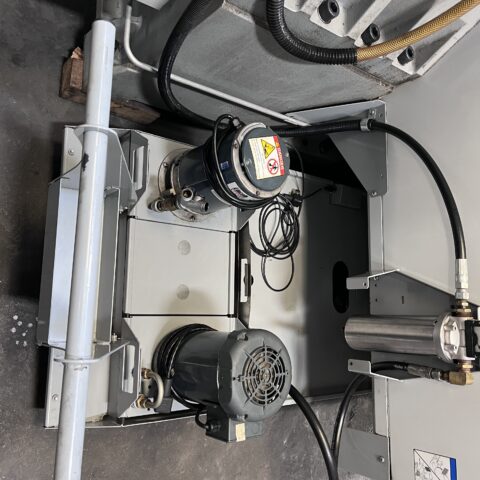

- Through Spindle Coolant
- 24 Station Automatic Tool Changer
- 20 HP 2-Speed Gear Drive
- Programmable Coolant Nozzle
- MPG Hand Wheel Control
- Rigid Tapping

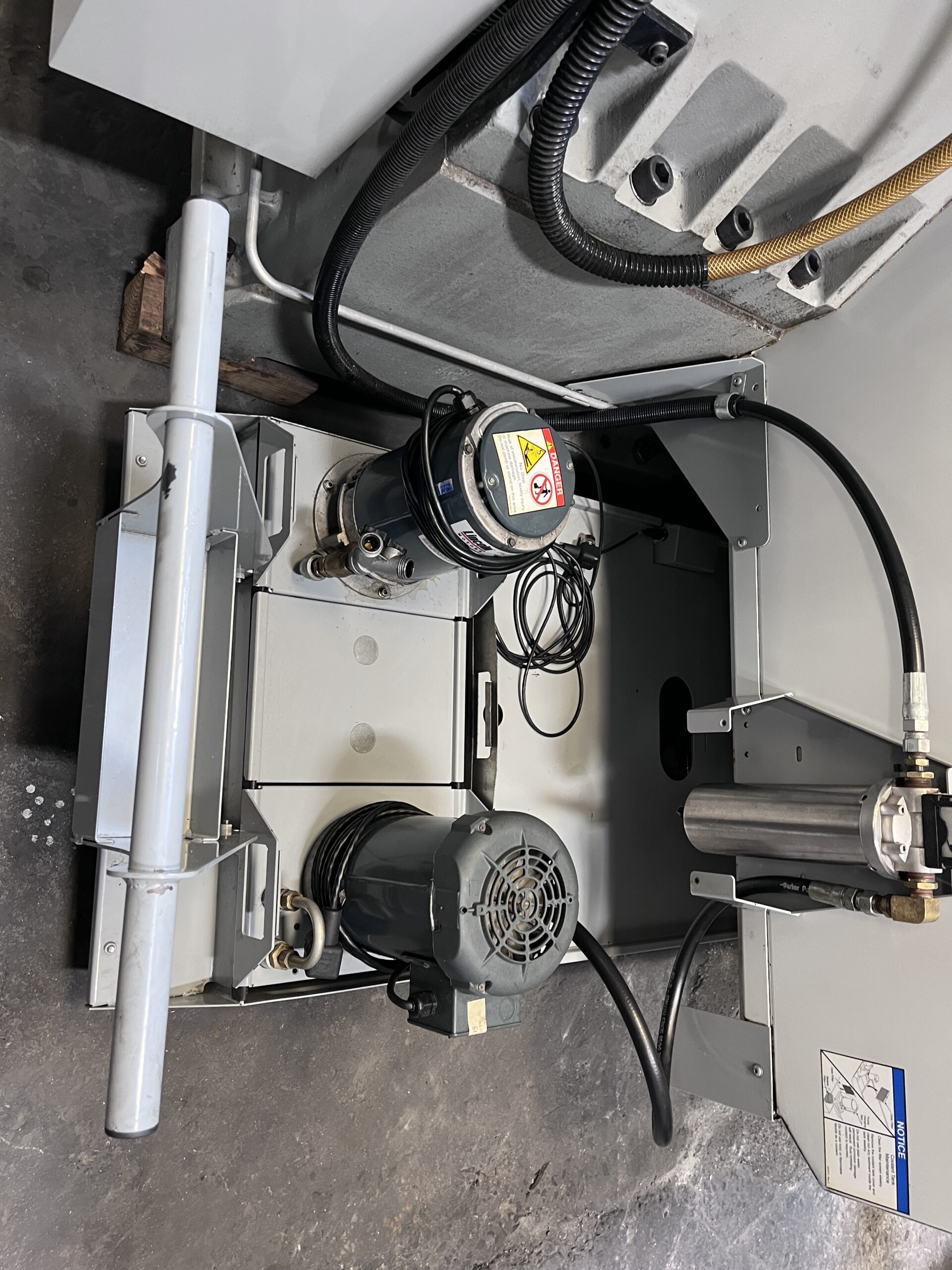

- Coolant System
- Chip Auger
-
Travel:
- X-Axis: 40″
- Y-Axis: 20″
- Z-Axis: 25″
- Rapid Traverse Rates: 1000 Inch Per Minute
- Cutting Feed Rates: 650 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″
-

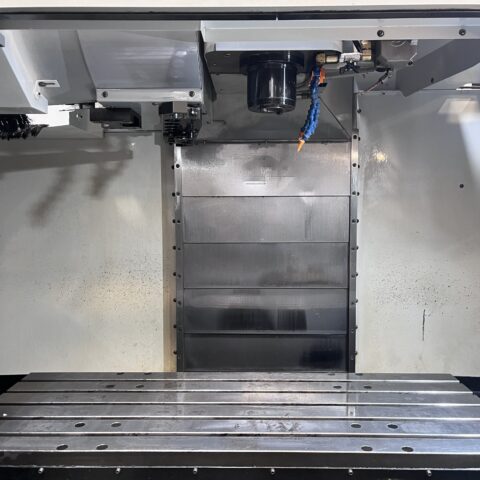

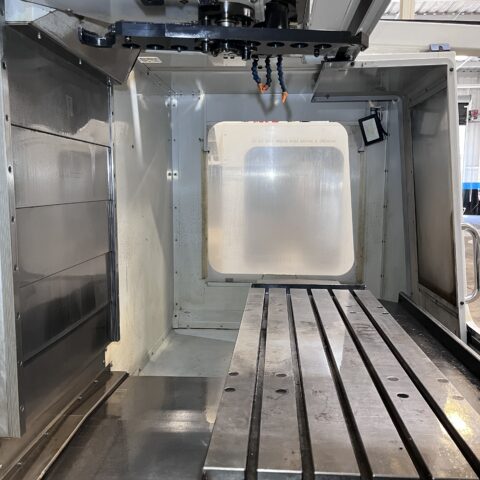

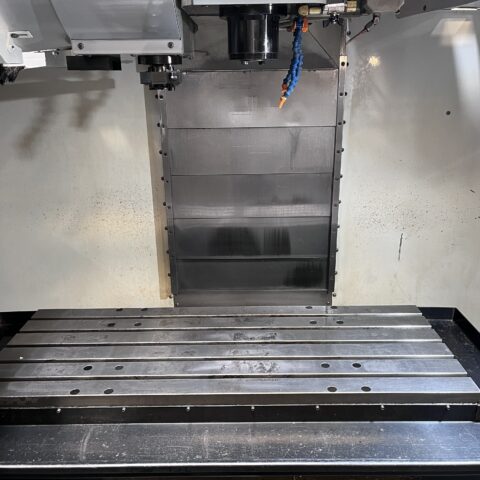

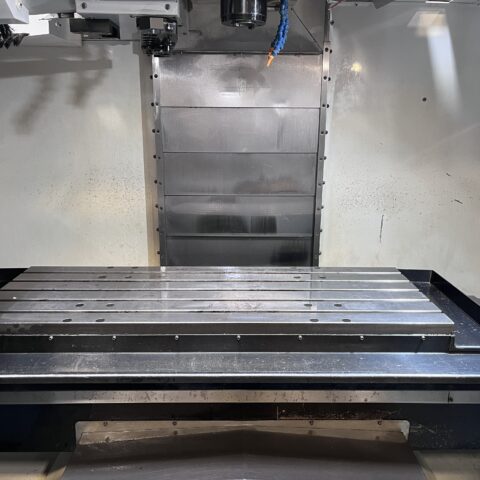

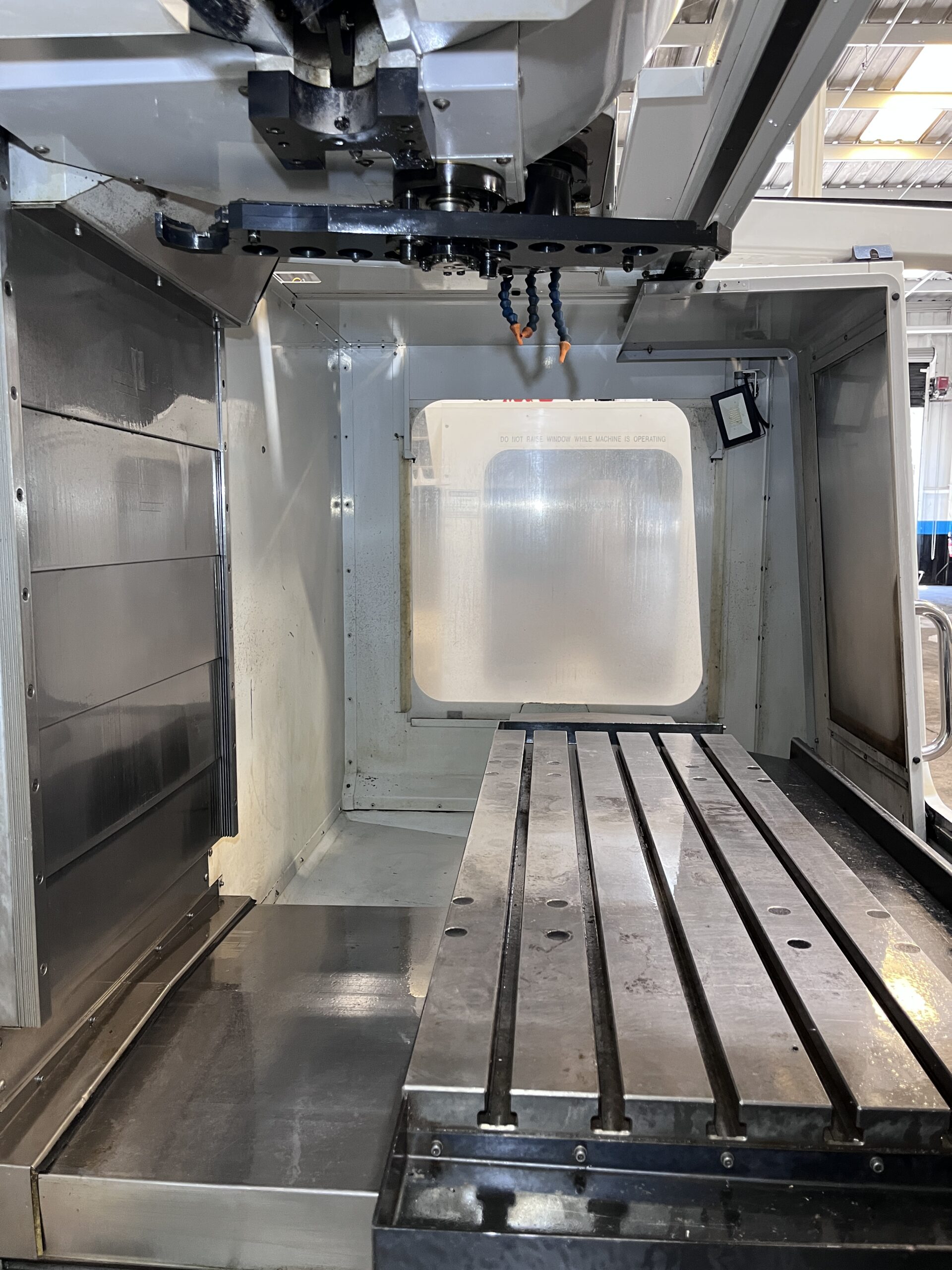

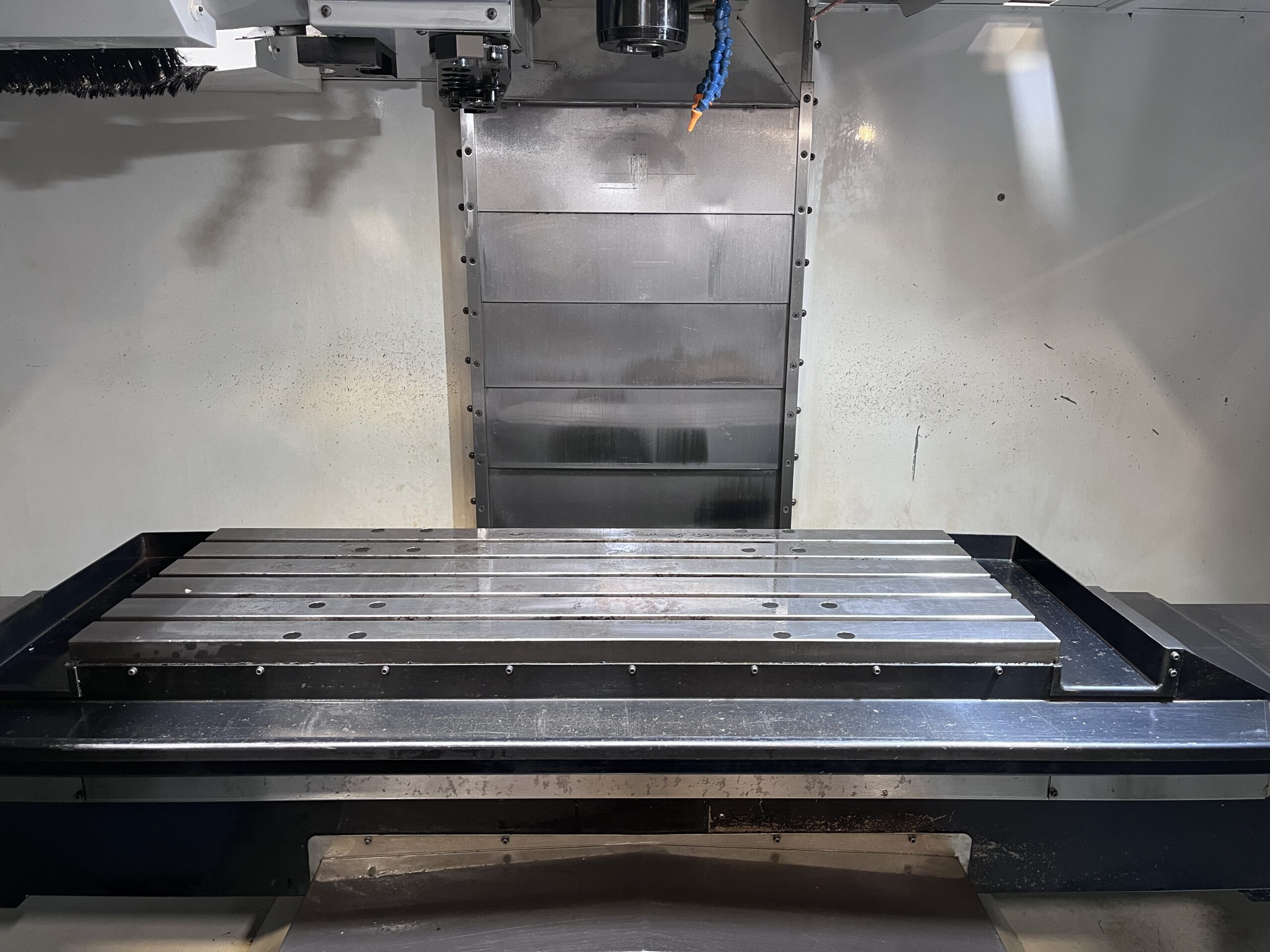

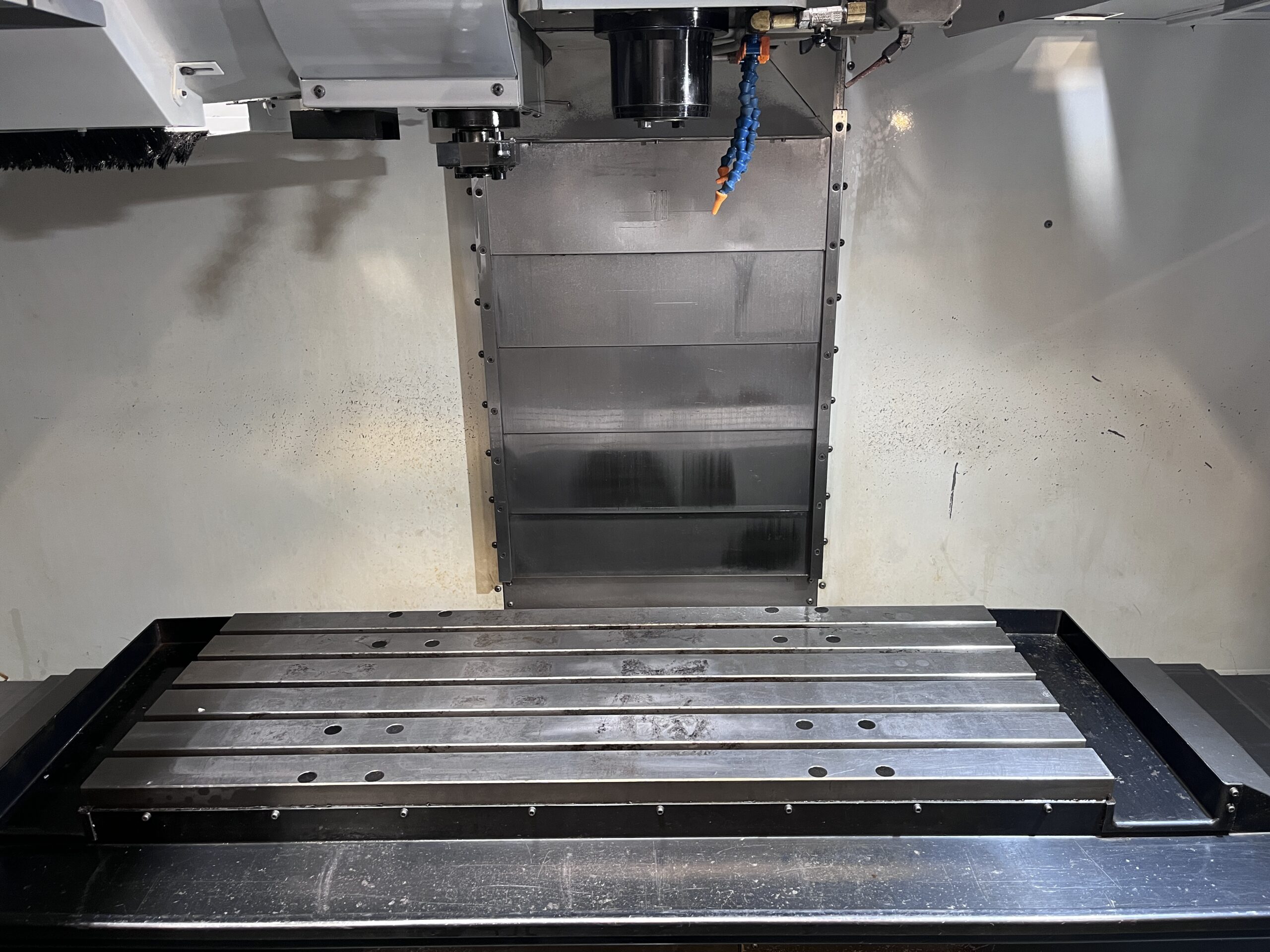

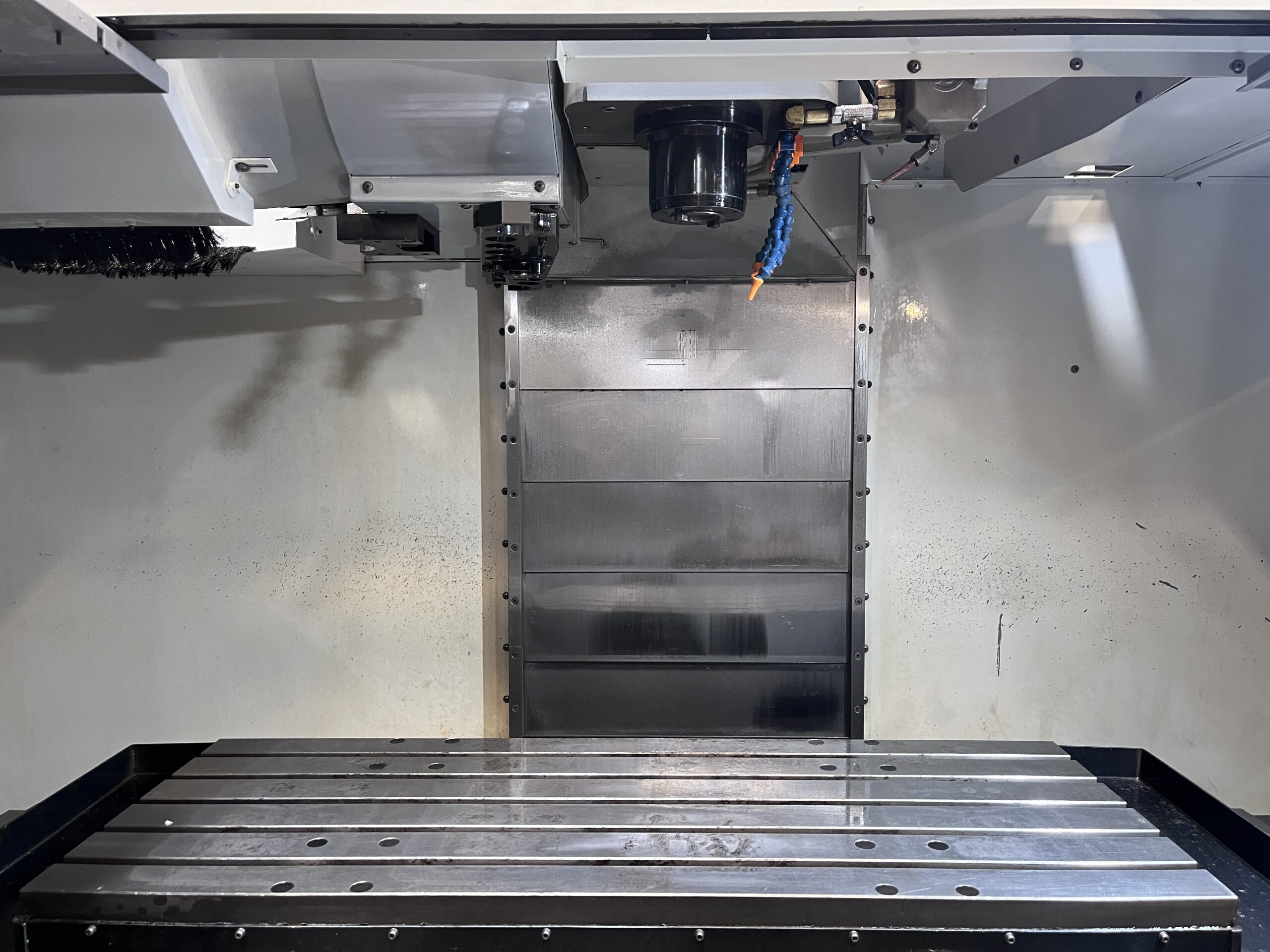

Table:
- Length: 48″
- Width: 18″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 3500 lbs
-

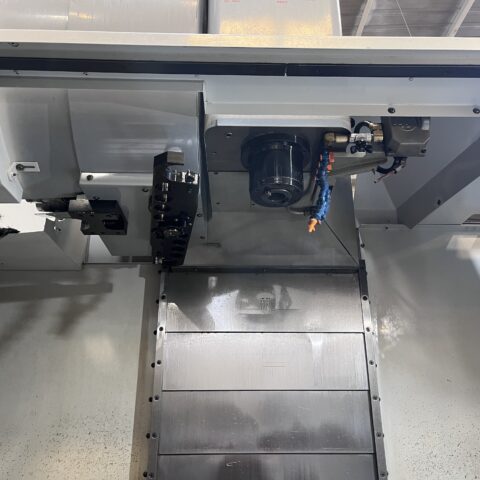

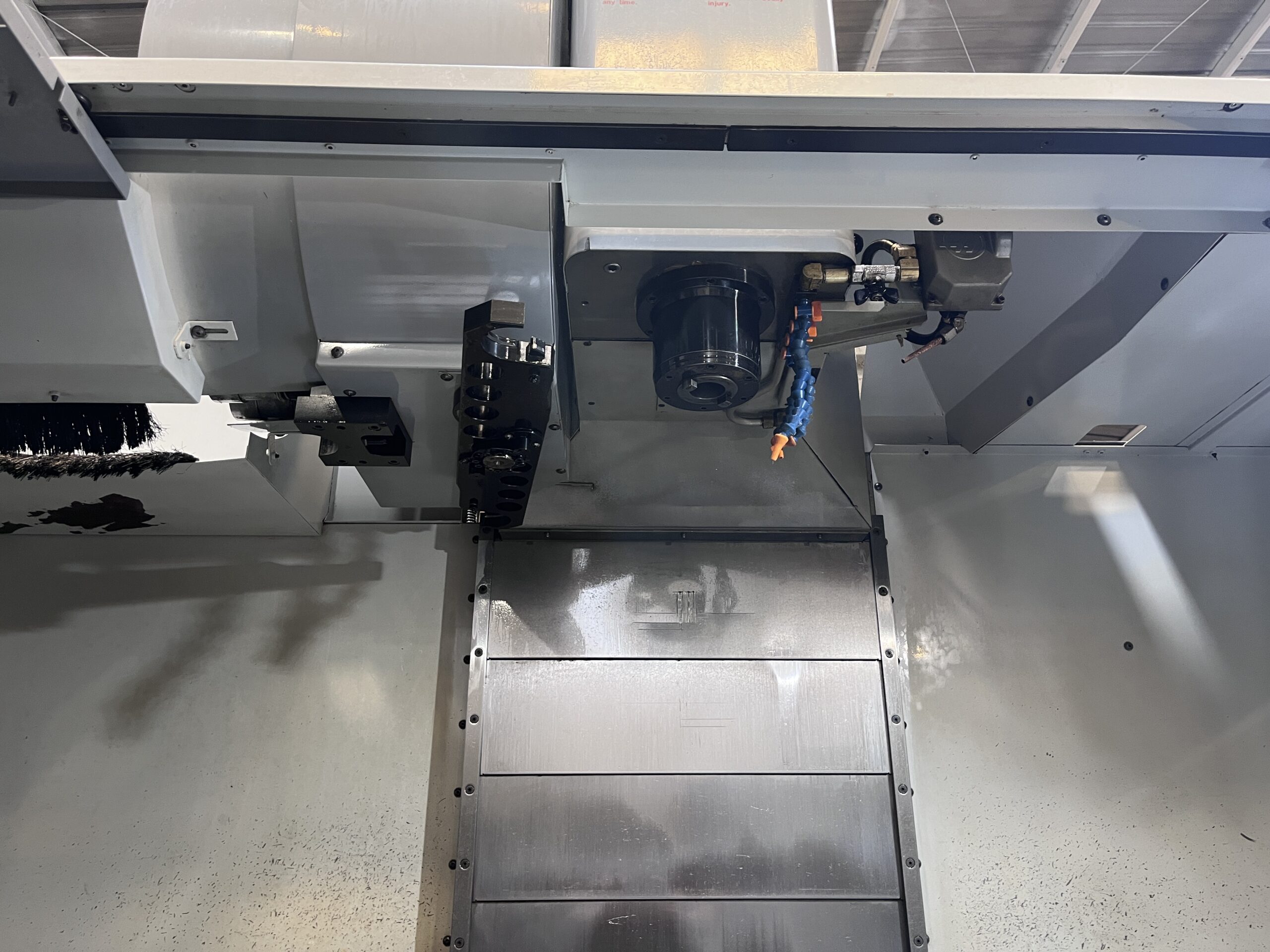

Spindle:
- Taper Size: 40
- Speed Range: 10,000 RPM
- Spindle Power: 20 HP
-

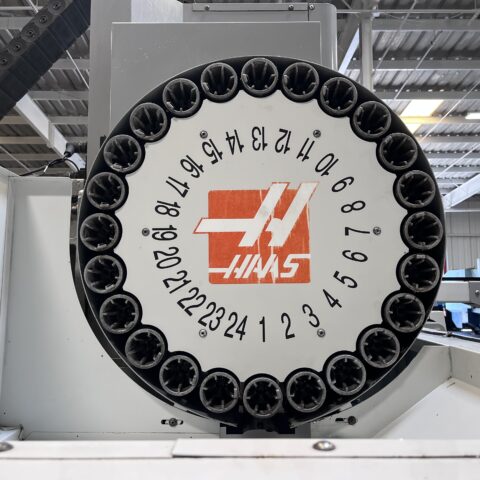

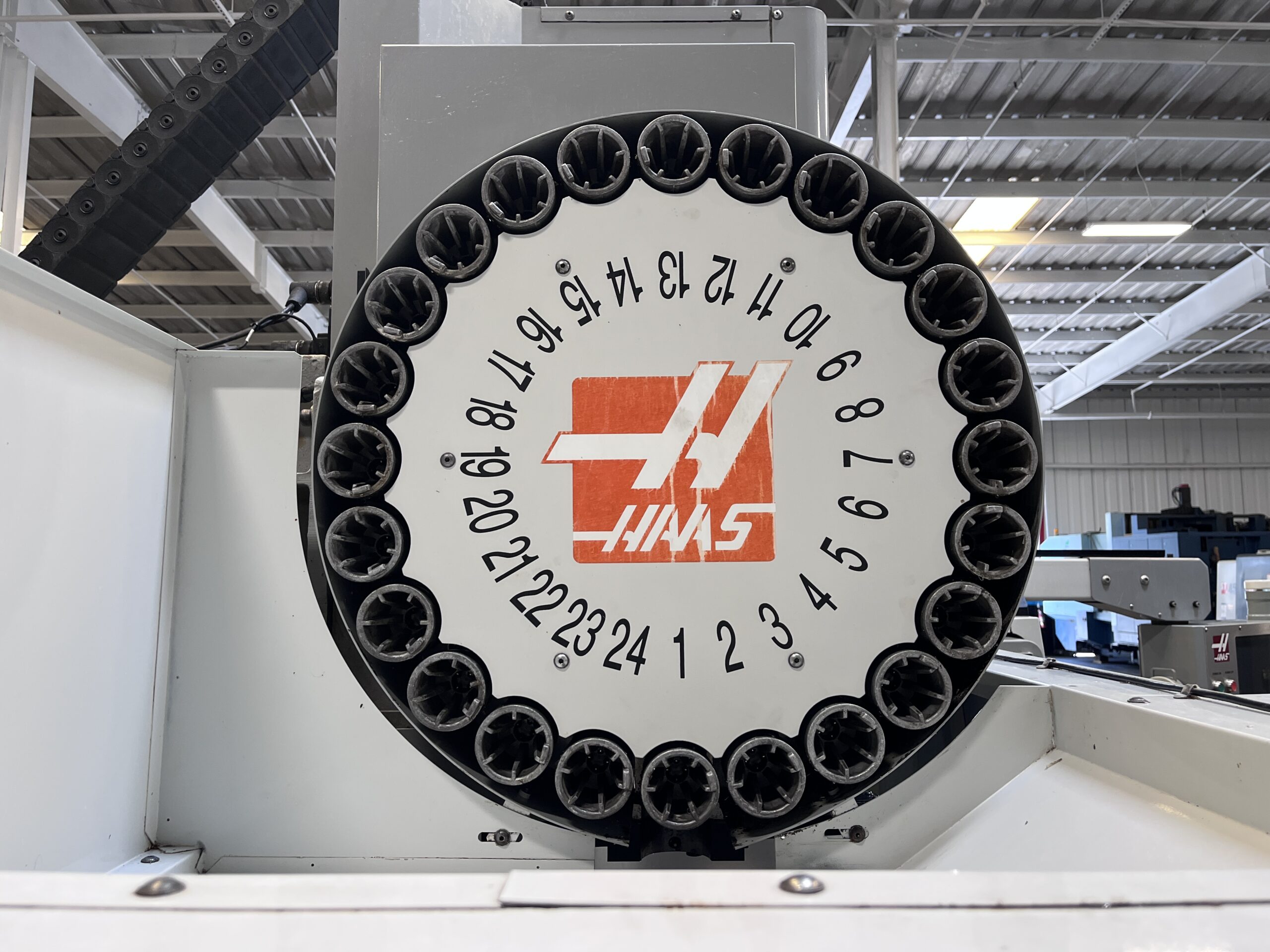

Automatic Tool Changer:
- Capacity: 24 Tools
- Max Tool Weight: 12 lbs
- Max Tool Dia: 2.5″ – 5.0″
- Max Tool Length: 13″
- Tool Changing Time: 1.80 Seconds
-
General:
- Air Required: 100 psi 4 scfm

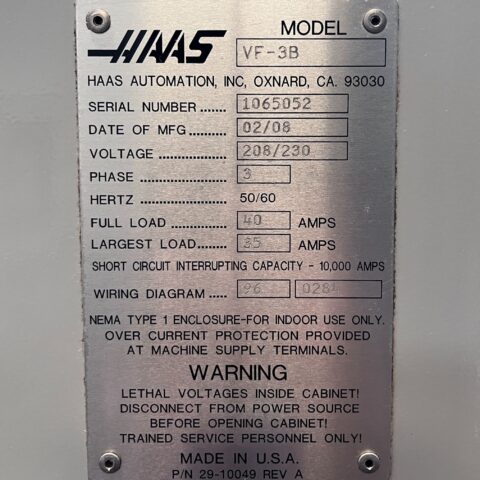

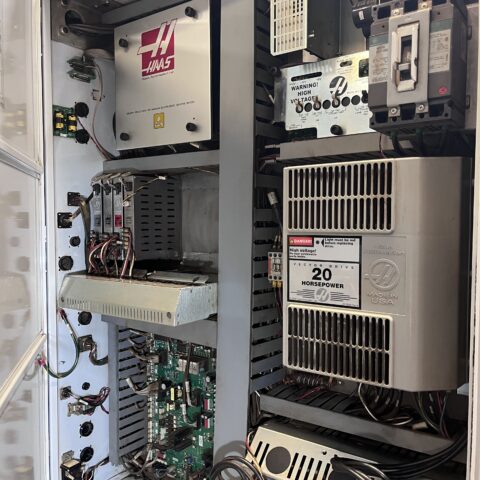

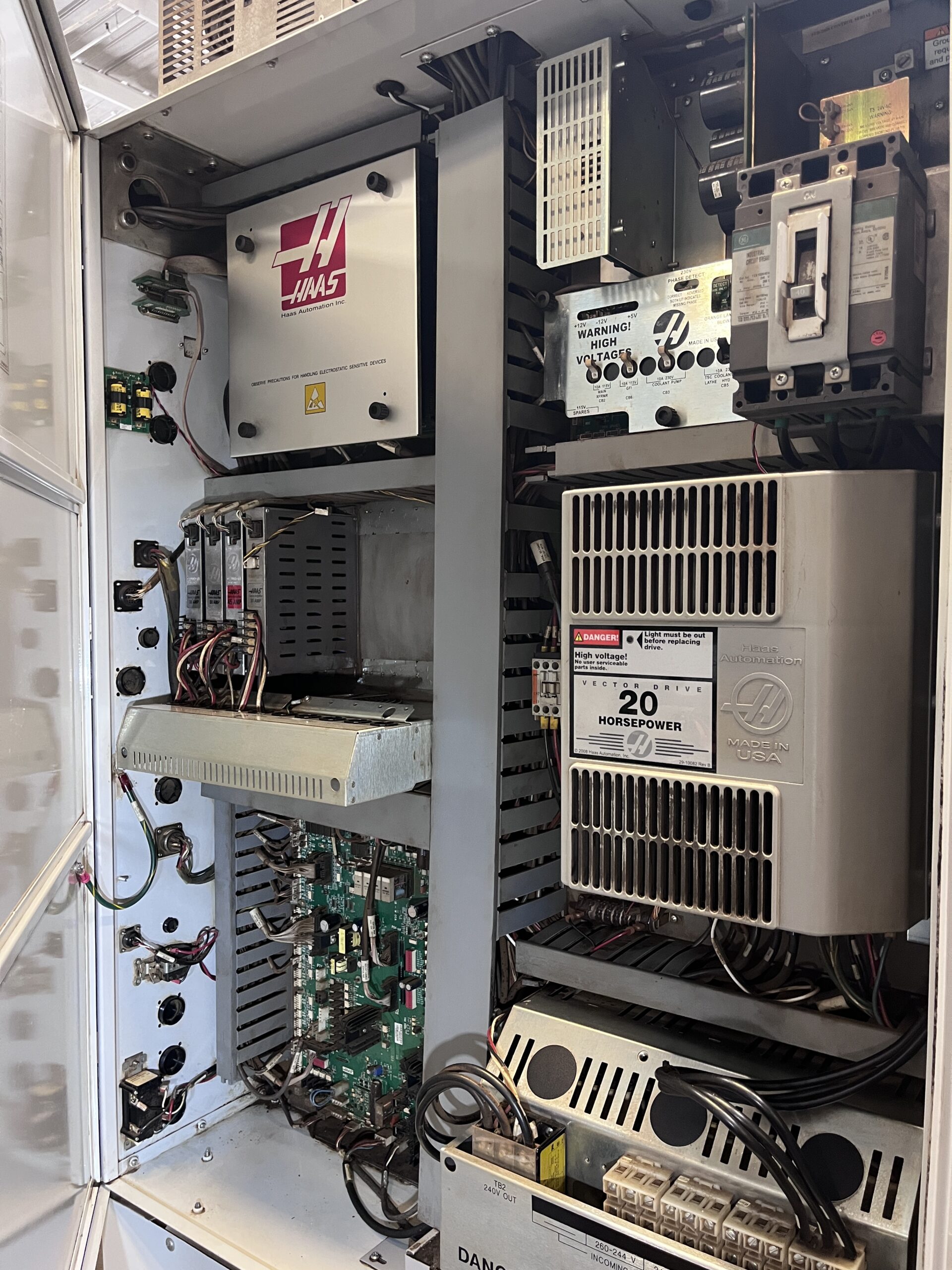

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 152″ x 99″ x 106″ High Approx.
- Weight: 11,720 lbs Approx.
