Haas VF-3B Vertical Machining Center

Haas VF-3B Vertical Machining Center – 4th Axis Rotary

SKU 11530

Make/Model Haas VF-3B

Year 2013

Video On Request

Out of stock

SKU:	11530
Make/Model:	Haas VF-3B
Year:	2013
Video:	On Request

SKU: 11530

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Haas
Model:	VF-3B
Year:	2013
Machine Type:	CNC Vertical Machining Center

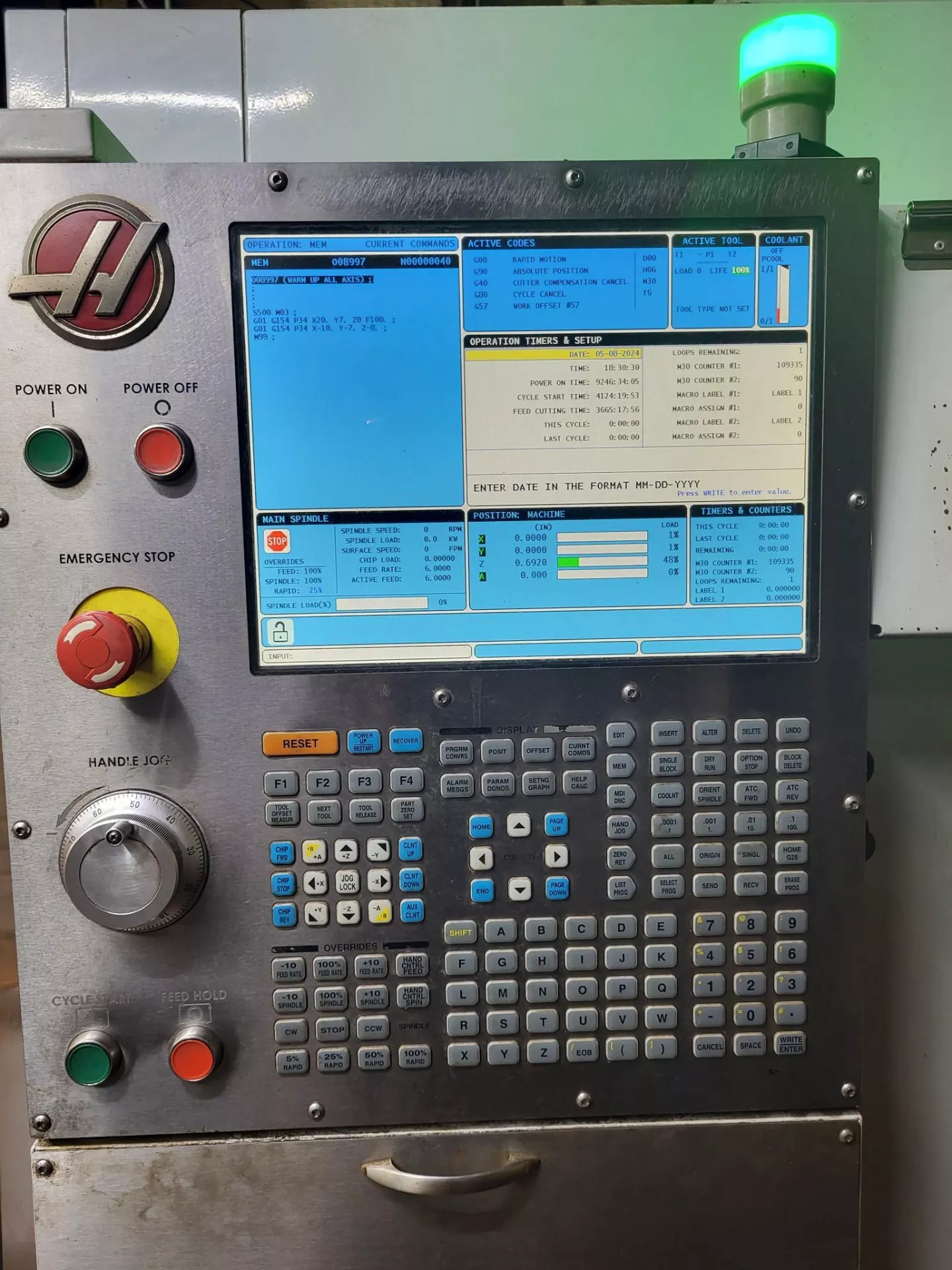

Control:	Haas CNC Control
Country of Origin:	USA

Features:
24-Tool Automatic Tool Changer
Haas HRT-210 4th Axis Rotary Table
Chip Auger
Programmable Coolant Nozzle
Remote Jog Handle
Rigid Tapping
Flood Coolant System
Full Enclosure
Side-Mount Control Pendant

Capacity:
Table Size: 18″ x 48″
Maximum Table Load: 3,500 Lbs Approx.
Number of Axes: 3 Axis

Travels:
X-Axis Travel: 40″
Y-Axis Travel: 20″
Z-Axis Travel: 25″

Spindle:
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: CT/BT 40
Spindle Nose to Table Max Distance: Approx. 29″
Spindle Nose to Table Min Distance: Approx. 4″

Automatic Tool Changer:
Tool Capacity: 24 Tools
Tool Changer Type: Carousel Style
Maximum Tool Diameter: Approx. 3″
Maximum Tool Weight: Approx. 12 Lbs

Rotary Table:
Haas HRT-210 4th Axis Rotary Table
Rotary Table Diameter: 8″
4th Axis Ready

Feed Rates:
Rapid Traverse Rate: Approx. 1,000 IPM
Cutting Feed Rate: Approx. 650 IPM

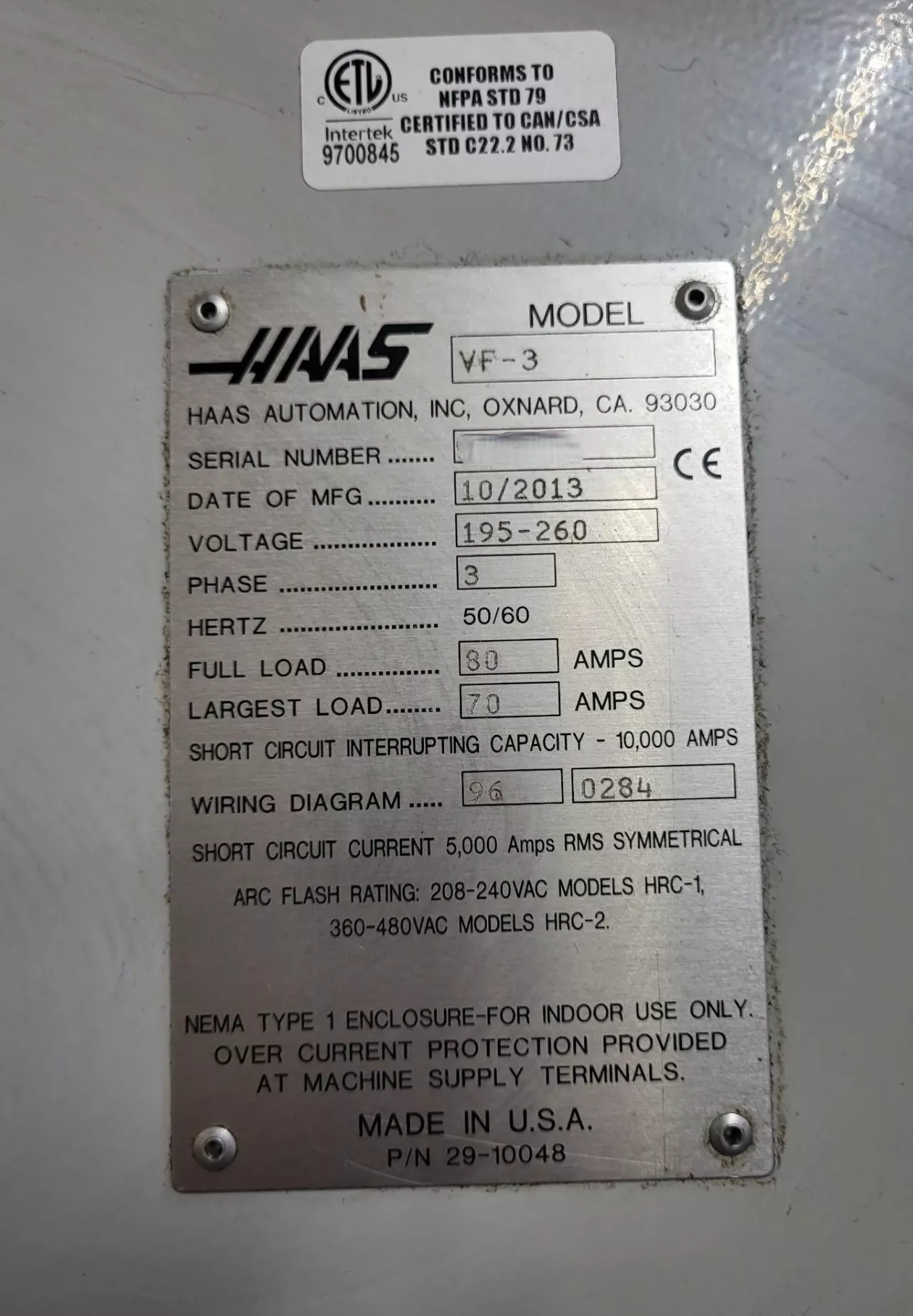

Electrical:
Voltage: 195-260 Voltage
Phase: 3 Phase
Frequency: 50/60 Hz
Full Load Current: 80 Amps
Largest Load Current: 70 Amps

General:
Machine Weight: Approx. 11,720 Lbs
Made in USA
Overall Dimensions: Approx. 122″ x 101″ x 110″

Categories	CNC Vertical Machining Center
Make	Haas
Model	VF-3B

Payment Terms

A booking advance secures this machine, with the balance due prior to loading. We accept bank transfer, Stripe, and Letter of Credit for qualifying export orders.
