| HAAS VF 3D VERTICAL MACHINING CENTER | |
|---|---|
| Make | Haas |
| Model No. | VF-3D |
| Year of Manufacture: | 08/2007 |
| Serial # | 1060675 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
“This One Owner machine is 4th Axis Ready and loaded with many features. On Our Floor fully powered / tested & is in Great working condition. ”
- HAAS VF 3D Equipped With:
- 4th Axis Ready (Drive and Cables Installed)
- High Speed Machining Enabled
- Negative Work Offset Enabled
- Advanced Tool Management Enabled

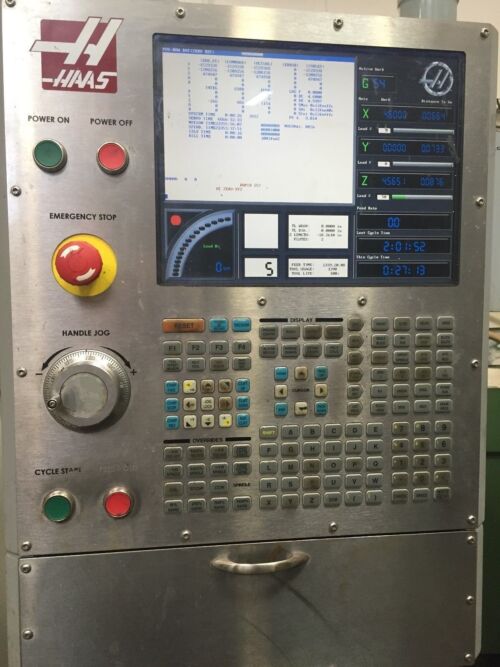

- Haas VOP-D Package
- 7500 RPM Spindle
- 1000 Inch Per Minute
- 20HP High Torque Spindle
- USB Drive
- Brushless Servo Motors
- Full Enclosure
- Rigid Tapping
- 20 Tool Automatic Tool Changer
- Quick Code Programming
- Chip Auger
- Extended Memory
- HAAS VF 3D Specifications:
- Travels:
- X-Axis: 40″
- Y-Axis: 20″
- Z-Axis: 25″
- Rapid Traverse Rates: 1000 Inch Per Minute
- Cutting Feed Rates: 650 IPM
- Spindle Nose to Table (Min.- Max.): 4″ – 29″

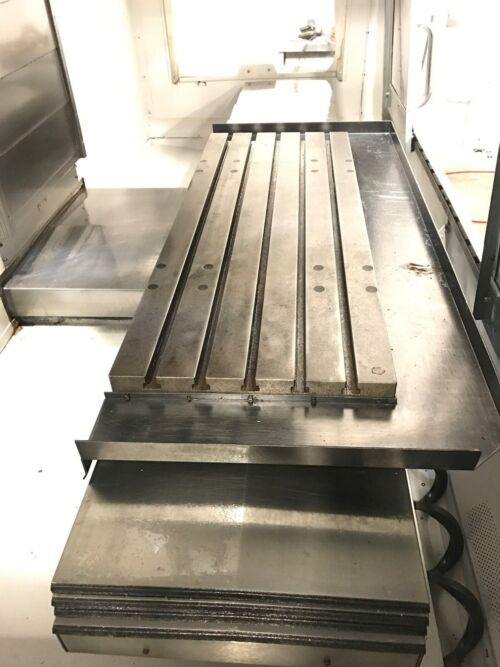

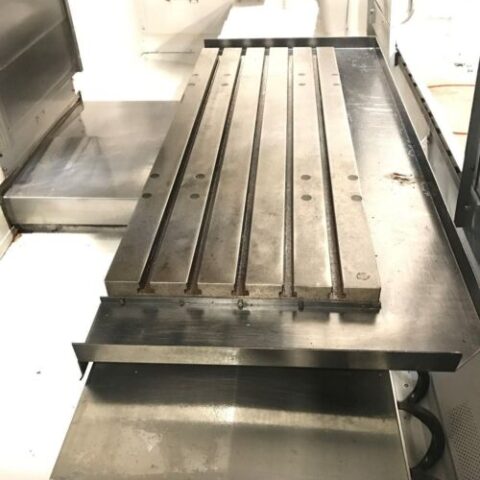

- Table:
- Length: 48″
- Width: 18″
- Max Weight on Table: 3500 lbs

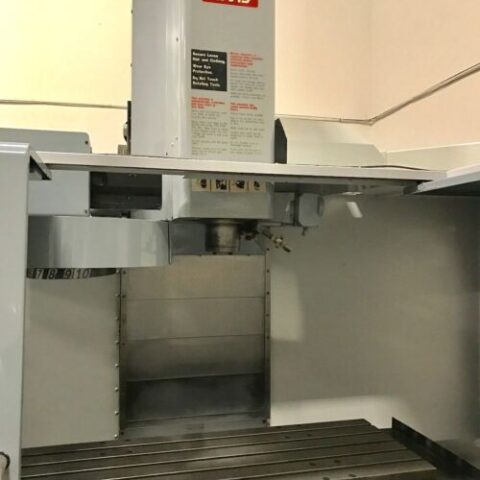

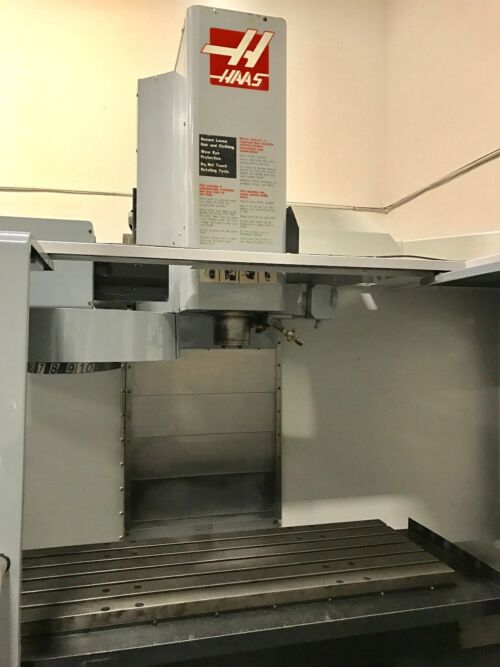

- Spindle:
- Taper Size: No. 40
- Speed Range: 60 – 7500 RPM
- Spindle Power: 20 HP
- Automatic Tool Changer:
- Capacity: 20
- Max Tool Weight: 12 lbs
- Max Tool Length: 16″
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 120″ x 110″ x 105″ High
- Weight: 12500 lbs

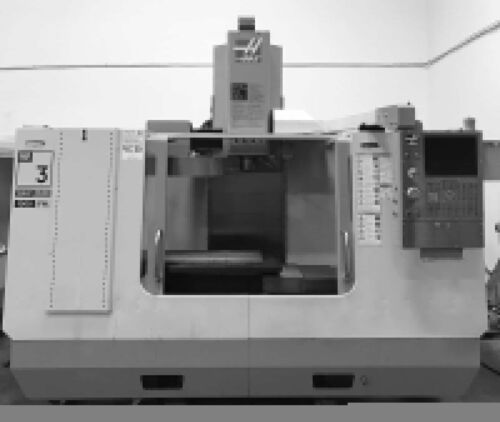

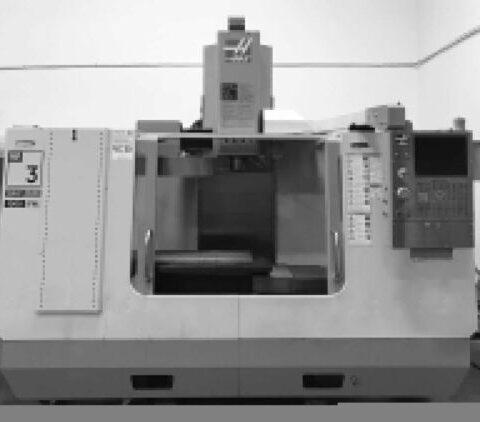

HAAS VF 3D Comes as shown in pictures.
