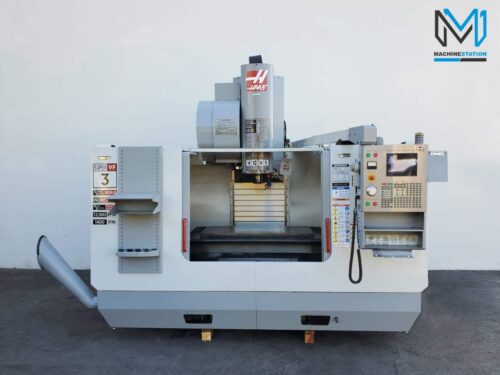

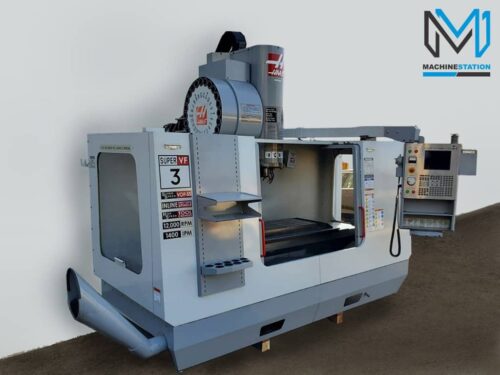

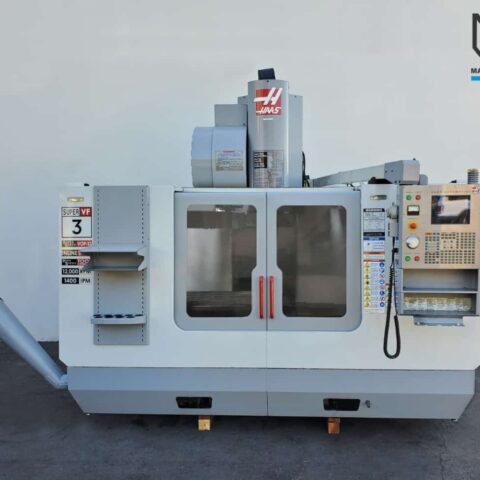

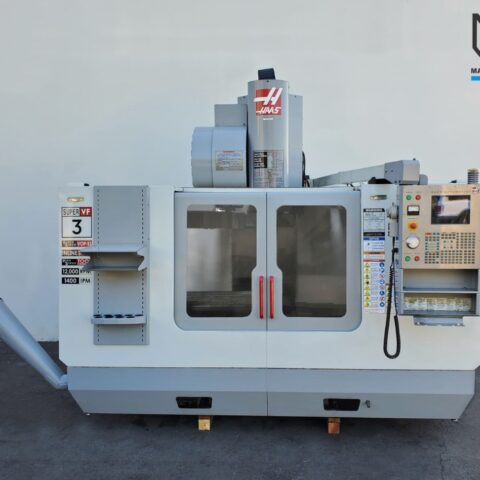

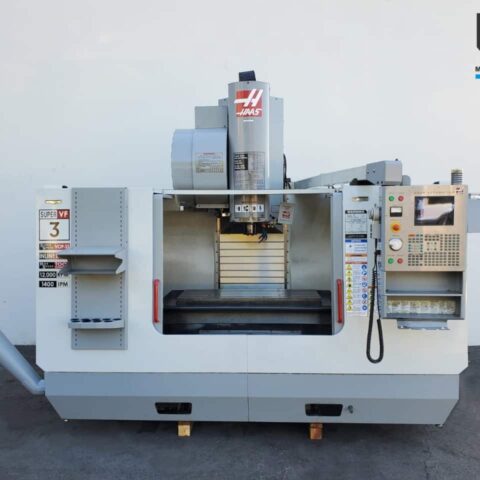

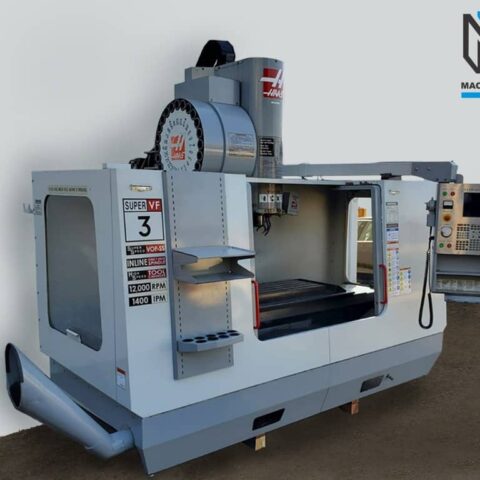

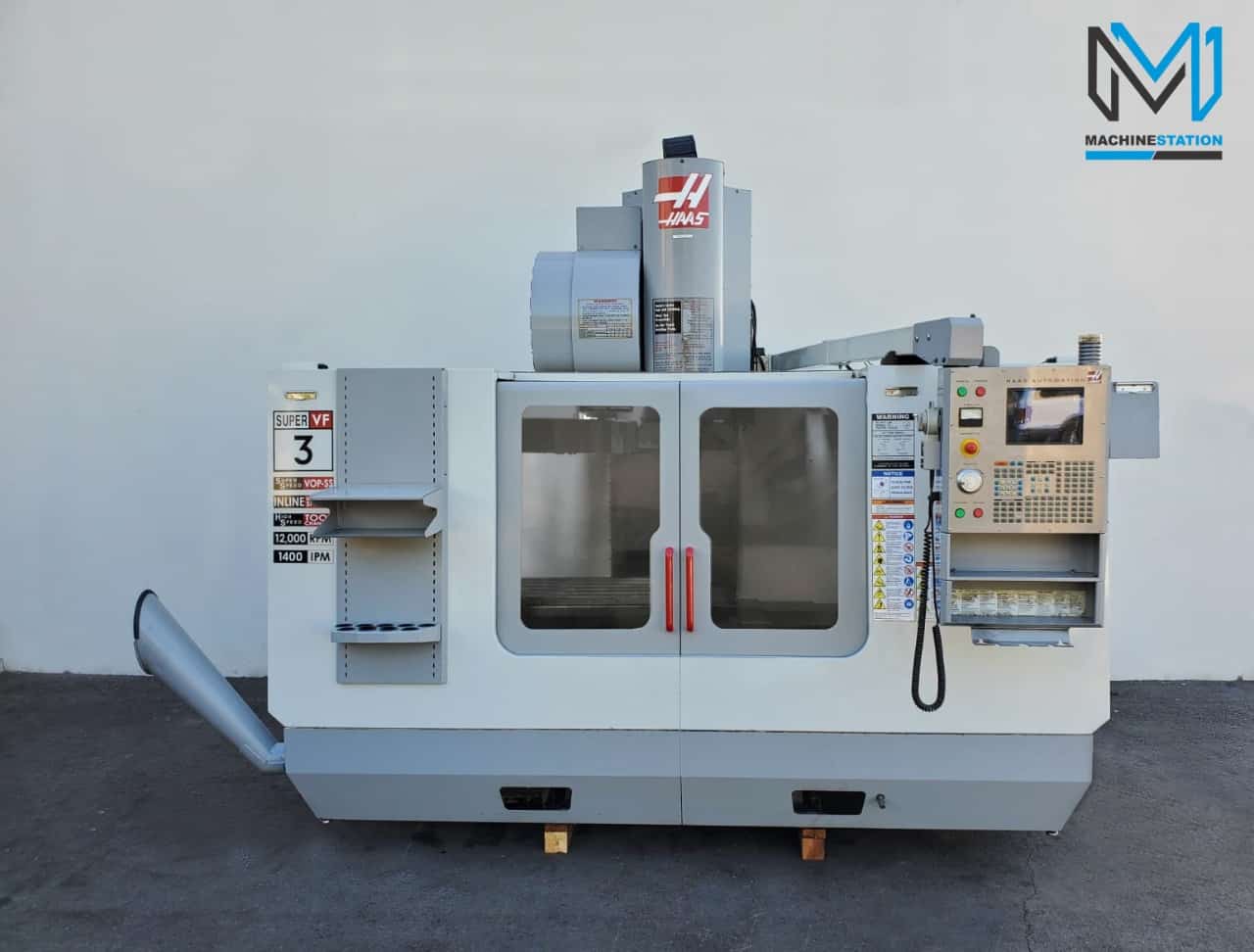

HAAS VF-3SS Vertical Machining Center
Out of stock
| Make | Haas |
| Model No. | VF-3SS |
| Year | 2004/05 |
| Condition | Very Good |
| Make | Haas |
| Model No. | VF-3SS |
| Year | 2004/05 |
| Condition | Very Good |
| HAAS VF-3SS Features: |
|---|
| Haas CNC Control with Color LCD |
| 12000 RPM Spindle |
| 4th Axis Ready |
| 24 + 1 Automatic Side Mount tool changer |
| MPG Control with Display |
| Expanded Memory |
| Rigid Tapping |
| Advanced Tool Management |
| Power Failure Detection Module |
| User Definable Macros |
| Spindle Orientation |
| Coordinate Rotational Scaling |
| Brush-type servo drive motors on all axis |
| Programmable coolant |
| Telescopic way covers |
| Chip auger |
| Specifications: |
|---|
| Travels: |
| X-Axis: 40″ |
| Y-Axis: 20″ |
| Z-Axis: 25″ |
| Rapid Traverse Rates: 1400 Inch Per Minute |
| Cutting Feed Rates: 833 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |
| Table: |
|---|
| Length: 48″ |
| Width: 18″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1750 lbs |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP Vector Dual Drive |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Side Mount |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 5″ |
| Max Tool Length: 11″ |
| Tool Changing Time: 1.6 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 118″ x 93″ x 102″ High |
| Weight: 12500 lbs |
