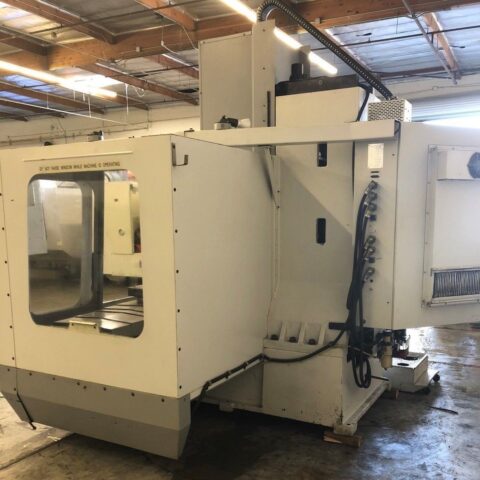

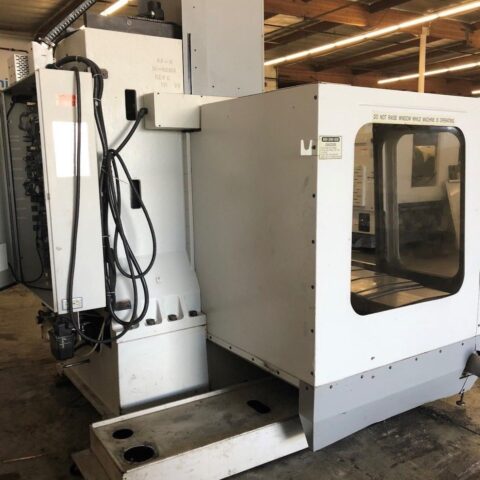

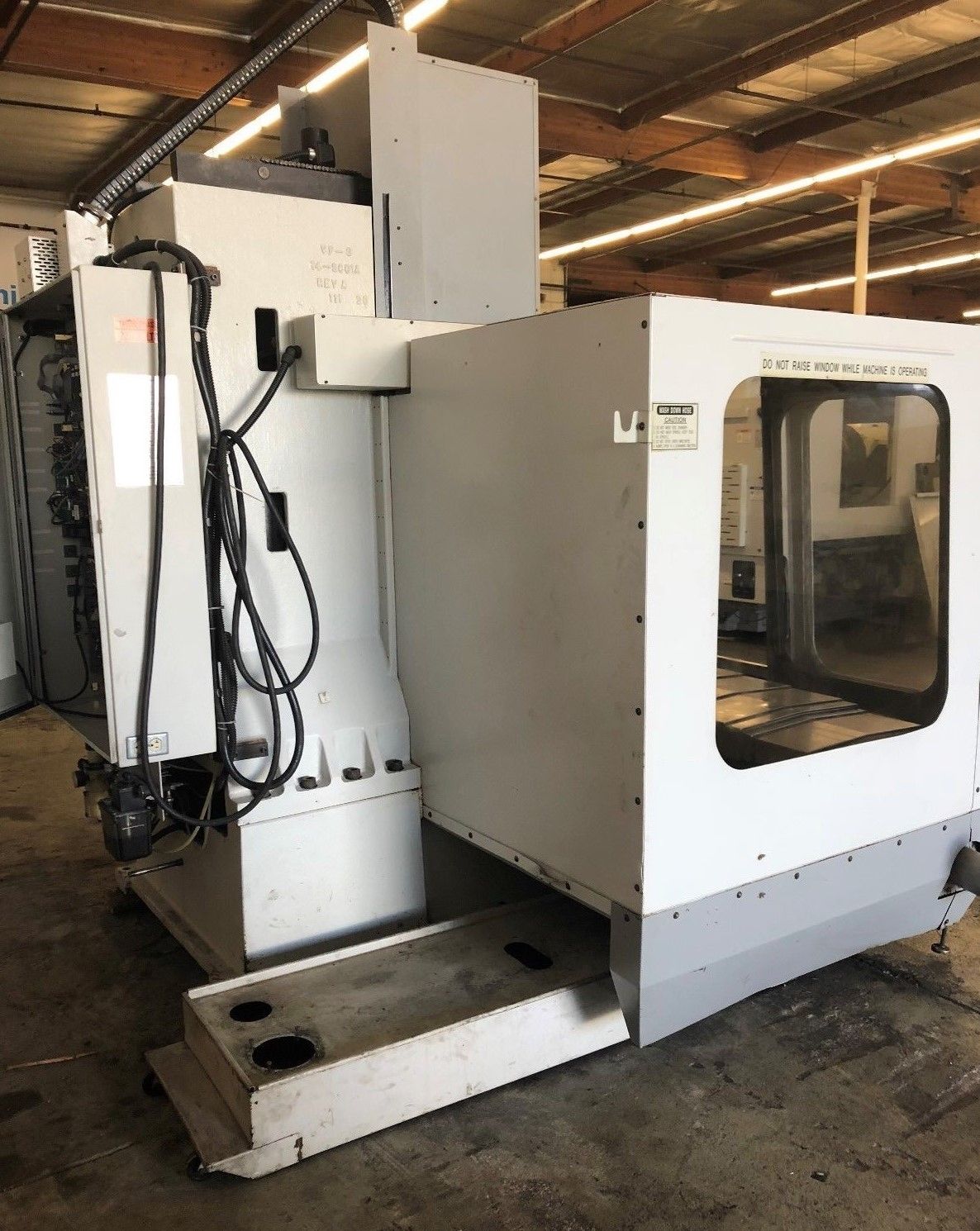

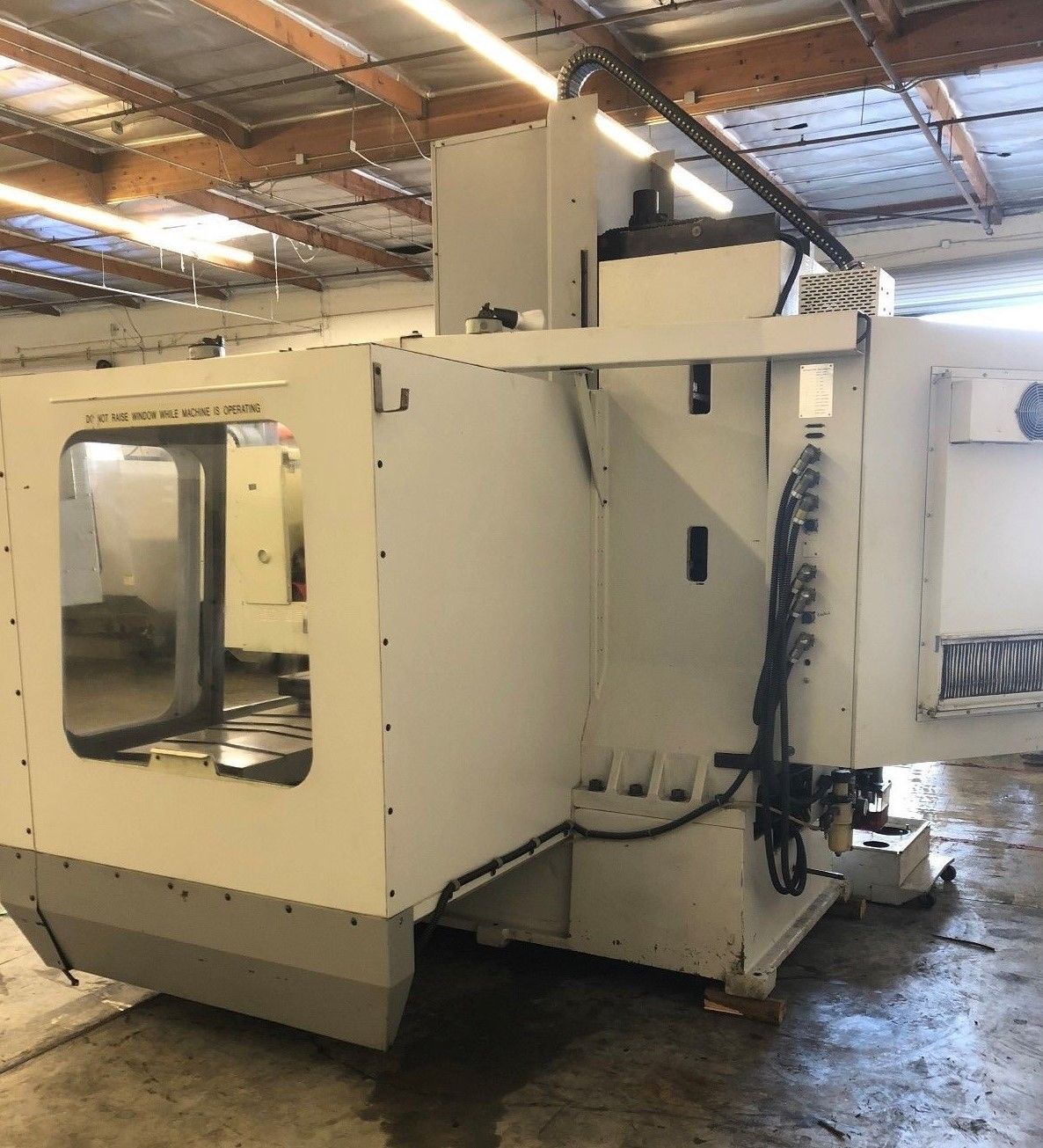

HAAS VF-4 Vertical Machining Center 4TH Axis Gear Head

All specifications are approximations and are subject to verification.

• HAAS VF-4 Vertical Machining Center Features:

• 20HP High Torque Geared Head Spindle
• 4th Axis Ready ( drives and wiring installed )
• Rigid Tapping
• Power Failure Detection Module
• 20 + 1 automatic tool changer
• Programmable coolant
• Telescopic way covers
• Chip auger
• Flood Coolant system

• HAAS VF-4 Vertical Machining Center Specifications:

• Travels:
• X-Axis: 50″
• Y-Axis: 20″
• Z-Axis: 25″
• Rapid Traverse Rates: 710 Inch Per Minute
• Cutting Feed Rates: 500 Inch Per Minute
• Spindle Nose to Table (Min.- Max.): 4″ – 24″

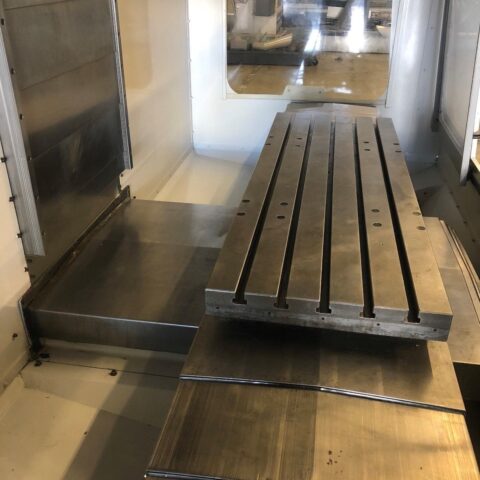

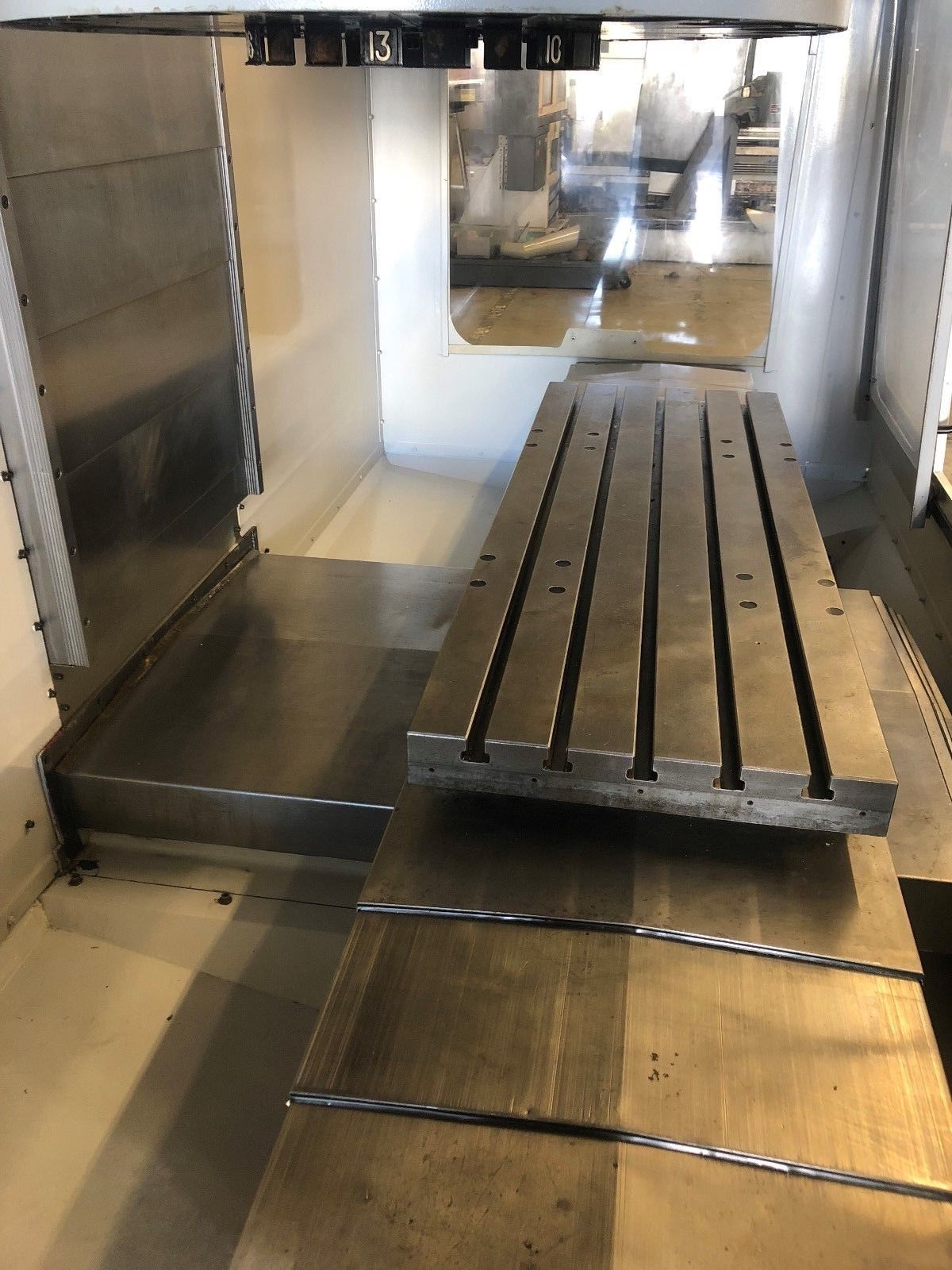

• Table:

• Length: 52″
• Width: 18″
• Number of Std T-Slots: 5
• T-Slot Width: 5/8″
• Max Weight on Table: 3500 lbs

• Spindle:

• Taper Size:  40
• Speed Range: 0 – 7500 RPM
• Spindle Type: Gear Head
• Spindle Power: 20 HP Vector Dual Drive
• Max Torque: 90ft-lb @ 2000 RPM

• Automatic Tool Changer:

• Capacity: 20 + 1
• Max Tool Weight: 12 lbs
• Max Tool Dia: 3.6″
• Max Tool Length: 13″
• Tool Changing Time: 4.2 Seconds

• General:

• Air Required: 100 psi, 4 scfm

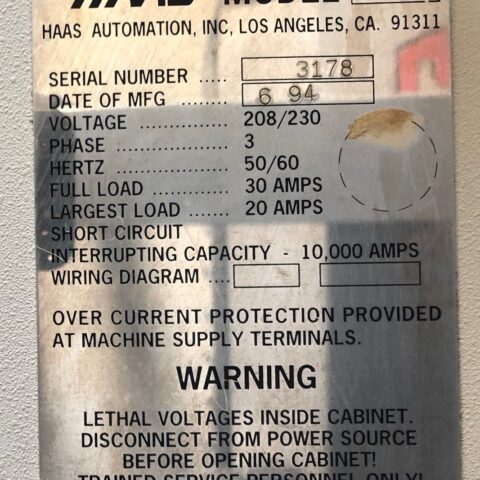

• Power: 220v / 66FLA / 3-Phase
• Overall Dimensions: 118″ x 98″ x 110″ High
• Weight: 13,500 lbs
