*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

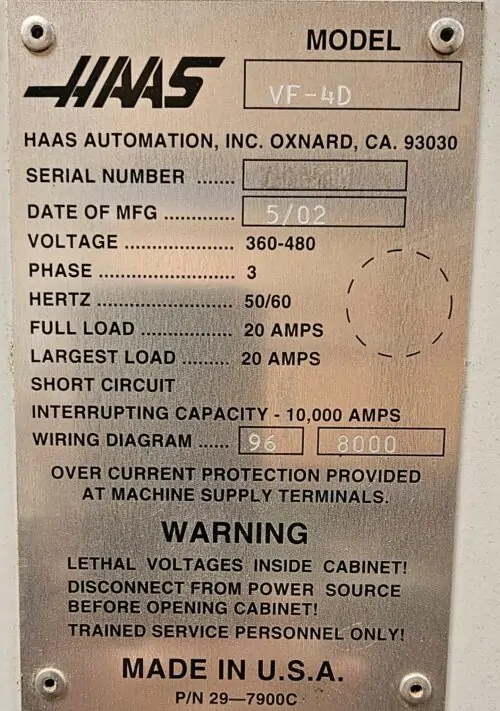

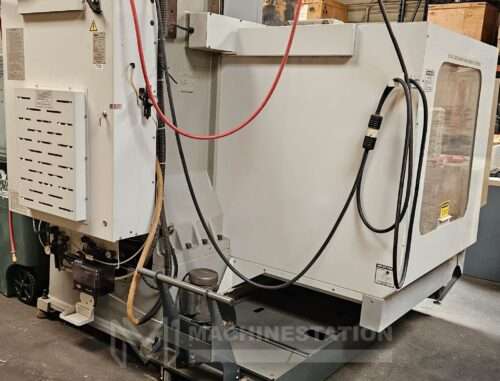

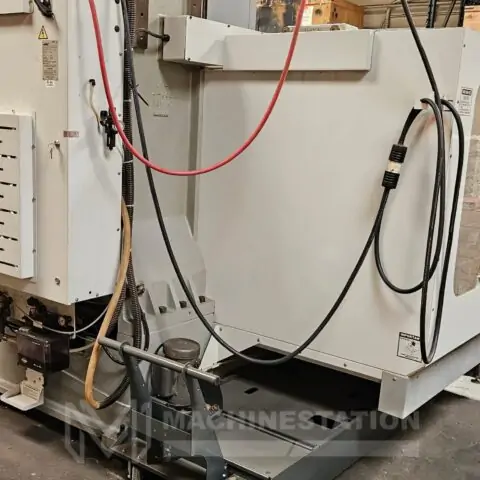

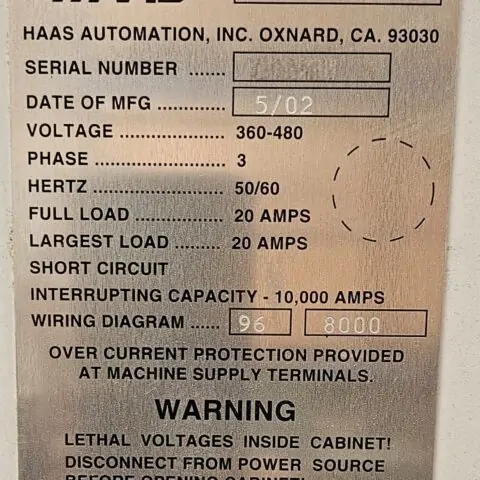

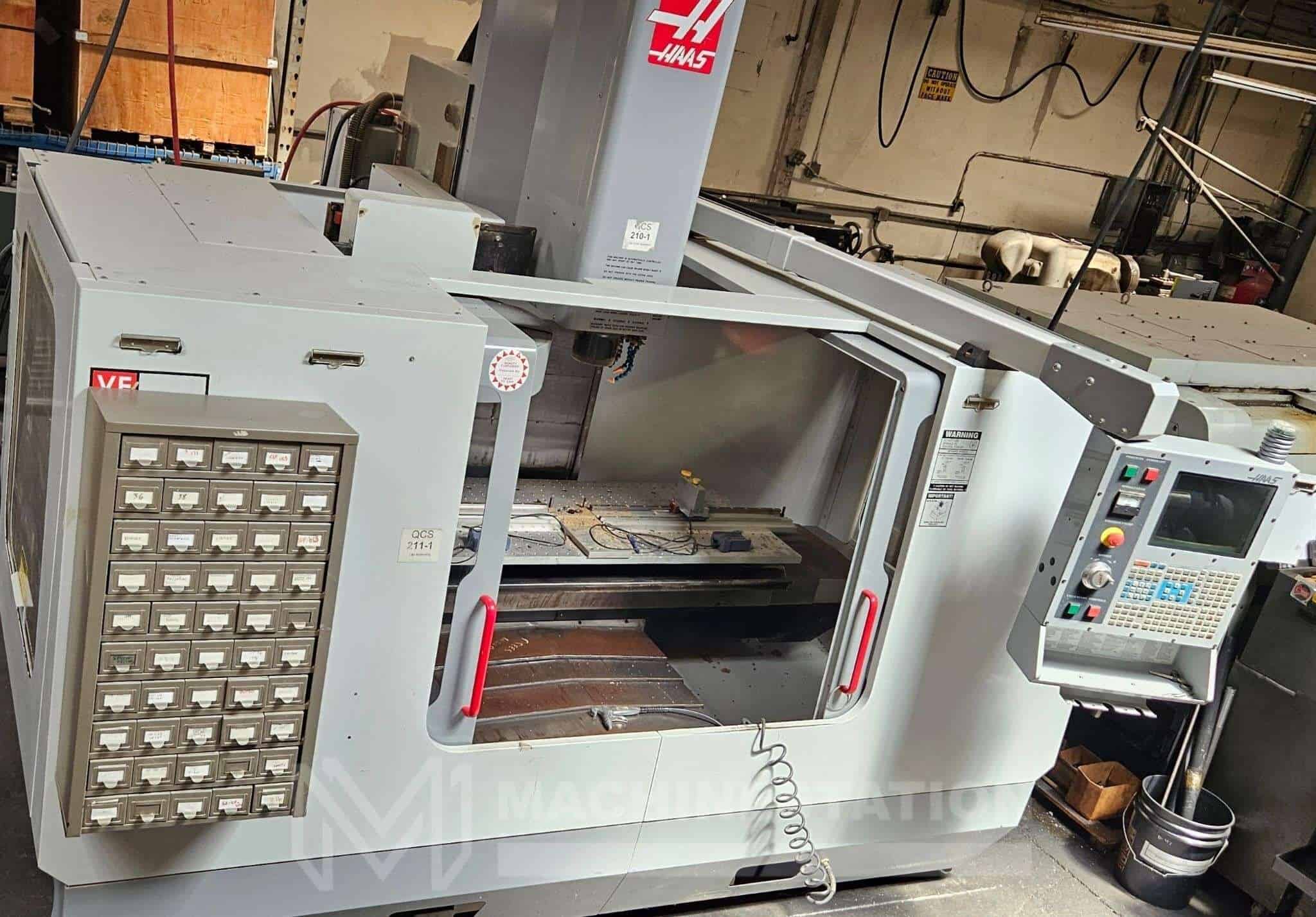

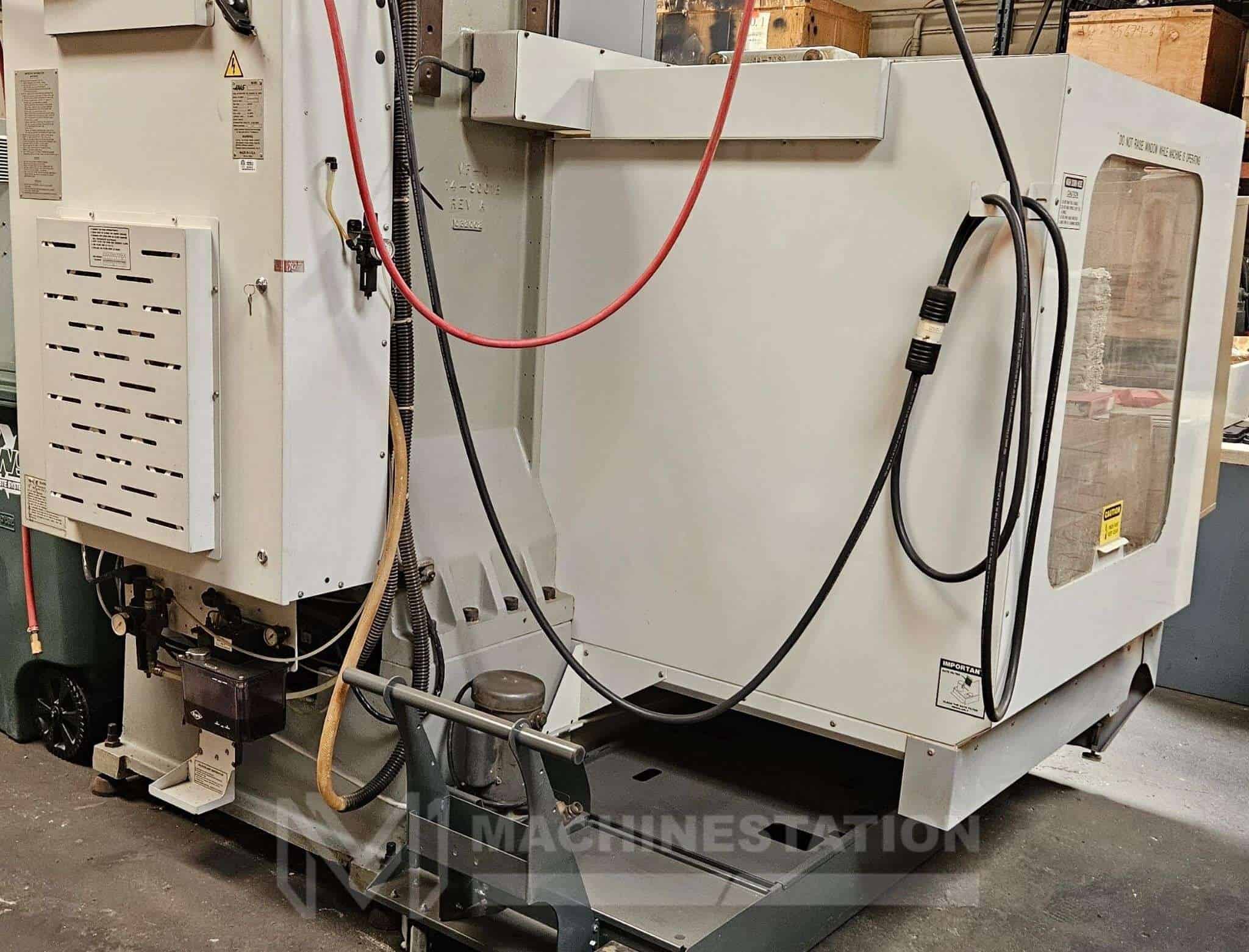

| Make: | Haas |
| Model: | VF4D |
| Year: | 2002 |
| Condition: | Used – Good |
| Equipped With: |
|---|
| Haas CNC Control |
| 7500 RPM Spindle |
| 20 Station Automatic Tool Changer |
| 30 HP Spindle Drive |
| Programmable Coolant |
| Rigid Tapping |
| Coolant Tank |
| Travels: |
|---|
| X-axis: 50″ |
| Y-Axis: 20″ |
| Z-Axis: 25″ |
| Rapid Traverse Rates: 710 IPM |
| Cutting Feed Rates: 500 IPM |
| Spindle Nose To Table (Min.- Max.): 4.2″ – 29.2″ |
| Table: |
|---|
| Length: 52″ |
| Width: 19.5″ |
| Number Of Std T-slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight On Table: 3500 Lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 7500 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 20 Station Carousel Type |
| Tool Weight: 12 Lbs |
| Max Tool Length: 13″ |
| Max Tool Dia.: 5.0″ |
| Tool Changing Time: 2.6 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 125″ x 93″ x 102″ High Approx. |
| Weight: 13,500 lbs Approx. |
