*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

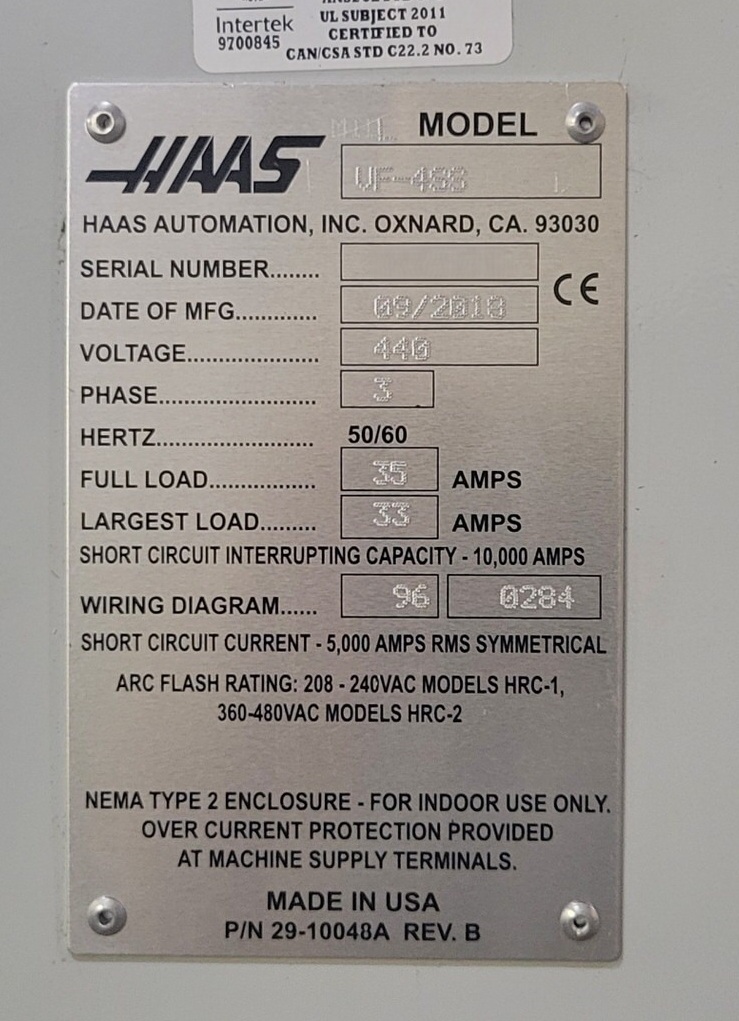

| Make: | HAAS |
| Model: | VF-4SS |
| Year: | 2018 |
| Machine Type: | CNC Vertical Machining Center |

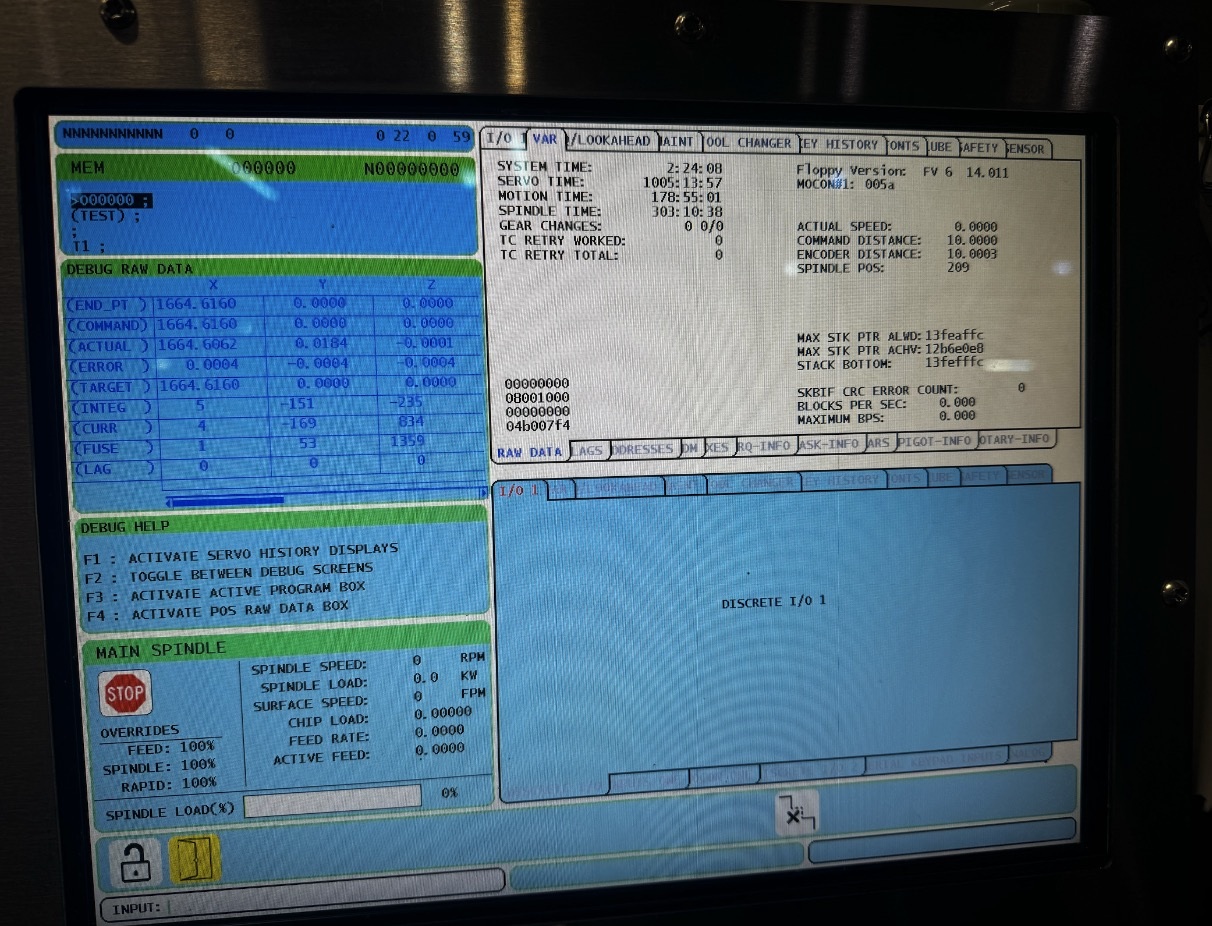

| Control: | Haas CNC Control |
| Features: |
|---|
| Haas CNC Control |
| High-Speed 30+1 Side-Mount Tool Changer |
| Chip Auger / Chip Conveyor |
| Coolant System |
| Rigid Tapping |
| High-Speed Machining |
| Inline Direct-Drive Spindle |
| Liquid-Cooled Spindle |
| Programmable Coolant Nozzle |
| Ethernet Interface |
| USB Connectivity |
| 4th-Axis Drive and Wiring |
| Travels: |
|---|
| X-Axis Travel: 50″ |
| Y-Axis Travel: 20″ |
| Z-Axis Travel: 25″ |
| Spindle Nose to Table – Maximum: 29.2″ |
| Spindle Nose to Table – Minimum: 4.2″ |
| Table: |
|---|
| Table Length: 52″ |
| Table Width: 19.5″ |
| Number of T-Slots: 5 |
| T-Slot Width: 0.626″–0.630″ |
| T-Slot Center Distance: 3.15″ |
| Maximum Table Load: 1,750 lbs |
| Spindle: |
|---|
| Spindle Type: Inline Direct-Drive |
| Spindle Taper: CT40 / BT40 / HSK-A63 |
| Spindle Power: 30 HP |
| Maximum Spindle Speed: 12,000 RPM |
| Automatic Tool Changer: |
|---|
| Type: Side-Mount Tool Changer (SMTC) |
| Capacity: 30+1 Tools |
| Maximum Tool Diameter – Full: 2.5″ |
| Maximum Tool Diameter – Adjacent Pocket Empty: 5″ |
| Maximum Tool Length: 13″ |
| Maximum Tool Weight: 12 lbs |
| Tool-to-Tool Time: 1.8 sec |
| Feed Rates: |
|---|
| Maximum Cutting Feedrate: 833 IPM |
| X-Axis Rapid Traverse: 1,400 IPM |
| Y-Axis Rapid Traverse: 1,400 IPM |
| Z-Axis Rapid Traverse: 1,400 IPM |
| General: |
|---|
| Air Requirement: 4 SCFM @ 100 PSI |
| Minimum Air Pressure: 80 PSI |
| Machine Weight (Approx.): 11,720 lbs |
| Machine Dimensions (Approx.): 152″ × 99″ × 106″ |
