*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Haas |
| Model No.: |
VF-6/50 |
| Year of Manufacture: |
2018 |
| Machine Type: |
CNC Vertical Machining Center |

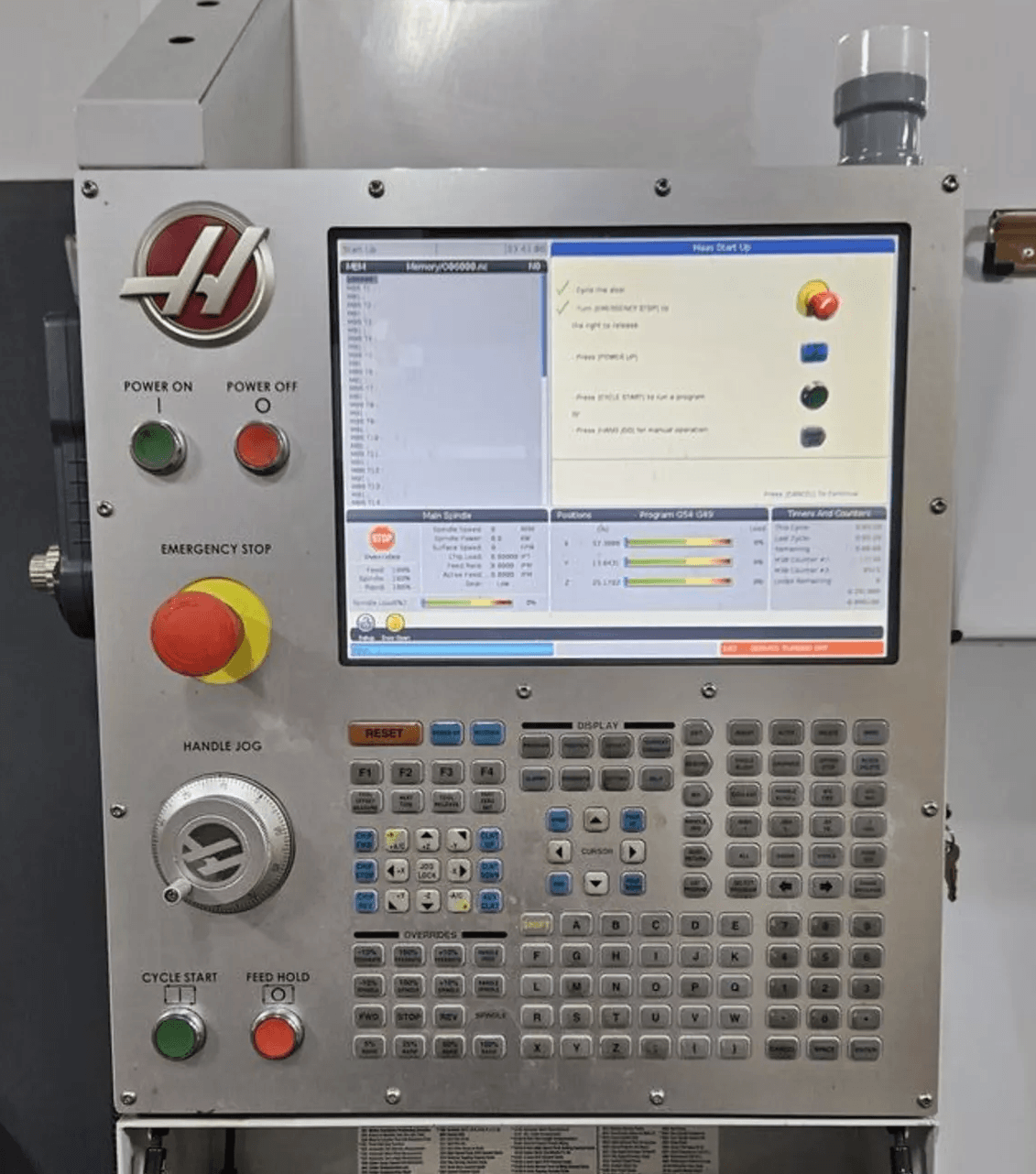

| CNC Control: |
HAAS CNC Control |
| Country of Origin: |
USA |
| Equipped With: |
| HAAS CNC Control |
| CT50 Spindle |
| Chip Conveyor |
| Coolant System |
| Rigid Tapping |
| Programmable Coolant |
| High Torque Spindle |
| Full Enclosure |
| Capacity: |
| Table Size: 64″ x 28″ |
| Table Load Capacity: 4,000 lbs |
| Travels: |
| X-Axis Travel: 64″ |
| Y-Axis Travel: 32″ |
| Z-Axis Travel: 30″ |
| Spindle: |
| Spindle Speed: 7,500 RPM |
| Spindle Taper: CT50 |
| Spindle Motor: 30 HP |
| Tool Changer: |
| Tool Capacity: 30+1 ATC |
| Tool Holder Type: CAT 50 |
| Feed Rates: |
| Rapid Traverse (X/Y): 800 IPM (Typical – Verify) |
| Rapid Traverse (Z): 800 IPM (Typical – Verify) |
| Cutting Feed Rate: Programmable |
| Electrical: |
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| General: |
| Air Required: 100 PSI, 4 SCFM |
| Power: 220V / 66 FLA / 3-Phase |
| Overall Dimensions: 168″ x 101″ x 109″ High |
| Weight: 12,700 lbs |
