*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

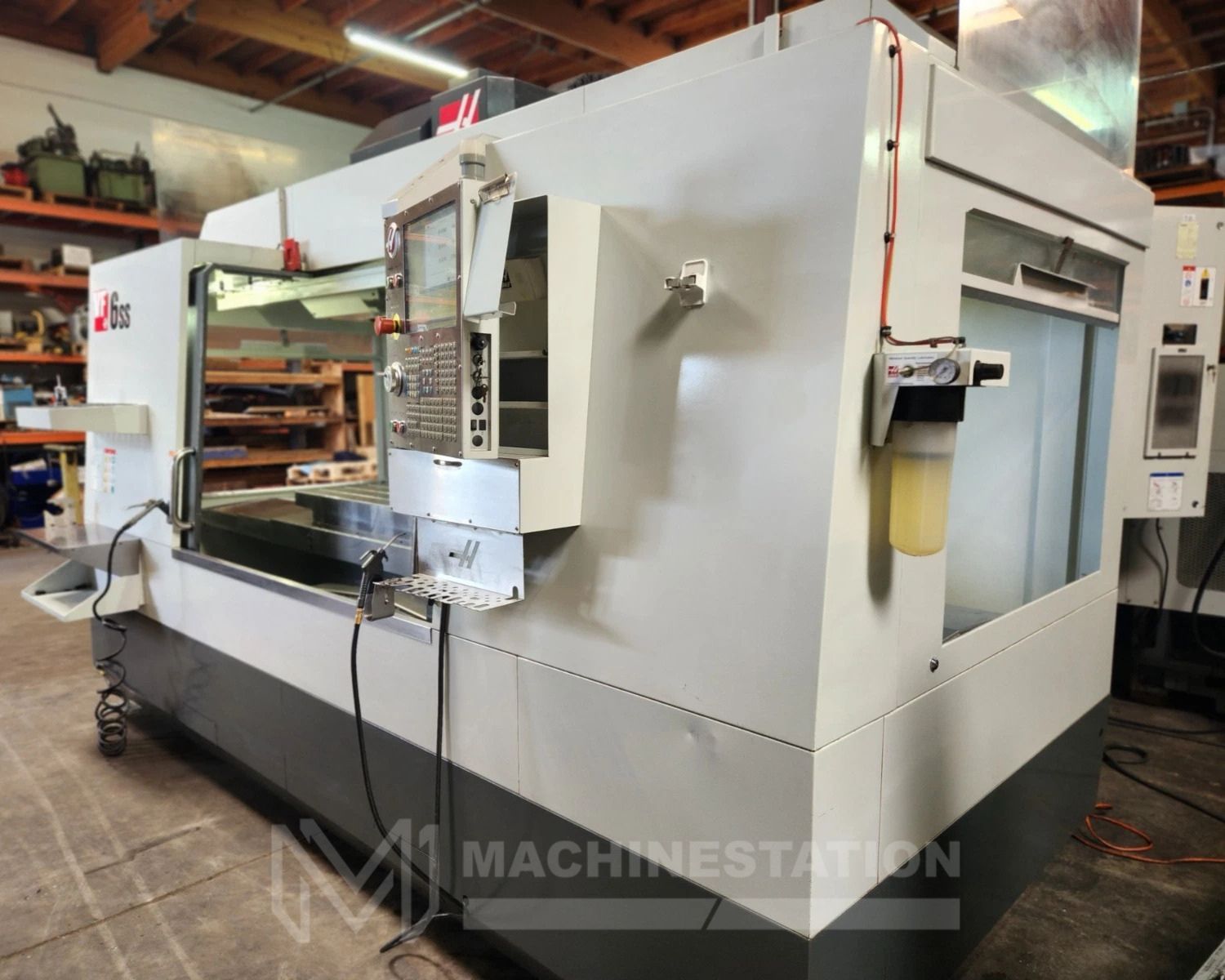

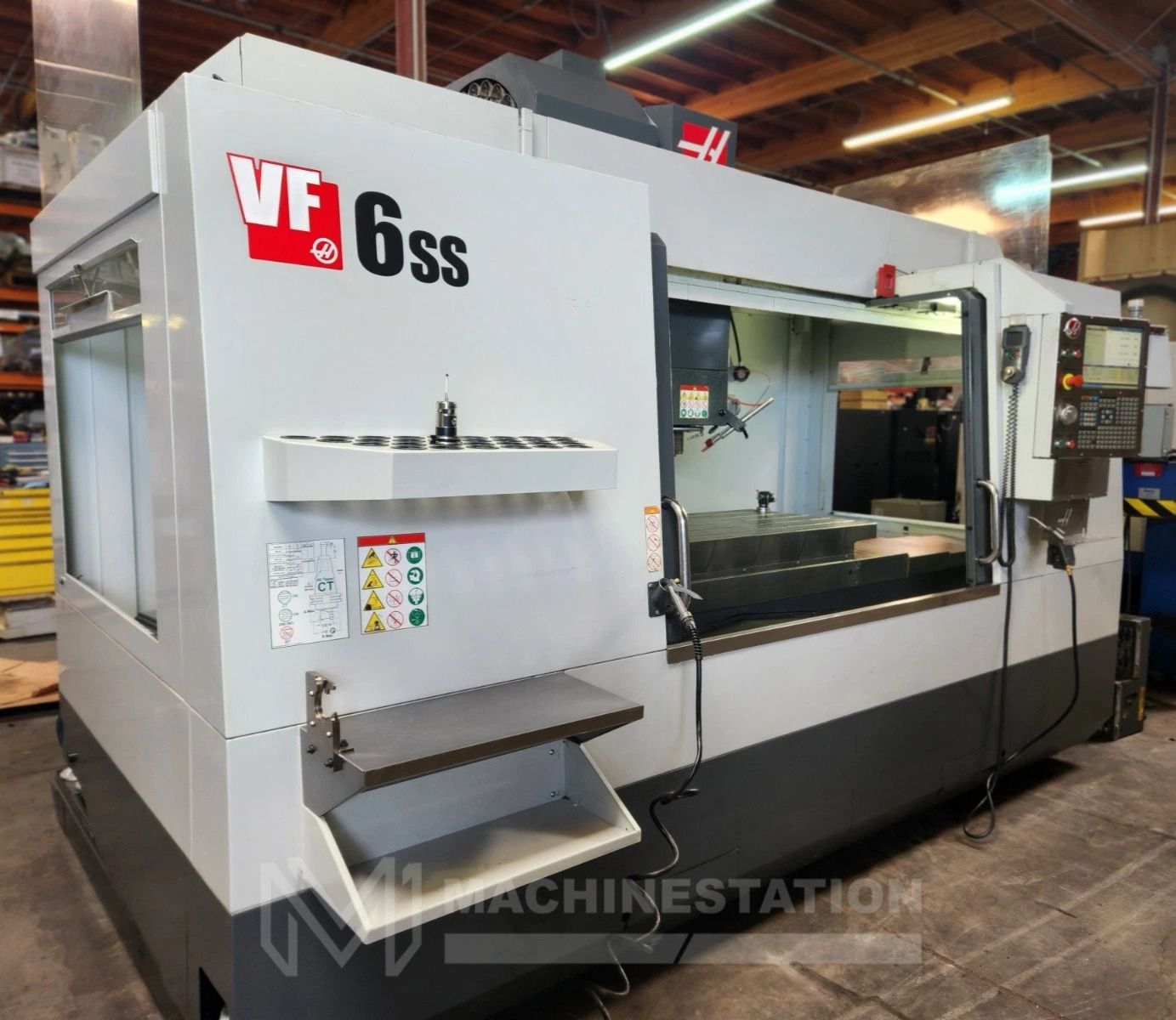

| Make: | Haas |
| Model: | VF-6SS |
| Year: | 2017 |
| Condition: | Used – Good |

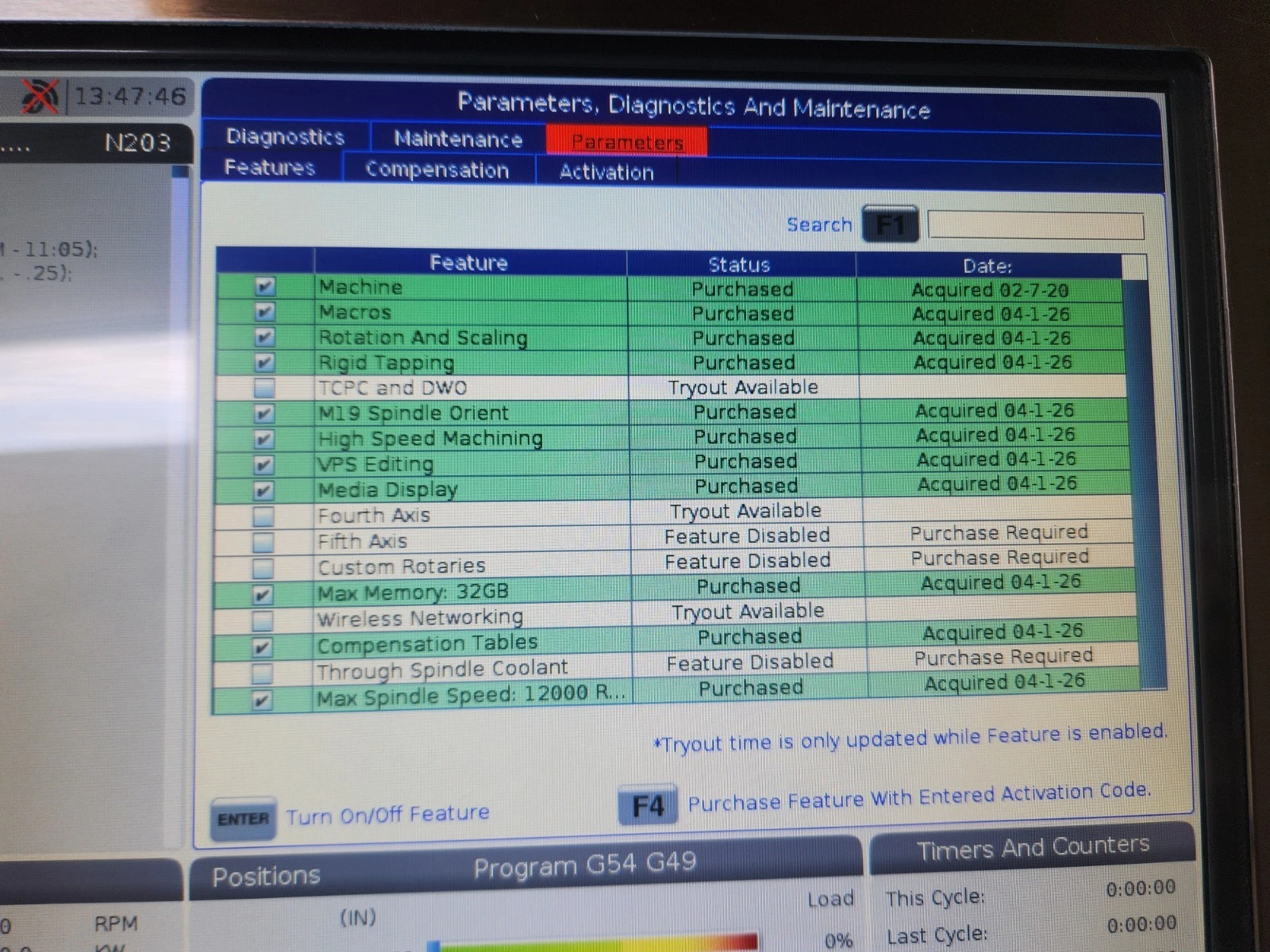

| Equipped With: |
|---|

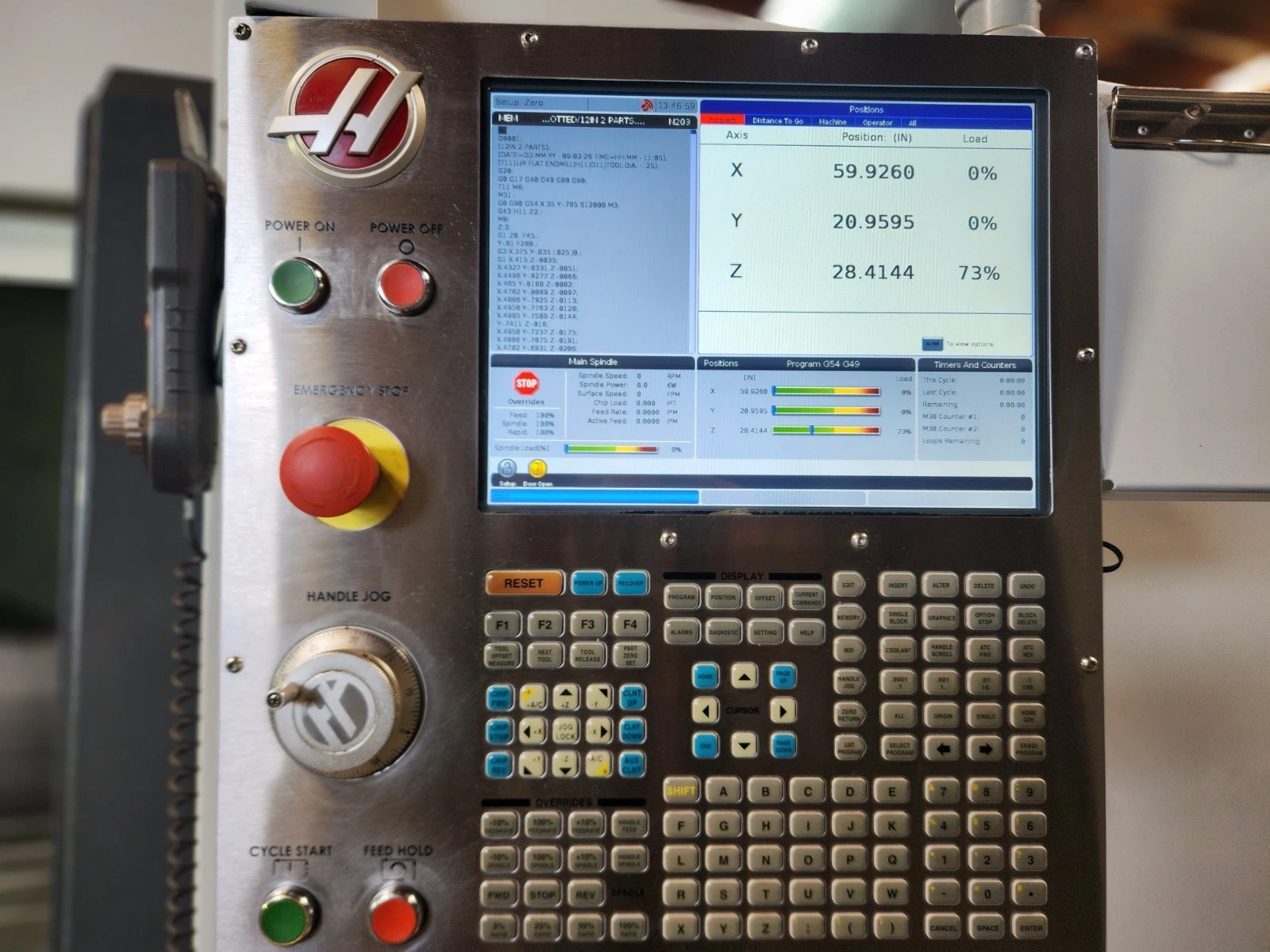

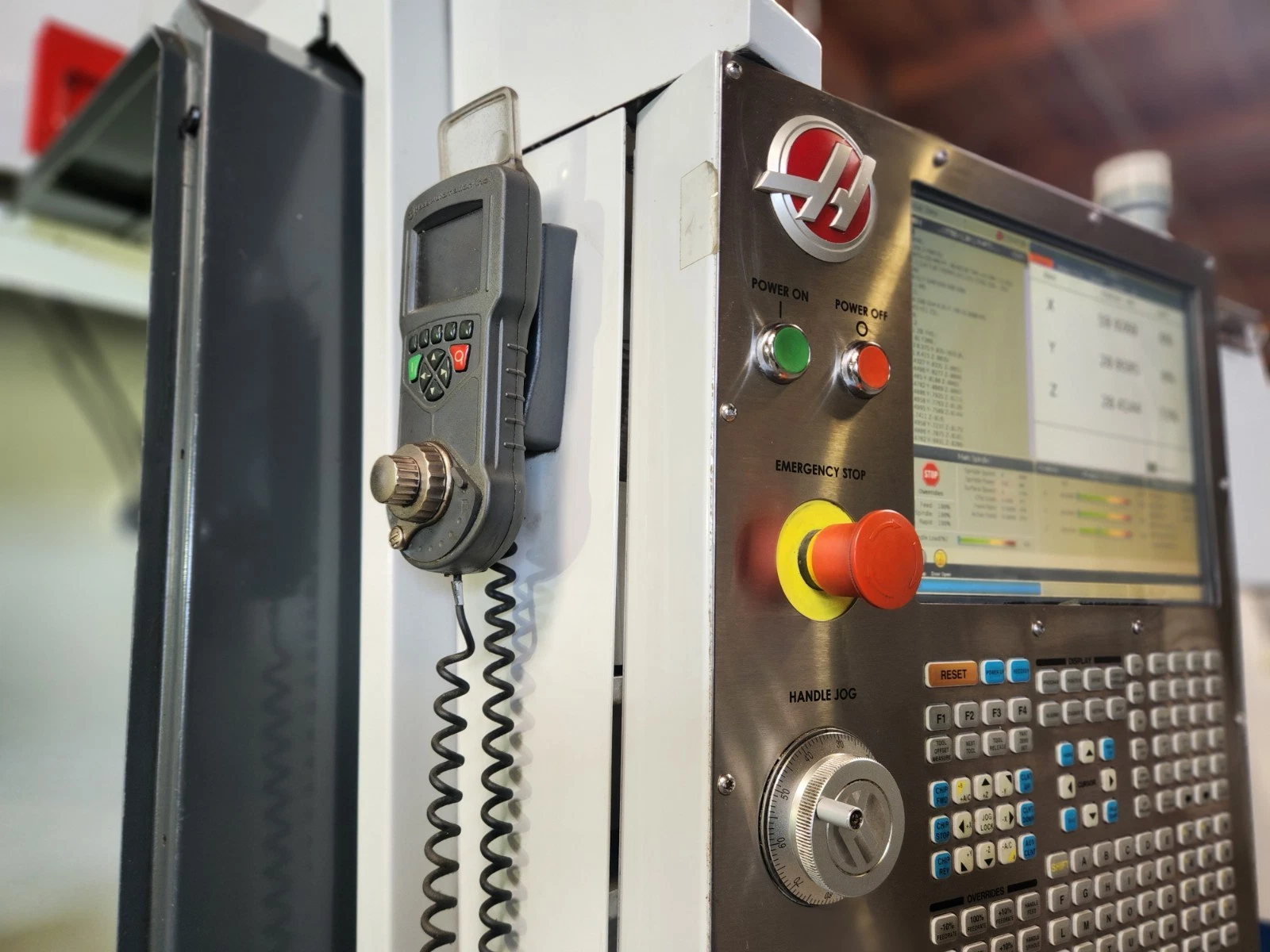

| Haas CNC Control |
| 12,000 RPM Inline Direct Drive Spindle |
| 24 Station High Speed Tool Changer |
| Wireless Intuitive Probing System (Upgraded $6,795 value Included) |
| Probe Riser Block (Upgraded $595 value Included) |
| High Speed Machining (Upgraded $3,995 value Included) |
| Programmable Coolant Nozzle |
| Rigid Tapping |
| Spindle Orientation |
| VPS Editing |
| Rotation and Scaling |
| Macros |
| Media Display |
| Compensation Tables |
| Remote Jog Handle |
| 32GB Max Memory |
| Coolant System |
| Chip Auger |
| Travels: |
|---|
| X-axis: 64″ |
| Y-Axis: 32″ |
| Z-Axis: 30″ |
| Rapid Traverse Rates: 1200 IPM |
| Cutting Feed Rates: 833 IPM |
| Spindle Nose To Table (Min.- Max.): 4″ – 34″ |

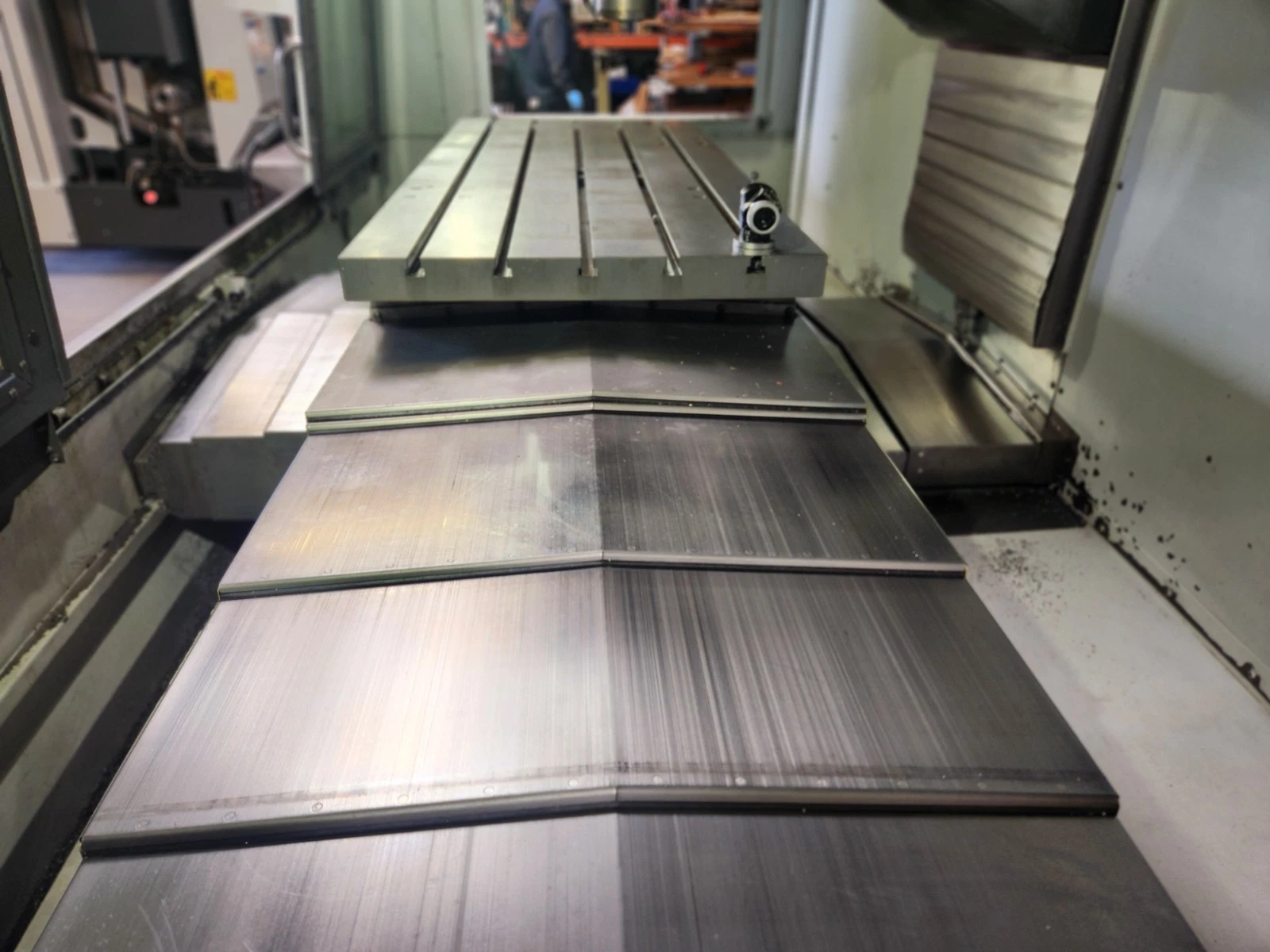

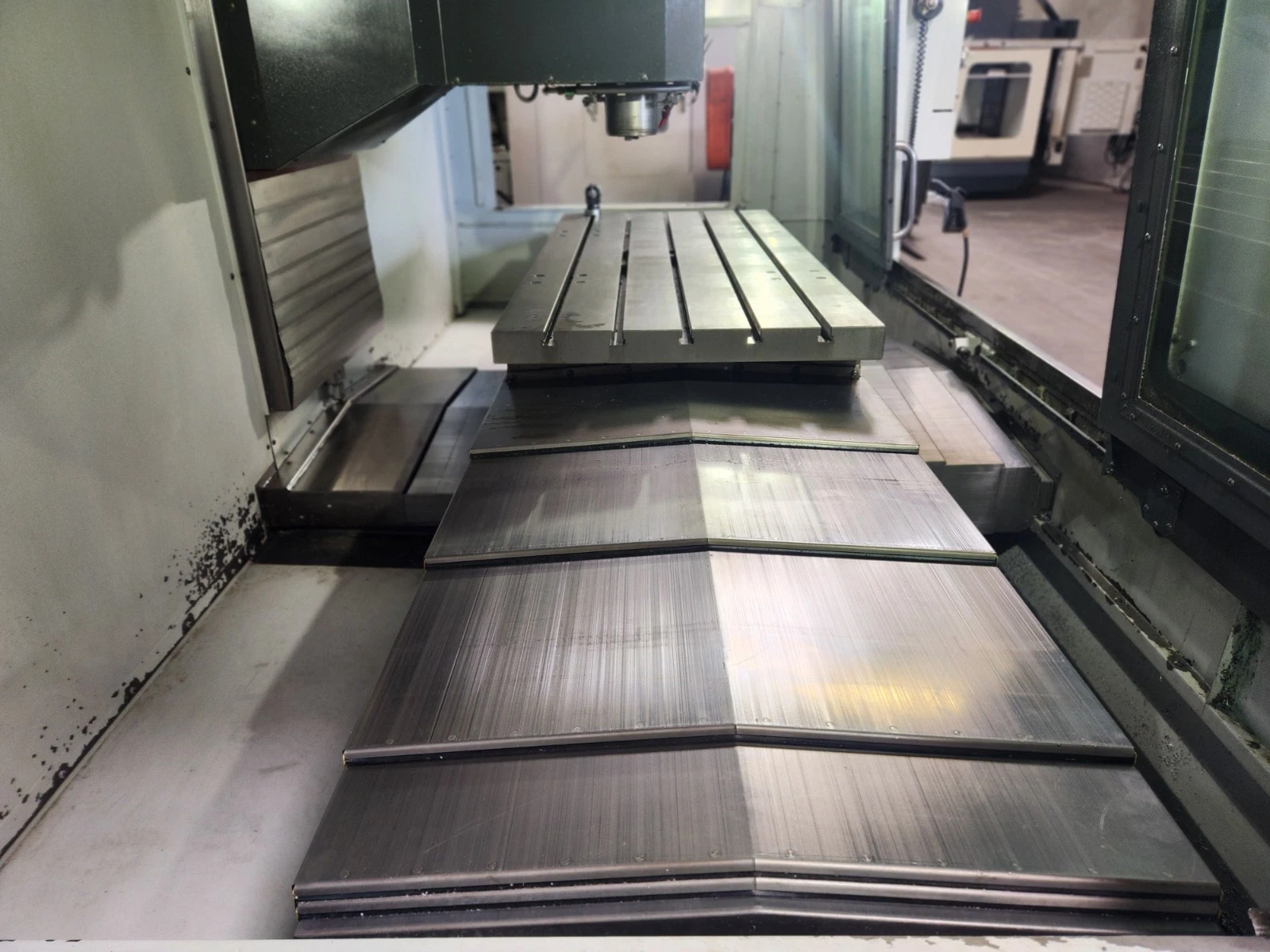

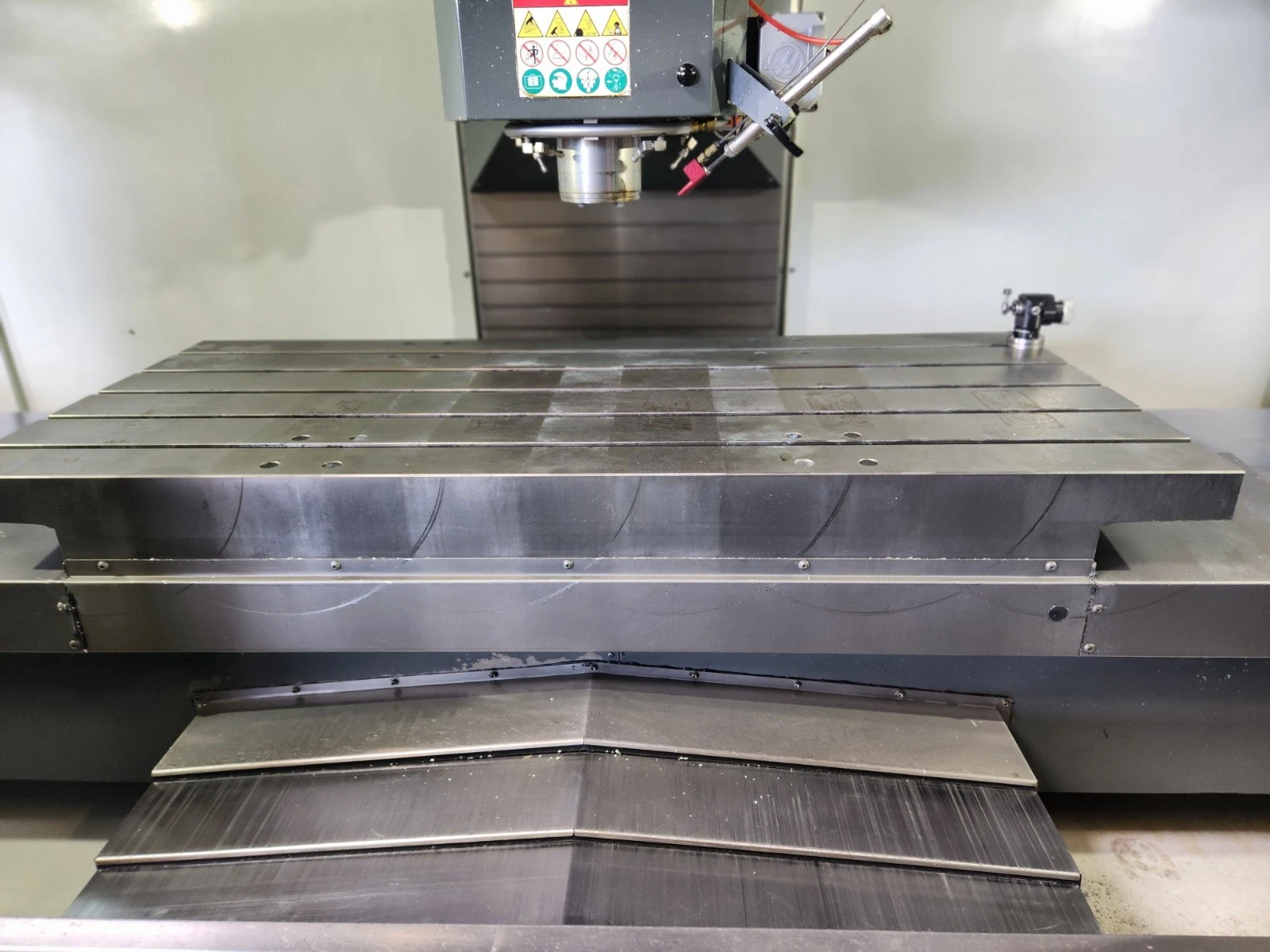

| Table: |
|---|
| Length: 64″ |
| Width: 28″ |
| Number Of Std T-slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight On Table: 2000 Lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Vector Drive Max Torque: 90ft-lb @ 2000 RPM |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Station Side Mounted |
| Tool Weight: 12 Lbs |
| Max Tool Diameter (Full): 2.5″ |
| Max Tool Diameter (adjacent empty): 5″ |
| Max Tool Length: 16″ |
| Tool Changing Time: 3.2 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 195″ x 102″ x 130″ High |
| Weight: 22,300 lbs Approx. |
