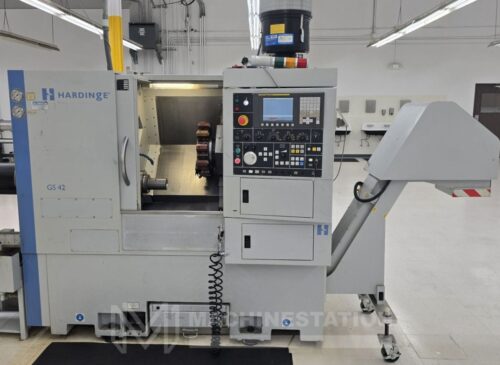

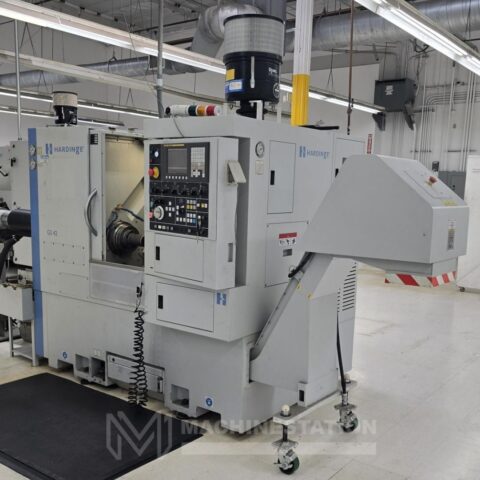

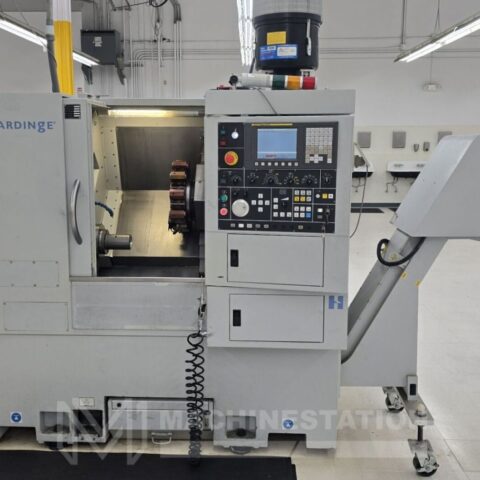

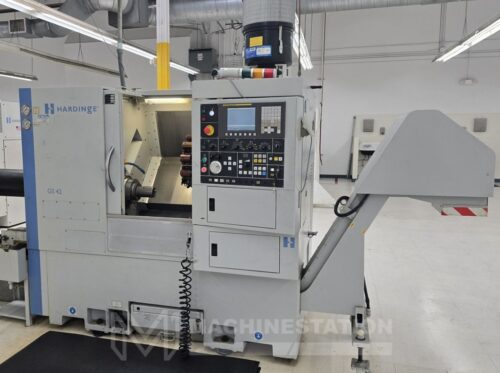

| Make: | Hardinge |
| Model: | GS 42 |
| Year: | 2017 |
-
Equipped With:

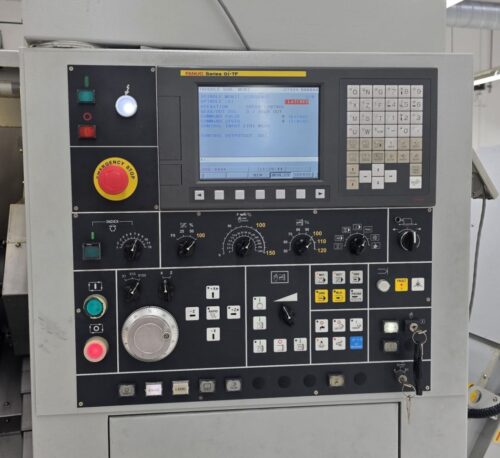

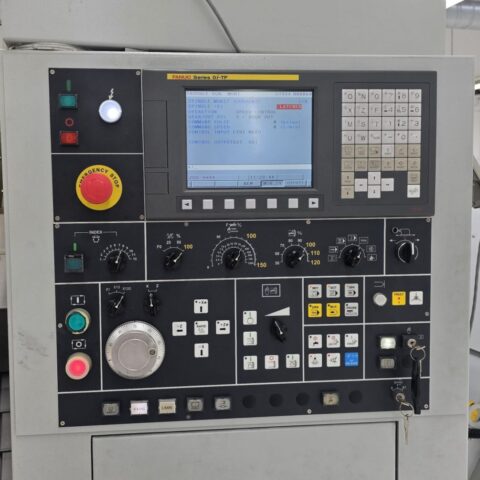

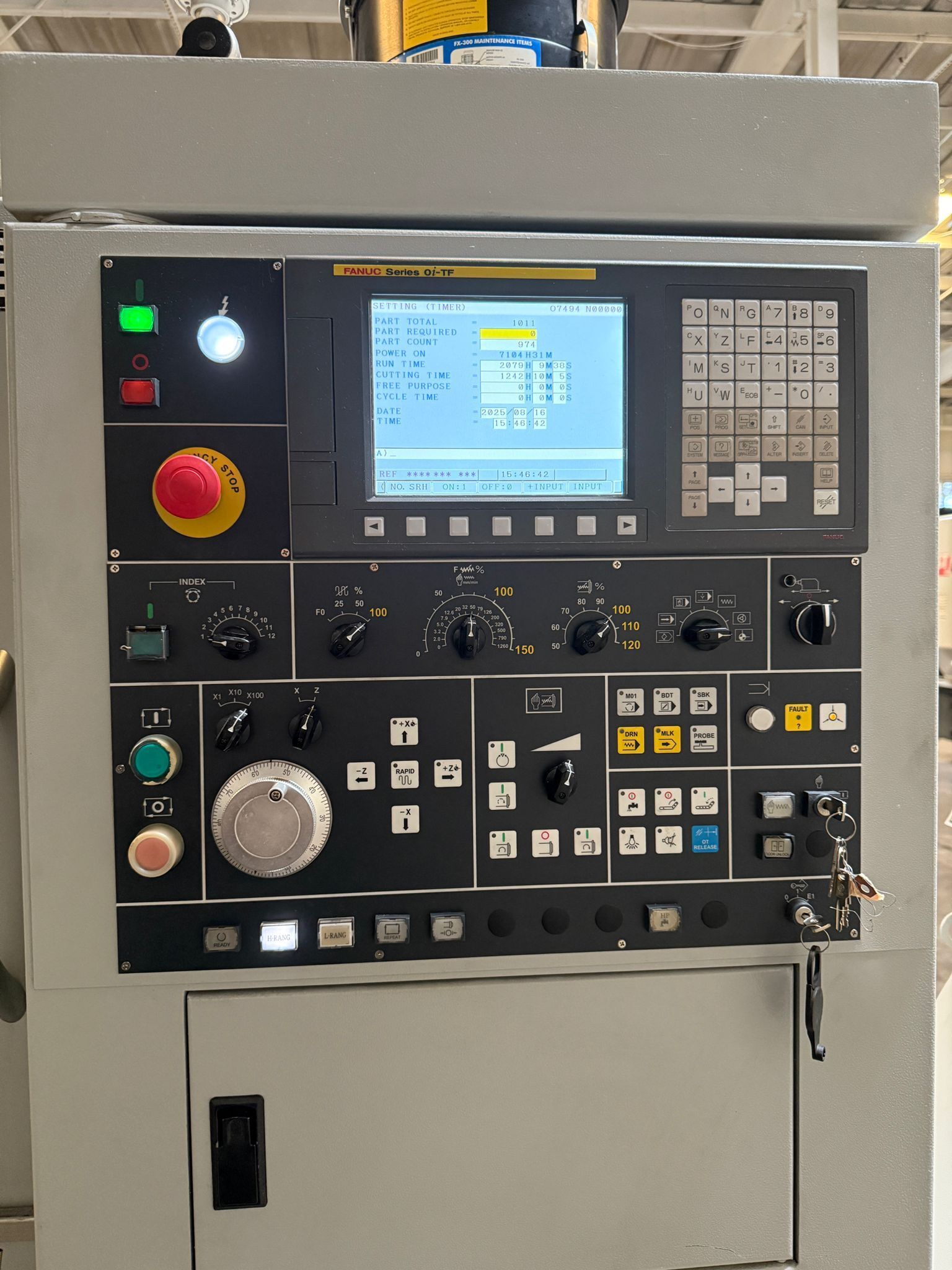

- Fanuc Oi-TF CNC Control
- Linear Ways Construction

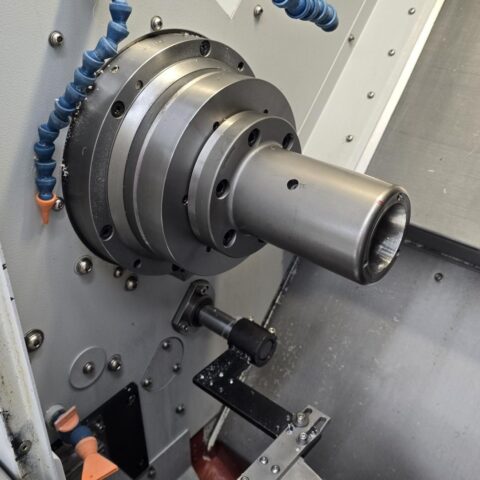

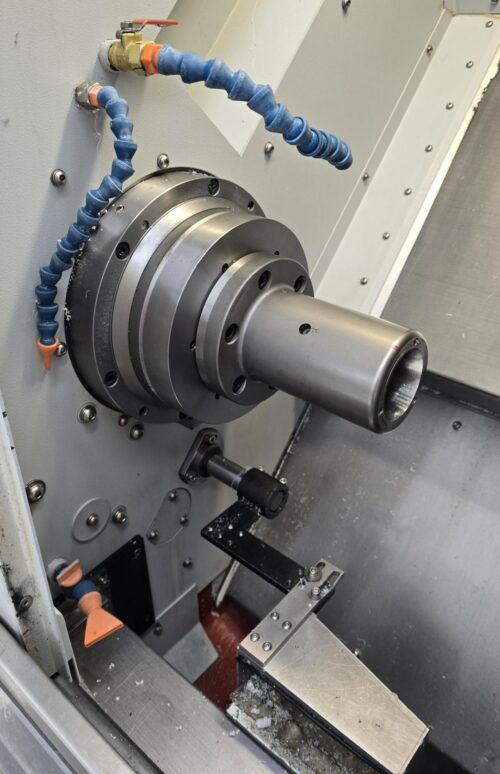

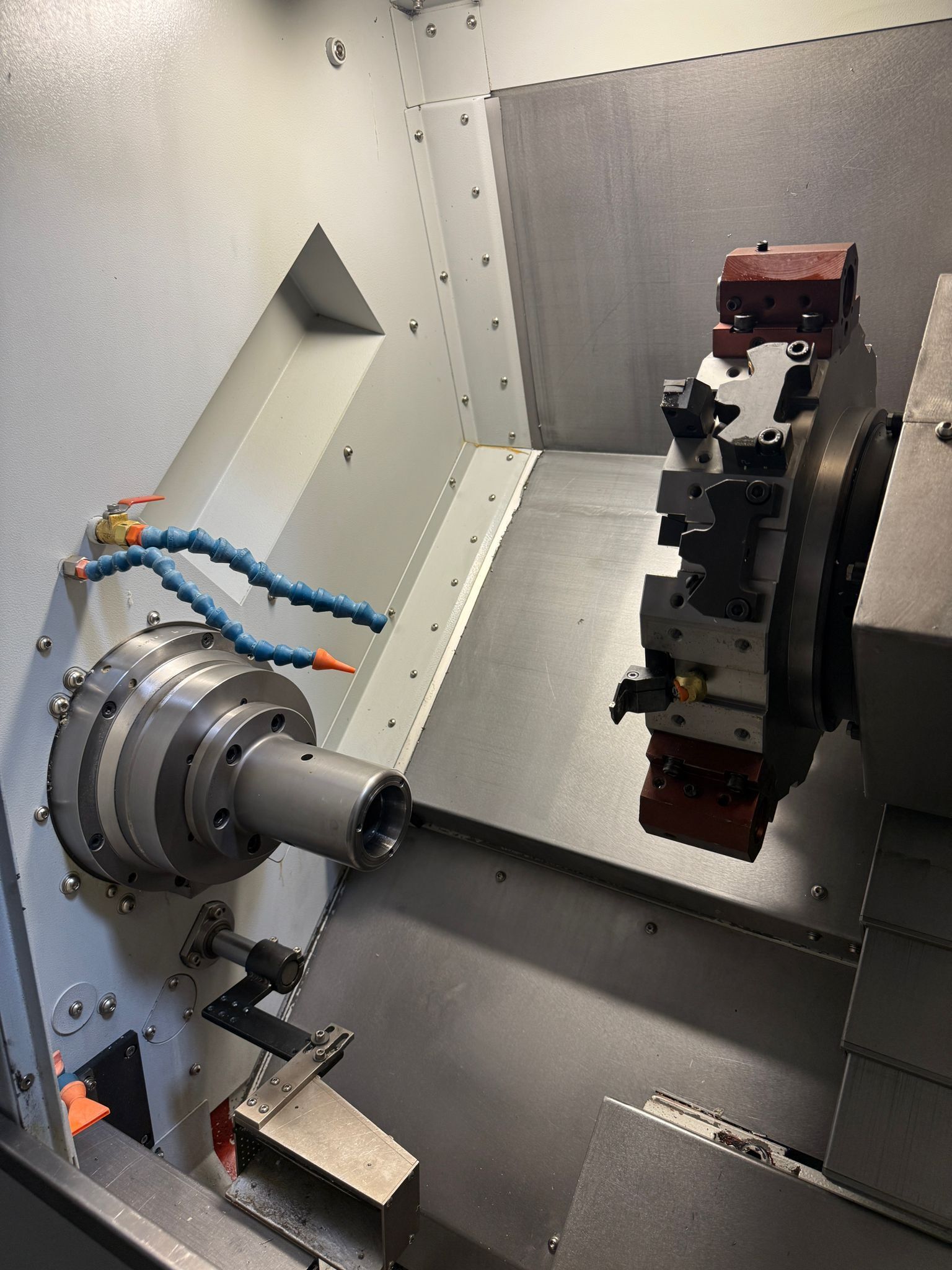

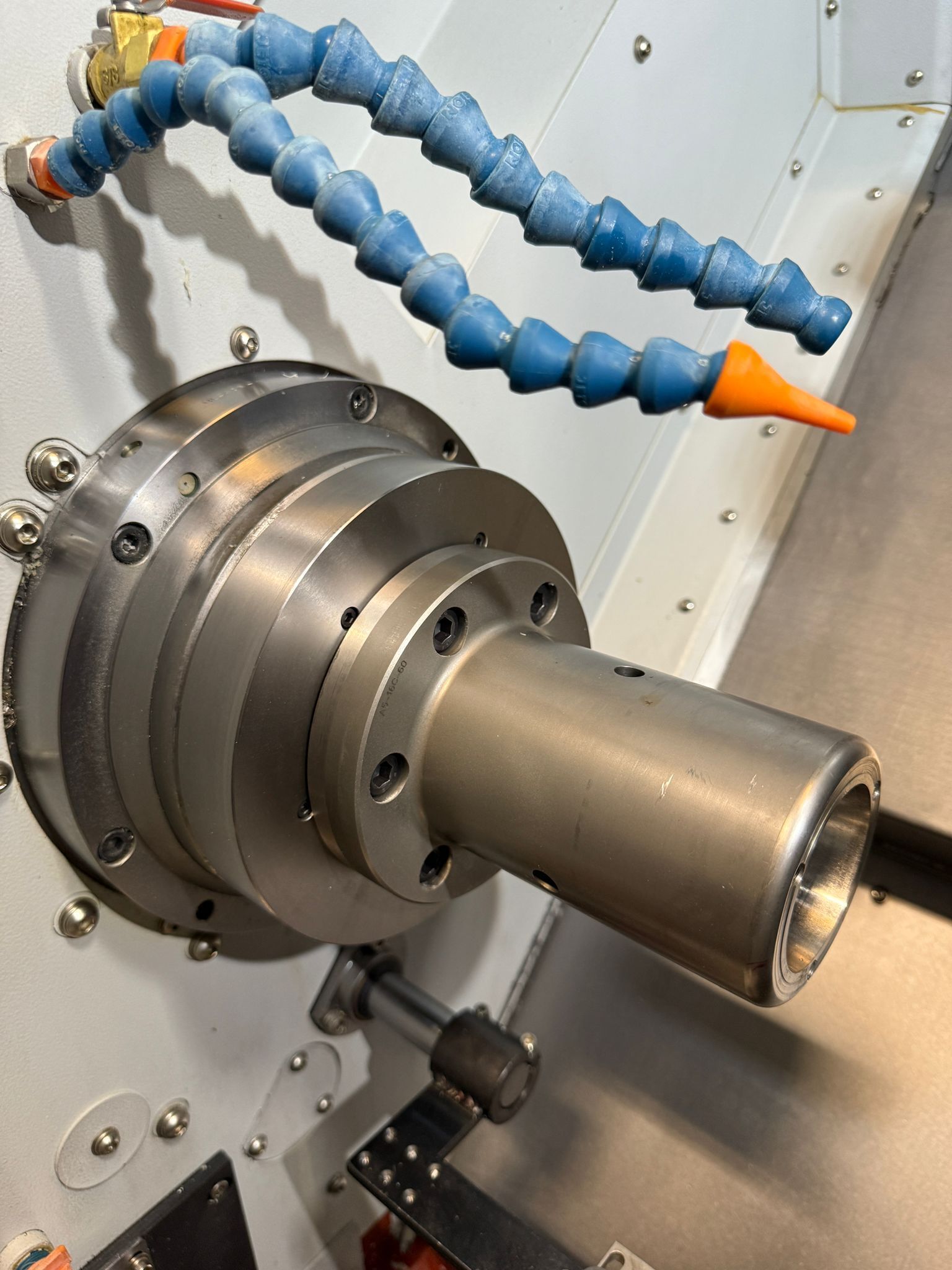

- Collet Nose on Spindle (Capable 6″ Chuck)
- A2-5, 6000 RPM Spindle

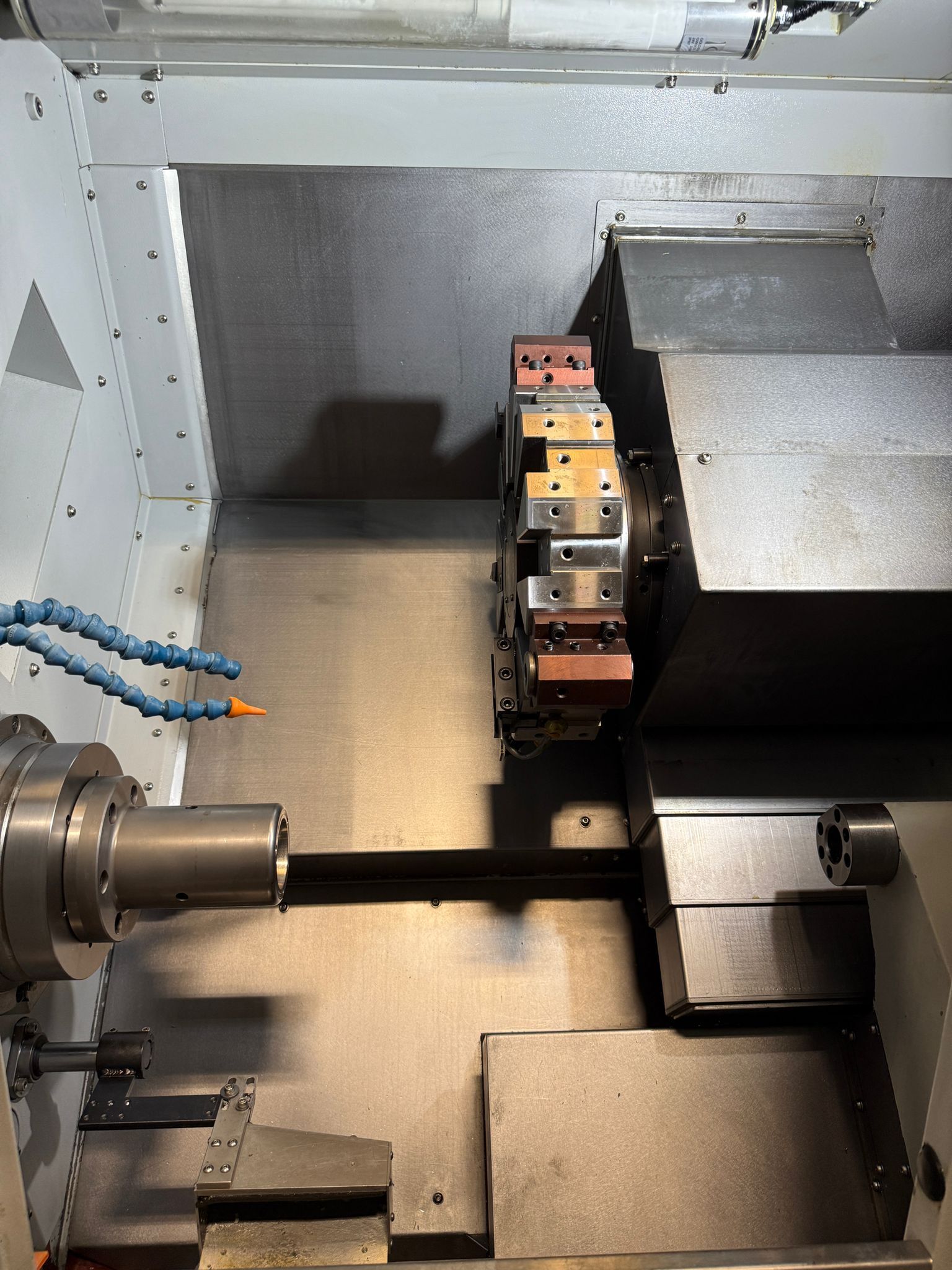

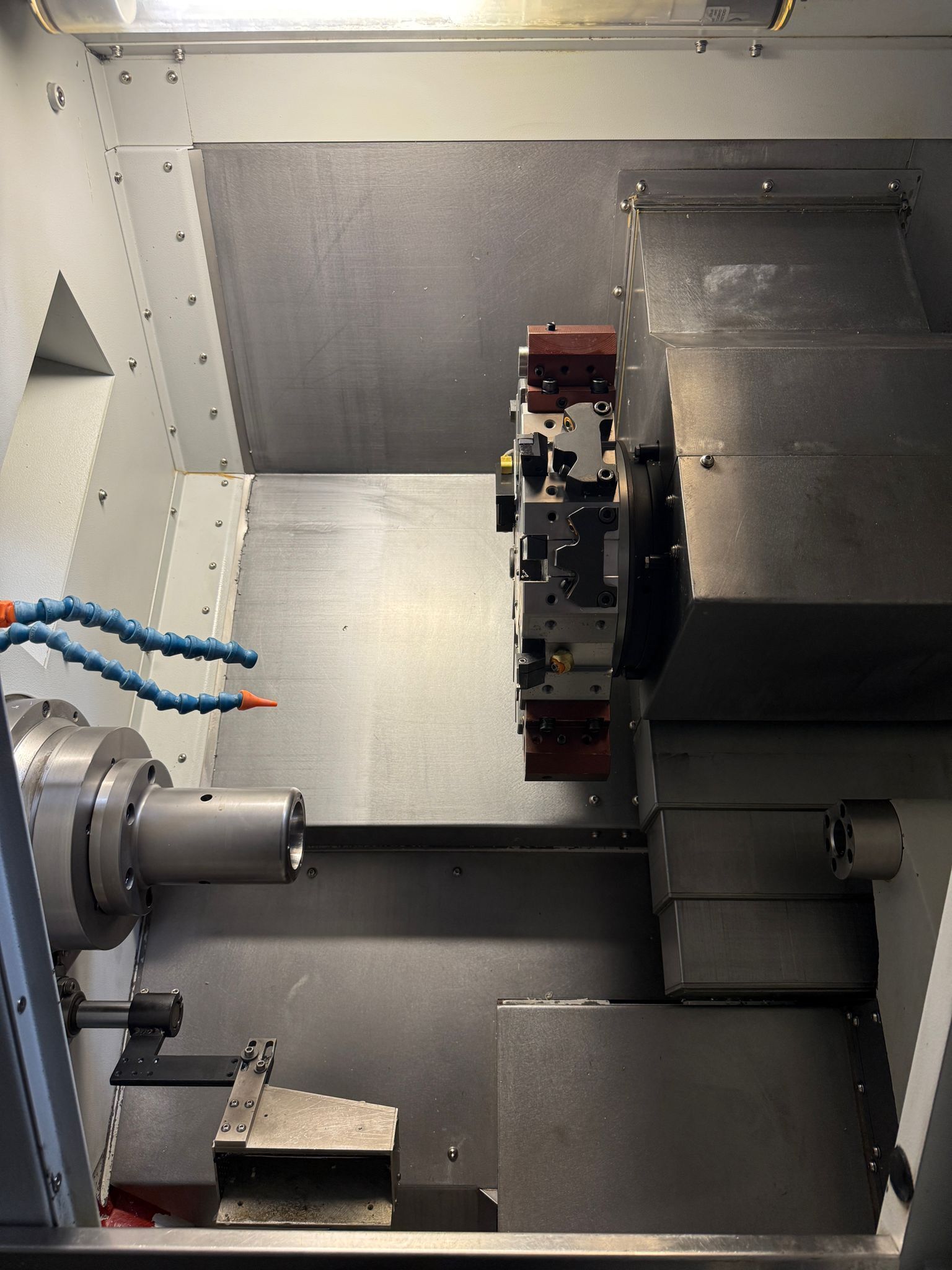

- 12 Station Automatic Turret

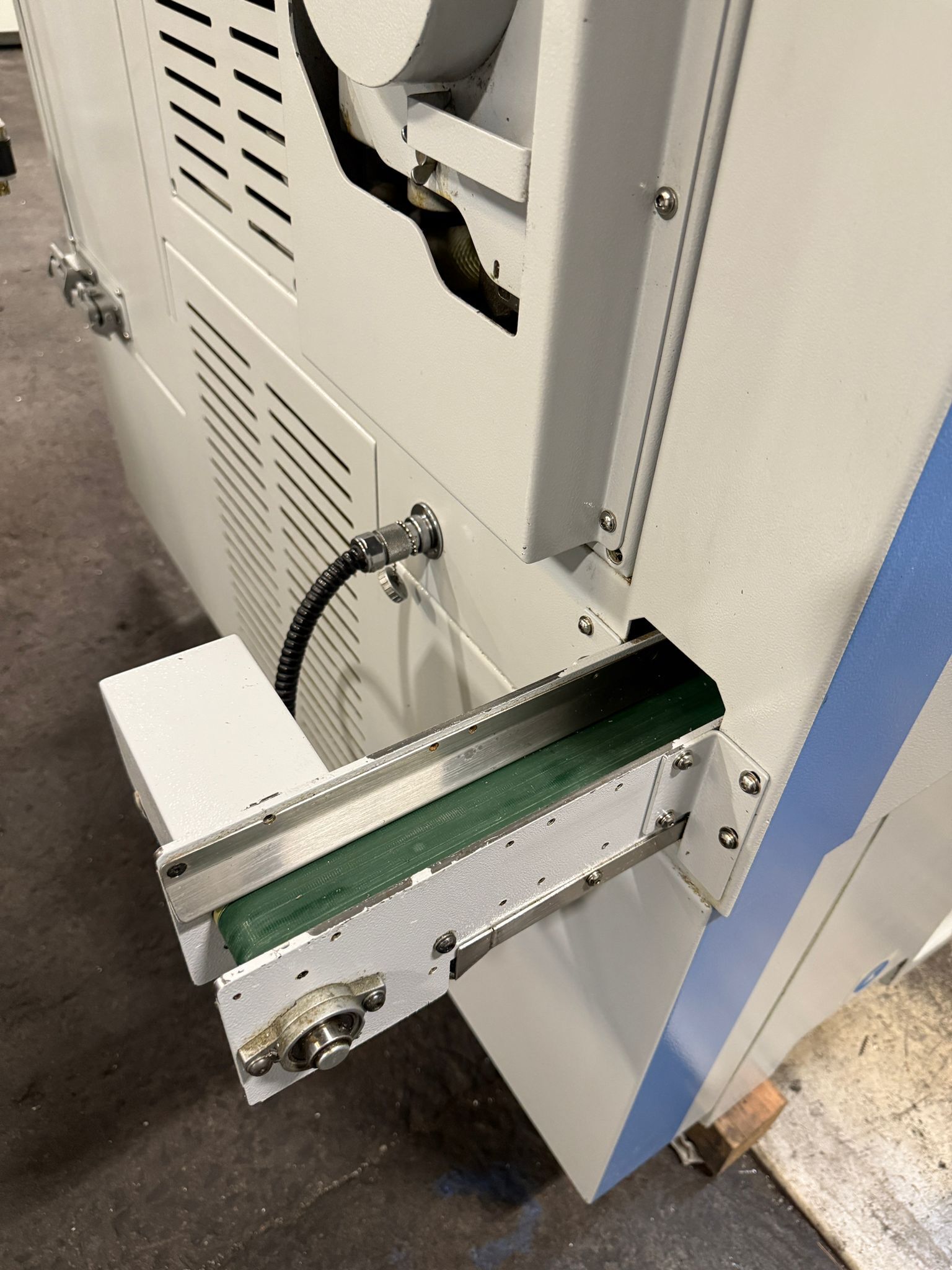

- Part Catcher
- Tailstock
- Rigid Tapping
- PCMCIA Card Interface
- USB Port
- Foot Switch

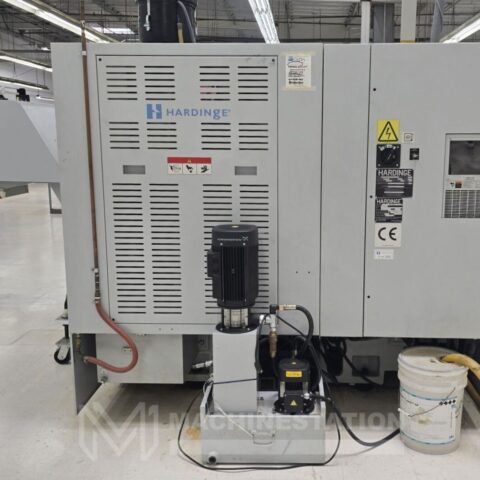

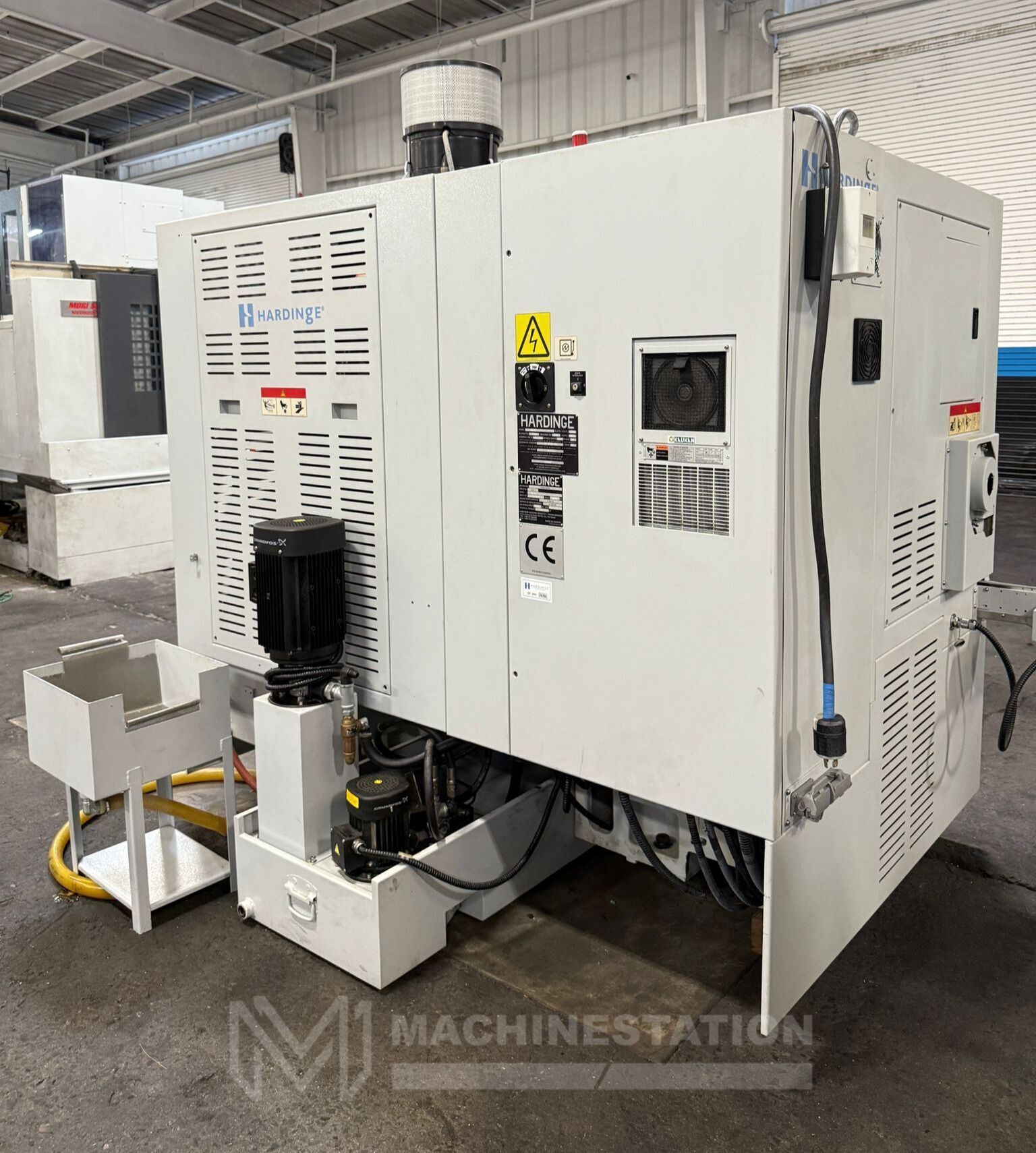

- Coolant System

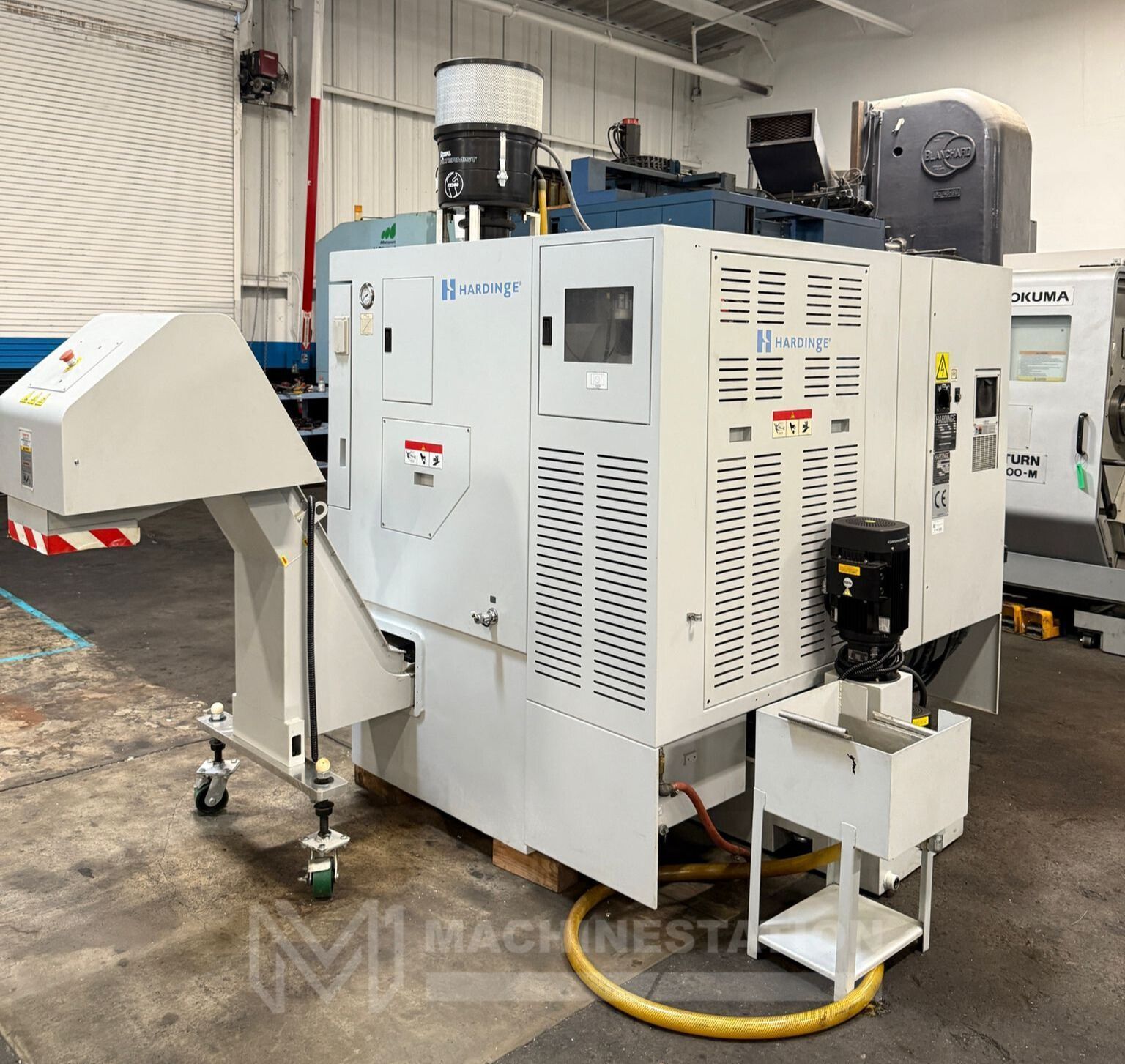

- Chip Conveyor
- Bar Feeder Interface

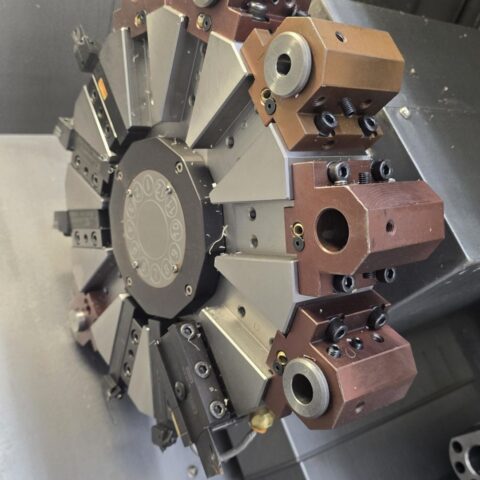

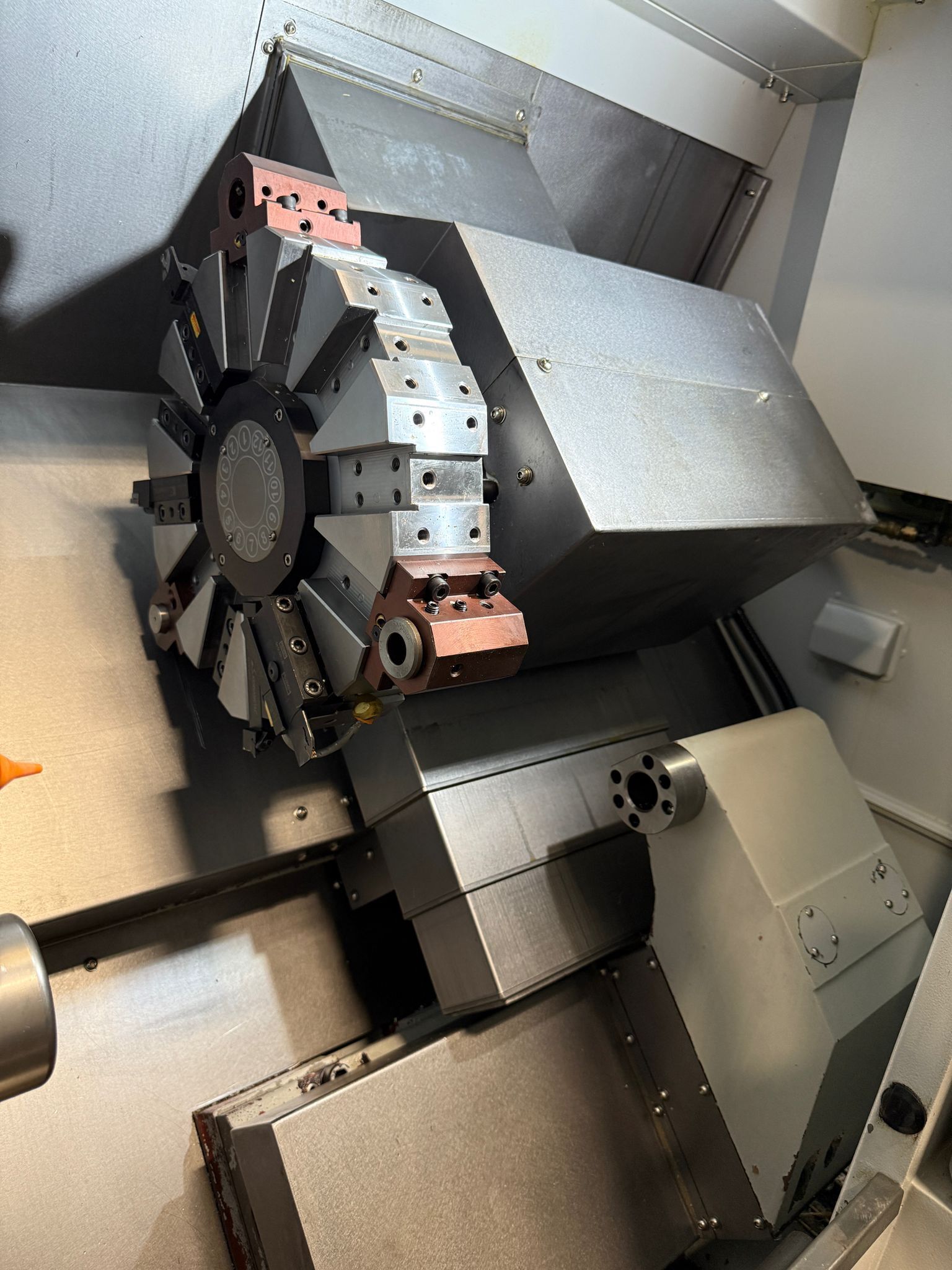

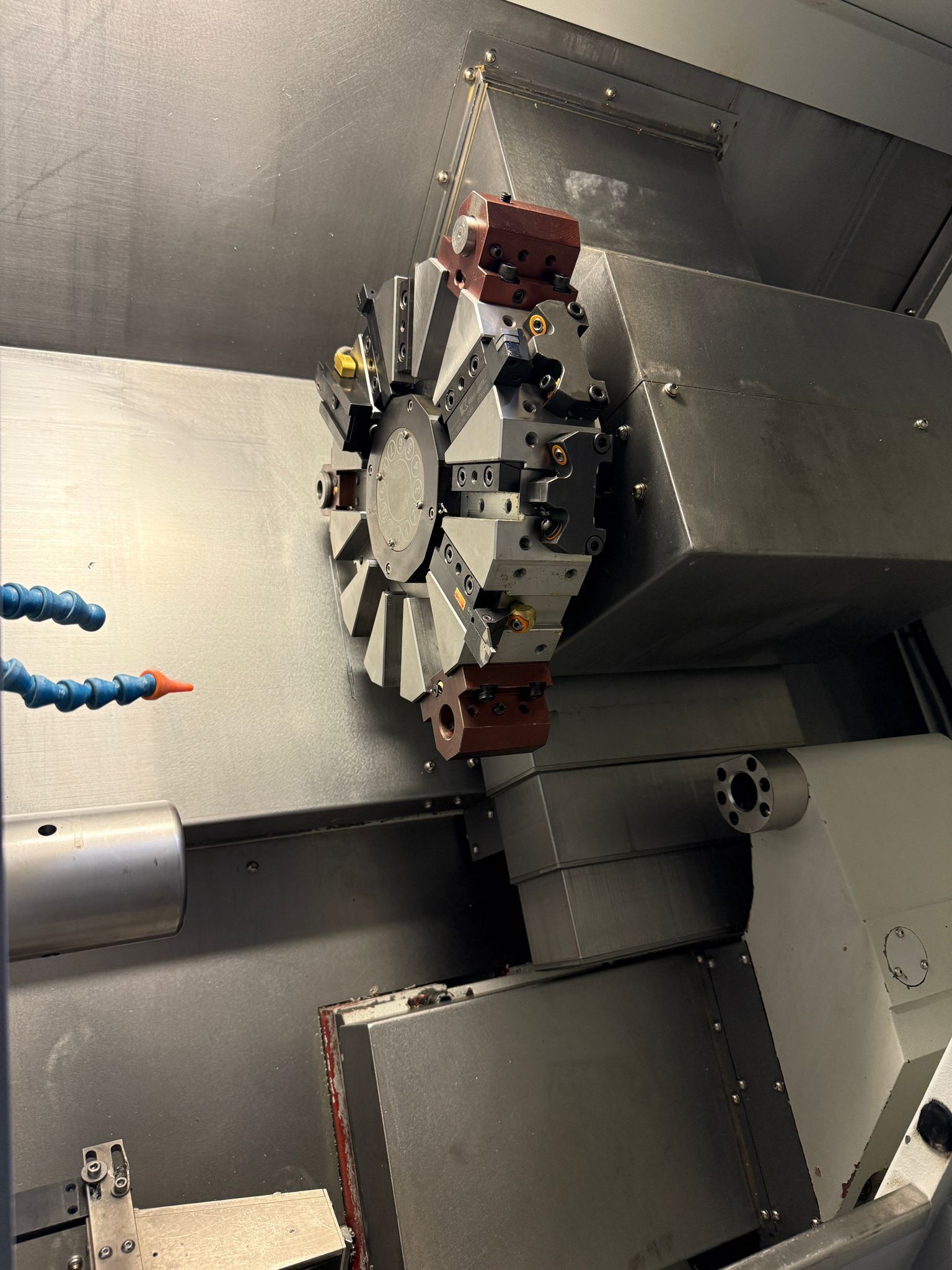

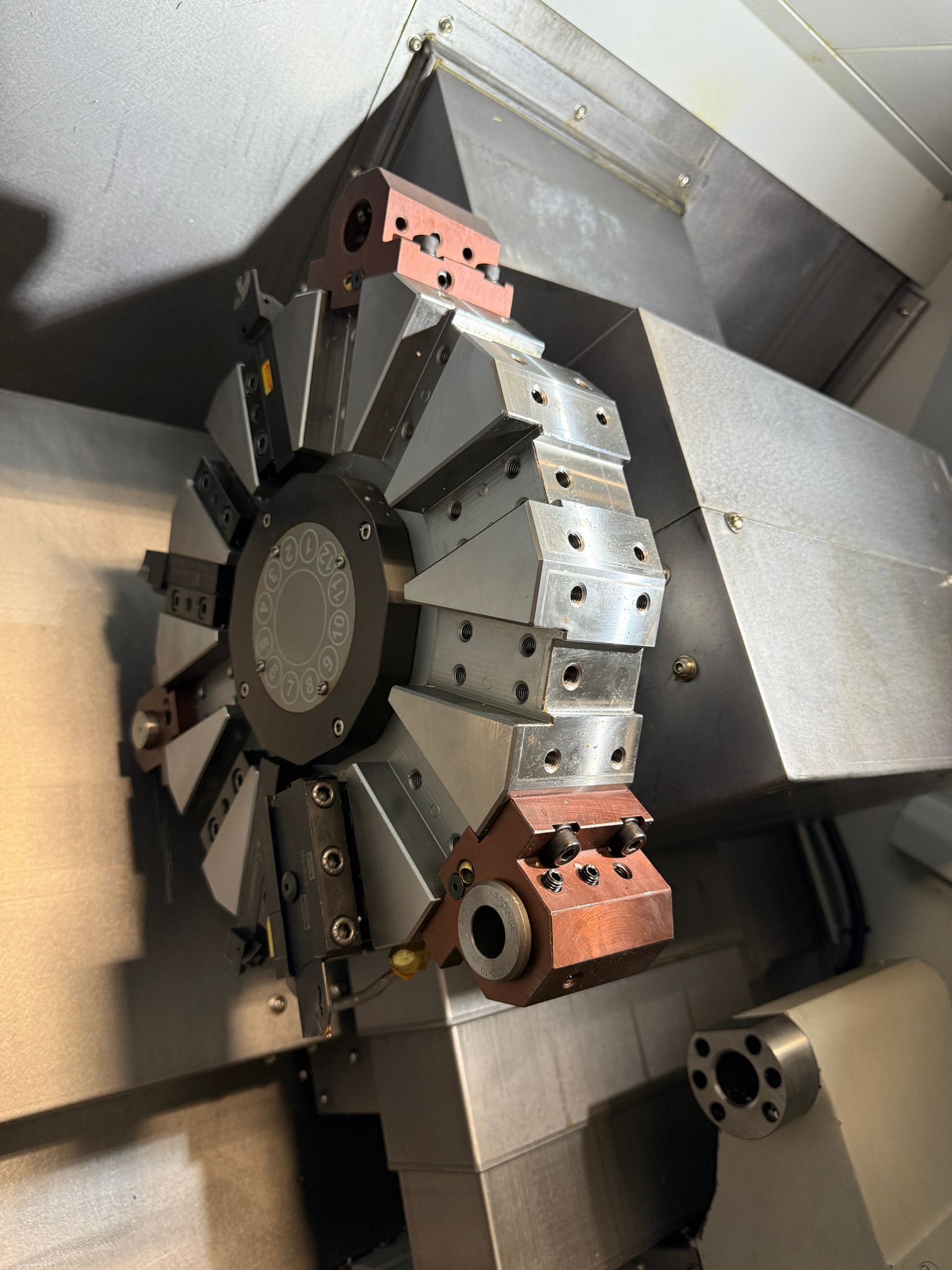

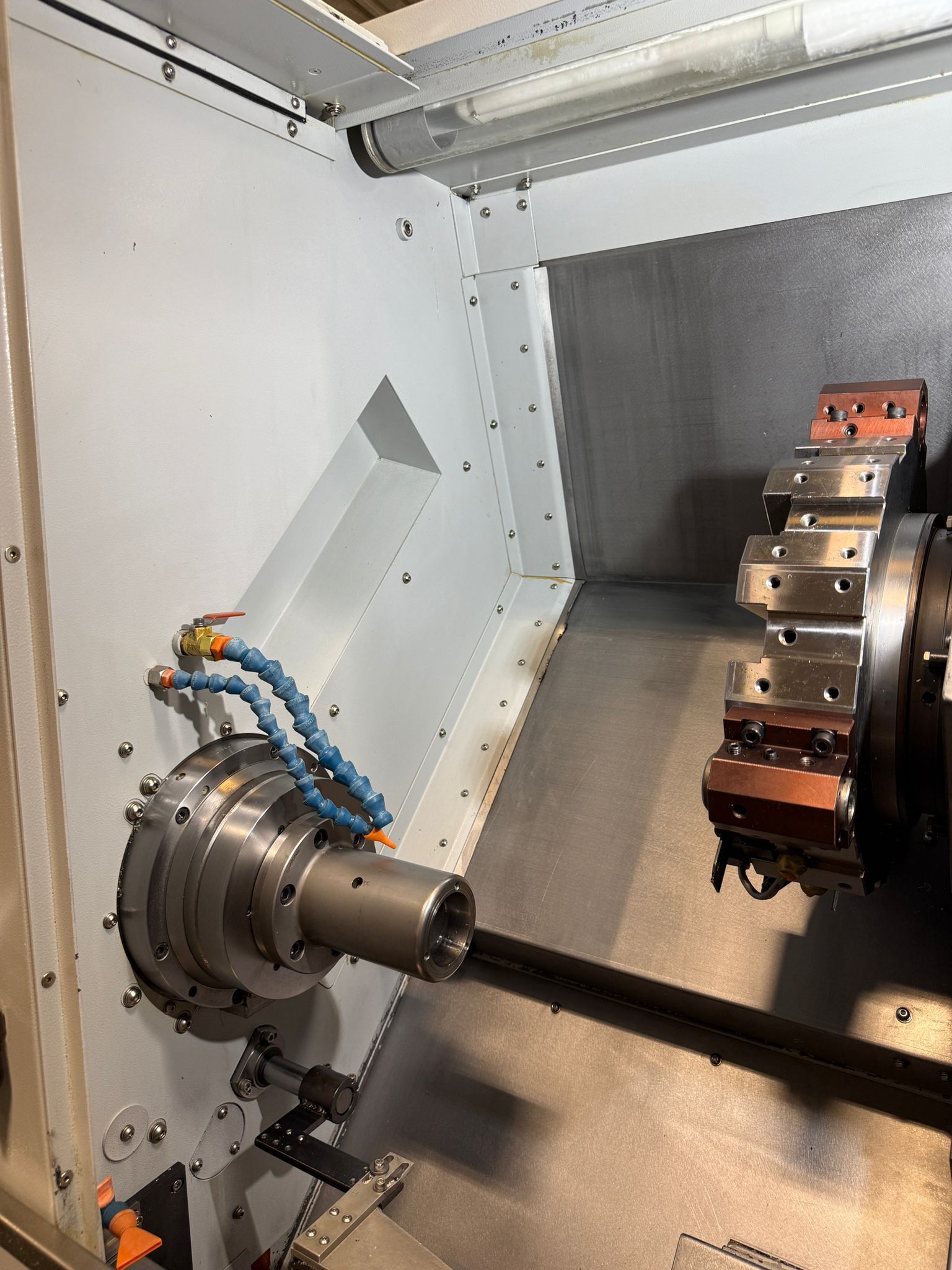

- (3) Boring Tool Holders are Mounted on Turret (As shown in the images)
-
Capacity:
- Max Turning Diameter: 11.18″
- Max Turning Length: 15.98″
- Max Swing Over Bed: 18.00″
- Max Bar Capacity: 1.65″
-
Travels:
- X Axis Travel: 6.02″
- Z Axis Travel: 16.00″
- Rapid Traverse X Axis: 1181 IPM
- Rapid Traverse Z Axis: 1181 IPM
-
Spindle:
- Spindle Nose: A2-5
- Spindle Bore: 1.77″
- Spindle Speed: 6000 RPM
- Spindle Motor: 15 HP
-
Turret:
- Turret Capacity: 12 Stations
- Turret Index Time: 0.78 Second
- Square Tool Size: 3/4″
- Round Tool Size: 1-1/4″
- Tool Holders Type: BMT
-
Tailstock:
- Tailstock Taper: MT-4
- Tailstock Body Travel: 13.42″
-
General:

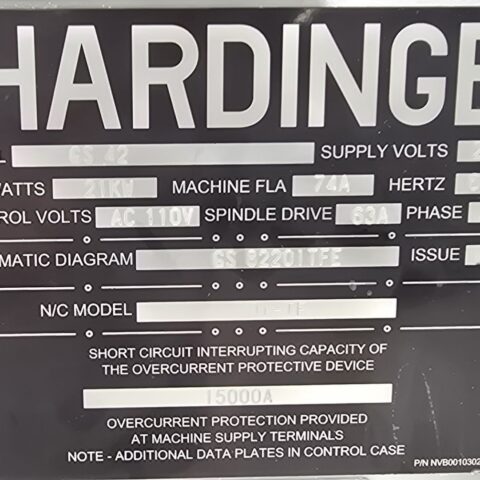

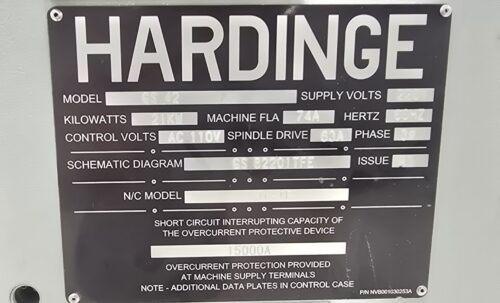

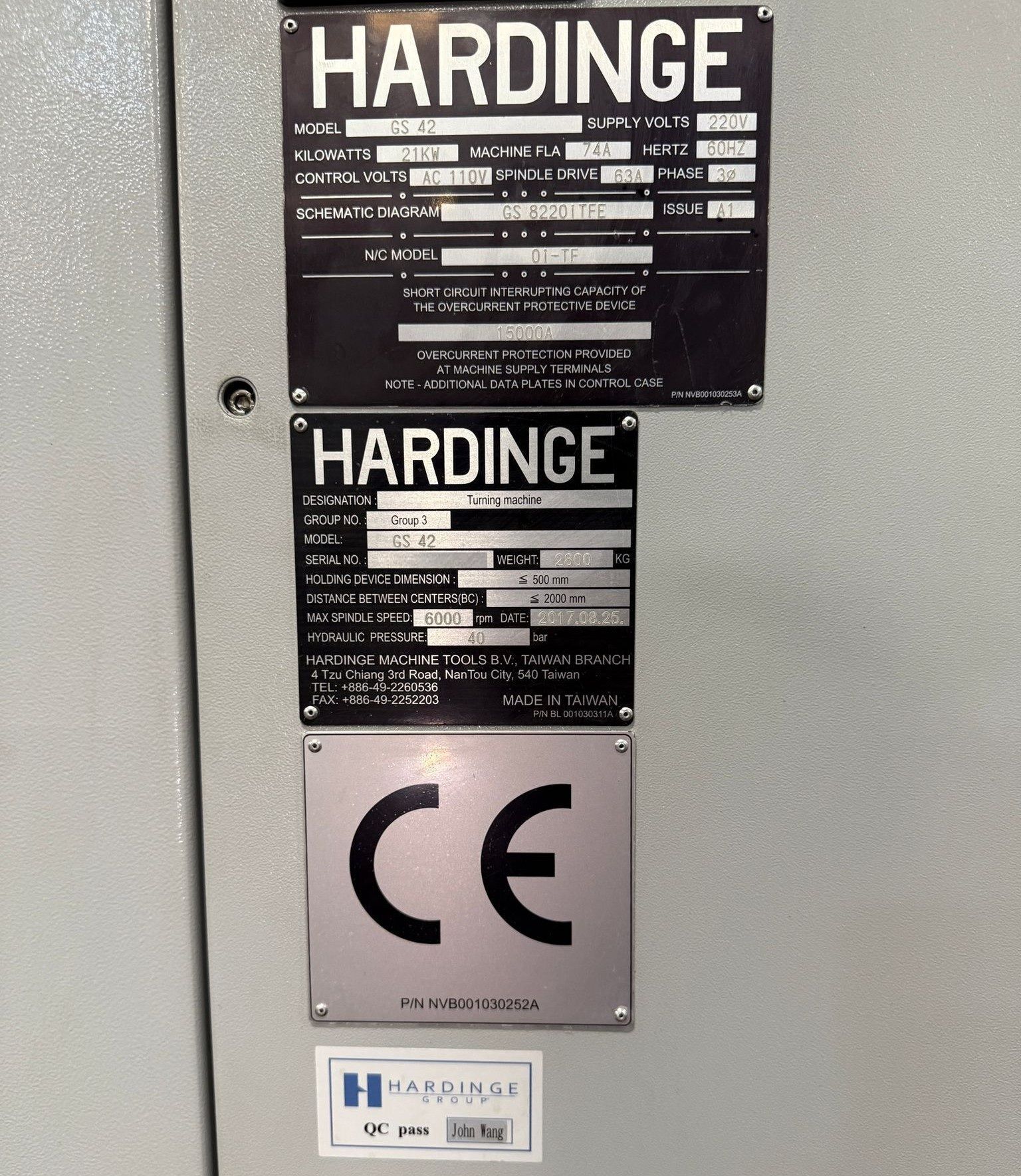

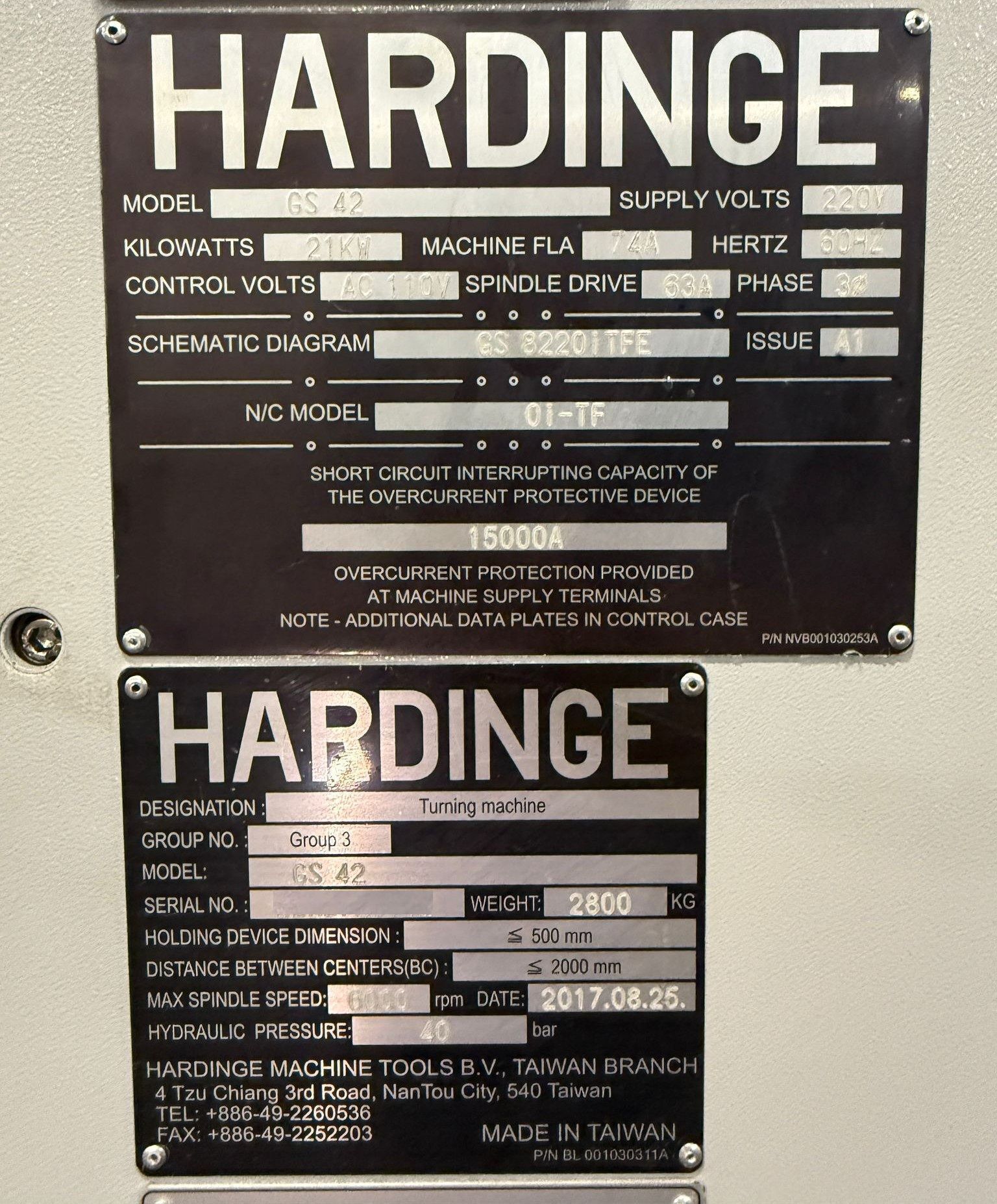

- Power: 60 HZ / 220v / 3-Phase / 21 kw
- Overall Dimensions: 78.66″ x 65″ x 70.12″ High Approx.
- Weight: 6,200 lbs Approx.
