Kia SKT-21LMS CNC Turn Mill

*Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details*



Out of stock

Product Description

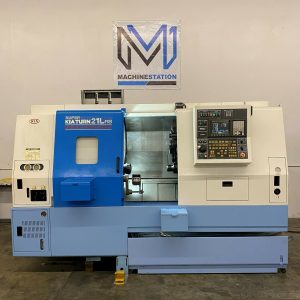

KIA SKT-21LMS CNC TURN MILL

Make: KIA
Model No.: SKT-21LMS
Serial No.: 0162
Year: 06/2000
Condition: Very Good
Comes with 2 x live tools, static tools & Books, Manuals.
Cutting Time: 8592 Hours

All specifications are approximations, and are subject to verification.

KIA SKT-21LMS Equipped With:

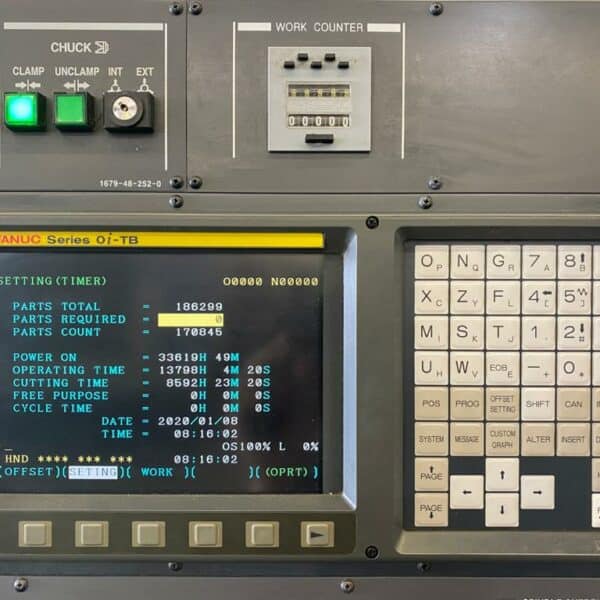

  • Fanuc 0i-TB CNC Control

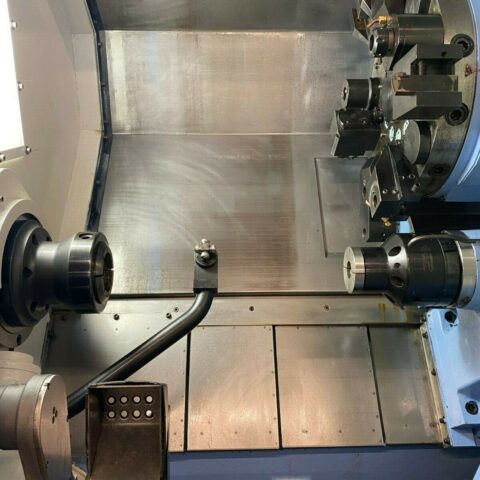

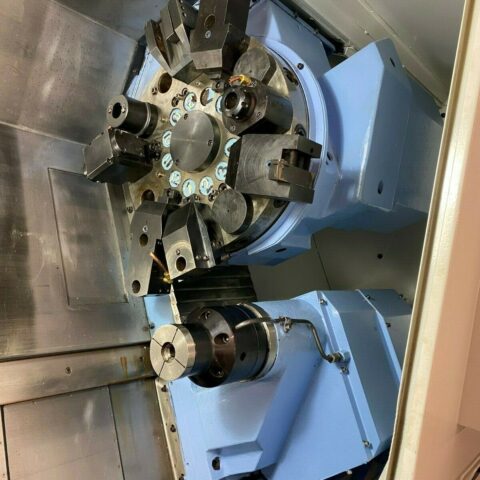

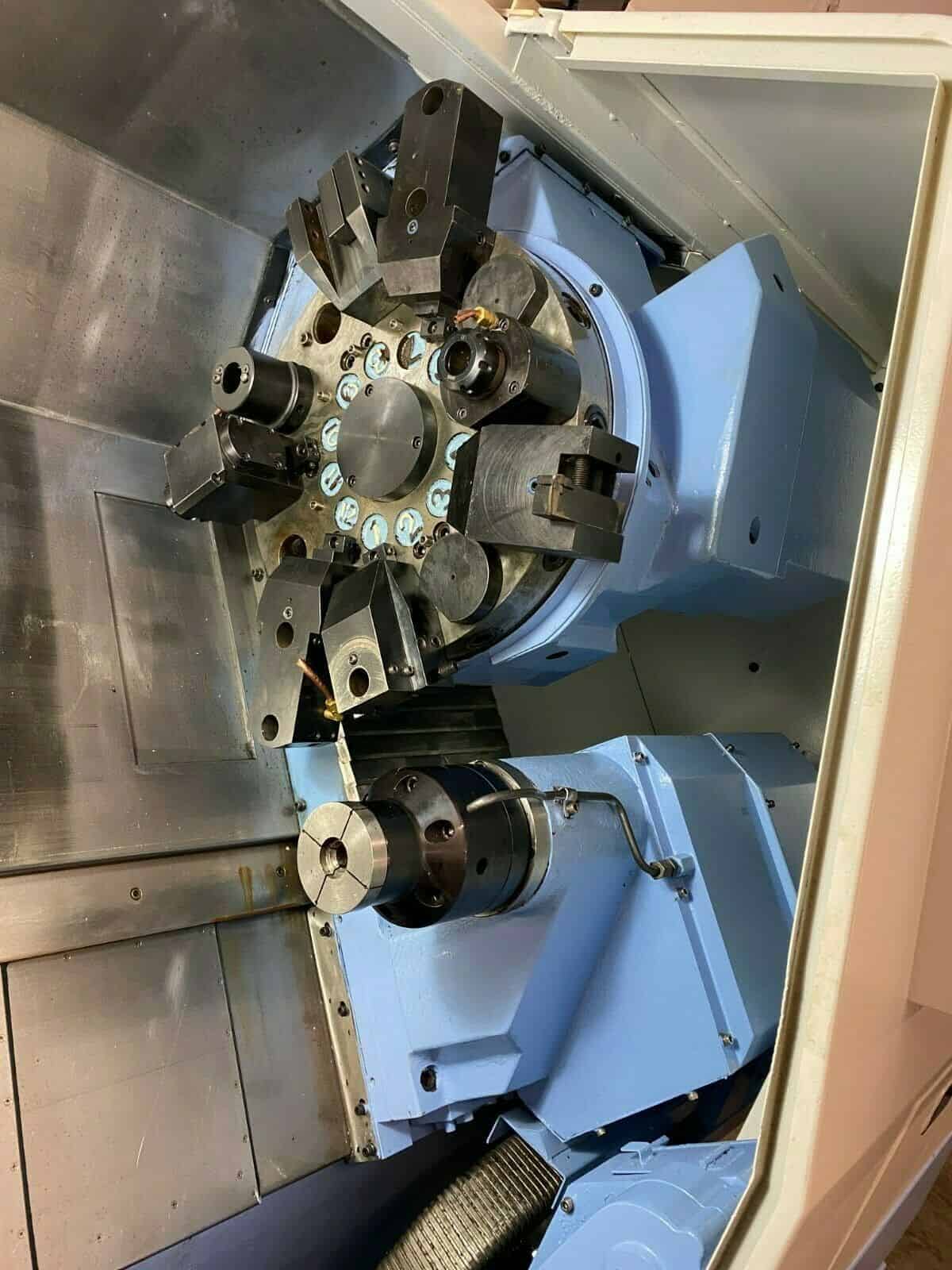

  • 12-Station Turret –  Live / Rotary Tools
  • Full C-Axis on Both Spindles
  • Tool Presetter
  • Dual Parts Catcher
  • Expanded Memory

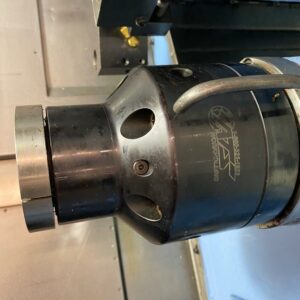

  • ATS Collet Chuck on Sub Spindle
  • Big Bore ATS Collet Nose on Main Spindle
  • 3 jaw Chucks ( Option inexchange of Collet Chucks )
  • Rigid Tapping on Both Spindles
  • Foot Operated Control for Chuck
  • High Intensity Work Lights
  • Coolant Tank & Pump
  • All Original Books

KIA SKT-21LMS Specifications:

Capacity:
Max Turning Diameter: 13.8″
Max Turning Length: 20.8″
Max Bar Capacity: 2.6″
Max Swing: 21.65″

Travels:
X Axis Travel: 8.7″
Z Axis Travel: 21.6″
B Axis Sub Spindle Travel: 29.50″
C Axis: 360° (0.001°) Both Spindle
Rapid Traverse X Axis: 1417 IPM
Rapid Traverse Z Axis: 1417 IPM
Rapid Traverse B Axis: 1181 IPM

Spindle:
Main Spindle Bore: 2.9″
Sub Spindle Bore: 1.18″
Main Spindle Nose: A2-8
Sub Spindle Nose: A2-5
Main Spindle Speed: 40-4000 RPM
Sub Spindle Speed: 40-5000 RPM
Main Spindle Power: 20 HP
Sub Spindle Power: 8 HP

Turret:
Turret Capacity: 12 Live Stations
Turret Index Time: 0.3 Second
Live Tool Speed: 30-4,000 RPM

General:
Power: 45 kva, 220v / 3-Phase
Overall Dimensions: 150″ X 90″ X 90 ” High
Overall Dimensions: 190″ X  90″ X 90″ High with Chip Conveyor
Weight: 9,500 lbs

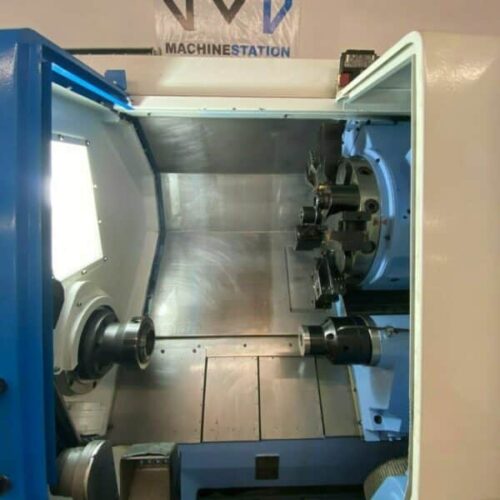

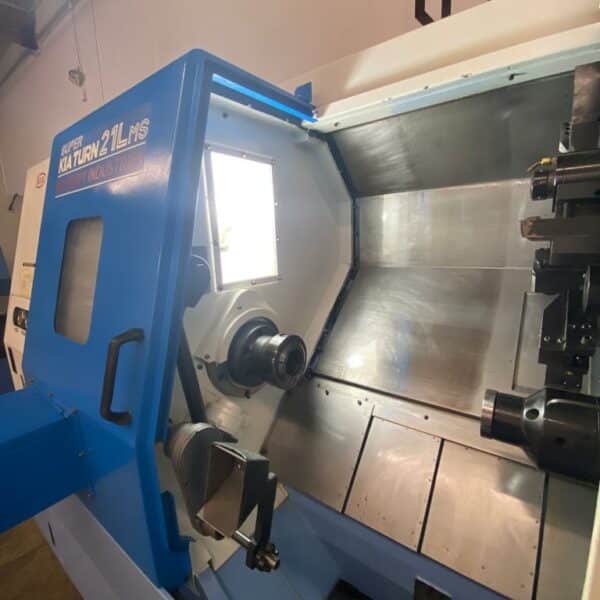

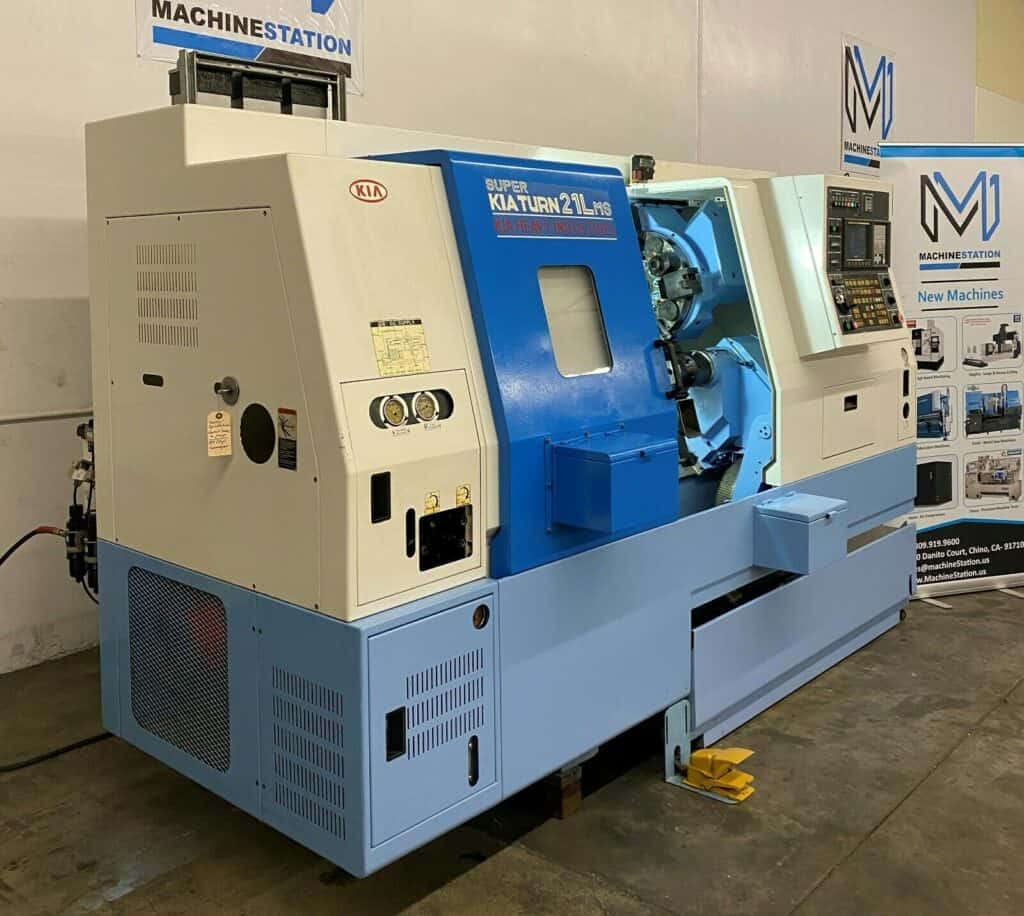

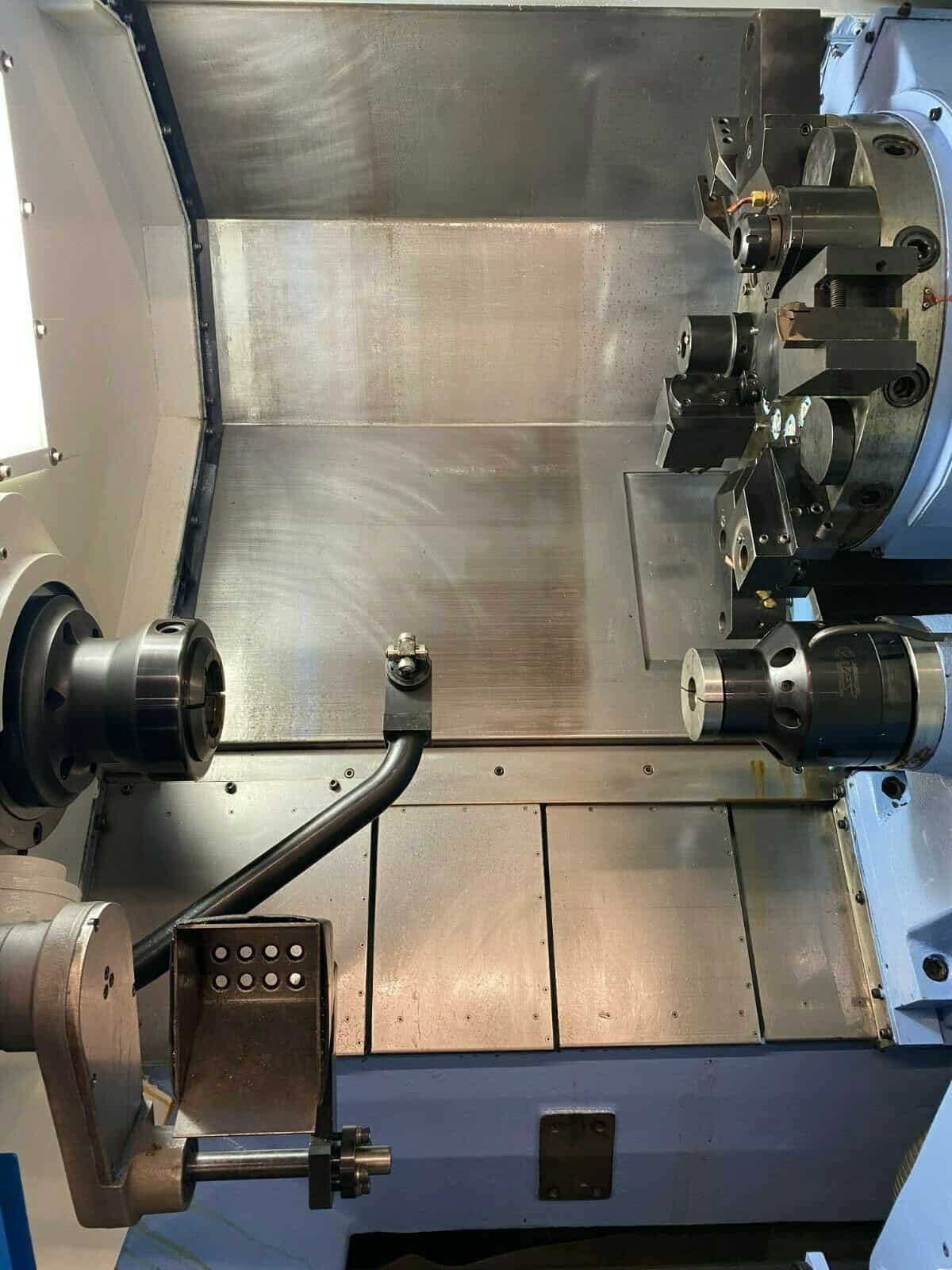

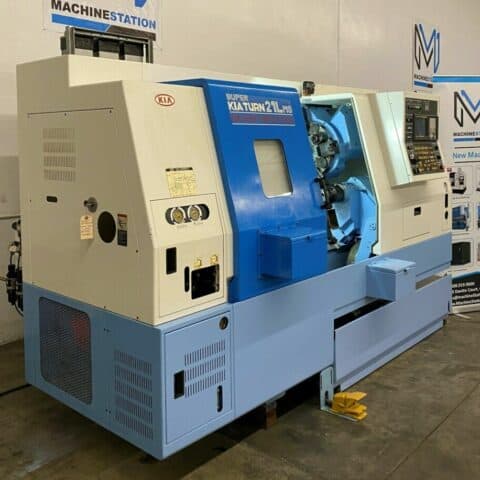

KIA TURN SKT-21LMS  Comes as shown in pictures..
