Sold
Hyundai Kia VX400 (2)
Hyundai Kia VX400 (4)
Hyundai Kia VX400 (3)

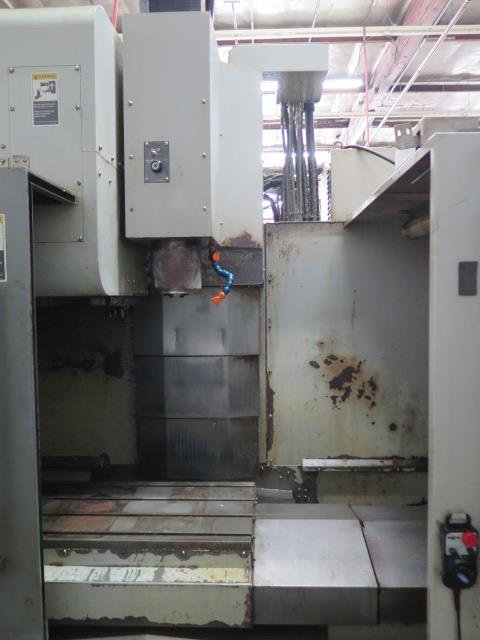

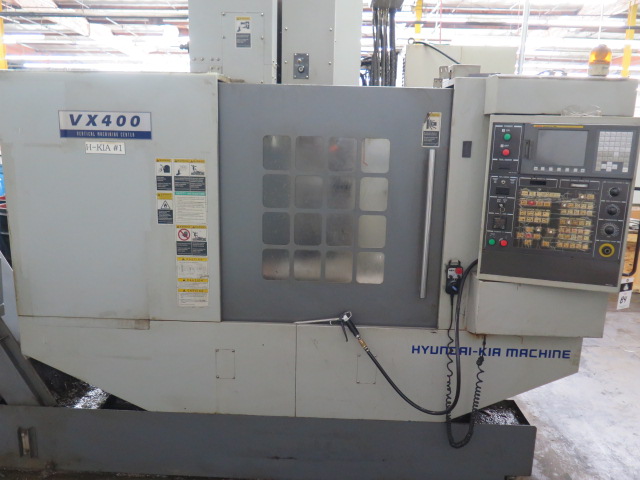

Hyundai-Kia VX400 CNC Vertical Machining Center

SKU 11770
Make/Model Hyundai-Kia VX400
Video On Request
Out of stock
SKU: 11770
Make/Model: Hyundai-Kia VX400
Video: On Request
SKU: 11770

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

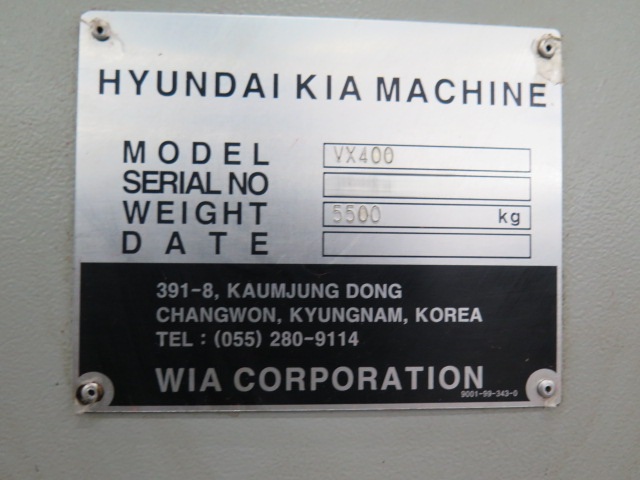

Make: Hyundai-Kia
Model: VX400
Machine Type: CNC Vertical Machining Center

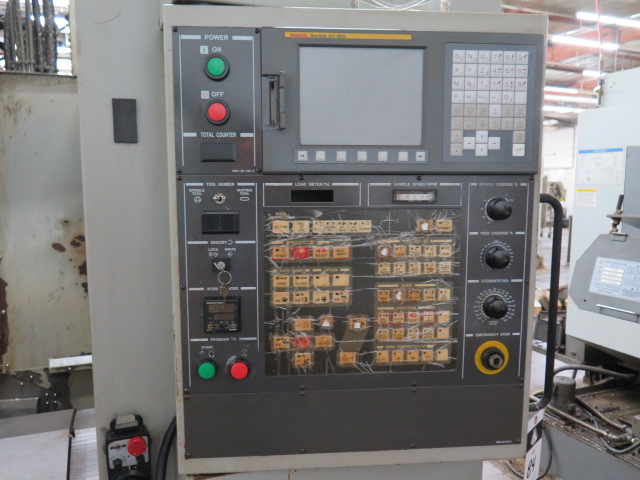

Control: Fanuc Series 0i-MC CNC Control
Features:
Fanuc Series 0i-MC CNC Control
Hand Wheel
24-Station Automatic Tool Changer
CAT-40 Taper Spindle
Chip Conveyor
Coolant System
Travels:
X-Axis Travel: 31.5″
Y-Axis Travel: 18.1″
Z-Axis Travel: 20.5″
Rapid Traverse X/Y/Z: 1,260 IPM
Table:
Table Size: 39.4″ × 18.1″
Table Capacity: 1,323 lbs
T-Slots: 5
Spindle:
Spindle Taper: CAT-40
Maximum Spindle Speed: 8,000 RPM
Spindle Motor: 20 HP
Automatic Tool Changer:
ATC Type: Side-Mount Automatic Tool Changer
Tool Capacity: 24 Stations
Tool Taper: CAT-40
General:
Power: 3 Phase
Machine Weight: 12,125 lbs
Machine Dimensions (Approx.): 120″ × 83″ × 112″
Travels:
X-Axis Travel: 800 mm
Y-Axis Travel: 460 mm
Z-Axis Travel: 521 mm
Rapid Traverse X/Y/Z: 1,260 IPM
Table:
Table Size: 1,001 mm × 460 mm
Table Capacity: 1,323 lbs
T-Slots: 5
Spindle:
Spindle Taper: CAT-40
Maximum Spindle Speed: 8,000 RPM
Spindle Motor: 20 HP
Automatic Tool Changer:
ATC Type: Side-Mount Automatic Tool Changer
Tool Capacity: 24 Stations
Tool Taper: CAT-40
General:
Power: 3 Phase
Machine Weight: 12,125 lbs
Machine Dimensions (Approx.): 3,048 mm × 2,108 mm × 2,845 mm
CategoriesCNC Vertical Machining Centers
MakeHYUNDAI KIA
ModelVX400
  • Fanuc Series 0i-MC CNC Control
  • Hand Wheel
  • 24-Station Automatic Tool Changer
  • CAT-40 Taper Spindle
  • Chip Conveyor
  • Coolant System
Hyundai Kia VX400 (2)Hyundai Kia VX400 (4)Hyundai Kia VX400 (3)

Payment Terms

Up to 3 buyers can reserve the same machine. If you're 2nd or 3rd in line, we'll tell you your place, and you'll get the next chance if the first buyer doesn't proceed.

Shipping & Logistics

We coordinate domestic and international shipping, including loading, containerization, and freight arrangements through trusted logistics partners.

Machine Inspection

Buyers can request a live video demonstration, machine inspection, or schedule an on-site visit before completing the purchase.

Export & Documentation

For international orders, we can assist with export documentation, commercial paperwork, and pre-shipment inspection requirements.
