*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hyundai Kia |
| Model: | VX-400 |
| Year: | 2007 |
| Features: |
|---|
| Fanuc Series 0i-MC CNC Control |
| Coolant Thru Spindle (CTS) |

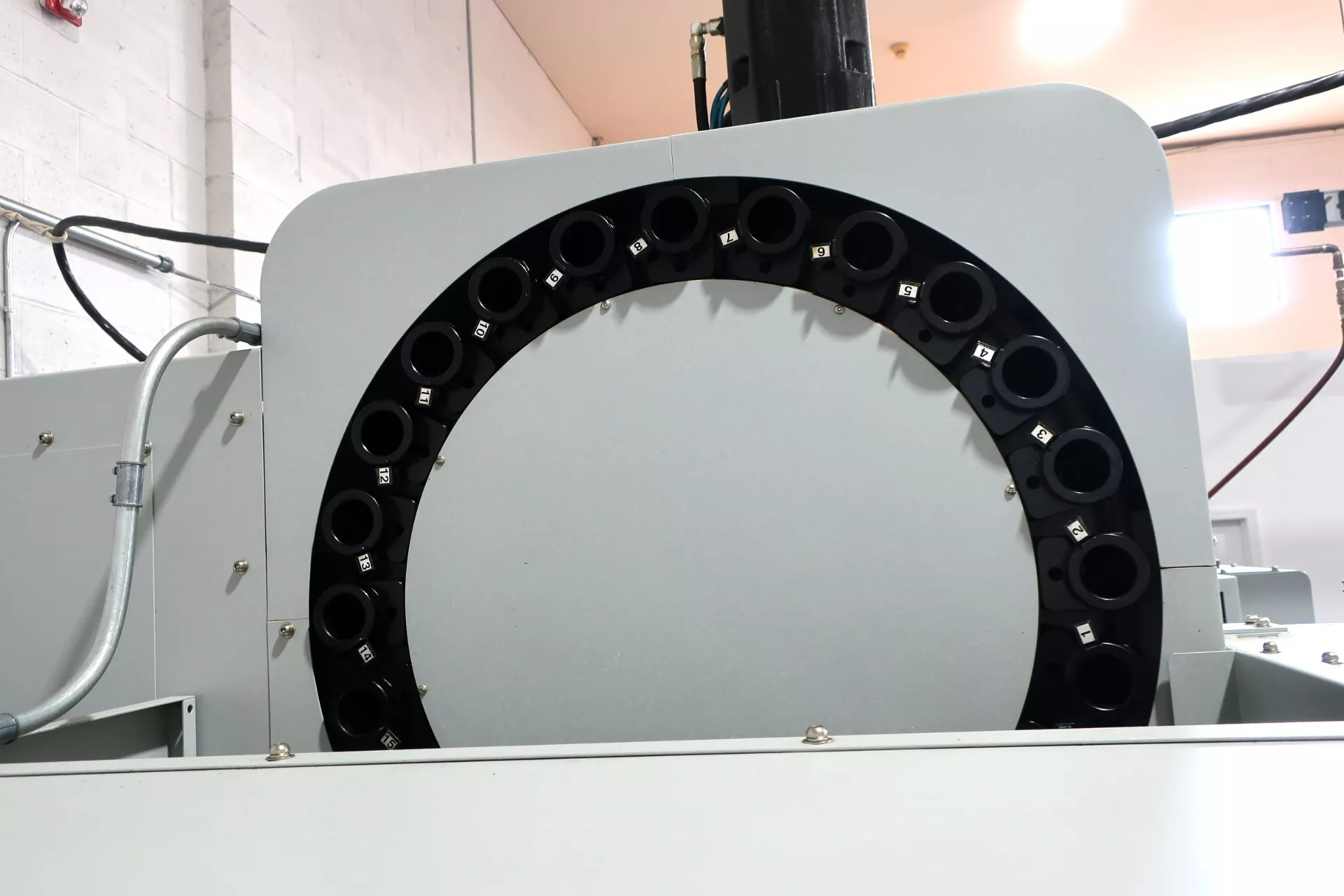

| 24-Position Automatic Tool Changer |
| CAT-40 Spindle |
| 8,000 RPM Spindle |
| Spindle Oil Chiller |
| Coolant System |
| Chip Conveyor |
| Machine Enclosure |
| Work Light |
| Automatic Lubrication System |
| Rotary Ready (Rotary Unit Not Included) |
| TRAVELS: |
|---|
| X-Axis: 31.5″ |
| Y-Axis: 18.1″ |
| Z-Axis: 20.5″ |
| TABLE: |
|---|
| Table Size: 39.4″ x 18.1″ |
| Maximum Table Load: 1,323 lbs |
| SPINDLE: |
|---|
| Spindle Taper: CAT-40 |
| Spindle Speed: 8,000 RPM |
| Spindle Motor: 20 HP |
| Coolant Thru Spindle |
| AUTOMATIC TOOL CHANGER: |
|---|
| Tool Capacity: 24 Tools |
| Random Bi-Directional Tool Changer |
| GENERAL: |
|---|
| Power: 220 Volt / 3 Phase |
| Overall Dimensions: 120″ x 83″ x 112″ Approx. |
| Machine Weight: 11,300 lbs Approx. |
| Cutting Time: 4,922 Hours |
