*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

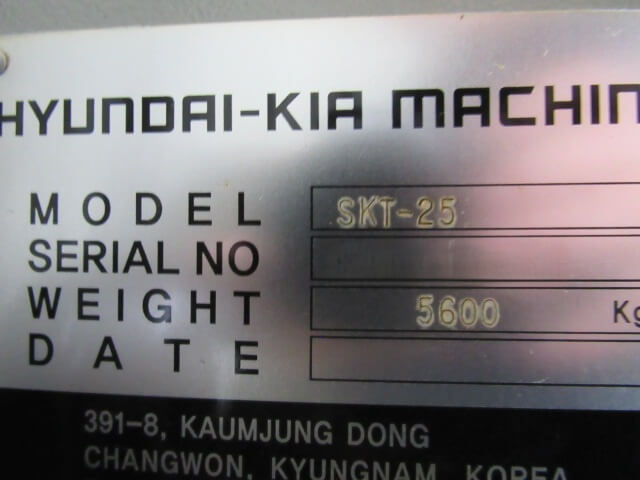

| Make: | Hyundai-Kia |
| Model: | SKT25 |
| Year: | 2008 |
| Condition: | Used |
| Machine Type: | CNC Turning Center |

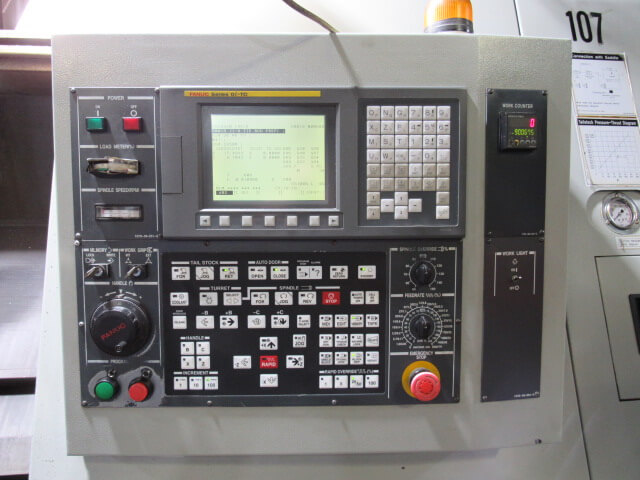

| Control: | Fanuc 0i-TC |
| Equipped With: |
|---|
| Fanuc 0i-TC CNC Control |
| Hand Wheel / Manual Pulse Generator |
| 10″ 3-Jaw Chuck |
| 12-Station Turret |
| Tool Presetter |
| Chip Conveyor |
| Programmable Center |
| Gear Head |
| Coolant System |
| Capacity: |
|---|
| Swing Over Bed: 24.4″ |
| Maximum Turning Diameter: 19.7″ |
| Maximum Machining Length: 20″ |
| Chuck Size: 10″ |
| Bar Capacity: 3″ |
| Spindle Bore: 3.54″ |
| Travels: |
|---|
| X-Axis Travel: 11.4″ |
| Z-Axis Travel: 29.5″ |
| Rapid Traverse X/Z: 787 / 945 IPM |
| Spindle: |
|---|
| Spindle Speed: 25–3,600 RPM |
| Spindle Motor: 30 HP |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.54″ |
| Spindle Type: 2-Speed Geared Head |
| Turret: |
|---|
| Turret Type: Servo Turret |
| Turret Capacity: 12 Stations |
| Tailstock: |
|---|
| Tailstock Type: Programmable |
| General: |
|---|
| Power Source: 230 VAC / 3 Phase / 60 Hz |
| Machine Dimensions (Approx.): 125″ L × 80″ W × 80″ H |
| Machine Weight: 12,346 lbs |
