*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hyundai Kia |
| Model No.: | SKT-250M |
| Year of Manufacture: | 2009 |

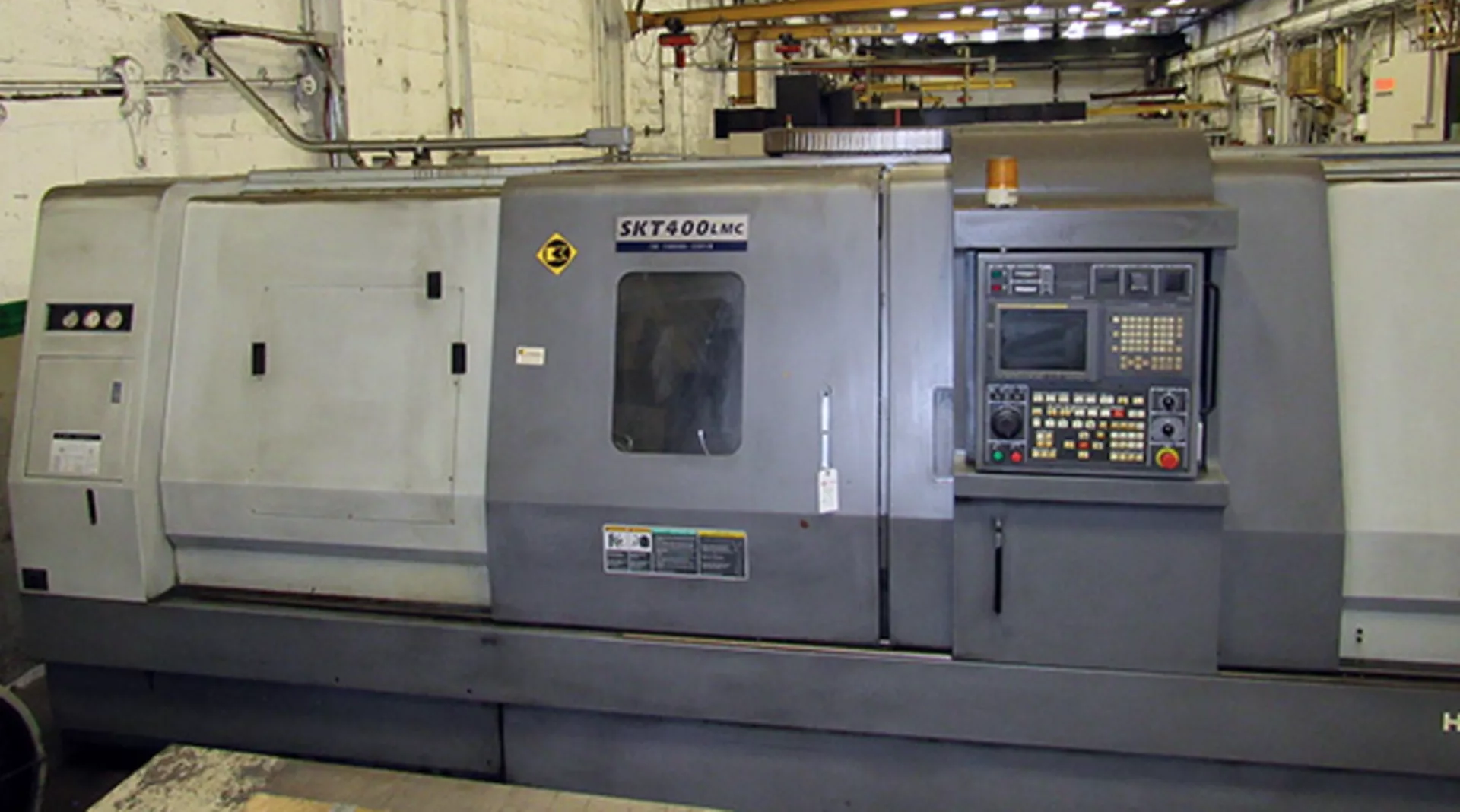

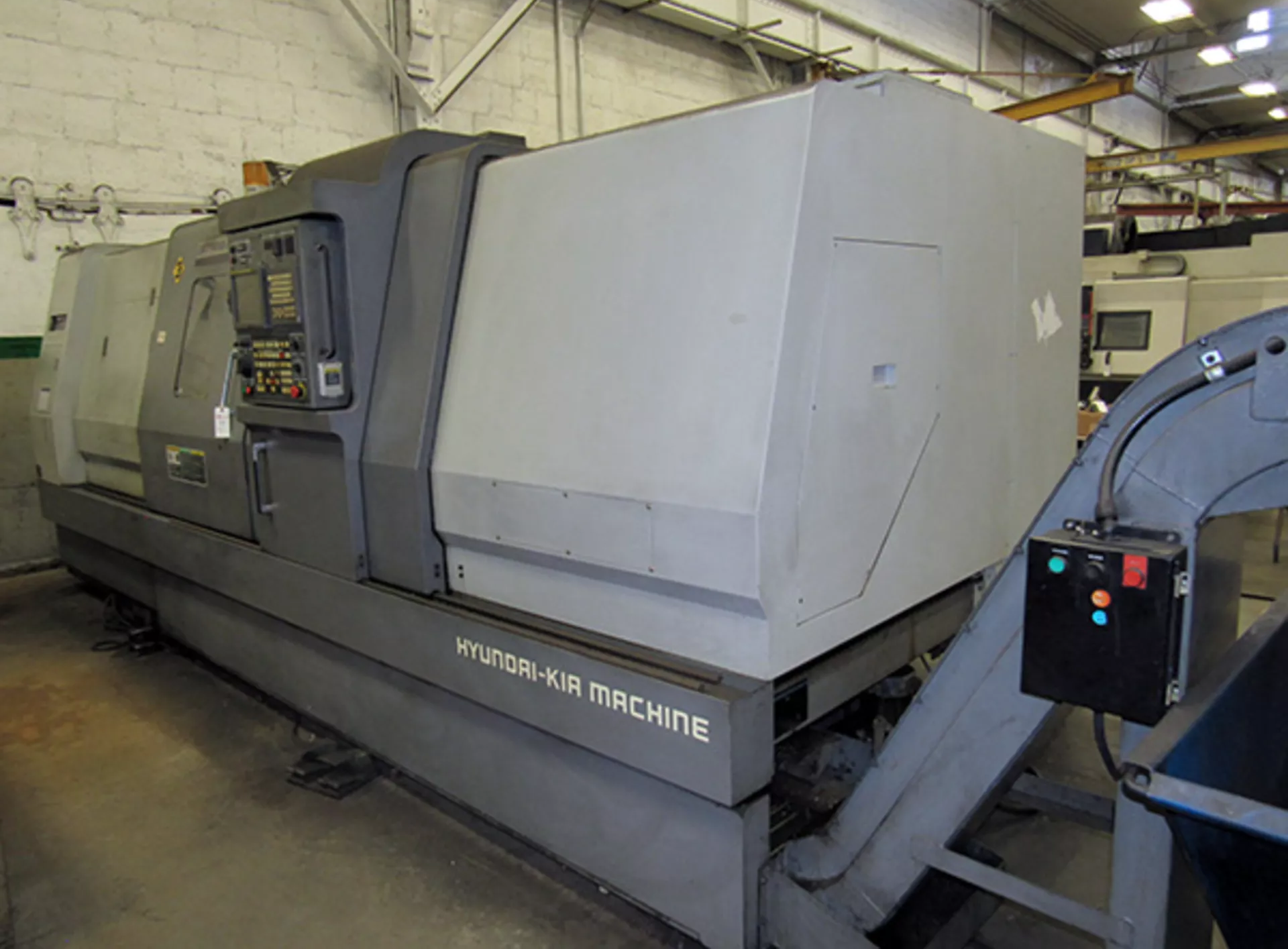

| Machine Type: | CNC Turning Center (Live Tooling) |

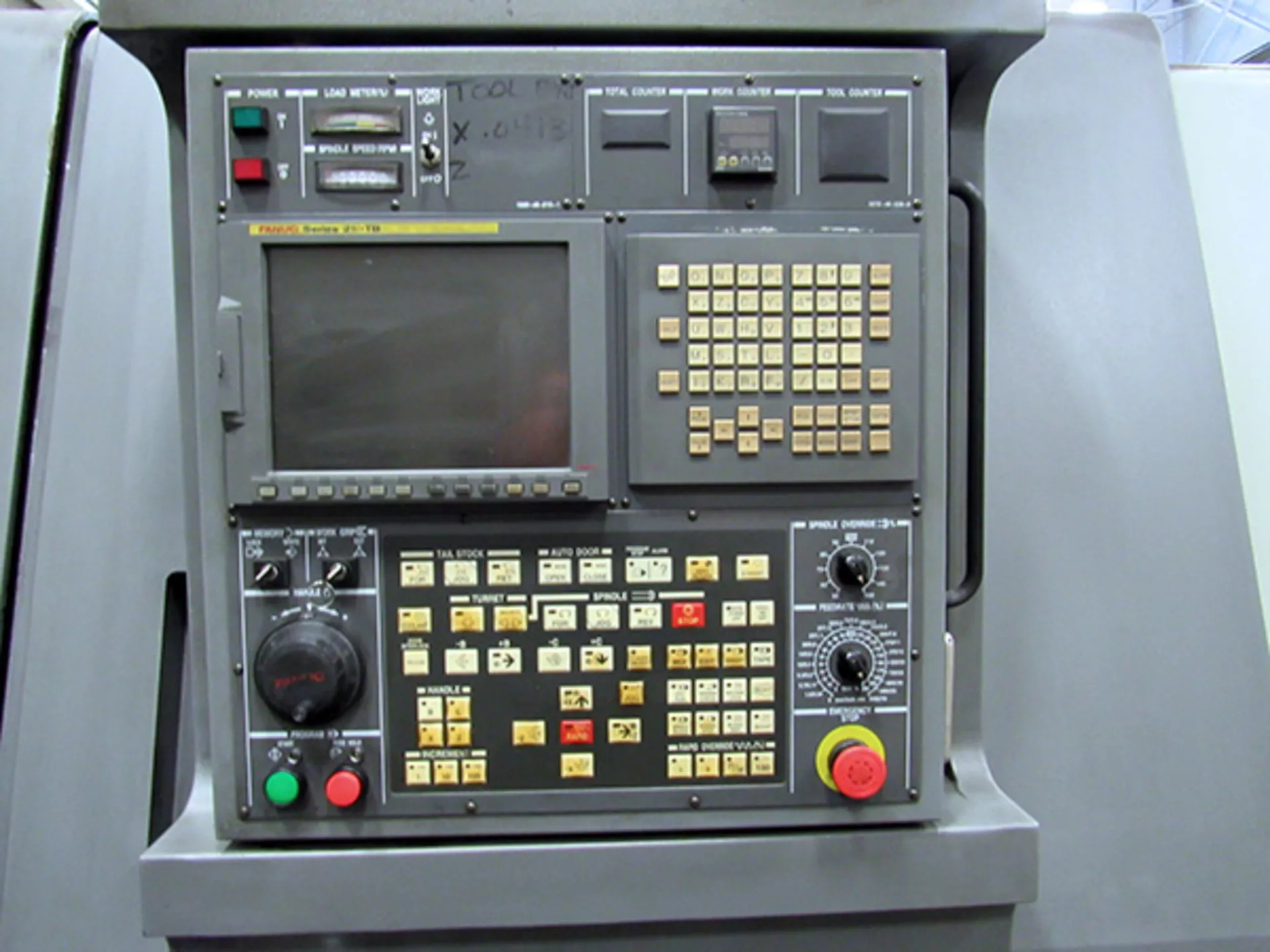

| CNC Control: | Fanuc CNC Control |
| Country of Origin: | South Korea |
| Equipped With: |
|---|

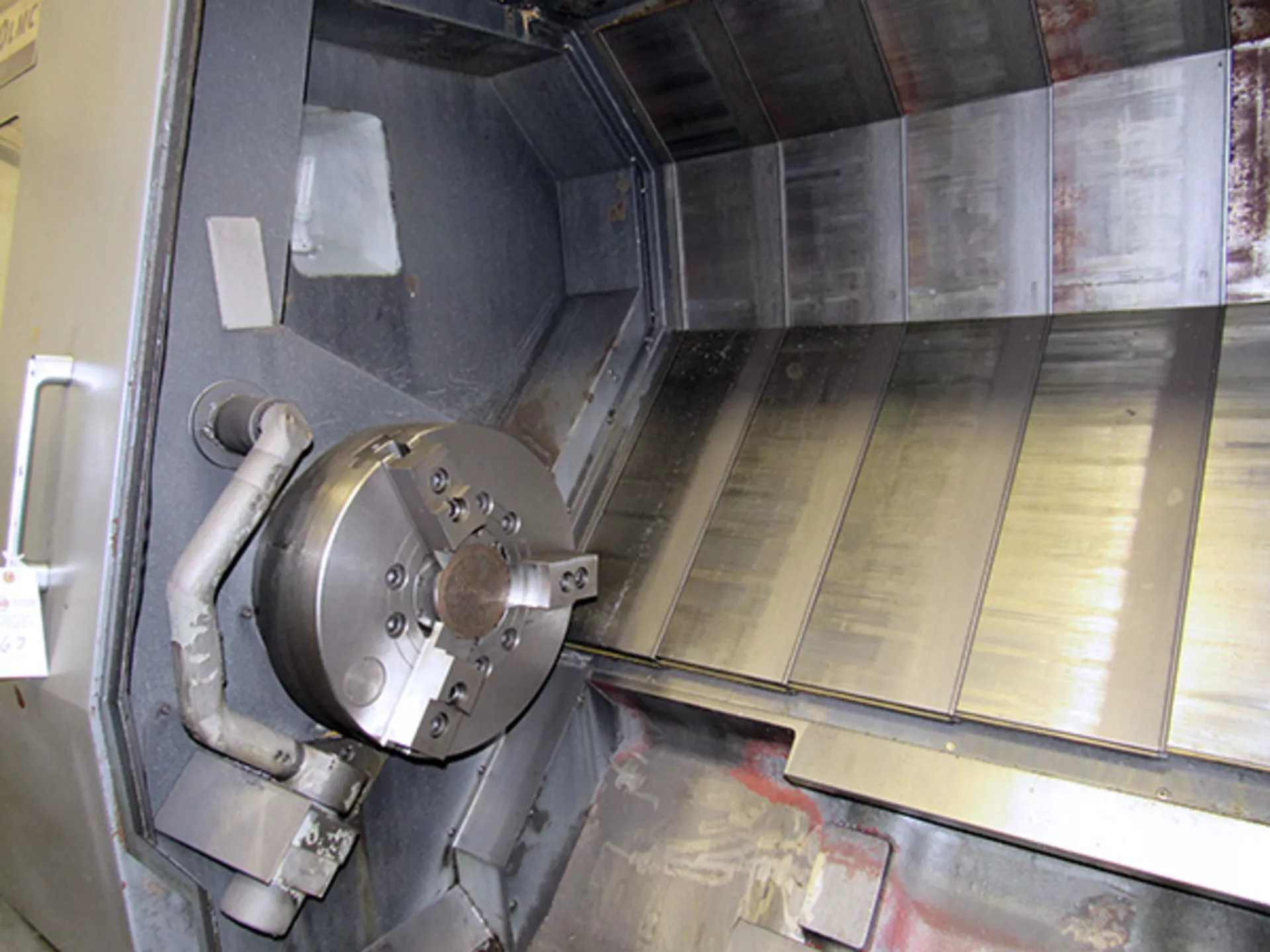

| 10″ Chuck |

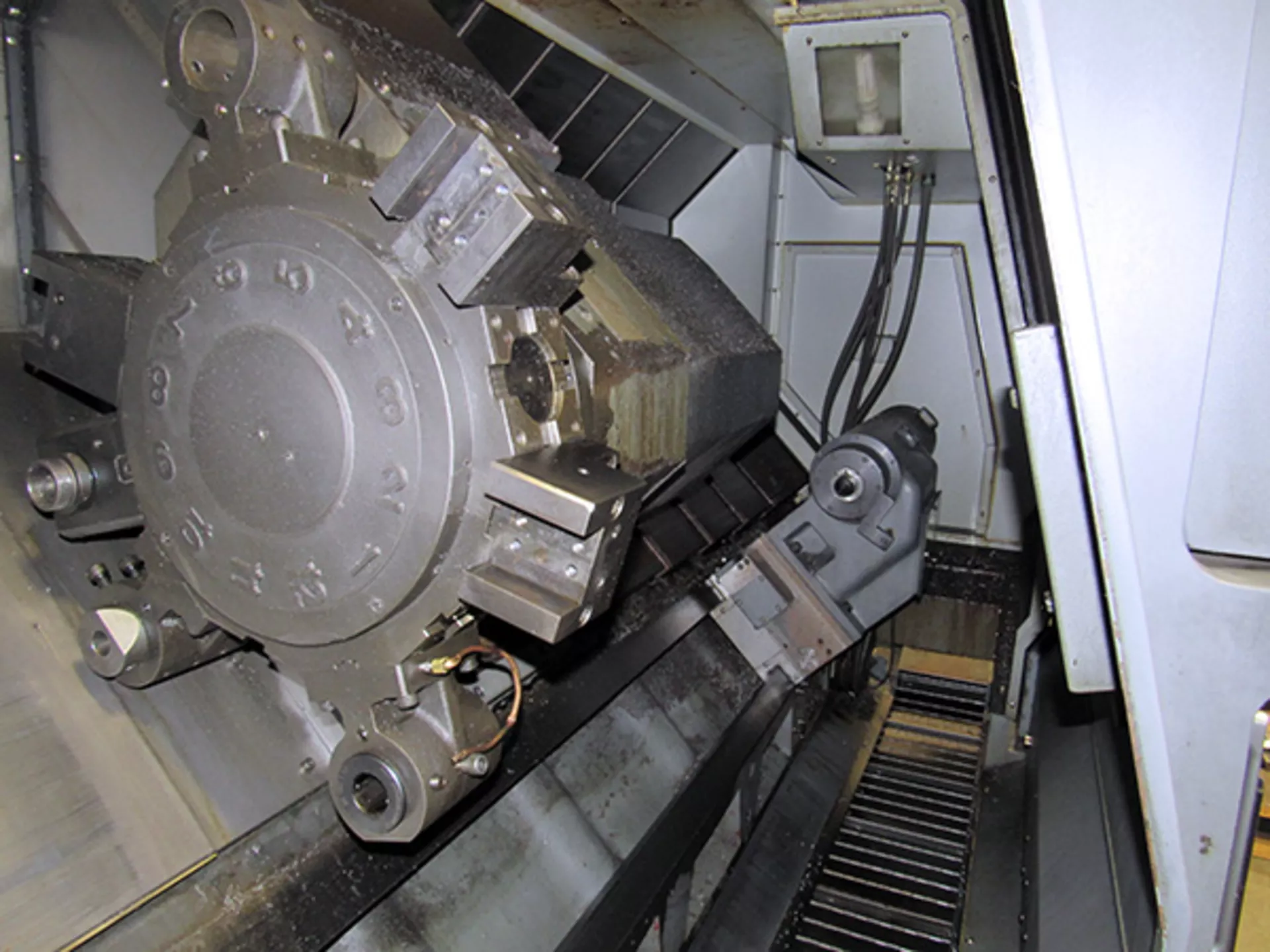

| Live Tooling |
| Tool Presetter |
| Tailstock |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|
| Max Turning Diameter: 16.14″ |
| Max Turning Length: 27.56″ |
| Swing Over Bed: 24.41″ |
| Swing Over Cross Slide: 15.75″ |
| Bar Capacity: 3.23″ |
| Chuck Size: 10″ |
| Travels: |
|---|
| X-Axis Travel: 11.42″ |
| Z-Axis Travel: 29.53″ |
| Feed Rates: |
|---|
| X-Axis Rapid: 787 IPM |
| Z-Axis Rapid: 944 IPM |
| B-Axis Rapid: 787 IPM |
| Spindle: |
|---|
| Spindle Speed: 3,500 RPM |
| Spindle Nose: A2-8 |
| General: |
|---|
| Power Source: AC 220/480 V, 3-Phase, 50/60 Hz |
| Machine Dimensions (L x W x H): 110″ x 70″ x 75″ |
| Machine Weight: 11,000 lbs. Approx. |
