Sold

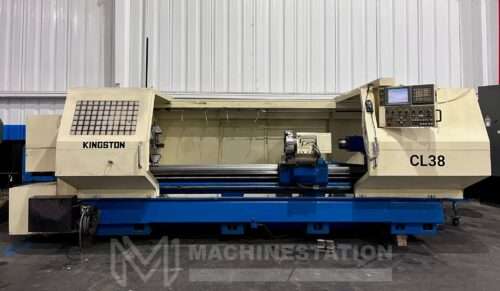

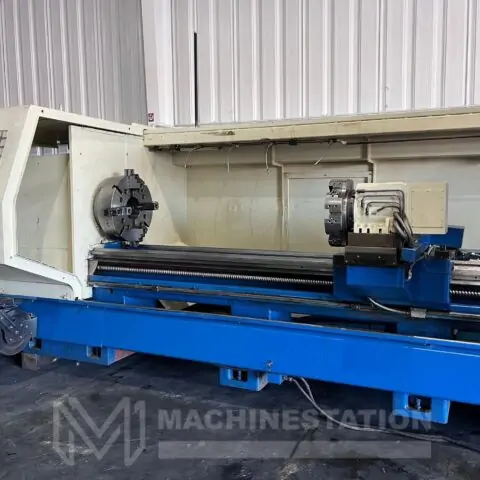

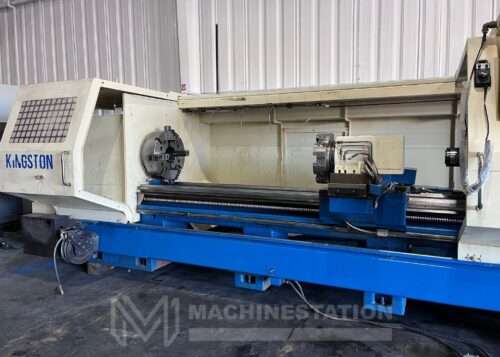

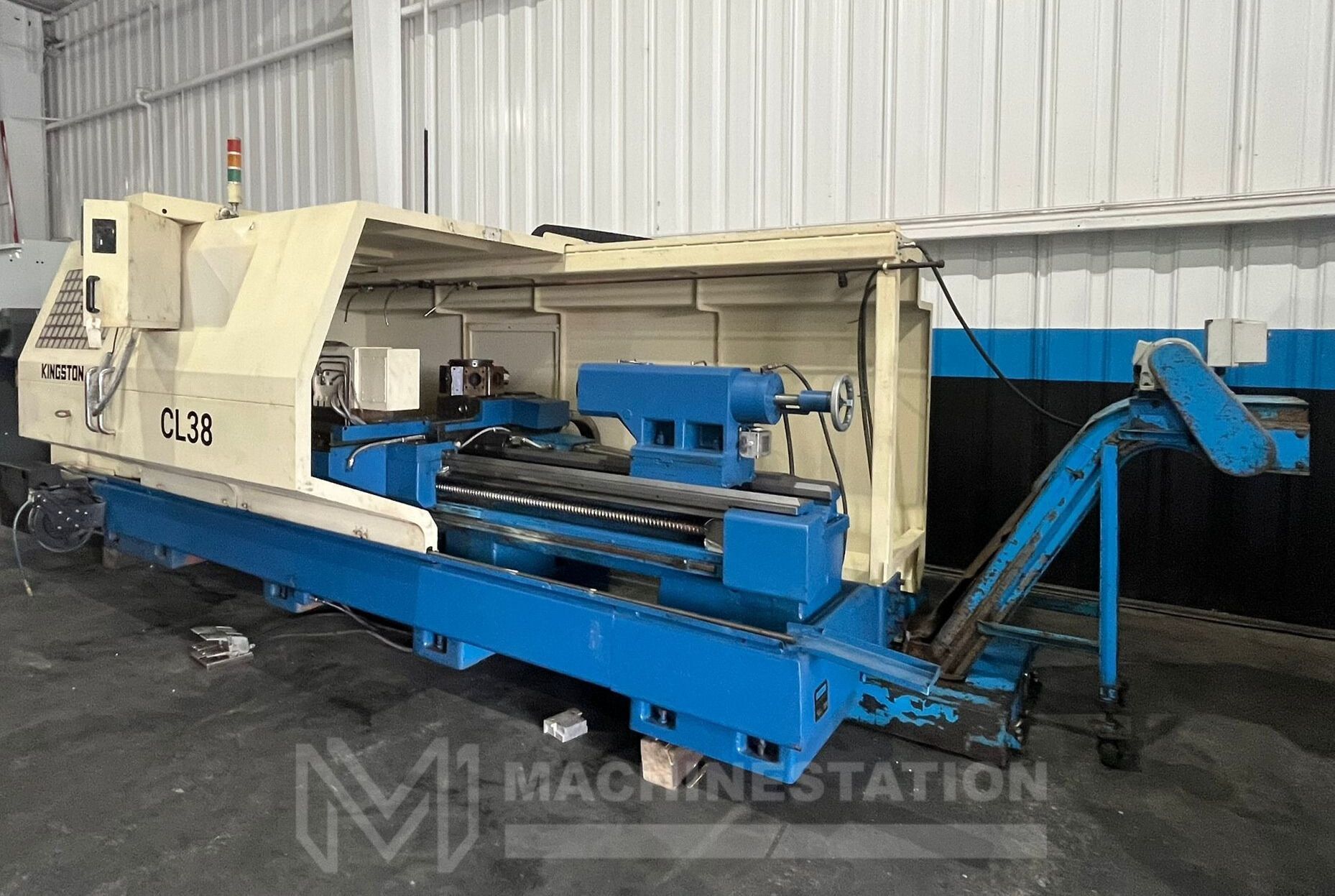

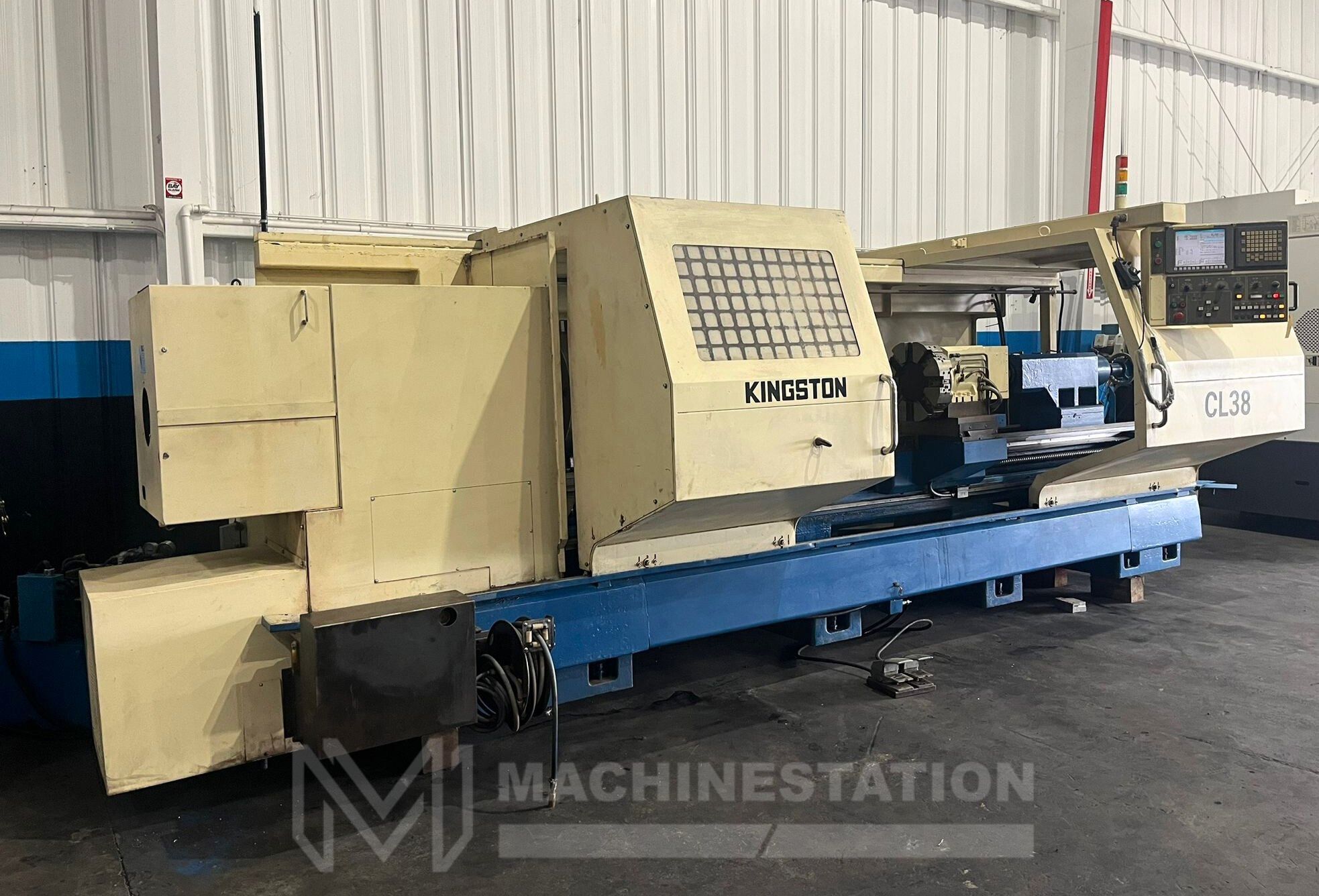

Kingston CL-38C/3000 Oil Country Long Bed CNC Lathe
Location
Lake Elsinore, CA
SKU
112468
Make
KINGSTON
Model
CL38C/3000
Year
2006
Cutting Time
3,330 Hours
Video
On Request
Out of stock
| Location: | Lake Elsinore, CA |
| SKU: | 112468 |
| Make: | KINGSTON |
| Model: | CL38C/3000 |
| Year: | 2006 |
| Cutting Time: | 3,330 Hours |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112468 |
| Make: | Kingston |
| Model: | CL-38C/3000 |
| Year: | 2006 |
| Equipped With: |
|---|

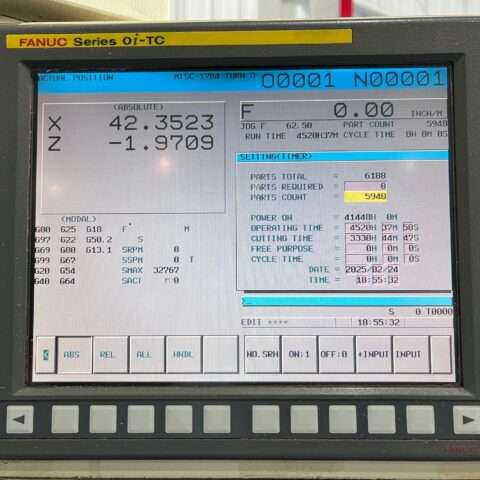

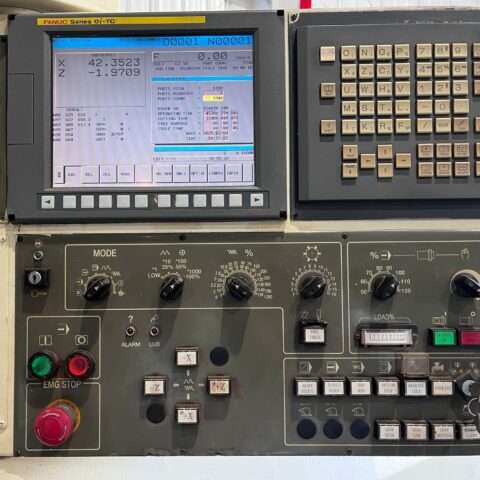

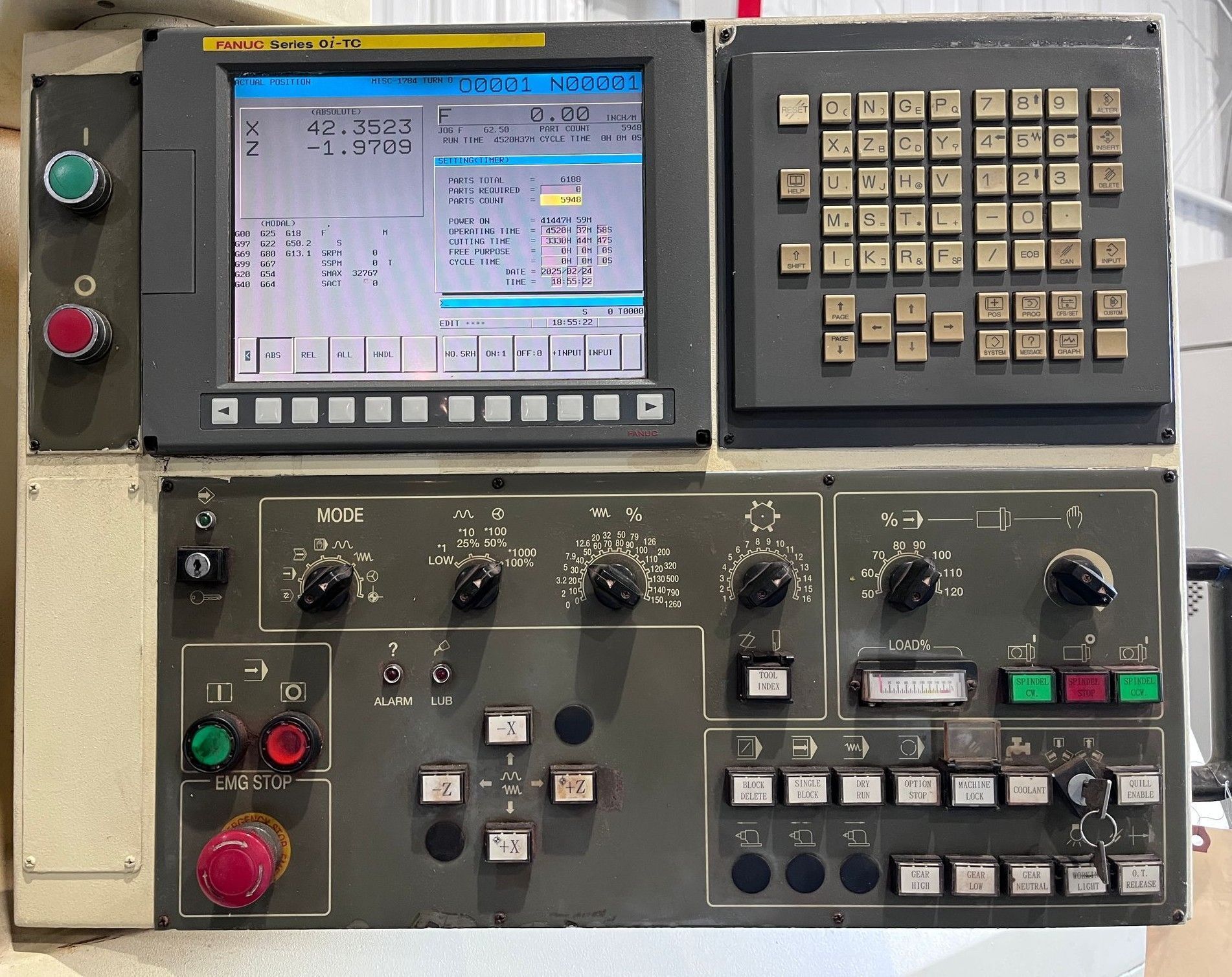

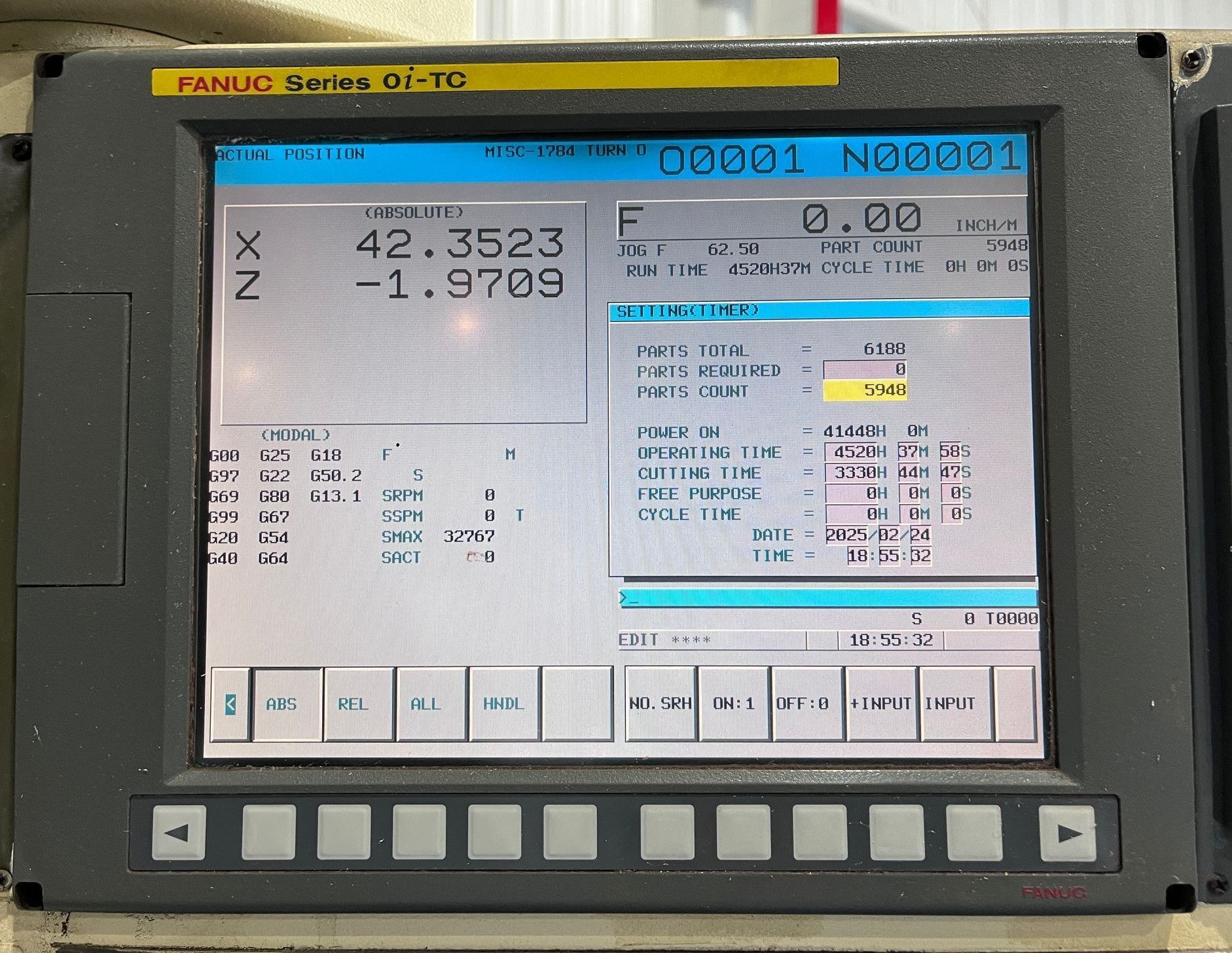

| Fanuc Oi-TC CNC Control |

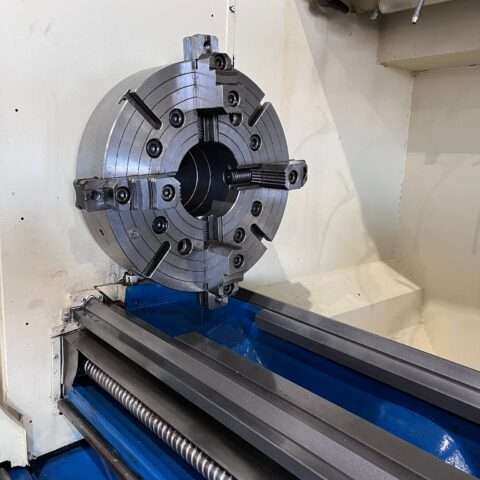

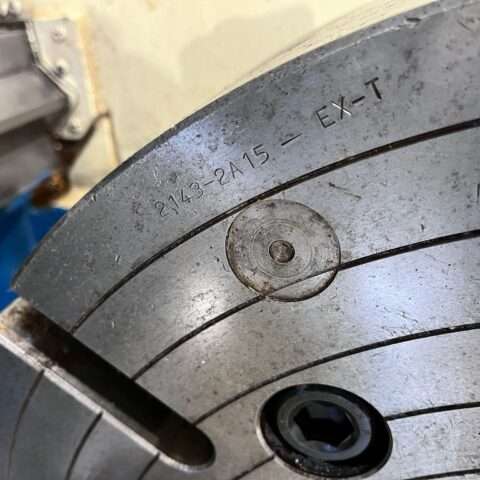

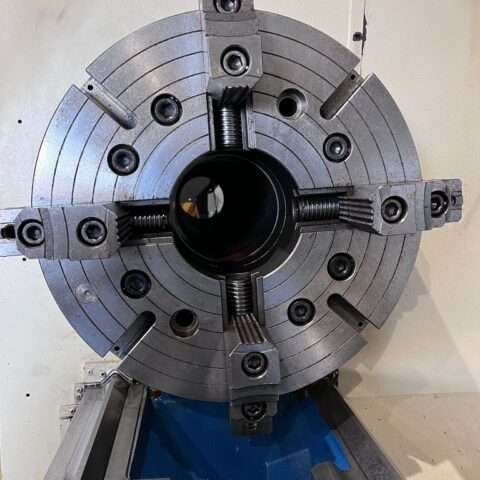

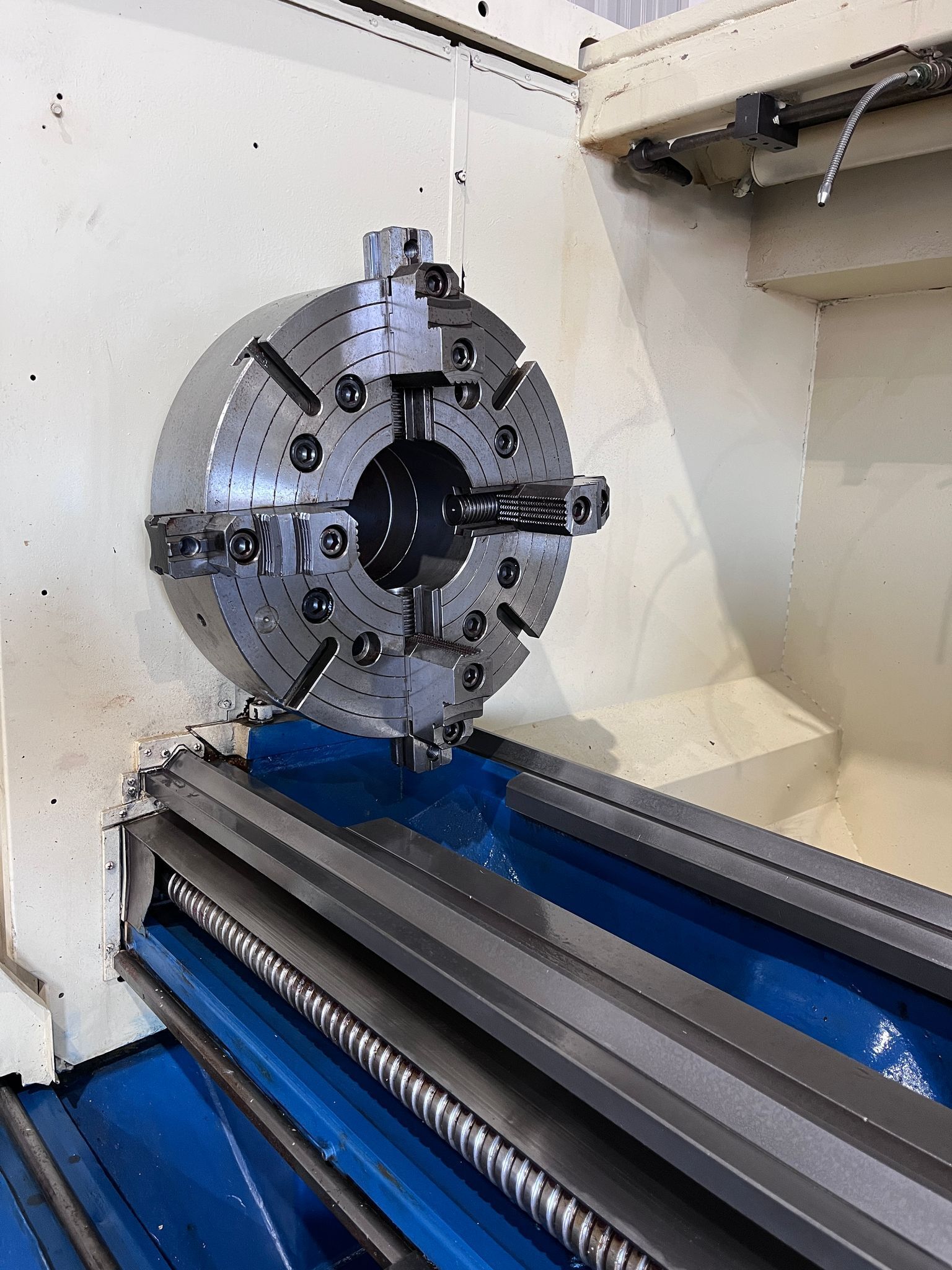

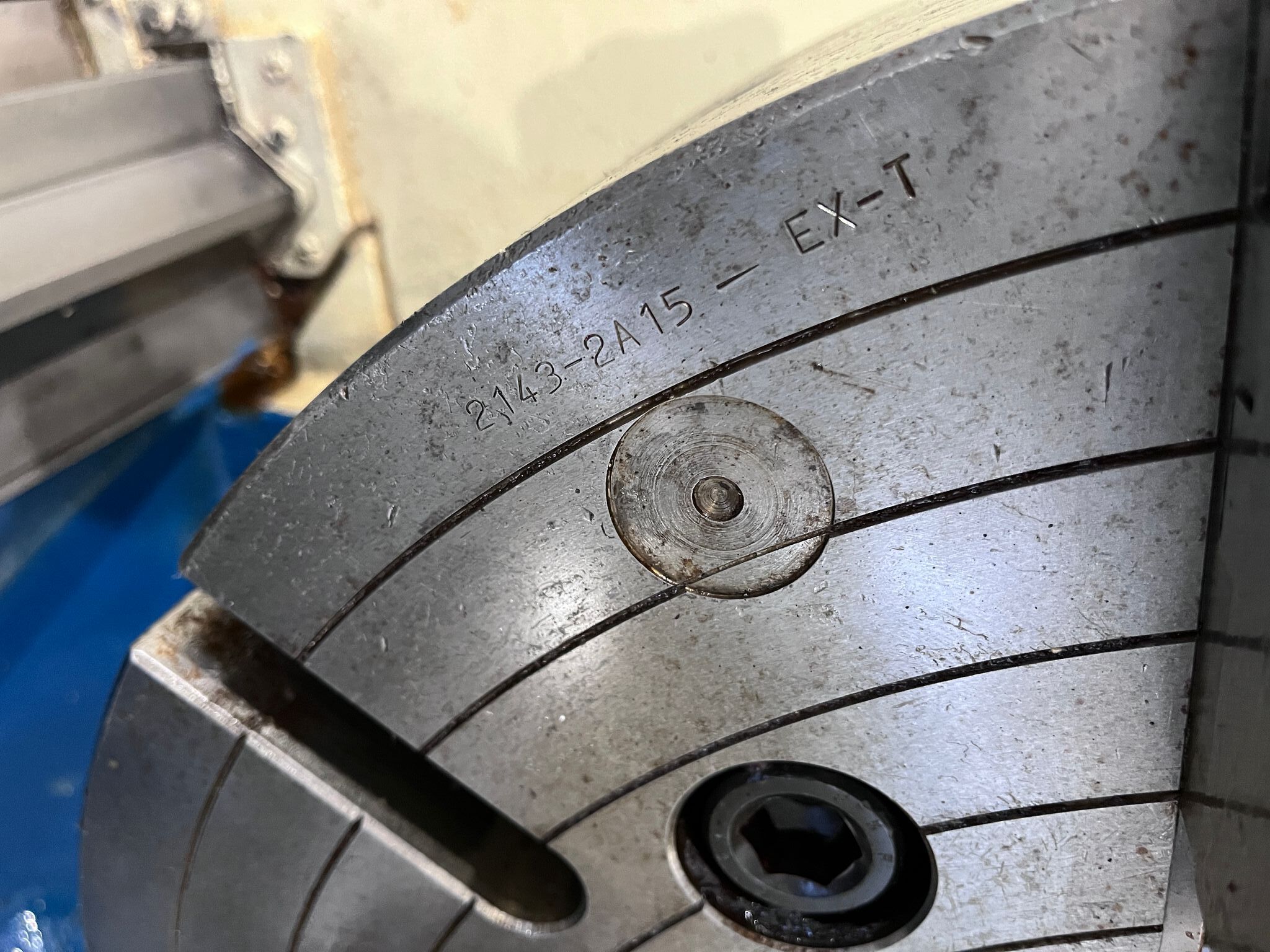

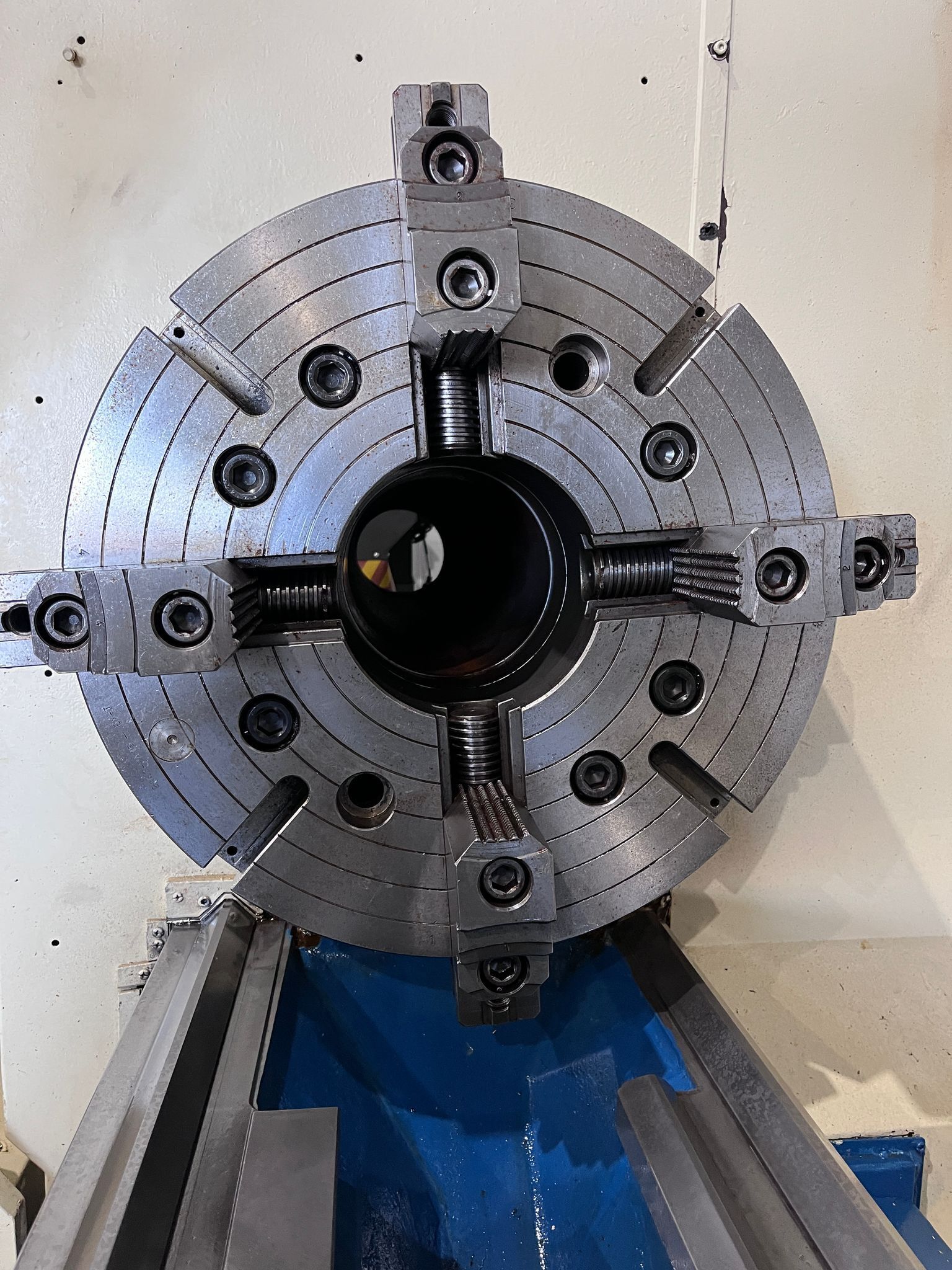

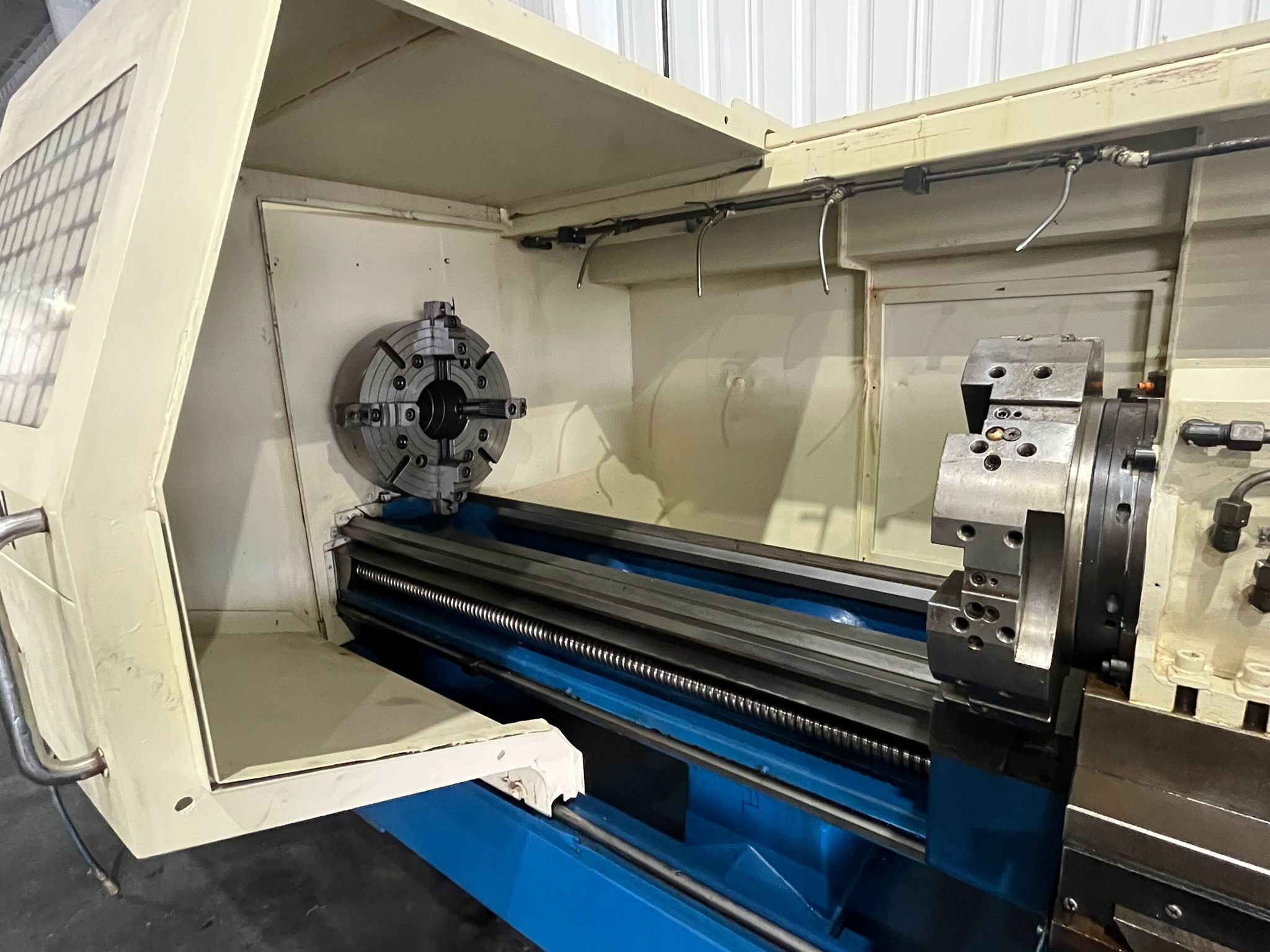

| 21″ 4 Jaw Manual Front Chuck |
| 21″ 4 Jaw Manual Rear Chuck |
| 7.3″ Bore A2-15 Spindle |

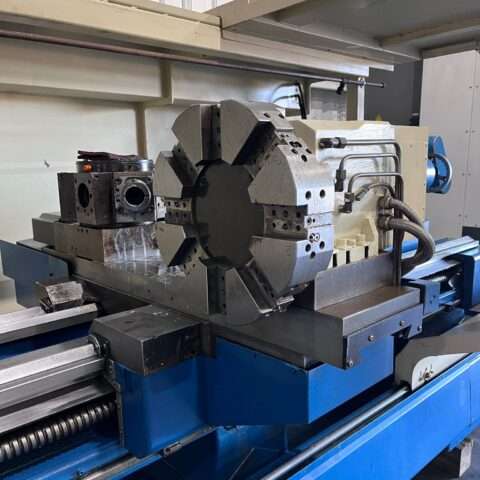

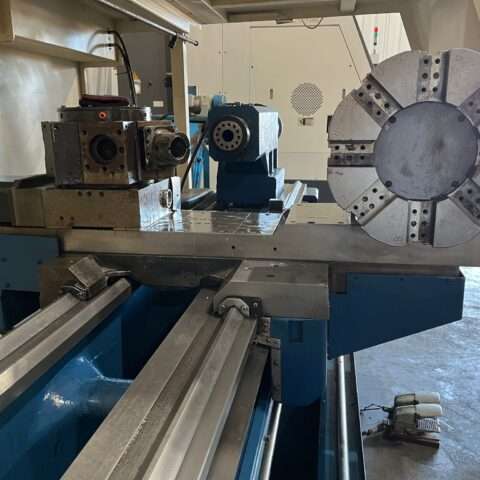

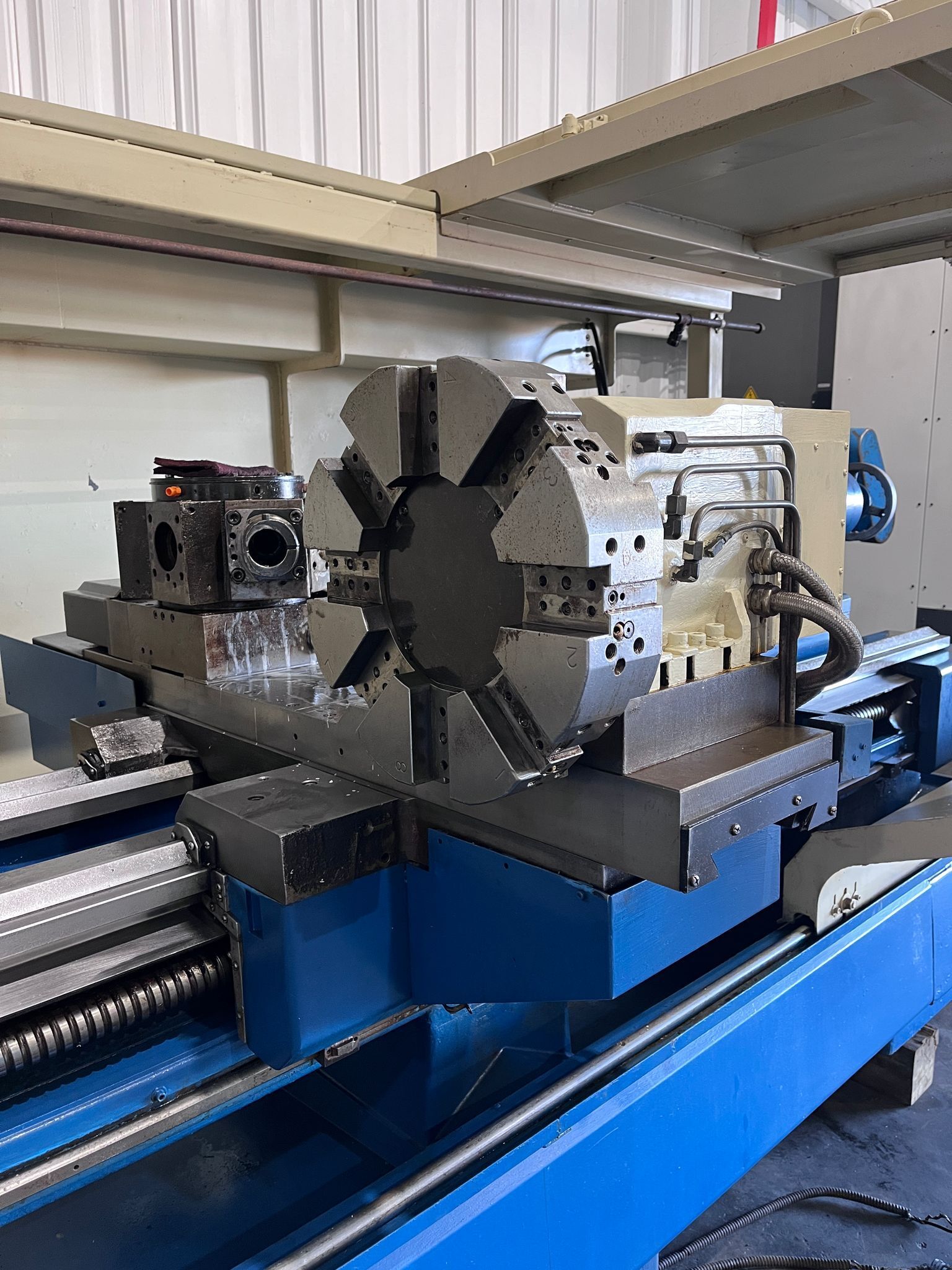

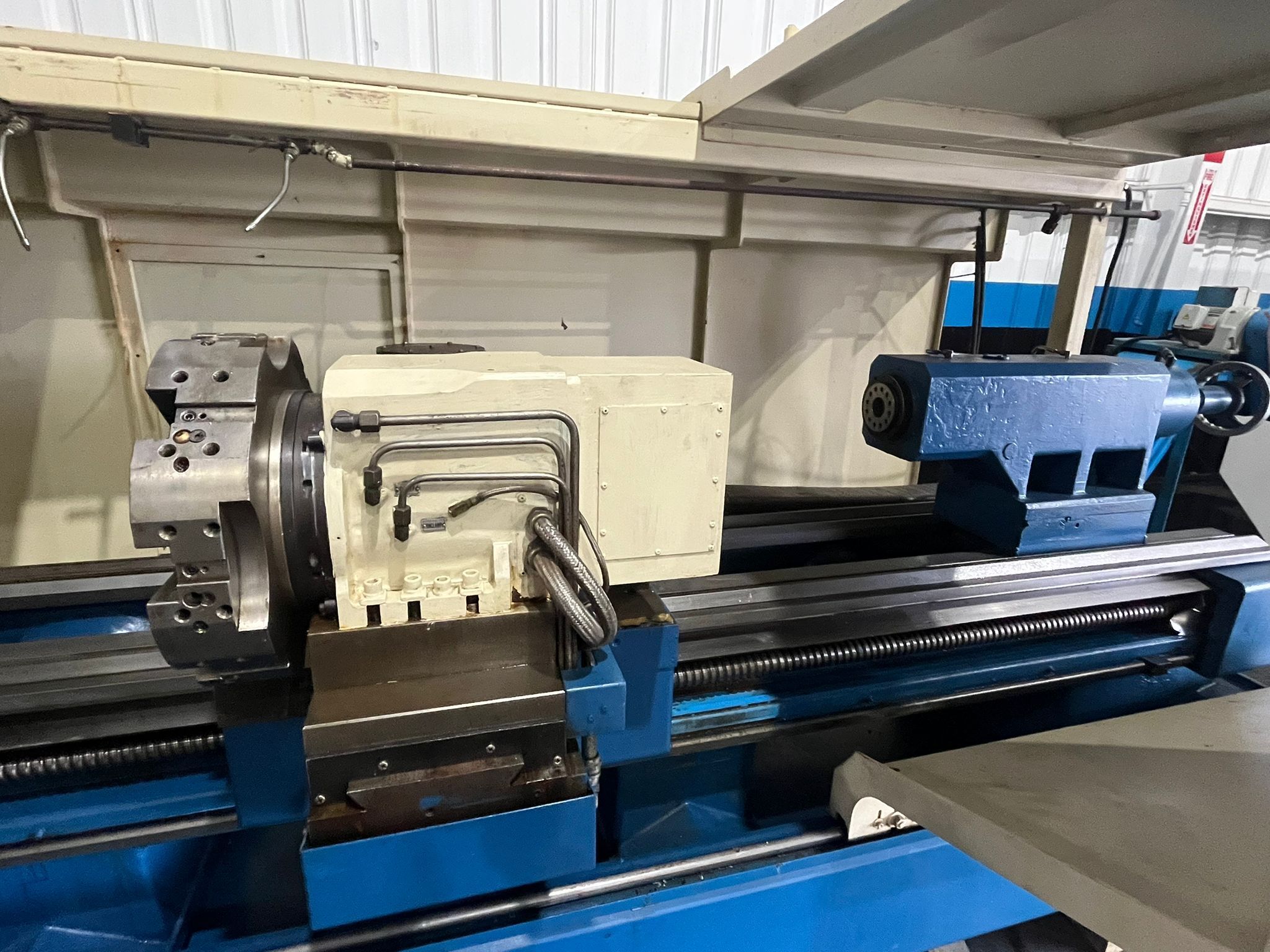

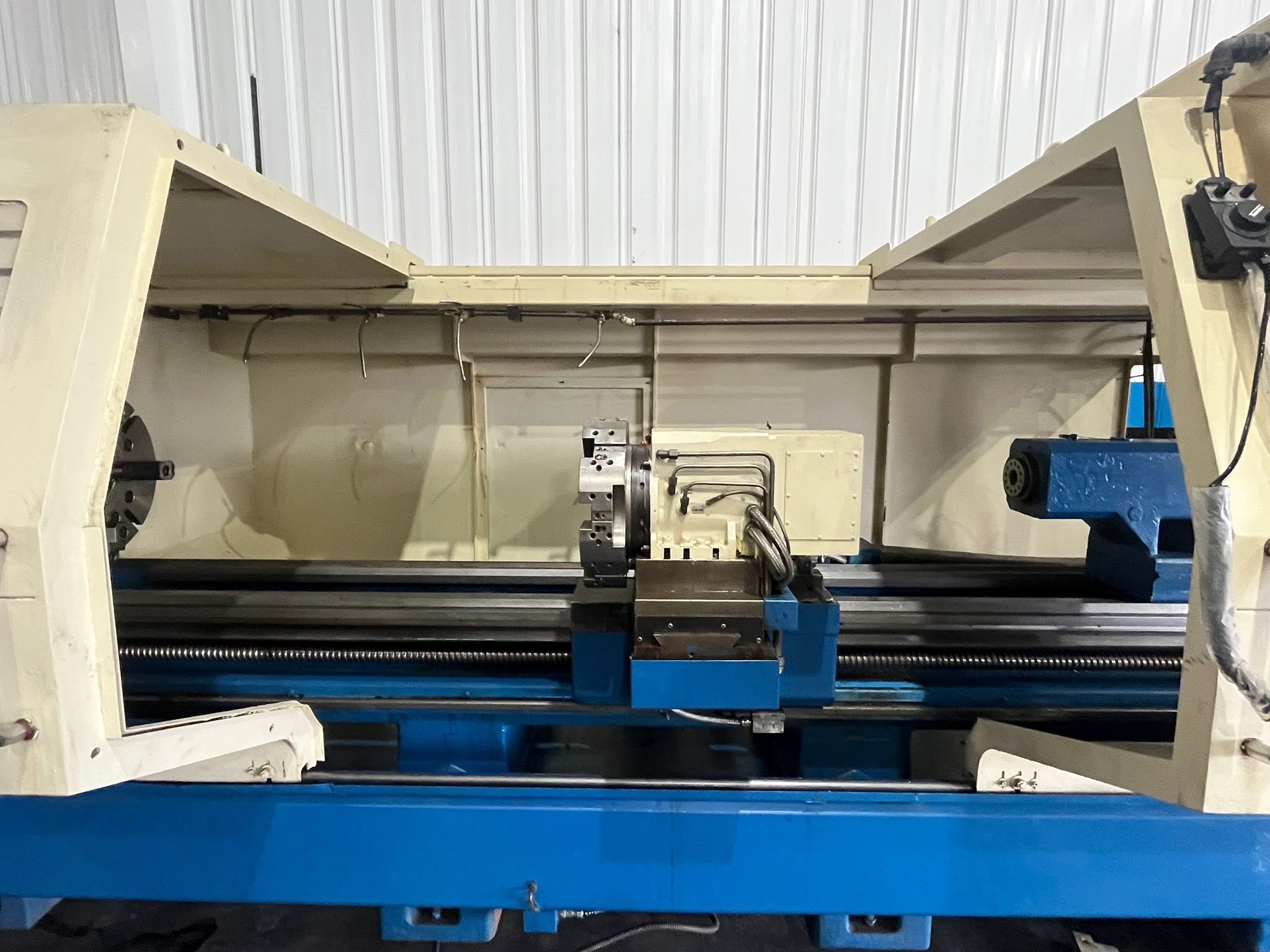

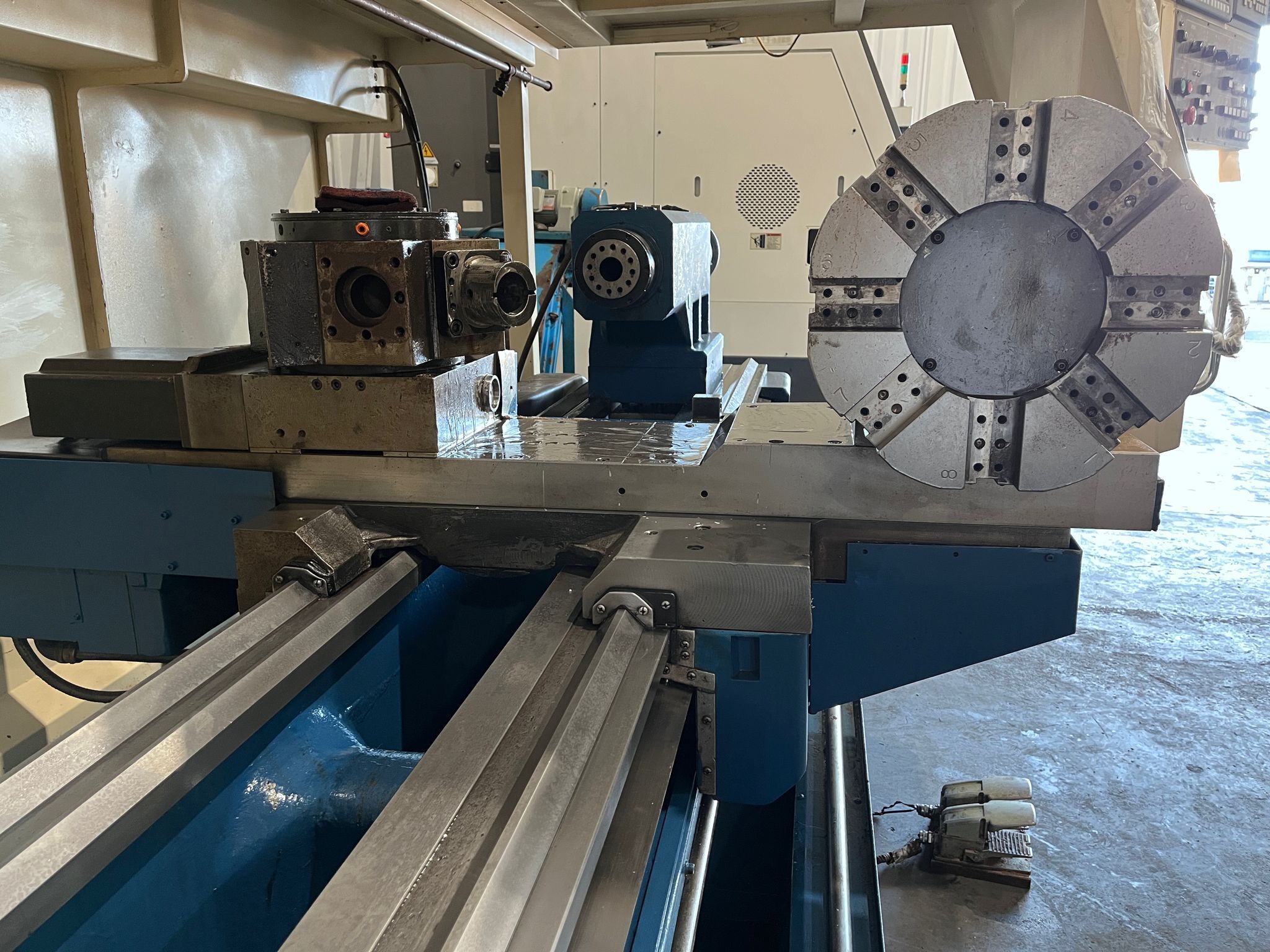

| Dual Turret (V8 Hydraulic & H6 Servo) |

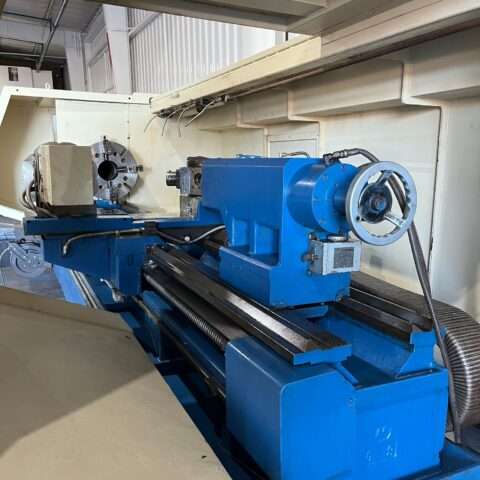

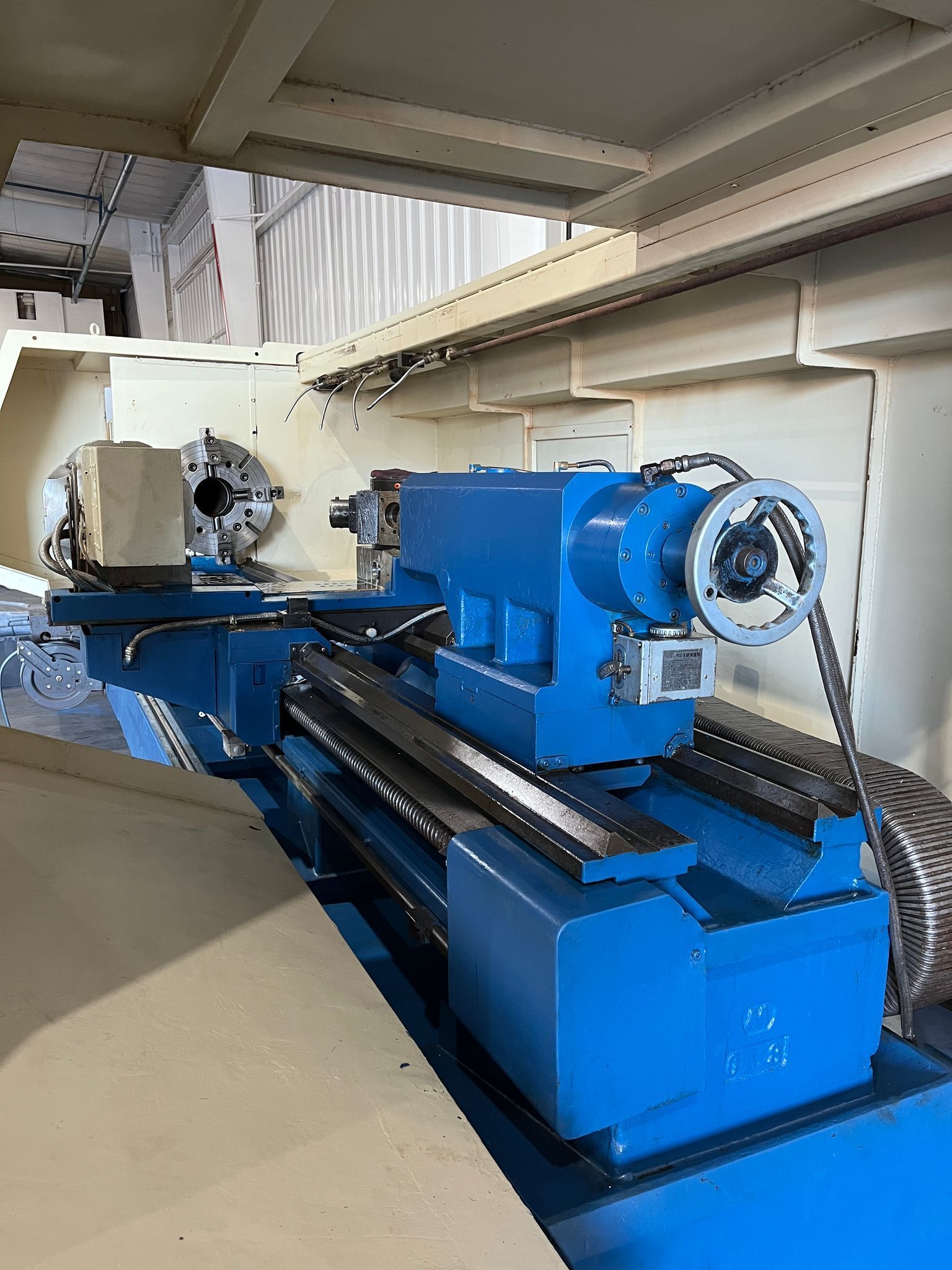

| Tailstock |
| MPG Handwheel Control |
| Foot Switch |
| Levelling Pads |
| Coolant System |

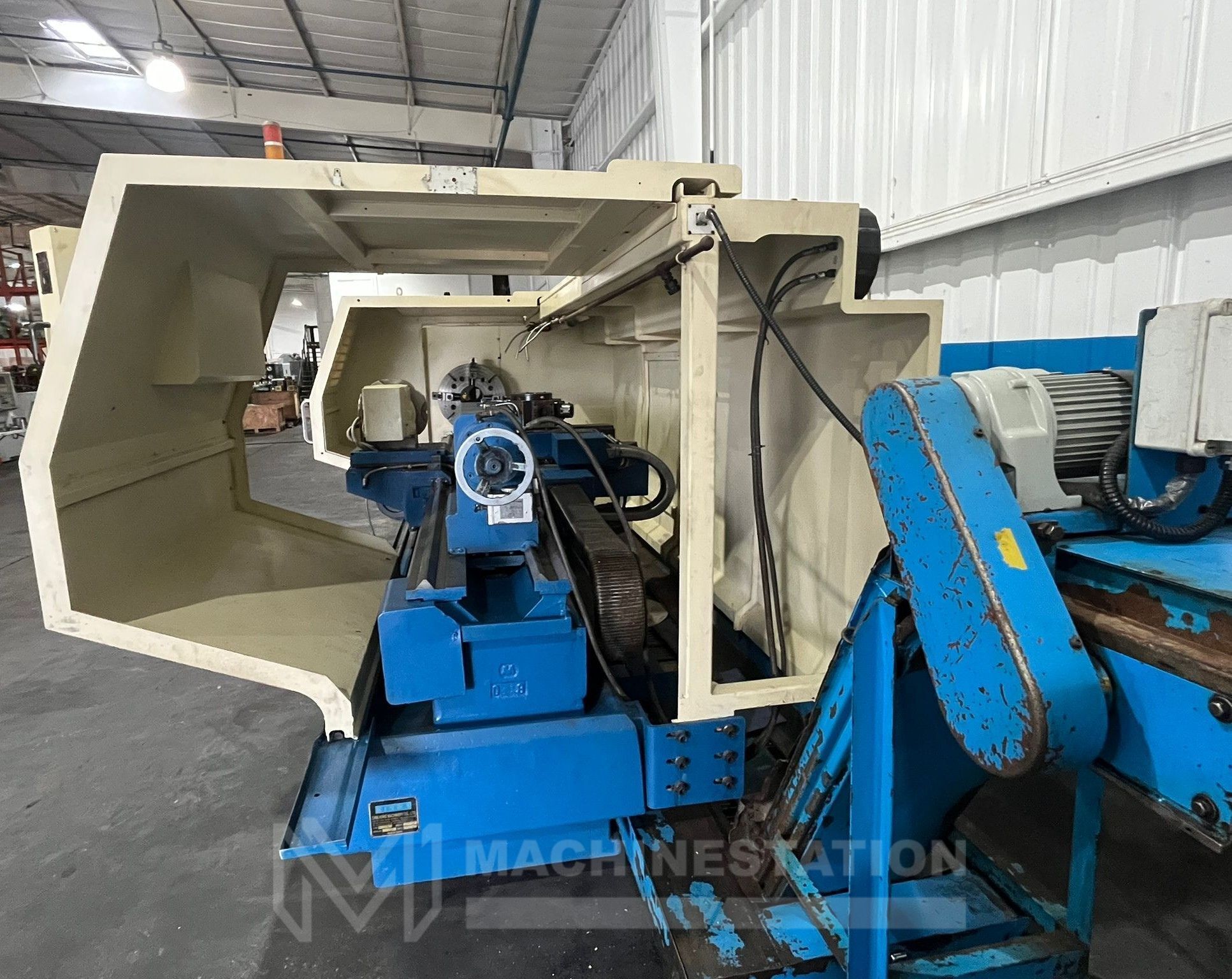

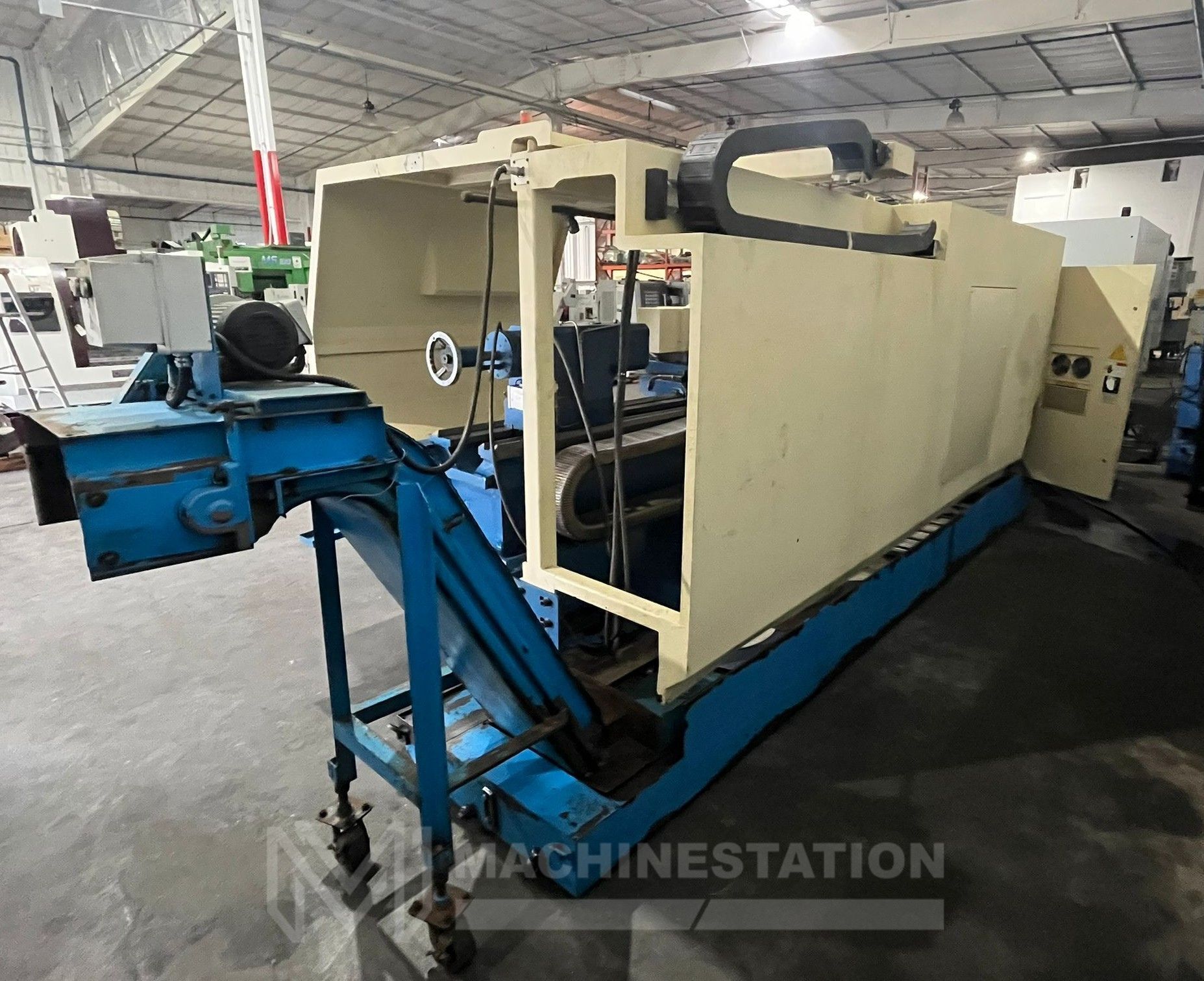

| Chip Pan and Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter: 14.5″ |
| Max Turning Length: 120.0″ |
| Max Bar Capacity: 7.0″ |
| Swing Over Bed: 26.0″ |
| Width of Bed: 18.0″ |
| Distance Between Centers: 120.0″ |
| Travels: |
|---|
| X-Axis: 21.2″ |
| Z-Axis: 126.8″ |
| Rapid Traverse X Axis: 394 IPM |
| Rapid Traverse Z Axis: 394 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-15 |
| Spindle Bore: 7.3″ |
| Spindle Speed: 3 – 1000 RPM |
| Spindle Motor: 30 HP |
| Turret: |
|---|
| No. of Turrets : 2 Turrets |
| Turret Type: V8 Hydraulic & H6 Servo (Std) |
| Tailstock: |
|---|
| Tailstock Quill Dia.: 5.9″ |
| Tailstock Quill Stroke: 8.6″ |
| Tailstock Taper: MT-5 |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz, 35 kva |
| Overall Dimensions: 273″ x 91″ x 79″ High Approx. |
| Weight : 18,480 lbs Approx. |
| Make | Kingston |
|---|---|
| Model | CL38C/3000 |
| Categories | CNC Lathes & Turning Centers |
