LEBLOND TOOL DIE MAKER Features:

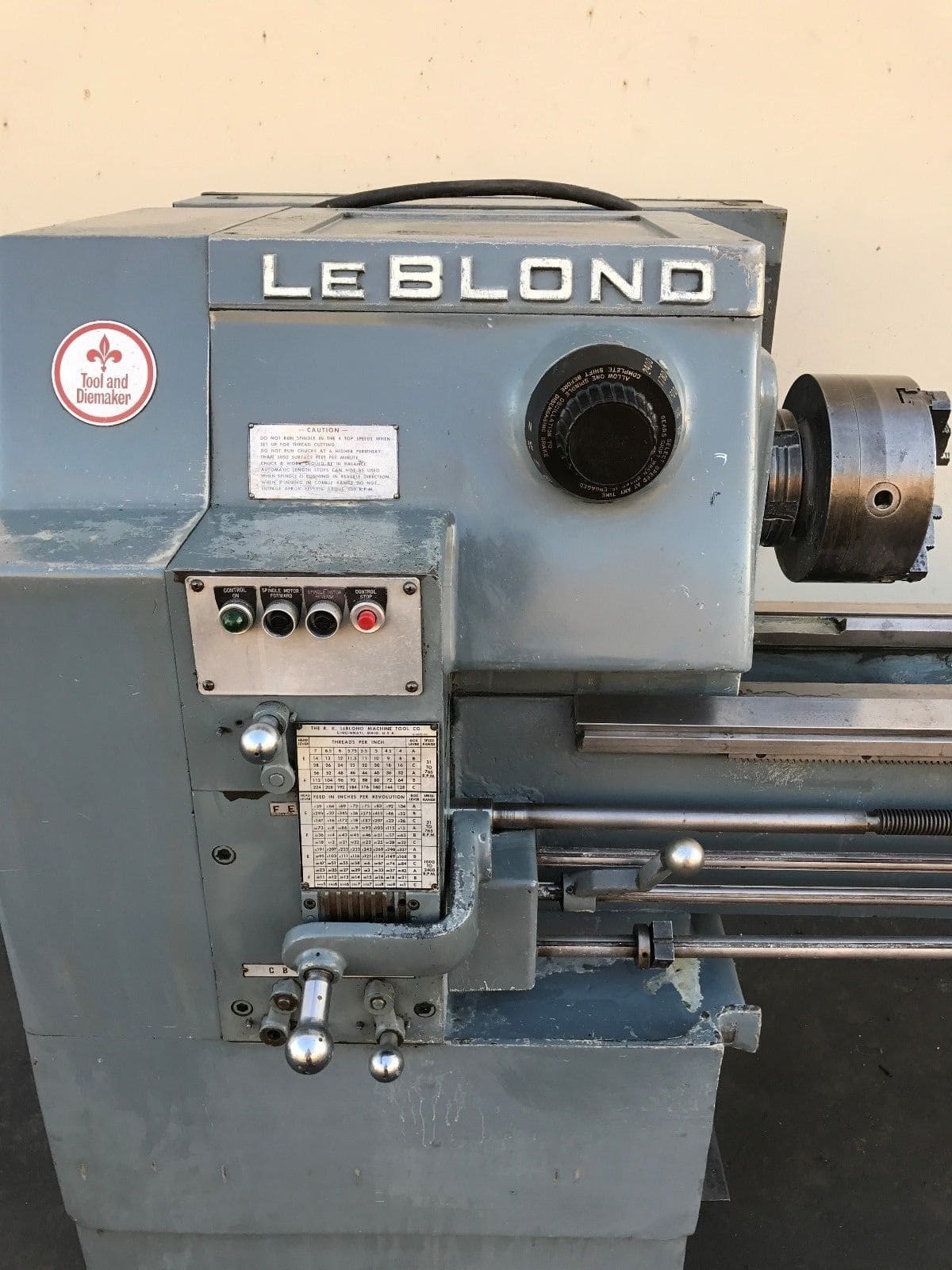

- Servo Shift Speed Selector

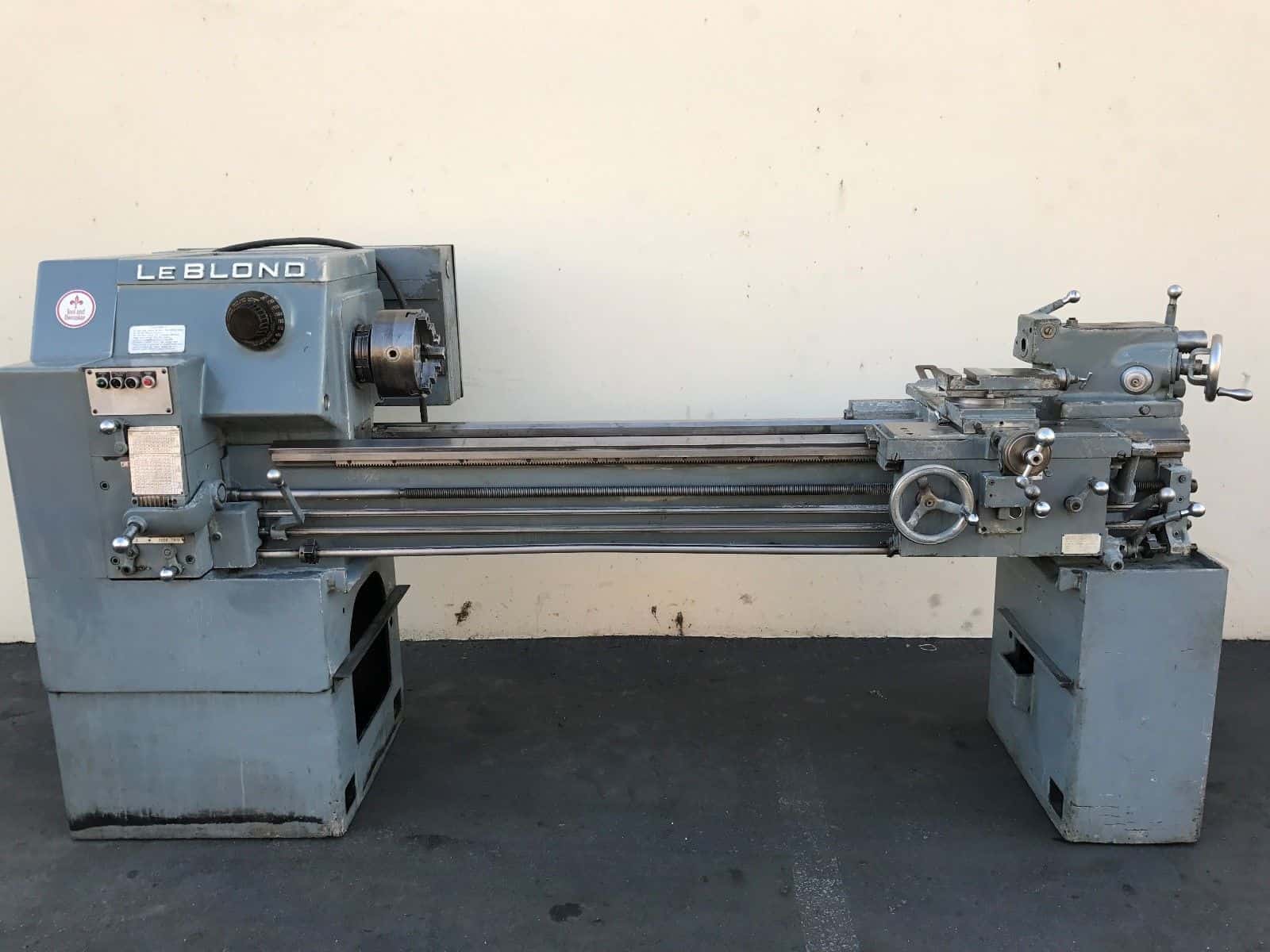

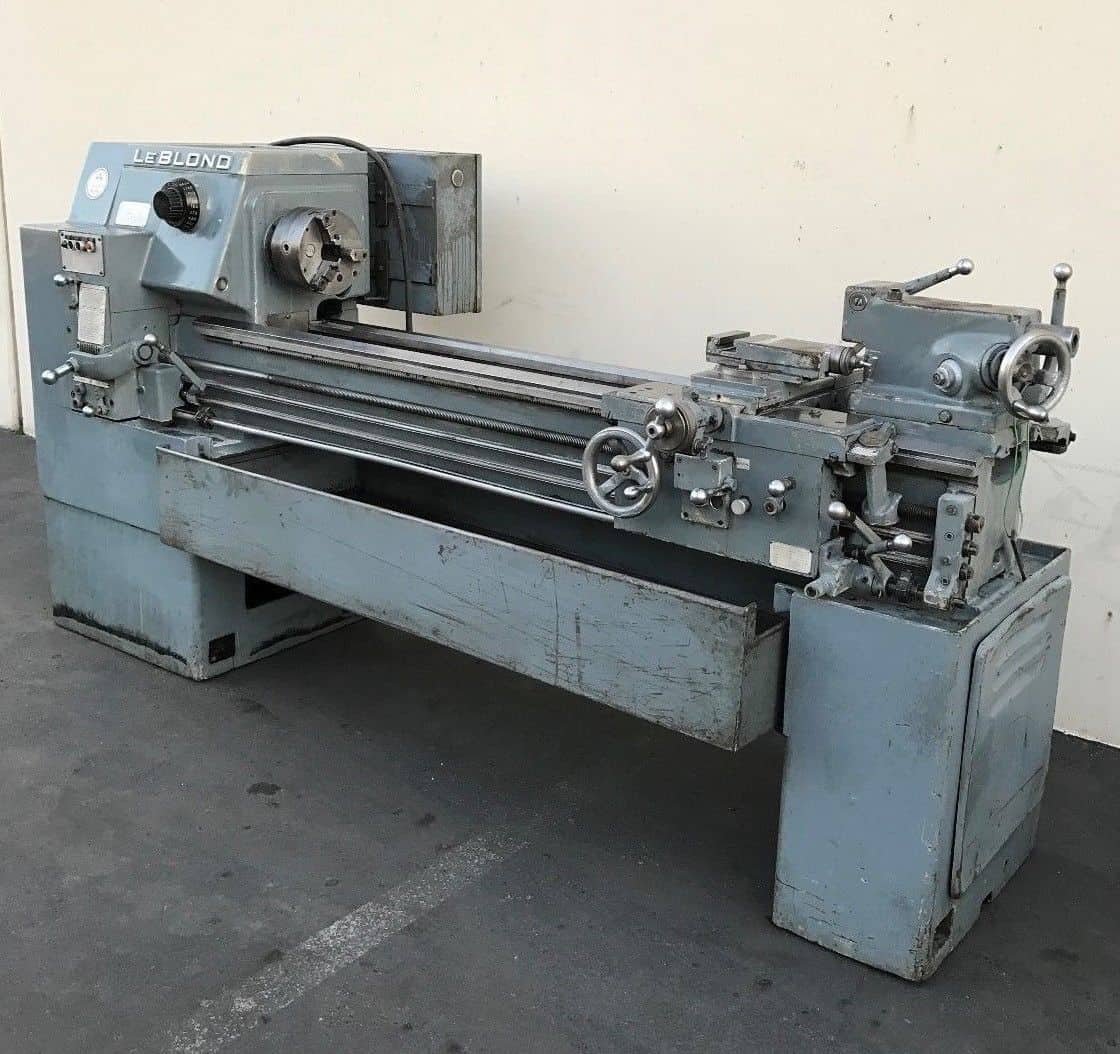

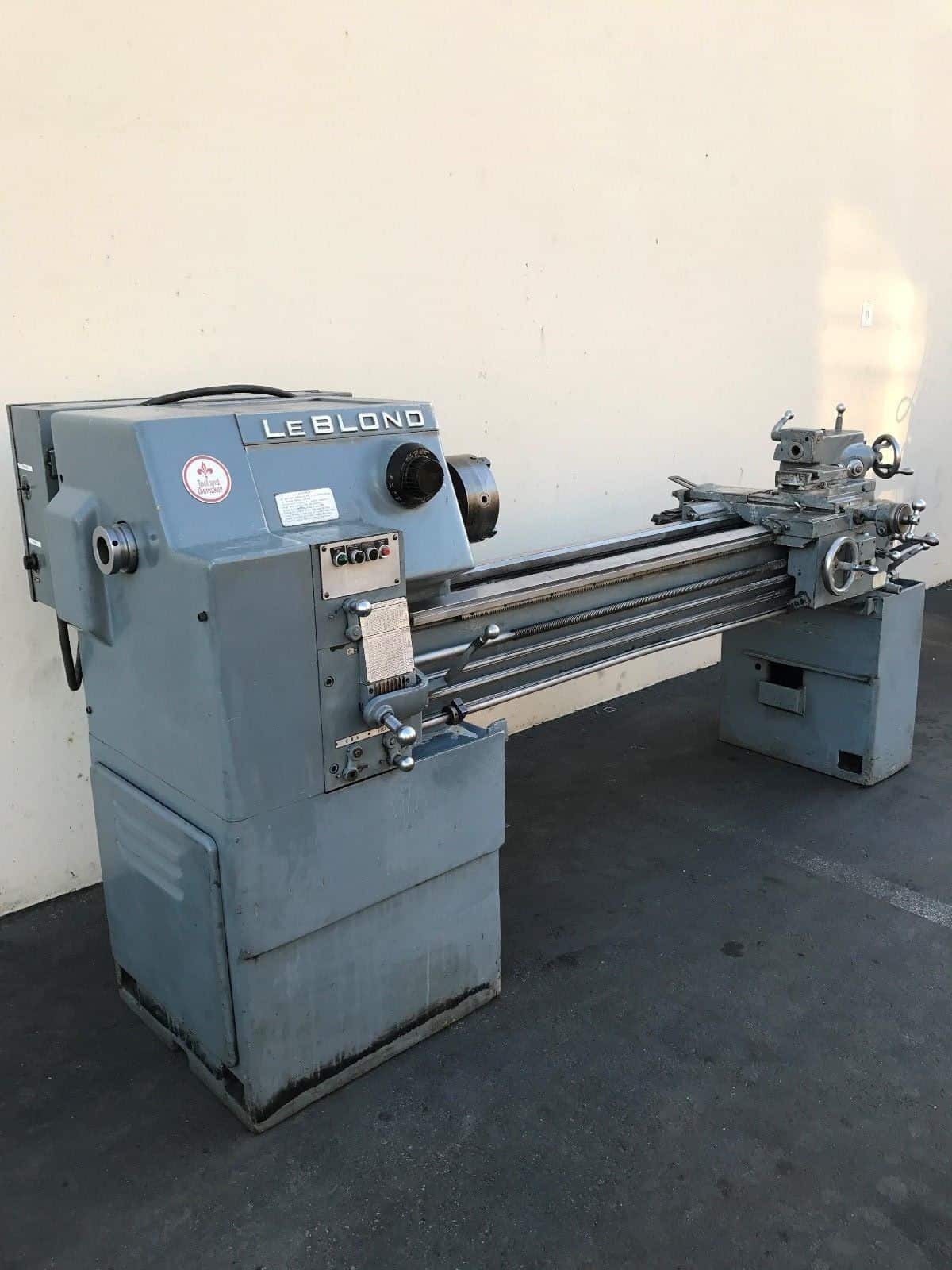

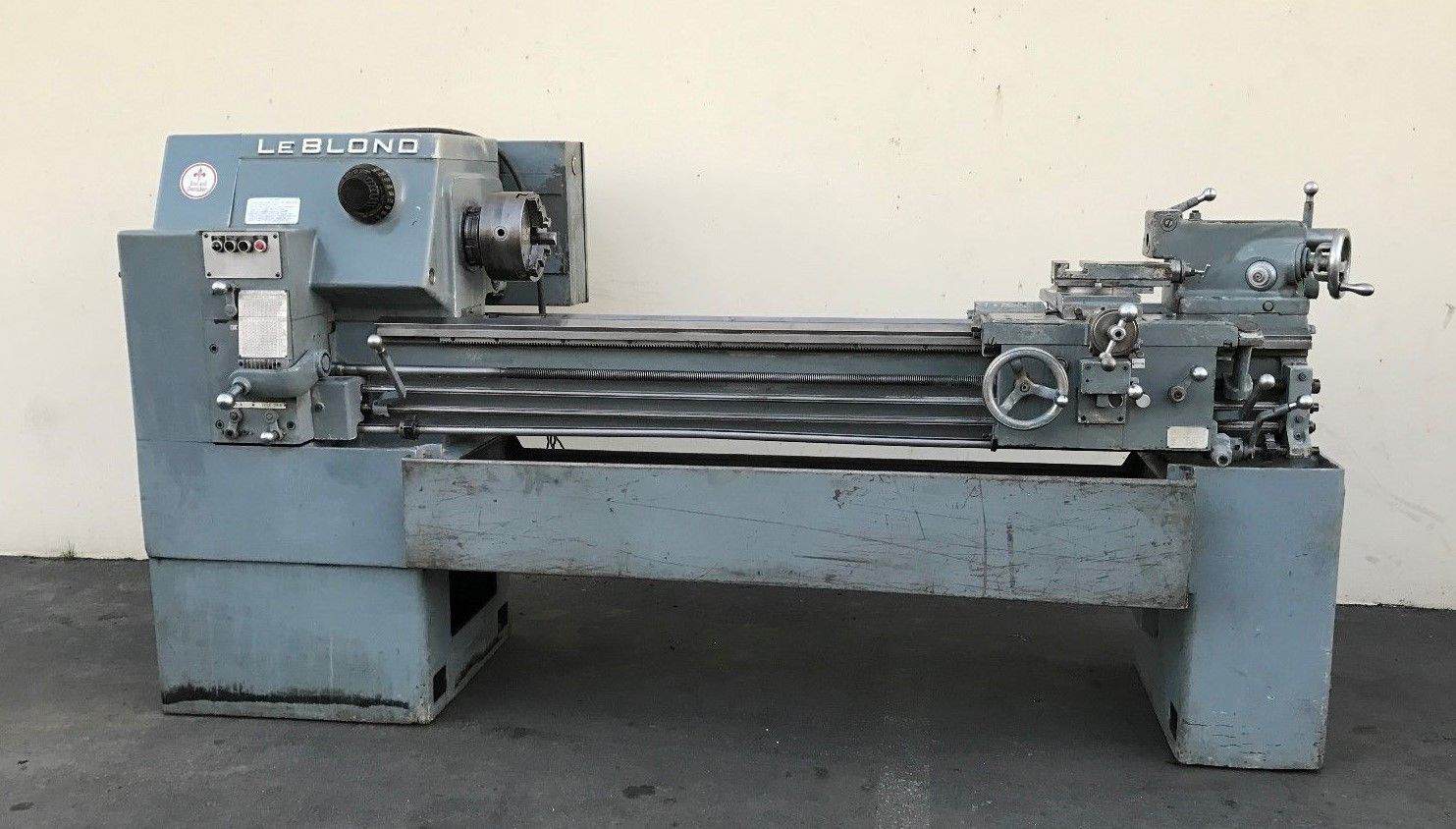

- Geared Head Engine Lathe
- Hardened and Ground Bed Ways
- Inch Threading Capability

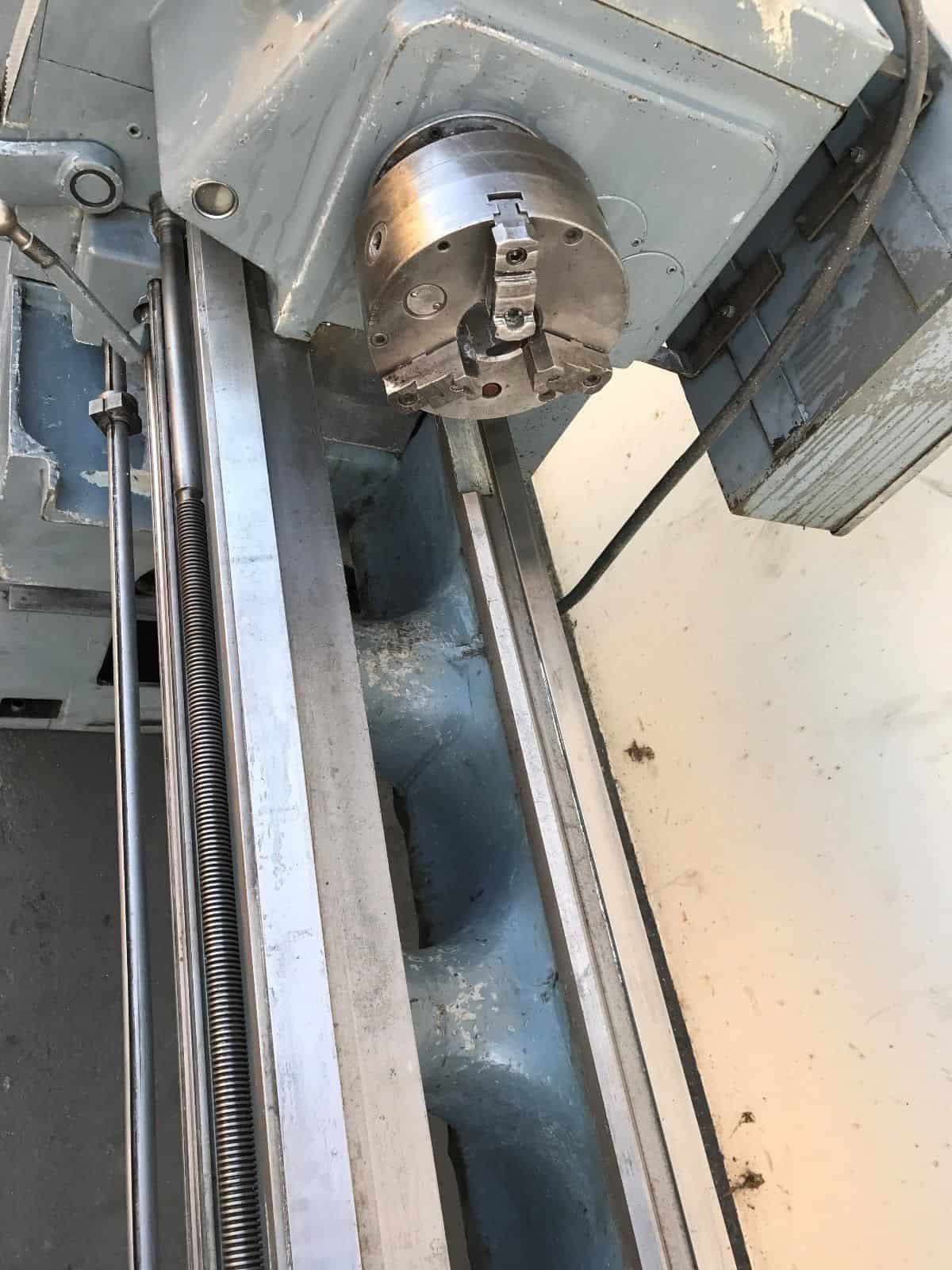

- Three-Jaw Chuck
- Tool Post
- Threading Dial
- Taper Attachment
- Carriage Stops
-
LEBLOND TOOL DIE MAKER Specifications:
- Capacities:
- Swing Over Bed: 15″
- Swing Over Cross Slide: 9″
- Distance Between Centers: 54″
-
Spindle:
- Mount: D1-6
- Thru Hole: 2-3/64″
- Number of Speeds: 12
- Speed Range: 39 to 3000 RPM
-

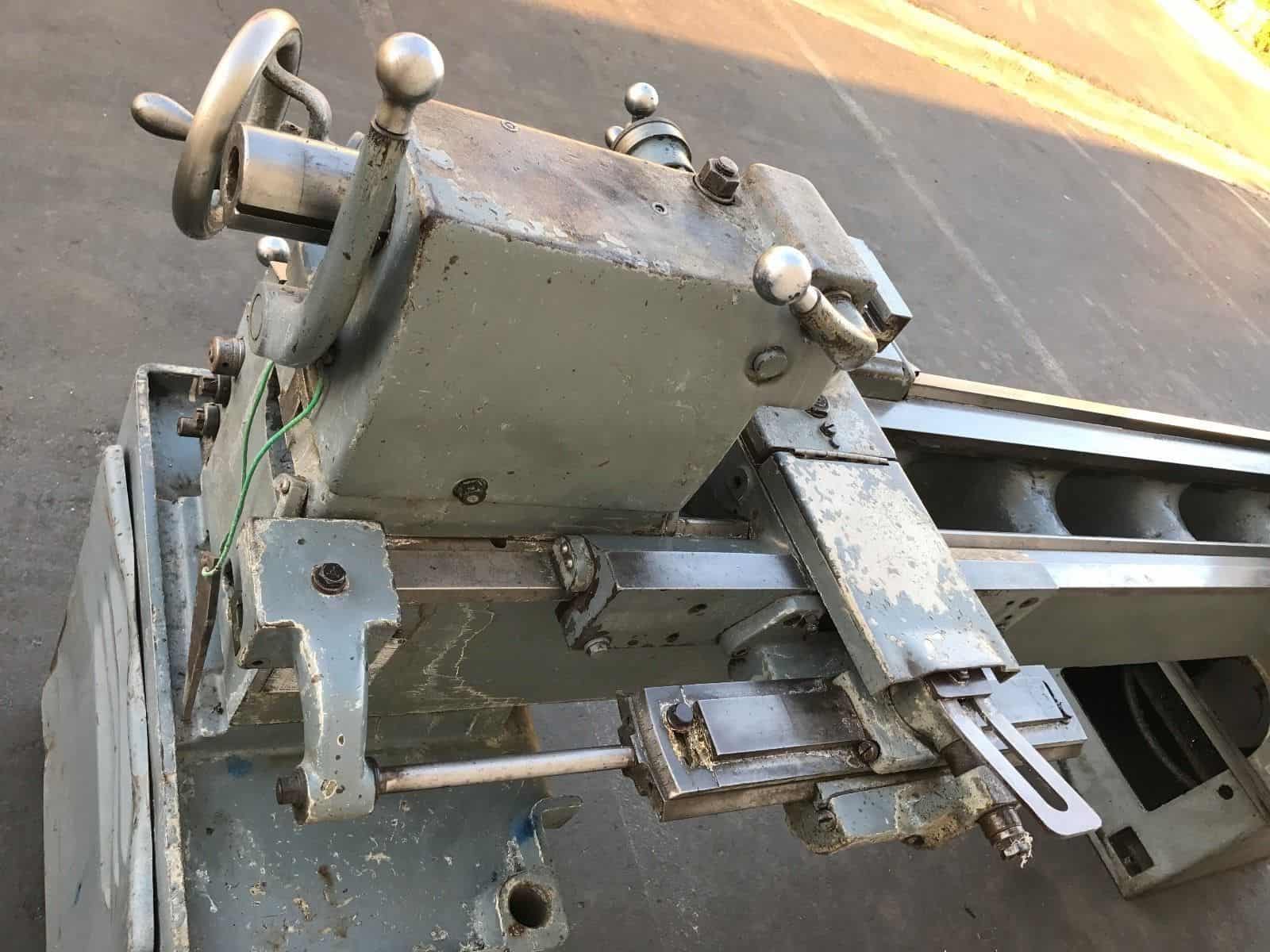

Carriage:
- Cross Slide Travel: 7.85″
- Compount Slide Travel: 4″
- T-Slot Dimnesions: 1-3/16″ x 1-55/64″ (approx.)
-
Threads:
- Inch: 4 to 48
-
Tailstock:
- Spindle Taper: #4 Morse Taper
- Spindle Diameter: 2.19″
- Spindle Travel: 8″
-
Bed:
- Width: 13.75″
- Length: 58″
-
General:
- Motor: 5 Horsepower, 220/440 Volt, 1,500 / 1,800 RPM, 50 / 60 Hz
- Electrical: 440 Volt, Three Phase
- Overall Dimensions: 100″ x 40″ x 60″ tall, Weighs: 3400 Lbs.
