*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | MT4000B/4000 |
| Year: | 2003 |
| Equipped With: |
|---|
| Mori Seiki MSG-501 CNC Control |

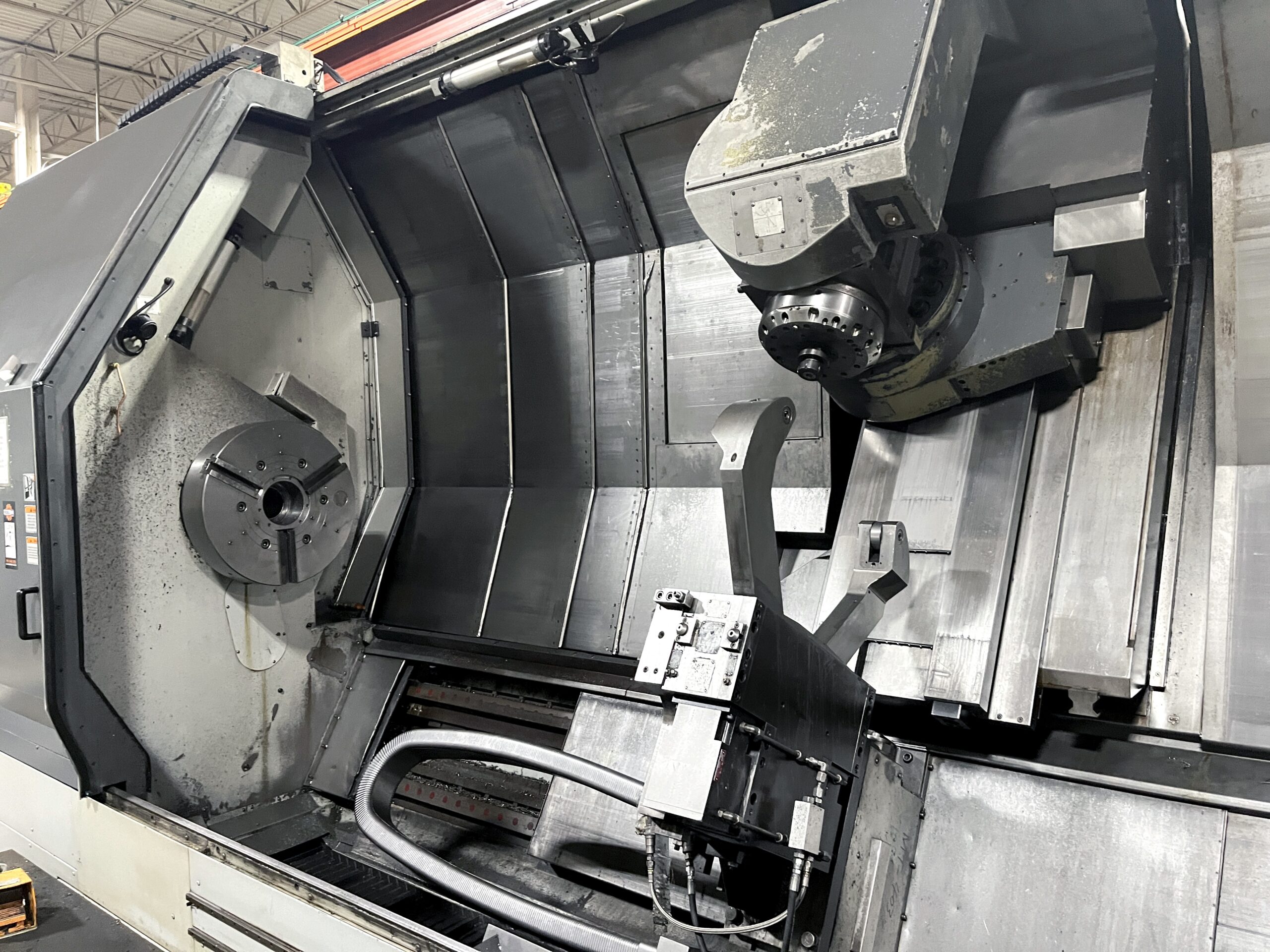

| B-Axis Milling Head |
| Y-Axis Machining |
| C-Axis Main Spindle |
| 60-Position Automatic Tool Changer |
| Live Tooling |
| Helical Interpolation |
| Programmable Tailstock |

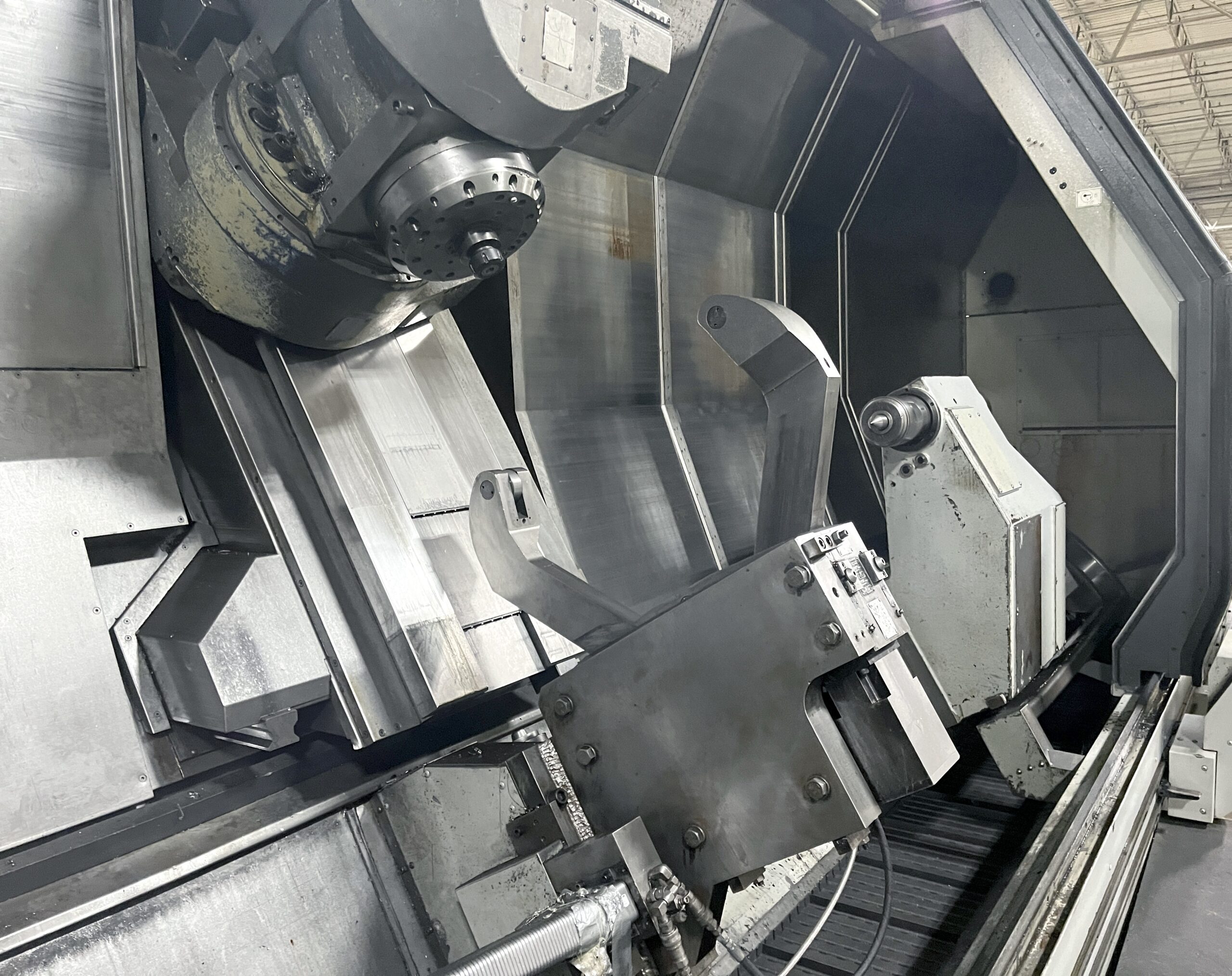

| Programmable Tow-Along Hydraulic Steady Rest (18″ Capacity) |
| Tool Presetter |
| MistBuster Mist Collector |
| 1,000 PSI Through-Spindle Coolant |
| Chip Conveyor |
| Capacity: |
|---|
| Maximum Swing: 37.0″ |
| Maximum Turning Diameter: 37.0″ |
| Distance Between Centers: 182.0″ |
| Maximum Turning Length: 182.0″ |
| Bar Capacity: 6.46″ |
| Spindle Bore: 10.8″ |
| Travels: |
|---|
| X-Axis Travel: 33.5″ |
| Y-Axis Travel: ±10.2″ |
| Z-Axis Travel: 185.0″ |
| B-Axis Rotation: ±120° |
| C-Axis Positioning: 0.001° |
| Main Spindle: |
|---|
| Chuck Size: 24″ |
| Spindle Speed: 2,400 RPM |
| Spindle Motor: 40 HP |
| Spindle Nose: A1-20 |
| Spindle Bore: 10.8″ |
| Milling Spindle: |
|---|
| B-Axis Milling Head |
| Maximum Milling Spindle Speed: 6,000 RPM |
| Milling Spindle Motor: 30 HP |
| Tool Taper: Capto C8 |
| B-Axis Rotation: ±120° |
| Helical Interpolation |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 60 Tools |
| Tool Shank: Capto C8 |
| Tailstock: |
|---|
| Programmable Hydraulic Tailstock |
| Programmable Tow-Along Function |
| Feed Rates: |
|---|
| Rapid Traverse (X/Y/Z-Axis): 945 IPM |
| Rapid Traverse (B-Axis): 20 RPM |
| General: |
|---|

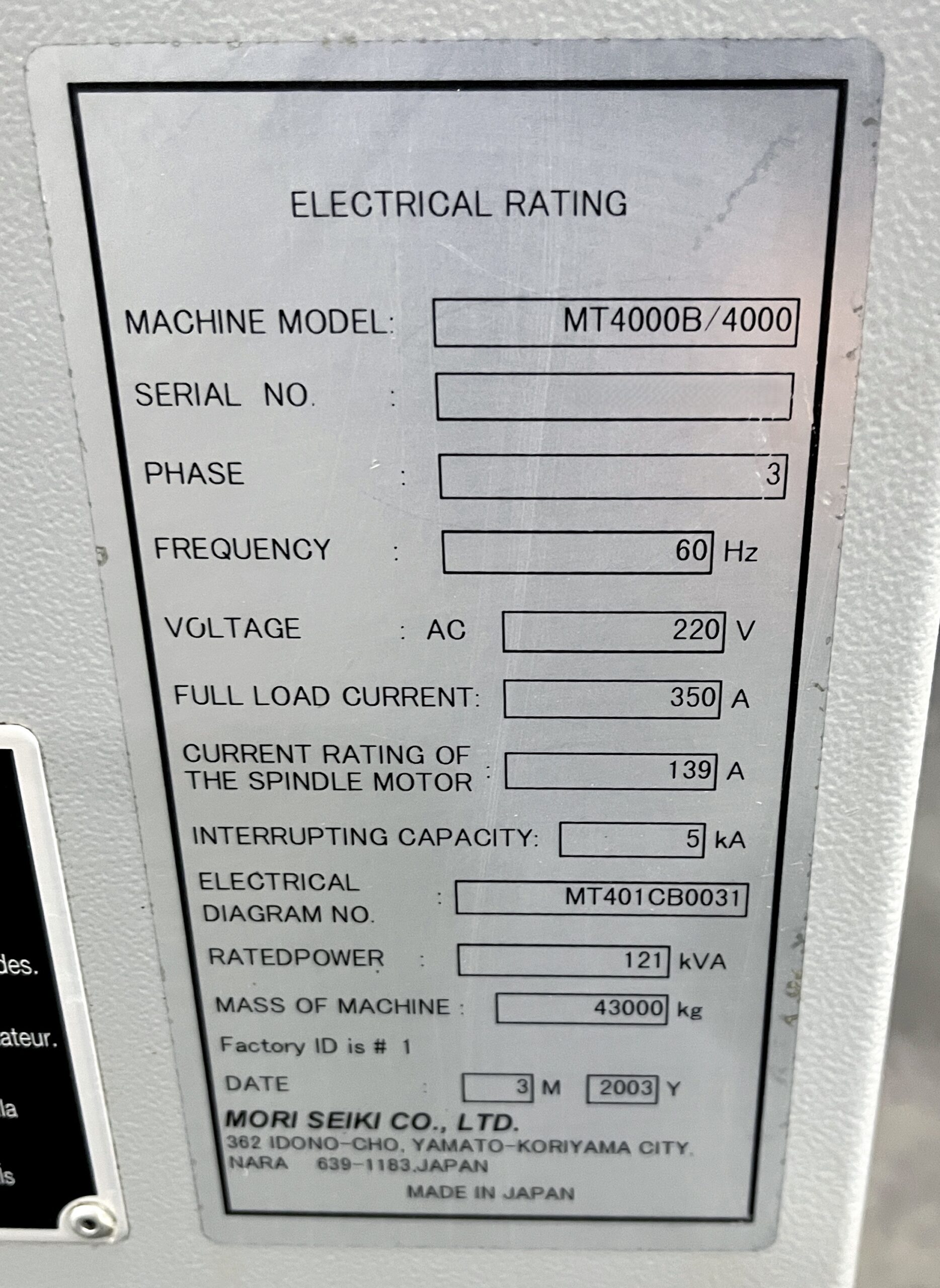

| Voltage: 220 V / 3 Phase / 60 Hz |
| Rated Power: 121 kVA |
| Machine Dimensions (Approx.): 370″ × 155″ × 170″ |
| Machine Weight: 94,800 lbs |
