Mori Seiki NL2500SY/700 CNC Turning Center

SKU 11700

Make/Model Mori Seiki NL2500SY/700

Year 2009

Condition Used - Good

Video On Request

Out of stock

SKU:	11700
Make/Model:	Mori Seiki NL2500SY/700
Year:	2009
Condition:	Used – Good
Video:	On Request

SKU: 11700

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Mori Seiki
Model:	NL2500SY/700
Year:	2009

Equipped With:
Mori Seiki MSX-850III CNC Control
MAPPS Conversational Programming
12-Station Servo Turret
Live Tooling / Milling Capability
Y-Axis
C-Axis Capability
Sub-Spindle
Main & Sub-Spindle Collet Chucks
Chip Conveyor
Coolant System
Full Machine Enclosure

Capacity:
Swing Over Bed: 36.4″
Swing Over Front Cover: 29.7″
Maximum Turning Diameter: 14.0″
Maximum Turning Length: 27.7″
Bar Capacity: 3.1″

Travels:
X-Axis Travel: 10.2″
Y-Axis Travel: 3.9″
Z-Axis Travel: 31.3″
B-Axis Travel – Sub-Spindle: 28.9″
C-Axis Indexing: 0.001°
Rapid Traverse X/Z/B: 1,181 IPM
Rapid Traverse Y: 394 IPM

Main Spindle:
Maximum Spindle Speed: 4,000 RPM
Spindle Nose: A2-8
Spindle Bore: 3.6″
Main Spindle Motor: 25 HP
Main Spindle Chuck Size: 10″

Sub-Spindle:
Maximum Sub-Spindle Speed: 6,000 RPM
Sub-Spindle Nose: A2-5
Sub-Spindle Bore: 1.7″
Sub-Spindle Motor: 15 HP
C-Axis Indexing: 0.001°

Turret:
Turret Capacity: 12 Stations
Maximum Live Tool Speed: 6,000 RPM
Live Tool Motor: 7.5 HP

General:

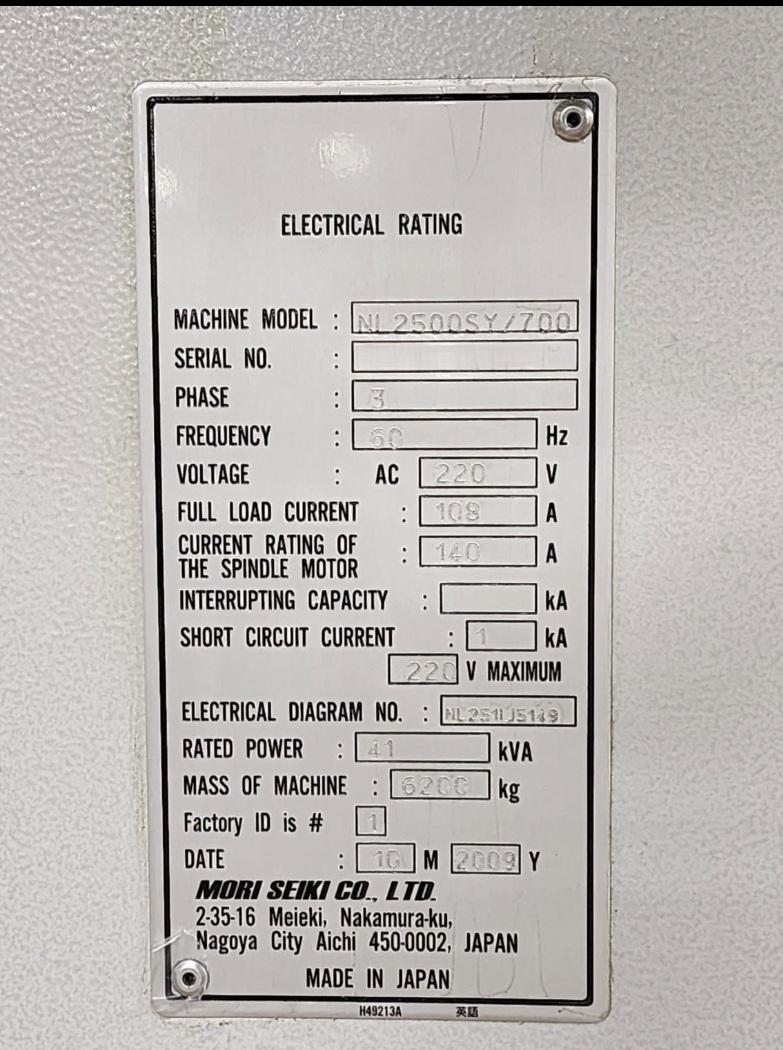

Power Source: 220 v / 3-Phase / 60 Hz
Machine Dimensions (Approx.): 122″ × 81″ × 84″
Machine Weight (Approx.): 13,670 lbs

Equipped With:
Mori Seiki MSX-850III CNC Control
MAPPS Conversational Programming
12-Station Servo Turret
Live Tooling / Milling Capability
Y-Axis
C-Axis Capability
Sub-Spindle
Main & Sub-Spindle Collet Chucks
Chip Conveyor
Coolant System
Full Machine Enclosure

Capacity:
Swing Over Bed: 925 mm
Swing Over Front Cover: 754 mm
Maximum Turning Diameter: 356 mm
Maximum Turning Length: 704 mm
Bar Capacity: 79 mm

Travels:
X-Axis Travel: 259 mm
Y-Axis Travel: 99 mm
Z-Axis Travel: 795 mm
B-Axis Travel – Sub-Spindle: 734 mm
C-Axis Indexing: 0.001°
Rapid Traverse X/Z/B: 1,181 IPM
Rapid Traverse Y: 394 IPM

Main Spindle:
Maximum Spindle Speed: 4,000 RPM
Spindle Nose: A2-8
Spindle Bore: 91 mm
Main Spindle Motor: 25 HP
Main Spindle Chuck Size: 254 mm

Sub-Spindle:
Maximum Sub-Spindle Speed: 6,000 RPM
Sub-Spindle Nose: A2-5
Sub-Spindle Bore: 43 mm
Sub-Spindle Motor: 15 HP
C-Axis Indexing: 0.001°

Turret:
Turret Capacity: 12 Stations
Maximum Live Tool Speed: 6,000 RPM
Live Tool Motor: 7.5 HP

General:
Power Source: 220 v / 3-Phase / 60 Hz
Machine Dimensions (Approx.): 3,099 mm × 2,057 mm × 2,134 mm
Machine Weight (Approx.): 13,670 lbs

Categories	CNC Lathes & Turning Centers
Make	Mori Seiki
Model	NL2500SY/700
