Mori Seiki NT6600DCG/4000CS CNC Multi-Tasking Lathe

SKU 11713

Make/Model Mori Seiki NT6600DCG/4000CS

Year 2008

Video On Request

Out of stock

SKU:	11713
Make/Model:	Mori Seiki NT6600DCG/4000CS
Year:	2008
Video:	On Request

SKU: 11713

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Mori Seiki
Model:	NT6600DCG/4000CS
Year:	2008

Features:
Mori Seiki MSX-711III CNC Control
B-Axis Milling Spindle
Y-Axis Machining
C-Axis Main & Sub Spindle
Main Spindle
Sub-Spindle
100-Position Automatic Tool Changer
24″ Hydraulic Chuck
Helical Interpolation
Tool Presetter
Spindle Chiller
Long Boring Bar Stocker
Through-Spindle Coolant
Chip Conveyor

Capacity:
Maximum Swing: 42.1″
Maximum Turning Diameter: 42.1″
Maximum Turning Length: 160.4″
Distance Between Centers: 178″
Bar Capacity: 6.46″
Spindle Bore: 10.8″

Travels:
X-Axis Travel: 40.9″
Y-Axis Travel: ±13.0″
Z-Axis Travel: 163.4″
B-Axis Rotation: ±120°
Sub-Spindle Z-Axis Travel: 137.8″

Main Spindle:
Chuck Size: 24″
Spindle Nose: A1-20
Spindle Bore: 10.8″
Maximum Spindle Speed: 1,000 RPM
Main Spindle Motor: 60 HP
C-Axis Positioning

Milling Spindle:
B-Axis Milling Head
Maximum Milling Spindle Speed: 8,000 RPM
Milling Spindle Motor: 40 HP
Tool Taper: Capto C8

Automatic Tool Changer:
Tool Capacity: 100 Tools
Tool Shank: Capto C8
Maximum Tool Diameter: 9.84″
Maximum Tool Weight: 66 lbs

Feed Rates:
Rapid Traverse (X & Y-Axis): 945 IPM
Rapid Traverse (Z-Axis): 787 IPM
Rapid Traverse (B-Axis): 20 RPM

General:

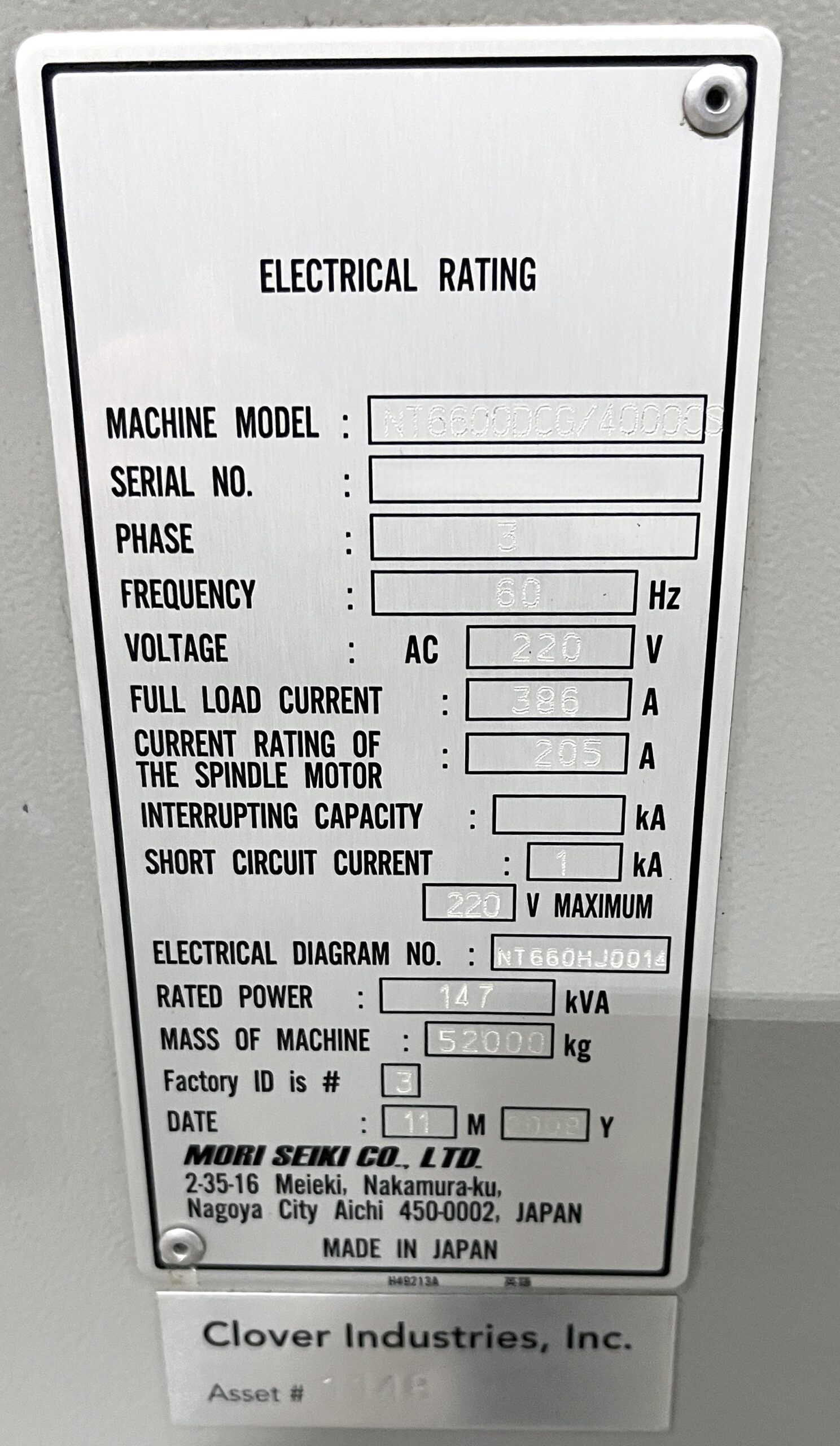

Voltage: 220 V / 3 Phase / 60 Hz
Rated Power: 147 kVA
Machine Dimensions (Approx.): 398″ × 180″ × 177″
Machine Weight (Approx.): 114,640 lbs

Capacity:
Maximum Swing: 1,069 mm
Maximum Turning Diameter: 1,069 mm
Maximum Turning Length: 4,074 mm
Distance Between Centers: 4,521 mm
Bar Capacity: 164 mm
Spindle Bore: 274 mm

Travels:
X-Axis Travel: 1,039 mm
Y-Axis Travel: ±330 mm
Z-Axis Travel: 4,150 mm
B-Axis Rotation: ±120°
Sub-Spindle Z-Axis Travel: 3,500 mm

Main Spindle:
Chuck Size: 610 mm
Spindle Nose: A1-20
Spindle Bore: 274 mm
Maximum Spindle Speed: 1,000 RPM
Main Spindle Motor: 60 HP
C-Axis Positioning

Milling Spindle:
B-Axis Milling Head
Maximum Milling Spindle Speed: 8,000 RPM
Milling Spindle Motor: 40 HP
Tool Taper: Capto C8

Automatic Tool Changer:
Tool Capacity: 100 Tools
Tool Shank: Capto C8
Maximum Tool Diameter: 250 mm
Maximum Tool Weight: 66 lbs

Feed Rates:
Rapid Traverse (X & Y-Axis): 945 IPM
Rapid Traverse (Z-Axis): 787 IPM
Rapid Traverse (B-Axis): 20 RPM

General:
Voltage: 220 V / 3 Phase / 60 Hz
Rated Power: 147 kVA
Machine Dimensions (Approx.): 10,109 mm × 4,572 mm × 4,496 mm
Machine Weight (Approx.): 114,640 lbs

Categories	CNC Lathes & Turning Centers
Make	Mori Seiki
Model	NT6600DCG/4000CS

Mori Seiki MSX-711III CNC Control
B-Axis Milling Spindle
Y-Axis Machining
C-Axis Main & Sub Spindle
Main Spindle
Sub-Spindle
100-Position Automatic Tool Changer
610 mm Hydraulic Chuck
Helical Interpolation
Tool Presetter
Spindle Chiller
Long Boring Bar Stocker
Through-Spindle Coolant
Chip Conveyor
