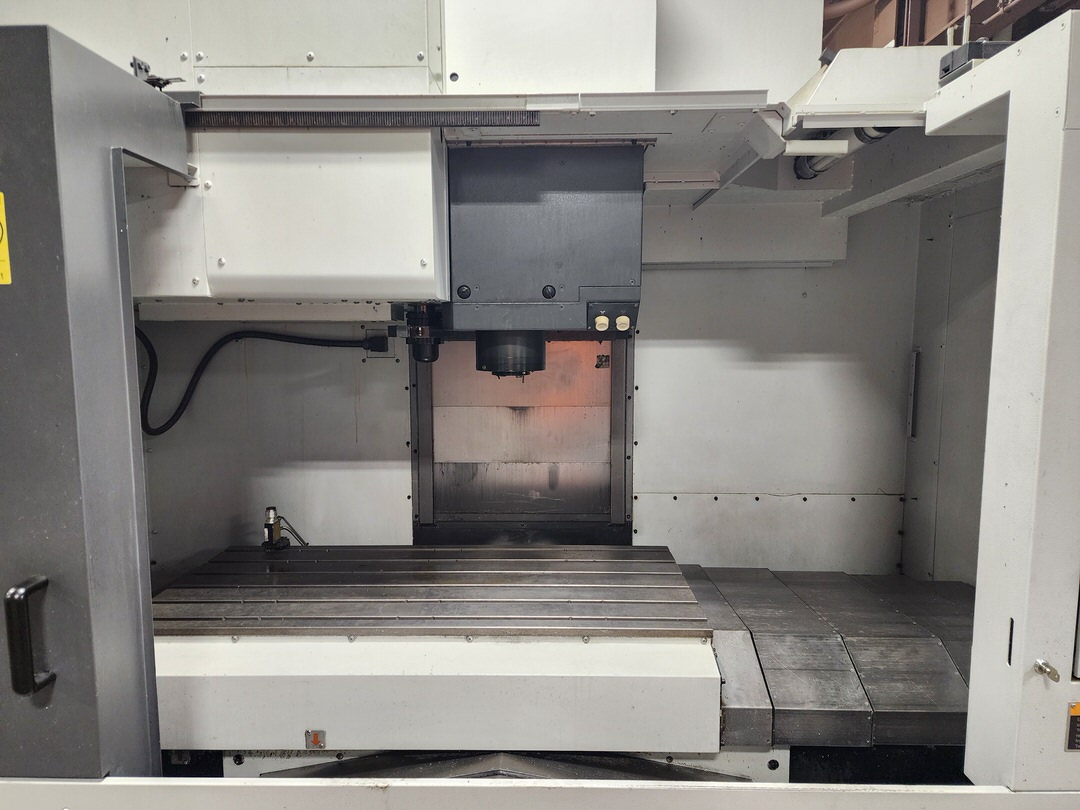

Mori Seiki NV5000α1B/40 CNC Vertical Machining Center

SKU 11699

Make/Model Mori Seiki NV5000α1B/40

Year 2009

Condition Used - Good

Video On Request

Out of stock

SKU:	11699
Make/Model:	Mori Seiki NV5000α1B/40
Year:	2009
Condition:	Used – Good
Video:	On Request

SKU: 11699

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Mori Seiki
Model:	NV5000α1B/40
Year:	2009

Features:
Mori Seiki MSX-501III CNC Control
30-Position Automatic Tool Changer
14,000 RPM High-Speed Spindle
CAT 40 Spindle Taper
Chip Conveyor
Coolant System
Full Machine Enclosure

Travels:
X-Axis Travel: 40.2″
Y-Axis Travel: 20.1″
Z-Axis Travel: 20.1″
Rapid Traverse X/Y/Z: 1,654 IPM

Table:
Table Size: 52.0″ × 23.6″
Maximum Table Load: 2,640 lbs
T-Slots: 6

Spindle:
Maximum Spindle Speed: 14,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 30 HP / 24.7 HP (30-Minute / Continuous)

Automatic Tool Changer:
Tool Capacity: 30 Tools
Maximum Tool Diameter: 4.9″
Maximum Tool Length: 11.8″
Maximum Tool Weight: 26.4 lbs
Tool Change Time: 2.6 Seconds

Feed Rates:
Rapid Traverse X/Y/Z: 1,654 IPM
Cutting Feed Rate: 0.04–1,654 IPM

Electrical:
Power Supply: 220 V AC
Phase: 3 Phase
Frequency: 60 Hz
Rated Power: 48 kVA

General:
Country of Manufacture: Japan
Cutting Time: 25,486 Hours
Machine Dimensions (Approx.): 120″ × 110″ × 103″
Machine Weight (Approx.): 16,094 lbs

Travels:
X-Axis Travel: 1,021 mm
Y-Axis Travel: 511 mm
Z-Axis Travel: 511 mm
Rapid Traverse X/Y/Z: 1,654 IPM

Table:
Table Size: 1,321 mm × 599 mm
Maximum Table Load: 2,640 lbs
T-Slots: 6

Spindle:
Maximum Spindle Speed: 14,000 RPM
Spindle Taper: CAT 40
Spindle Motor: 30 HP / 24.7 HP (30-Minute / Continuous)

Automatic Tool Changer:
Tool Capacity: 30 Tools
Maximum Tool Diameter: 124 mm
Maximum Tool Length: 300 mm
Maximum Tool Weight: 26.4 lbs
Tool Change Time: 2.6 Seconds

Feed Rates:
Rapid Traverse X/Y/Z: 1,654 IPM
Cutting Feed Rate: 0.04–1,654 IPM

Electrical:
Power Supply: 220 V AC
Phase: 3 Phase
Frequency: 60 Hz
Rated Power: 48 kVA

General:
Country of Manufacture: Japan
Cutting Time: 25,486 Hours
Machine Dimensions (Approx.): 3,048 mm × 2,794 mm × 2,616 mm
Machine Weight (Approx.): 16,094 lbs

Categories	CNC Vertical Machining Centers
Make	Mori Seiki
Model	NV5000α1B/40

Mori Seiki MSX-501III CNC Control
30-Position Automatic Tool Changer
14,000 RPM High-Speed Spindle
CAT 40 Spindle Taper
Chip Conveyor
Coolant System
Full Machine Enclosure

Optimized by JPEGmini 3.18.4.211163429 AP 0x00ac11f2

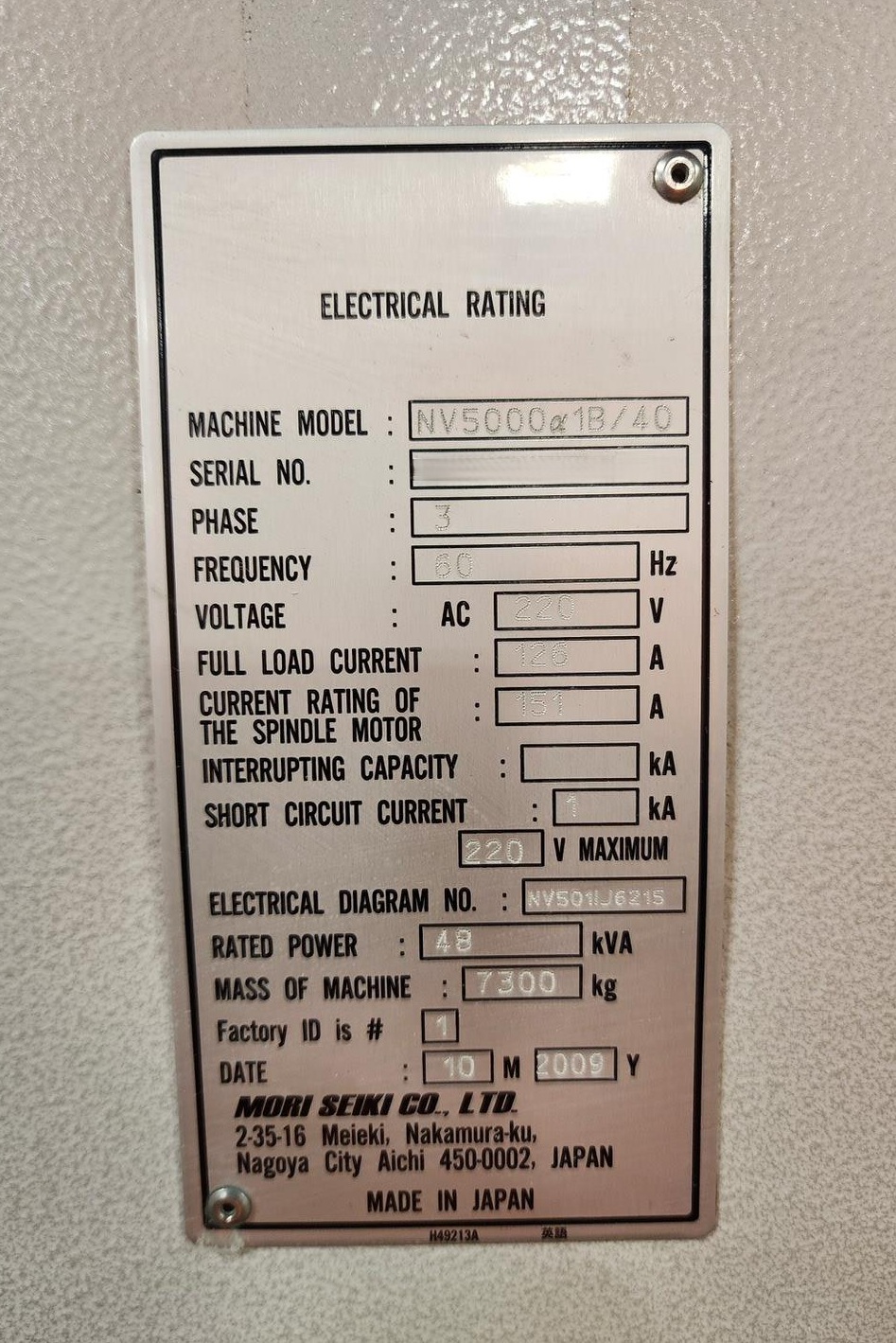

Optimized by JPEGmini 3.18.4.211163429 AP 0xf1761458

Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
