*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | SL-150S |
| Condition: | Used – Good |
| Machine Type: | Twin Spindle CNC Turning Center |

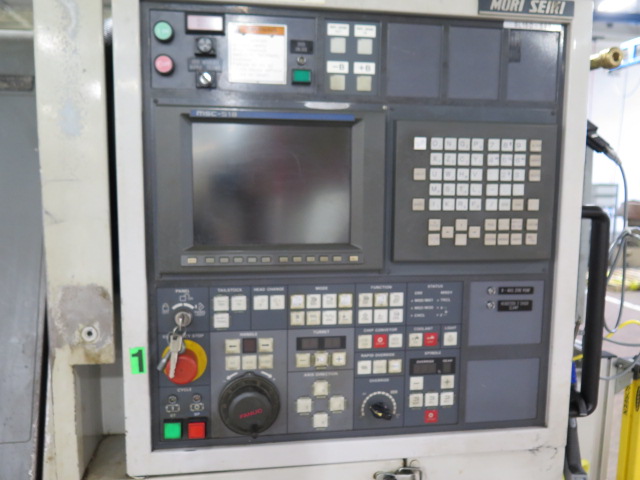

| Control: | Mori Seiki MSC-518 |
| Equipped With: |
|---|
| Mori Seiki MSC-518 CNC Control |
| Twin Spindle Configuration |
| Collet Main Spindle |
| Collet Sub Spindle |
| Kitagawa B-206 Chuck Cylinder System |
| 12-Station Turret |
| Tool Presetter |
| Perfect Machining 1200 S1 Bar Feeder |
| Spindle Liners |
| Chip Conveyor |
| Coolant System |
| Bar Feeder Interface |
| Door Interlock |
| Capacity: |
|---|
| Maximum Turning Diameter: 16.9″ |
| Maximum Turning Length: 13.7″–18.8″ |
| Maximum Bar Capacity: 1.7″–1.86″ |
| Distance Between Spindle Noses: 24.8″ |
| Main Spindle Bore: 2.20″ |
| Main Spindle Nose: A2-5 |
| Sub Spindle Bore: 1.70″ |
| Travels: |
|---|
| X-Axis Travel: 9.1″ |
| Z-Axis Travel: 20.5″ |
| B-Axis / Sub-Spindle Travel: 19.9″ |
| Rapid Traverse: 944 IPM |
| Main Spindle: |
|---|
| Spindle Speed: 5,000 RPM |
| Spindle Bore: 2.20″ |
| Spindle Nose: A2-5 |
| Motor: 15 HP |
| Sub Spindle: |
|---|
| Spindle Speed: 5,000 RPM |
| Spindle Bore: 1.70″ |
| Spindle Nose: A2-5 |
| Motor: 11 HP |
| Turret: |
|---|
| Turret Type: Automatic Tool Turret |
| Tool Stations: 12 |
| Tool Presetter: Included |
| General: |
|---|
| Electrical: 3 Phase |
| Rated Power: 32 kVA |
| Machine Dimensions (Approx.): 89″ × 70″ × 72″ |
| Machine Weight (Approx.): 9,500 lbs |
