*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

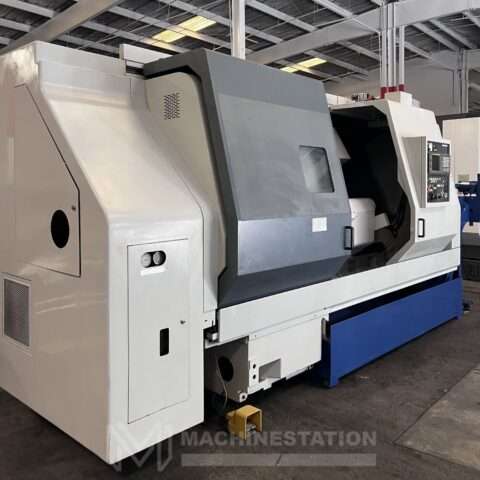

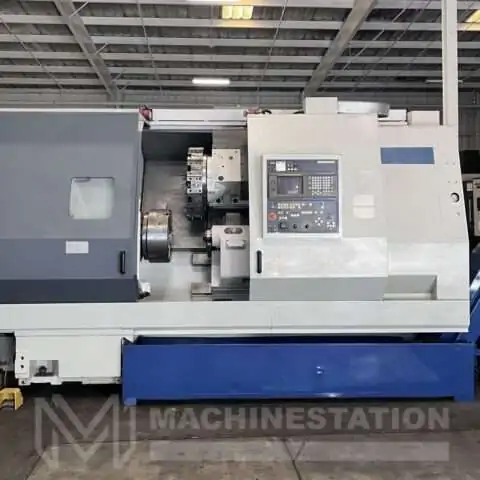

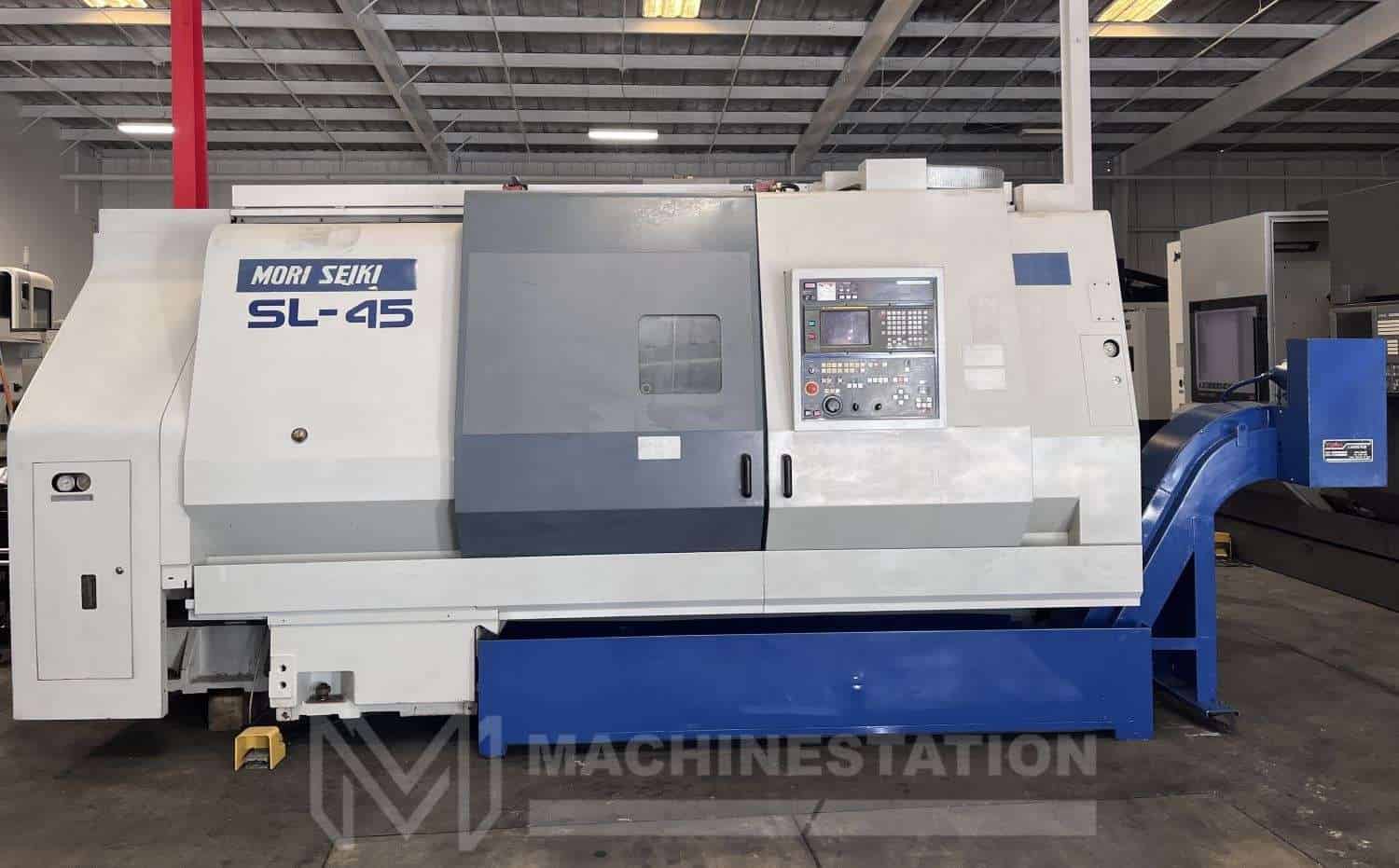

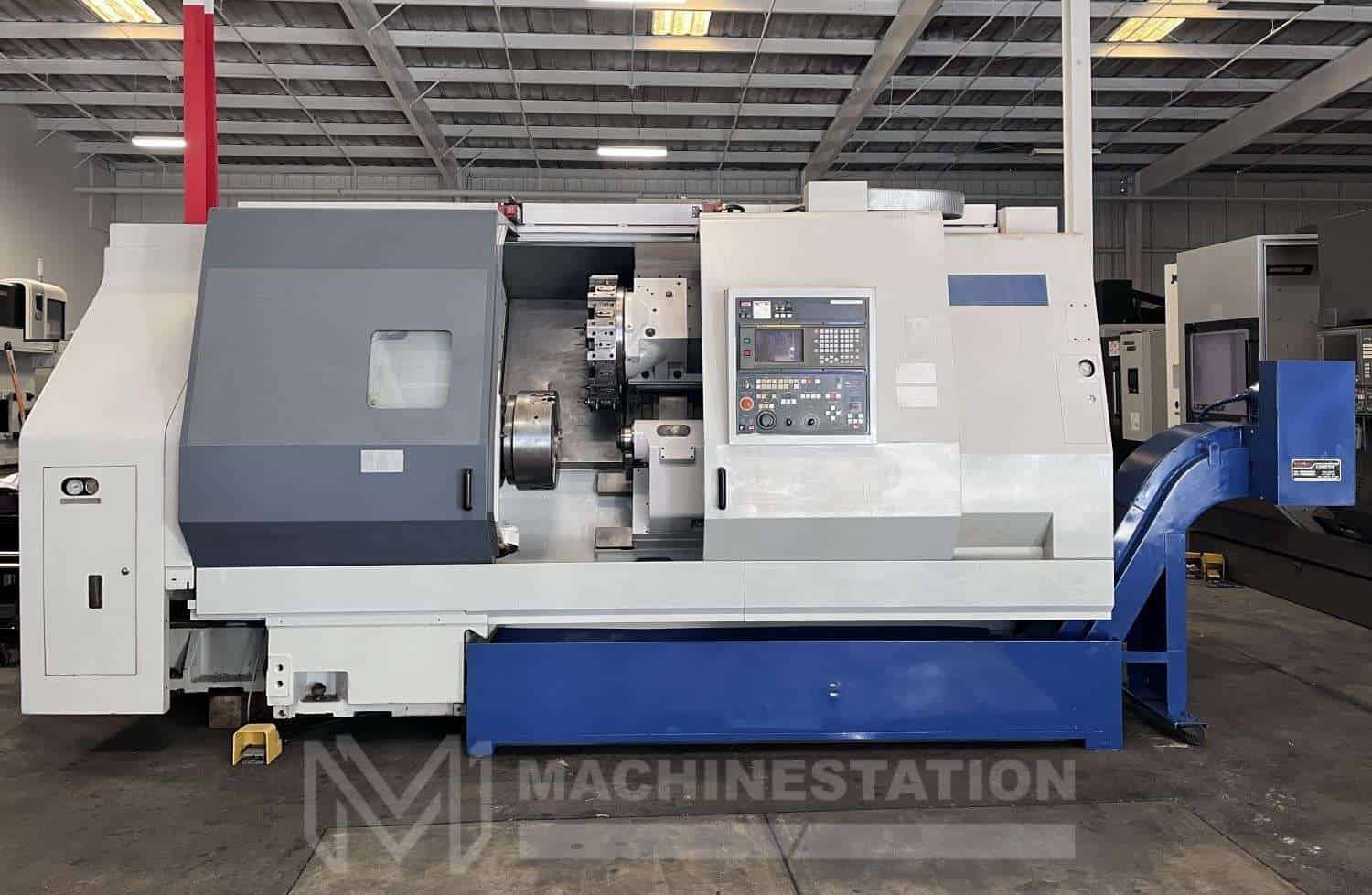

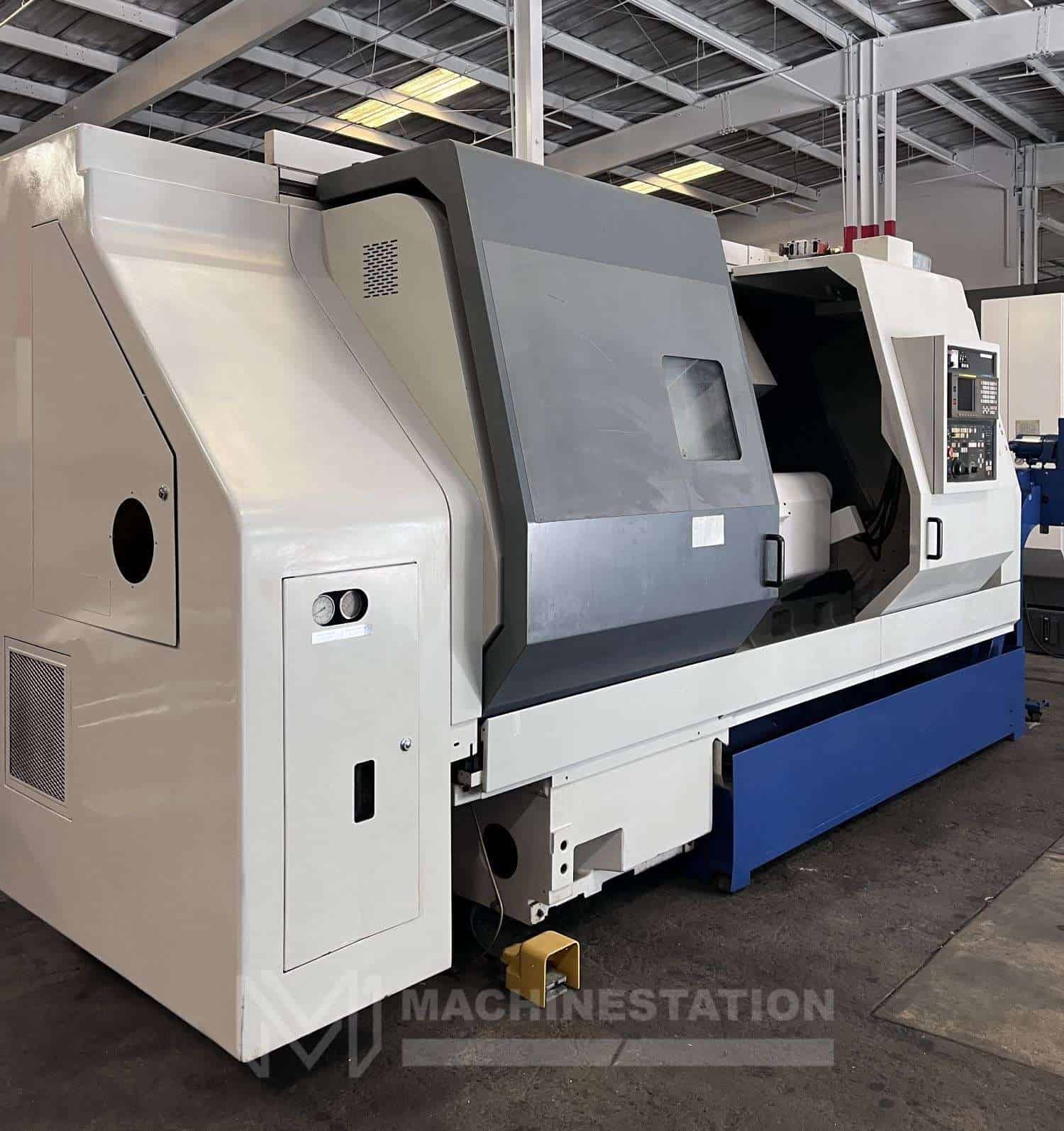

| Make: | MORI SEIKI |
| Model: | SL-45C/1000 |
| Year: | 1999 |
| Condition: | Used – Good |
| Equipped With: |
|---|

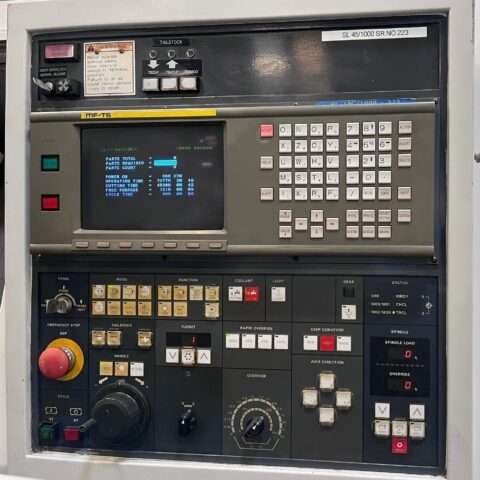

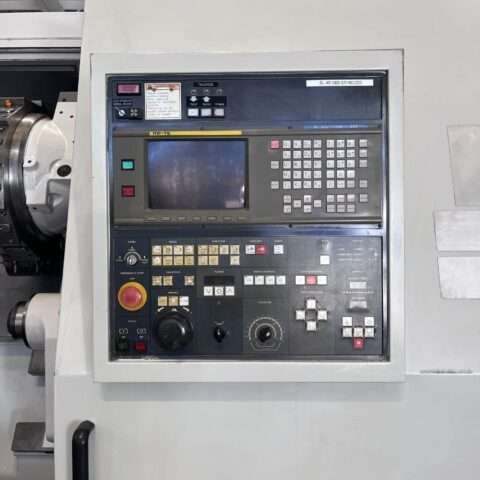

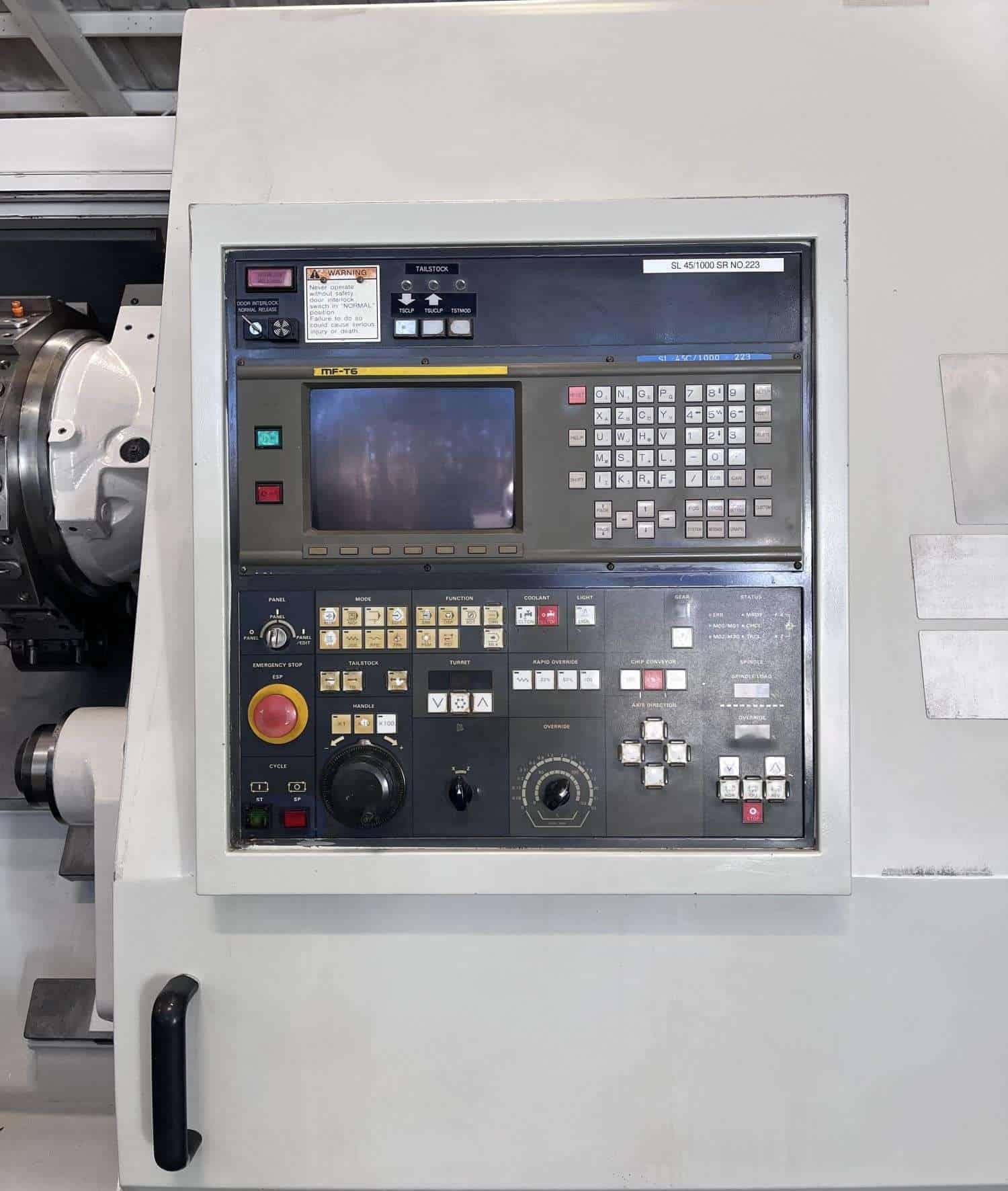

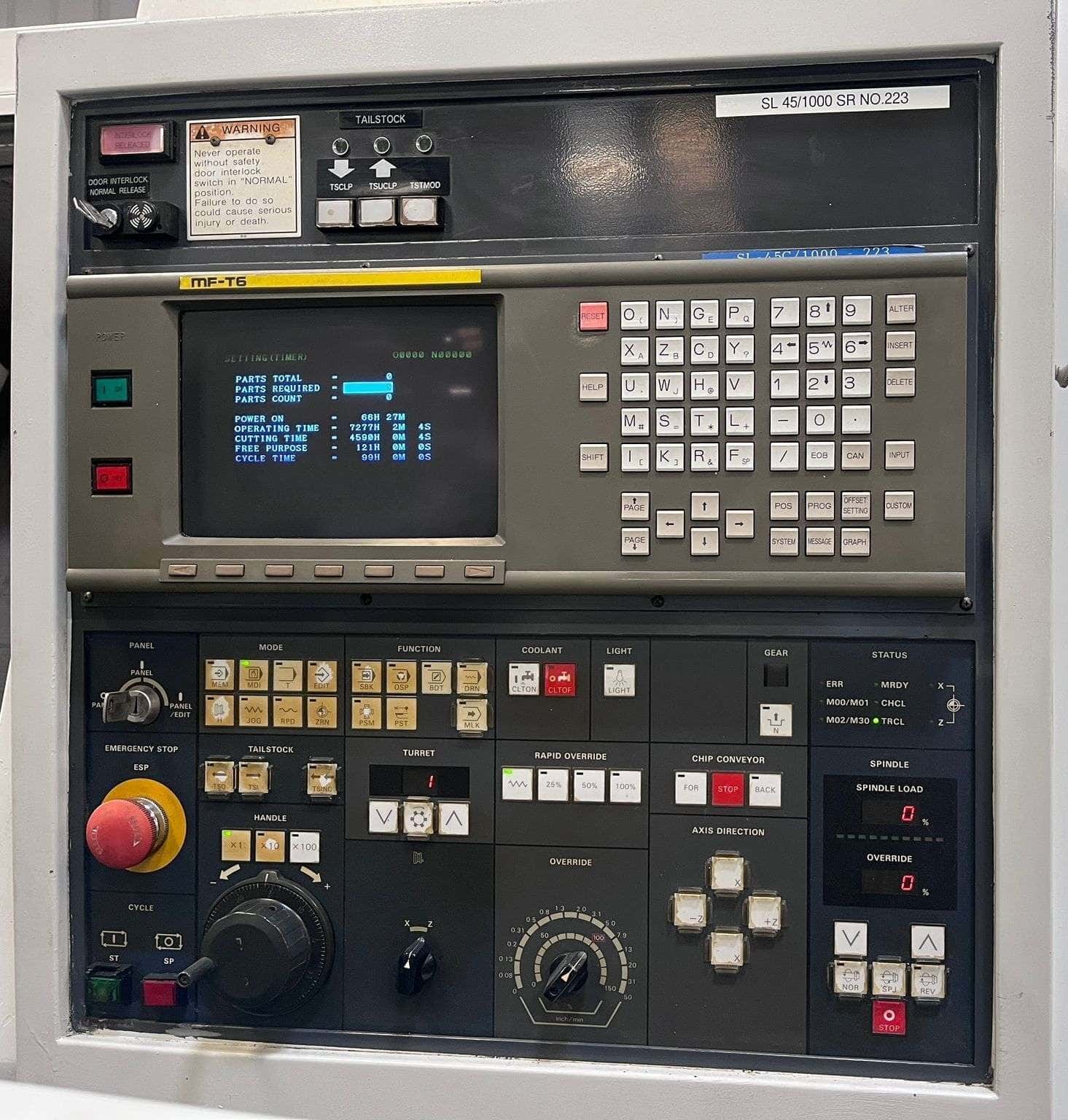

| Mori Seiki MF-T6 (Fanuc) CNC Control |

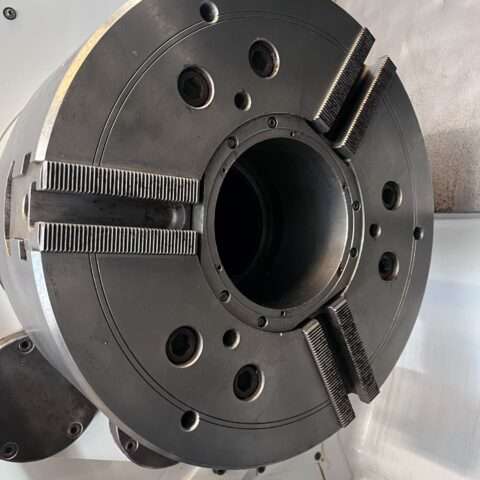

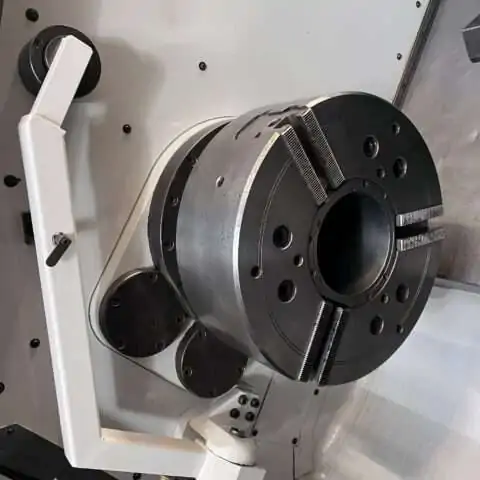

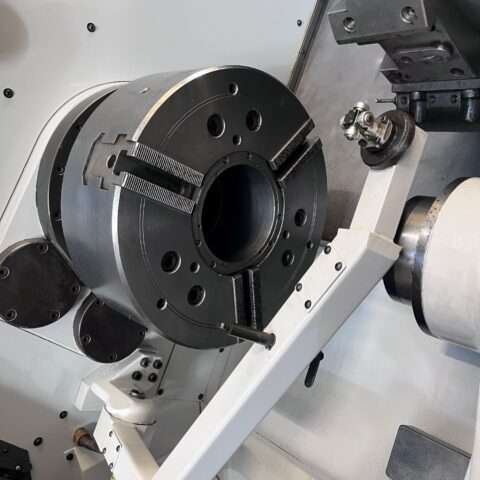

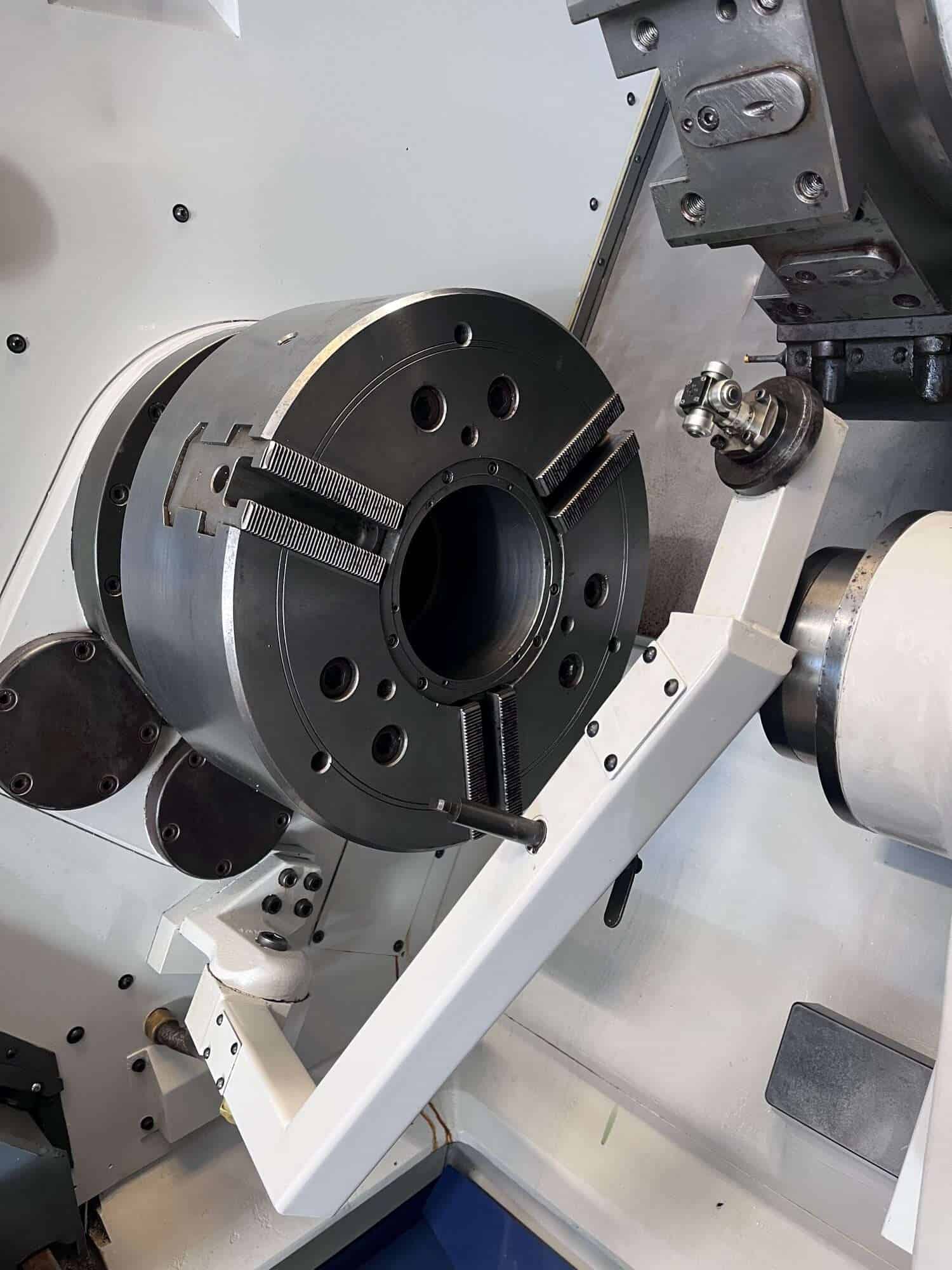

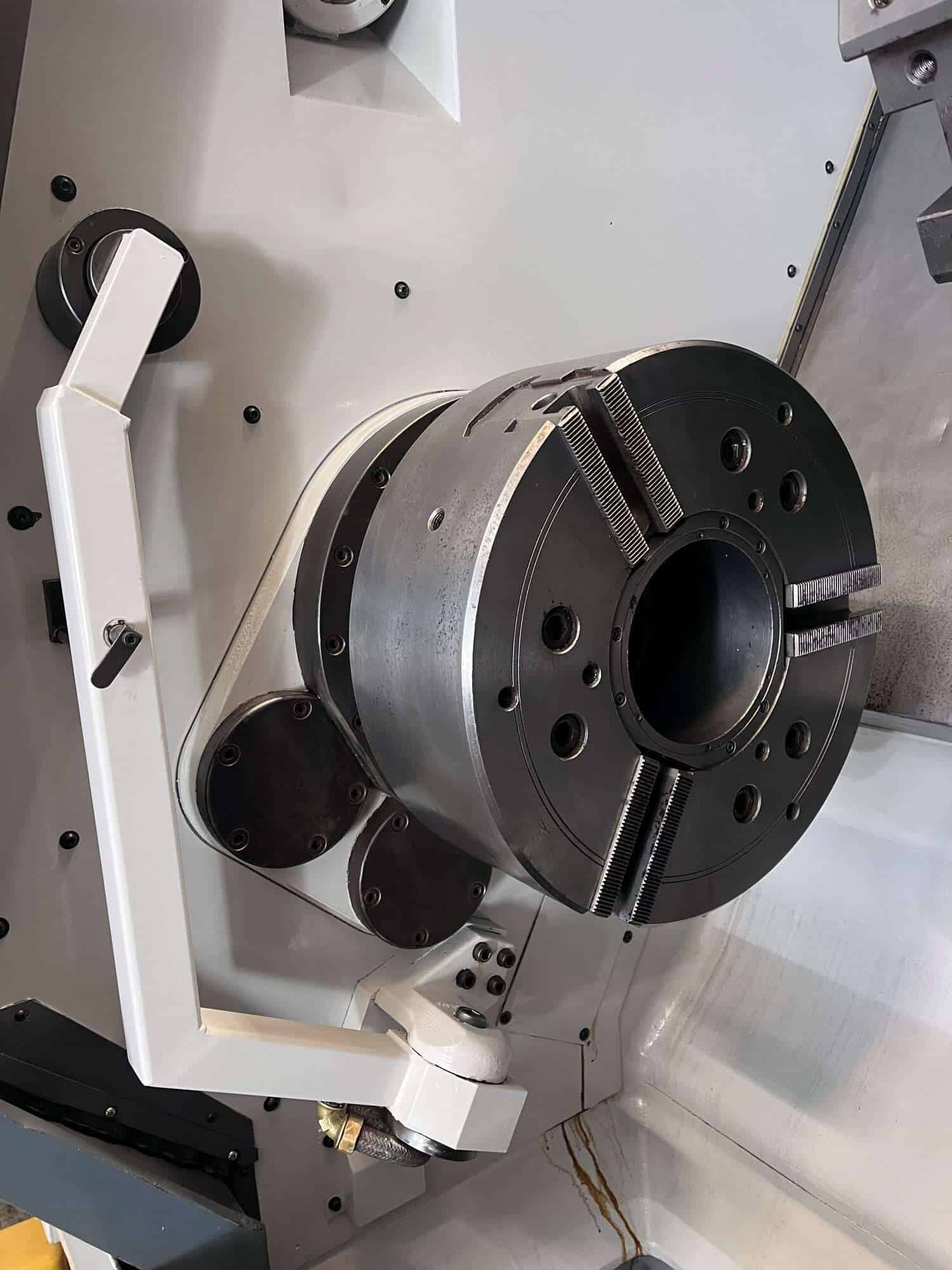

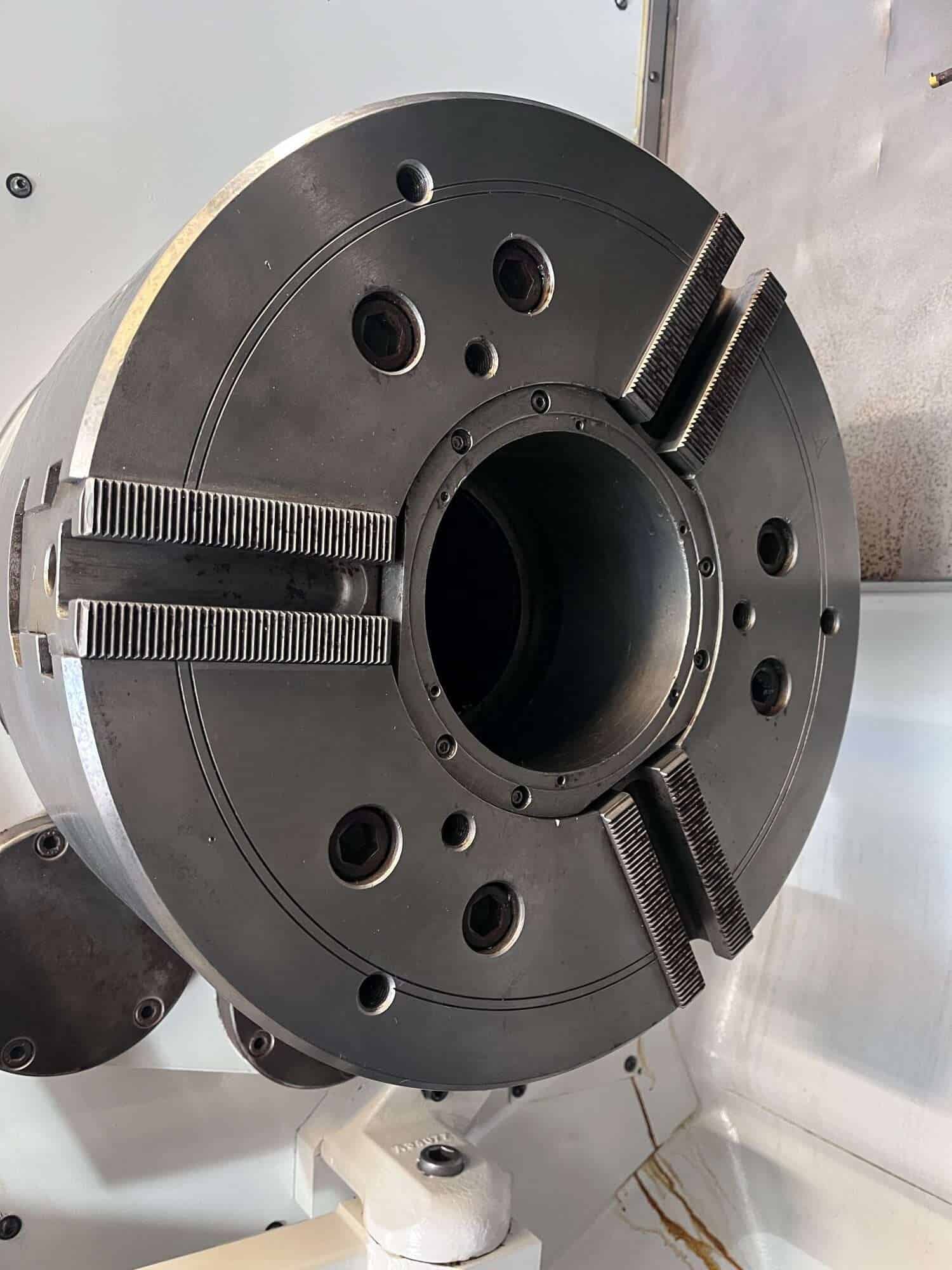

| 18″ 3-Jaw Hydraulic Chuck |
| 6.5″ Big Bore A2-11 Spindle |

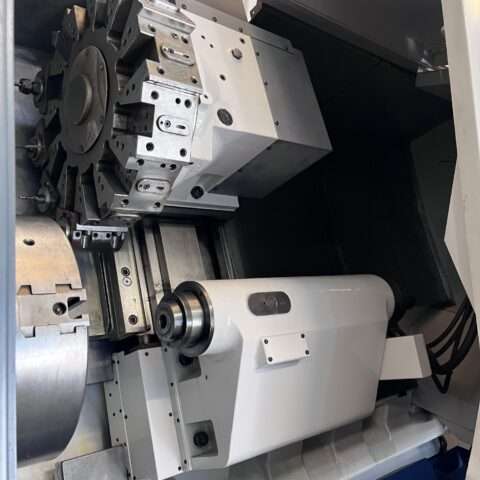

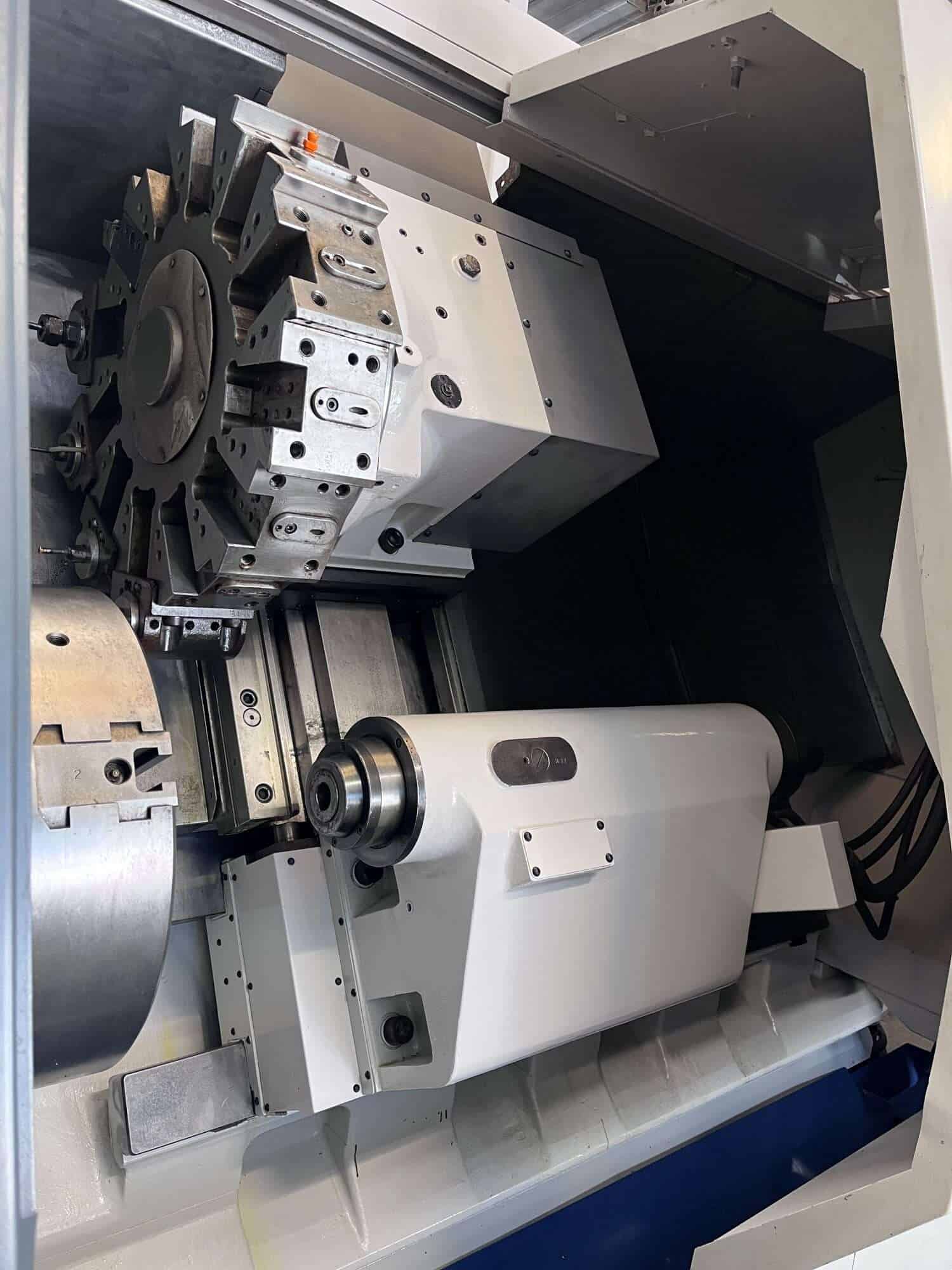

| 12 Station Turret |
| 40 HP 2 Speed Gear Head Spindle |
| Tool Presetter |
| Programmable Hydraulic Tailstock |
| Rigid Tapping |
| Foot Switch |
| Coolant System |

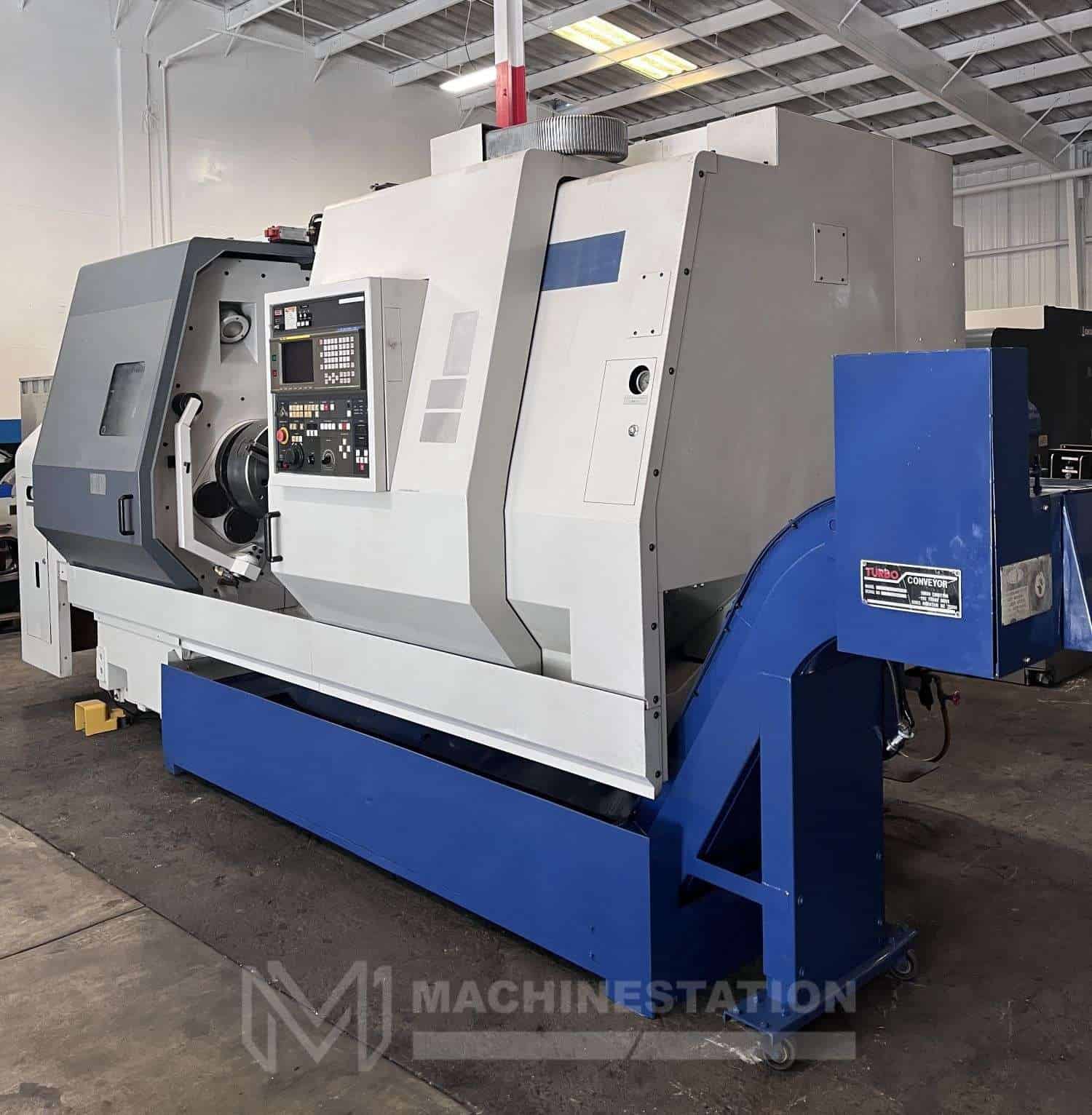

| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter: 19.3″ |
| Max Turning Length: 39.2″ |
| Max Bar Capacity: 6″ |
| Swing Over Bed: 26.4″ |
| Swing Over Cross Slide: 18.1″ |
| Distance Between Centers: 45.1″ |
| Travel: |
|---|
| X Axis Travel: 10.6″ |
| Z Axis Travel: 43.3″ |
| Rapid Traverse X Axis: 472 IPM |
| Rapid Traverse Z Axis: 790 IPM |
| Spindle: |
|---|

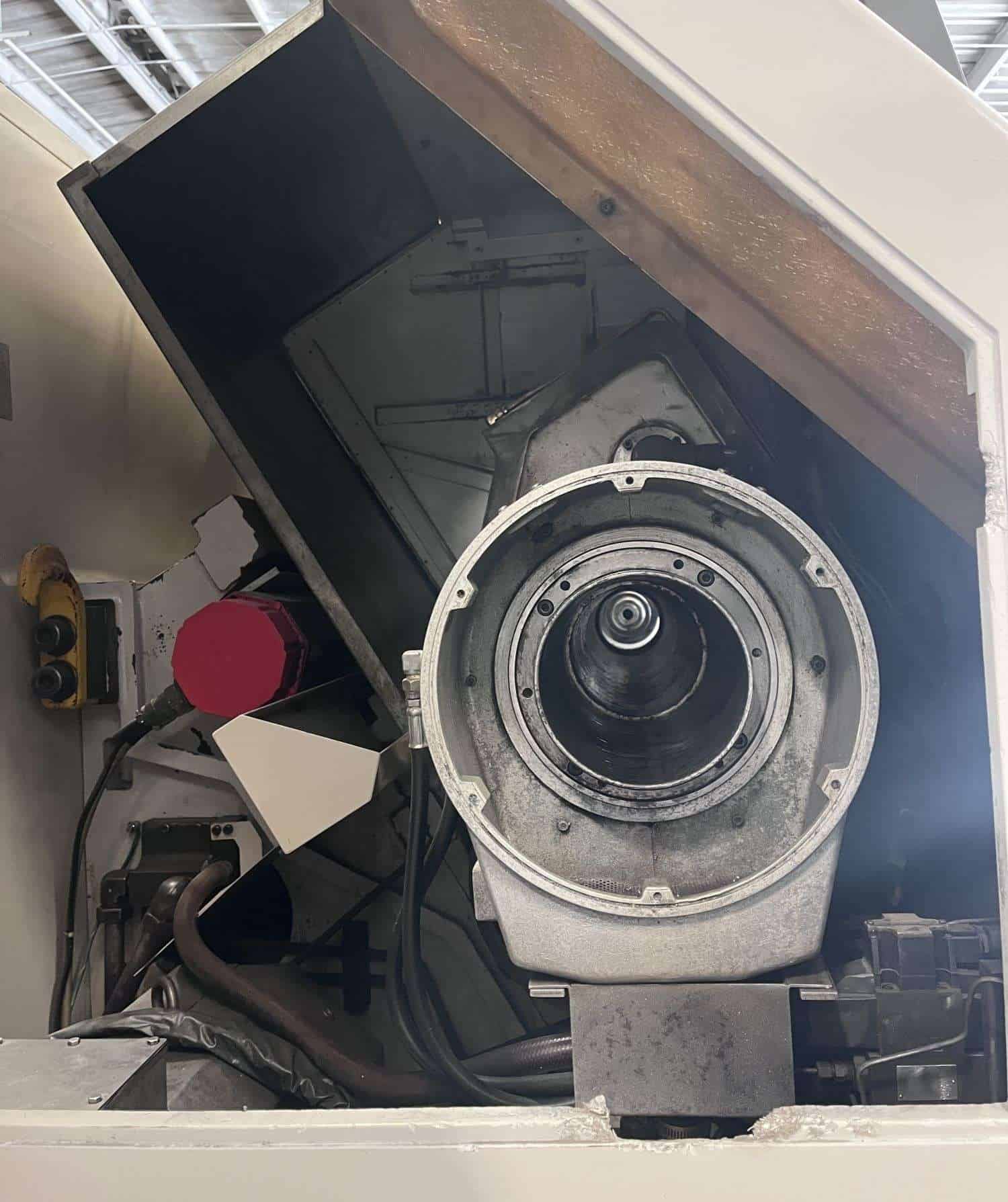

| Spindle Nose: A2-11 |

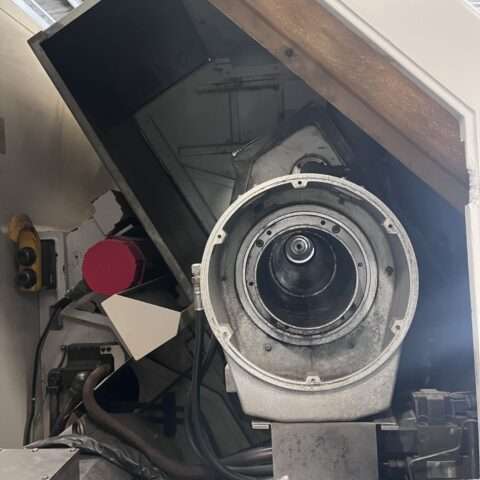

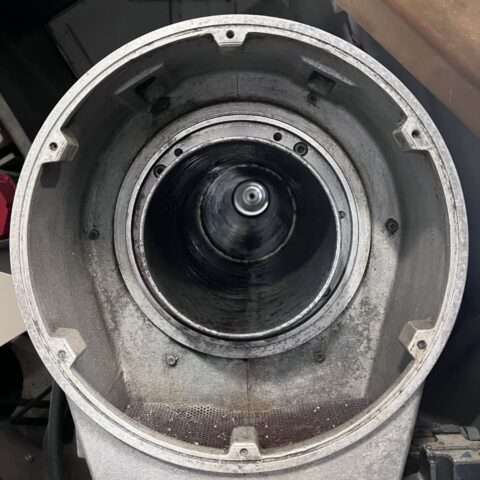

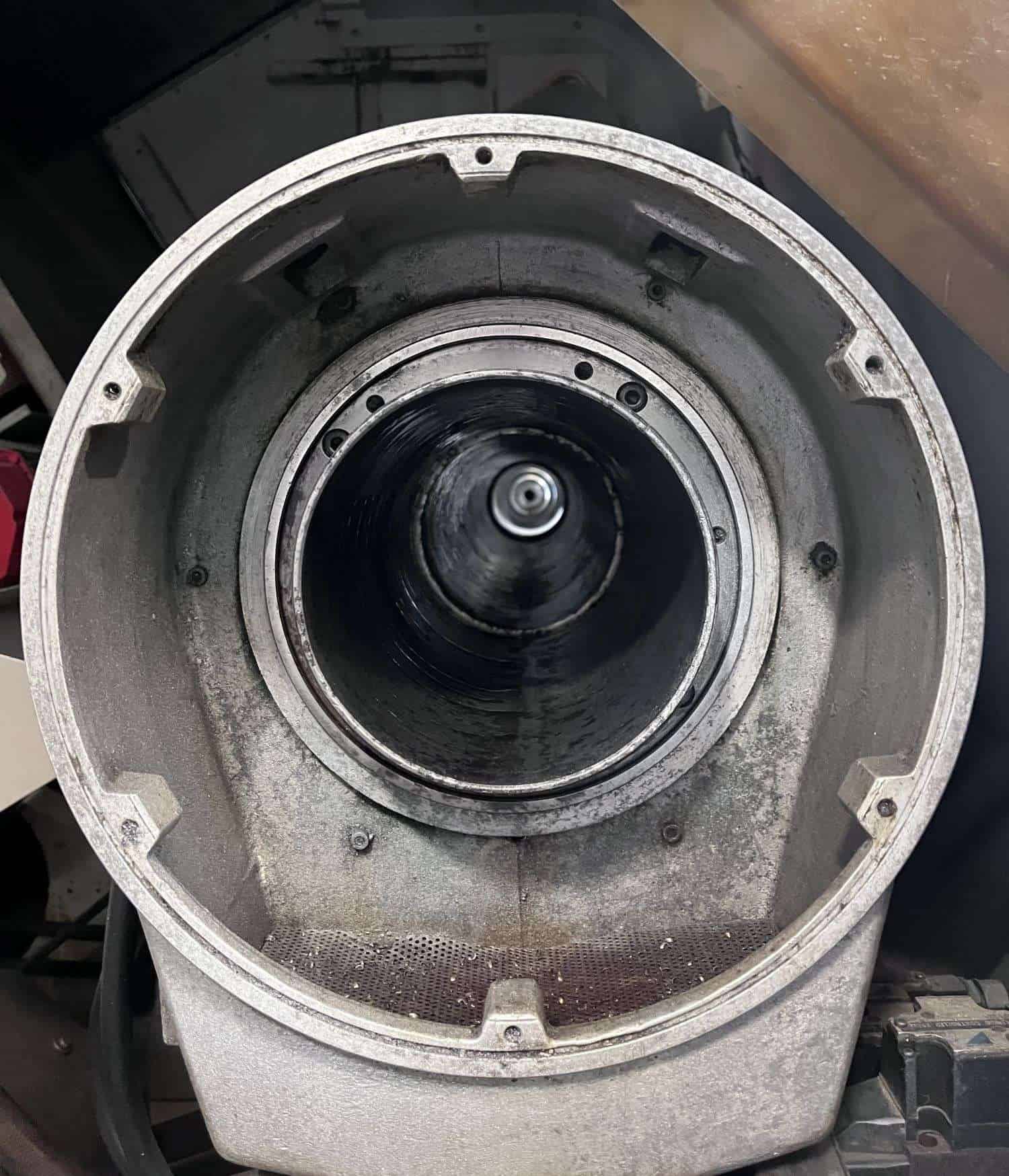

| Spindle Bore: 6.5″ |
| Spindle Speed: 40-1010 RPM |
| Spindle Motor: 40 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Body Travel: 40″ |
| Tailstock Quill Dia.: 5.1″ |
| Tailstock Quill Travel: 5.9″ |
| General: |
|---|

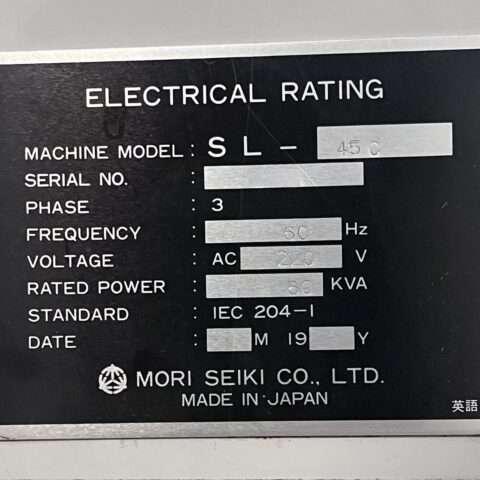

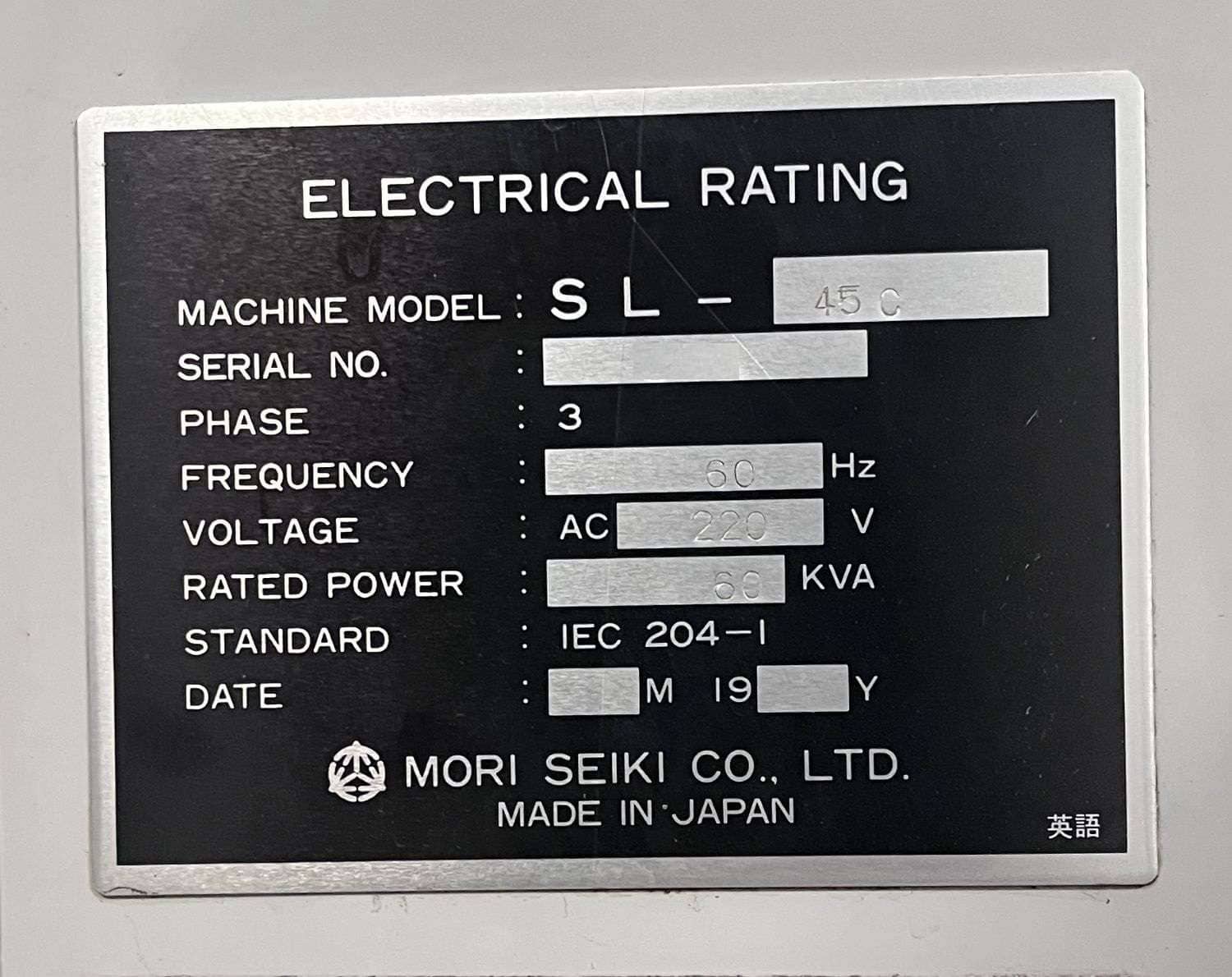

| Power: 220v / 3-Phase / 60 kva |
| Overall Dimensions: 108″ x 85″ x 80″ High |
| Weight: 25000 lbs |
