Mori Seiki TL-40Y/3000 CNC Long Bed Turning Center
SKU
11719
Make/Model
Mori Seiki TL-40Y/3000
Year
1998
Condition
Used - Good
Video
On Request
Out of stock
| SKU: | 11719 |
| Make/Model: | Mori Seiki TL-40Y/3000 |
| Year: | 1998 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | TL-40Y/3000 |
| Year: | 1998 |
| Equipped With: |
|---|

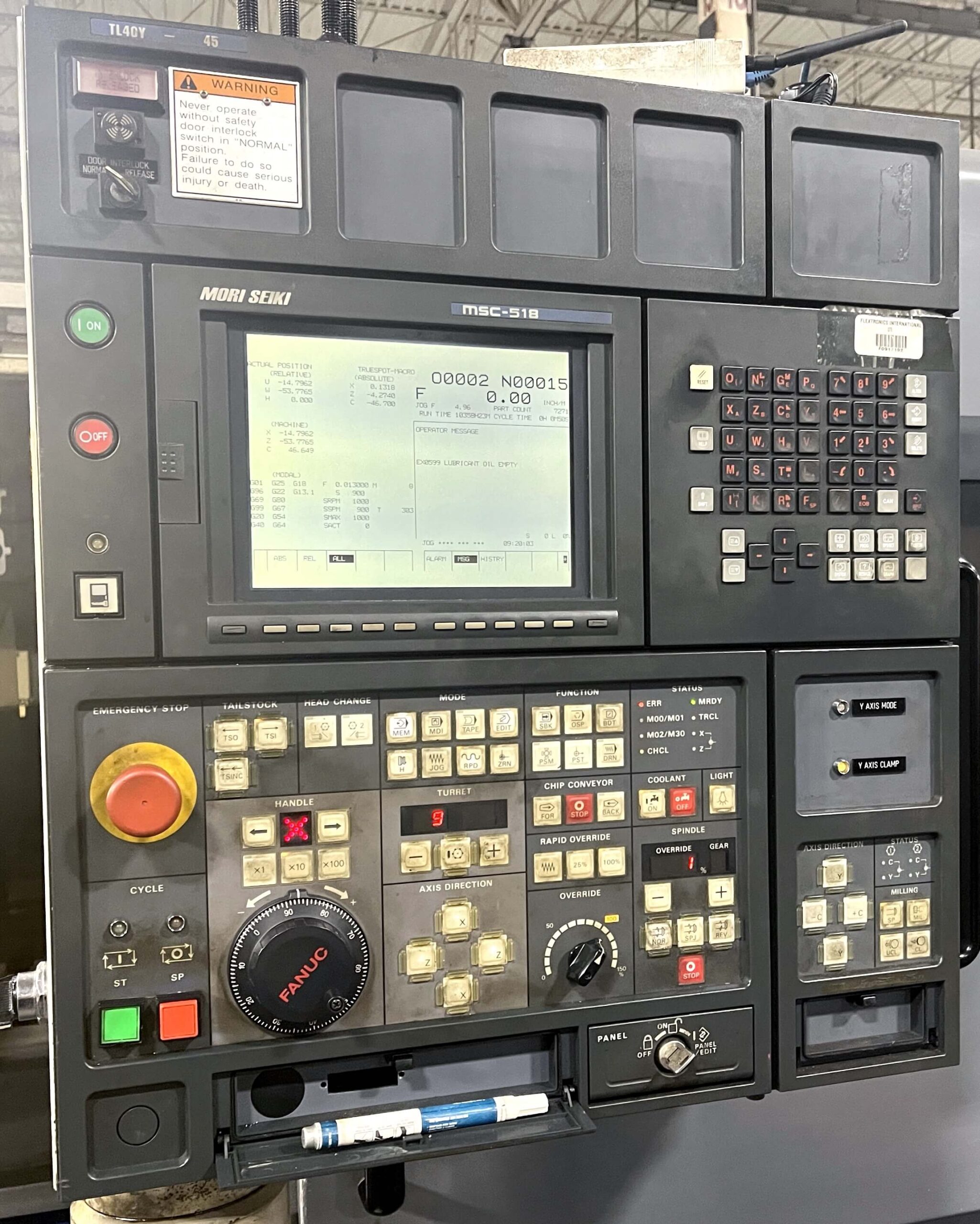

| Mori Seiki MSC-518 CNC Control |
| C-Axis Spindle |
| Y-Axis Live Tooling |
| 12-Station Turret |
| 12″ SMW Hydraulic Chuck |
| Hydraulic Programmable Tailstock |
| Tool Presetter |
| Mist Collector |
| Chip Conveyor |
| Prepared for Hydraulic Steady Rest |
| Flood Coolant System |
| Full Machine Enclosure |
| Capacity: |
|---|
| Swing Over Bed: 34″ |
| Distance Between Centers: 122″ |
| Bar Capacity: 3.6″ |
| Chuck Size: 12″ |
| Travels: |
|---|
| X-Axis Travel: 15.4″ |
| Y-Axis Travel: ±2.0″ |
| Z-Axis Travel: 124″ |
| Spindle: |
|---|
| Spindle Speed: 2,000 RPM |
| Spindle Motor: 30 HP |
| Spindle Bore: 3.6″ |
| Spindle Nose: A2-11 |
| Turret: |
|---|
| Number of Stations: 12 |
| Tailstock: |
|---|
| Type: Hydraulic Programmable Tailstock |
| General: |
|---|

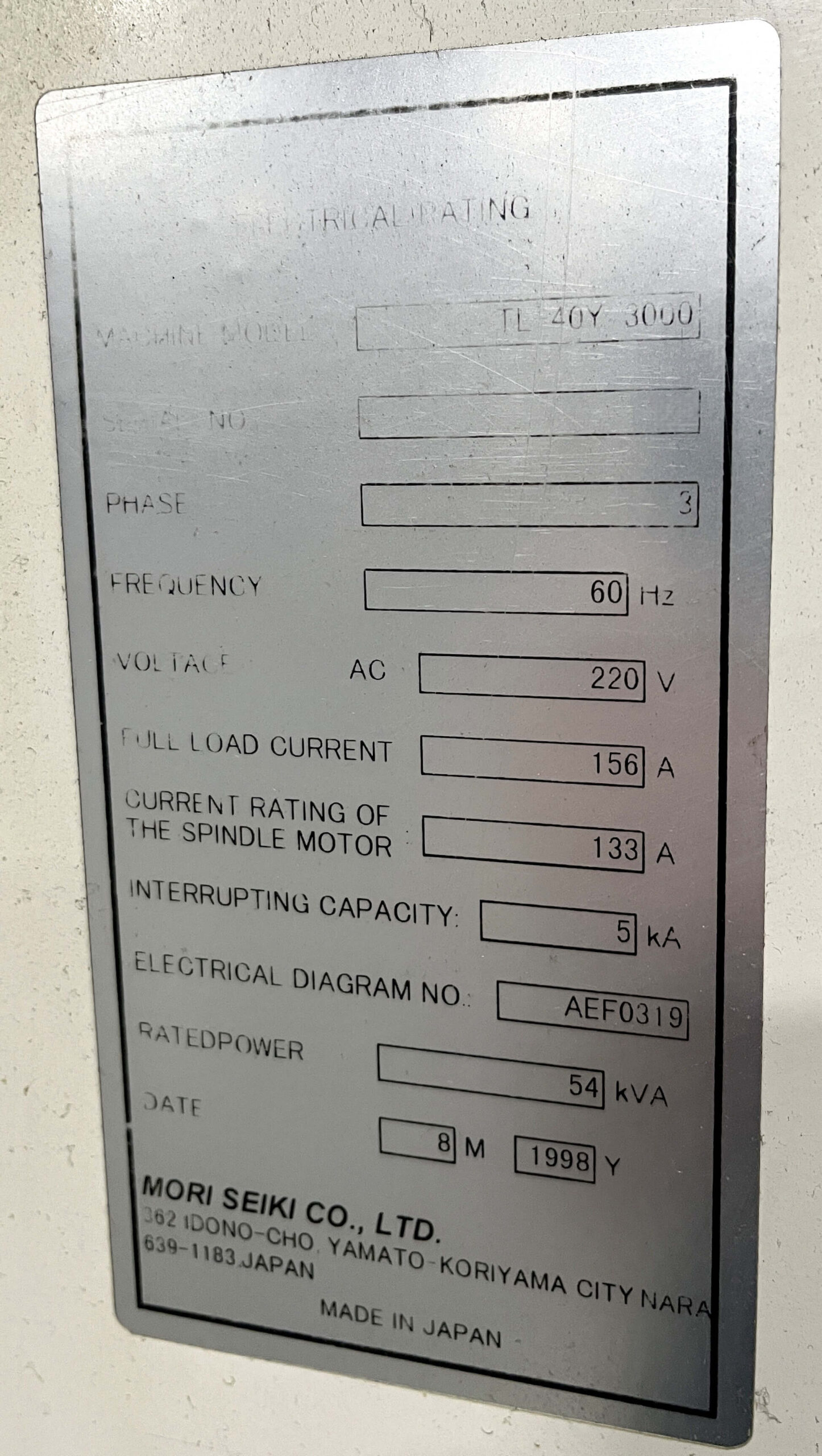

| Power Requirement: 220 V / 3 Phase / 60 Hz |
| Connected Load: 54 kVA |
| Machine Dimensions (Approx.): 245″ × 95″ × 100″ |
| Machine Weight (Approx.): 20,000 lbs |
| Equipped With: |
|---|
| Mori Seiki MSC-518 CNC Control |
| C-Axis Spindle |
| Y-Axis Live Tooling |
| 12-Station Turret |
| 305 mm SMW Hydraulic Chuck |
| Hydraulic Programmable Tailstock |
| Tool Presetter |
| Mist Collector |
| Chip Conveyor |
| Prepared for Hydraulic Steady Rest |
| Flood Coolant System |
| Full Machine Enclosure |
| Capacity: |
|---|
| Swing Over Bed: 864 mm |
| Distance Between Centers: 3,099 mm |
| Bar Capacity: 91 mm |
| Chuck Size: 305 mm |
| Travels: |
|---|
| X-Axis Travel: 391 mm |
| Y-Axis Travel: ±51 mm |
| Z-Axis Travel: 3,150 mm |
| Spindle: |
|---|
| Spindle Speed: 2,000 RPM |
| Spindle Motor: 30 HP |
| Spindle Bore: 91 mm |
| Spindle Nose: A2-11 |
| Turret: |
|---|
| Number of Stations: 12 |
| Tailstock: |
|---|
| Type: Hydraulic Programmable Tailstock |
| General: |
|---|
| Power Requirement: 220 V / 3 Phase / 60 Hz |
| Connected Load: 54 kVA |
| Machine Dimensions (Approx.): 6,223 mm × 2,413 mm × 2,540 mm |
| Machine Weight (Approx.): 20,000 lbs |
| Categories | CNC Lathes & Turning Centers |
|---|---|
| Make | Mori Seiki |
| Model | TL-40Y/3000 |
