*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Nakamura-Tome |
| Model: | SC-450 |
| Year: | 2009 |
| EQUIPPED WITH: |
|---|

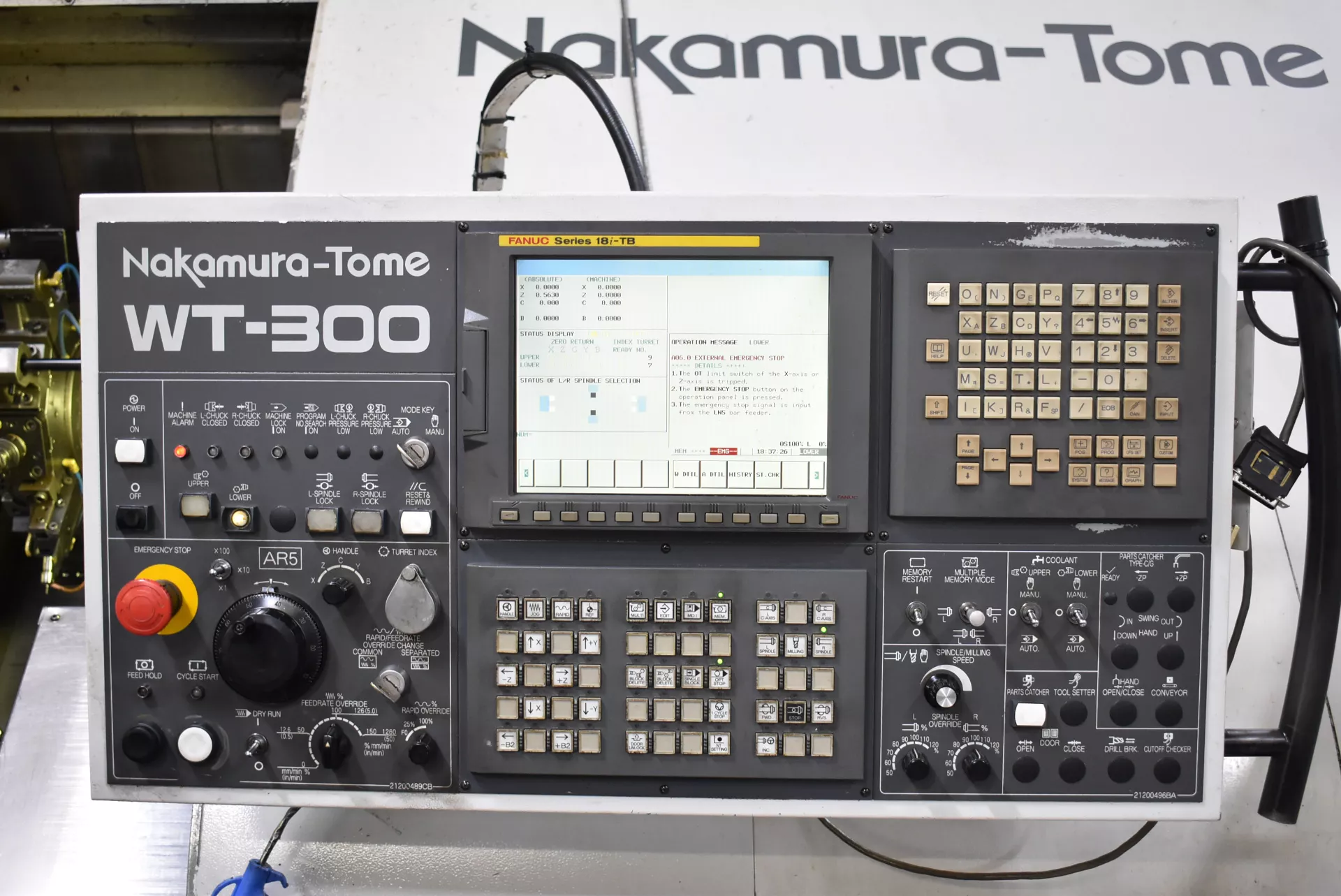

| Fanuc Series 21i-TB CNC Control |
| 18.5″ 3-Jaw Chuck |
| 12-Station Turret |
| Hydraulic Tailstock |
| C-Axis Capability |
| High-Pressure Coolant System |
| Hakusan Chip Conveyor |
| Airflow Systems MistPak Mist Extractor |
| Automatic Lubrication System |
| Coolant System |
| Fully Enclosed Splash Guard |
| Work Light |
| CAPACITIES: |
|---|
| Swing Over Bed: 31.88″ |
| Distance Between Centers: 40.74″ |
| Max Turning Diameter: 18.30″ |
| Max Turning Length: 28.14″ |

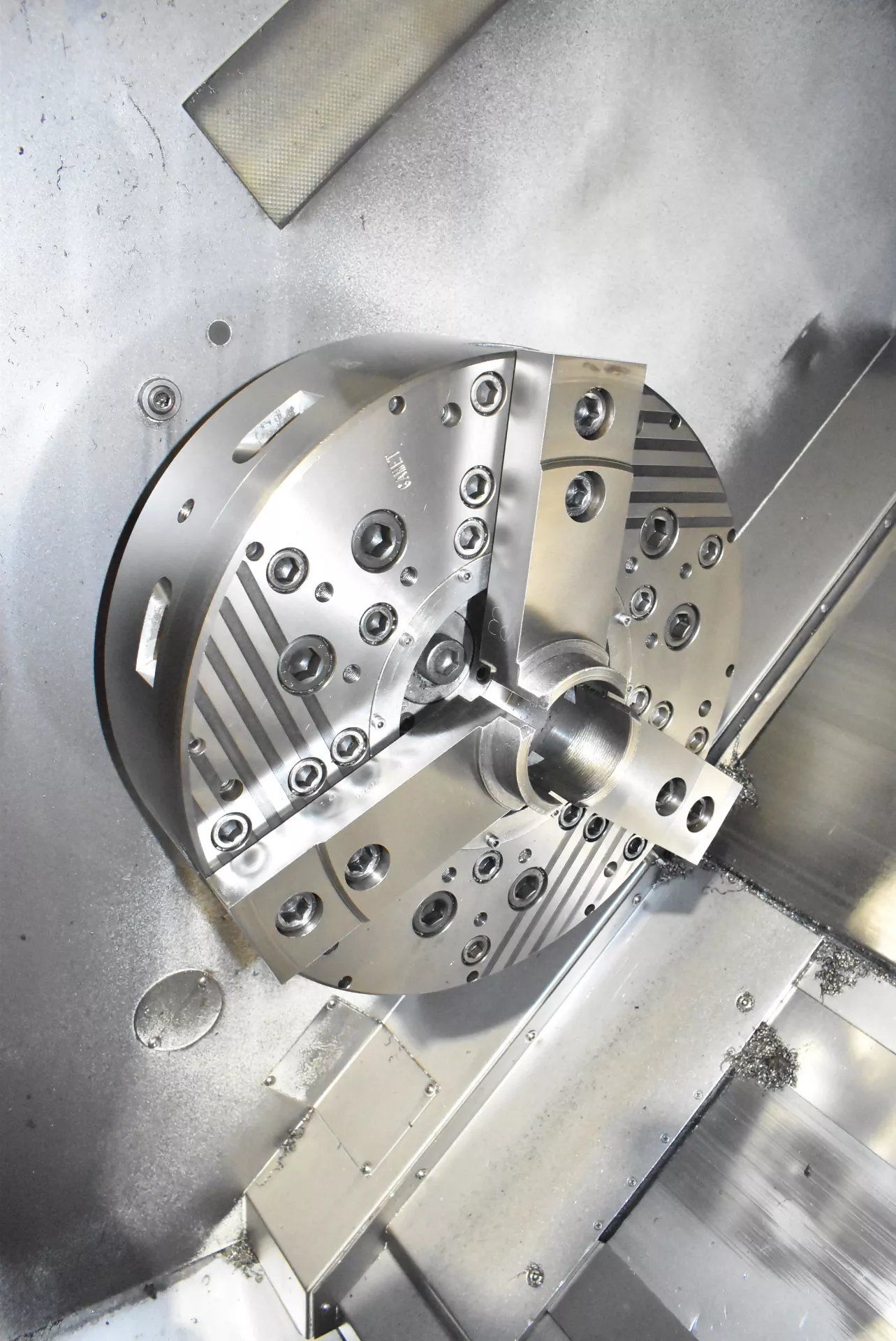

| Chuck Size: 18.5″ 3-Jaw |
| TRAVELS: |
|---|
| X-Axis Travel: 12.40″ |
| Z-Axis Travel: 32.48″ |
| C-Axis: 360° (0.001° Increments) |
| SPINDLE: |
|---|
| Spindle Bore: 3.93″ |
| Maximum Spindle Speed: 2,500 RPM |
| TURRET: |
|---|

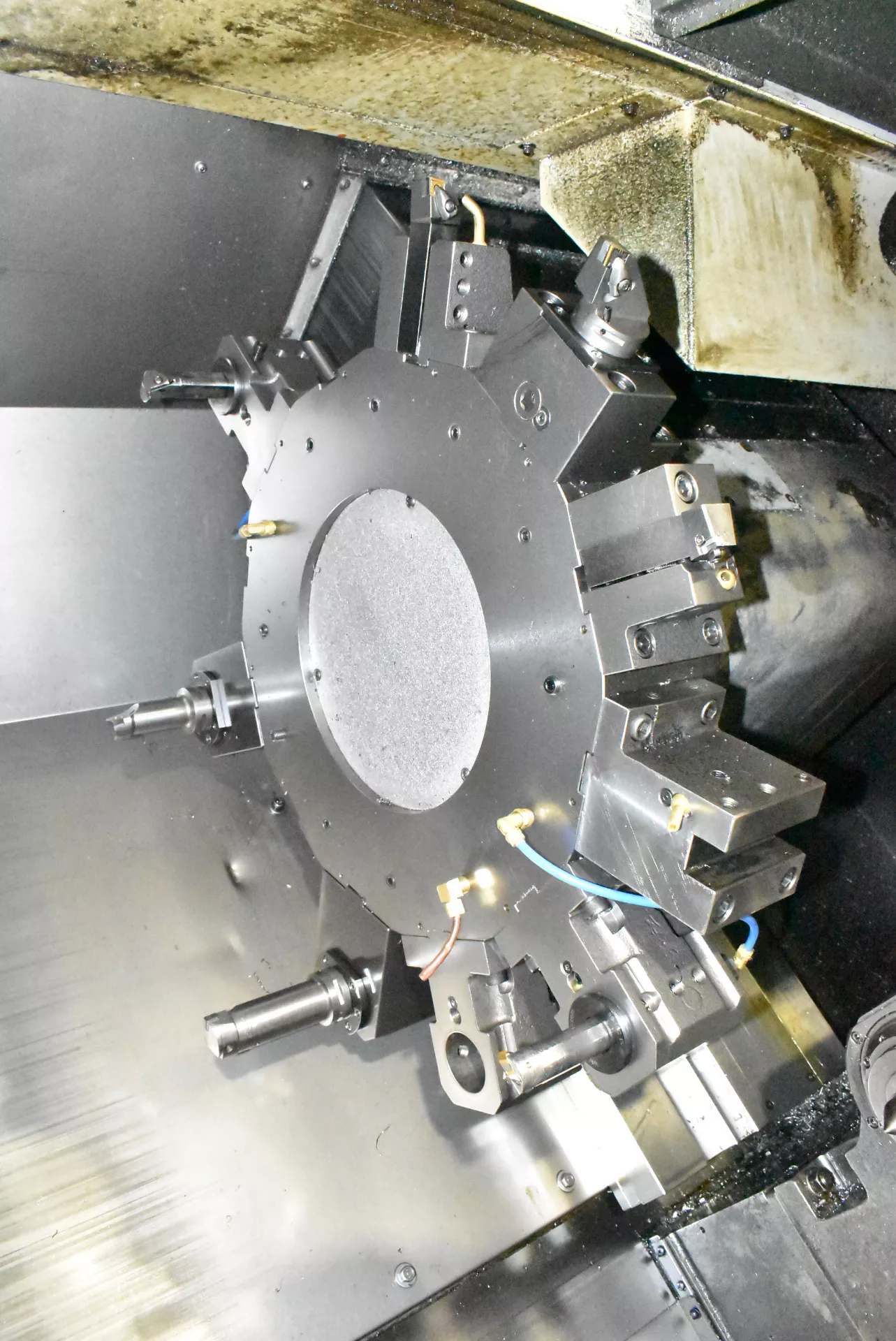

| 12-Station Turret |
| TAILSTOCK: |
|---|

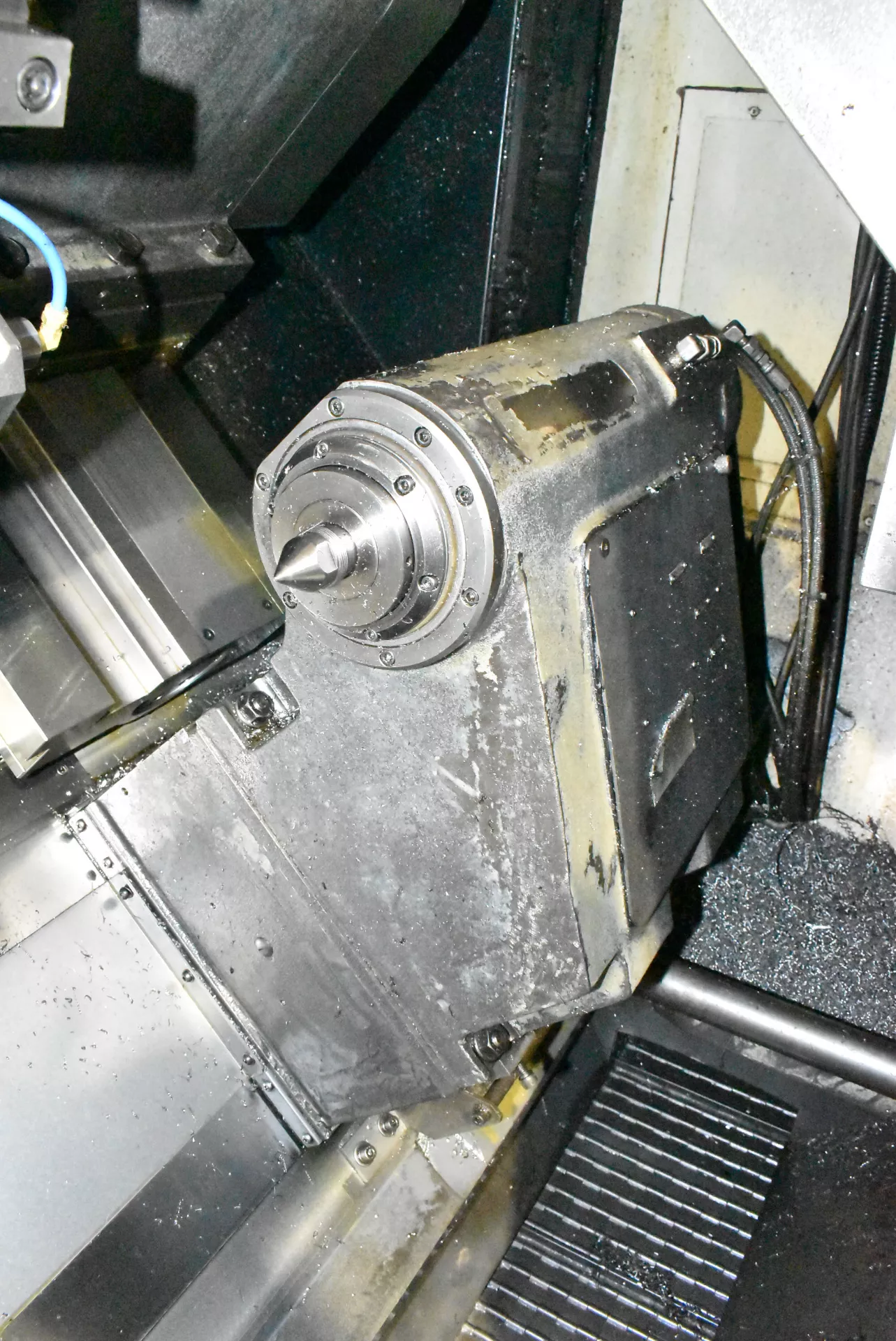

| Hydraulic Tailstock |

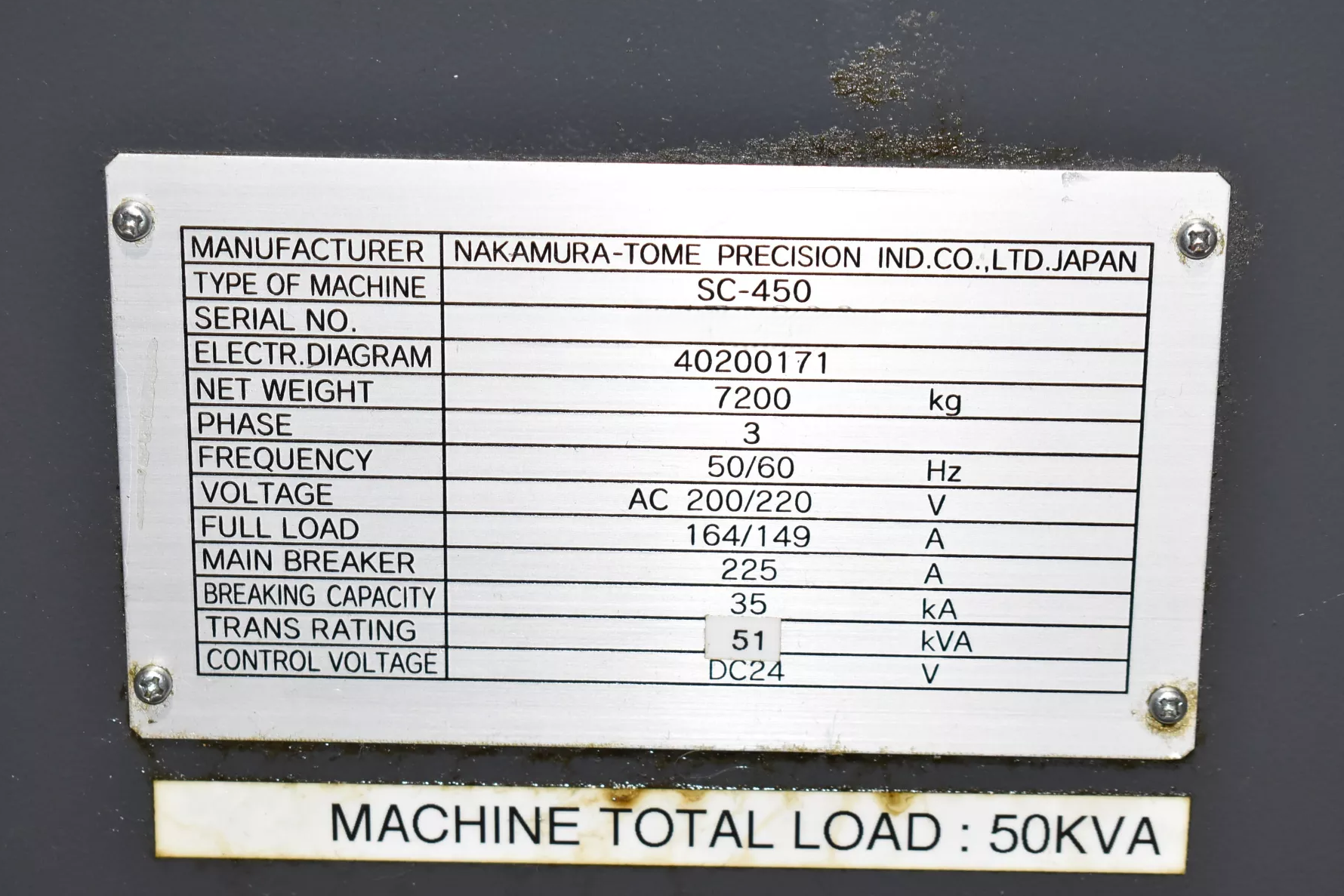

| ELECTRICAL: |
|---|
| Voltage: 200-220 Volts |
| Phase: 3 Phase |
| Frequency: 50-60 Hz |
| GENERAL: |
|---|
| Machine Dimensions (Approx.): 193″ × 86.6″ × 94.5″ |
| Machine Weight: 15,873 lbs. |
