*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

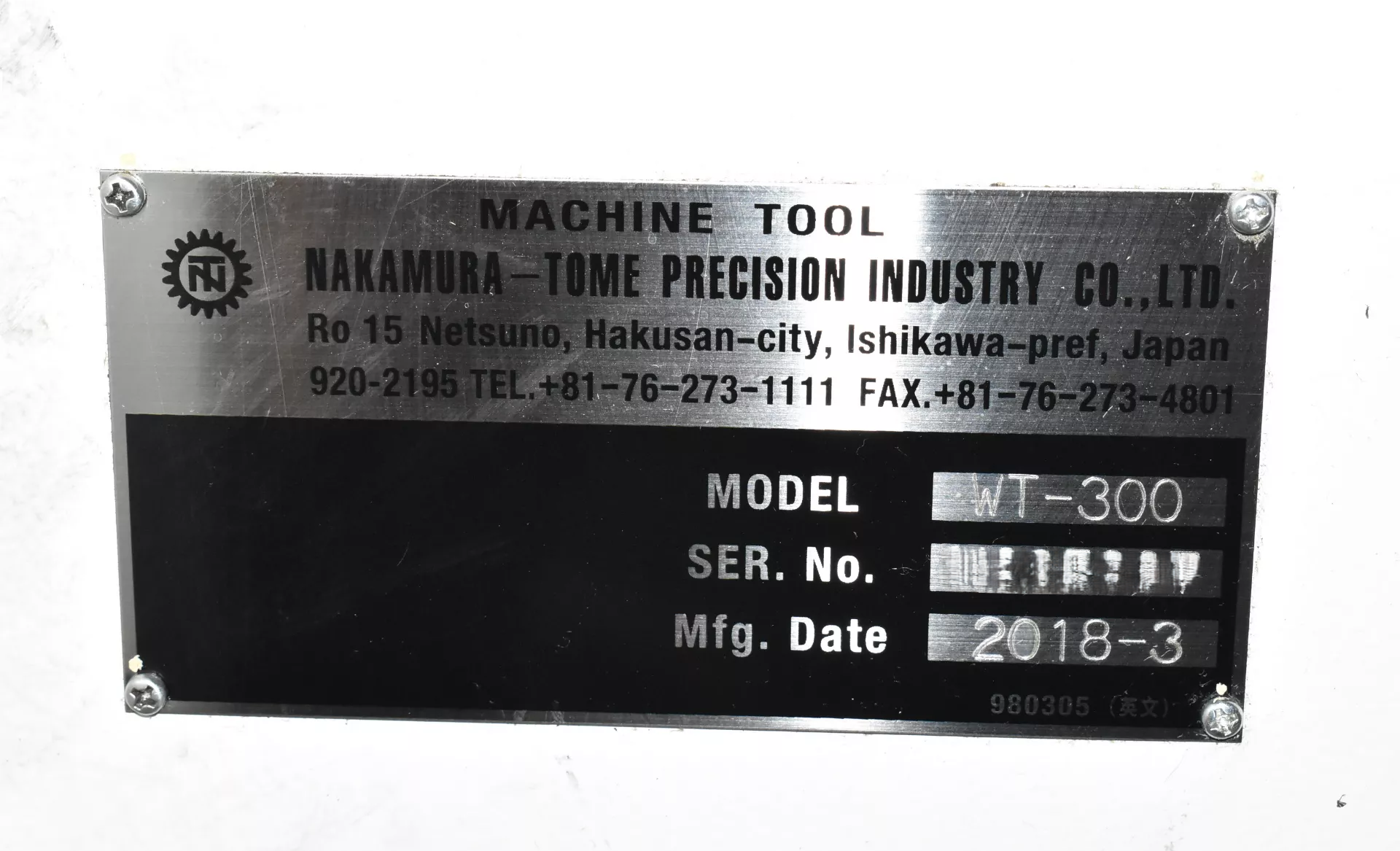

| Make: | Nakamura-Tome |
| Model: | WT-300 |
| Year: | 2018 |
| Condition: | Used- Good |
| Machine Type: | CNC Multi-Tasking Turning Center |

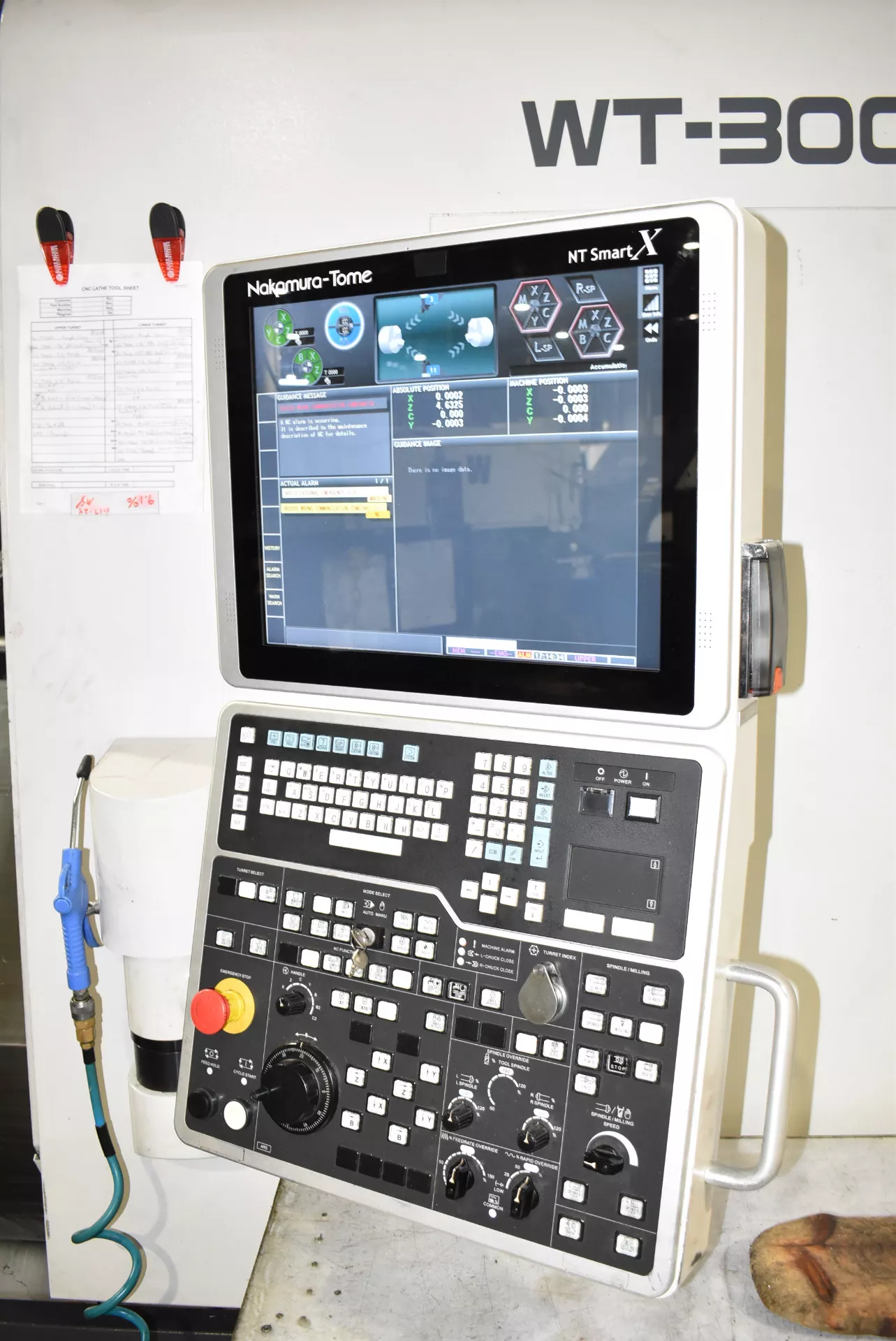

| Control: | Fanuc Series 18i-TB CNC Control |
| EQUIPPED WITH: |
|---|
| Fanuc Series 18i-TB CNC Control |
| 7-Axis Multi-Tasking Capability |
| Twin Opposed Spindles |
| Twin 24-Station Live Tool Turrets |
| Y-Axis Machining |
| C-Axis on Main & Sub Spindles |
| MMYS Big Bore Configuration |
| High-Pressure Coolant System |
| AeroEx ROX 400 HP Mist Eliminator |
| Parts Catcher Arm |
| LNS Chip Conveyor |
| Automatic Lubrication System |
| Hydraulic Chucks |
| Embedded Ethernet |
| Work Light |
| CAPACITY: |
|---|
| Max Turning Diameter: 7.83″ |
| Max Turning Length: 30.71″ |
| Main Spindle Bar Capacity: 4.01″ |
| Sub Spindle Bar Capacity: 2.56″ |
| Distance Between Spindle Noses: 9.84″ – 43.31″ |

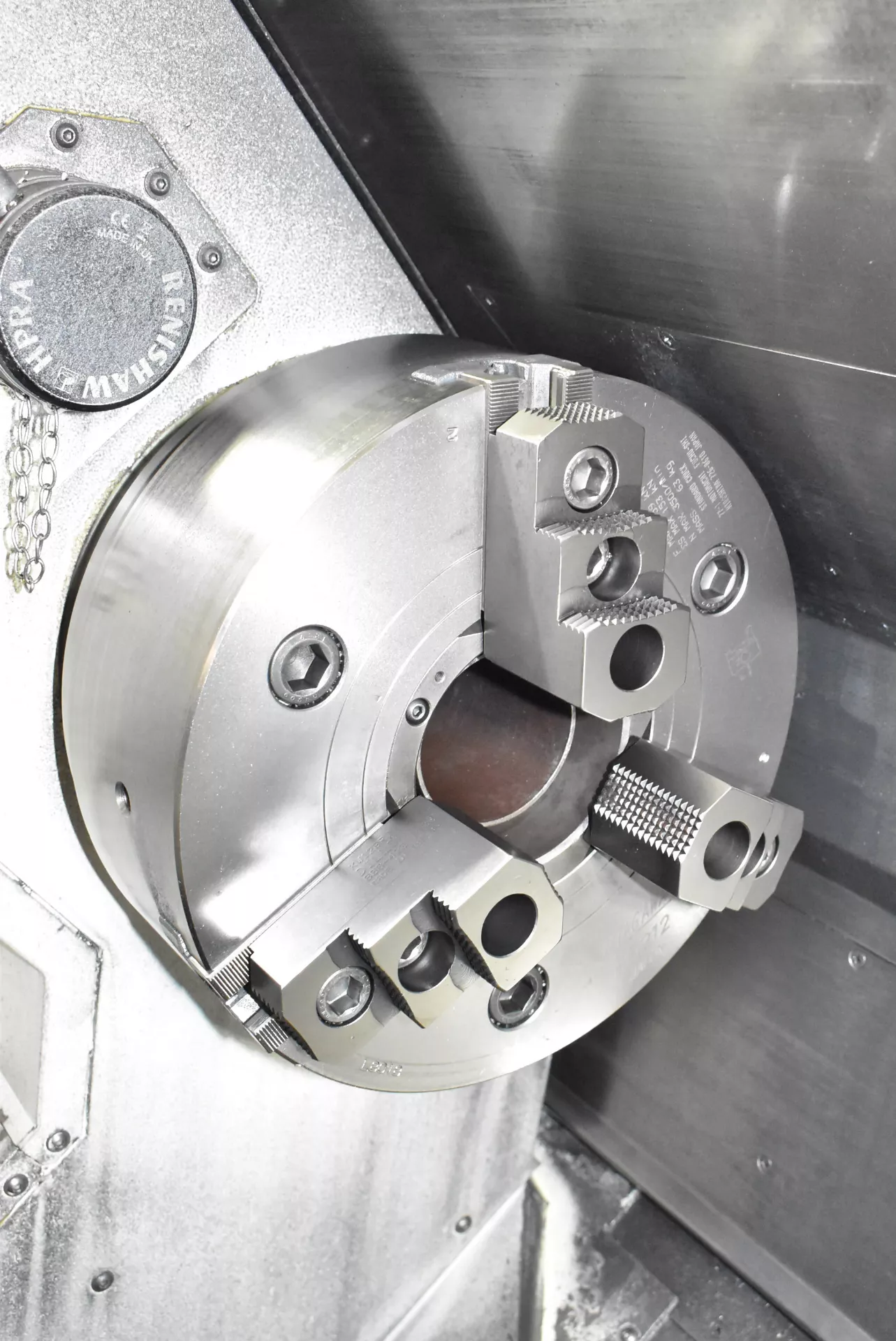

| Main Chuck Size: 12″ |
| Sub Chuck Size: 12″ |
| TRAVELS: |
|---|
| X1-Axis Travel: 6.00″ |
| X2-Axis Travel: 7.68″ |
| Z1-Axis Travel: 30.71″ |
| Z2-Axis Travel: 30.71″ |
| Y-Axis Travel: ±1.57″ |
| C1/C2 Axis: 360° (0.001° Increments) |
| Rapid Traverse X1/X2: 630 IPM |
| Rapid Traverse Z1/Z2: 1,063 IPM |
| Rapid Traverse Y-Axis: 236 IPM |
| MAIN SPINDLE: |
|---|
| Max Bar Capacity: 4.01″ |
| Spindle Nose: A2-8 |
| Spindle Through Hole: 4.72″ |
| Max Spindle Speed: 2,500 RPM |
| Spindle Motor: (20/15 HP) |
| SUB SPINDLE: |
|---|
| Max Bar Capacity: 2.56″ |
| Max Spindle Speed: 4,500 RPM |
| Spindle Motor: (20/15 HP) |
| C-Axis Positioning |
| Parts Transfer Capability |
| LIVE TOOLING: |
|---|
| Upper & Lower Live Tool Turrets |
| Milling Motor: (7.4/5 HP) |
| Maximum Live Tool Speed: 3,600 RPM |
| 12 Live Tool Stations Per Turret |

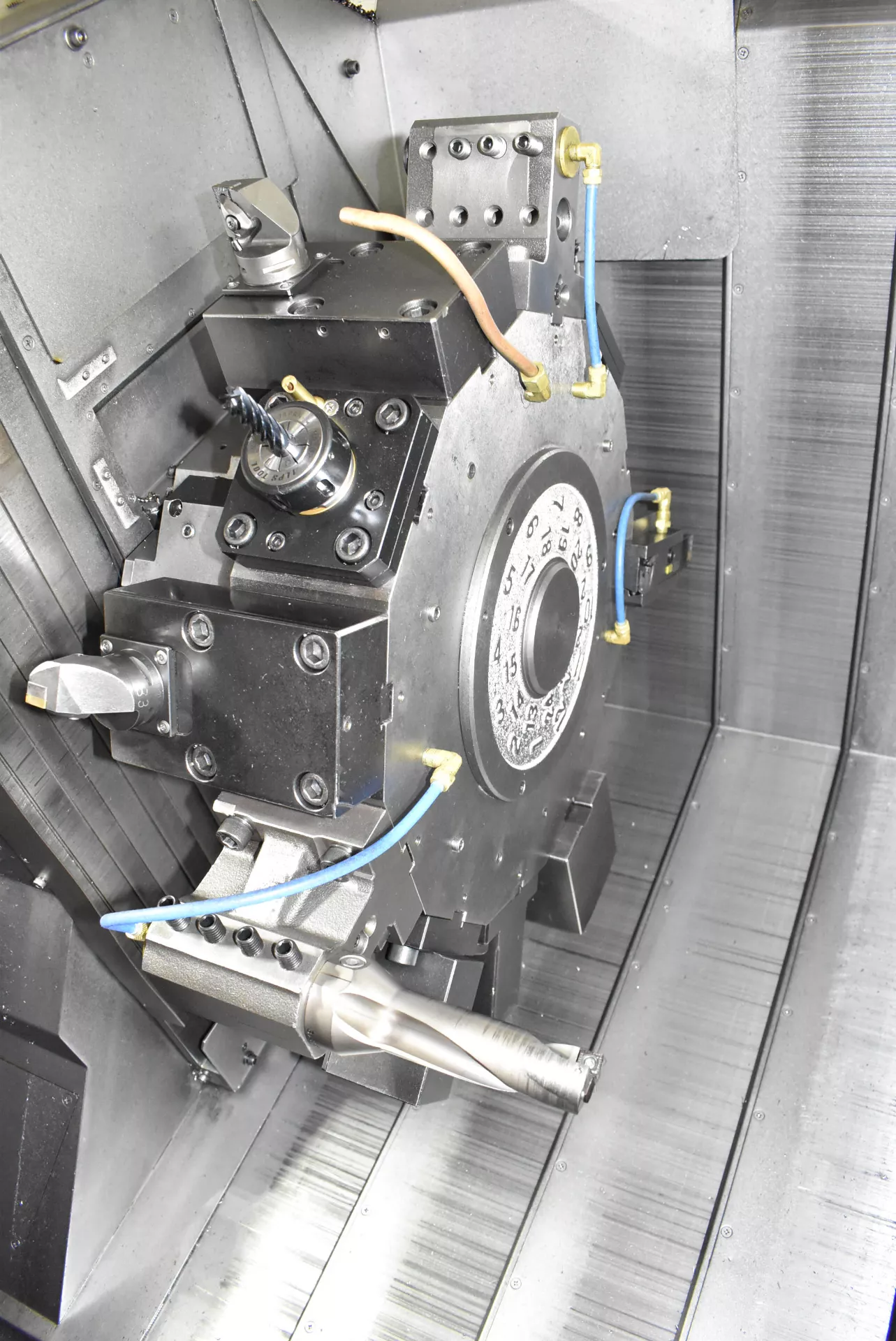

| TURRETS: |
|---|
| (2) 24-Position Drum Turrets |
| 12 Tool Stations Per Turret |
| 24 Index Positions Per Turret |
| Square Tool Capacity: 0.79″ / 0.98″ |
| Round Tool Capacity: 0.98″ / 1.26″ |
| GENERAL: |
|---|
| Power Requirement: 200-220V / 3-Phase / 50-60 Hz |
| Machine Dimensions: 171″ L x 98″ W x 90″ High Approx. |
| Machine Weight: 31,970 lbs Approx. |
| Made in Japan |
