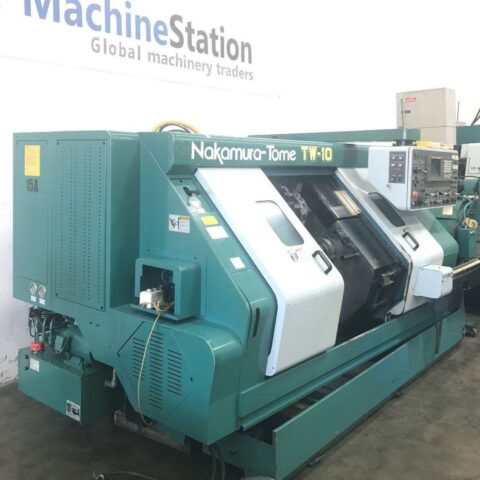

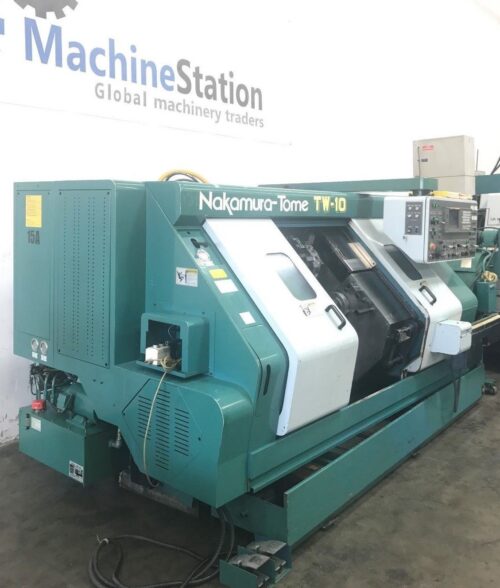

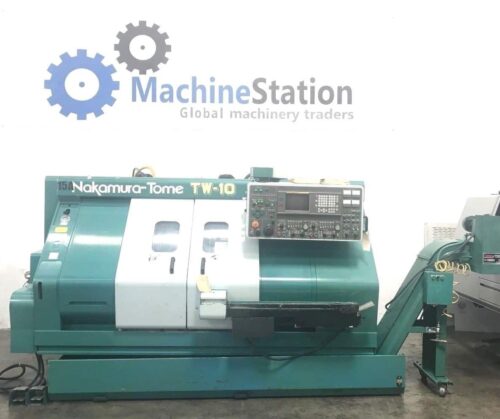

| NAKAMURA TW-10MM CNC MULTI AXIS TURNING CENTER | |
|---|---|
| Make | Nakamura |
| Model No. | TW-10MM |
| Year | 1995 |
| Serial # | W02001 |
| Country of Origin: | Japan |
Condition: Fully Working Condition
All specifications are approximations and are subject to verification.
“Very Clean Machine on Our Floor now, Fully powered / tested & is in Great working condition. One Turret with Live Tools, Comes with Chip conveyor, Live Tool holders, Manuals etc.”
- NAKAMURA TW-10MM CNC Equipped With:

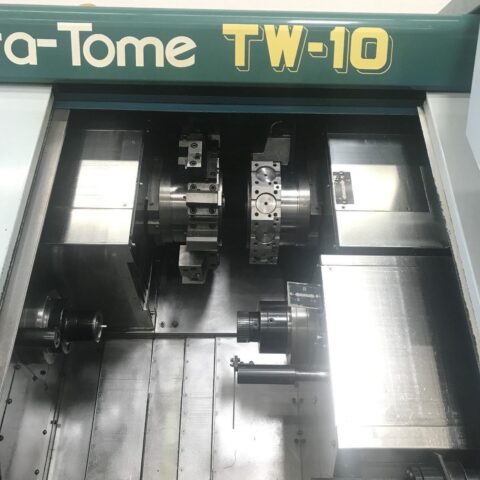

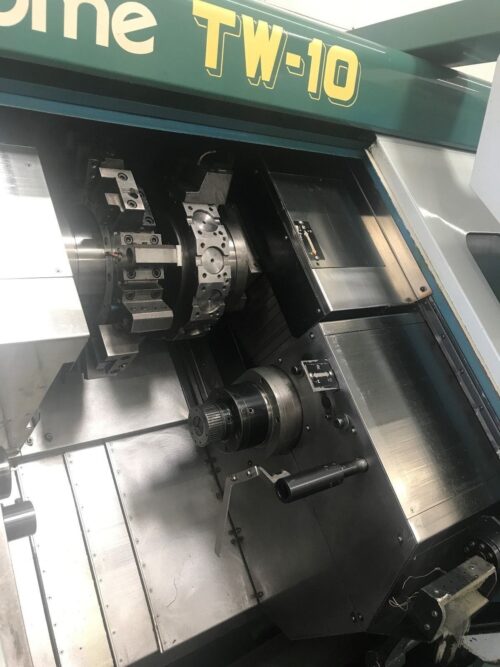

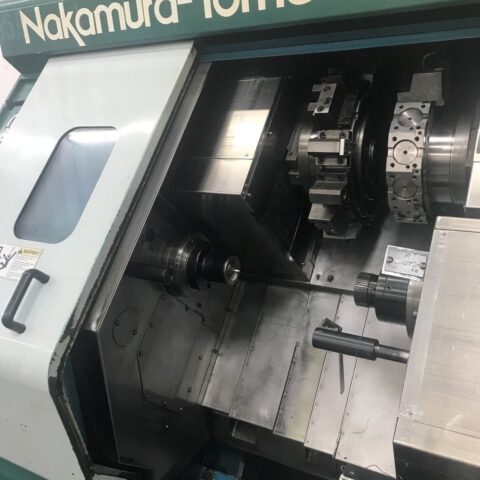

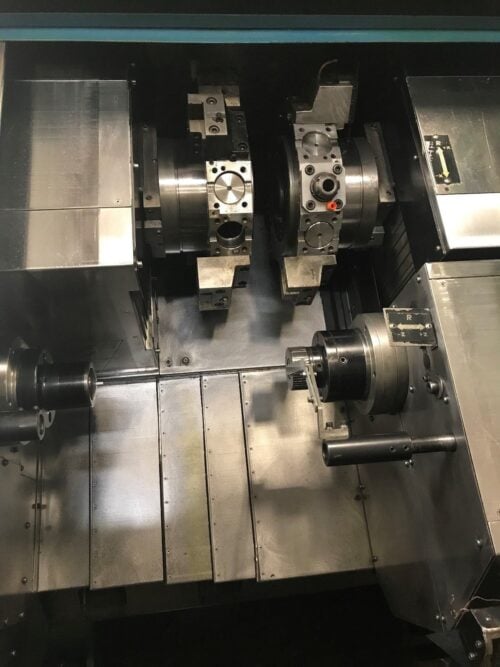

- Twin Turret / Twin Spindle with C Axis

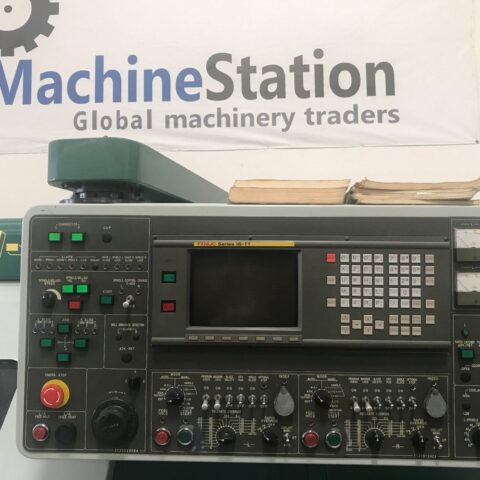

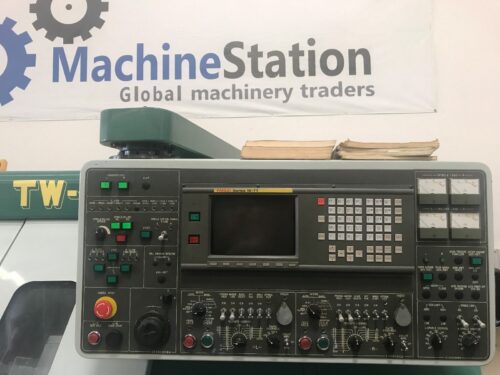

- Fanuc 16-TT CNC Control

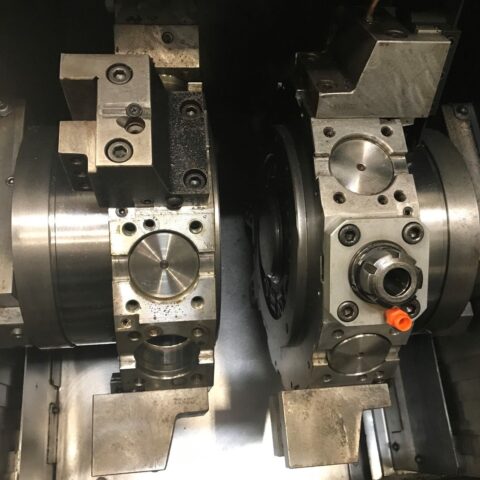

- All 12 Live Tools Turret
- ATS Collet Chucks on Both Spindle
- Auto Parts Catcher
- Both Spindle Synchronization
- Chip Conveyor
- Parts Conveyor
- High Pressure Coolant System
- Automatic Lubrication system
- Foot Switches
- Coolant Tank
- Comes with Chip Conveyor, 2 X Live Tools, Tool Holders & Manuals.
- General:
- Power Source: AC 220 V, Three Phase, 60 Hz
- Overall Dimensions: 120″ x 75″ x 72″ High
- Weight : 10,000 lbs Approx.
- NAKAMURA TW-10MM Specifications:
- Max Turning Diameter: 8.27″ (210 mm)
- Max Turning Length: 6.10″ (155 mm) each side
- Max Bar Capacity: 1.69″ (43mm)
- Max Swing Over Slide: 8.27″
- Max Distance Between Spindles: 34.25″
- X Axis Travel Both Side: 7.28″
- Z Axis Travel Left: 7.87″
- Z Axis Travel Right: 24.40″
- C Axis Index: 1 Degree
- Rapid Traverse X Axis: 472 IPM
- Rapid Traverse Z Axis: 1417 IPM
- Spindle Index: 1 Degree
- Spindle C Axis: 0.001 Degree
- Spindle Taper: A2-5
- Spindle Bore: 2.04″
- Spindle Speed: 55-5500 RPM
- Spindle Motor: 10 HP
- Tool Capacity: 12 on one Turret
- Live Tools: All 12 Position
- Live Tool Speed: 50-6000 RPM
- Live Tool Motor: 5 HP

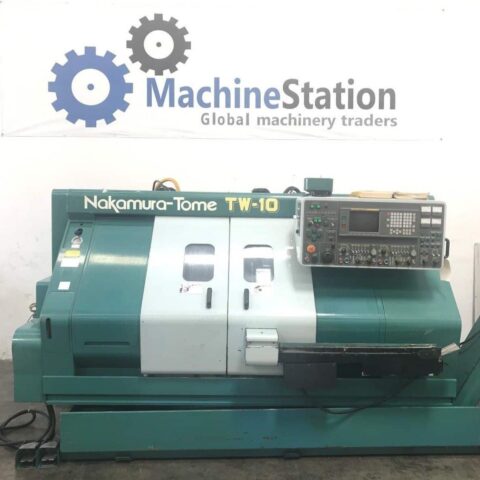

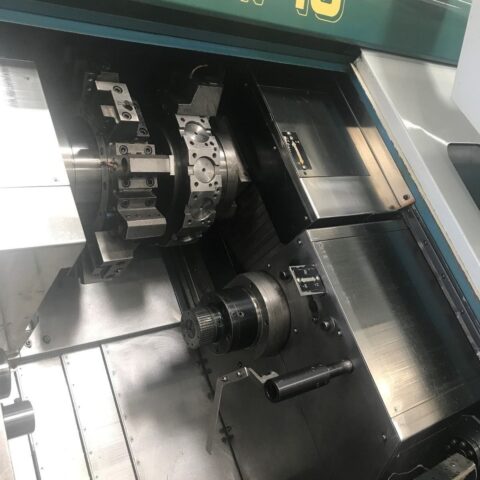

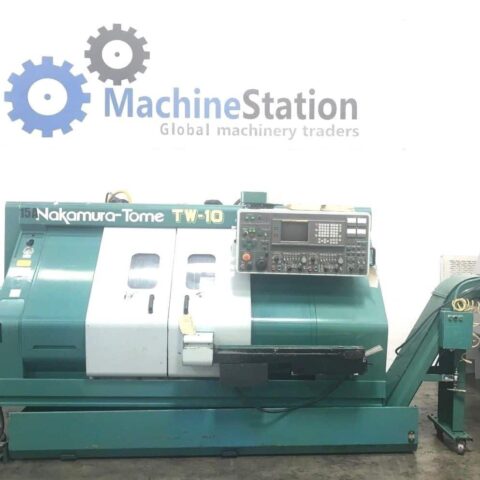

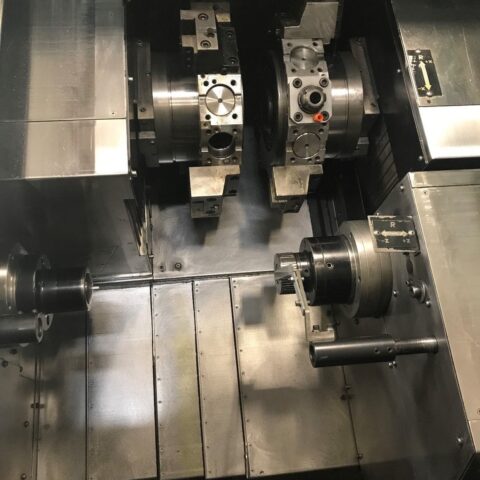

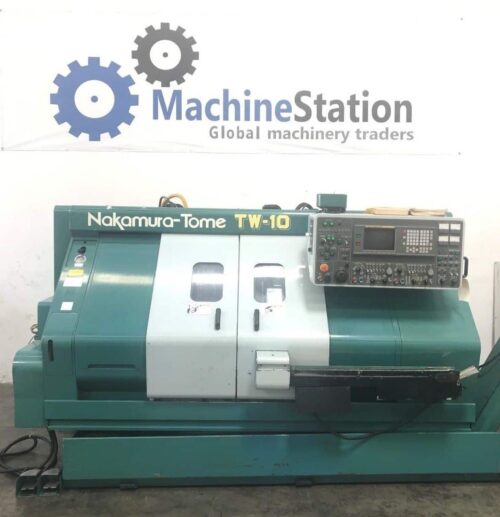

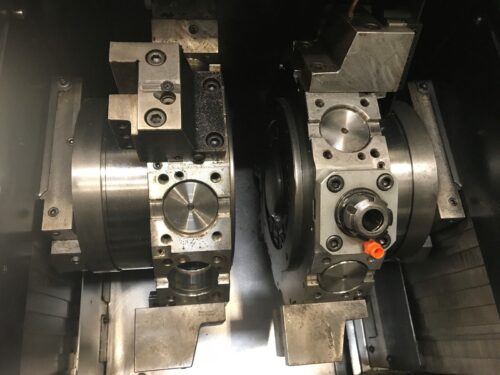

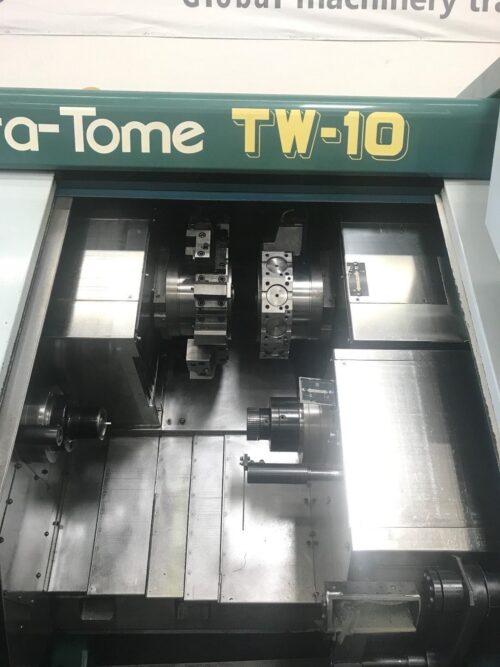

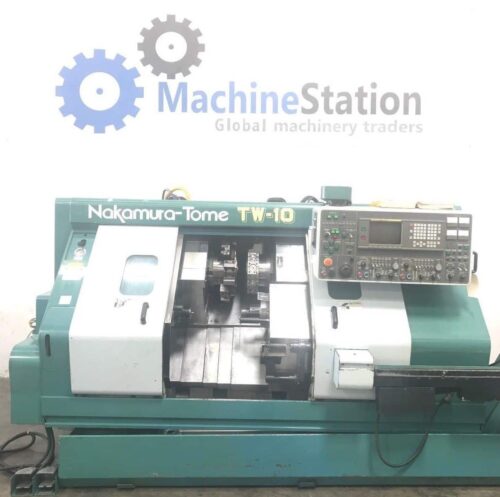

NAKAMURA TW-10MM CNC Comes as shown in pictures.
