Sold

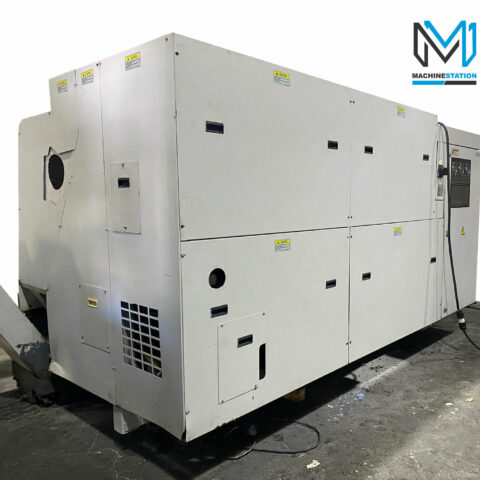

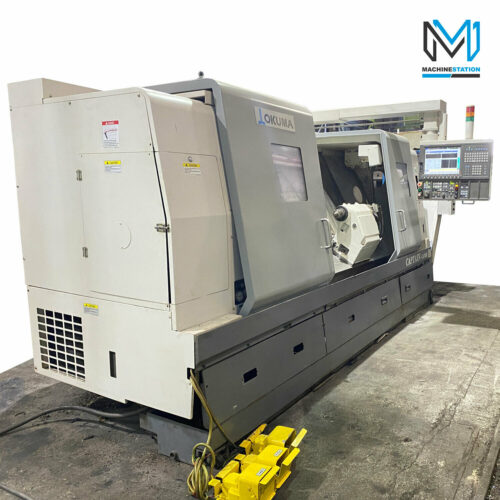

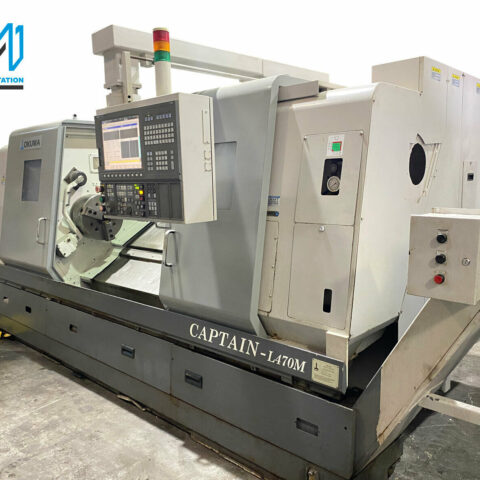

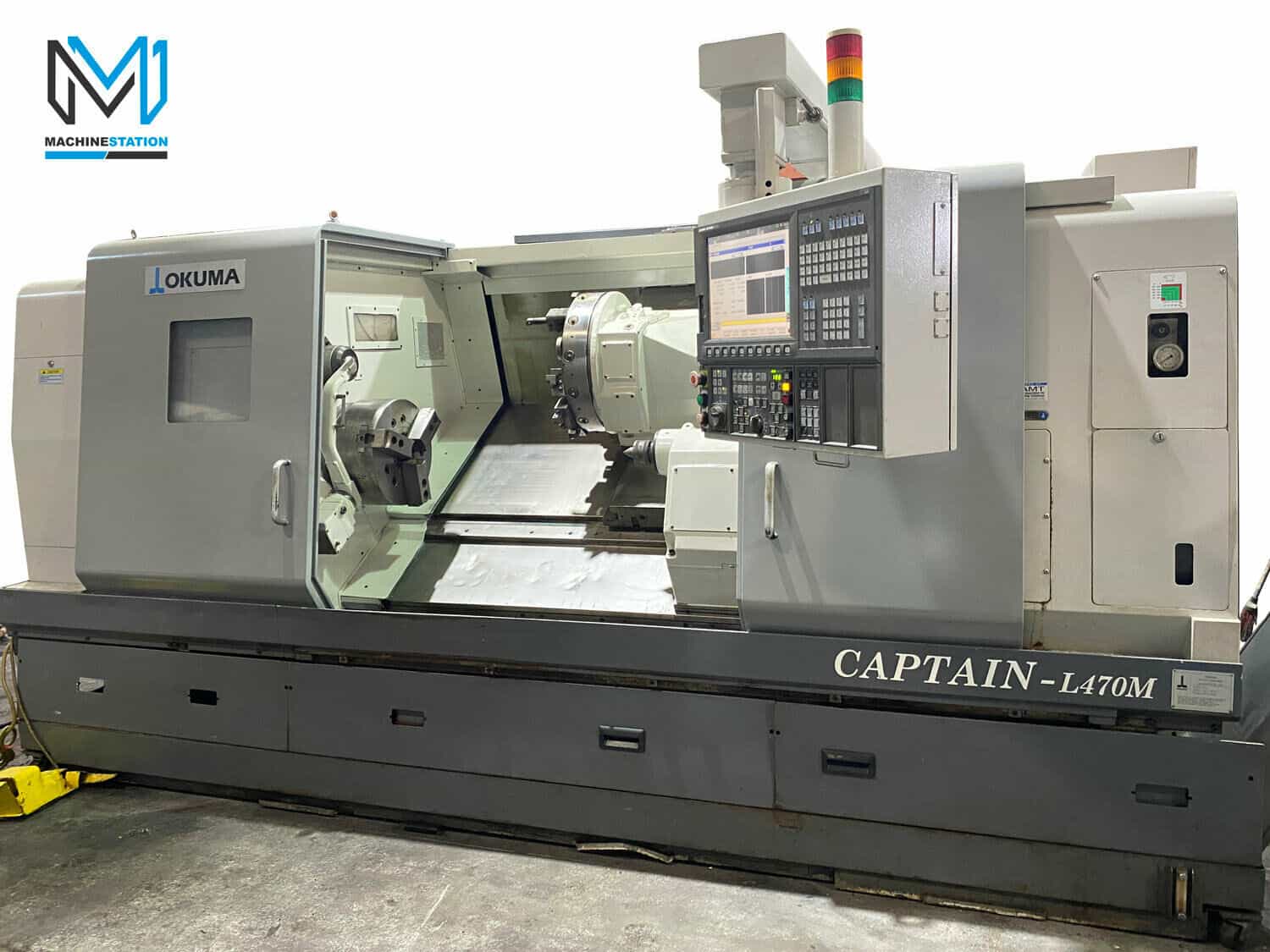

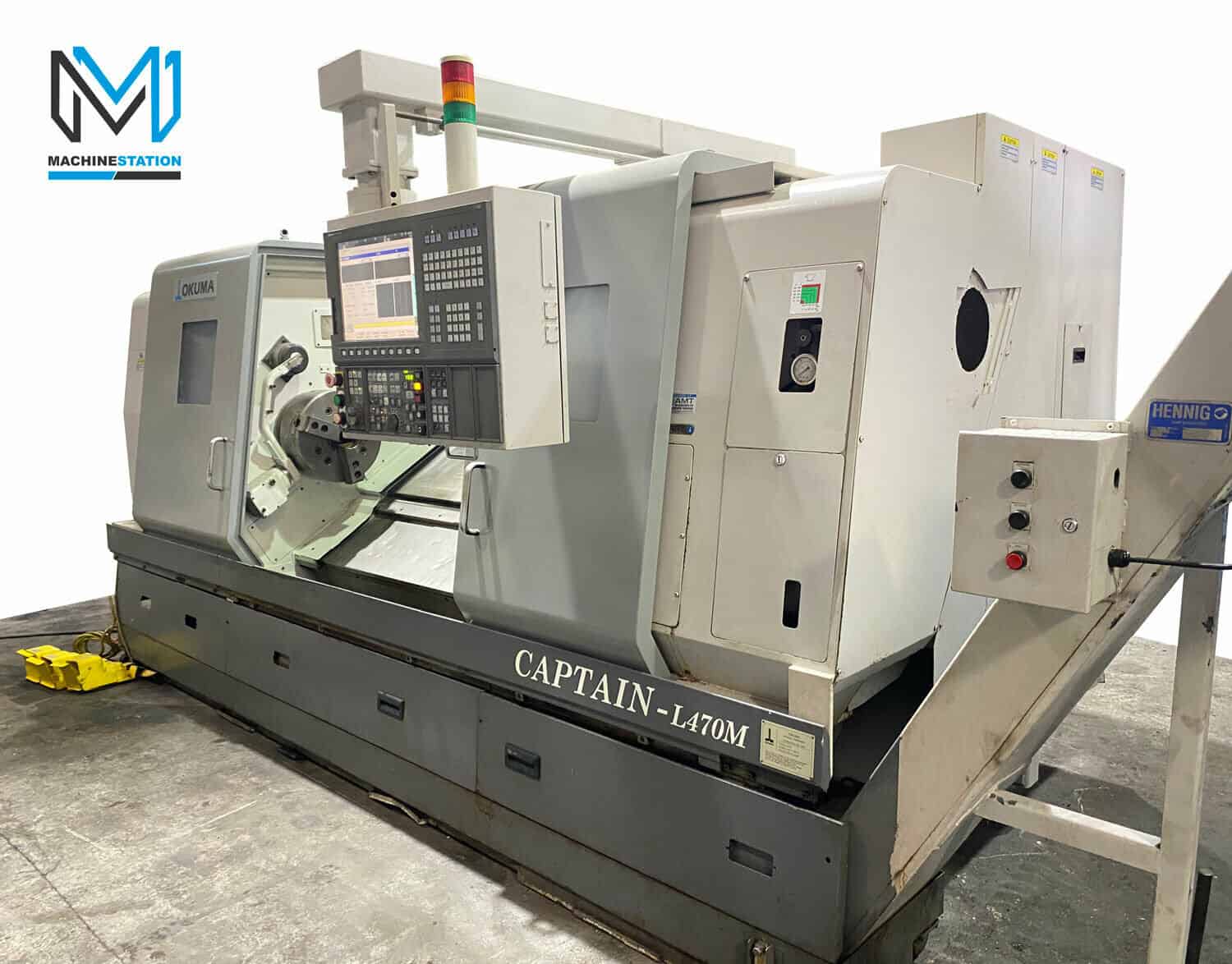

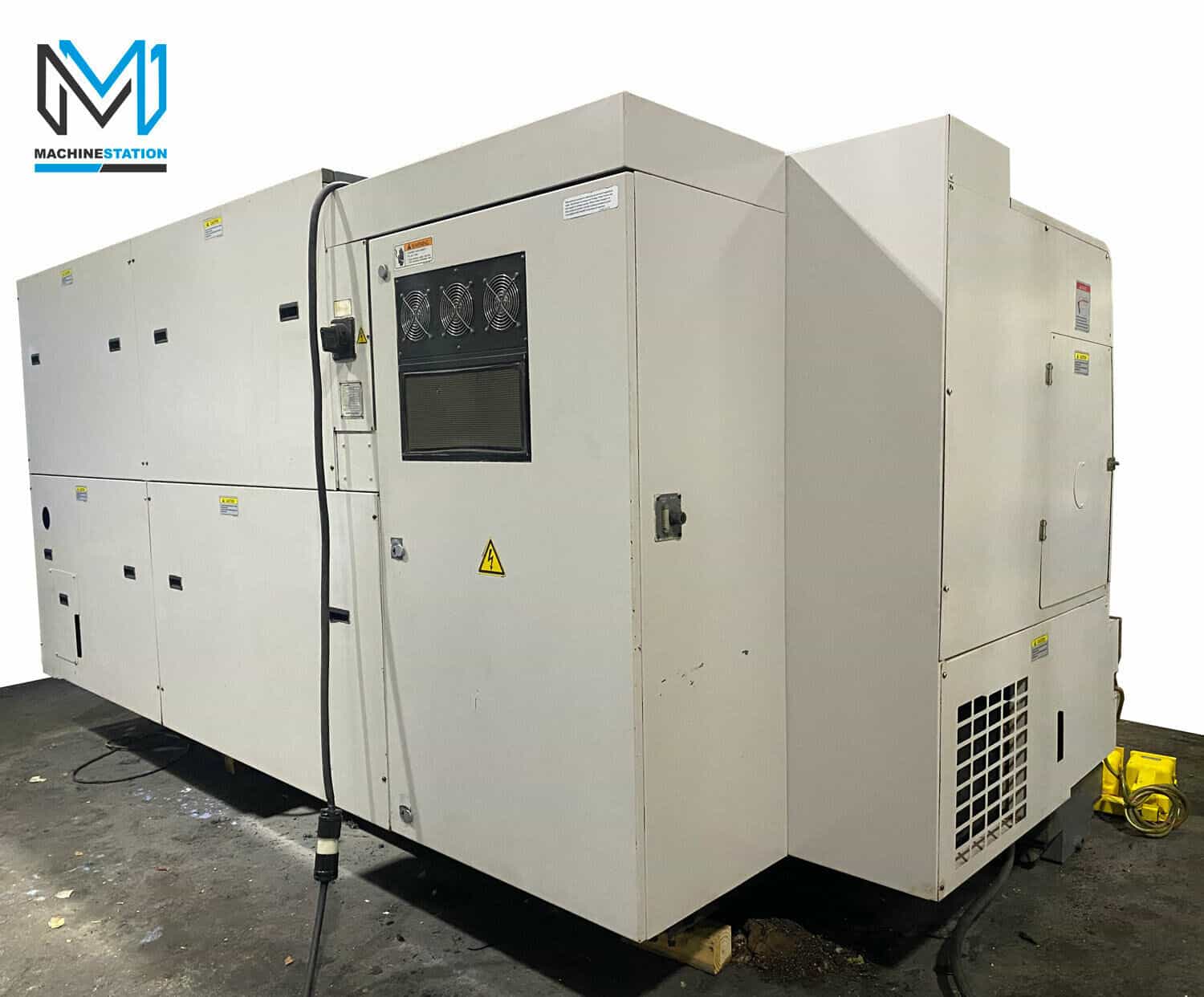

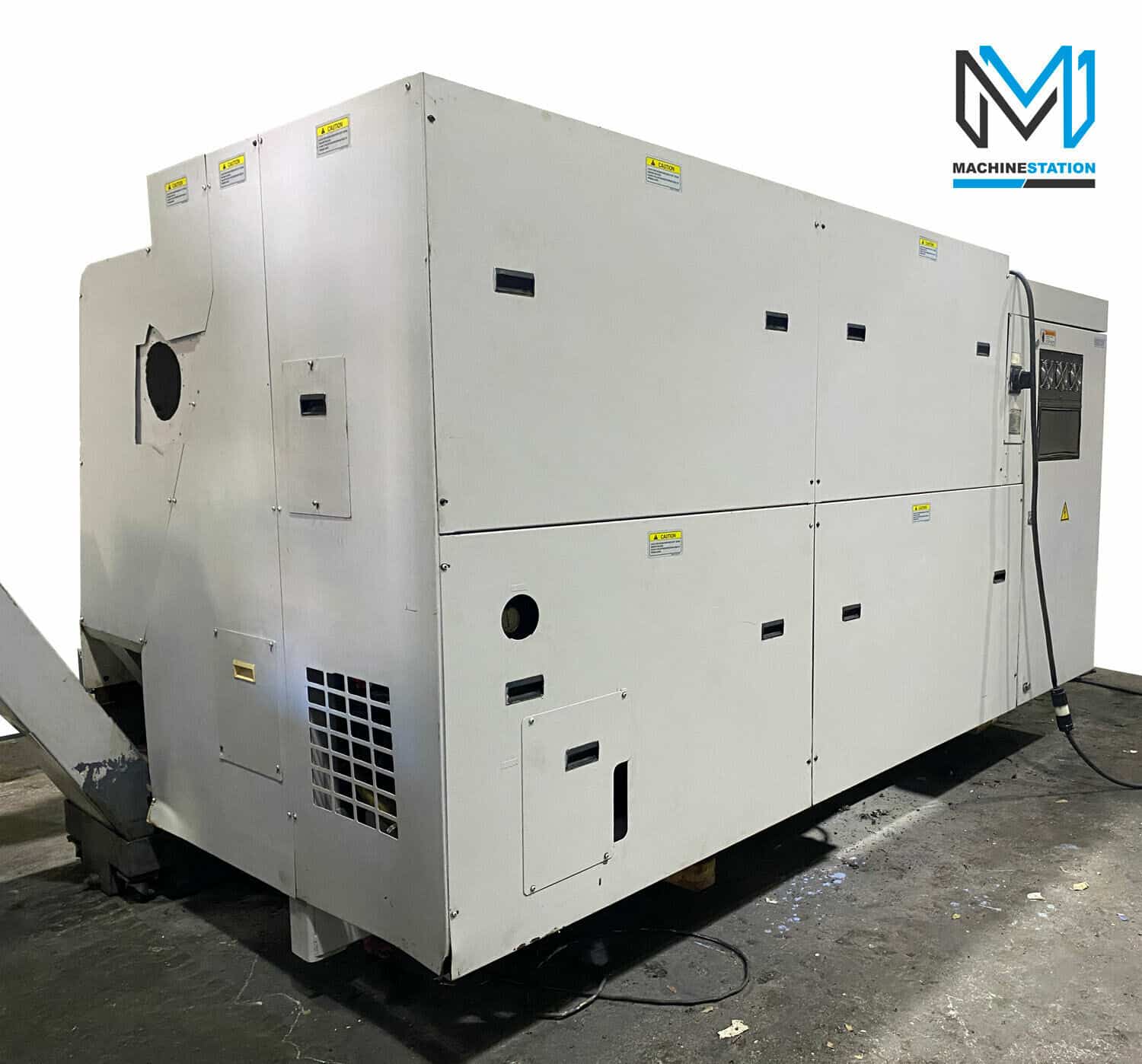

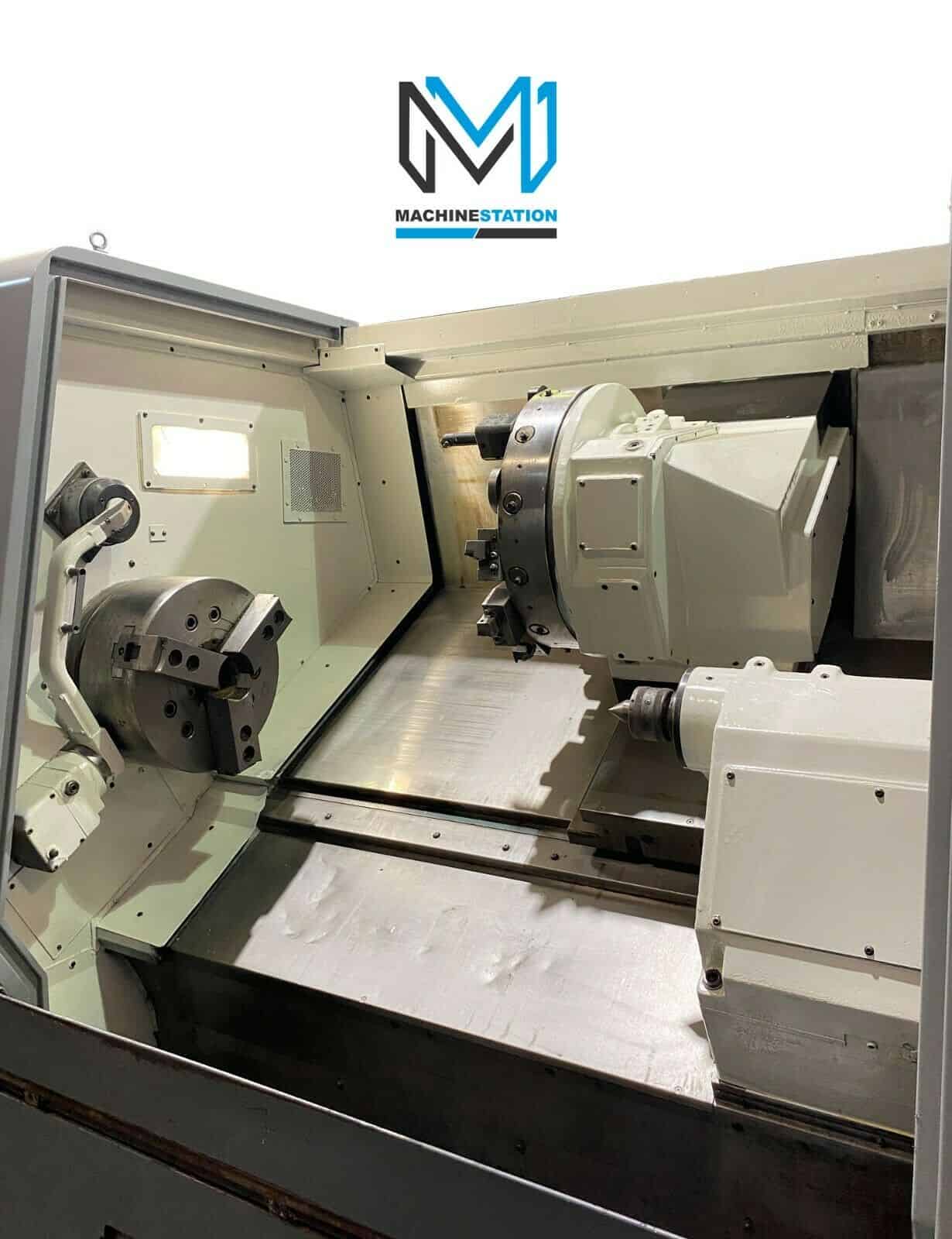

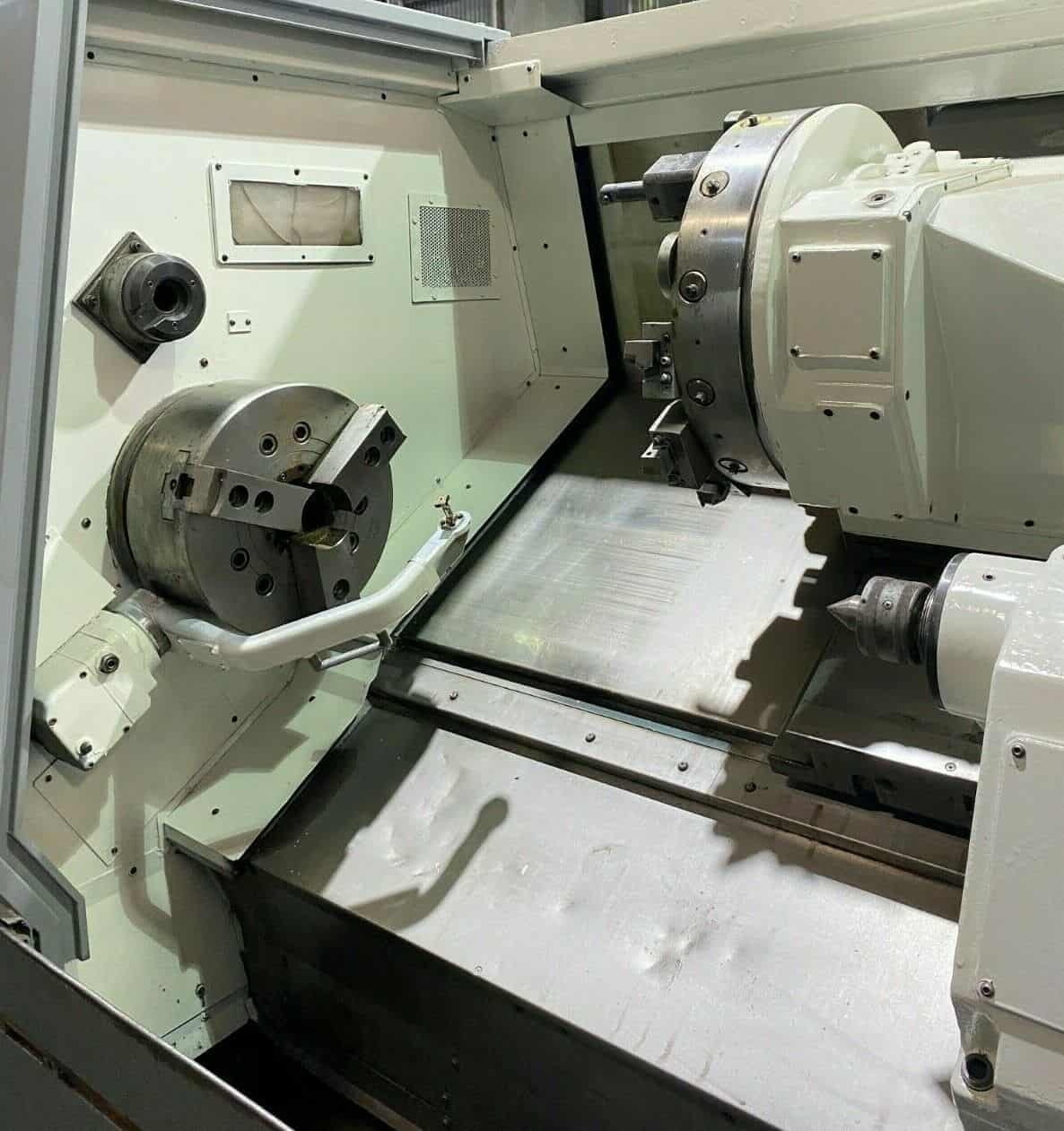

Okuma Captain L470M/1250 CNC Turn Mill Center
Location
Lake Elsinore, CA
SKU
105213
Make/Model
Okuma/Captain L470M
Condition
Used - Good
Video
Watch Now
Out of stock
| Location: | Lake Elsinore, CA |
| SKU: | 105213 |
| Make/Model: | Okuma/Captain L470M |
| Condition: | Used – Good |
| Video: |
Add to WishlistRemove from Wishlist
Add to Wishlist
All specifications are approximations and are subject to verification.
| SKU | 105213 |
| Make | Okuma |
| Model No. | Captain L470M |

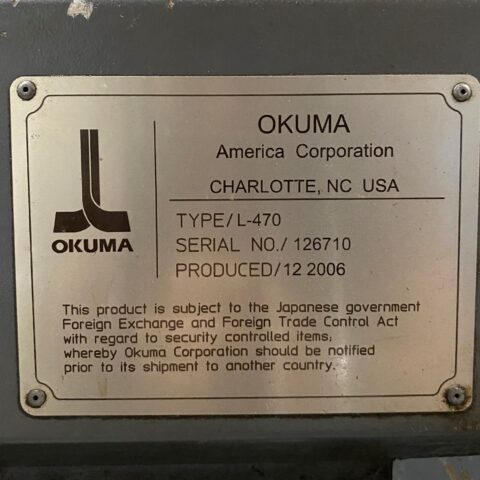

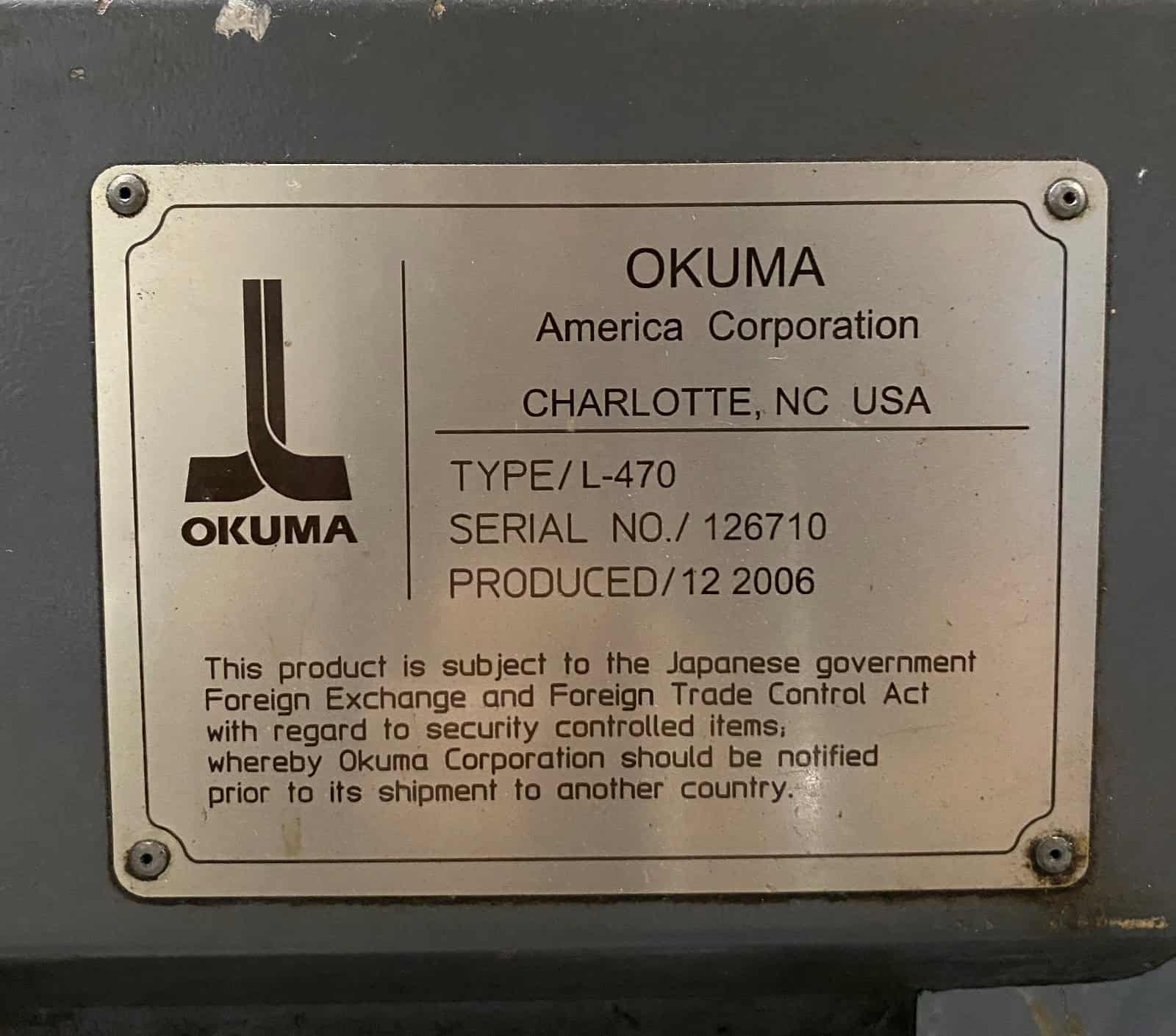

| Year | 2006 |
| Condition | Used – Good |

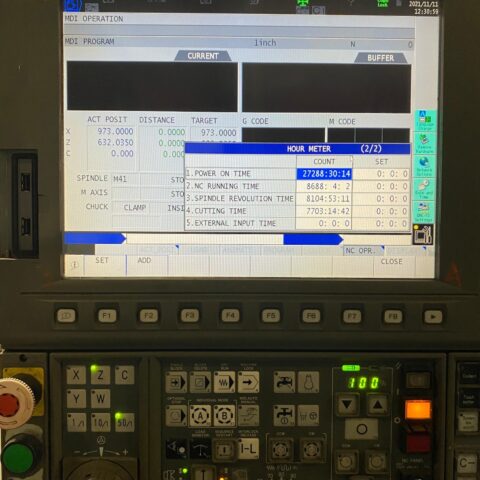

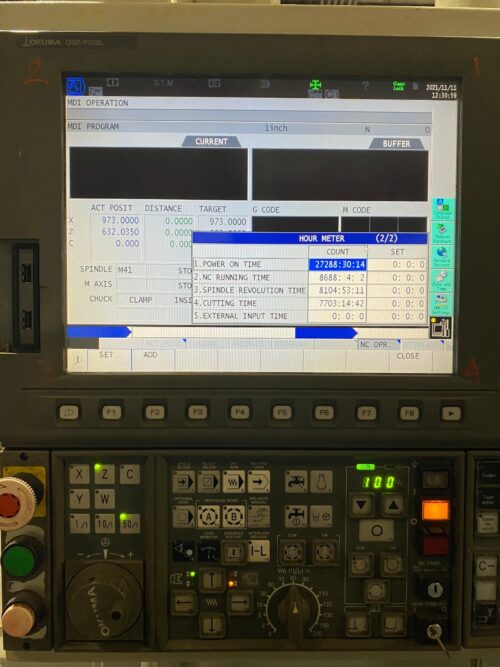

| Cutting Time | 7703 Hours Only |
| Equipped With: |
|---|

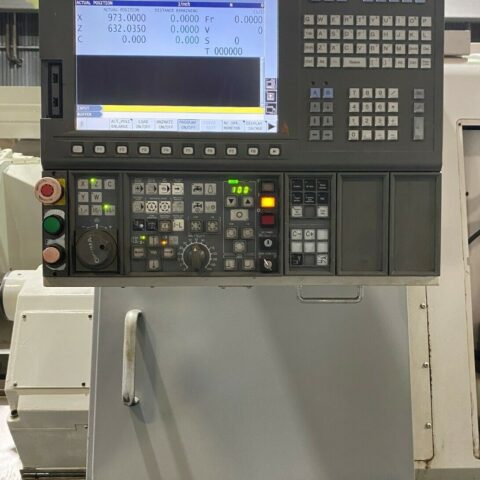

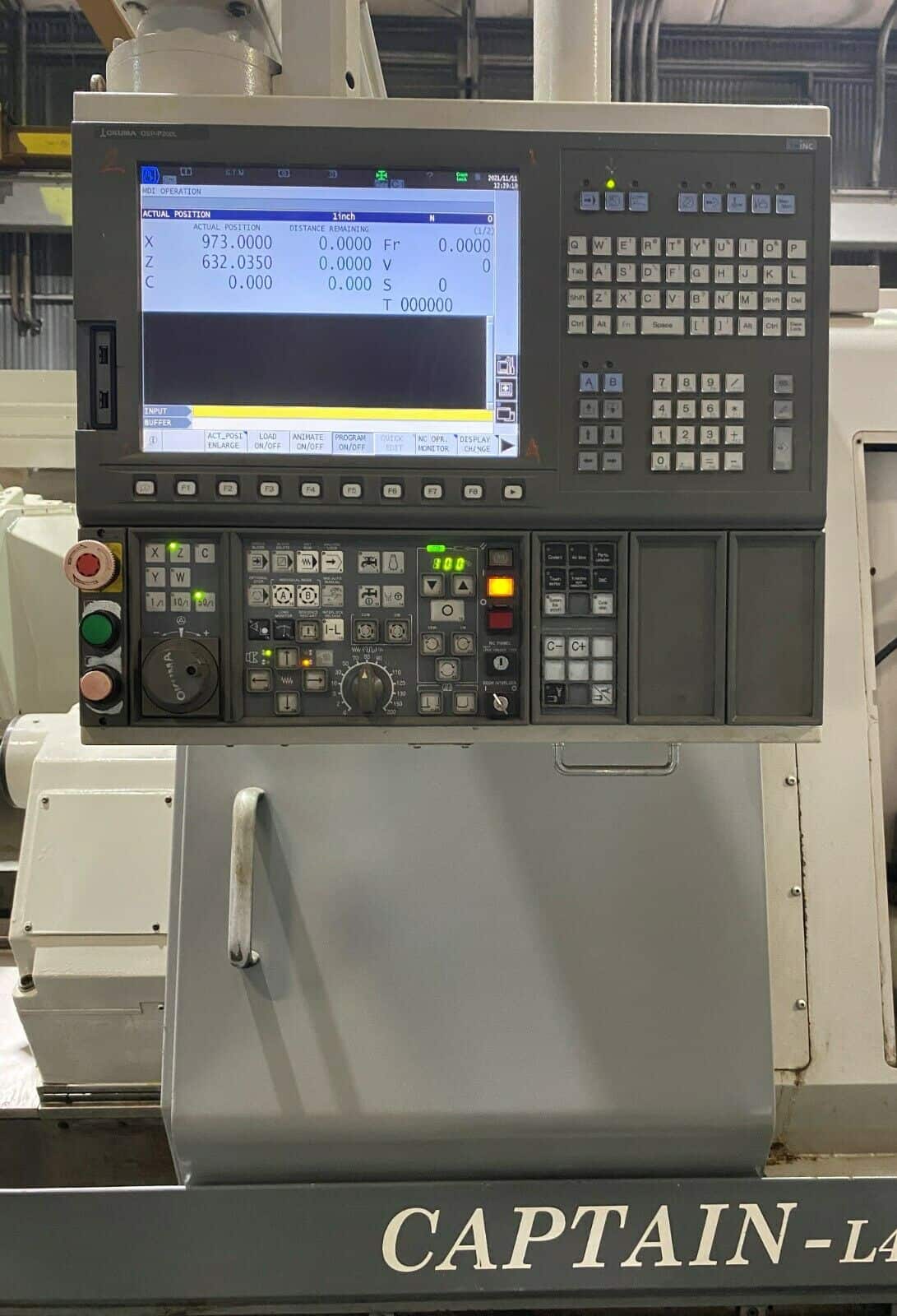

| OSP-P200L CNC Control (Touch Screen) |

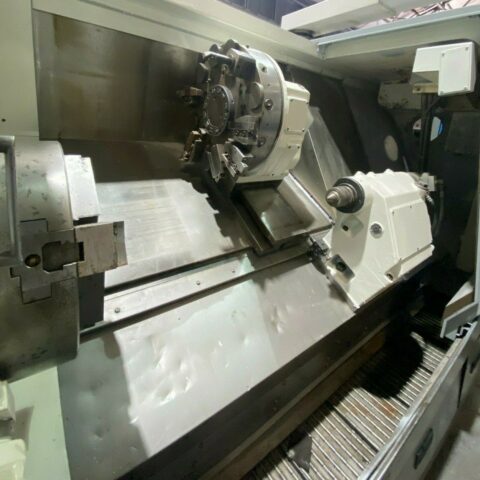

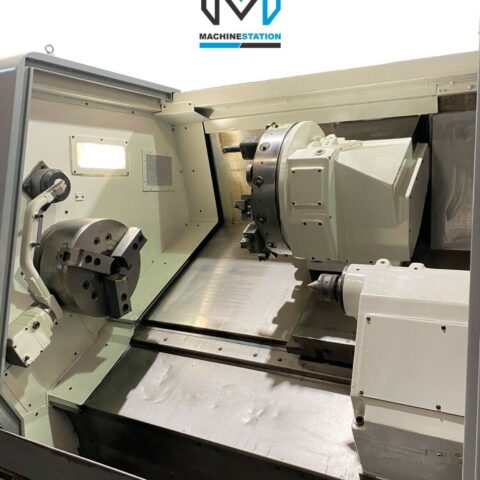

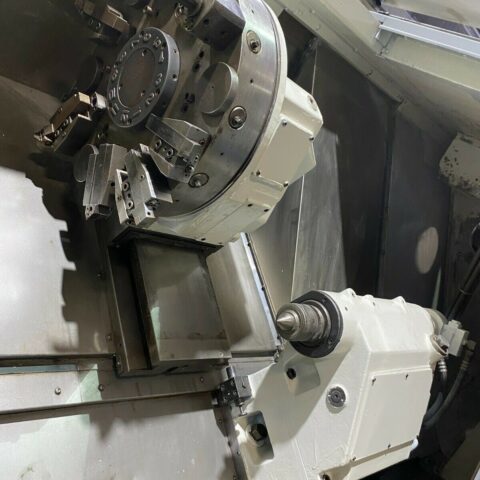

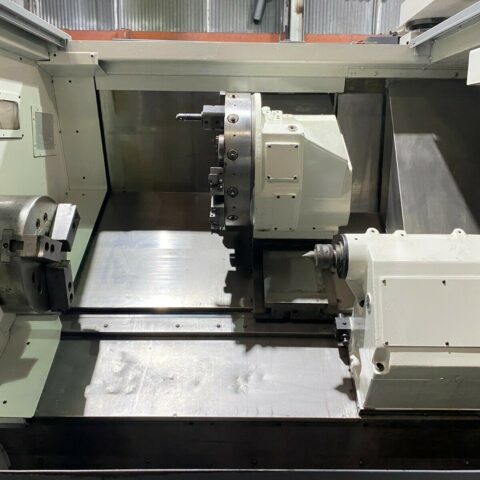

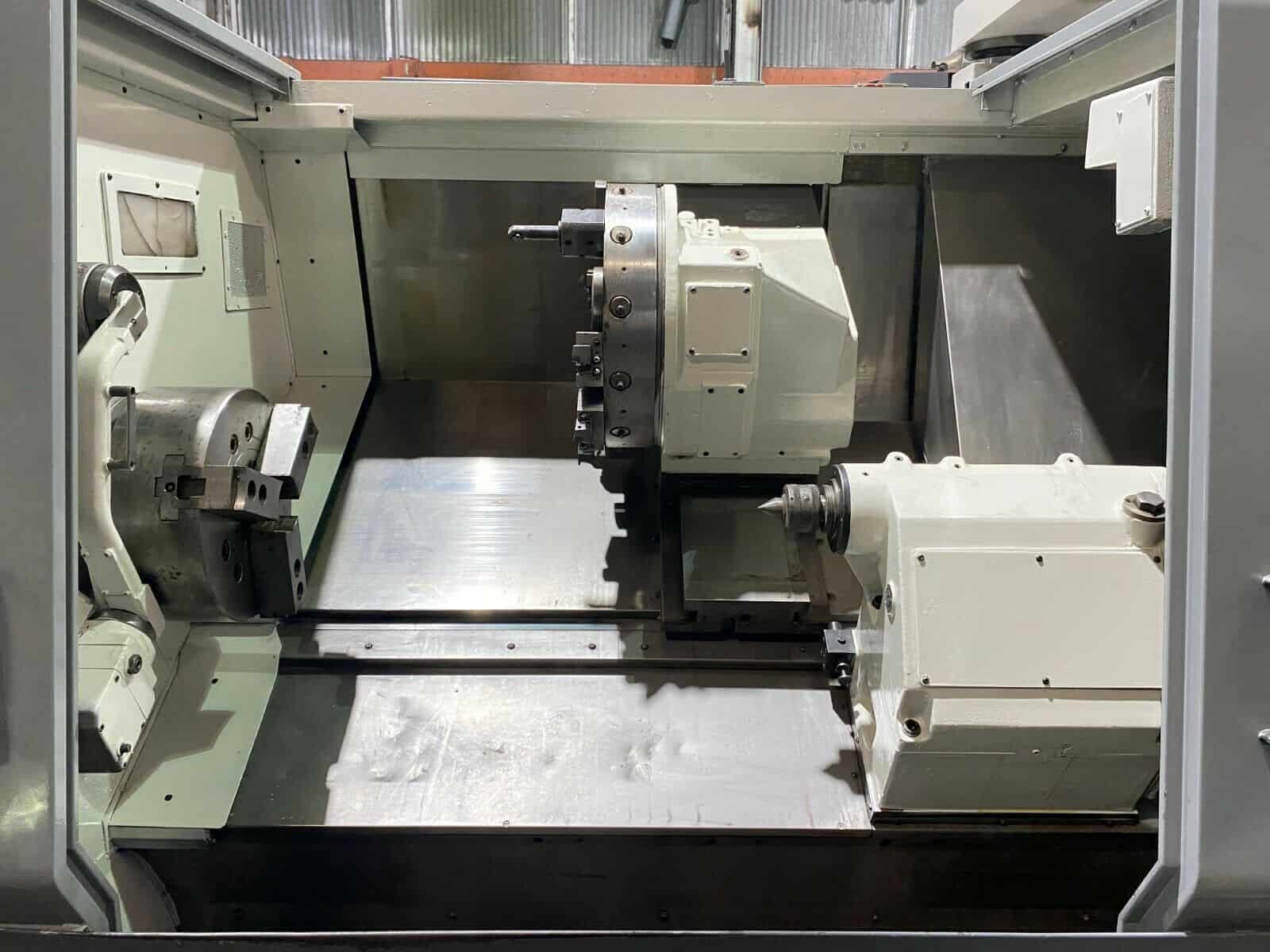

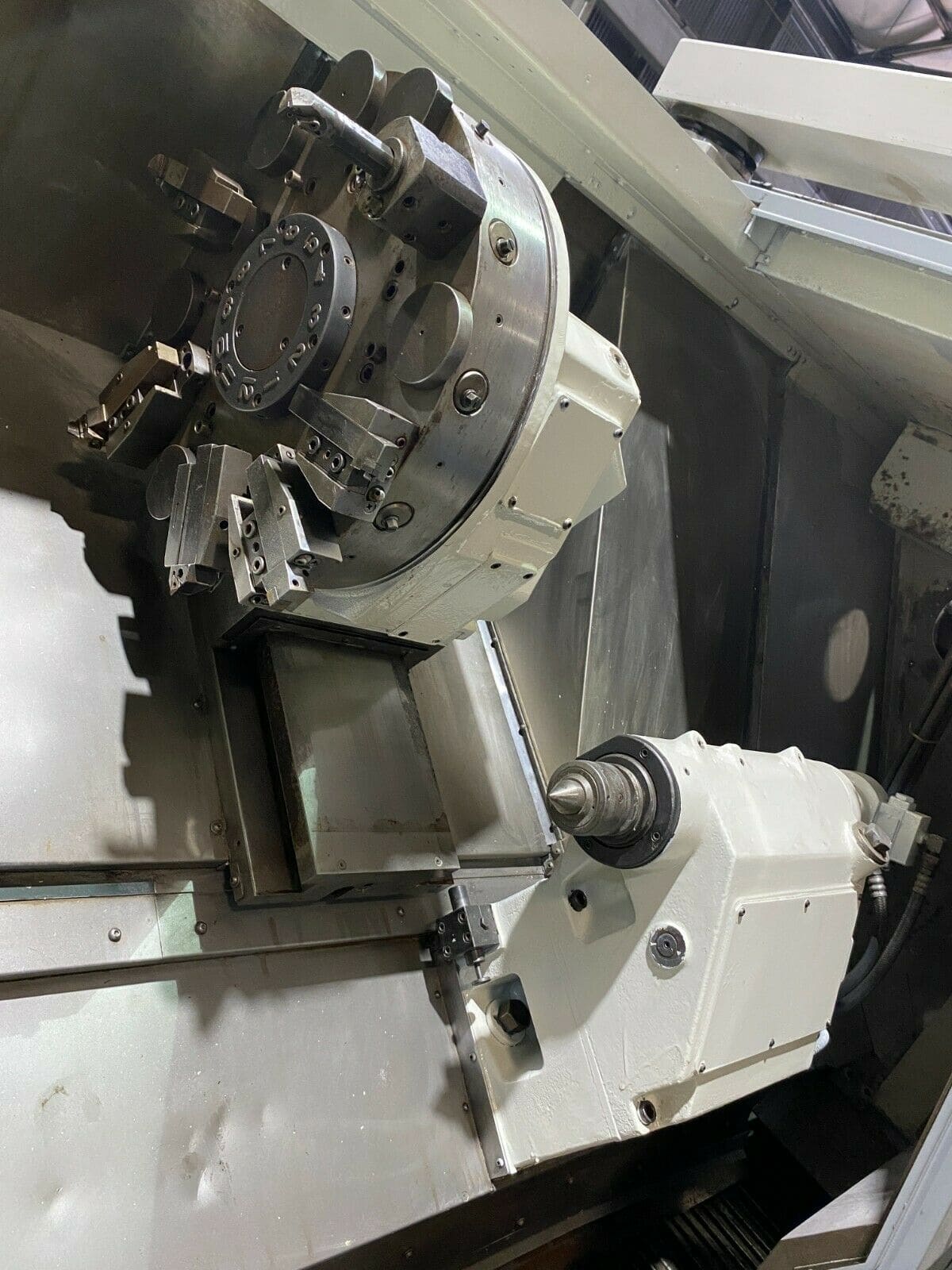

| 12-Station Live Tool Turret |

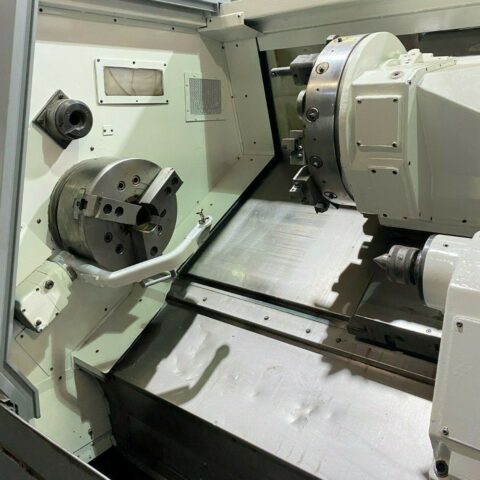

| 15″ 3 Jaw Hydraulic Chuck |
| C Axis |
| Long Bed Boxway Lathe |
| USB Ports |
| Tool Presetter |

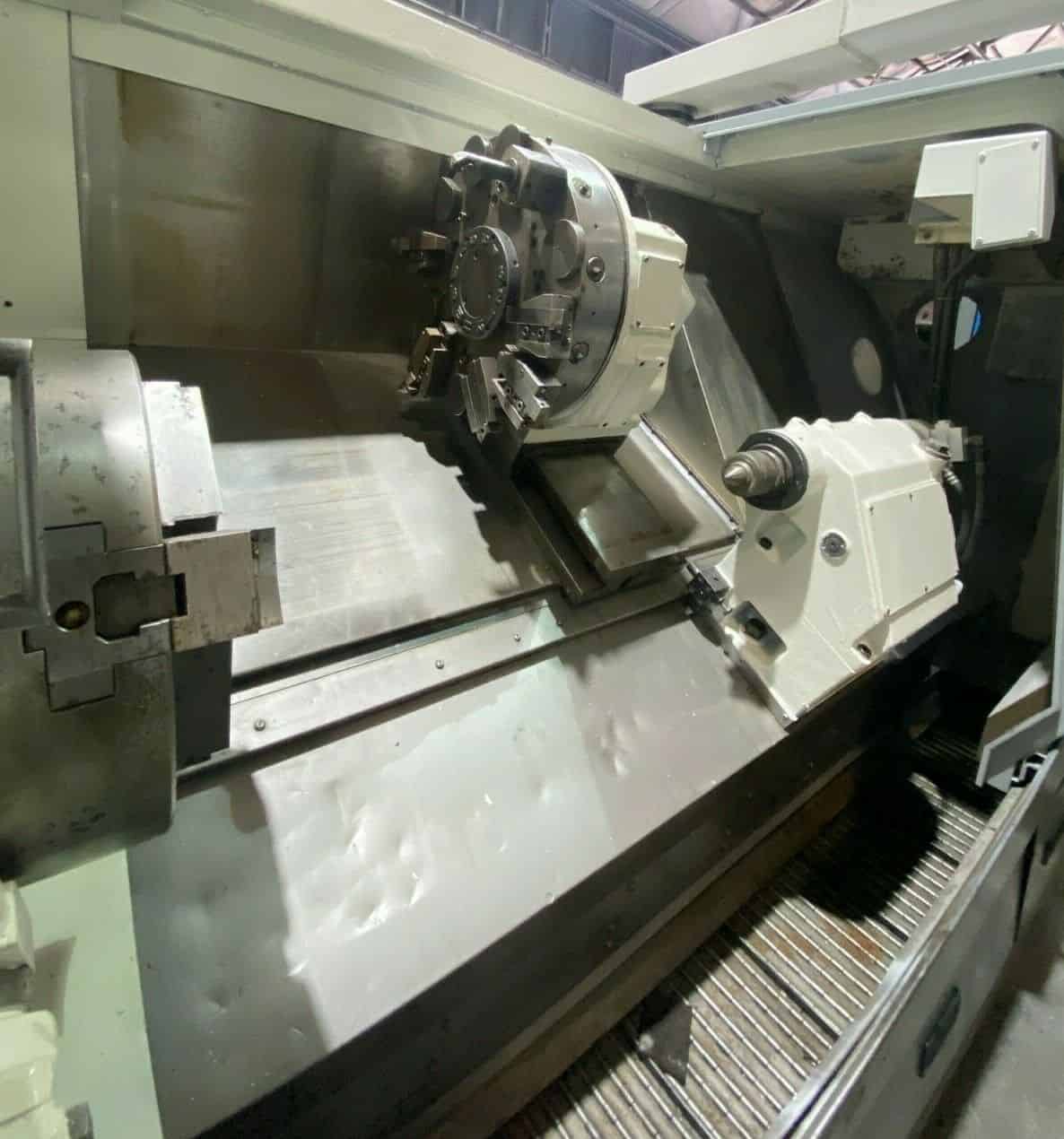

| Hydraulic Tailstock with Power Quill |
| Foot Switch |
| Coolant System |
| Chip Pan |
| Chip Conveyor |
| Automatic Lubrication System |
| Specifications: |
|---|
| Max Turning Diameter: 16.54″ |
| Max Turning Length: 49.2″ |
| Max Bar Capacity: 3.99″ |
| Swing Over Slide: 16.54″ |
| Swing Over Bed: 24.41″ |
| Distance Between Centers: 50.0″ |
| Travel: |
|---|
| X Axis Travel: 11.81″ |
| Z Axis Travel: 50.″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 984 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 4.33″ |
| Spindle Speed: 3000 RPM |
| Spindle Motor: 30 HP |
| Turret: |
|---|
| Turret Capacity: 12 Live Stations |
| Live Tool Speed: 3000 RPM |
| Live Tool Motor: 7.5 HP |
| Turret Index Time: 1 Second |
| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Quill Diameter: 3.54″ |
| Tailstock Quill Stroke: 4.72″ |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 45 kva |
| Overall Dimensions: ″ x ″ x ″ High |
| Overall Dimensions: ″ x ″ x ″ High with Chip Conveyor |
| Weight : 18000 lbs Approx. |
“No Charges for loading at list Price” Dismantled for shipping.MachineStation buys sells trade all kinds of new and used CNC metal cutting & metal forming machines …. Used CNC Machines, CNC lathes, CNC mills, presses, gears, turning centers, horizontal machining centers, vertical machining centers, horizontal lathes, vertical lathes, surface grinders, cylindrical grinders, sheets, fabricating equipment, boring mills, lasers cutting, saws, waterjets, shears, press brakes.We are a one-stop organisation for all your buying and selling needs for pre-owned CNC machinery of over 70 brands. We are the biggest machinery stockist in the US with the largest inventory of certified pre-owned machinery. We have operations in California, Texas, Mexico and India.
| Equipped With: |
|---|
| OSP-P200L CNC Control (Touch Screen) |
| 12-Station Live Tool Turret |
| 381 mm 3 Jaw Hydraulic Chuck |
| C Axis |
| Long Bed Boxway Lathe |
| USB Ports |
| Tool Presetter |
| Hydraulic Tailstock with Power Quill |
| Foot Switch |
| Coolant System |
| Chip Pan |
| Chip Conveyor |
| Automatic Lubrication System |
| Specifications: |
|---|
| Max Turning Diameter: 420 mm |
| Max Turning Length: 1,250 mm |
| Max Bar Capacity: 101 mm |
| Swing Over Slide: 420 mm |
| Swing Over Bed: 620 mm |
| Distance Between Centers: 1,270 mm |
| Travel: |
|---|
| X Axis Travel: 300 mm |
| Z Axis Travel: 50.″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 984 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 110 mm |
| Spindle Speed: 3000 RPM |
| Spindle Motor: 30 HP |
| Turret: |
|---|
| Turret Capacity: 12 Live Stations |
| Live Tool Speed: 3000 RPM |
| Live Tool Motor: 7.5 HP |
| Turret Index Time: 1 Second |
| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Quill Diameter: 90 mm |
| Tailstock Quill Stroke: 120 mm |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 45 kva |
| Overall Dimensions: ″ x ″ x ″ High |
| Overall Dimensions: ″ x ″ x ″ High with Chip Conveyor |
| Weight : 18000 lbs Approx. |
| Make | Okuma |
|---|
Payment Terms
A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
Shipping & Logistics
We coordinate domestic and international shipping, including loading, containerization, and freight arrangements through trusted logistics partners.
Machine Inspection
Buyers can request a live video demonstration, machine inspection, or schedule an on-site visit before completing the purchase.
Export & Documentation
For international orders, we can assist with export documentation, commercial paperwork, and pre-shipment inspection requirements.
