*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.

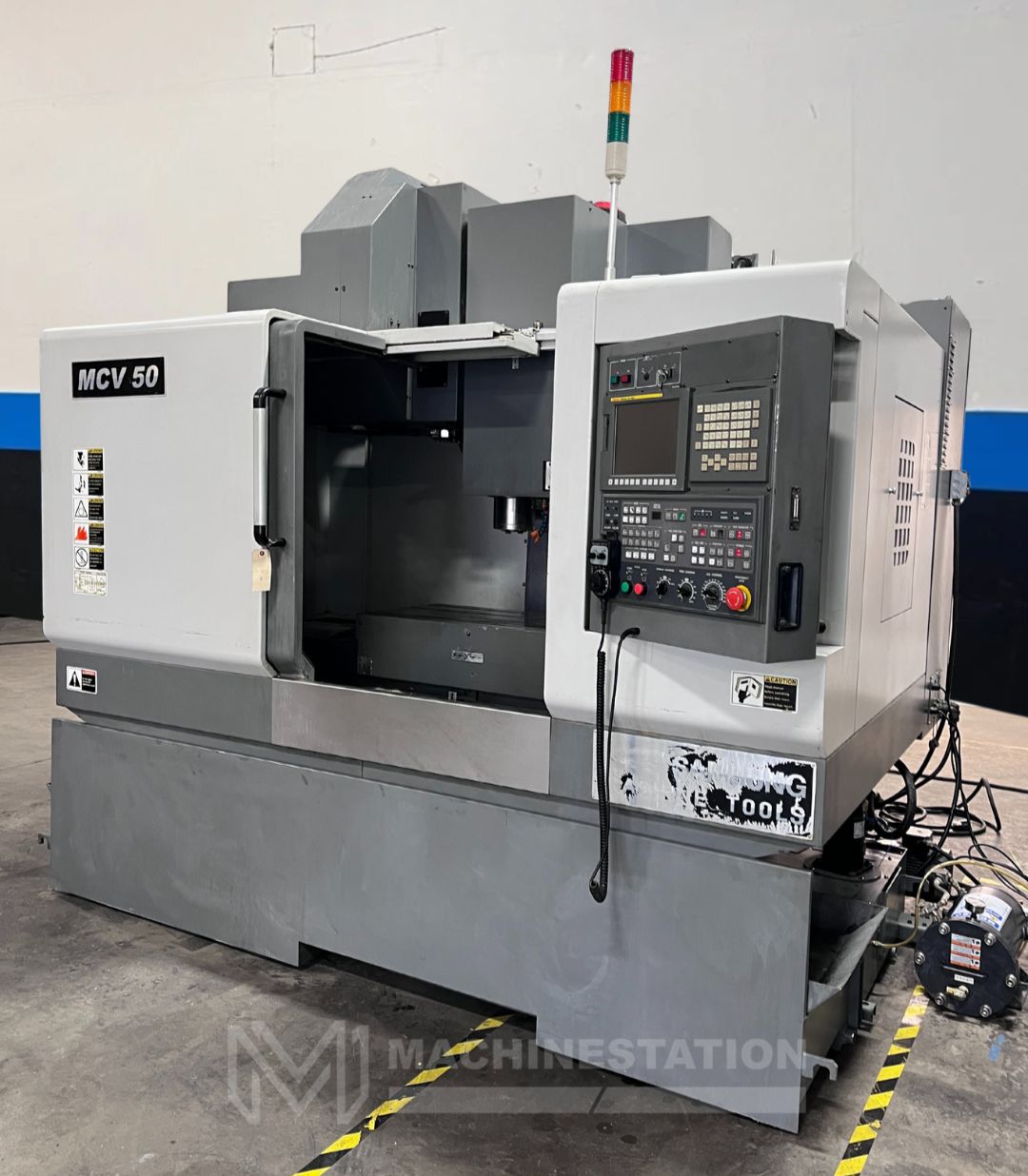

| Make: | Samsung |

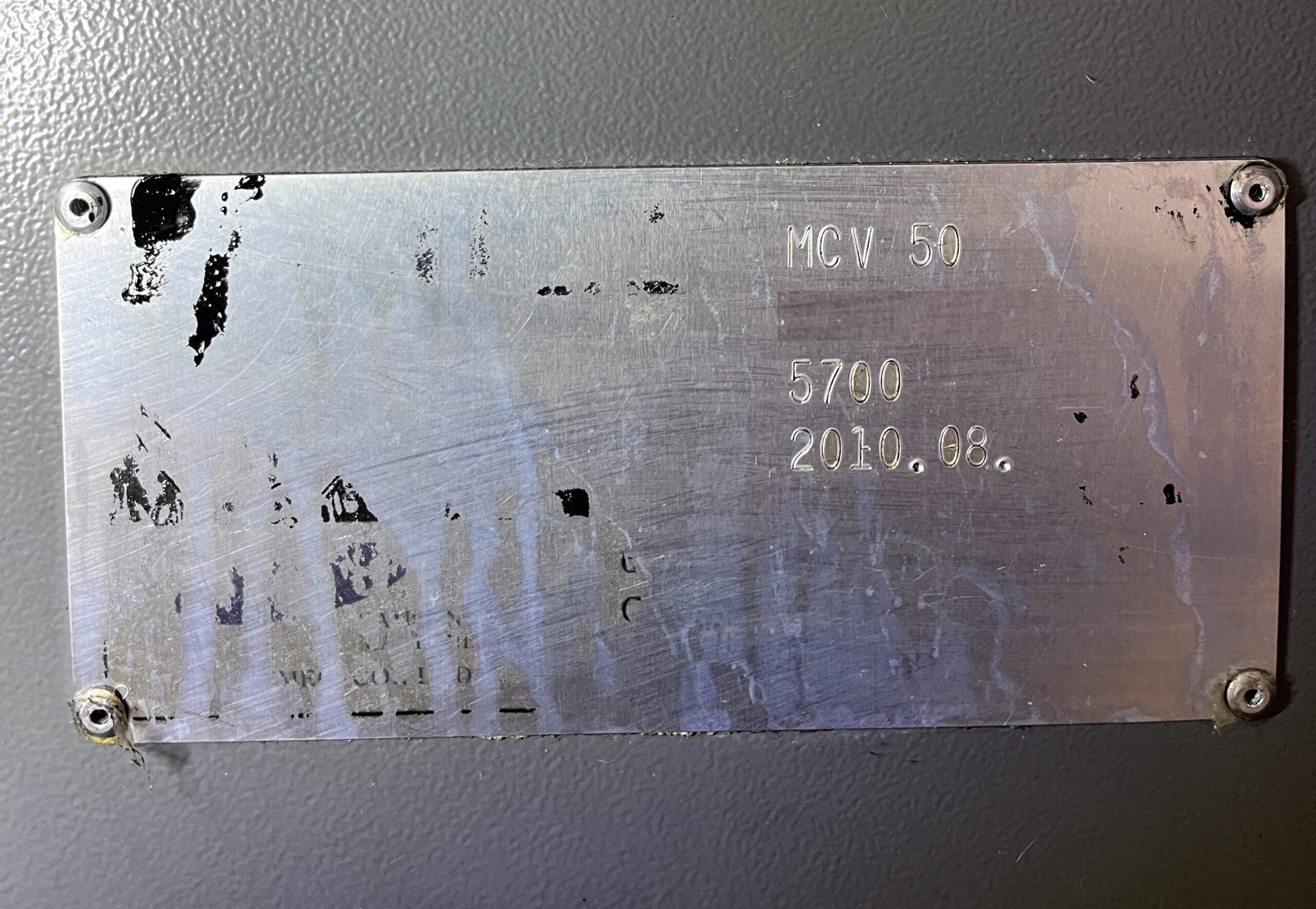

| Model: | MCV 50 |
| Year: | 2010 |
| Condition: | Used – Good |
| Key Features of the Samsung MCV 50: |
|---|

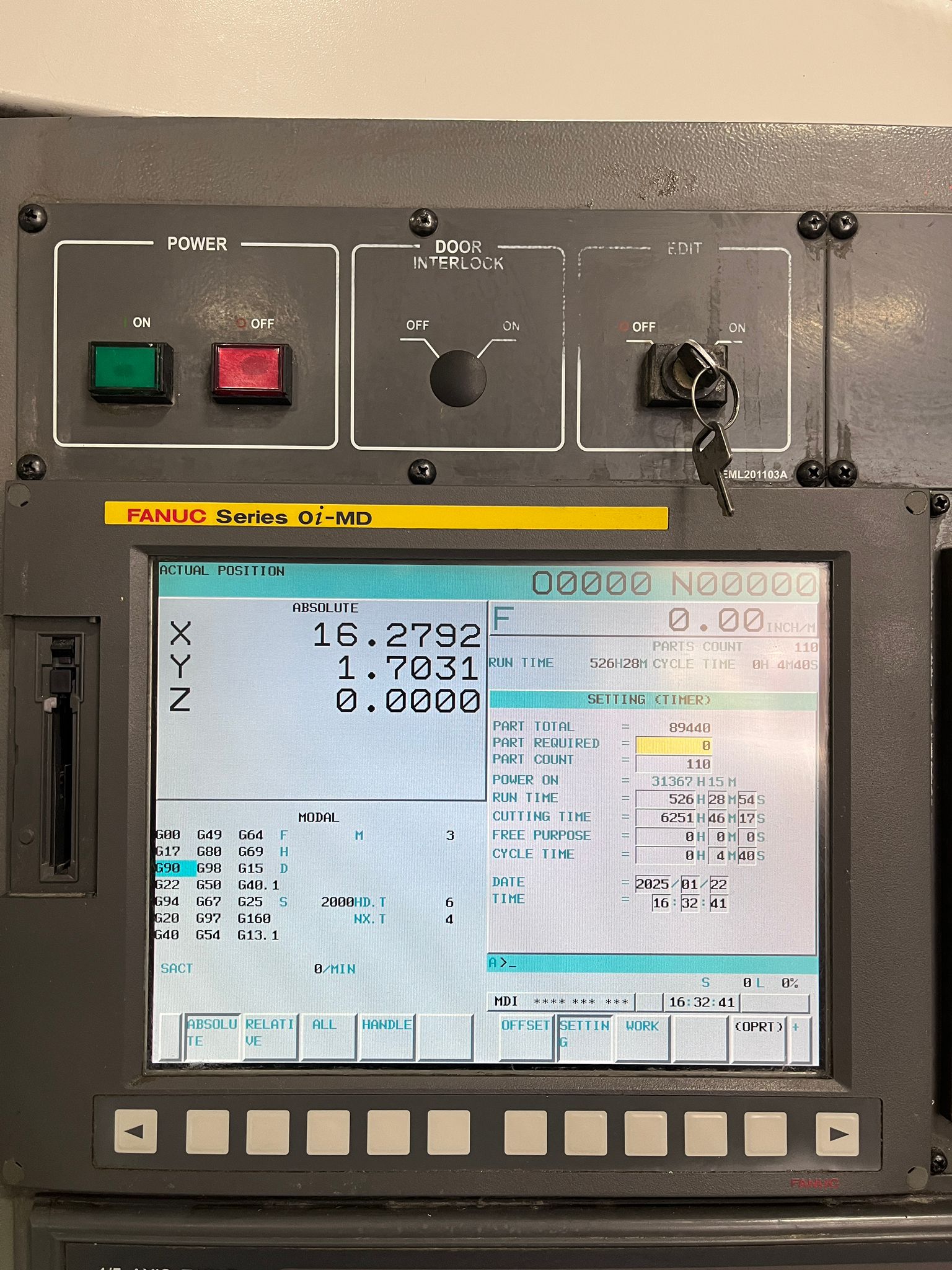

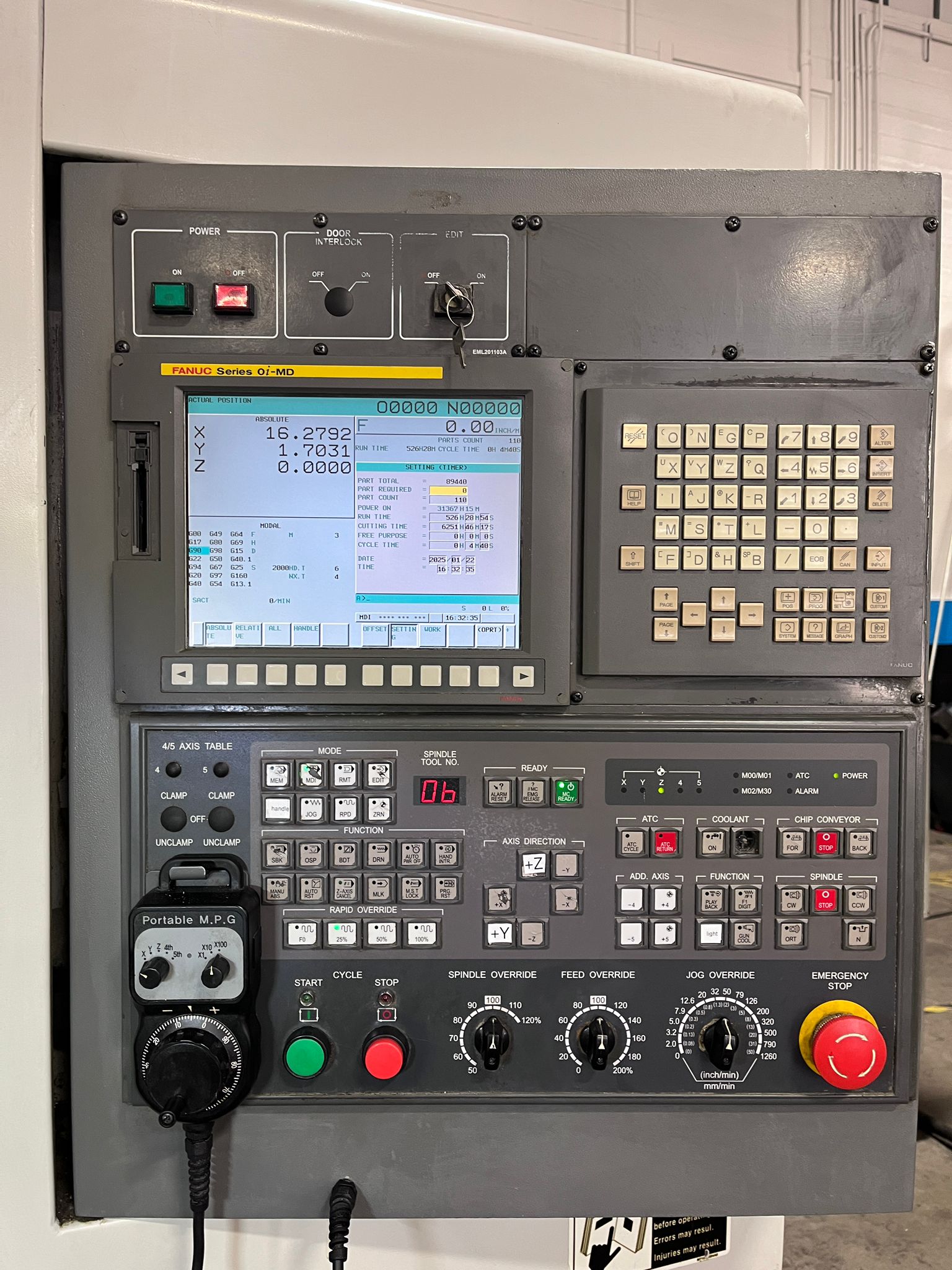

| Fanuc Oi-MD CNC Control |
| 12,000 RPM High-Speed Spindle |

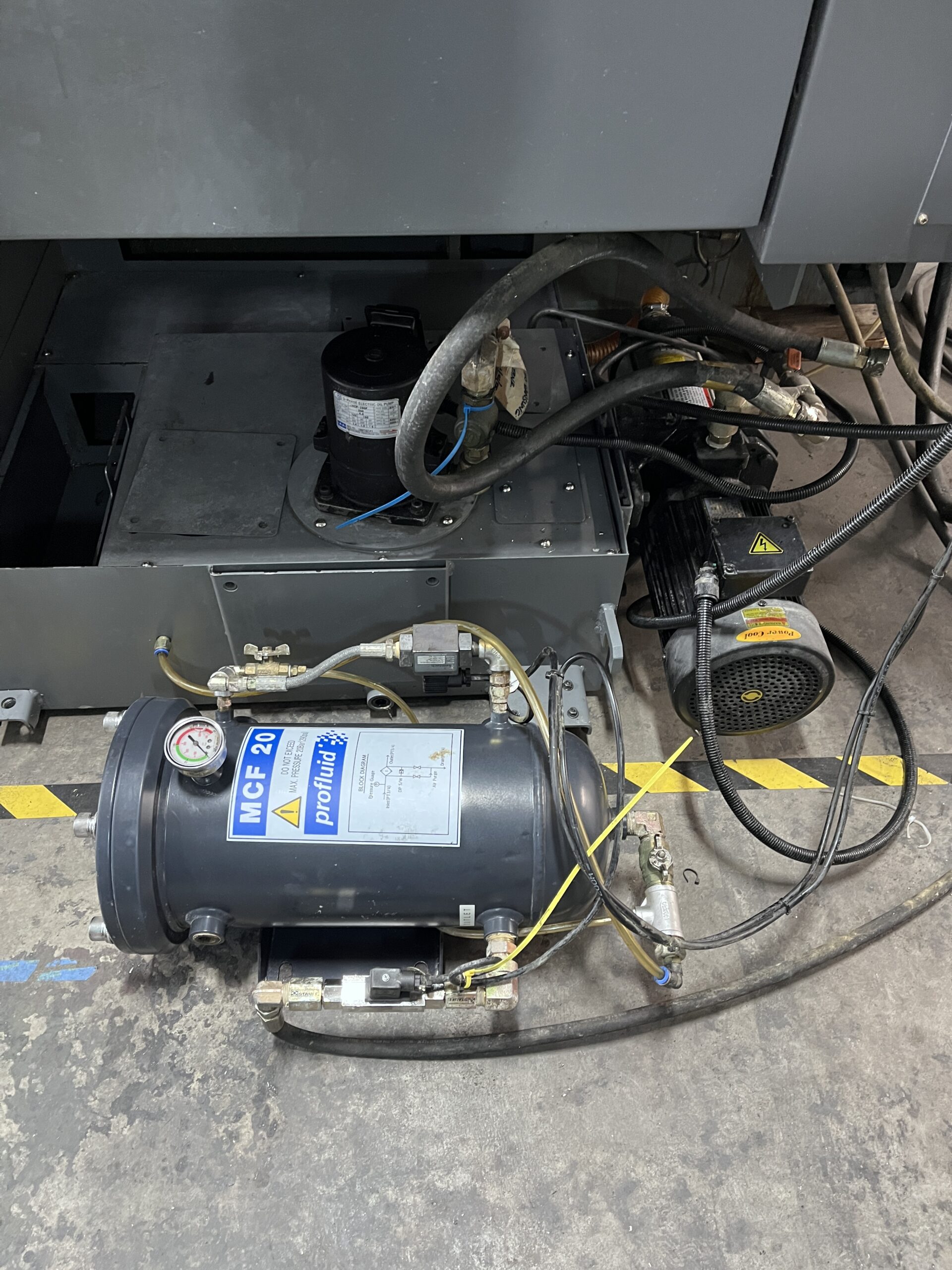

| Through Spindle Coolant – 290 psi |

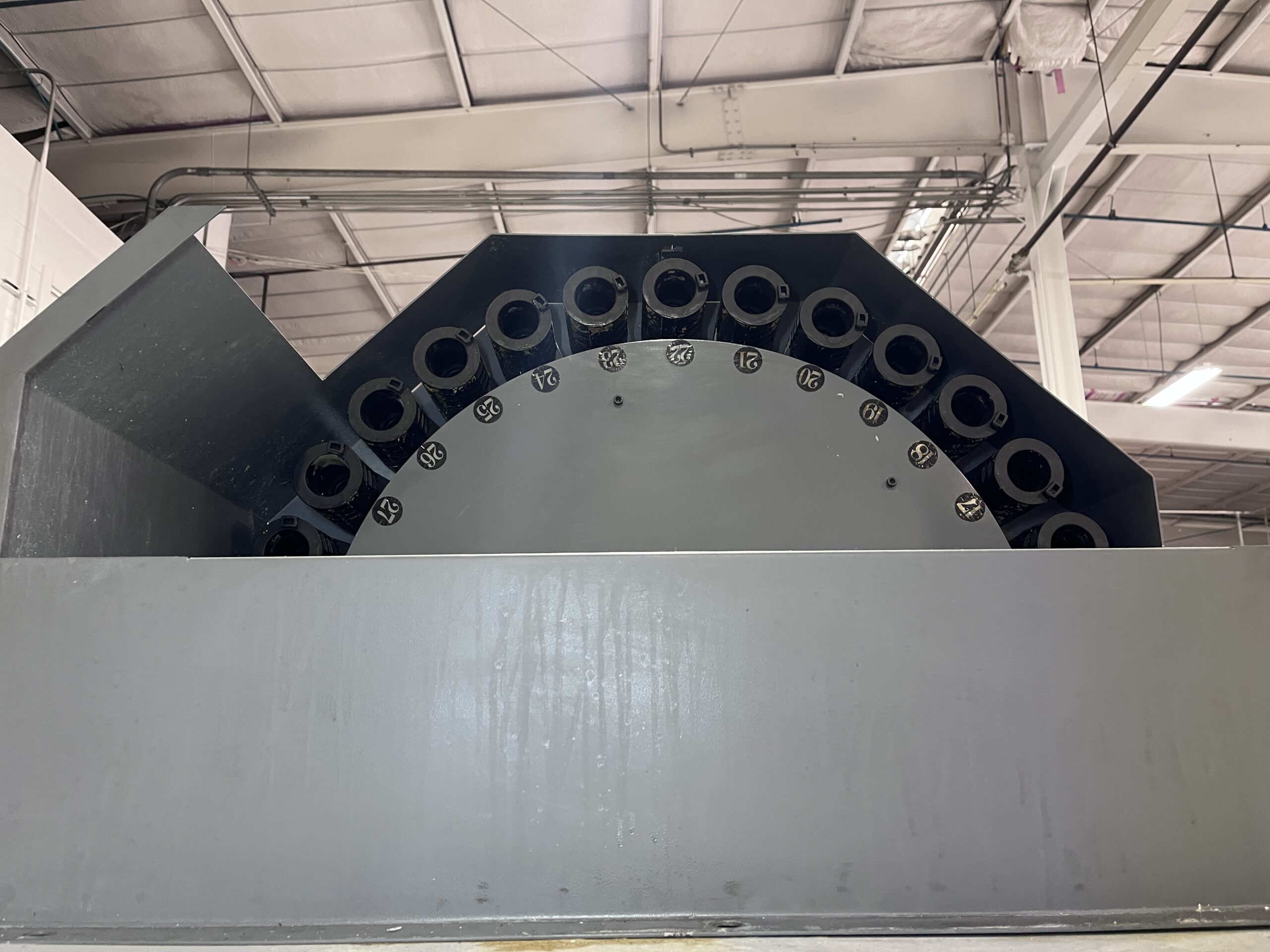

| 30 Station High-Speed Tool Changer |
| 20 HP High Torque Spindle |
| 1417 IPM Fast Rapid Traverse |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |
| Coolant System |
| Books & Manuals |
| Travel: |
|---|
| X-Axis: 35.43″ |
| Y-Axis: 19.69″ |
| Z-Axis: 20.08″ |
| Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute |
| Rapid Traverse Rates Z Axis: 1181 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.11″ – 25.19″ |

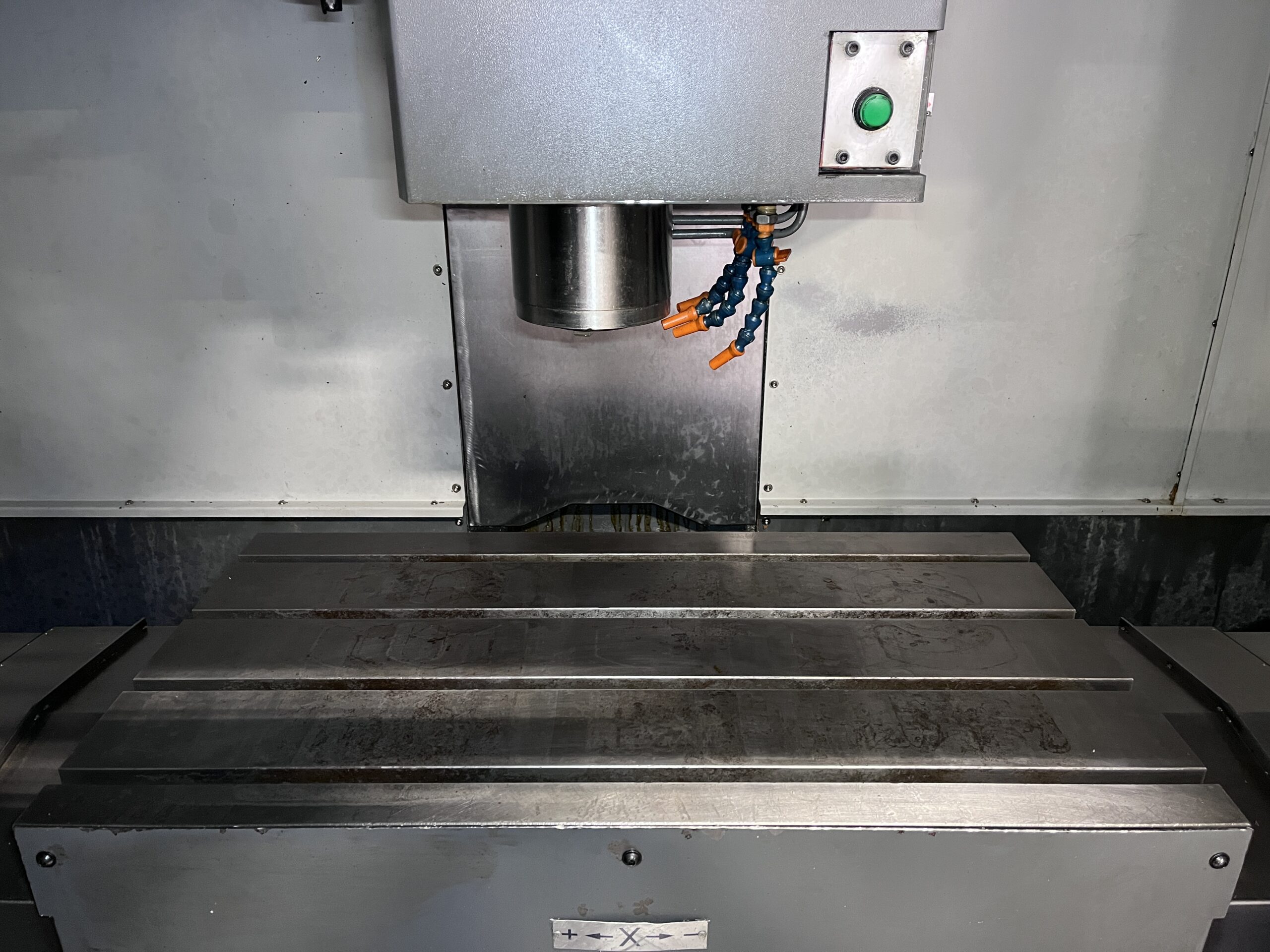

| Table: |
|---|
| Length: 36.22″ |
| Width: 19.69″ |
| Number of Std T-Slots: 4 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1322 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Tools |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 2.5″ – 5.0″ |
| Max Tool Length: 11″ |
| Tool Changing Time: Seconds |
| General: |
|---|
| Air Required: 80 psi 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 102″ x 87″ x 100″ High |
| Weight: 13,800 lbs Approx. |
