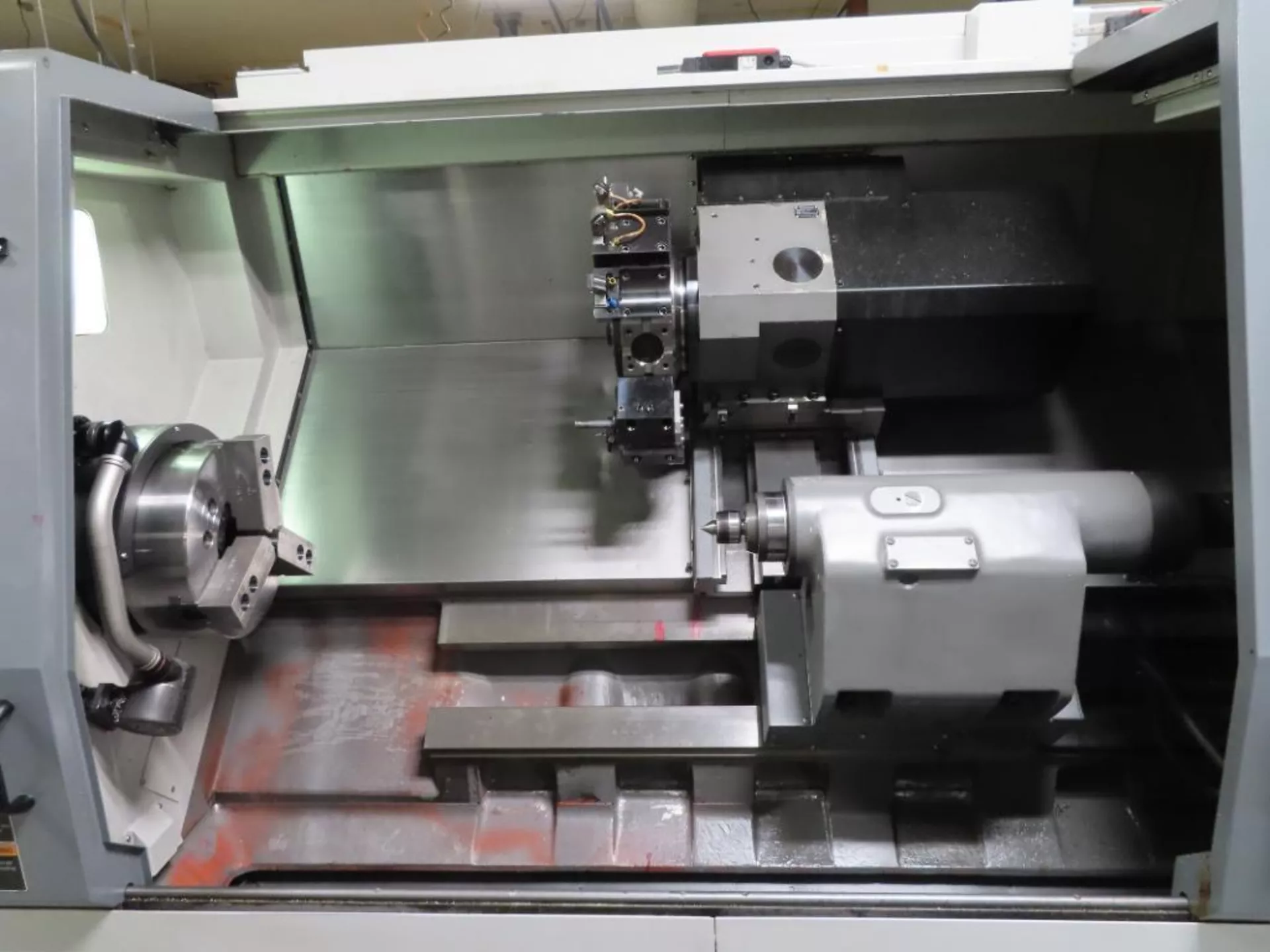

*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Samsung |
| Model: |
SL-35BMC/1500 |
| Year of Manufacture: |
2013 |
| Machine Type: |
CNC Turning Center |
| CNC Control: |
Fanuc Oi-TD |
| Country of Origin: |
South Korea |
| Equipped With: |
| Live Tooling (Milling Capability) |
| 12-Station Turret |
| Fanuc Oi-TD CNC Control |
| Programmable Hydraulic Tailstock |
| Tool Setter |
| Chip Conveyor |
| Heavy Duty Box Guideways |
| High Torque 30 HP Spindle |
| 15″ Chuck |
| Rigid Tapping |
| Fully Enclosed Guarding |
| Coolant System |
| Capacity: |
| Swing Over Bed: 23.6″ (600 mm) |
| Max Turning Diameter: 16.5″ (420 mm) |
| Max Turning Length: 59″ – 60.2″ (1500 mm) |
| Bar Capacity: 4.6″ (117 mm) |
| Spindle: |
| Chuck Size: 15″ |
| Spindle Speed: 2,000 RPM |
| Spindle Motor: 30 HP |
| Spindle Nose: A2-15 |
| Turret / Tooling: |
| Turret Capacity: 12 Stations |
| Live Tooling: Yes |
| Tool Type: VDI / BMT |
| Travels: |
| X-Axis Travel: ~9.4″ (240 mm) |
| Z-Axis Travel: ~63″ (1600 mm) |
| Rapid Traverse (X/Z): ~20 / 24 m/min |
| Tailstock: |
| Type: Programmable Hydraulic Tailstock |
| Quill Taper: MT5 |
| Quill Stroke: ~4.7″ |
| Electrical: |
| Power Requirement: 220V, 3 Phase |
| Power Consumption: ~30–35 kVA |
| General: |
| Axis: 2-Axis (X, Z) |
| Machine Weight: ~19,000 – 20,000 lbs |
| Footprint: ~130″ × 80″ |
| Features: |
| Live tooling for milling operations |
| Heavy-duty box guideways for rigidity |
| High torque spindle for heavy cutting |
| Large 15″ chuck capacity |
| Programmable tailstock for long parts |
| Ideal for shaft & long part machining (1500 mm) |
