Samsung SL20/500 CNC Lathe

SKU 11568
Make/Model Samsung SL 20/500
Year 2012
Video On Request
Out of stock
SKU: 11568
Make/Model: Samsung SL 20/500
Year: 2012
Video: On Request
SKU: 11568

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Samsung
Model: SL 20/500
Year: 2012
Machine Type: CNC Lathe / Turning Center
Control: Fanuc Series 0i-TD CNC Control
Equipped With:
Fanuc Series 0i-TD CNC Control Panel

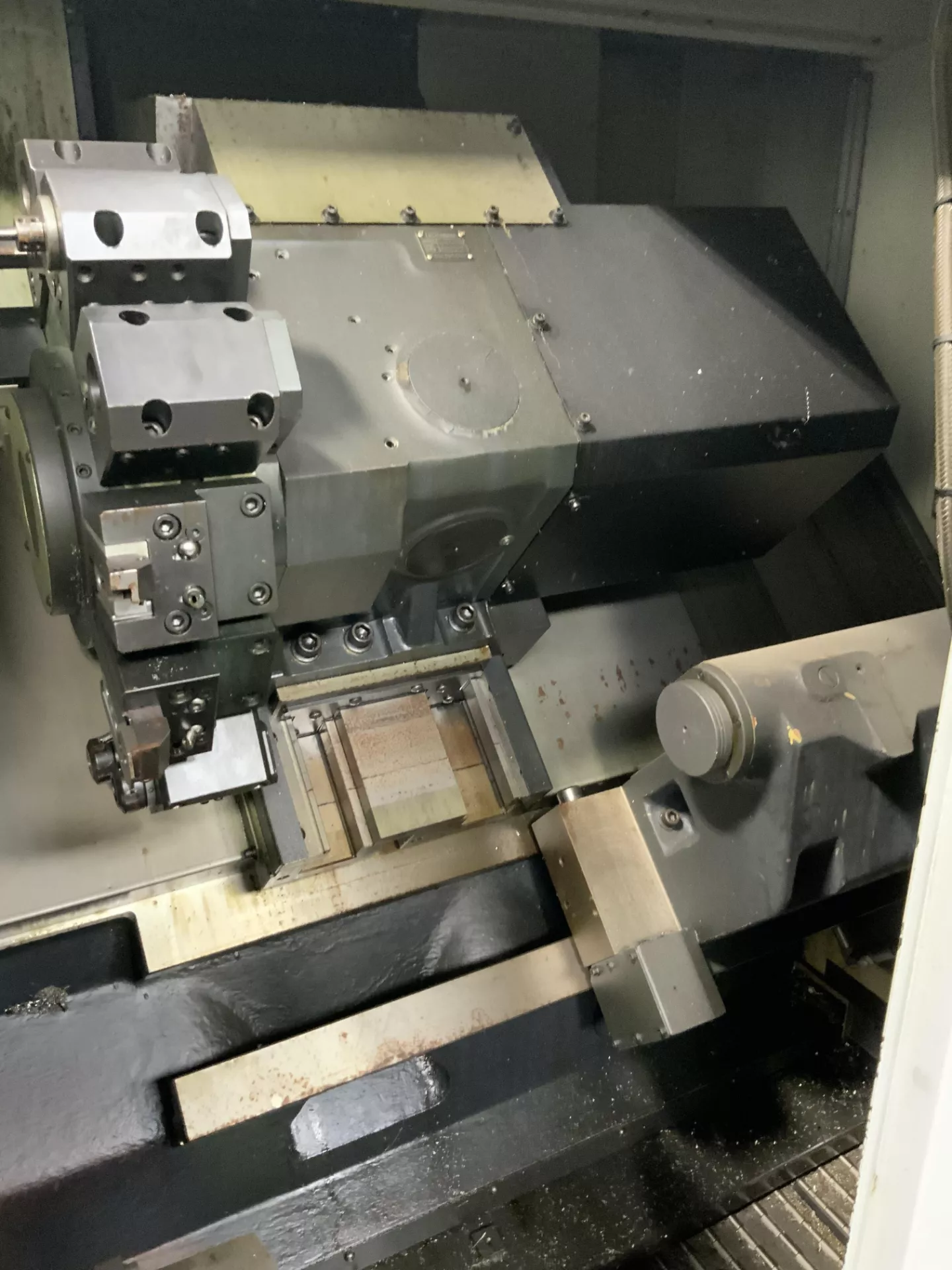

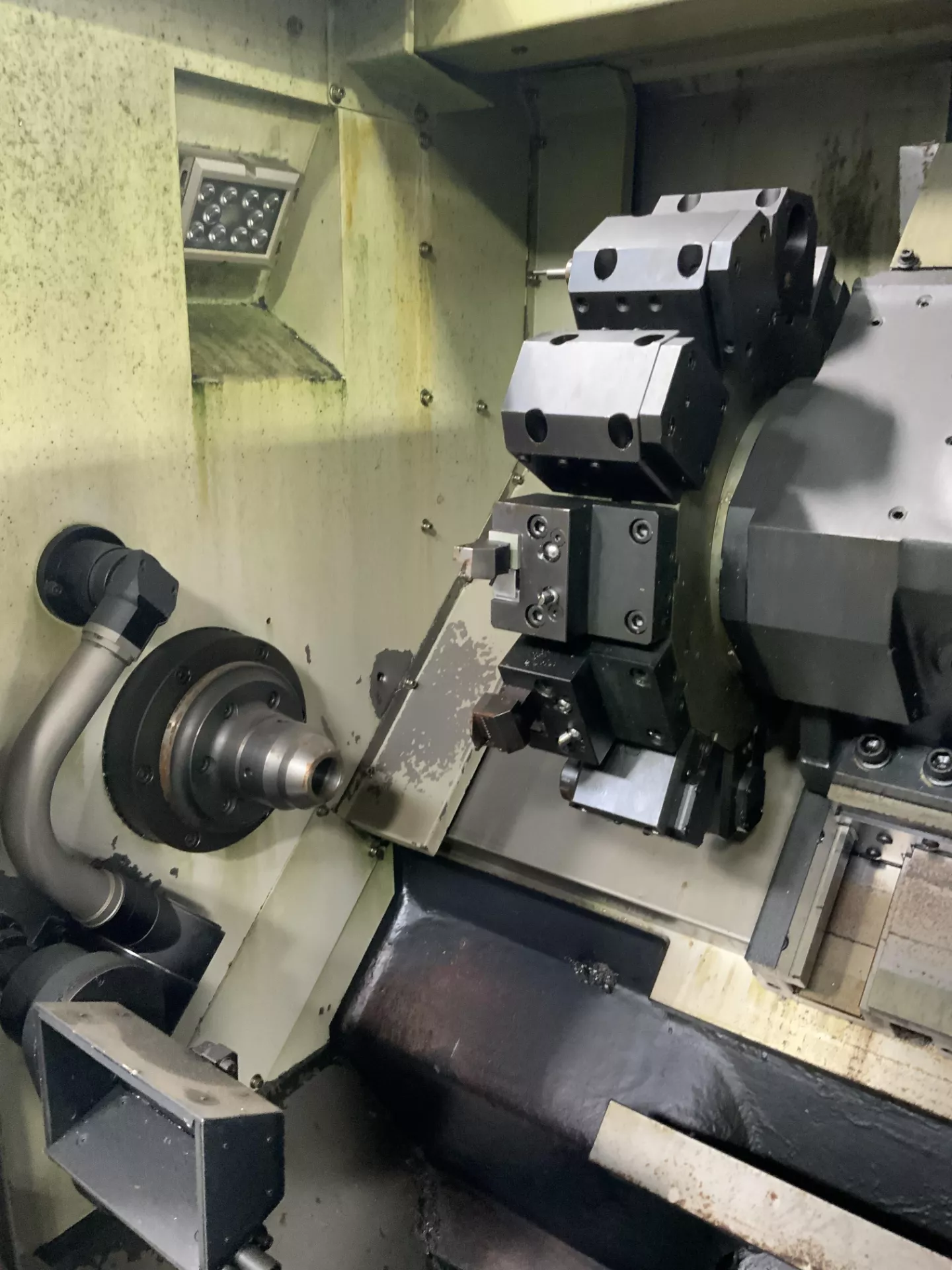

10-Station Heavy Duty Hydraulic Turret
Automatic Tool Presetter Arm (Tool Setter)
Hydraulic Tailstock with Programmable Quill Assembly
3-Jaw Hydraulic Chuck Unit
Hinge Type Right-Discharge Lift-Up Chip Conveyor
Automatic Way Lubrication System
High-Pressure Flood Coolant System with Tank & Pump
Fully Enclosed Guarding with Front Door Window
3-Color Operator Status Signal Tower Light
Heavy Duty Hardened & Ground Box Way Construction
Capacity:
Swing Over Bed: 22.4″
Swing Over Cross Slide: 15.7″
Maximum Machining Diameter: 11.8″
Maximum Machining Length: 21.3″
Chuck Size: 8″
Travels:
X-Axis Travel: 8.3″
Z-Axis Travel: 21.7″
Spindle:
Spindle Speed: 4,000 RPM
Spindle Nose: A2-6
Spindle Bore: 2.99″
Bar Capacity: 2.56″
Spindle Motor: 20 HP
Turret:
Tool Capacity: 10-Station Turret
Turret Index Time: 0.15 Seconds
O.D. Tool Shank Size: 1.0″
I.D. Boring Bar Diameter: 1.5″
Tailstock:
Tailstock Travel: 21.3″
Quill Diameter: 2.95″
Quill Taper: MT #4
General:
Air Required: 85 psi

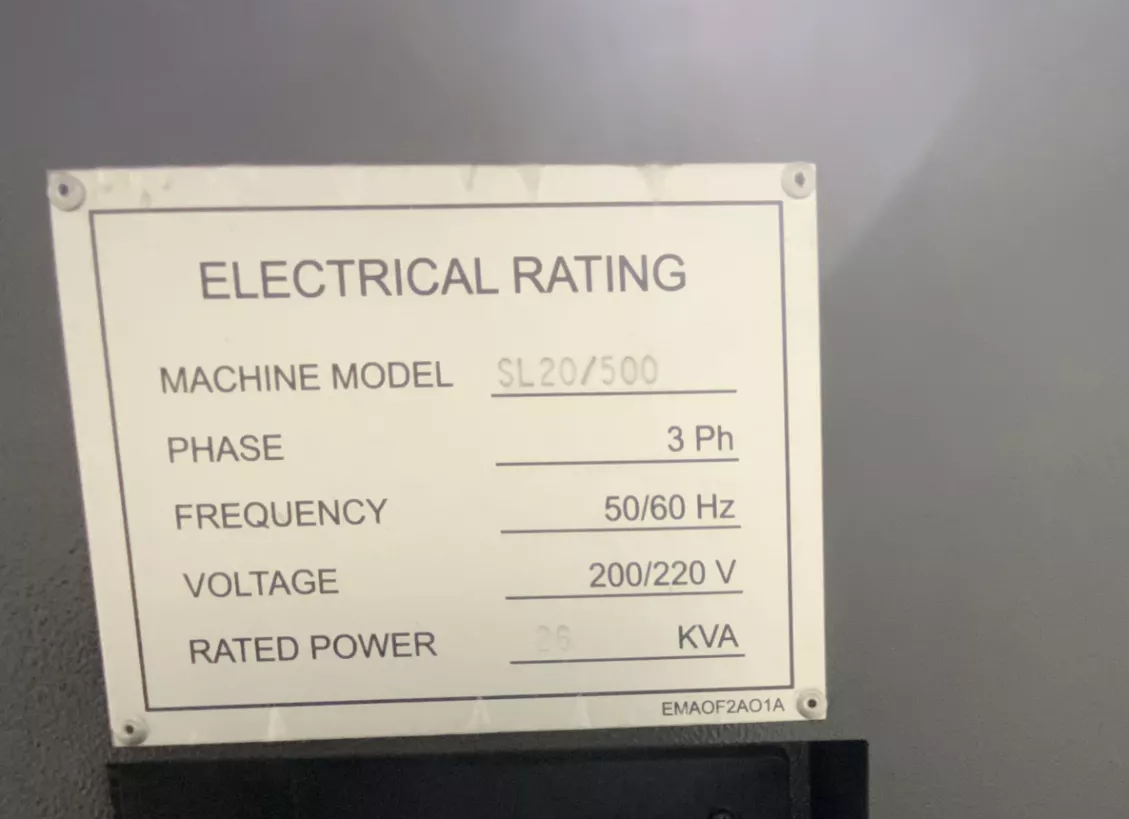

Power Capacity: 26 kVA
Electrical Connection: 200/220 V / 3 Phase / 50&60 Hz
Overall Dimensions: 130″ L x 65″ W x 72″ High Approx.
Weight: 9,300 lbs Approx.
Equipped With:
Fanuc Series 0i-TD CNC Control Panel
10-Station Heavy Duty Hydraulic Turret
Automatic Tool Presetter Arm (Tool Setter)
Hydraulic Tailstock with Programmable Quill Assembly
3-Jaw Hydraulic Chuck Unit
Hinge Type Right-Discharge Lift-Up Chip Conveyor
Automatic Way Lubrication System
High-Pressure Flood Coolant System with Tank & Pump
Fully Enclosed Guarding with Front Door Window
3-Color Operator Status Signal Tower Light
Heavy Duty Hardened & Ground Box Way Construction
Capacity:
Swing Over Bed: 569 mm
Swing Over Cross Slide: 399 mm
Maximum Machining Diameter: 300 mm
Maximum Machining Length: 541 mm
Chuck Size: 203 mm
Travels:
X-Axis Travel: 211 mm
Z-Axis Travel: 551 mm
Spindle:
Spindle Speed: 4,000 RPM
Spindle Nose: A2-6
Spindle Bore: 76 mm
Bar Capacity: 65 mm
Spindle Motor: 20 HP
Turret:
Tool Capacity: 10-Station Turret
Turret Index Time: 0.15 Seconds
O.D. Tool Shank Size: 25 mm
I.D. Boring Bar Diameter: 38 mm
Tailstock:
Tailstock Travel: 541 mm
Quill Diameter: 75 mm
Quill Taper: MT #4
General:
Air Required: 85 psi
Power Capacity: 26 kVA
Electrical Connection: 200/220 V / 3 Phase / 50&60 Hz
Overall Dimensions: 3,302 mm L x 1,651 mm W x 1,829 mm High Approx.
Weight: 9,300 lbs Approx.
