*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

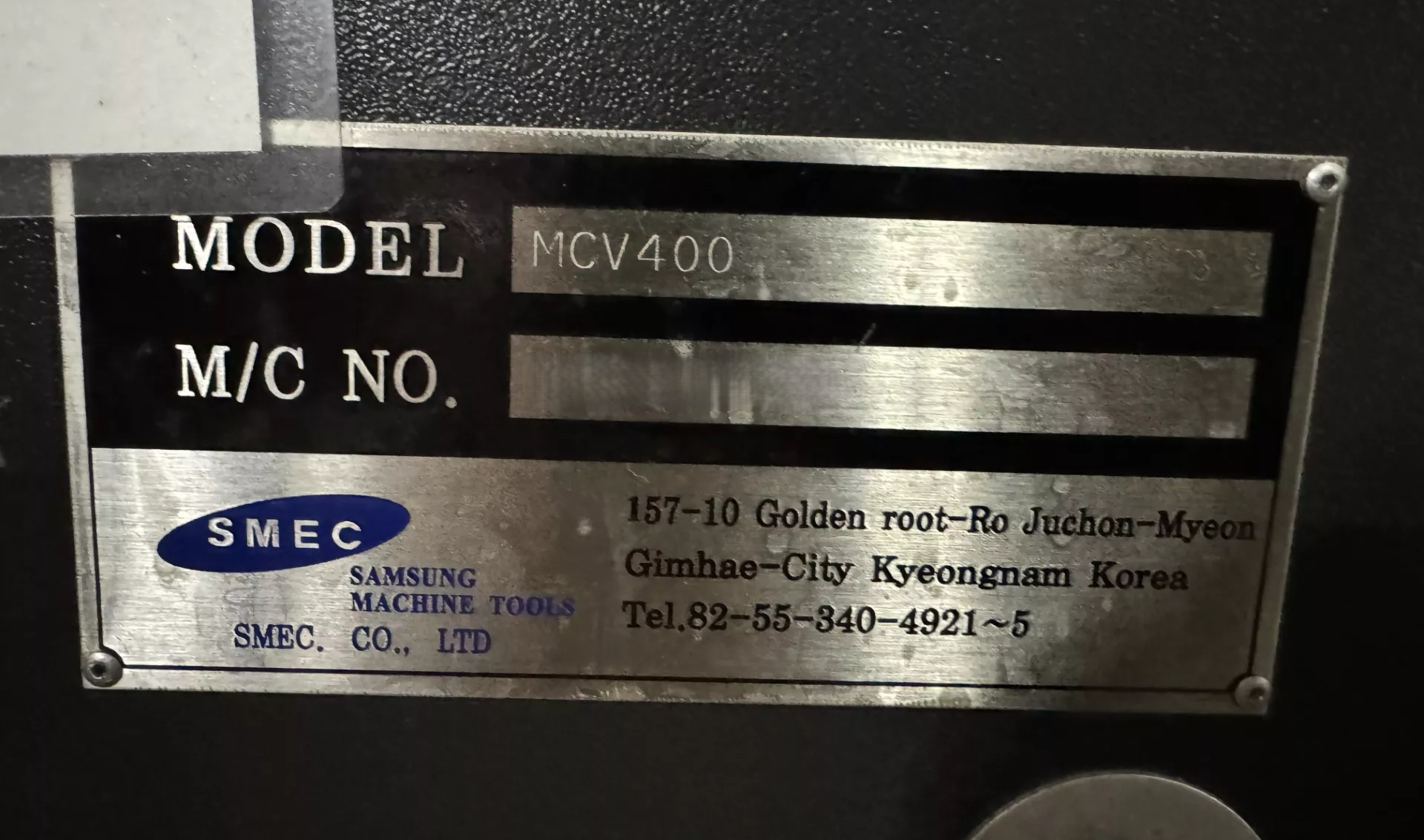

| Make: | Samsung SMEC |
| Model: | MCV400 |
| Year: | 2015 |
| Features: |
|---|
| Fanuc CNC Control |
| 12,000 RPM Direct Drive Spindle |
| BT-40 Spindle Taper |
| Side Mount Automatic Tool Changer |
| Linear Guideways |
| Rigid Tapping |
| Full Splash Enclosure |
| Flood Coolant System |
| Coolant Tank |
| Automatic Lubrication System |
| Hybrid Hydraulic System |
| 3nine ANNA Mist Collector |
| Mastertech MSOC-300CK Coolant Chiller |
| Work Light |
| Electrical Cabinet |
| Travels: |
|---|
| X-Axis Travel: 30.31″ |
| Y-Axis Travel: 16.93″ |
| Z-Axis Travel: 20.08″ |
| X & Y Rapid Traverse: 1,417 IPM |
| Z-Axis Rapid Traverse: 1,181 IPM |
| Cutting Feed Rate: 394 IPM |
| Spindle Nose to Table: 5.91″ – 25.98″ |
| Table: |
|---|
| Length: 36.22″ |
| Width: 18.11″ |
| Maximum Table Load: 1,102 lbs |
| Spindle: |
|---|
| Taper Size: BT-40 |
| Speed Range: 12,000 RPM |
| Spindle Motor: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30-Station Side Mount |
| Tool Selection: Random |
| Maximum Tool Diameter: 3.15″ |
| Maximum Tool Length: 11.81″ |
| Maximum Tool Weight: 17.6 lbs |
| General: |
|---|
| Air Required: 90 PSI |
| Power: 220V / 440V, 3-Phase |
| Machine Dimensions (Approx.): 108″ × 93″ × 110″ |
| Machine Weight (Approx.): 12,100 lbs |
