*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | SMEC |
| Model: | SL20/500 |
| Year: | 2018 |
| Equipped With: |
|---|
| Fanuc Series Oi-TF CNC Control |
| 10″ Hydraulic Chuck |
| 12-Station Servo Turret |
| Hydraulic Tailstock |
| Chip Conveyor |
| Parts Catcher |
| Tool Presetter |

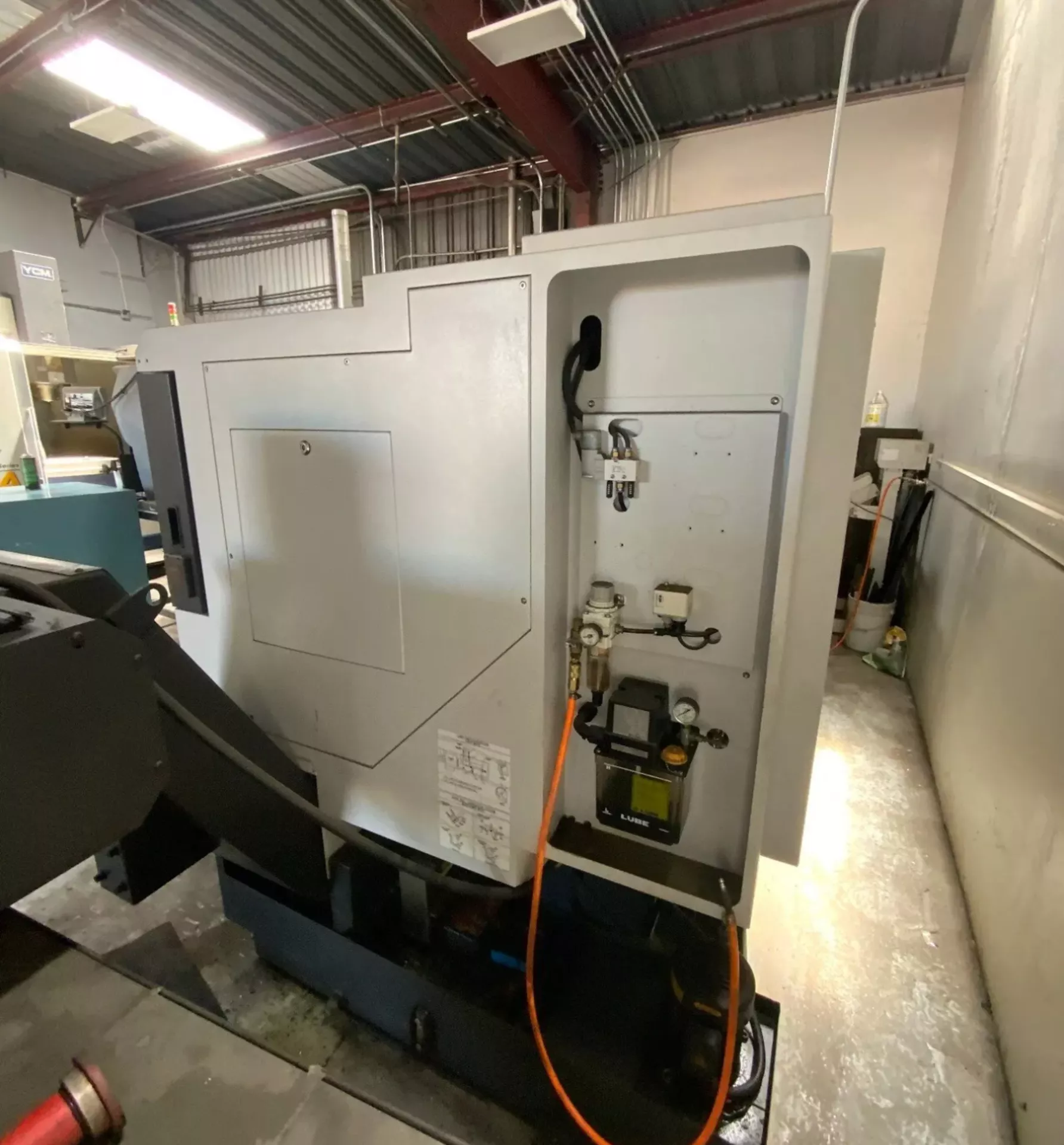

| Automatic Lubrication System |
| Coolant System |
| Fully Enclosed Splash Guard |
| Foot Pedal |
| Capacity: |
|---|
| Maximum Turning Diameter: 13.78″ |
| Maximum Turning Length: 20.67″ |
| Swing Over Bed: 25.59″ |
| Swing Over Saddle: 17.72″ |
| Bar Capacity: 2.60″ |
| Travels: |
|---|
| X-Axis Travel: 8.27″ |
| Z-Axis Travel: 22.44″ |
| Rapid Traverse X-Axis: 1,181 IPM |
| Rapid Traverse Z-Axis: 1,417 IPM |
| Spindle: |
|---|
| Spindle Speed: 4,500 RPM |
| Spindle Nose: A2-6 |
| Spindle Bore: 3.03″ |
| Bar Capacity: 2.60″ |
| Main Motor: 20 HP |
| Spindle Taper: MT #6 |
| Turret: |
|---|
| Turret Stations: 12 |
| Turret Type: Servo Indexing |
| Tailstock: |
|---|
| Tailstock Type: Hydraulic |
| Quill Diameter: 2.95″ |
| Quill Travel: 3.94″ |
| Quill Taper: MT #4 |
| General: |
|---|

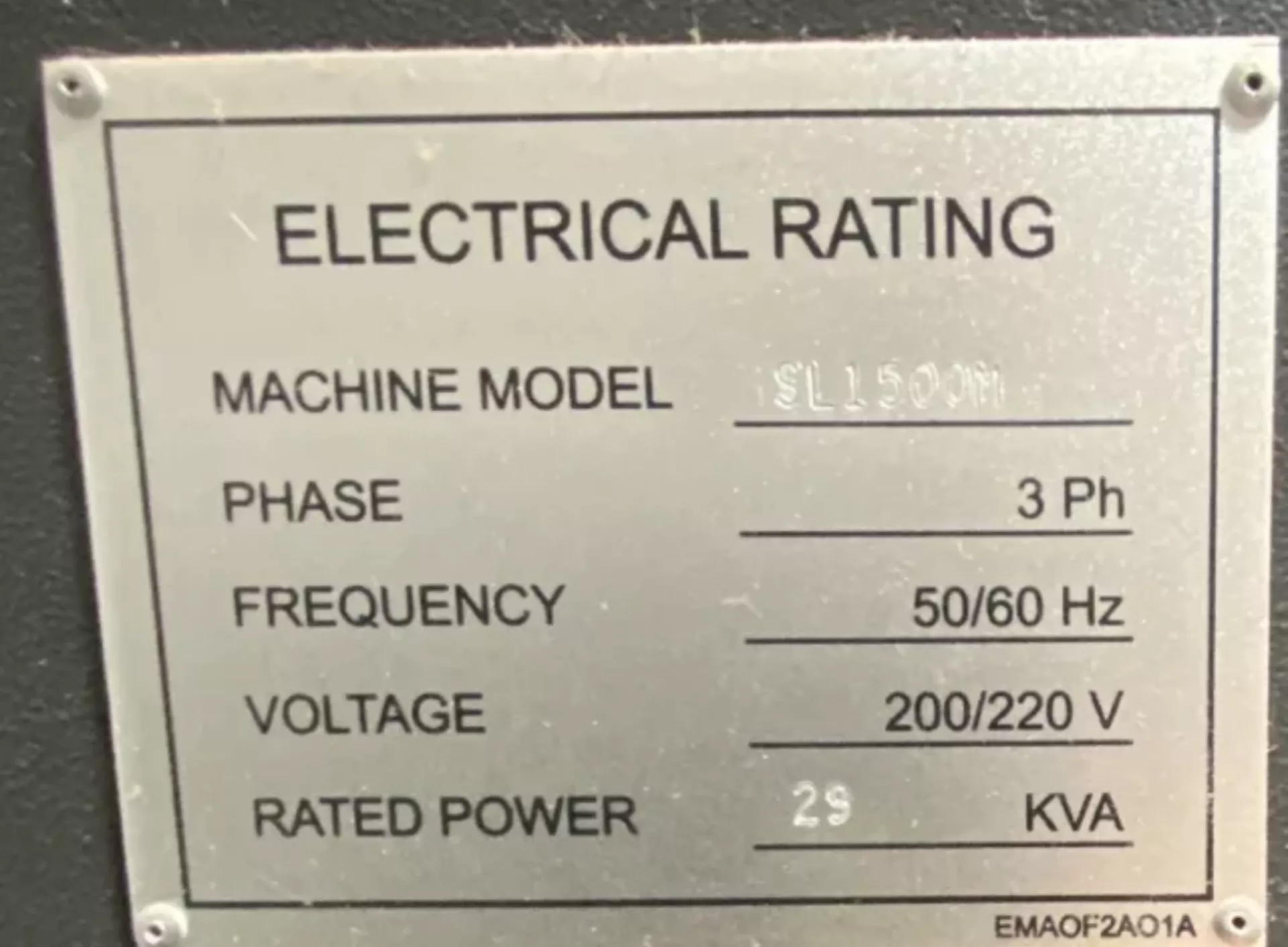

| Power: 200-220v/ 3 Phase/ 50/60 Hz |
| Machine Dimensions (Approx.): 115″ × 67″ × 71″ |
| Machine Weight (Approx.): 8,800 lbs. |
