*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Samsung |
| Model: | SL 1500M |
| Year: | 2016 |
| Machine Type: | CNC Lathe / Turning Center |
| Control: | Fanuc Series 0i-TF CNC Control |
| Equipped With: |
|---|
| Fanuc Series 0i-TF CNC Control Panel |
| Live Tooling (M-Function) Capability |

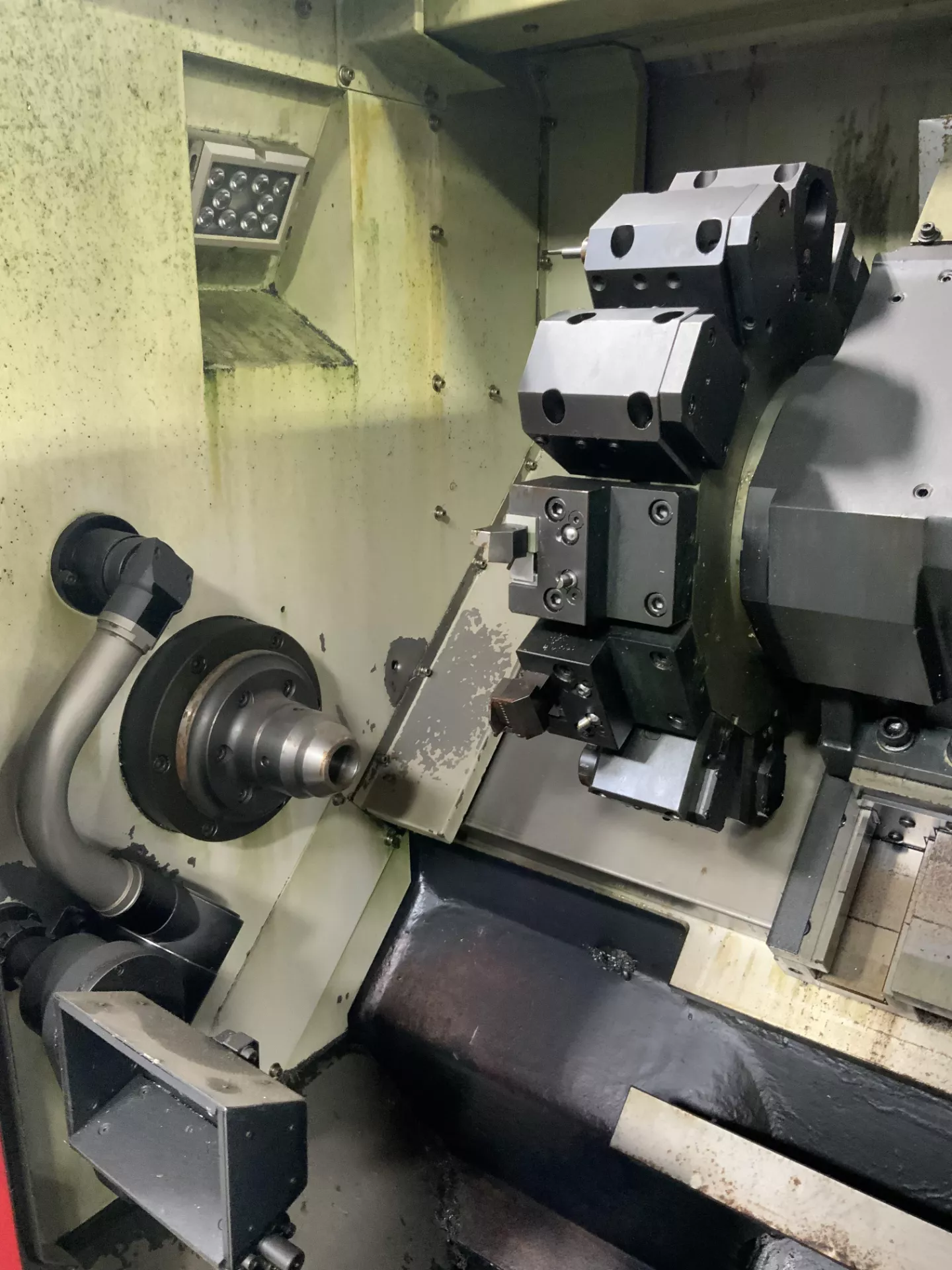

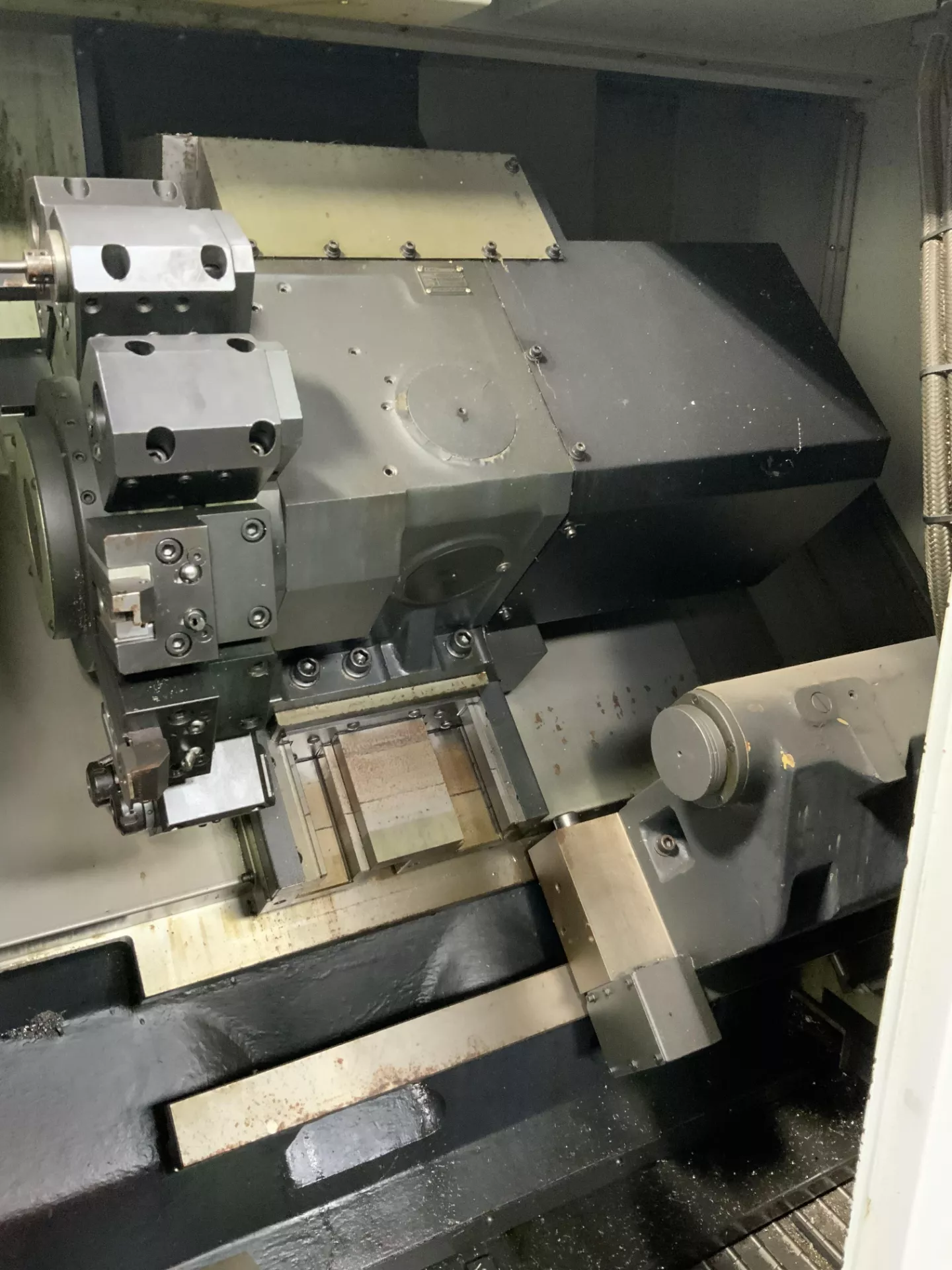

| 12-Station Heavy Duty Turret Assembly |
| Tool Setter / Automatic Tool Presetter Arm |
| Hydraulic Tailstock with Programmable Quill |
| 3-Jaw Hydraulic Chuck Unit |
| Hinge Type Side-Discharge Chip Conveyor |
| Parts Catcher Unit |
| Automatic Centralized Way Lubrication System |
| Fully Enclosed Guarding with Clear Front Door Window |
| High Pressure Flood Coolant System with Pump & Tank |
| Capacity: |
|---|
| Swing Over Bed: 21.7″ |
| Swing Over Cross Slide: 13.8″ |
| Maximum Machining Diameter: 11.8″ |
| Maximum Machining Length: 20.9″ |
| Chuck Size: 6″ |
| Travels: |
|---|
| X-Axis Travel: 6.3″ |
| Z-Axis Travel: 21.7″ |
| Spindle: |
|---|
| Spindle Speed: 6,000 RPM |
| Spindle Nose: A2-5 |
| Spindle Bore: 2.4″ |
| Bar Capacity: 1.77″ |
| Spindle Motor: 15 HP |
| Turret: |
|---|
| Tool Capacity: 12-Station Turret (Live Milling) |
| Live Tool Speed: 5,000 RPM |
| Live Tool Motor: 5 HP |
| Tailstock: |
|---|
| Tailstock Travel: 21.7″ |
| Quill Diameter: 2.56″ |
| Quill Taper: MT #4 |
| General: |
|---|
| Air Required: 85 psi |
| Power: 220v / 60 Hz / 3-Phase / 25 kVA |
| Overall Dimensions: 114″ L x 65″ W x 67″ High Approx. |
| Weight: 7,300 lbs. Approx. |
