*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Samsung |
| Model: | SL45/2200BB |
| Year: | 2012 |
| Machine Type: | CNC Turning Center |

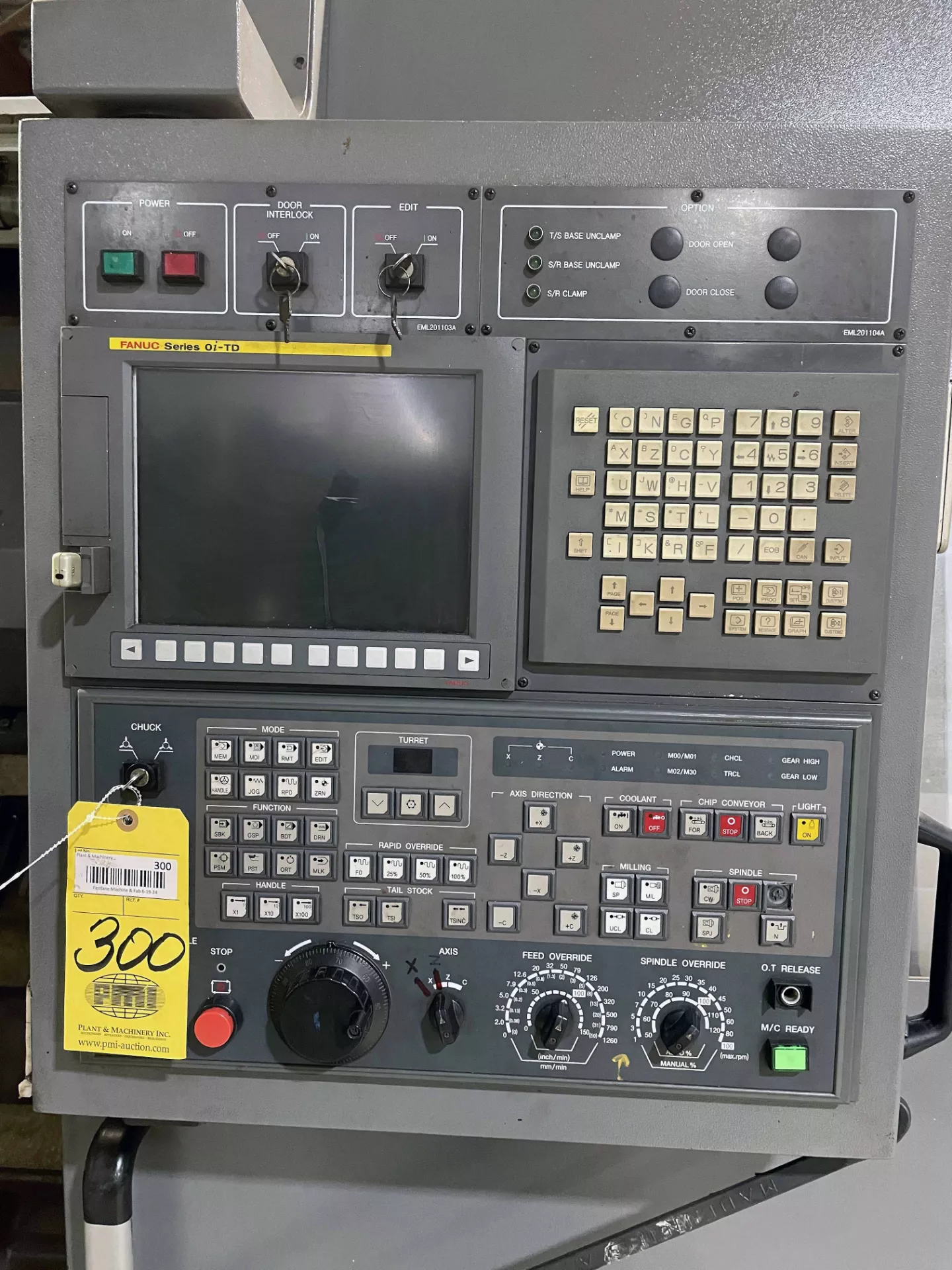

| Control: | Fanuc Oi-TB CNC Control |
| Equipped With: |
|---|
| Fanuc Oi-TB CNC Control |

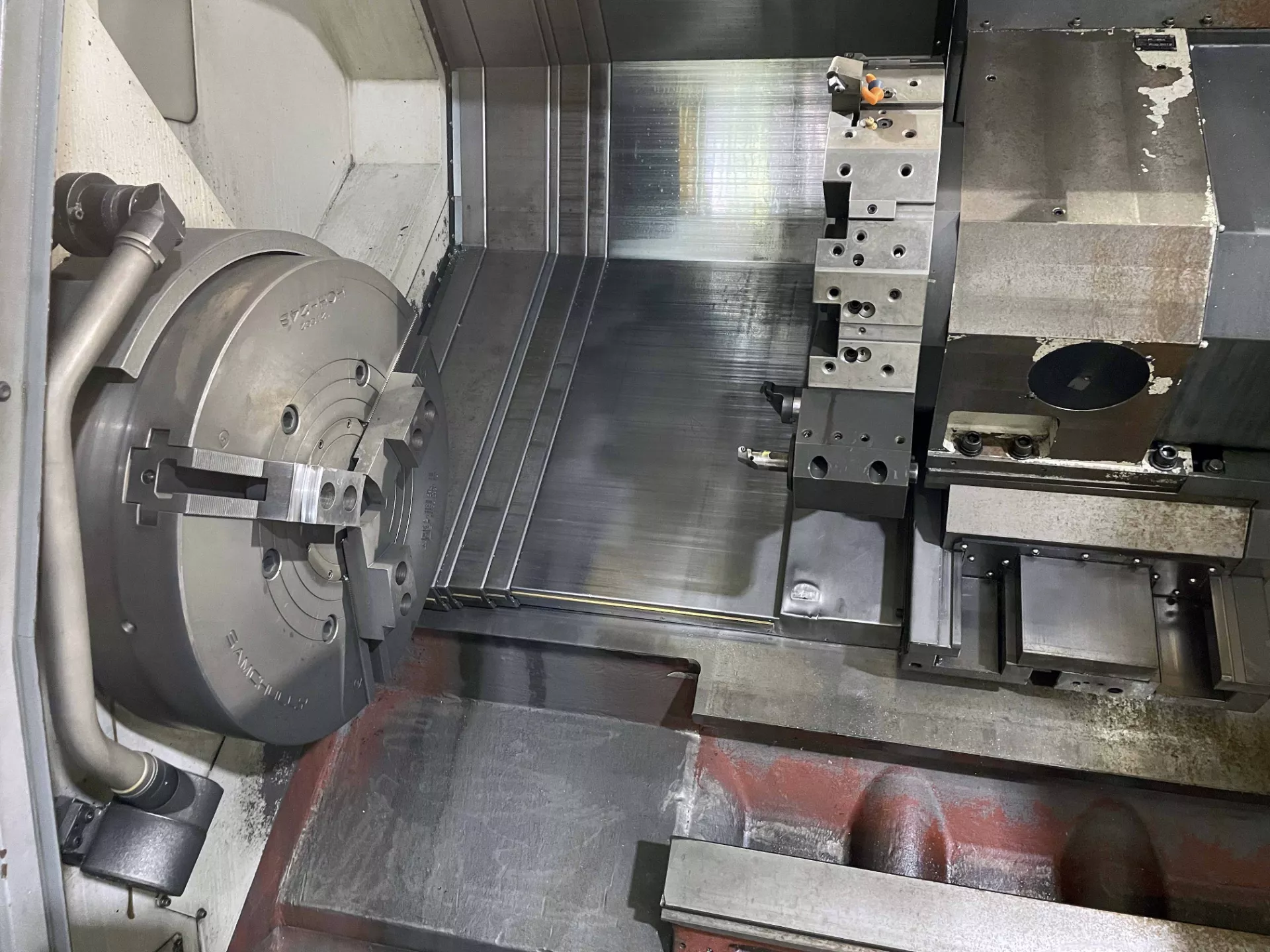

| 24″ Samchully HCH-24B Power Chuck |
| 12 Position Turret |
| Hydraulic Steady Rest |
| Programmable Tailstock |
| 88.78″ Between Centers |
| Chip Conveyor |
| Coolant System |
| Full Enclosure |
| Hydraulic Chuck |
| Manual Pulse Generator |
| Foot Switches |
| Automatic Lubrication System |
| Capacity: |
|---|
| Max Swing Over Bed: 31.5″ |
| Max Turning Diameter: 27.17″ |
| Max Turning Length: 88.78″ |
| Max Bar Capacity: 4.63″ |
| Chuck Size: 24″ |
| Travels: |
|---|
| X Axis Travel : Approx. 15.0″ |
| Z Axis Travel : Approx. 90.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis : Approx. 472 IPM |
| Rapid Traverse Z Axis : Approx. 787 IPM |
| Spindle: |
|---|
| Spindle Bore : 4.63″ |
| Spindle Speed : 1,800 RPM |
| Spindle Motor : 50 HP |
| Turret: |
|---|
| Turret Capacity : 12 Stations |
| Turret Type : Automatic Indexing |
| Tailstock: |
|---|
| Tailstock Type : Programmable Hydraulic |
| Steady Rest : Hydraulic |
| General: |
|---|

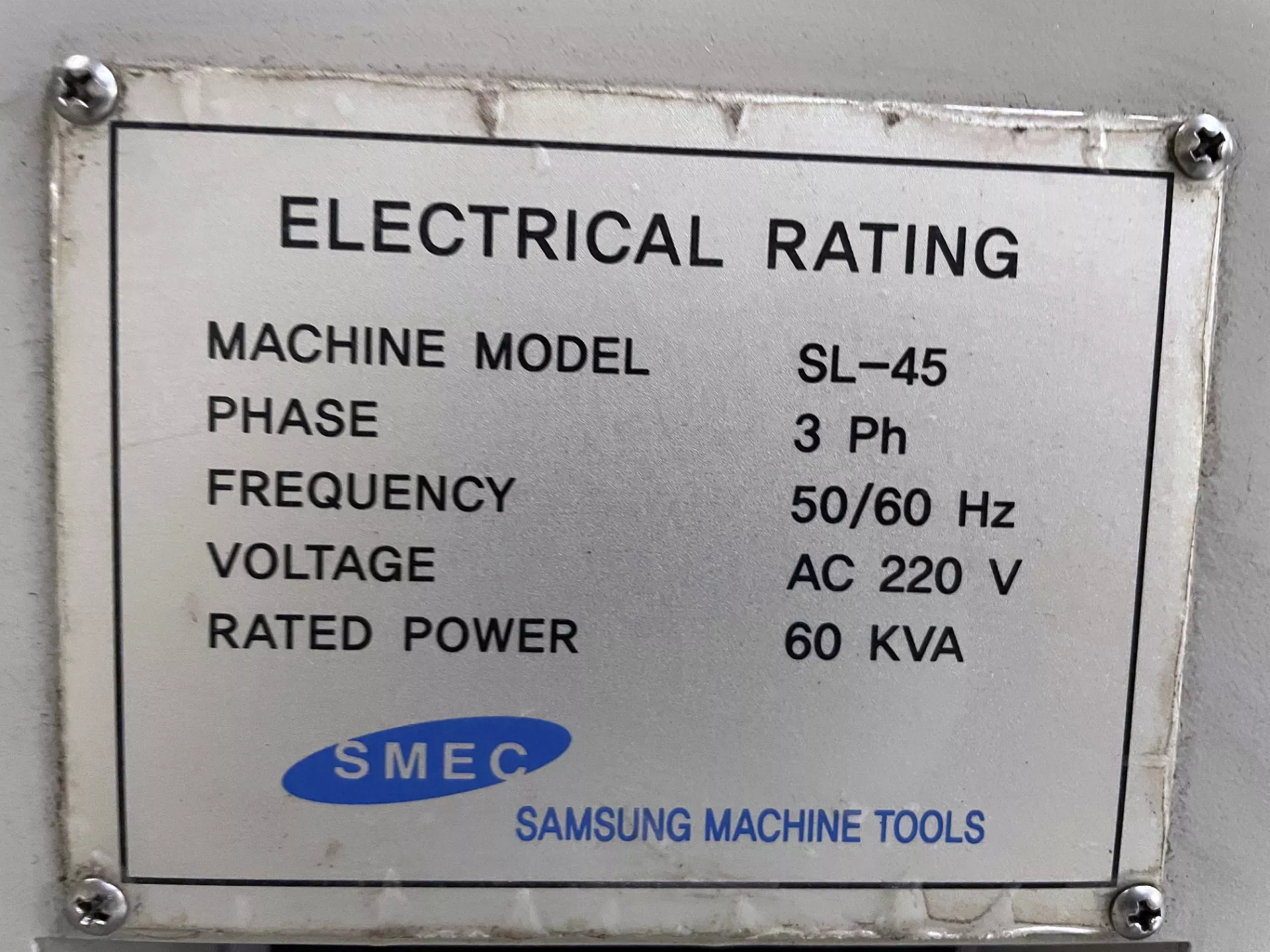

| Power Source : AC 220V / 3-Phase / 50-60 Hz |
| Power Requirement : 60 KVA |
| Machine Dimensions : Approx. 260″ x 95″ x 105″ High |
| Machine Weight : Approx. 32,000 lbs |
