*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

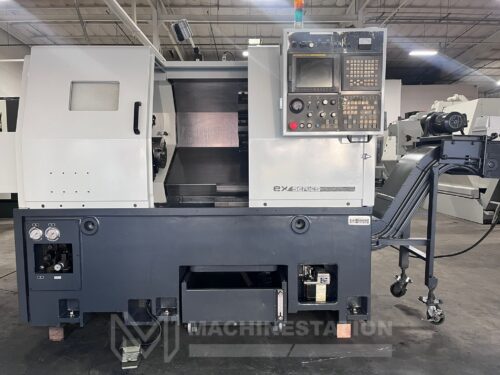

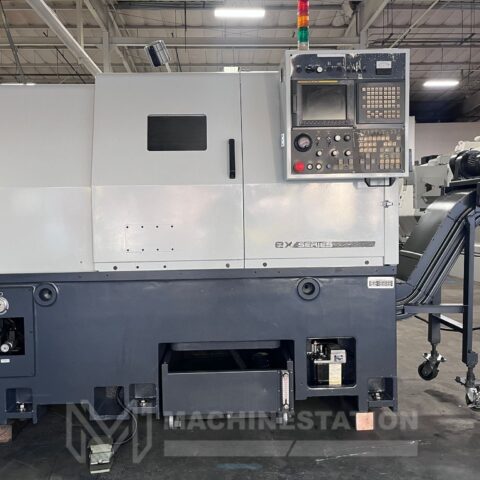

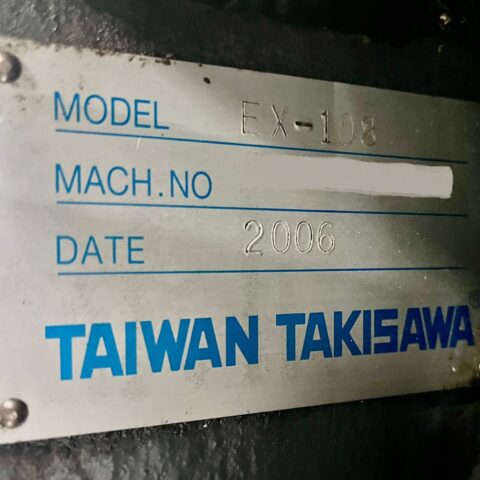

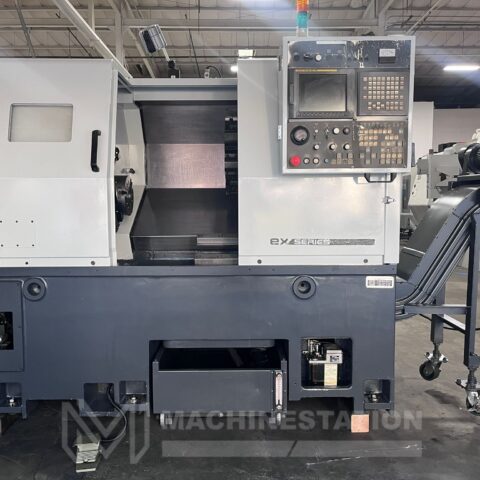

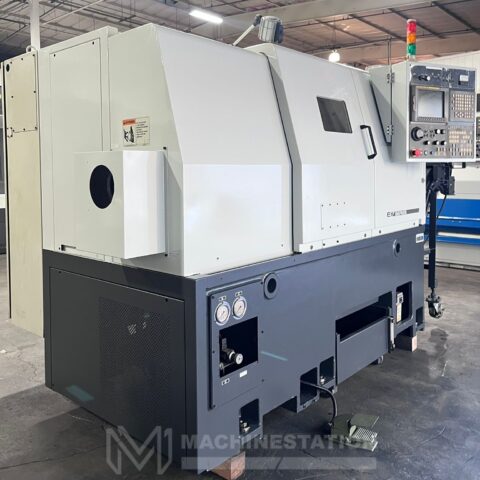

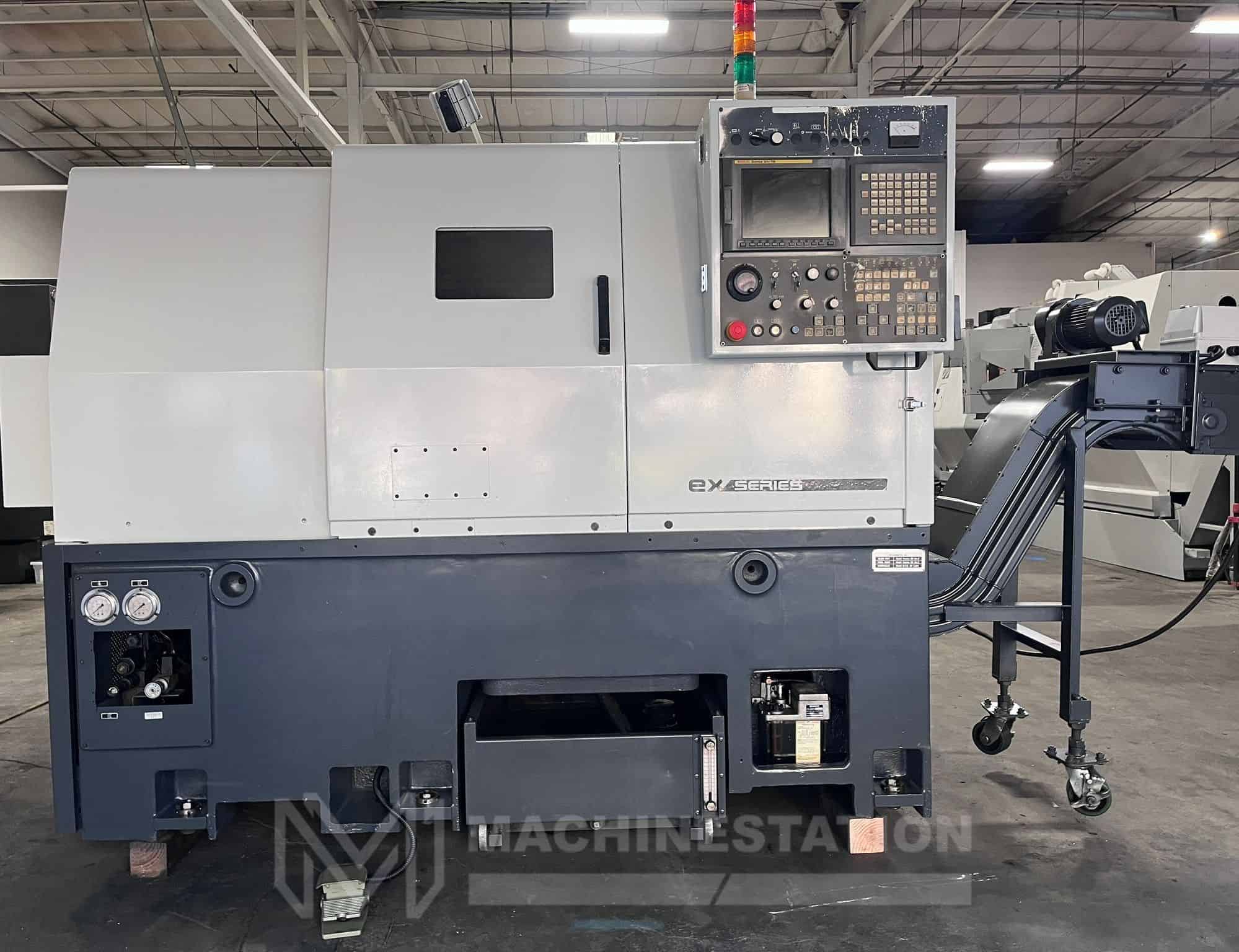

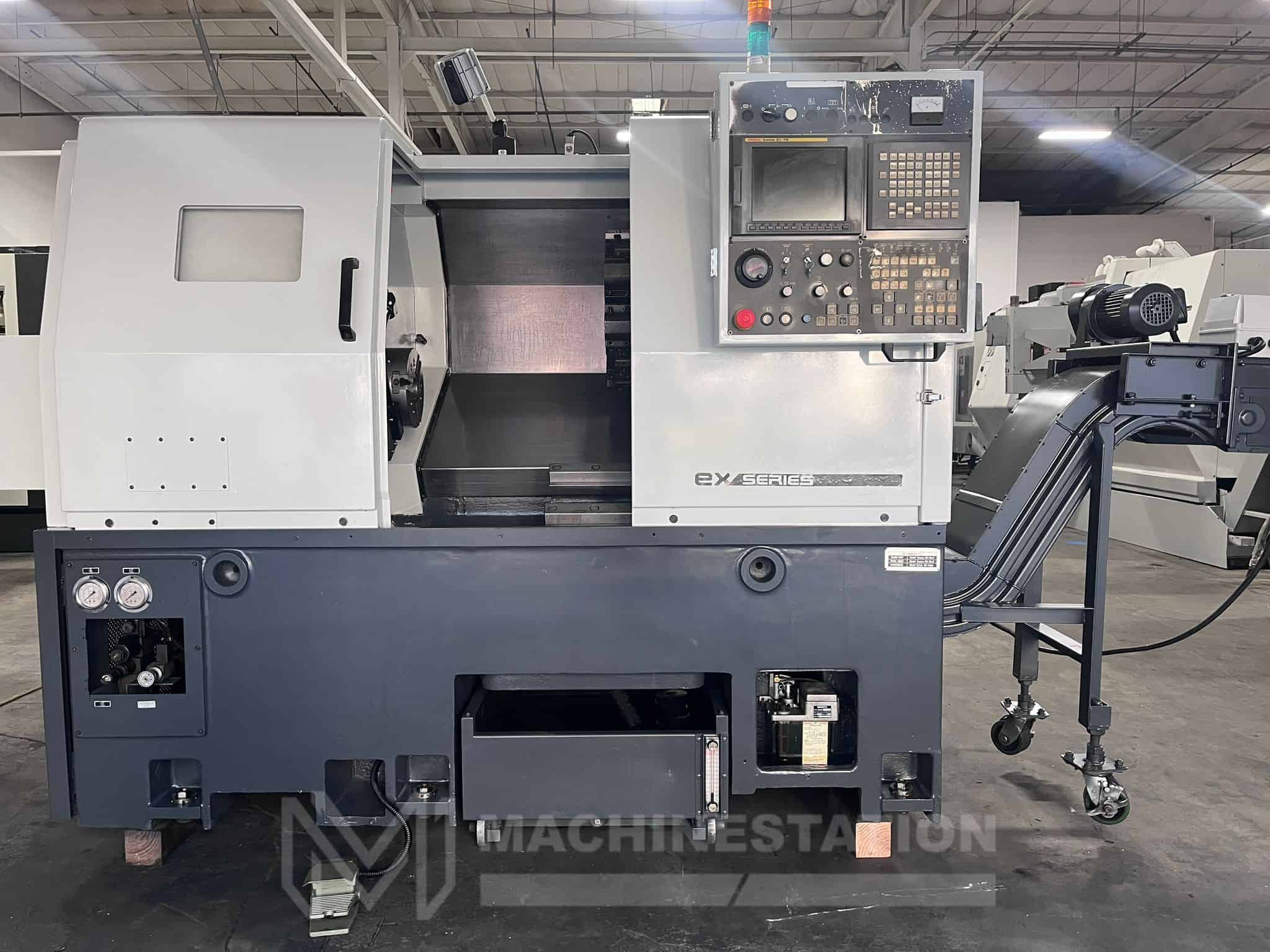

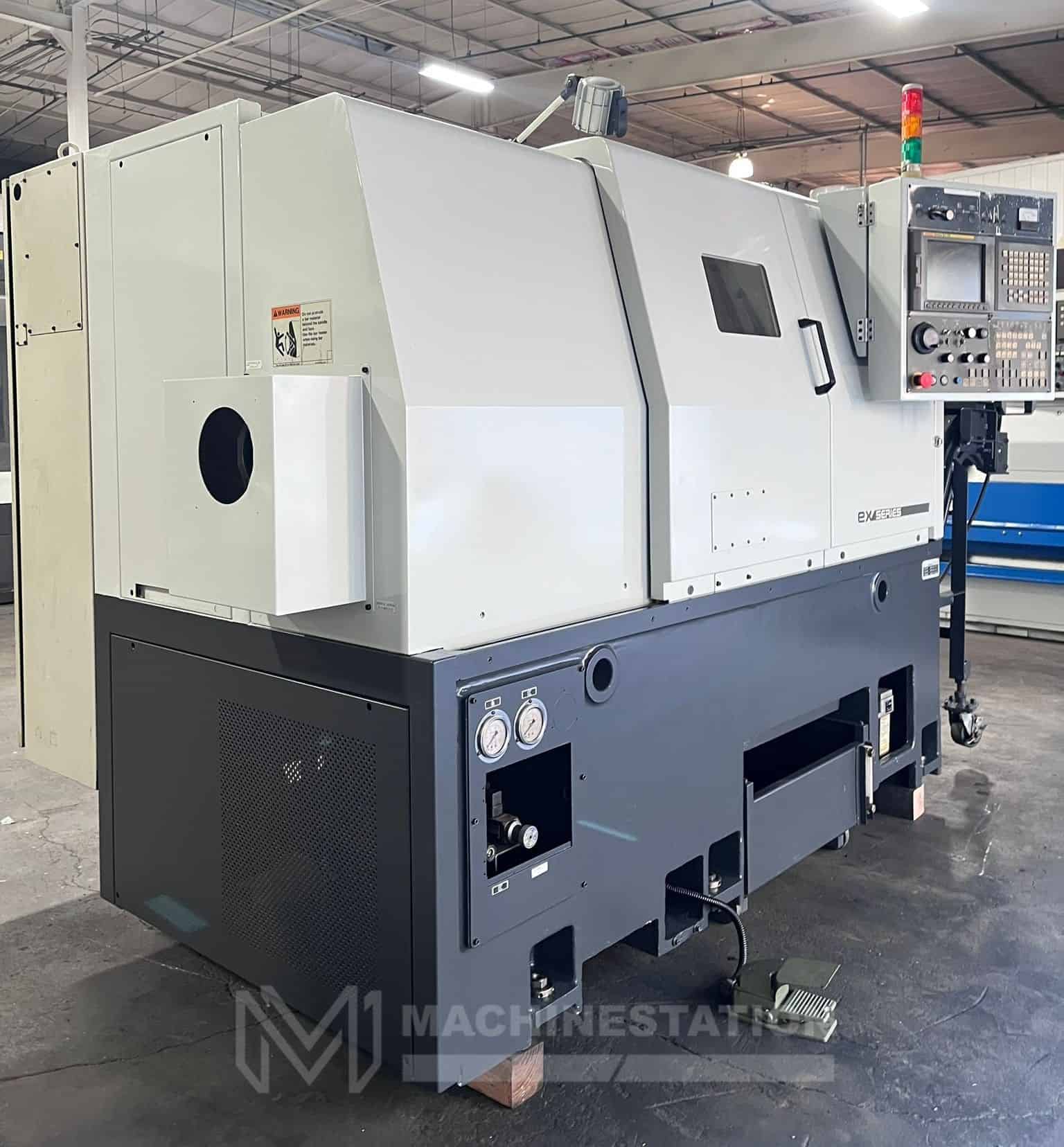

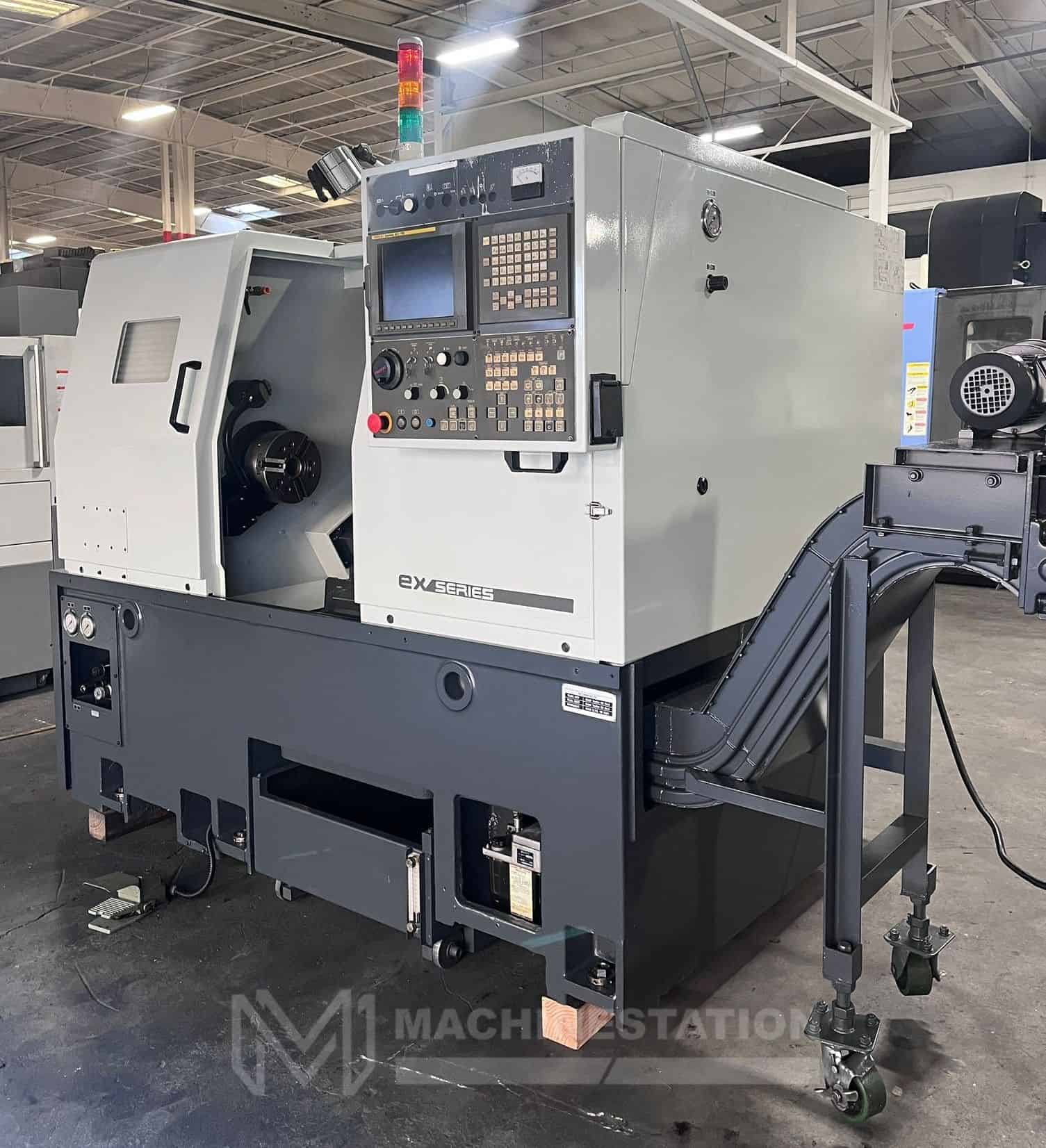

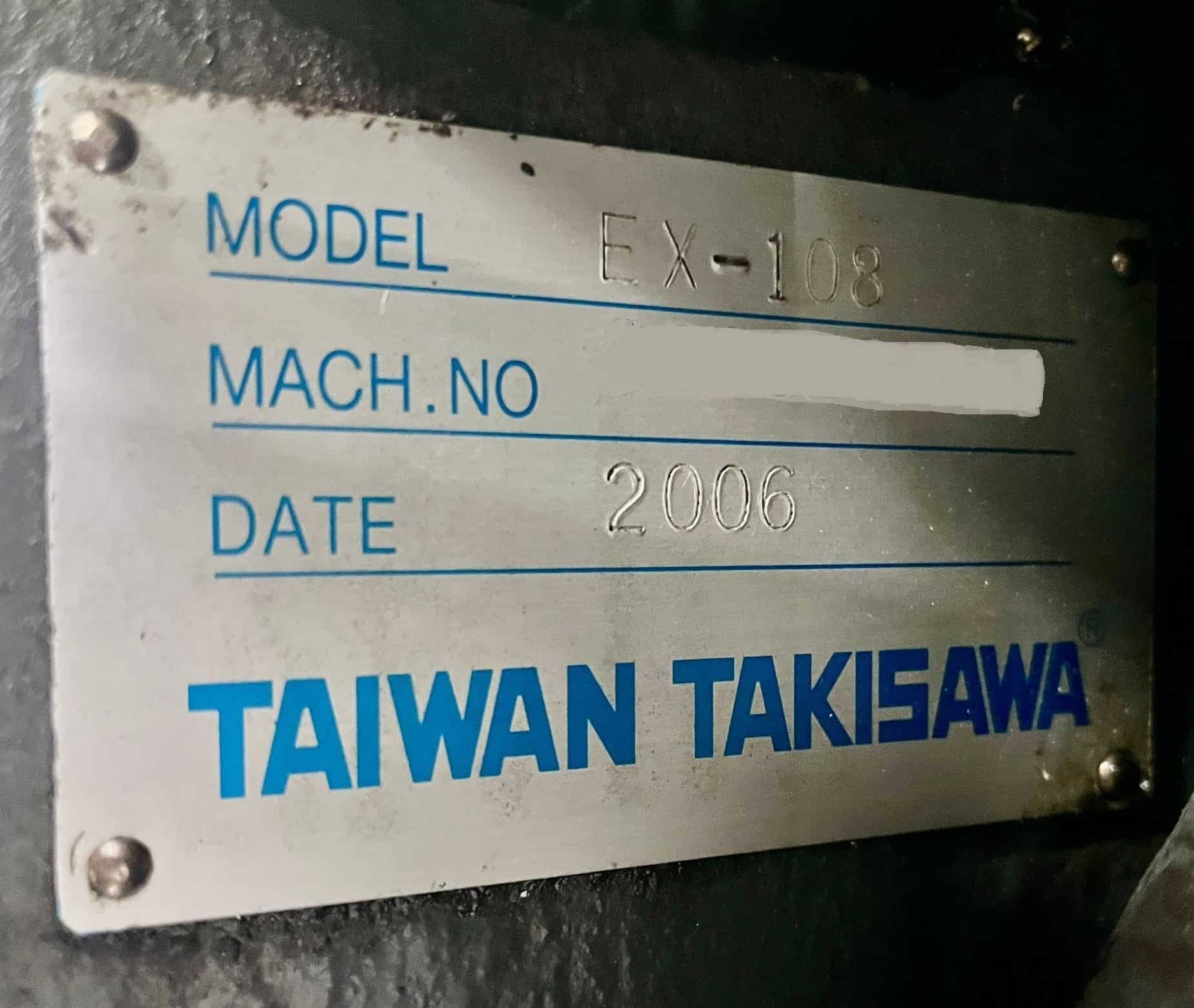

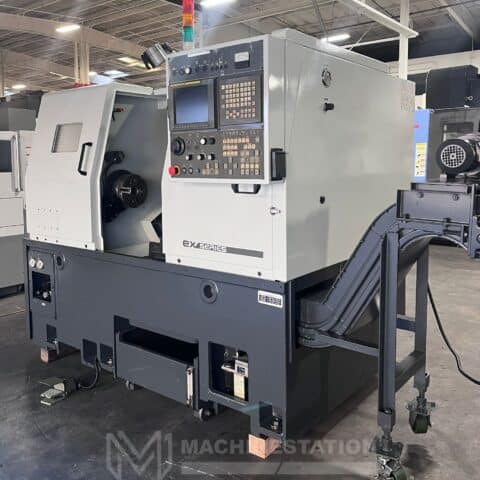

| Make: | Takisawa |
| Model: | EX-108 |
| Year: | 2006 |
| Condition: | Used – Good |
| Equipped With: |
|---|

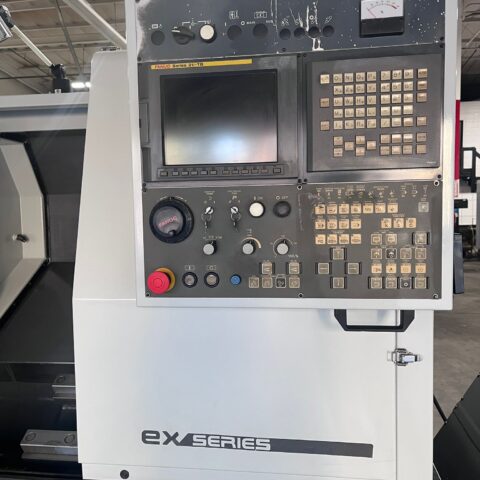

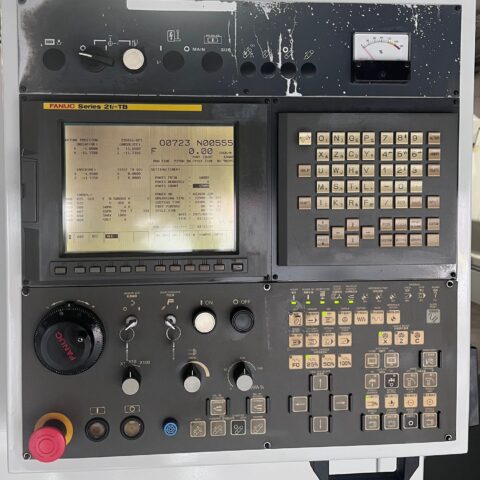

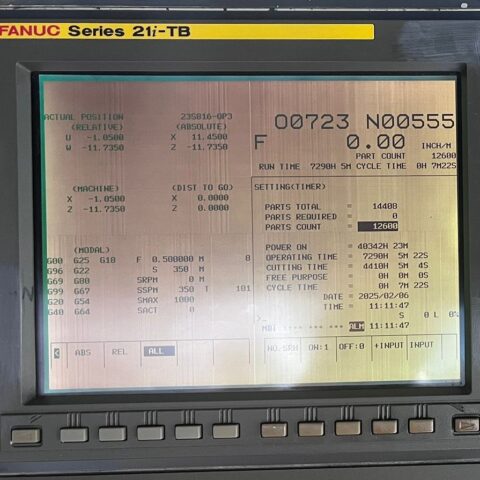

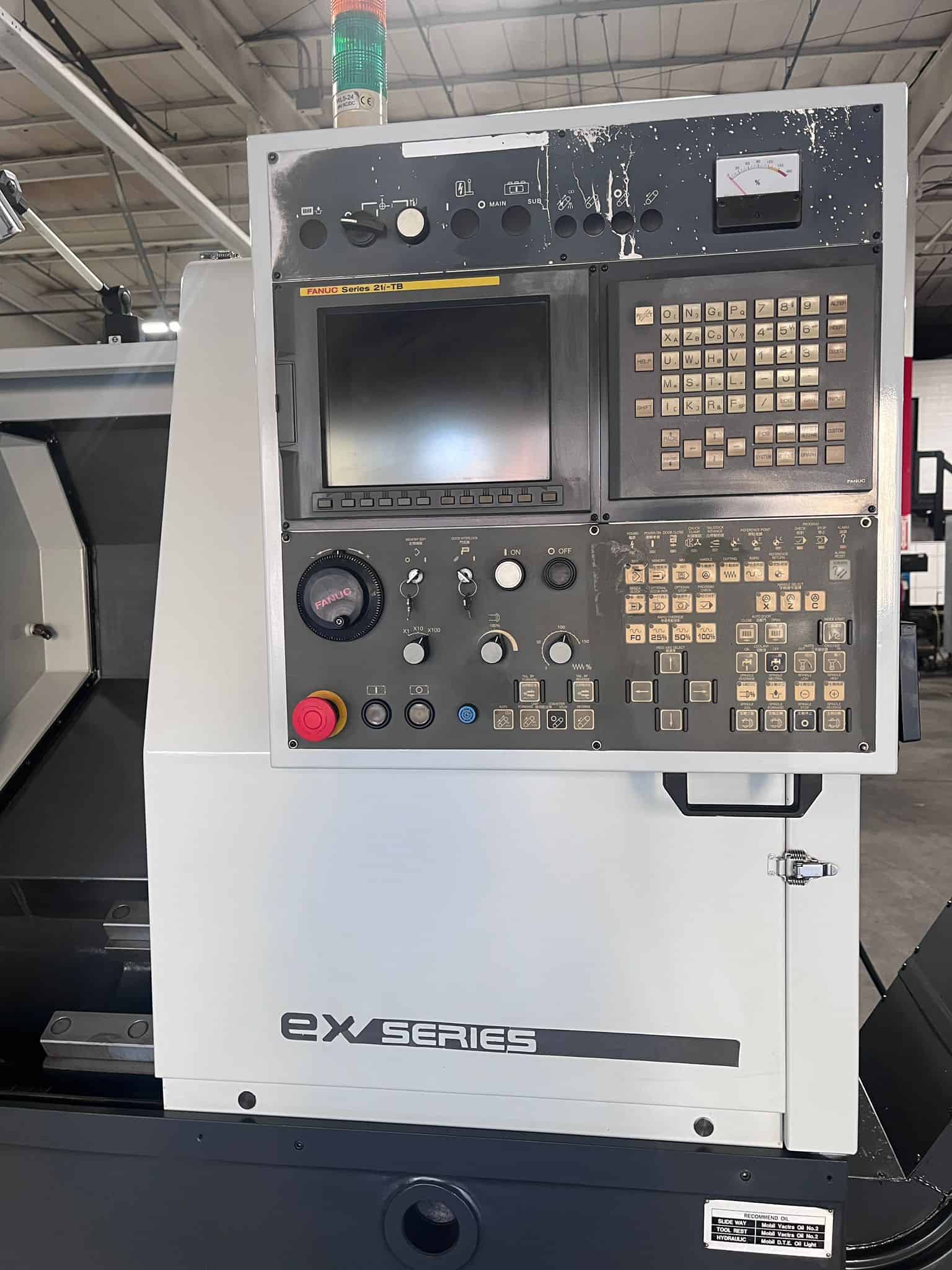

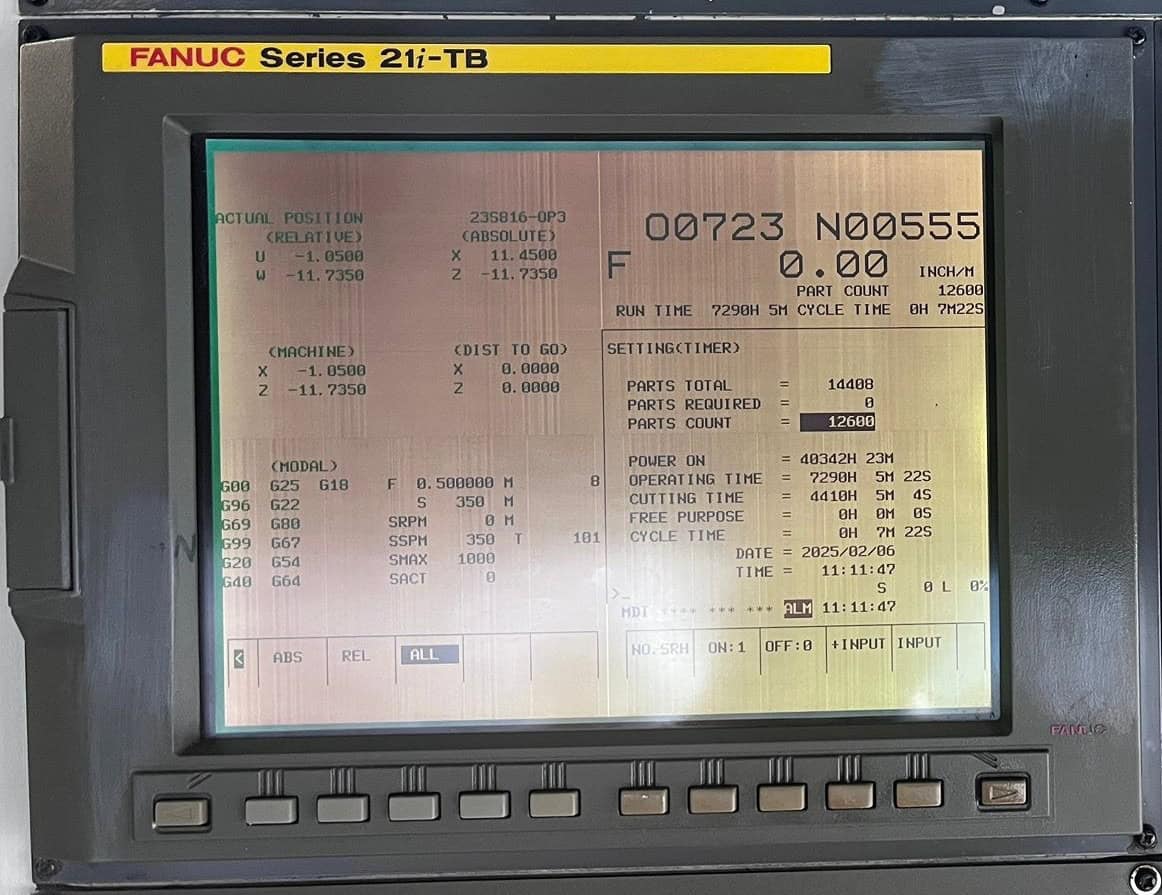

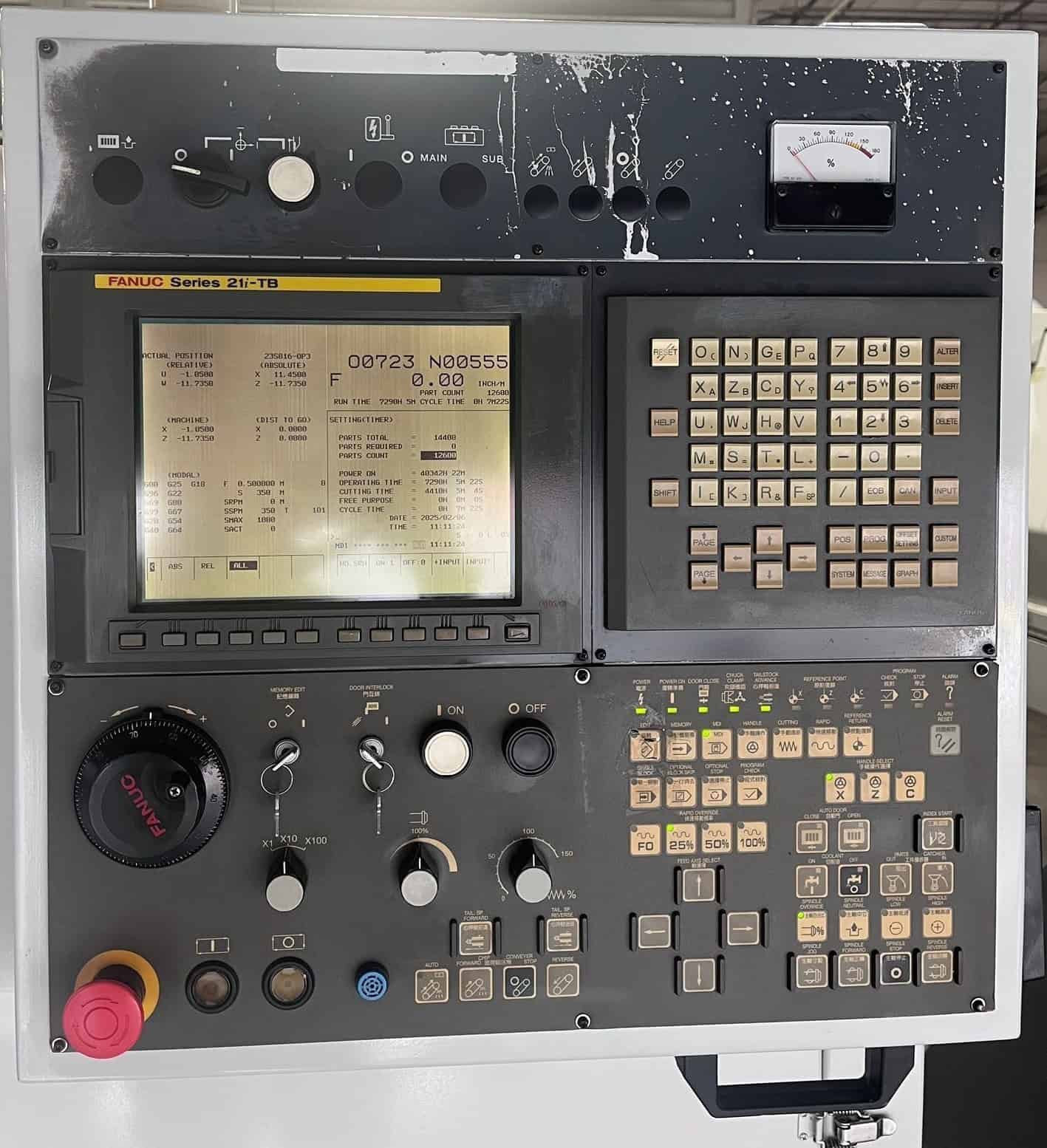

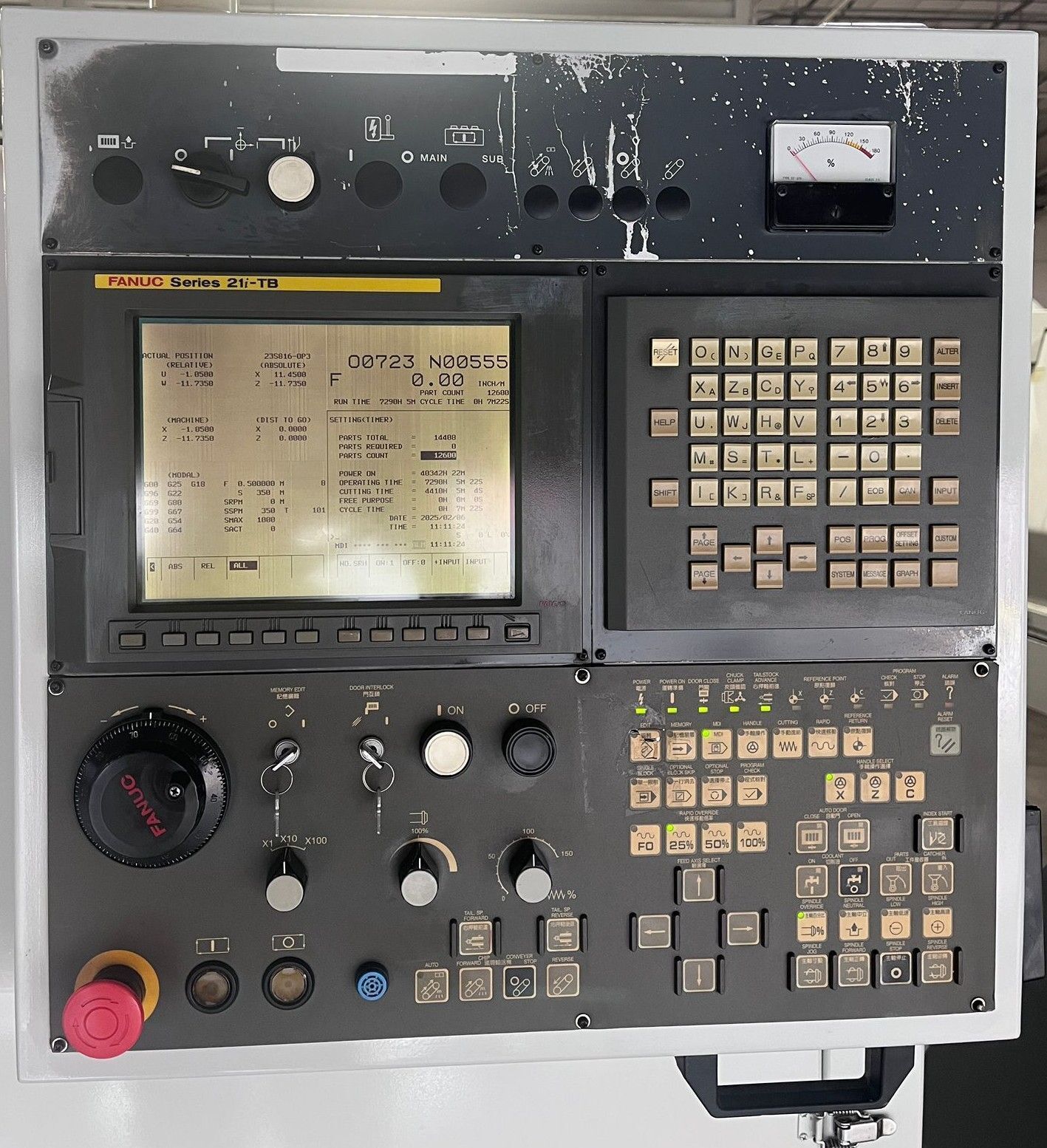

| Fanuc 21i-TB CNC Control |

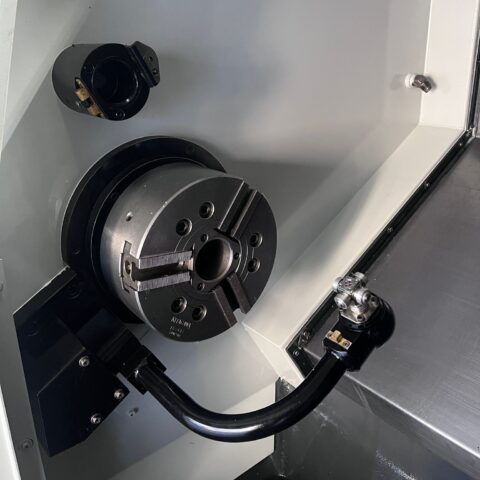

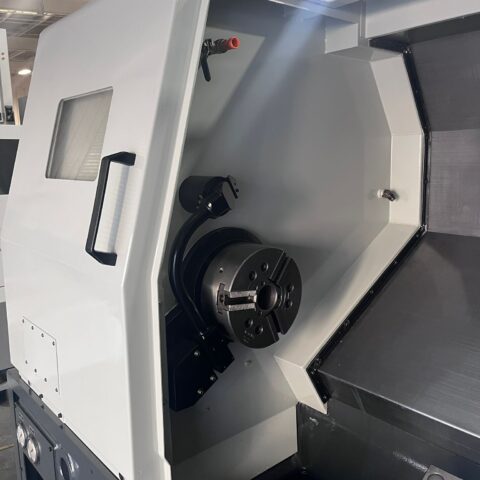

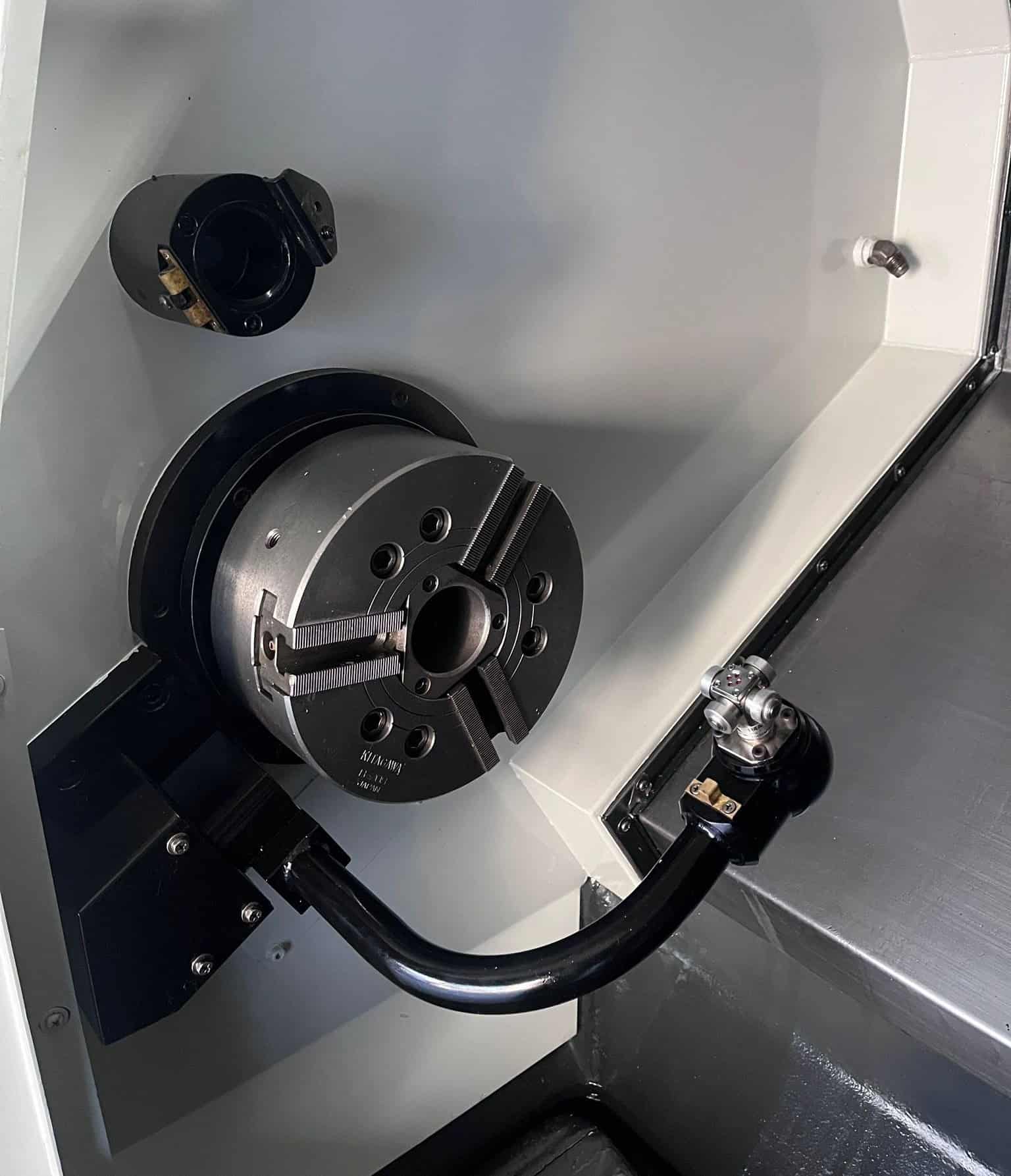

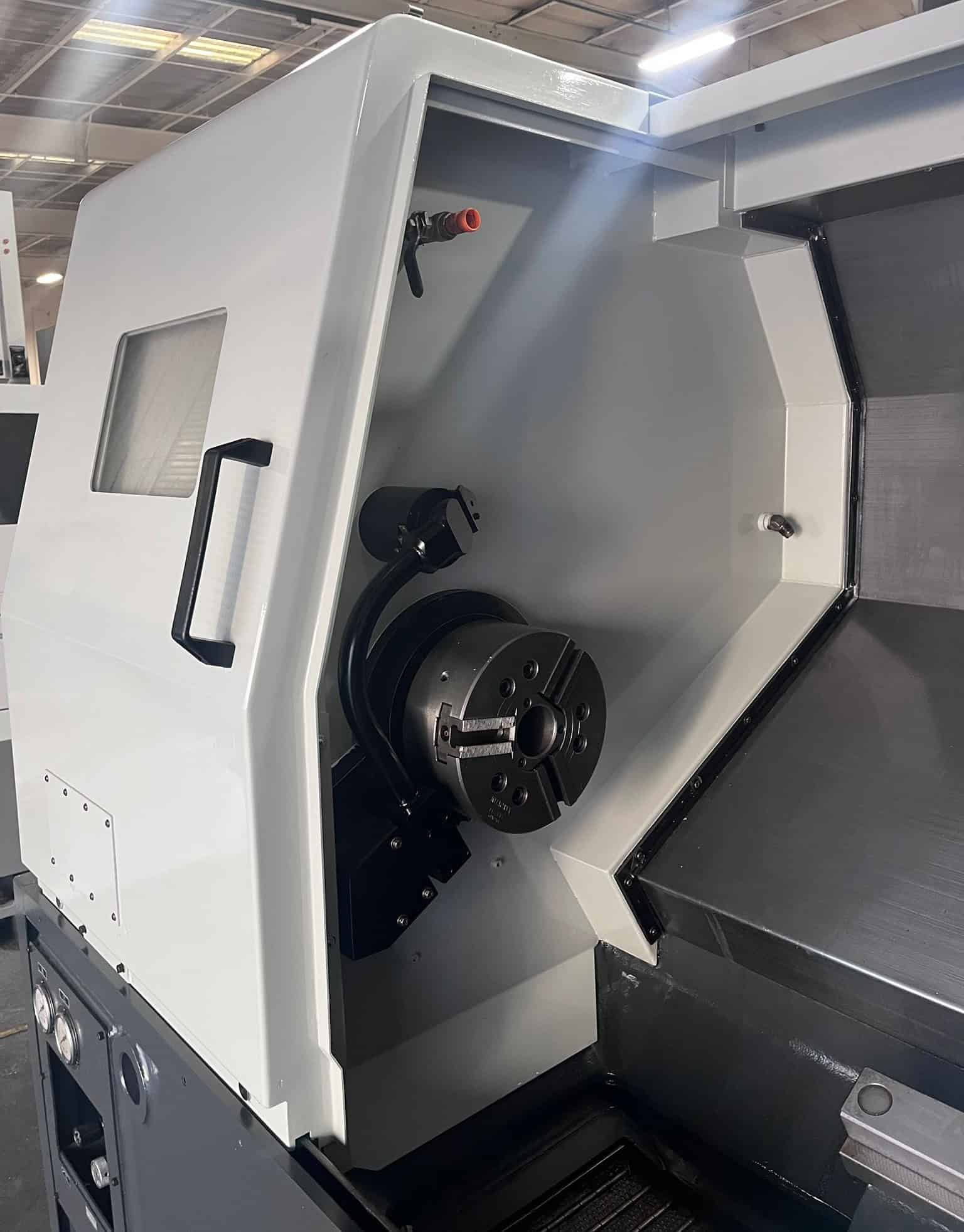

| 8” 3-Jaw Hydraulic Chuck |

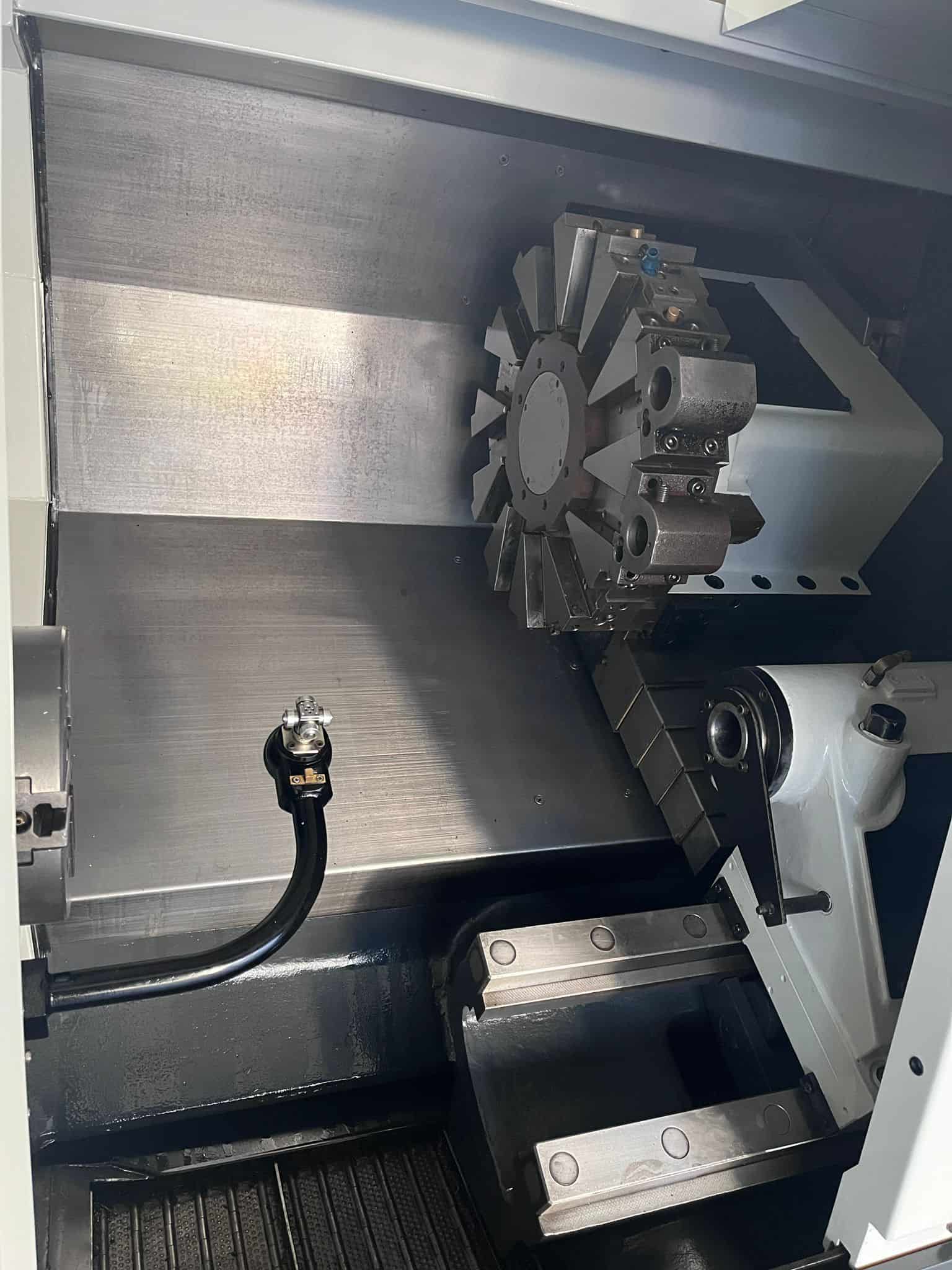

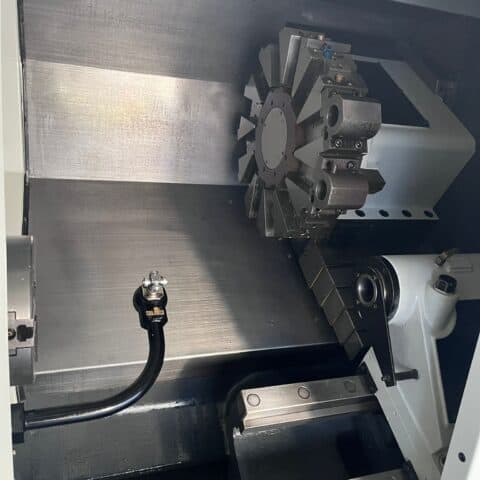

| 12-Station Automatic Turret |
| Tool Presetter |
| Tailstock |
| PCMCIA Card Interface |
| Rigid Tapping |

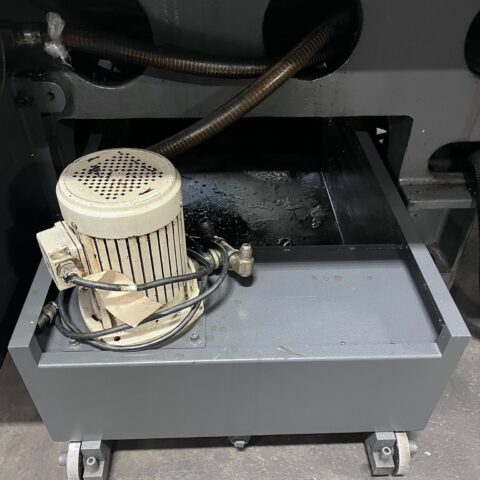

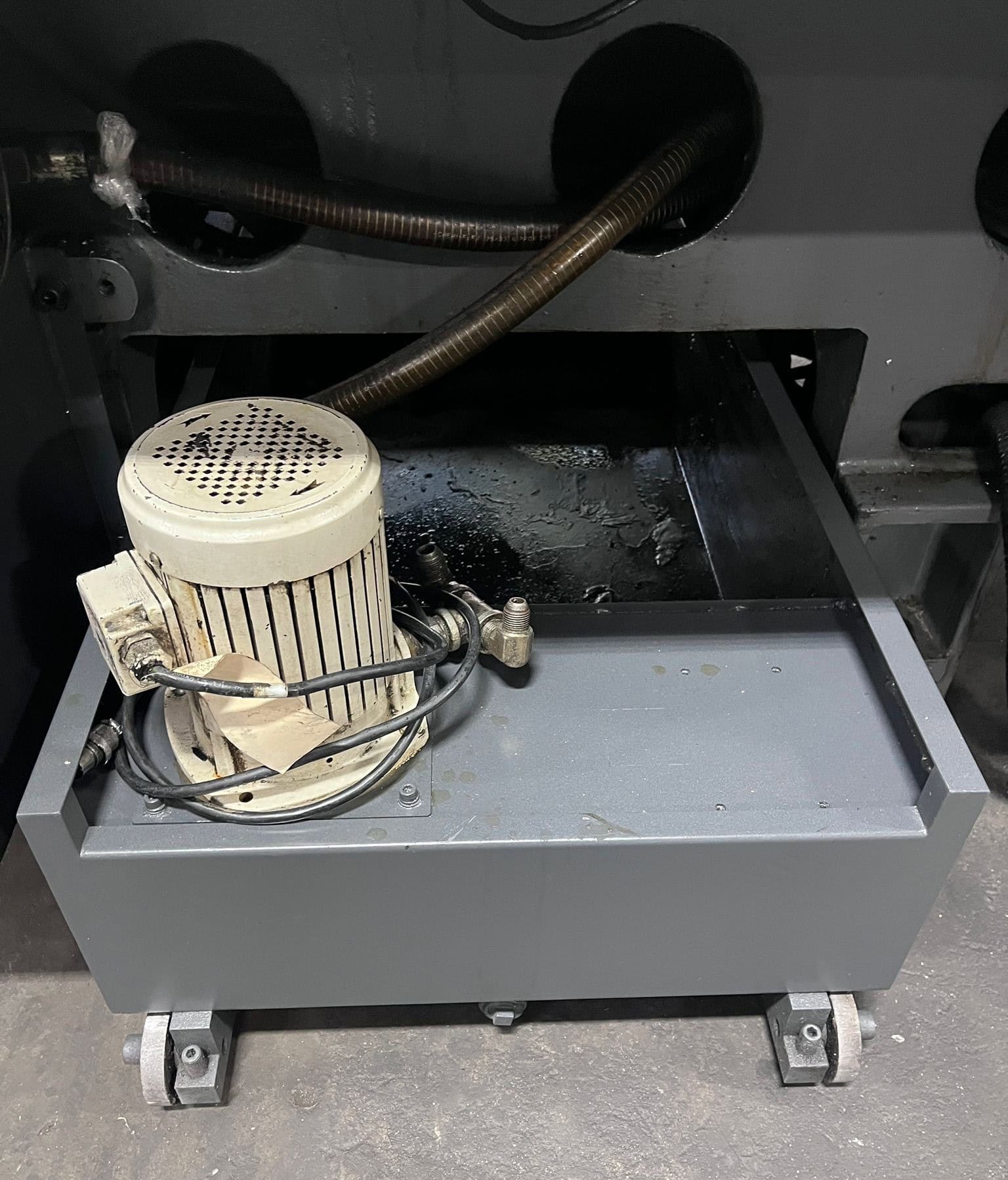

| Coolant System |
| Automatic Lubrication system |
| Foot Switch |

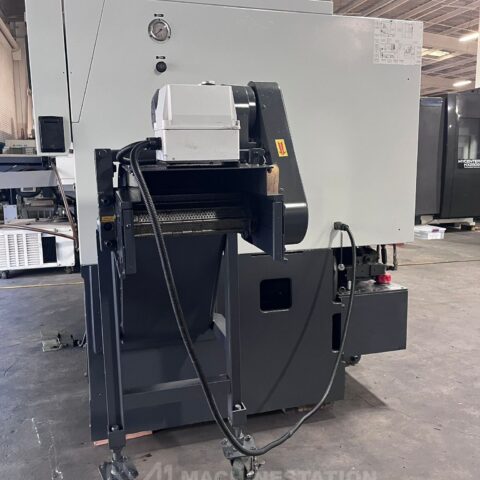

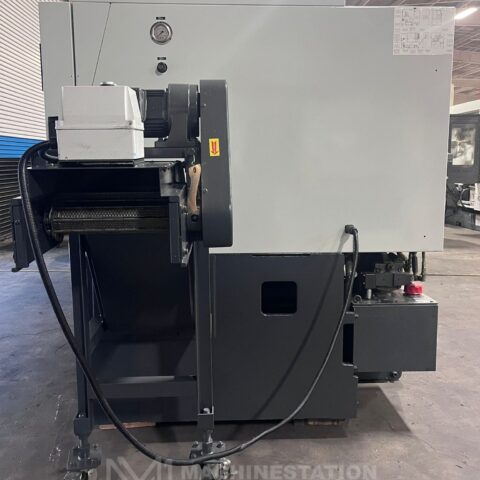

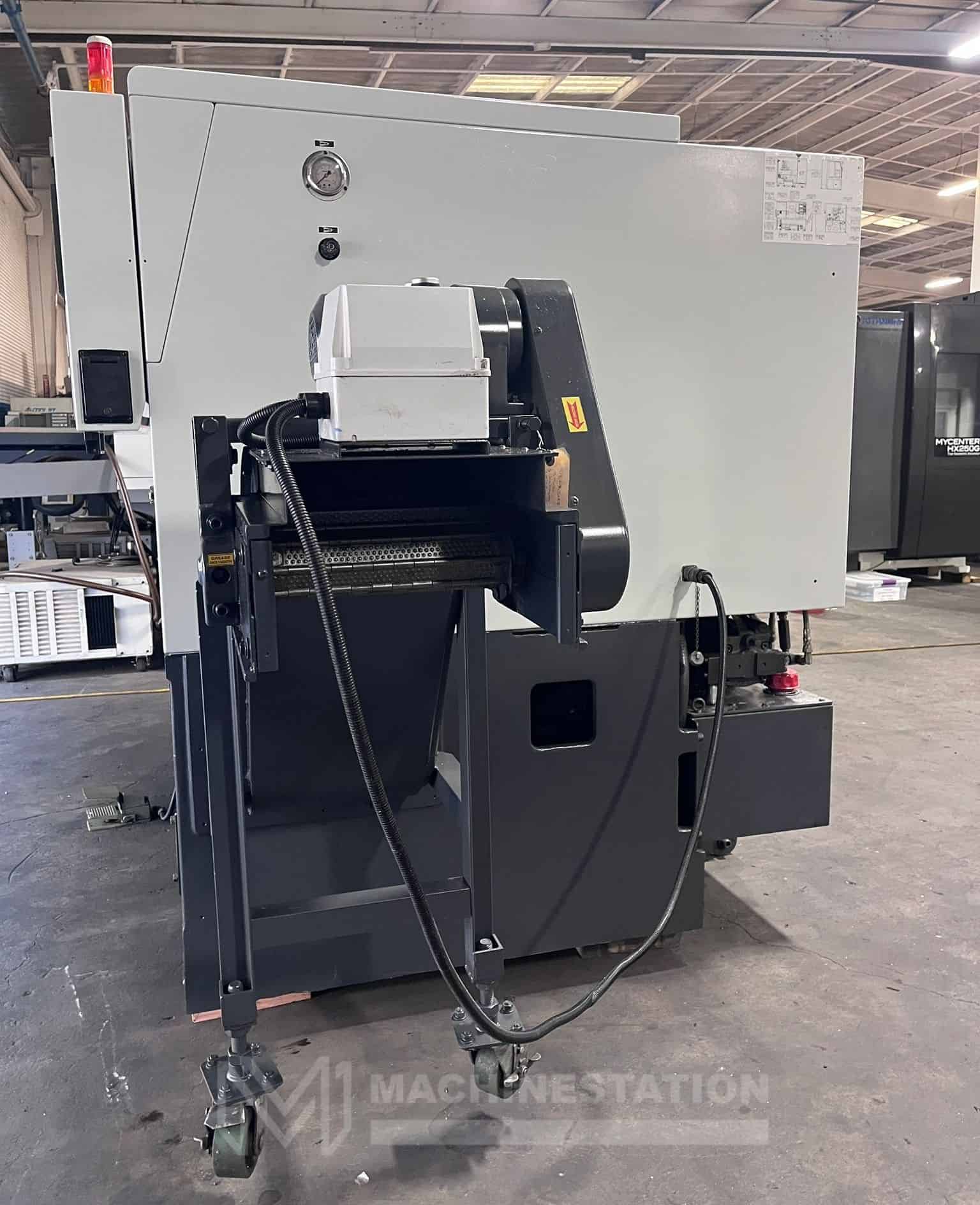

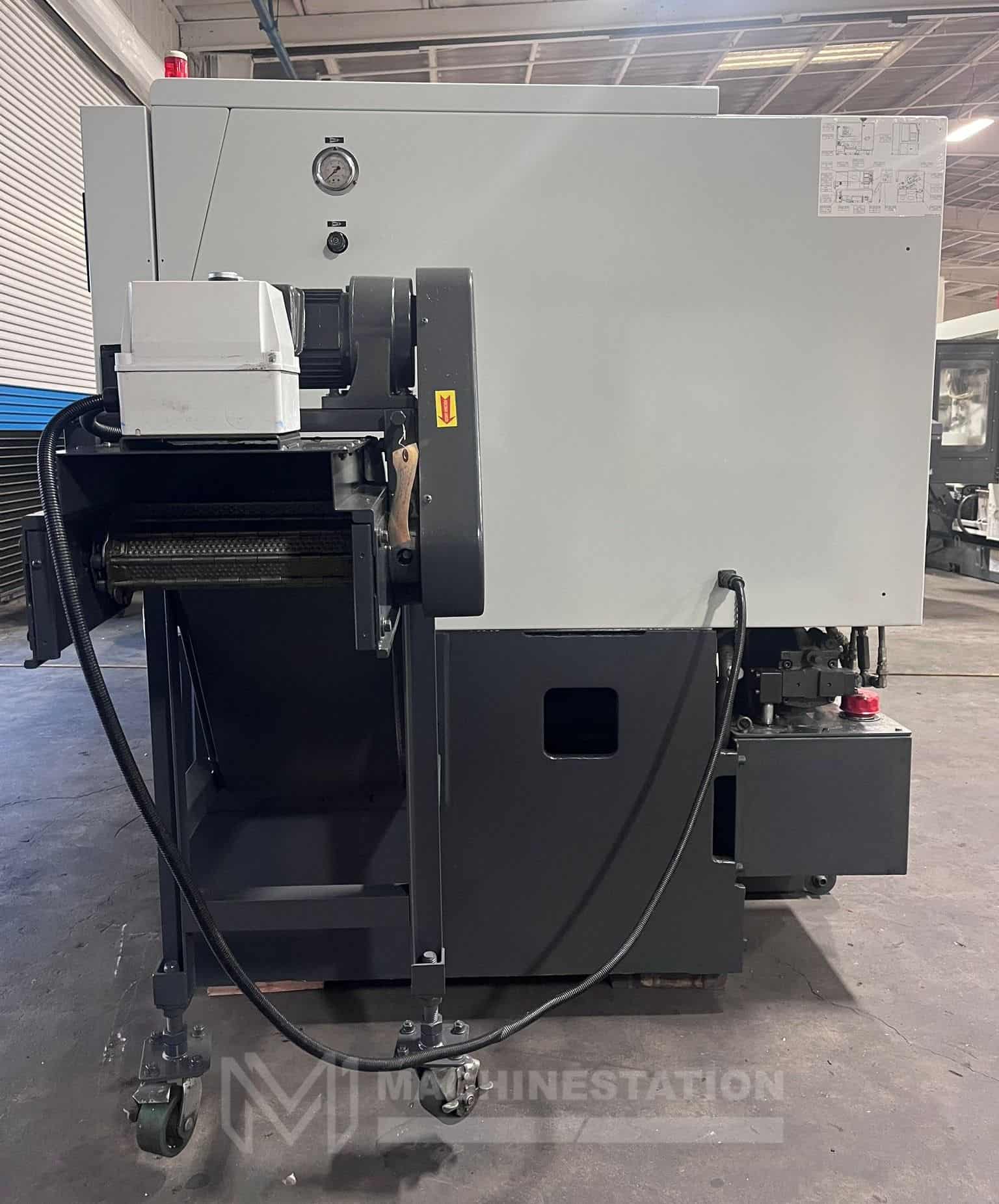

| Chip Conveyor |

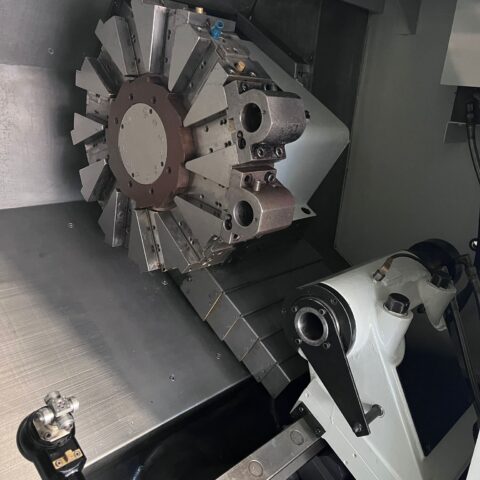

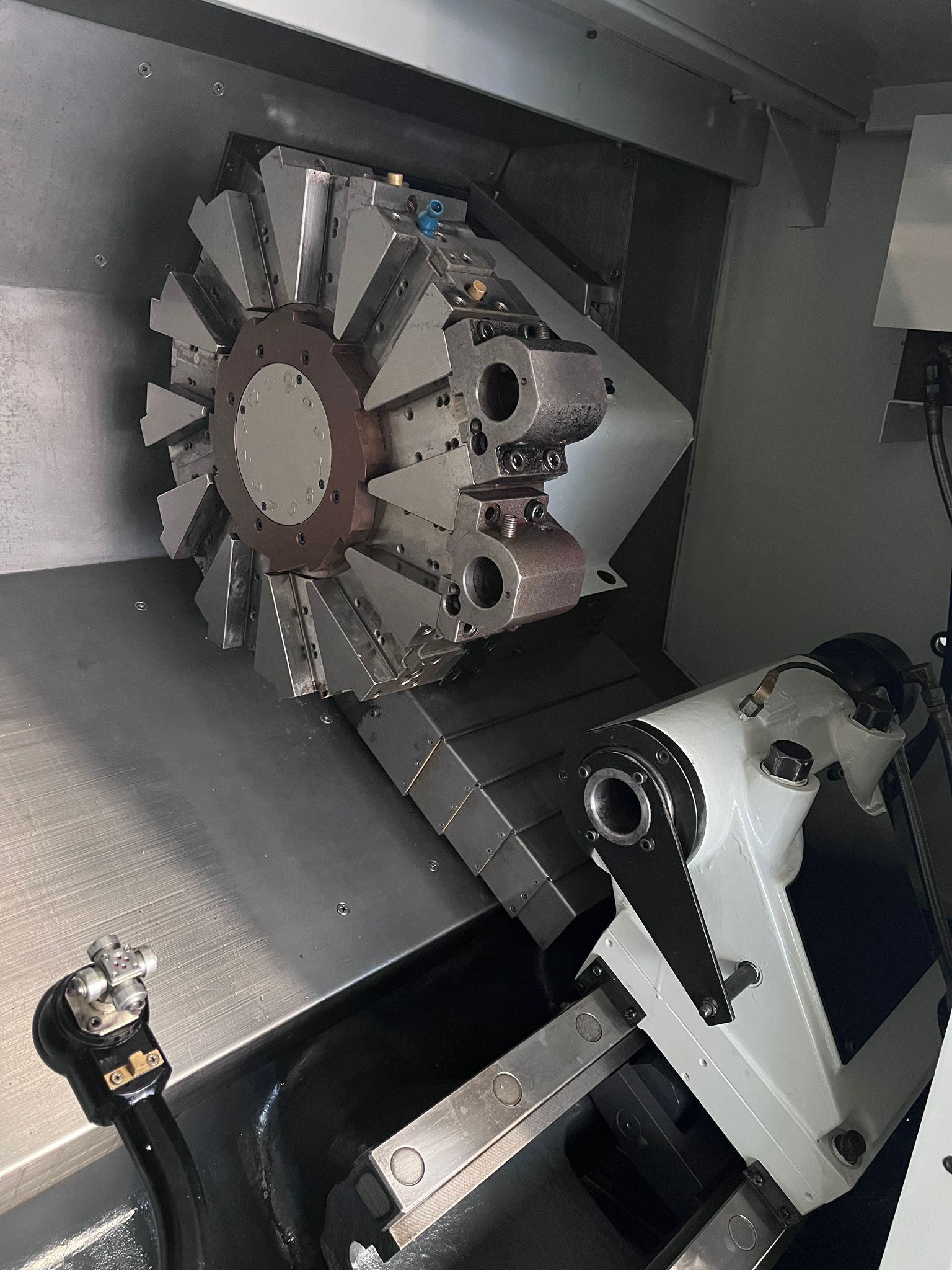

| (2) Boring Tool Holders are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter: 13.78″ |
| Max Turning Length: 18.74″ |
| Max Bar Capacity: 2.56″ |
| Swing Over Bed: 18.90″ |
| Swing Over Saddle: 12.40″ |
| Distance Between Centers: 20″ |
| Travels: |
|---|
| X Axis Travel: 7.08″ |
| Z Axis Travel: 20.86″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.0″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turning Tool Shank: 1″ |
| Boring Bar Shank Diameter: 1.57″ |
| Tool Holders Type: BMT |
| Tailstock: |
|---|
| Tailstock Body Travel: 16.89″ |
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 3.54″ |
| Tailstock Quill Travel: 3.93″ |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: kva |
| Overall Dimensions: 88″ x 65″ x 46″ High Approx. |
| Weight : 9,480 lbs Approx. |
