*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

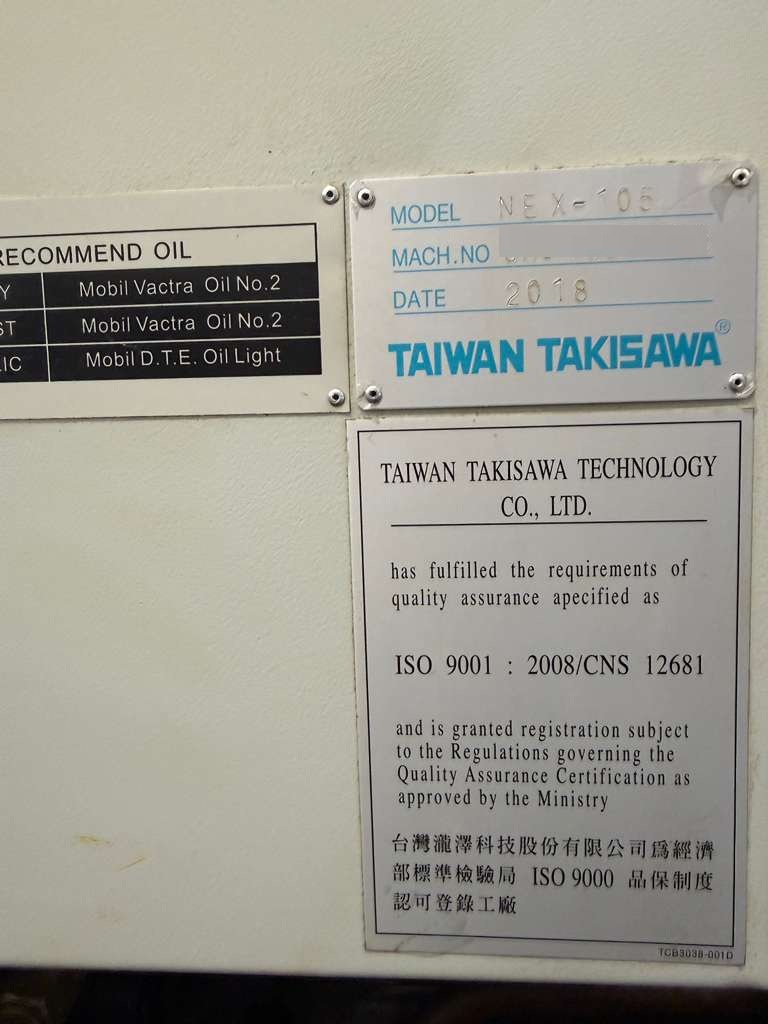

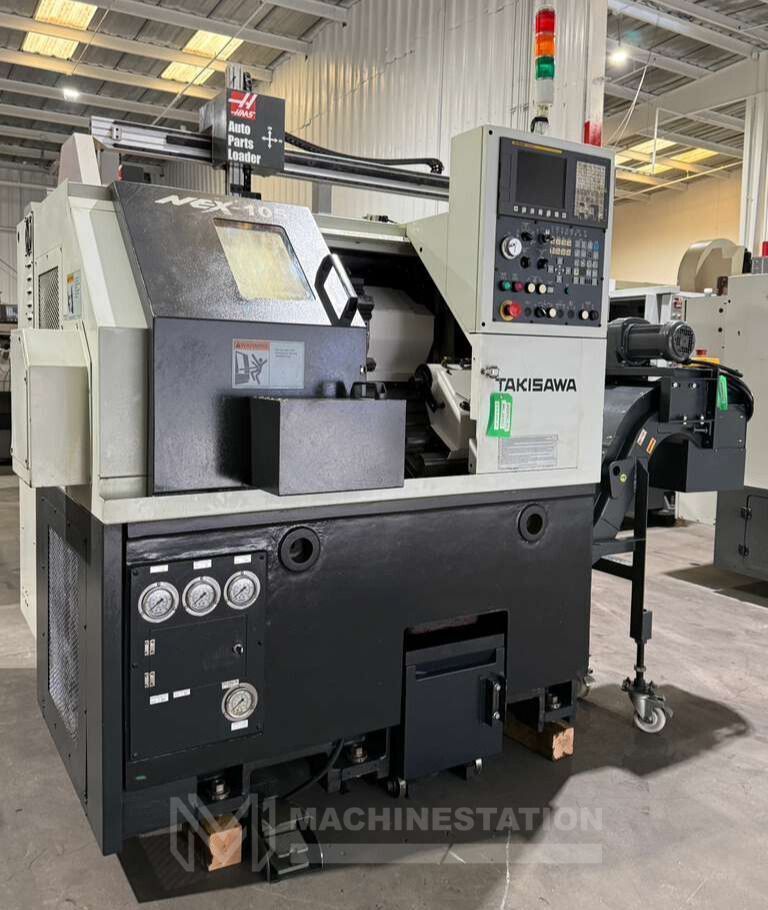

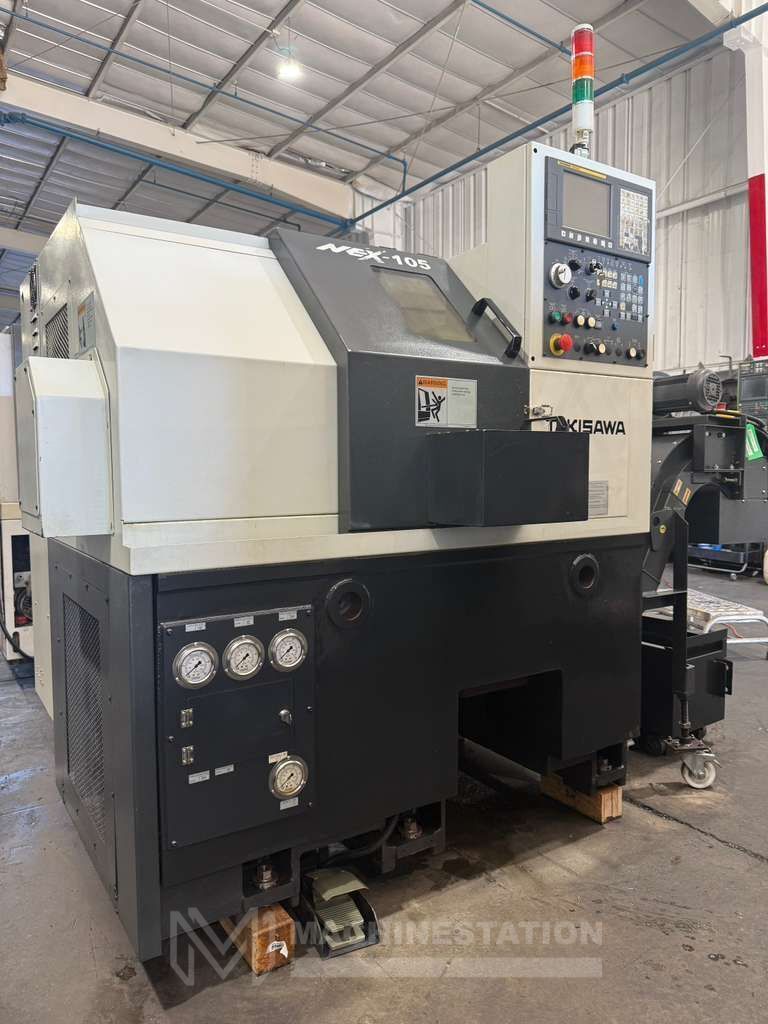

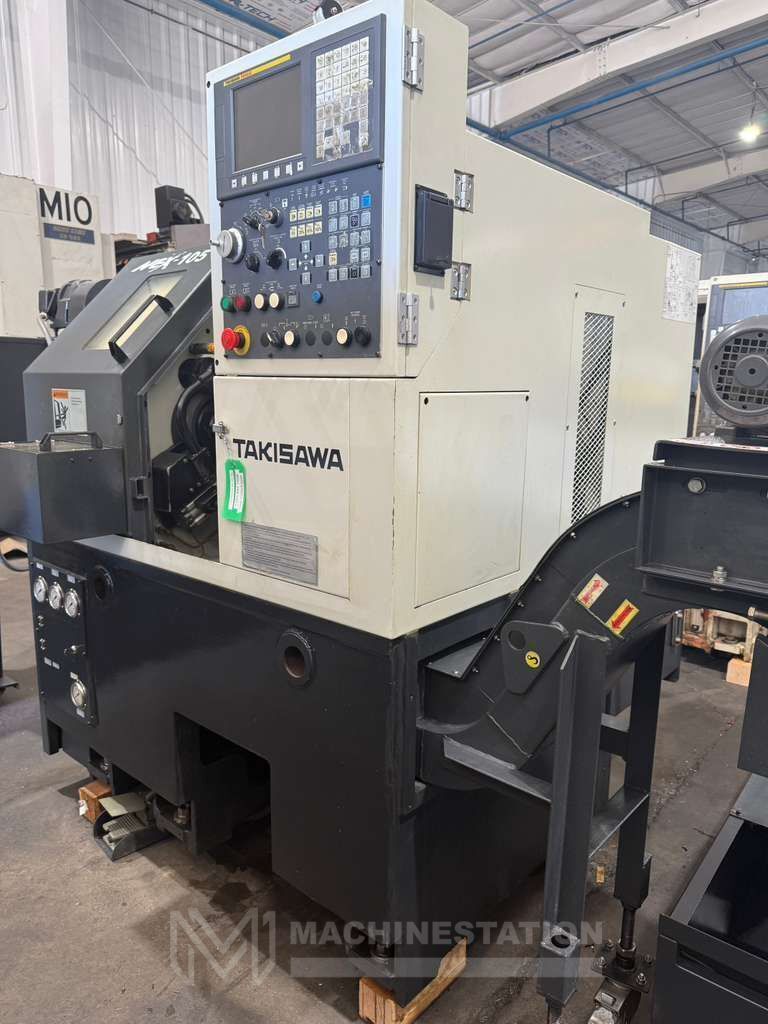

| Make: | Takisawa |
| Model: | NEX-105 |
| Year: | 2018 |
| Equipped With: |
|---|

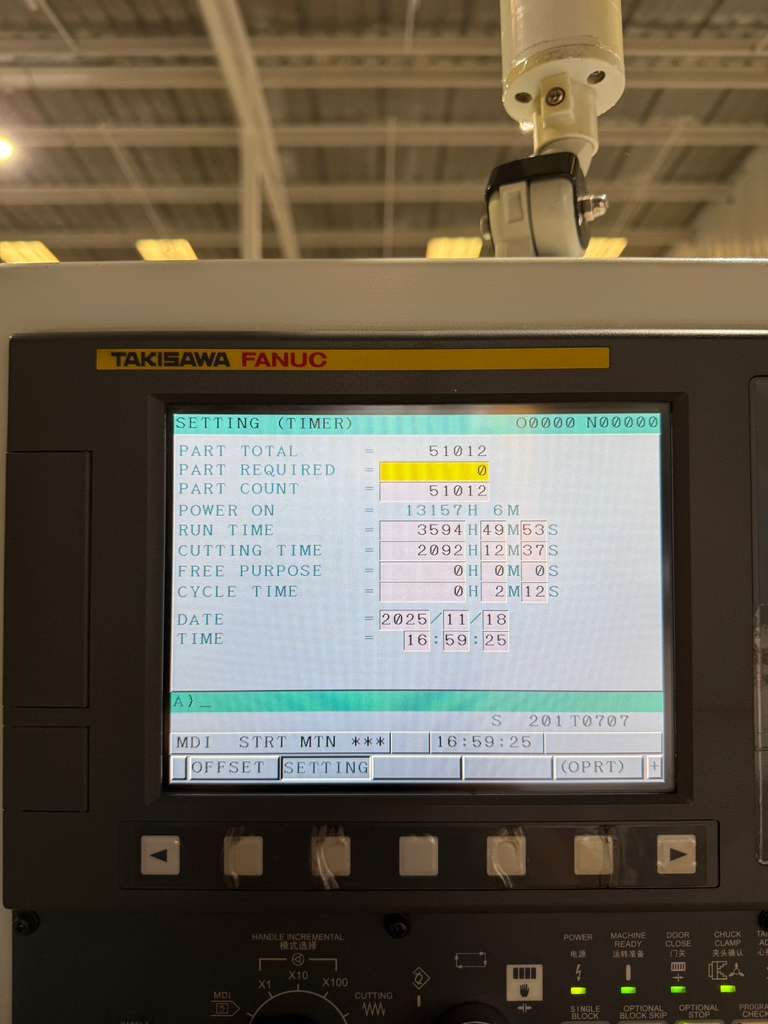

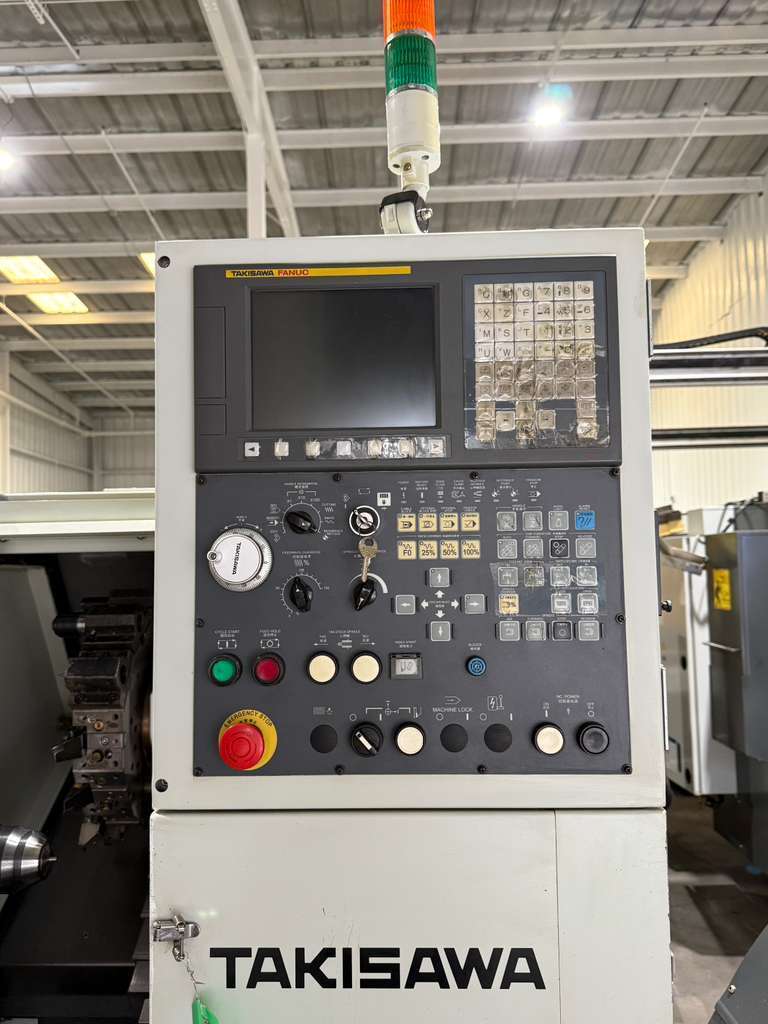

| Takisawa Fanuc CNC Control |
| Linear Ways Construction |

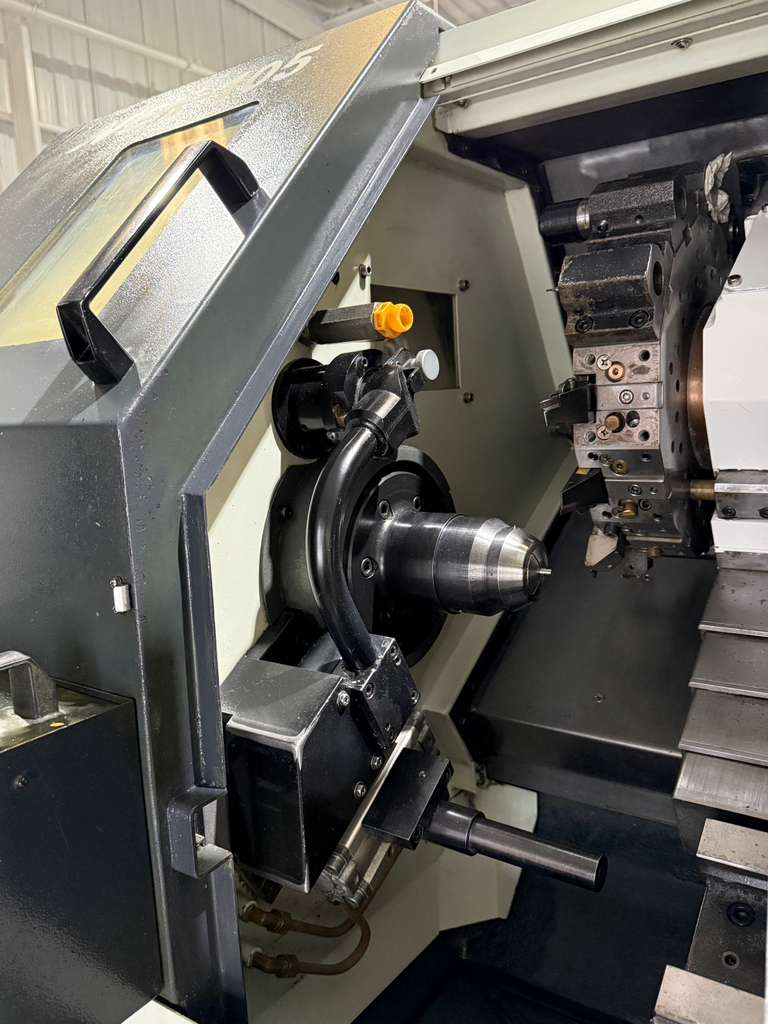

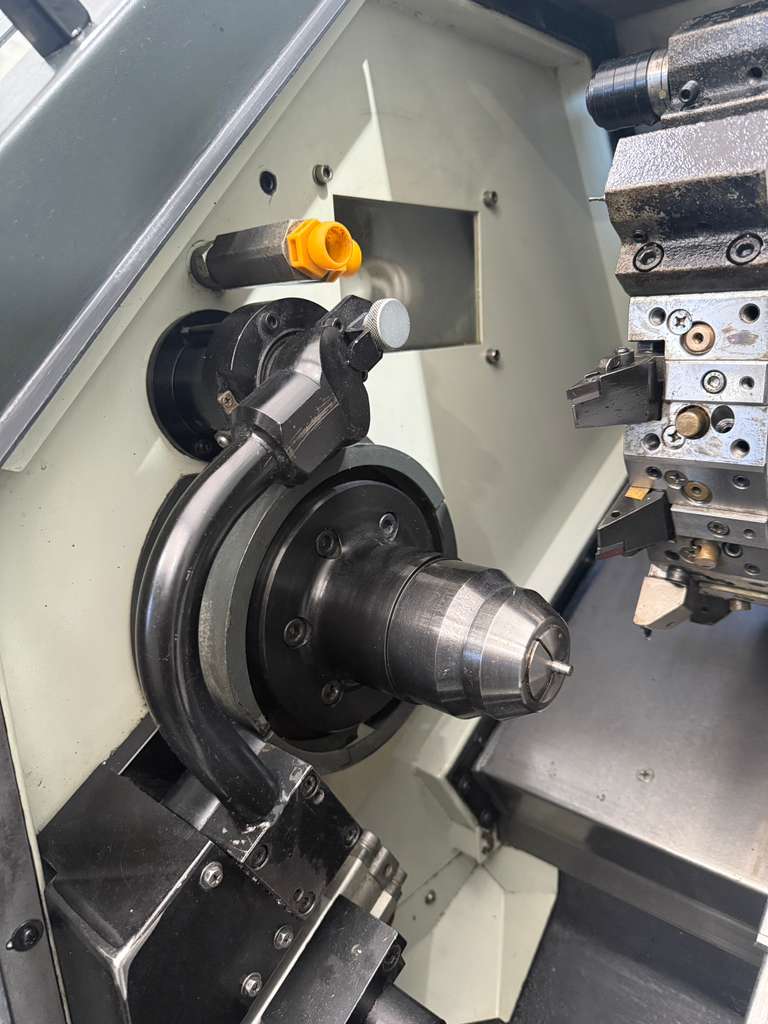

| Collet Chuck (6″ Chuck Capable) |

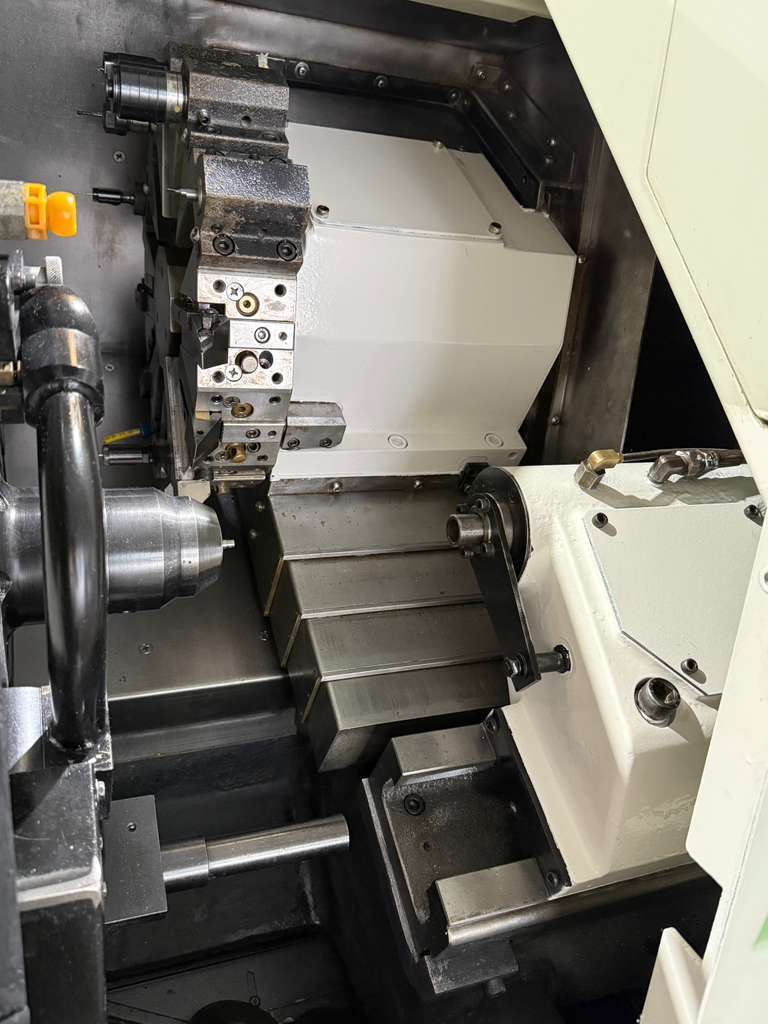

| 12-Station Automatic Turret |
| Tool Presetter |
| Parts Catcher |

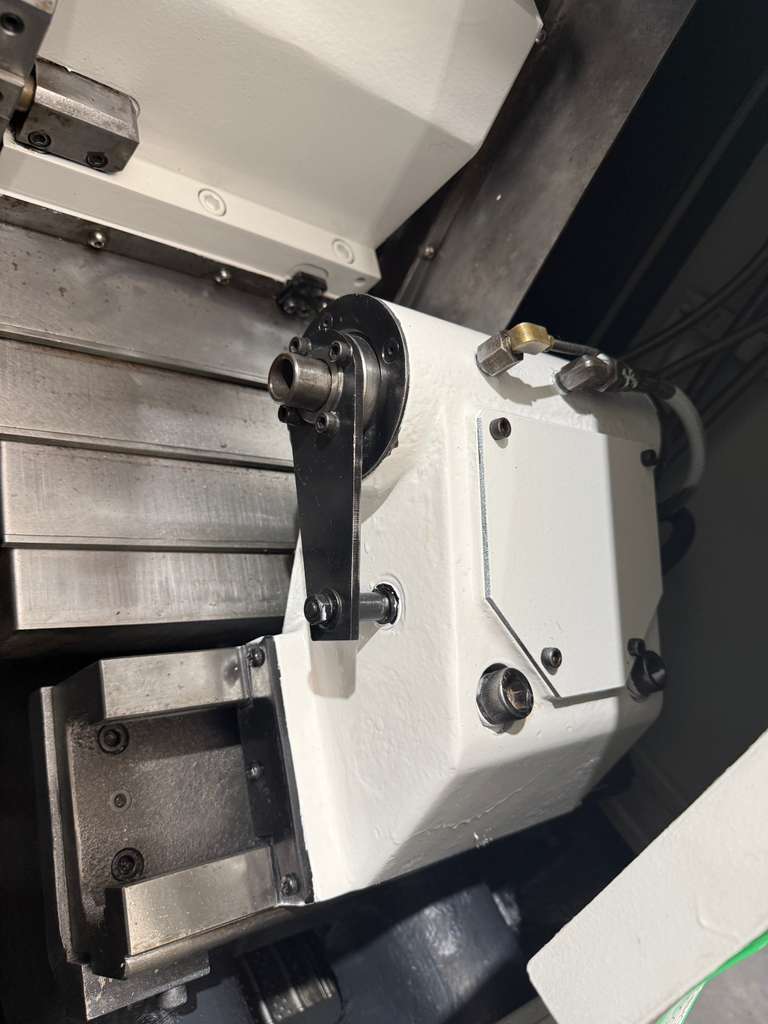

| Tailstock |
| PCMCIA Card & USB Drive Interface |
| Rigid Tapping |
| Coolant System |
| Automatic Lubrication system |
| Foot Switch |
| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter: 6.69″ |
| Max Turning Length: 7.28″ |
| Swing Over Bed: 15.75″ |
| Swing Over Cross Slide: 11.02″ |
| Max Bar Capacity: 1.65″ |
| Travels: |
|---|
| X Axis Travel: 5.11″ |
| Z Axis Travel: 7.87″ |
| Rapid Traverse X Axis: 945 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: FLAT140 |
| Spindle Bore: 2.08″ |
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 10 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turning Tool Shank: 0.78″ |
| Boring Bar Shank Diameter: 1.0″ |
| Tool Holders Type: Bolt Mounted |
| Tailstock: |
|---|
| Tailstock Taper: MT-3 |
| Tailstock Body Travel: 5.90″ |
| Tailstock Quill Diameter: 2.16″ |
| Tailstock Quill Travel : 3.14″ |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 50/60 Hz |
| Power Requirement: 13.7 kva |
| Overall Dimensions: 57″ x 52″ x 67″ High Approx. |
| Weight : 5,511 lbs Approx. |
