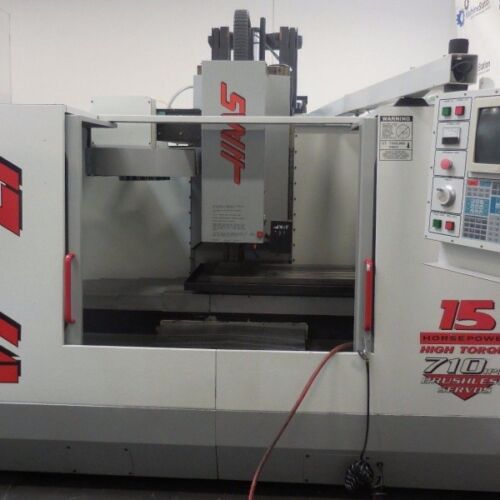

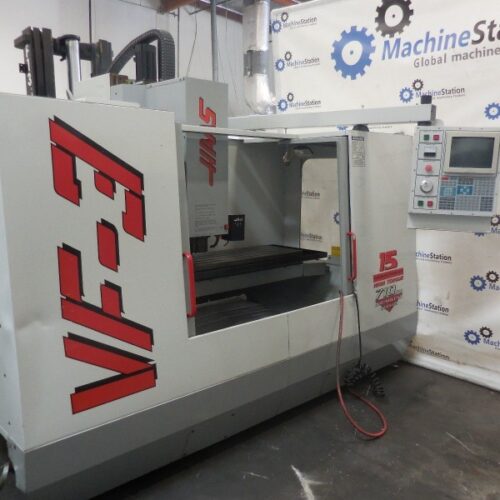

USED-Haas CNC Vertical Machining Center Model VF-3

Out of stock

Product Description


Make: Haas
Model #: VF-3

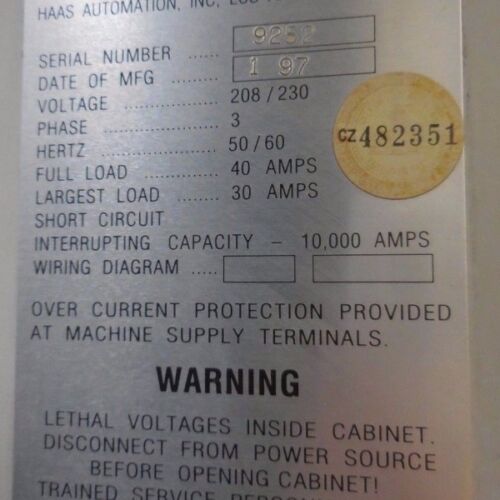

Serial #: 9252
Condition: Great

All specifications are approximations, and are subject to verification.


Features:

  • Dual RS-232 Ports
  • High Speed Brushless Servo Motors
  • Chip Auger System
  • Easy-Access Roll-Out Coolant Tank and Pump
  • One Button Power-up
  • Standard 256K Memory

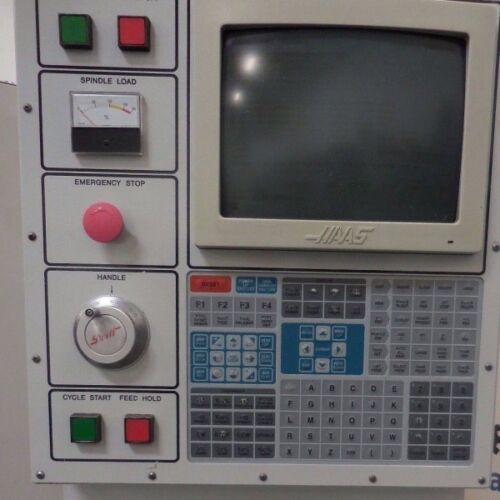

  • User Friendly Haas Control
  • 3.5″ Floppy Drive
  • Made entirely in the U.S.A.
  • Automatic Lubrication System
  • Massive Cast Iron Construction
  • Heavy-Duty Sheet Metal Enclosure
  • 208/230 VAC 3-Phase Power Ready
  • 20 Station CAT-40 Carousel Automatic Tool Changer
  • AC Brushless Direct-Coupled Servo Motors and Drives

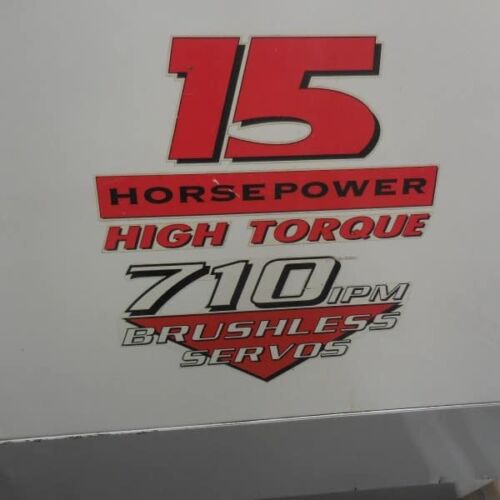

  • 7500 RPM Spindle Driven by a 15 Horsepower Intermittent Duty Gearbox Motor

Specifications:

Travels:
X-Axis: 40″
Y-Axis: 20″
Z-Axis: 25″

Spindle Nose to Table (Min.): 4″

Spindle Nose to Table (Max.): 29″

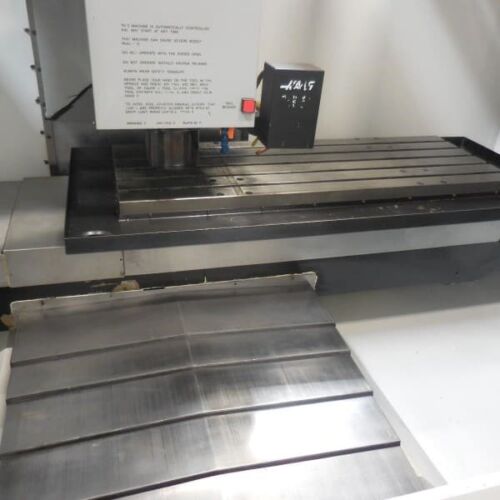

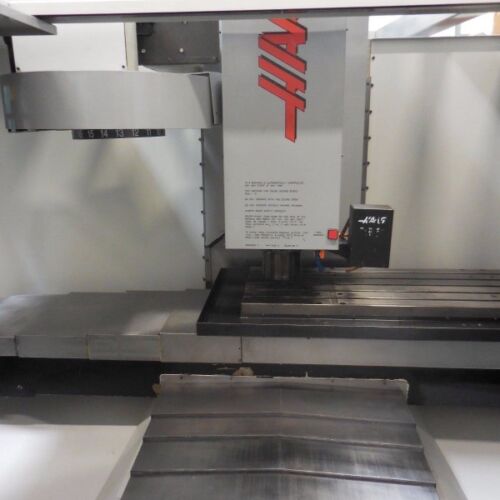

Table:
Length: 48″

Width: 18″
T-Slot Width: 5/8″
T-Slot Center Distance: 3.15″
Number of T-Slots: 5
Max Weight on Table: 3500 lbs
Spindle:
Max Rating: 15 HP
Max Speed: 7500 RPM
Max Torque: 230 ft-lb @ 500 RPM
Drive System: 2 Speed Geared Head
Taper: CAT 40
Feedrates:
Rapids on X: 710 in/min
Rapids on Y, Z: 710 in/min
Max Cutting: 300 in/min
Axis Motors:
Max Thrust: 3400 lbs
Automatic Tool Changer:
Type: Carousel
Capacity: 20
Max Tool Diameter (full): 3.5″
Max Tool Weight: 12 lbs
Tool-to-Tool(avg.): 4.2 seconds
Chip to Chip(avg.): 4.5 seconds
General:
Air Required: 4 scfm, 100 psi
Power: 200-250 VAC 380-480 VAC
Door Open Width: 48.5″
Overall Dimensions: 120″ x 96″ x 90″
Weight: 12,500 lbs
USED-Haas CNC Vertical Machining Center Model VF-3 and Comes as shown in pictures.

GUARANTEE: If any machine guaranteed by us does not prove satisfactory mechanically, the Purchaser may return it freight prepaid within 14 days from date of shipment and we will refund the purchase price in full. This does not apply to machine sold “as is” or “subject to inspection”. This guarantee applies only to machines which we own. The machine must be returned in the same condition that it left our warehouse. MachineStation shall not be responsible for any damage done by truckers, riggers, or other parties. Machine damaged in shipping are not covered under the return privilege.

WARRANTY: Seller makes no warranties of any kind whatever, expressed, or implied. All specifications and descriptions of said goods are approximate, not binding and meant only as a guide. It is the Buyer’s responsibility to inspect the goods and ascertain if the specifications, description and condition of the goods confirm to the Buyer’s requirement.

MACHINE USE AND SAFETY: Buyer acknowledges that the goods described herein are pre-owned used goods which were neither designed or manufactured by the Seller, nor has the Seller knowledge of, or control over, the prior use or misuse of said goods: nor does the Seller have knowledge or control over the application of these goods by the Buyer. It is the Buyer’s (user’s), responsibility to provide proper safety devices, equipment and instructions for any particular use, and to take all necessary steps to confirm to all Federal, State or Local Government Safety Standards and including OSHA.

BUYER IS RESPONSIBLE FOR SCHEDULING TRANSPORTATION OF THIS MACHINE, AS WELL AS ALL COST TO MOVE IT. IF YOU NEED HELP WITH SCHEDULING, PLEASE CONTACT US AND WE WILL ASSIST YOU. WE SHIP GLOBALLY.
