All specifications are approximations and are subject to verification.
“This Machine has LOW Cutting Hours, 8000rpm, 20 tool changer, expanded Memory, 4th axis ready and many more features. On our Floor now fully powered / tested & is in Great working condition.”
-

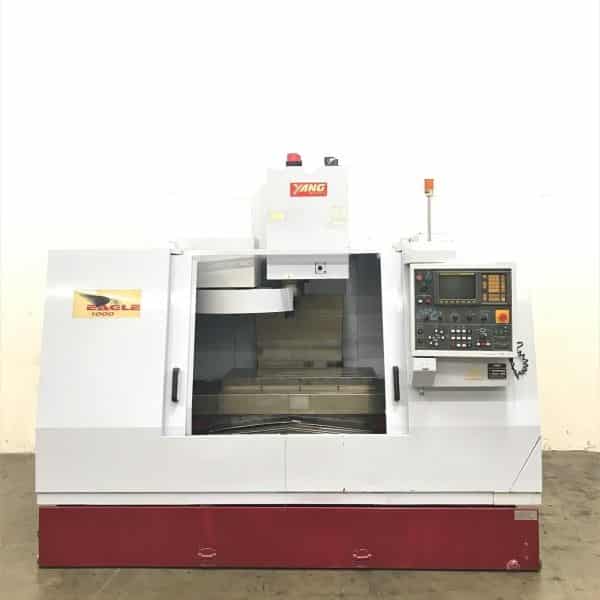

YANG SMV-1000 Features:
- Fanuc O-MD CNC Control
- 20 Tools Tool Changer
- High precision 8,000 RPM Spindle
- Powerful high torque spindle motor
- Manual Pulse Generator
- Rigid Tapping
- Custom Micro B (User Definable)
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank
-
YANG SMV-1000 Specifications:
- Travels:
- X-Axis: 40.00″
- Y-Axis: 20.00″
- Z-Axis: 20.00″
- Spindle Nose to Table (Min.- Max.): 3.94″ – 24.1″
- Spindle Center to Column: 24.67″
- Rapid Feed Rate: 1181 Inch Per Minute
-
Table:
- Length: 42.28″
- Width: 20.08″
- Max Weight on Table: 1500 lbs
-
Spindle:
- Taper Size: 40
- Speed Range: 60 – 8,000 RPM
- Spindle Motor: 15 HP
-
Automatic Tool Changer:
- 40 Taper
- Capacity: 20
- Max Tool Weight: 13.2 lbs
- Max Tool Length: 9.84″
- Max Tool Dia.: 5.90″
-
General:
- Air Required: 80 psi, 4 scfm
- Power: 205-220v / 66FLA / 3-Phase
- Overall Dimensions: 160″ x 91″ x 90″ High
- Weight: 10,000 lbs
