*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Yasda |
| Model: | YBM-700N |
| Year: | 2002 |
| Features: |
|---|

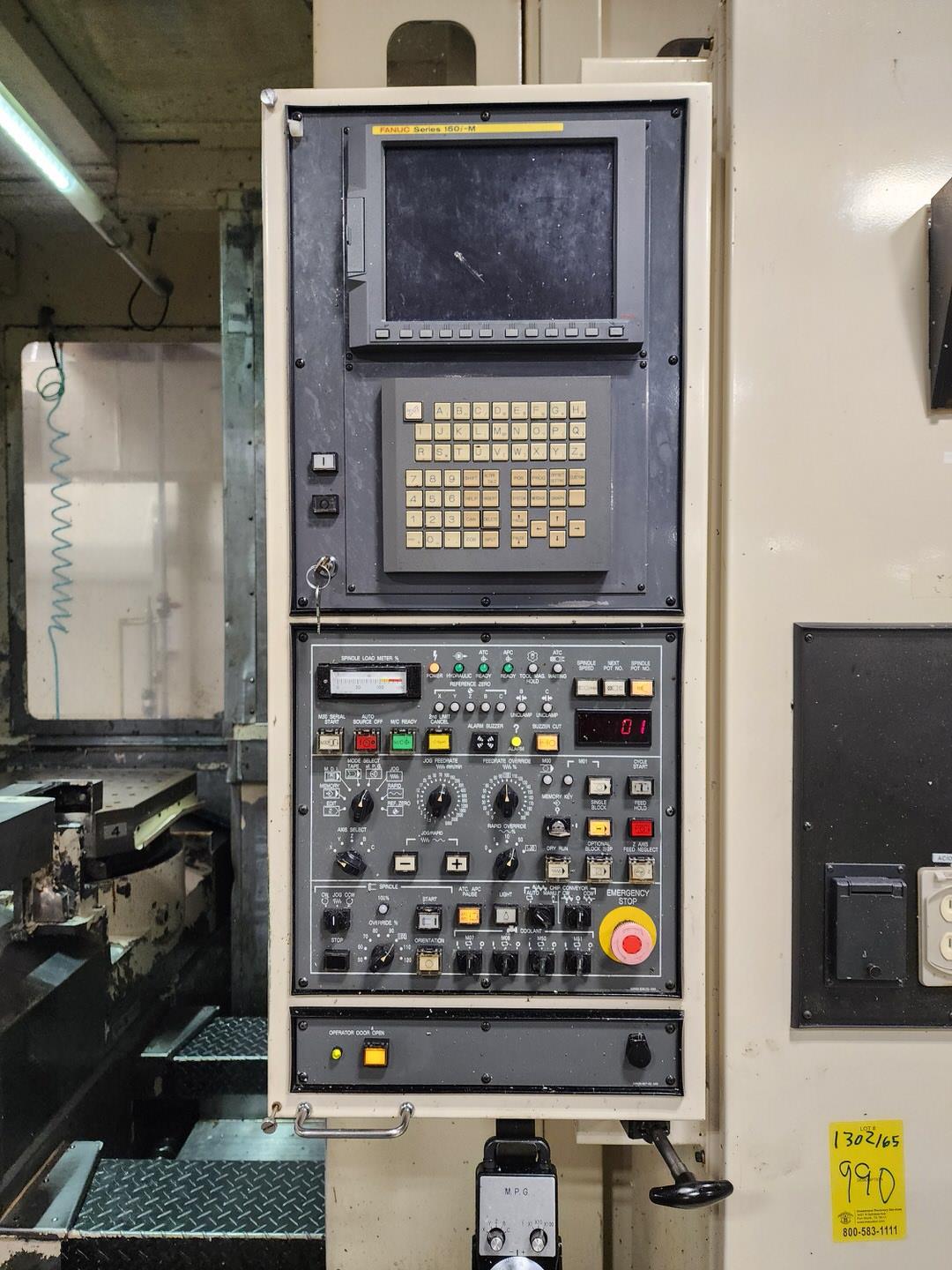

| Fanuc Series 150i-M CNC Control |
| Full 5-Axis Machining Capability |
| (6) 25″ Automatic Pallets |
| Automatic Pallet Changer (APC) |
| Integrated 5th-Axis Trunnion Table |
| 240-Position Automatic Tool Changer |
| CAT 50 Spindle |
| Chip Conveyor |
| Coolant System |
| Full Machine Enclosure |
| (2) Rolling Material Racks |
| (150) CAT 50 Tool Holders |
| Capacity: |
|---|
| Pallet Size: 25″ × 25″ |
| Number of Pallets: 6 |
| Maximum Workpiece Diameter: 39.4″ |
| Maximum Workpiece Height: 39.4″ |
| Maximum Workpiece Weight: 2,200 lbs |
| Travels: |
|---|
| X-Axis Travel: 27.6″ |
| Y-Axis Travel: 31.5″ |
| Z-Axis Travel: 27.6″ |
| B-Axis Travel: 360° |
| C-Axis Travel: 360° |
| Rapid Traverse Rate: 1,575 IPM |
| Spindle: |
|---|
| Spindle Taper: CAT 50 |
| Spindle Speed: 10,000 RPM |
| Spindle Motor: 40 HP |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 240 Tools |
| Tool Selection: Random Bi-Directional |
| Maximum Tool Diameter: 4.9″ |
| Maximum Tool Length: 19.7″ |
| Maximum Tool Weight: 44 lbs |
| Pallet Changer: |
|---|
| Pallet Capacity: 6 Stations |
| Pallet Size: 25″ × 25″ |
| Pallet Indexing: Automatic |
| Pallet Rotation: Servo Controlled |
| General: |
|---|
| Power Requirement: 200–220v / 3 Phase / 50/60 Hz |
| Machine Dimensions (Approx.): 320″ × 280″ × 150″ |
| Machine Weight (Approx.): 70,500 lbs |
