Aberlink XTREME-350 CNC Coordinate Measuring Machine

$35,780.00

Qty =

Product Description

Aberlink XTREME-350 CNC Coordinate Measuring Machine

Make: Aberlink
Model: XTREME-350
Condition: “NEW”

Aberlink XTREME-350 Features:

Renishaw GC High Speed Dedicated Control System
Aberlink 3D geometric measurement software for CNC
Renishaw TP20 Probe Body and TP20 Probe Module
MCR20-3 probe module change rack
Carbide reference ball for the calibration of probe positions
Xtreme CMM bench
Two Fixturing Templates

Also Included 2-day training course for up to 4 operators, held at customer site after the installation

Aberlink XTREME-350 Specification:

Measurement Volume 350
X Axis: 400mm
Y Axis: 400mm
Z Axis: 270mm

Resolution: 0.0005mm (Renishaw Scale & Readhead)
Component Load Capacity: 100Kg

Max. velocity vector: 500mm/sec
Max. Acceleration Vector: 750mm/sec

Air Consumption: Not Required
Volumetric Accuracy: 3 -L/250 um (ISO 10360-2)

Aberlink XTREME-350 Options Available:

Programming from CAD software module $2,600.00
Aberlink CAD Comparison software module $2,600.00
Additional TP20 Probe Module $951.00
Dual Monitor $450.00
Top Mount Touch Screen Monitor $300.00
Industrial Joystick – Deva 044 $670.00
Fixlogix flexible fixturing kit $1,620.00

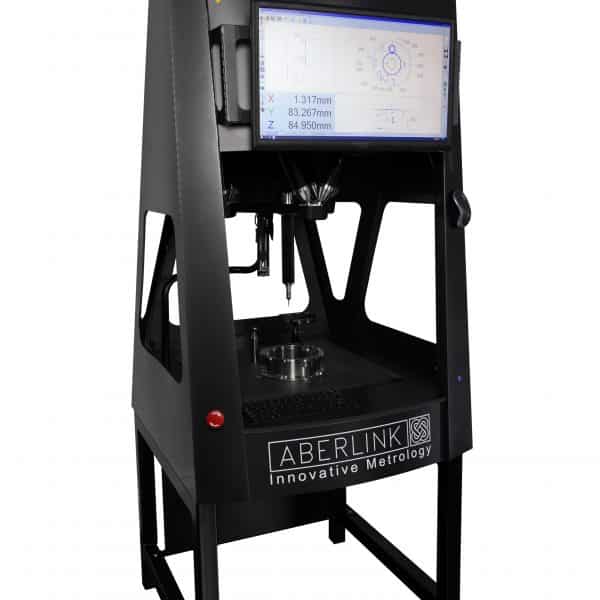

Aberlink XTREME-350 Comes as Shown in Pictures…

Xtreme CNC CMM provides a robust solution for providing precision inspection results. The Xtreme is a self-contained inspection unit. It has no air bearings, so no requirement for compressed air – just plug it in and go. Built-in temperature control and a compact footprint allow the Xtreme to be placed wherever it is needed.

All of the struts in the Xtreme are temperature controlled to operate above ambient temperature. This means that the measurement accuracy is maintained even when the surrounding environment is not controlled.

The Xtreme CMM can be supplied with a monitor fitted to an ergonomic, side-mounted monitor arm in a position that allows comfortable programming of the CMM, or with a touchscreen monitor mounted on the front of machine. This option allows fast operation when simply opening and running programs but is less geared towards on-line programming.  Both monitors can be supplied at a small extra cost.
