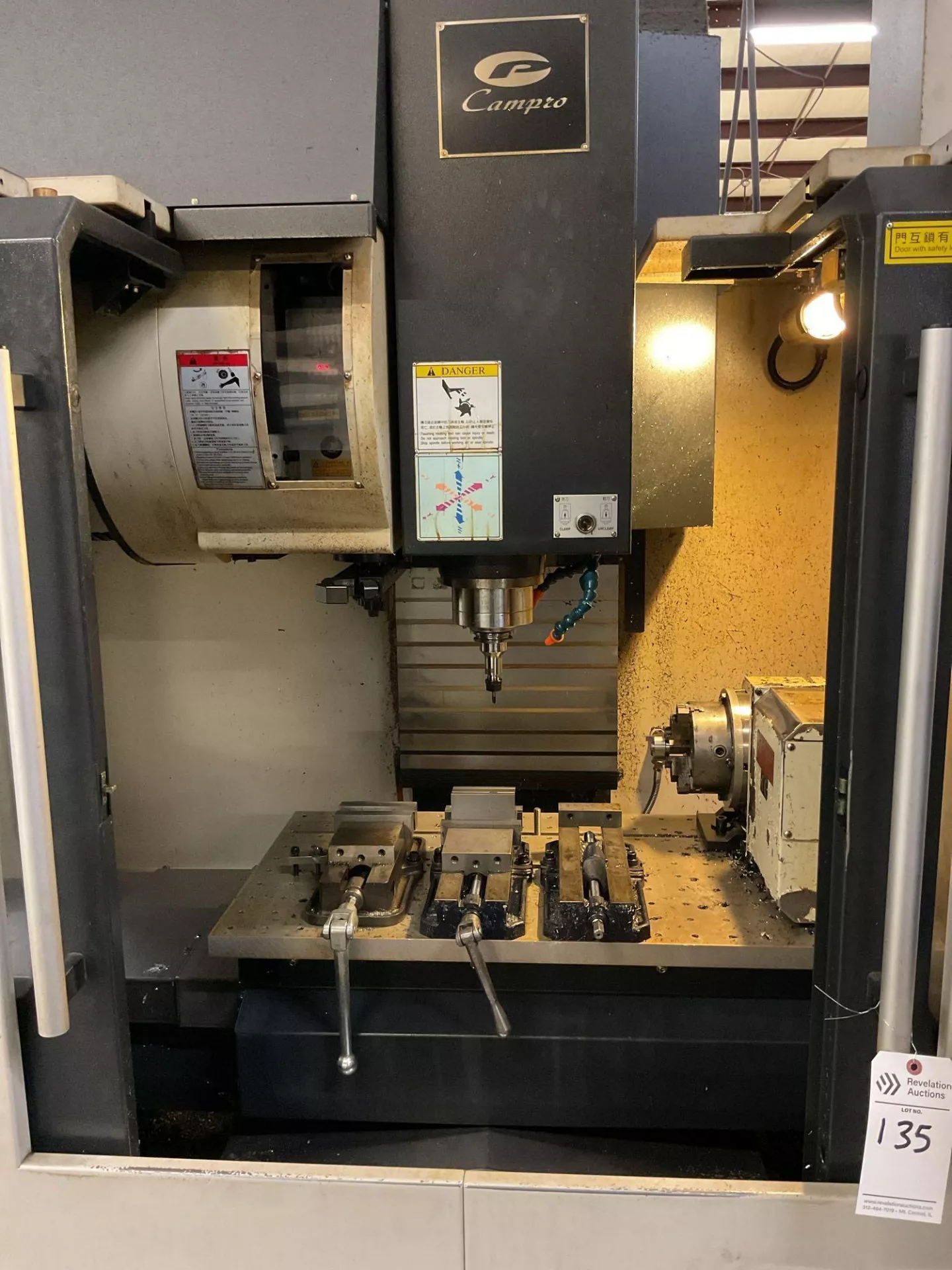

Used Campro CSP-750i CNC Vertical Machining Center

Campro CSP-750i CNC Vertical Machining Center – 2011

SKU 11179

Make/Model Campro CSP-750i

Year 2011

Condition Used - Good

Video On Request

Out of stock

SKU:	11179
Make/Model:	Campro CSP-750i
Year:	2011
Condition:	Used – Good
Video:	On Request

SKU: 11179

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Campro
Model No.:	CSP-750i
Year of Manufacture:	2011
Condition:	Used – Good
Machine Type:	CNC Vertical Machining Center

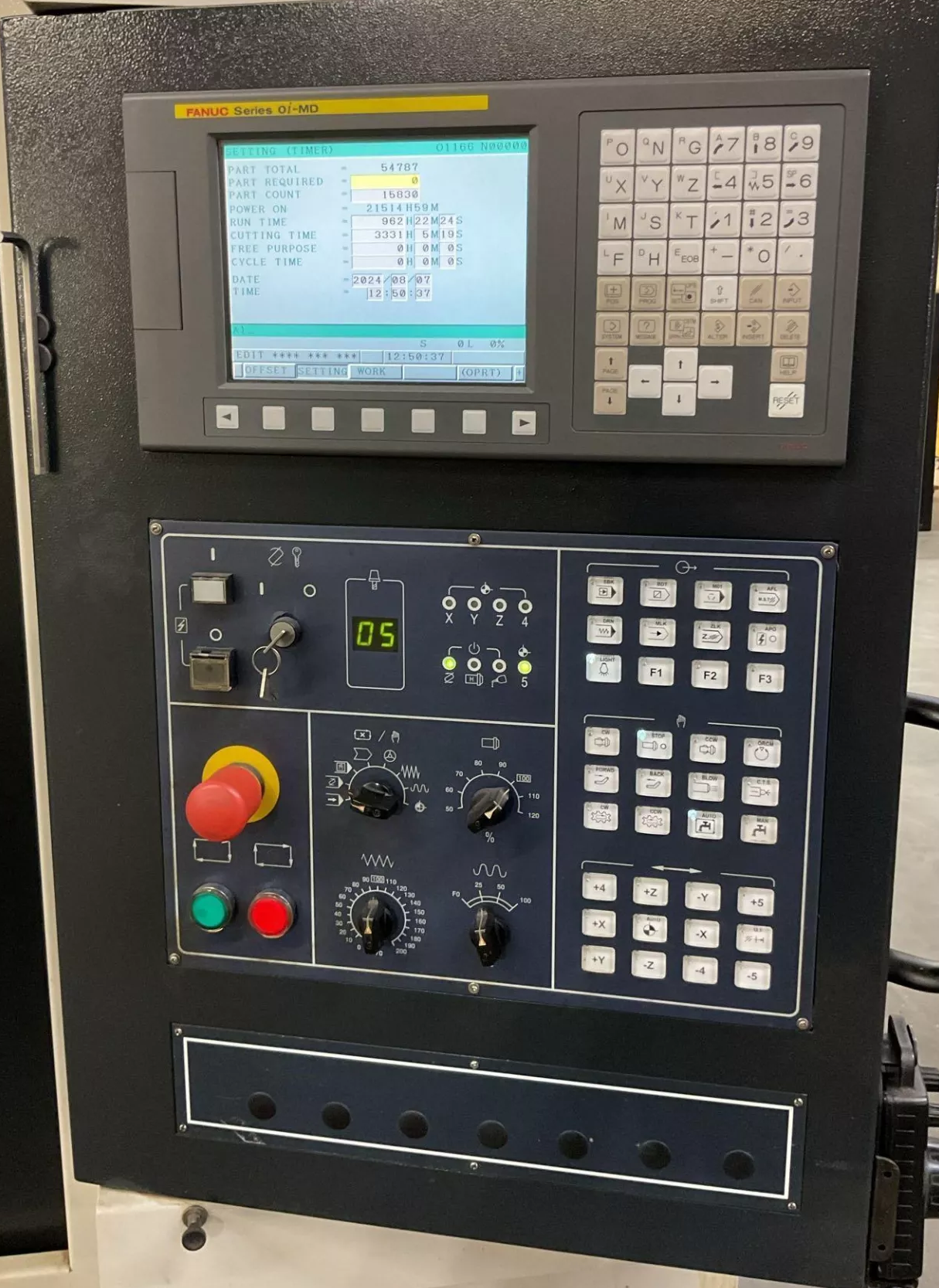

CNC Control:	Fanuc CNC Control

Equipped With:
Fanuc CNC Control
24-Station Automatic Tool Changer
CAT-40 Spindle Taper
Rigid Tapping
Coolant System
Chip Conveyor
Automatic Lubrication System
Work Light
Fully Enclosed Splash Guard
Operator Pendant

Capacity:
Table Size: 35.4″ × 16.5″ (900 × 420 mm)
Maximum Table Load: 1,100 lbs (500 kg)
T-Slots: 3

Travel:
X-Axis Travel: 29.5″ (750 mm)
Y-Axis Travel: 16.5″ (420 mm)
Z-Axis Travel: 20.1″ (510 mm)
Spindle Nose to Table: 4.7″ – 24.8″ (120 – 630 mm)

Spindle:
Spindle Speed: Up to 10,000 RPM
Spindle Motor Power: 11 – 15 kW (15 – 20 HP)
Spindle Taper: CAT-40

Tool Changer:
Tool Capacity: 24 Tools
Tool Change Type: Arm Type ATC
Maximum Tool Diameter: 3.15″ (80 mm)
Maximum Tool Length: 11.8″ (300 mm)
Maximum Tool Weight: 15.4 lbs (7 kg)

Feedrates:
Rapid Traverse (X / Y): 36 m/min
Rapid Traverse (Z): 24 m/min
Cutting Feed Rate: Up to 10 m/min

Electrical:
Power Requirement: Approx. 20 kVA
Voltage: 220 / 380 / 440 V
Phase: 3-Phase

General:
Machine Dimensions: Approx. 90.6″ × 86.6″ × 102.4″ (2300 × 2200 × 2600 mm)
Machine Weight: Approx. 10,580 lbs (4,800 kg)

Features:
Rigid Meehanite cast iron construction for stability and accuracy
High-performance CAT-40 spindle for versatile machining
Fanuc CNC control for reliable programming and operation
24-tool automatic tool changer for efficient production
High rapid traverse speeds for reduced cycle times
Fully enclosed machining area for coolant containment
Ideal for general machining, mold work, aerospace components, and precision parts production

Equipped With:
Fanuc CNC Control
24-Station Automatic Tool Changer
CAT-40 Spindle Taper
Rigid Tapping
Coolant System
Chip Conveyor
Automatic Lubrication System
Work Light
Fully Enclosed Splash Guard
Operator Pendant

Capacity:
Table Size: 899 mm × 419 mm (900 × 420 mm)
Maximum Table Load: 1,100 lbs (500 kg)
T-Slots: 3

Travel:
X-Axis Travel: 749 mm (750 mm)
Y-Axis Travel: 419 mm (420 mm)
Z-Axis Travel: 511 mm (510 mm)
Spindle Nose to Table: 119 mm – 630 mm (120 – 630 mm)

Spindle:
Spindle Speed: Up to 10,000 RPM
Spindle Motor Power: 11 – 15 kW (15 – 20 HP)
Spindle Taper: CAT-40

Tool Changer:
Tool Capacity: 24 Tools
Tool Change Type: Arm Type ATC
Maximum Tool Diameter: 80 mm (80 mm)
Maximum Tool Length: 300 mm (300 mm)
Maximum Tool Weight: 15.4 lbs (7 kg)

Feedrates:
Rapid Traverse (X / Y): 36 m/min
Rapid Traverse (Z): 24 m/min
Cutting Feed Rate: Up to 10 m/min

Electrical:
Power Requirement: Approx. 20 kVA
Voltage: 220 / 380 / 440 V
Phase: 3-Phase

General:
Machine Dimensions: Approx. 2,301 mm × 2,200 mm × 2,601 mm (2300 × 2200 × 2600 mm)
Machine Weight: Approx. 10,580 lbs (4,800 kg)

Categories	CNC Vertical Machining Center
Make	Campro
Model	CSP-750i

Rigid Meehanite cast iron construction for stability and accuracy
High-performance CAT-40 spindle for versatile machining
Fanuc CNC control for reliable programming and operation
24-tool automatic tool changer for efficient production
High rapid traverse speeds for reduced cycle times
Fully enclosed machining area for coolant containment
Ideal for general machining, mold work, aerospace components, and precision parts production
