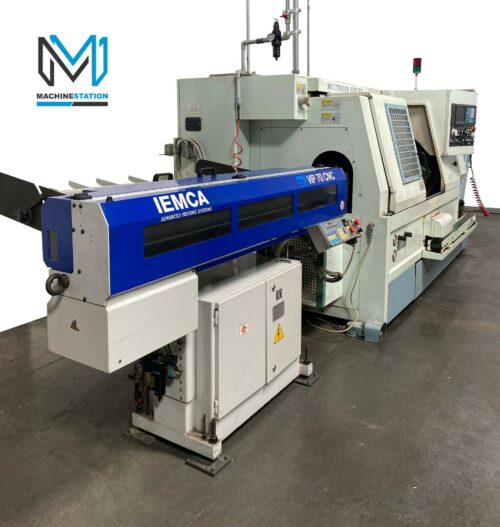

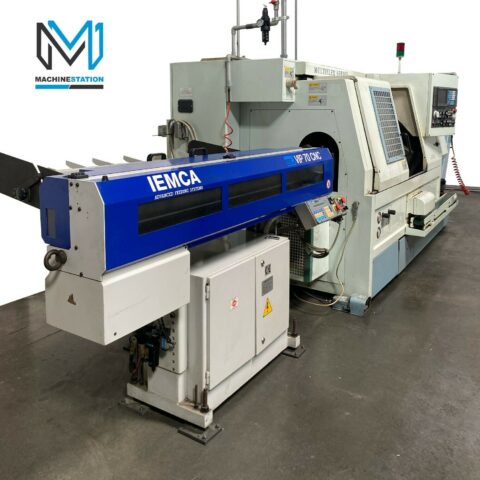

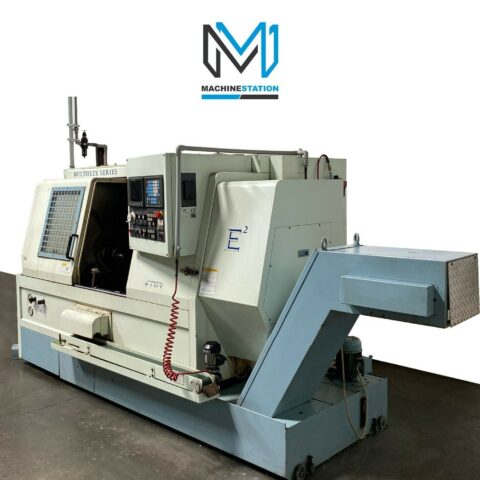

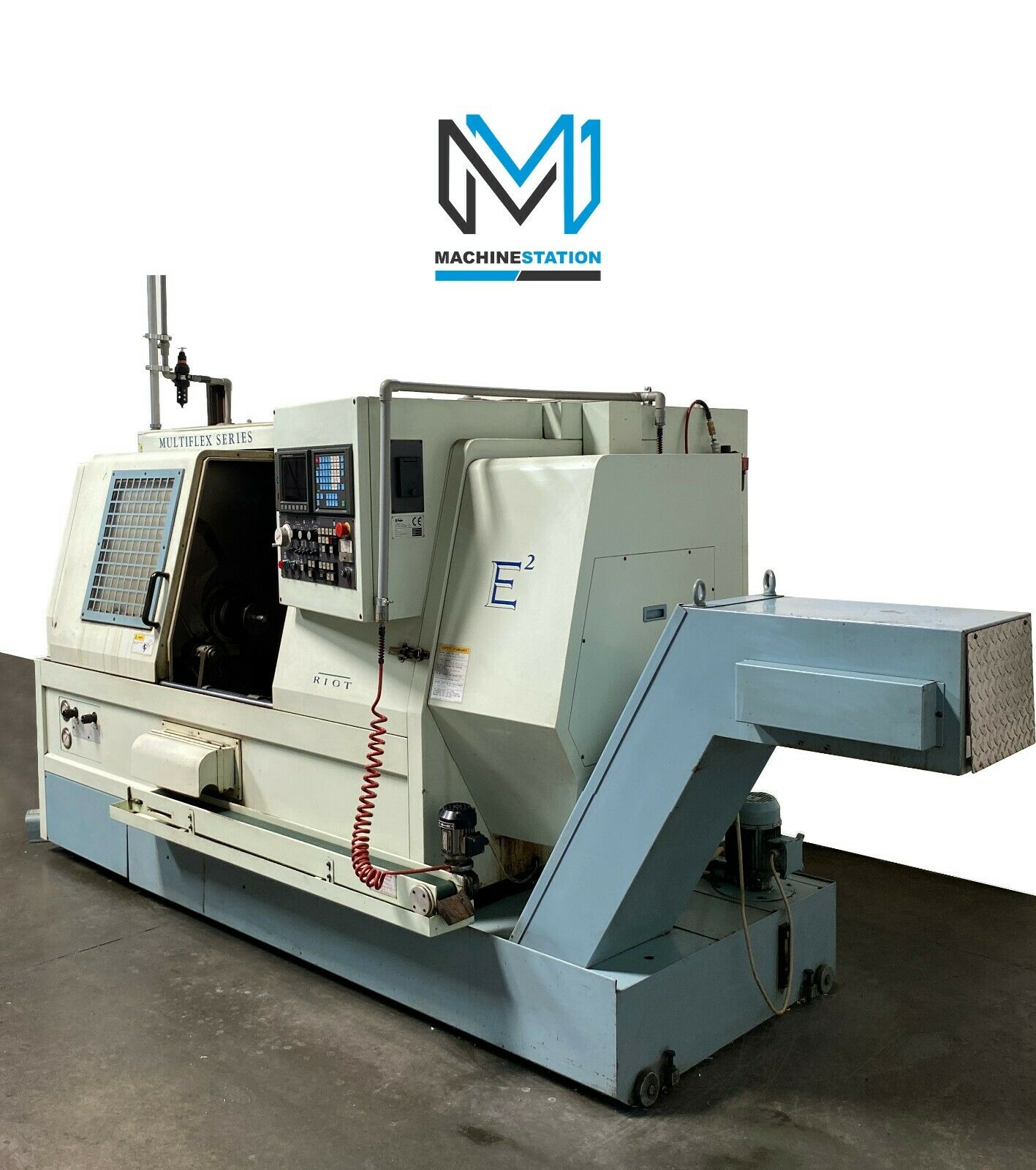

Eurotech Multiflex 730SL CNC Turn Mill

$39,600.00

Qty =

Video

Product Description

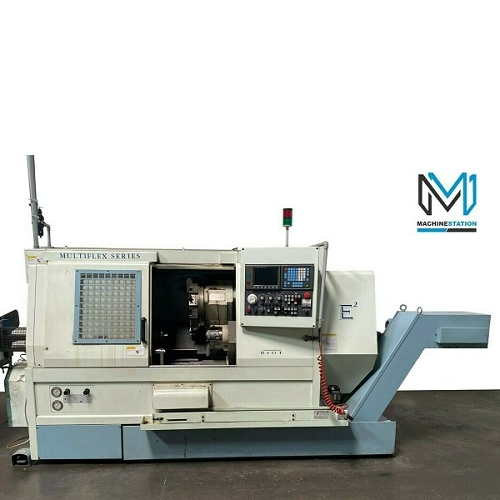

EUROTECH MULTIFLEX 730SL CNC TURN MILL
SKU # 2147
Make: EUROTECH
Model No.: 710SL
Serial No.: 4876
Condition: Very Good
Comes with Barfeeder, 2 X Collet Chuck, Tool Holders, parts & Chip Conveyor

All specifications are approximations, and are subject to verification.

Eurotech Multiflex 730SL CNC Turn Mill Equipped With:

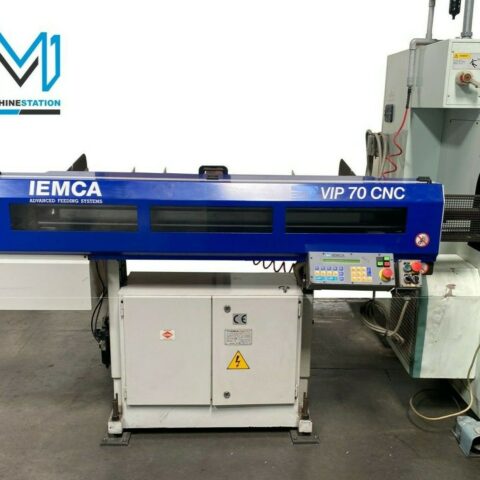

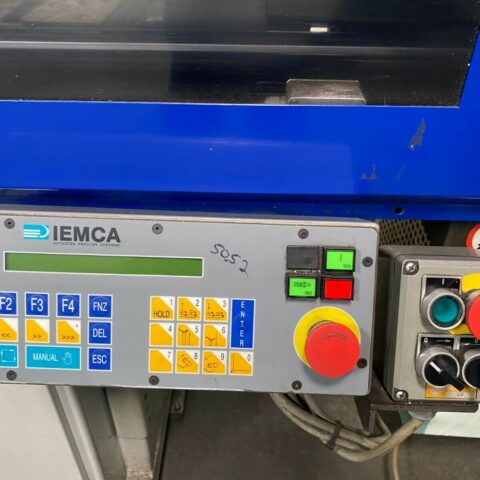

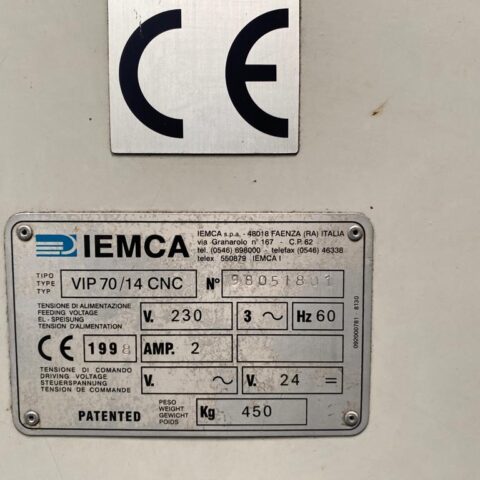

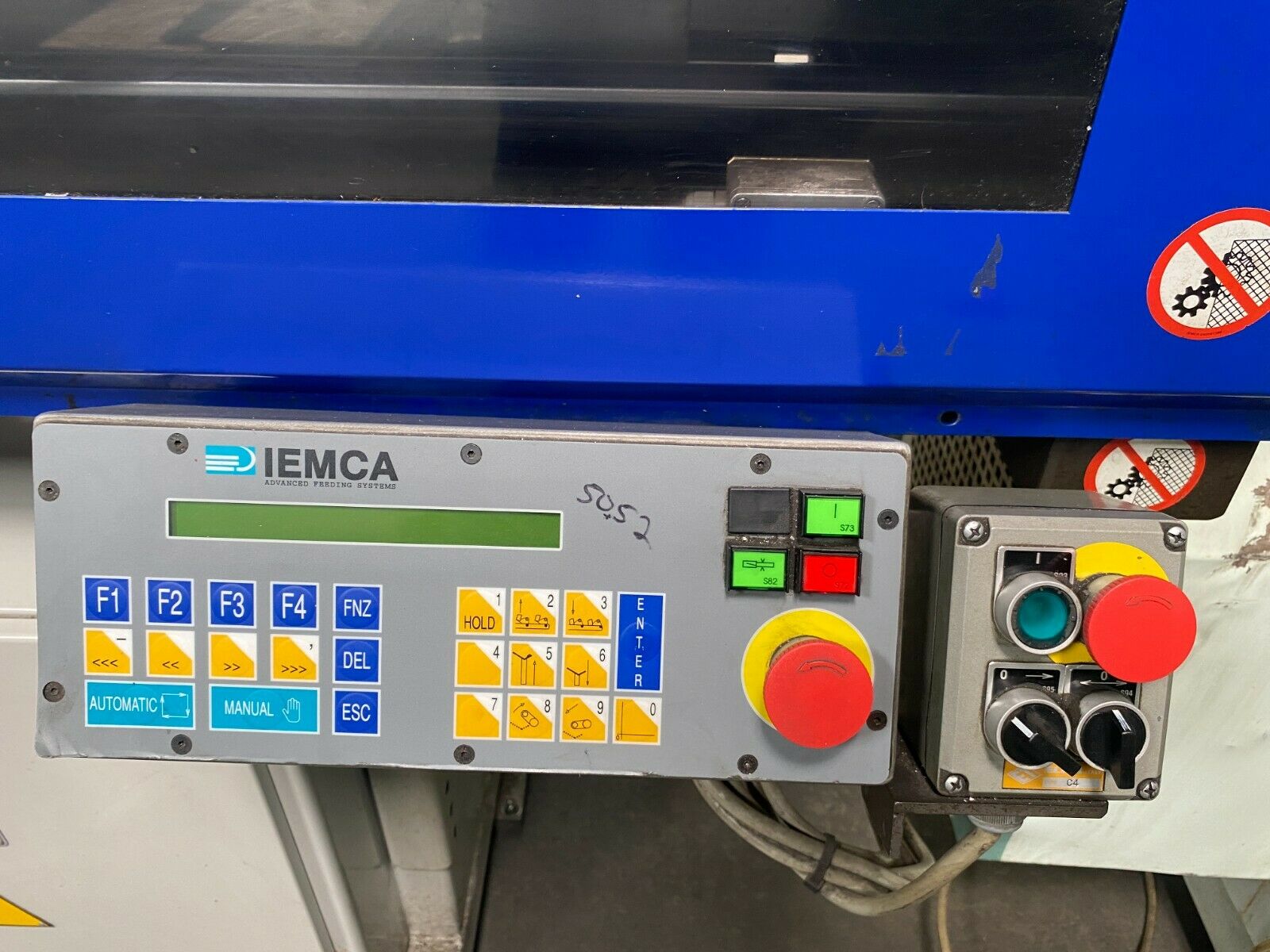

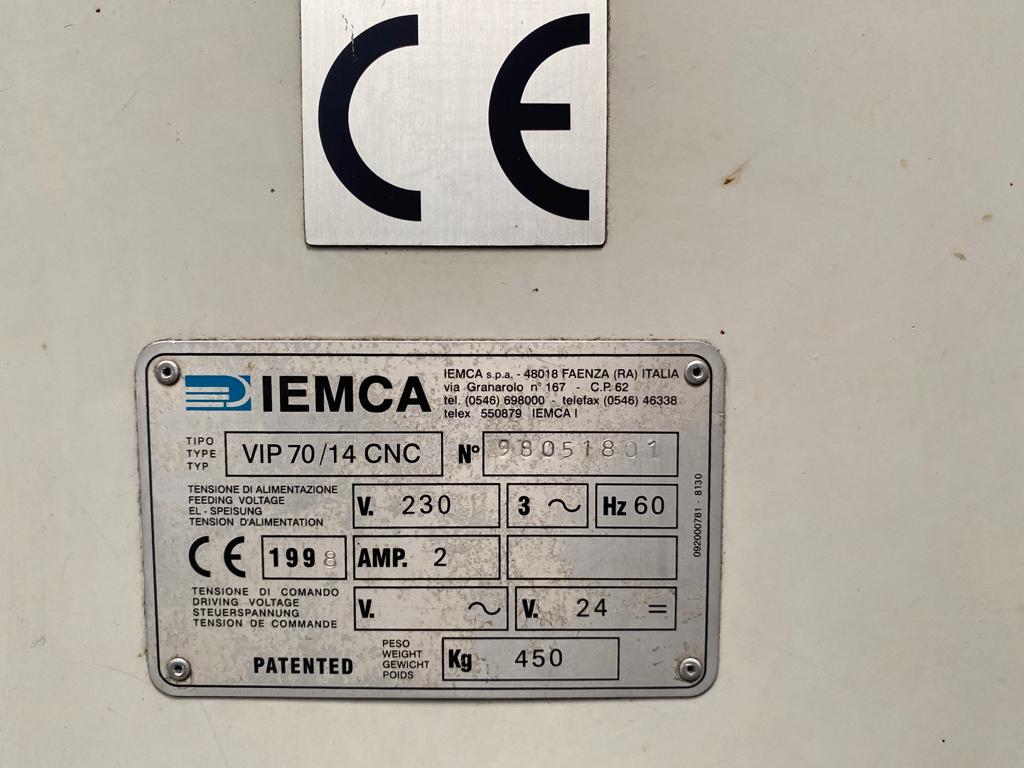

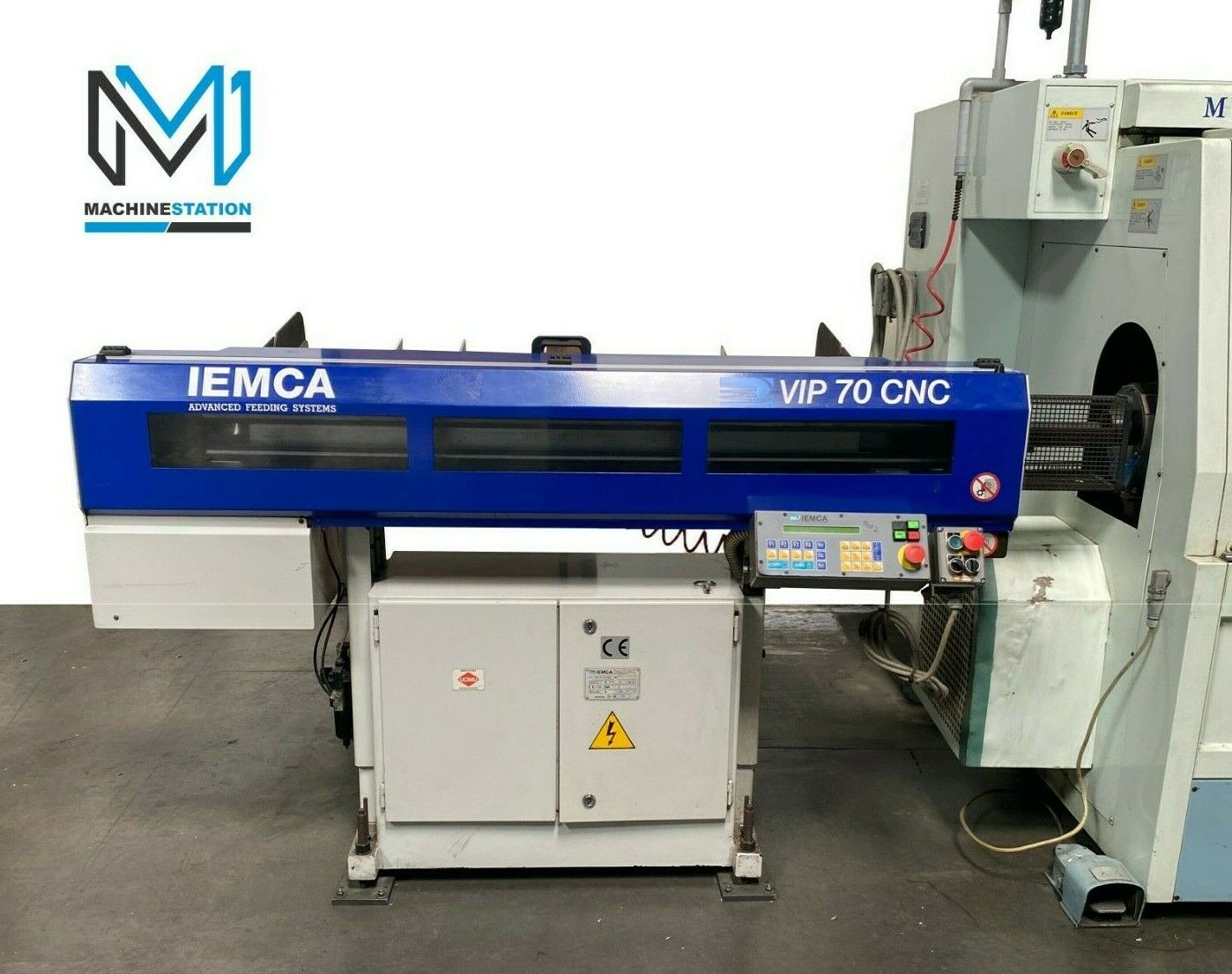

IEMCA VIP 70 Bar Feeder

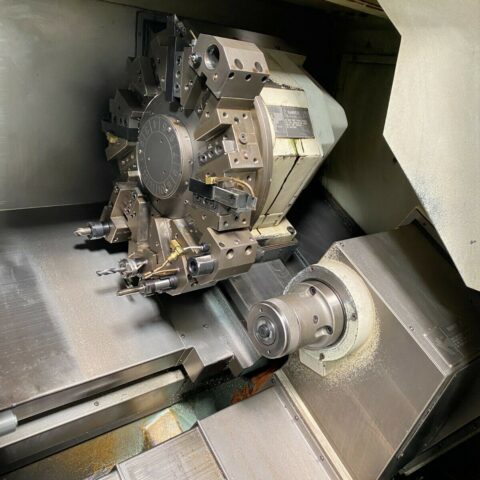

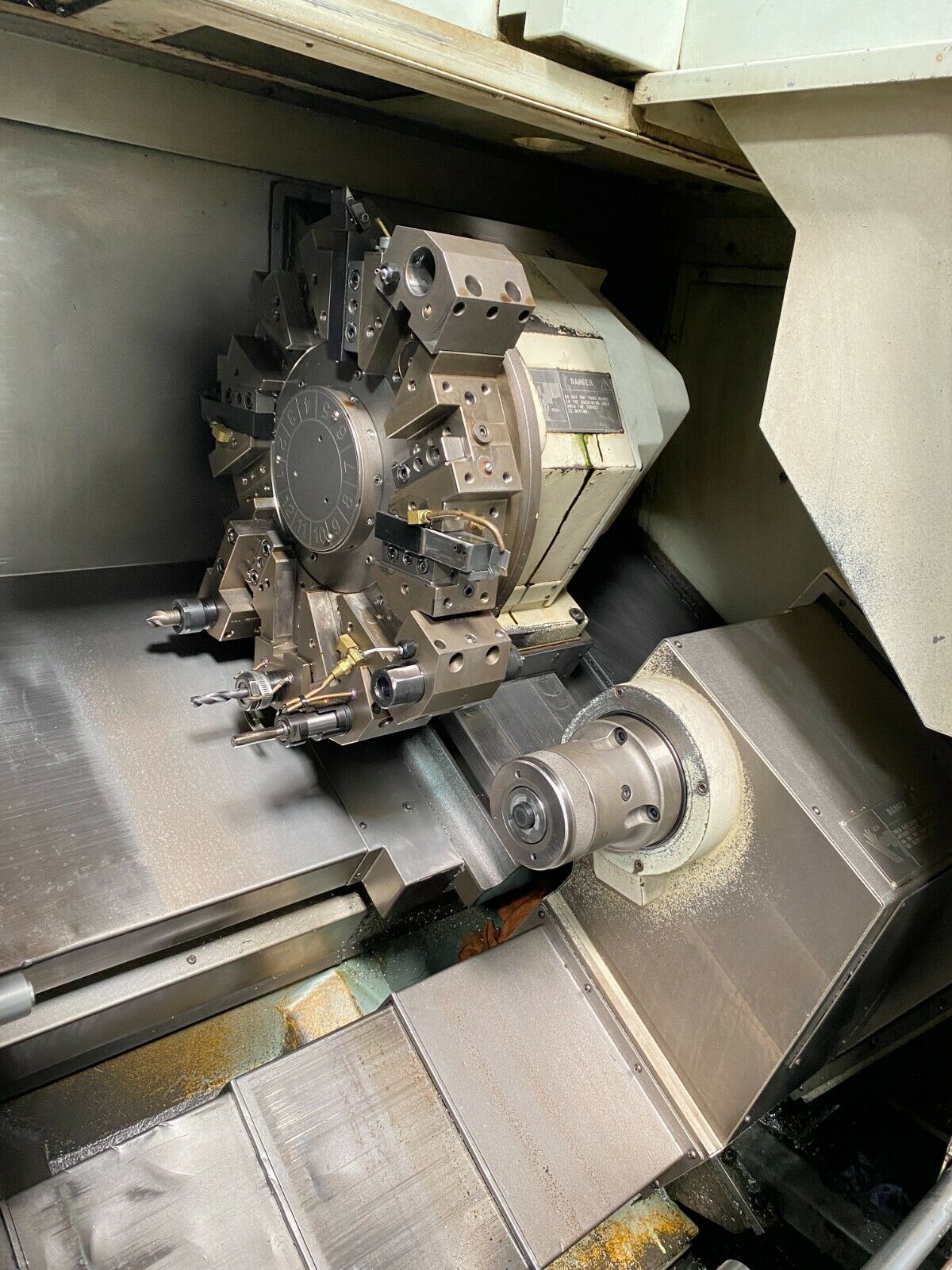

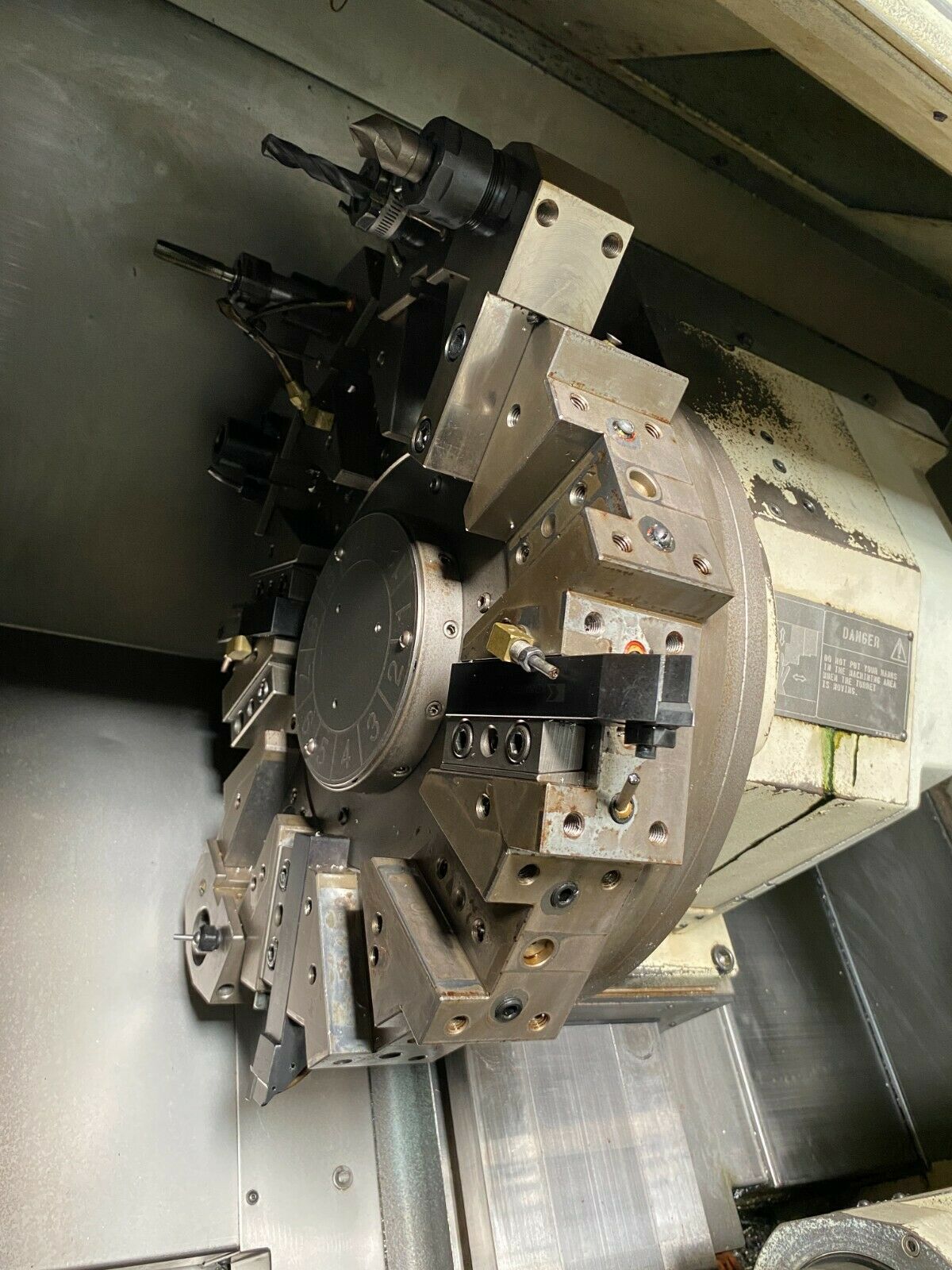

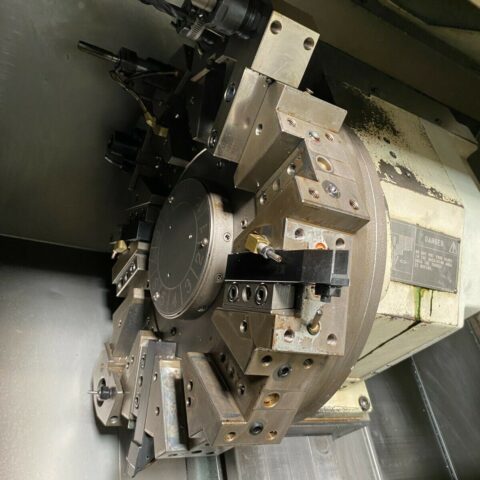

12-Station Turret – 6 Live / Rotary Station
Full C-Axis on Both Spindles

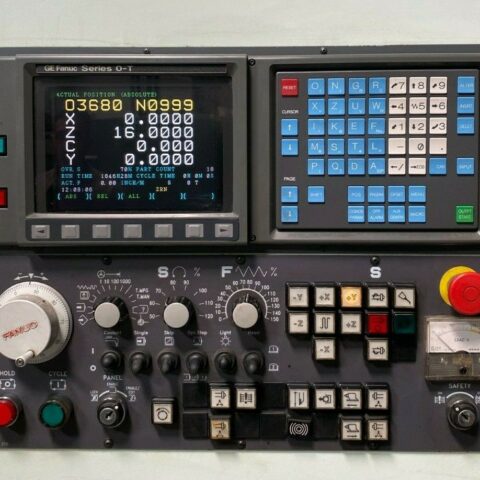

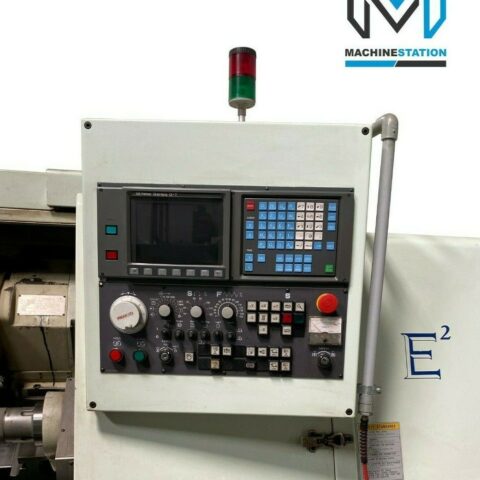

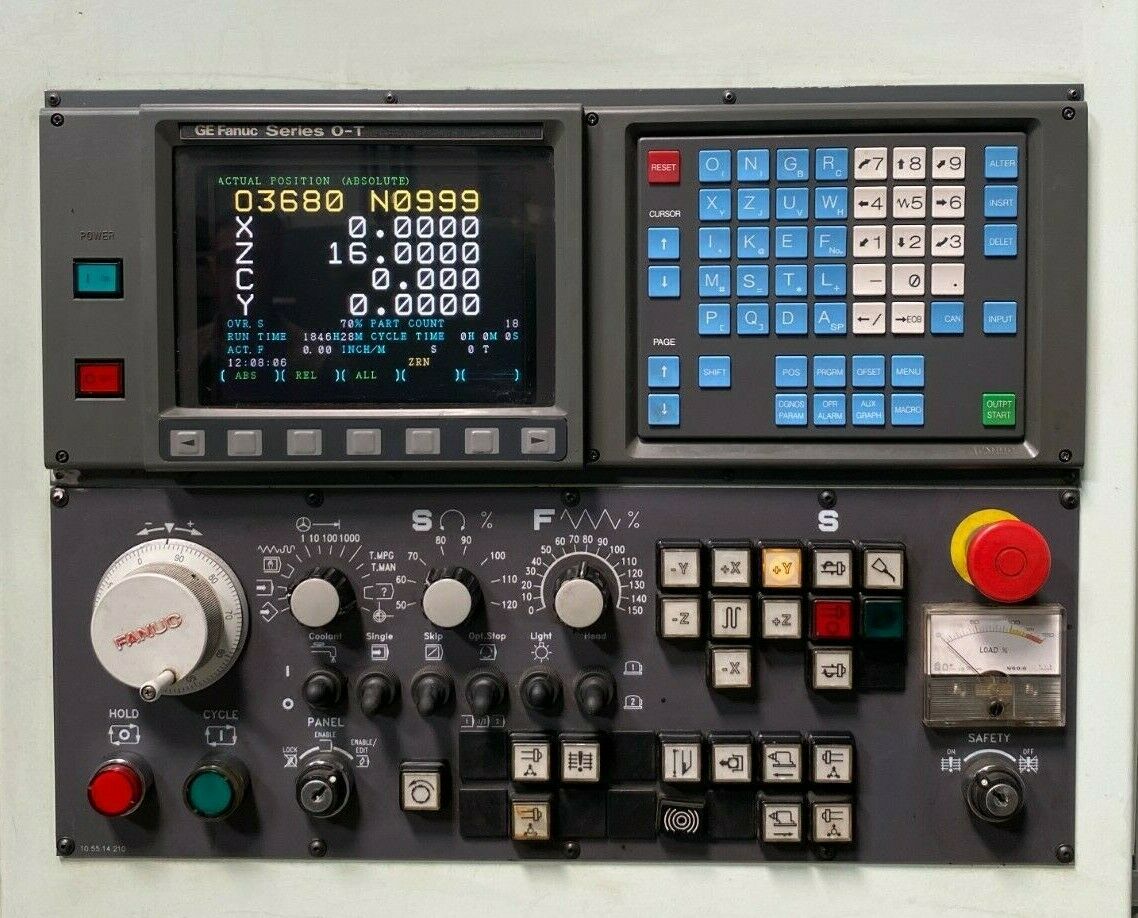

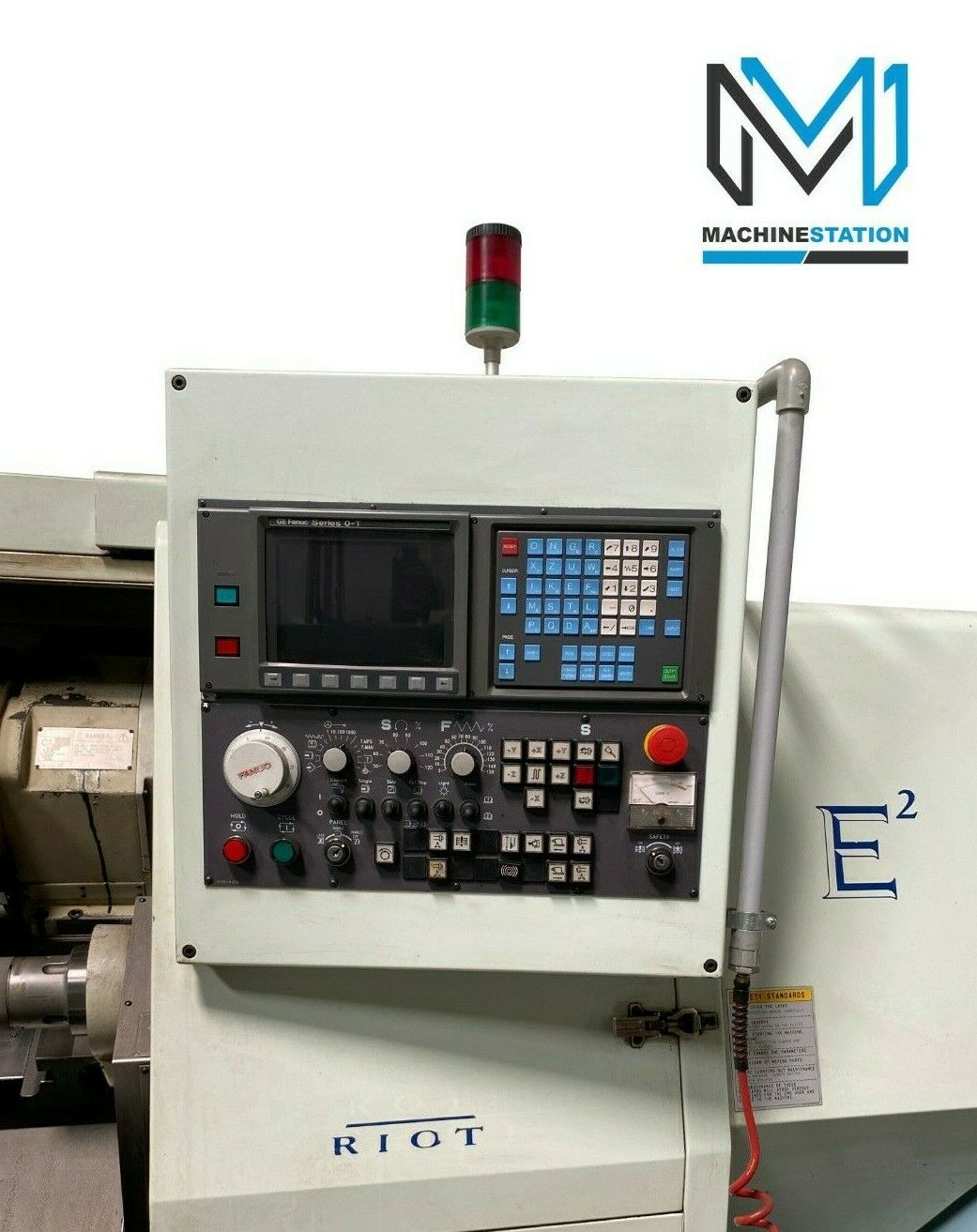

Fanuc OTC CNC Control
Tool Presetter

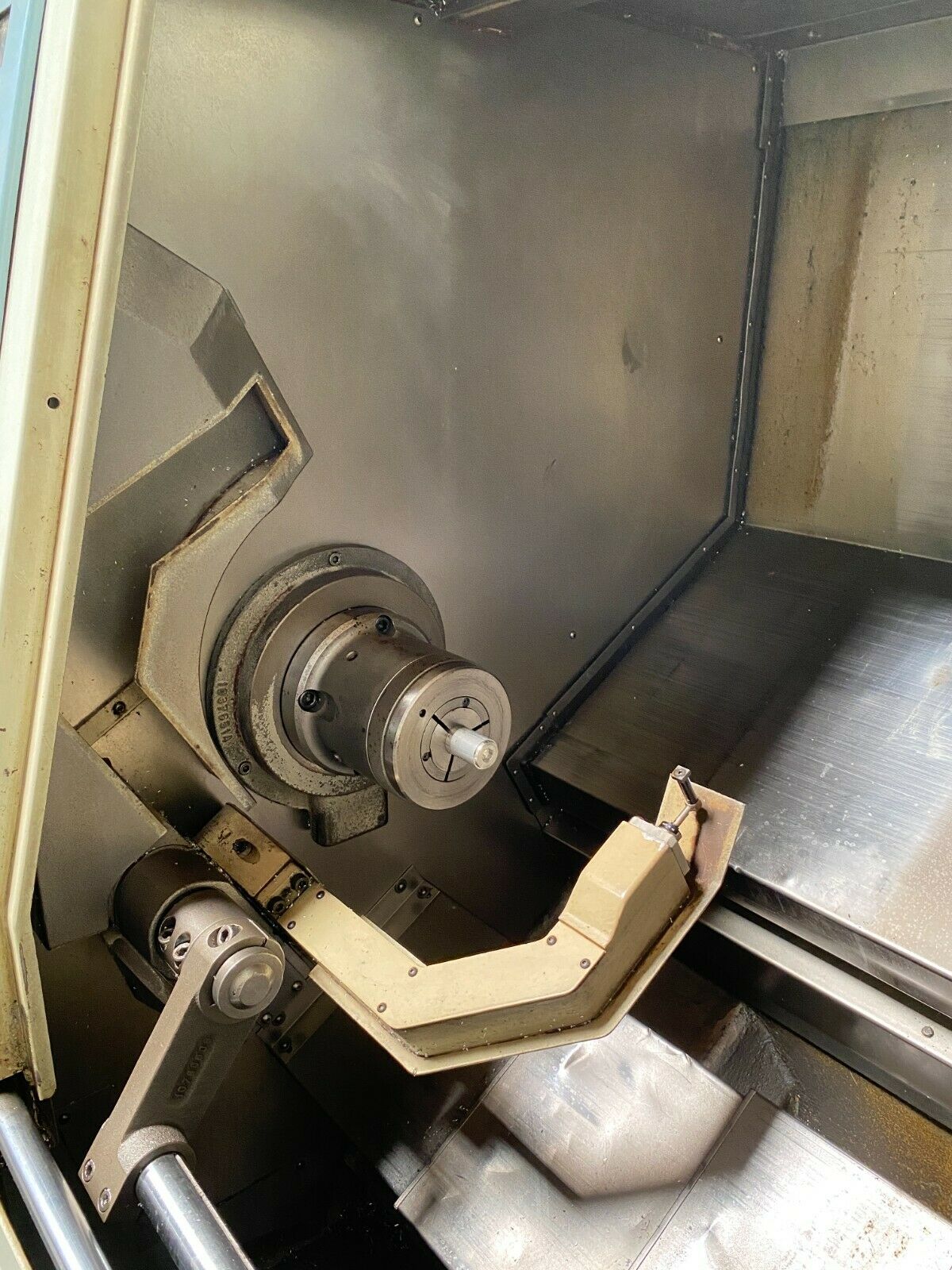

Automatic Parts Catcher

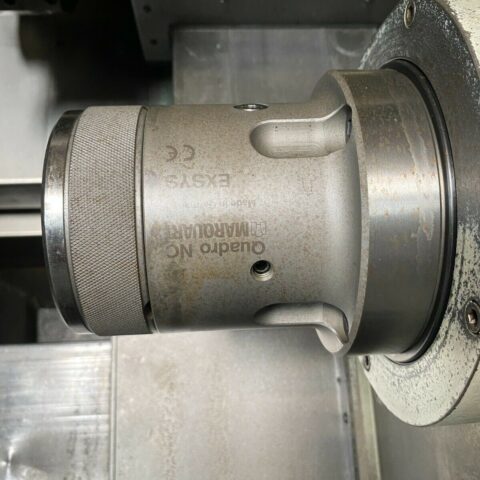

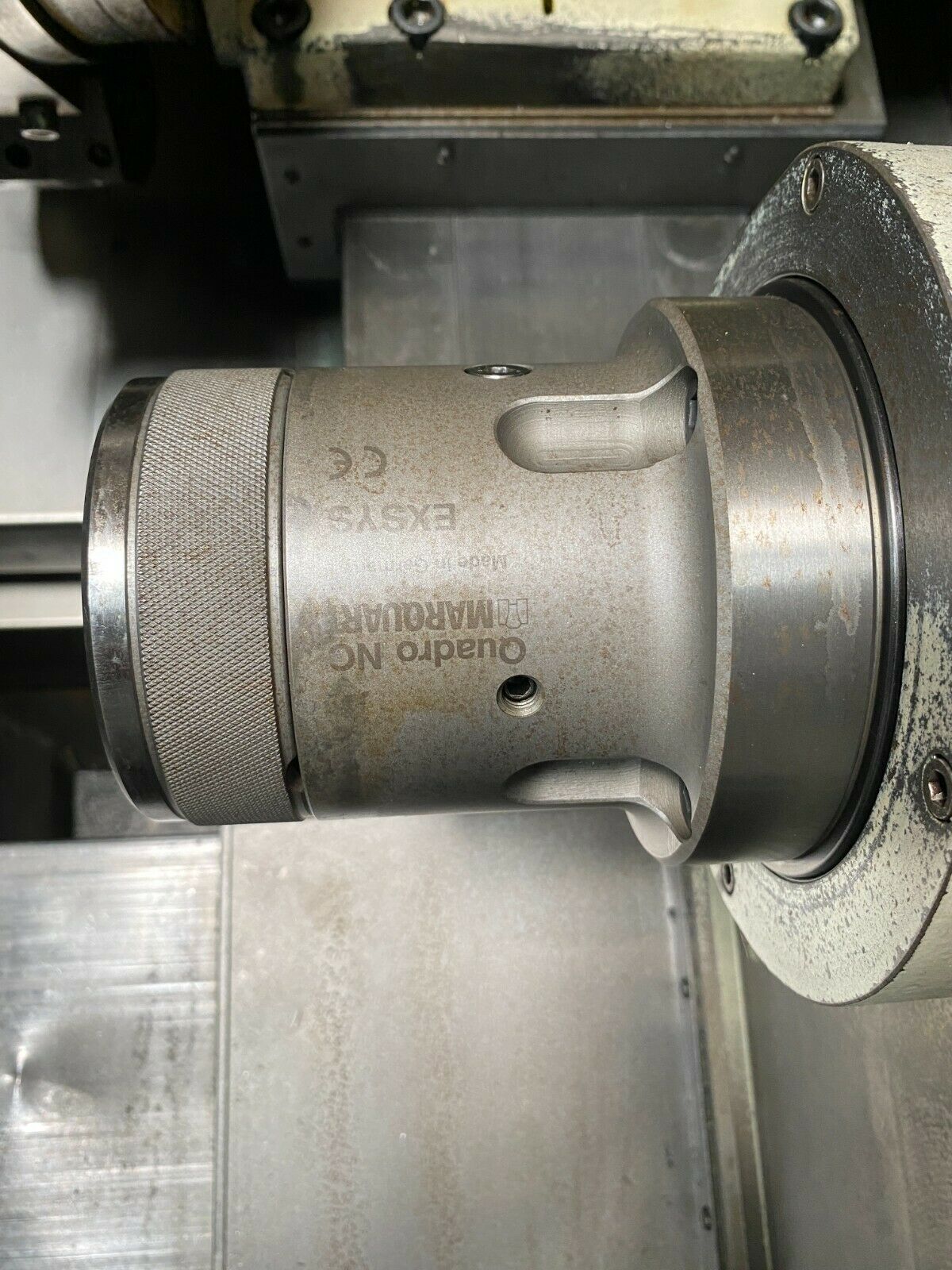

Collet Chuck on Main Spindle

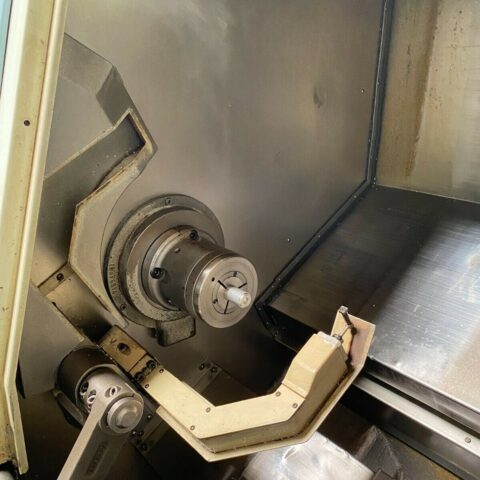

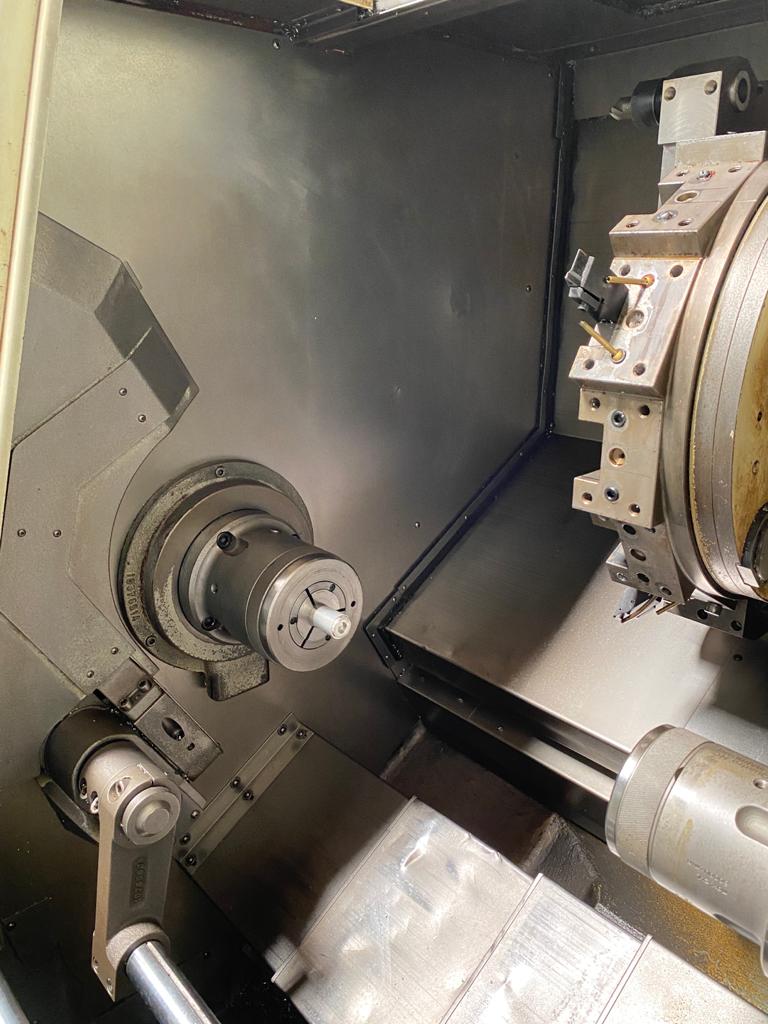

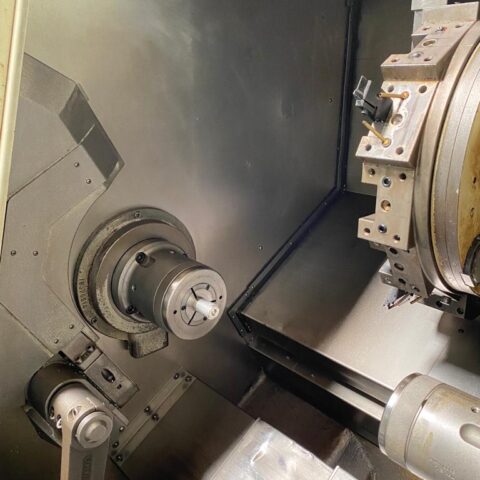

Collet Chuck on Sub Spindle
Rigid Tapping on Both Spindles
Foot Operated Control for Chuck
RS-232 Interface
Chip Conveyor
Parts Conveyor

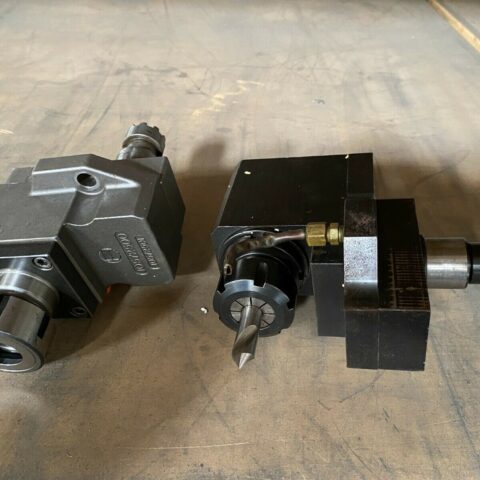

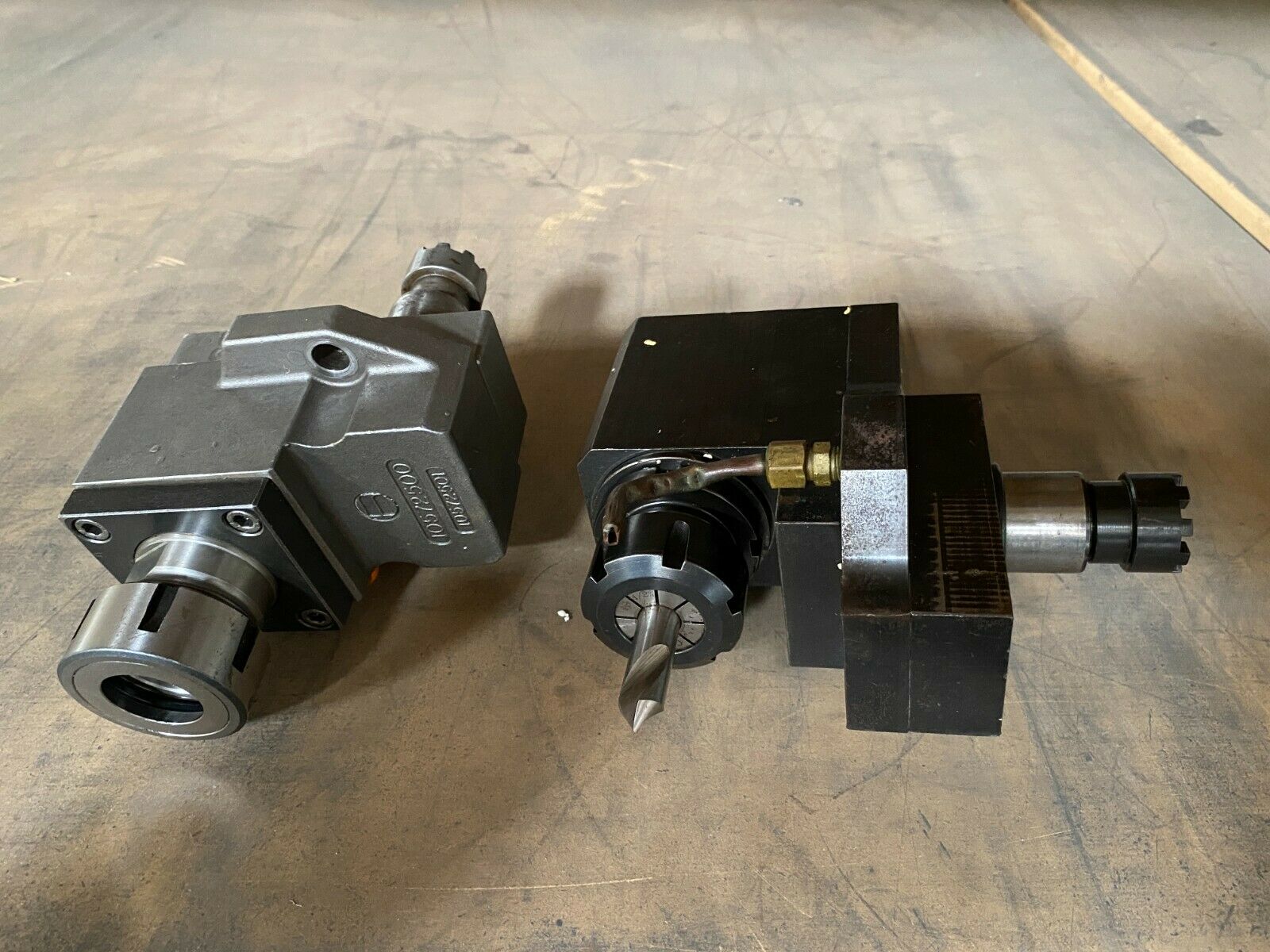

Comes with Barfeeder, Live Tool & some Static Tool Holders

Eurotech Multiflex 730SL CNC Turn Mill Specifications:
Capacity:
Max Turning Diameter: 12.62″
Max Turning Length: 19.68″
Max Bar Capacity: 2.75″
Swing Over Bed: 18.5″
Swing over Cross Slide: 17.9″

Travels:
X Axis Travel: 8.62″
Z Axis Travel: 20.05″
B Axis Travel: 20.25″ ( Sub Spindle )
C Axis: 0.001

Feedrate:
Rapid Traverse X Axis: 707 IPM
Rapid Traverse Z Axis: 945 IPM
Rapid Traverse B Axis: 945 IPM

Spindle:
Main Spindle Bore: 3.14″
Sub Spindle Bore: 2.04″
Main Spindle Nose: A2-6
Sub Spindle Nose: A2-5
Main Spindle Speed: 40-4000 RPM
Sub Spindle Speed: 40-4000 RPM
Main Spindle Power: 35 HP
Sub Spindle Power: 10 HP
Live Tool Spindle Motor: 5 hp

Turret:
Capacity: 6 Live Station
Index Time: 1 second
Live Tool Speed: 3000 RPM

General:
Power: 37.9 kVA, 220v / 3-Phase Overall
Dimensions: 112″ x 71″ x 72″ High
Weight: 10,500 lbs

“No Charges for loading at list Price”
