*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

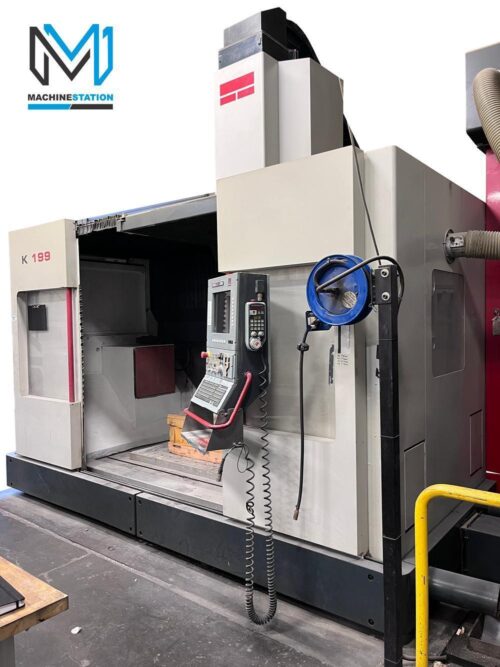

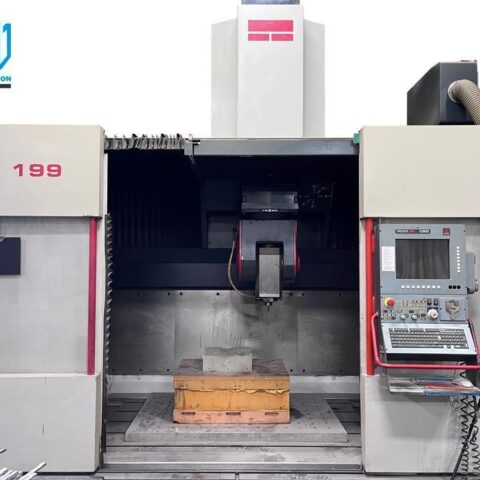

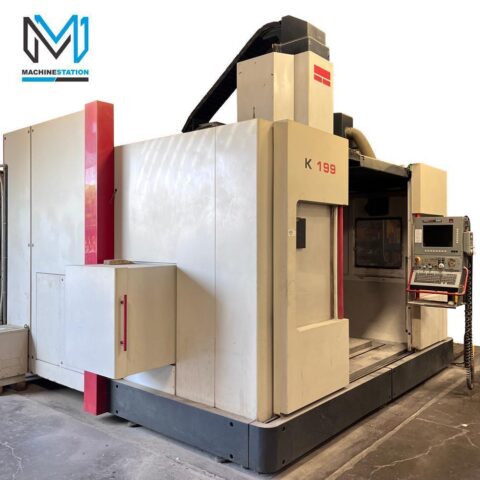

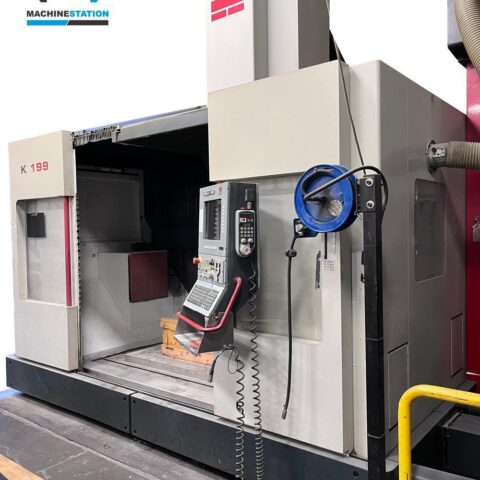

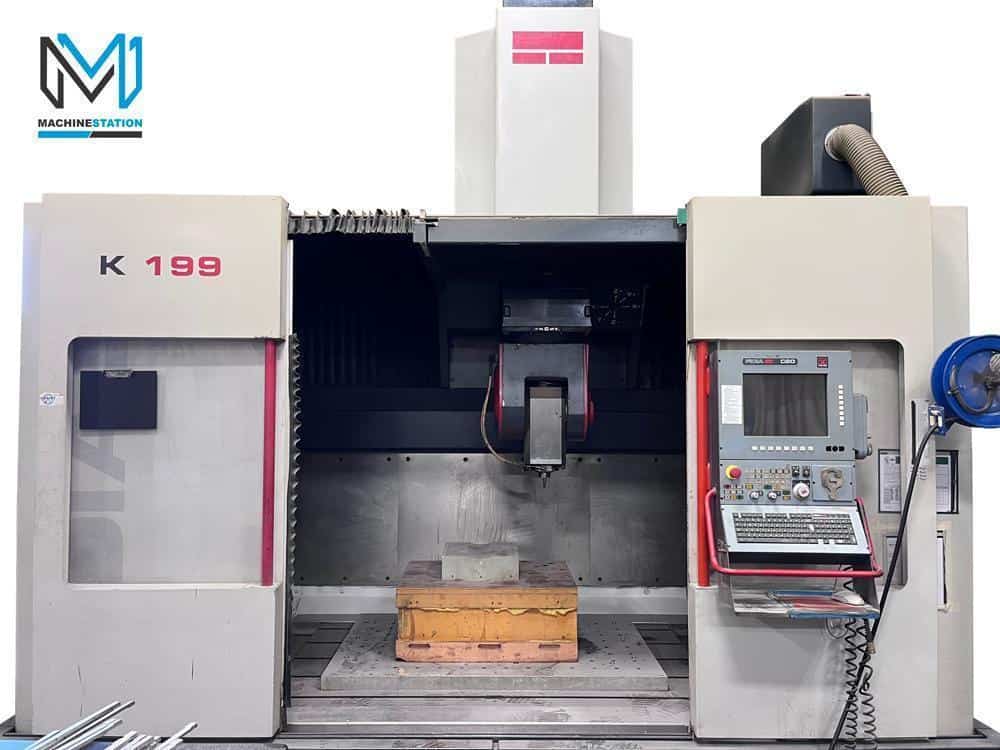

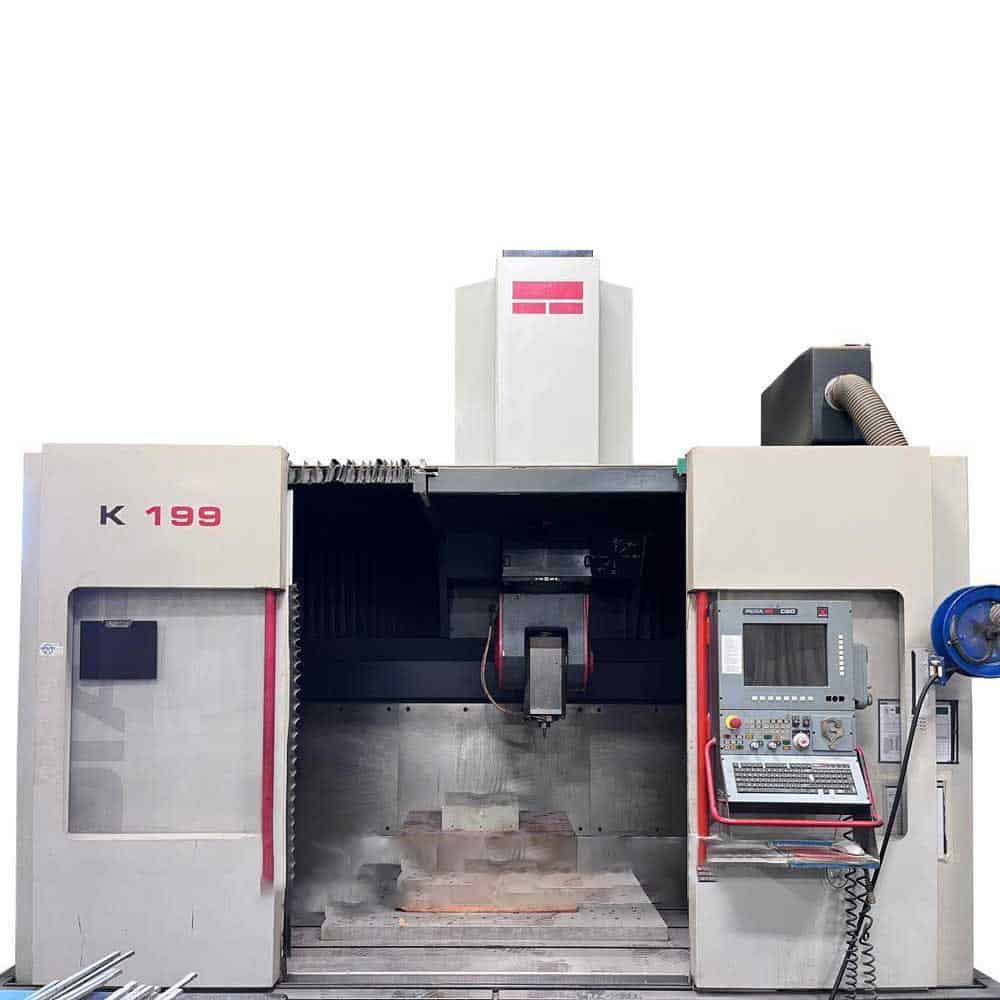

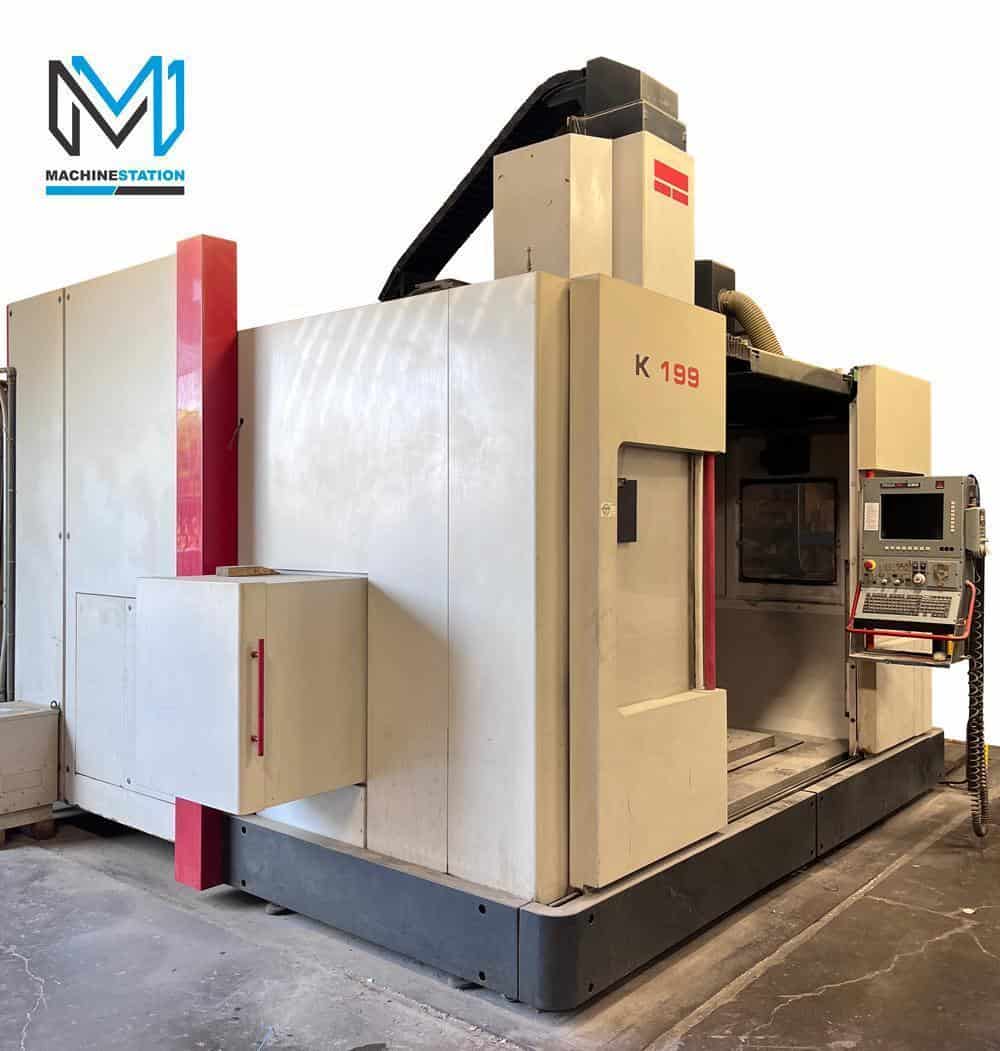

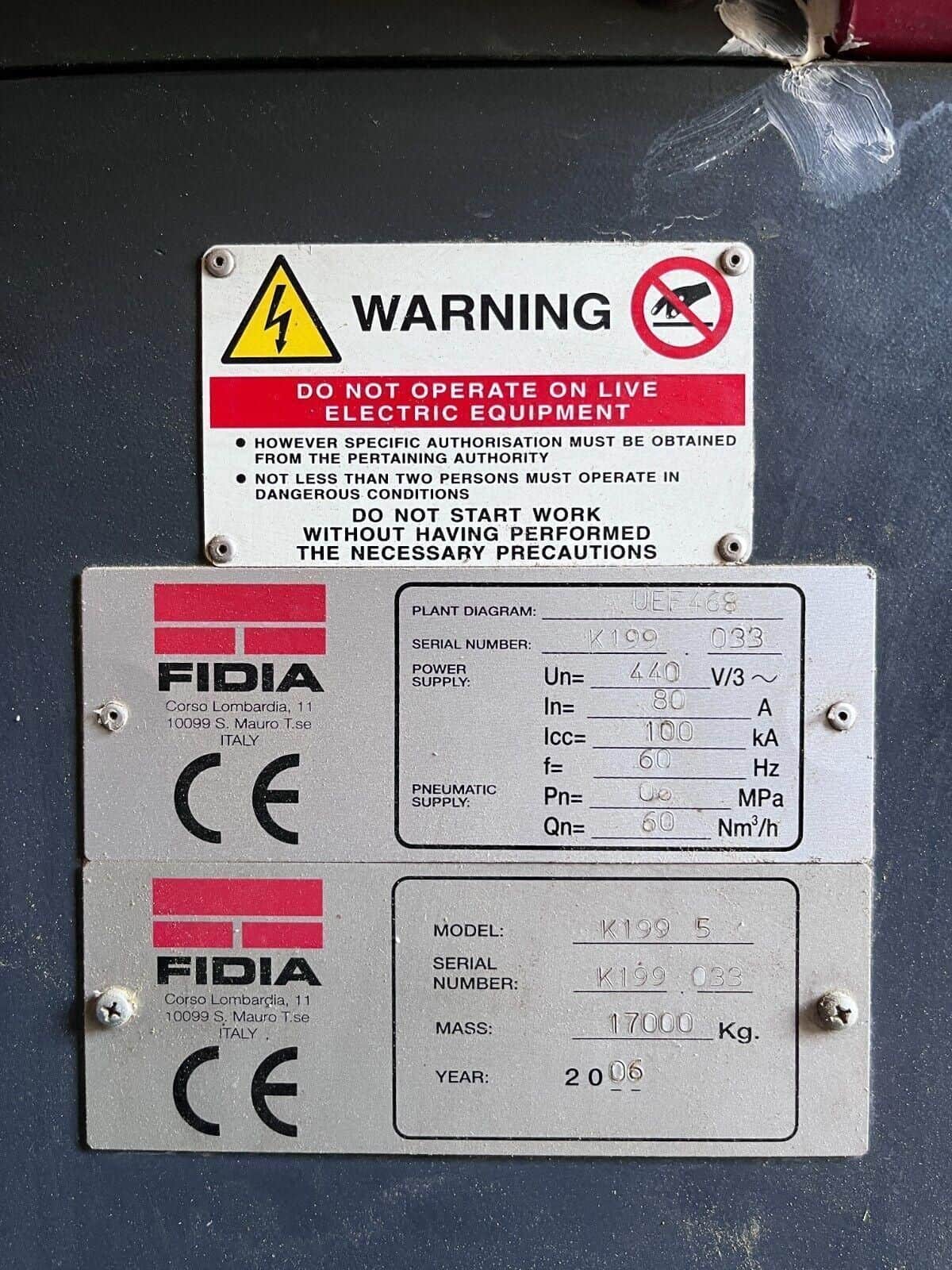

| Make: | FIDIA |
| Model: | K199-5 |
| Year: | 2006 |
| Condition: | Used – Good |
| Features: |
|---|

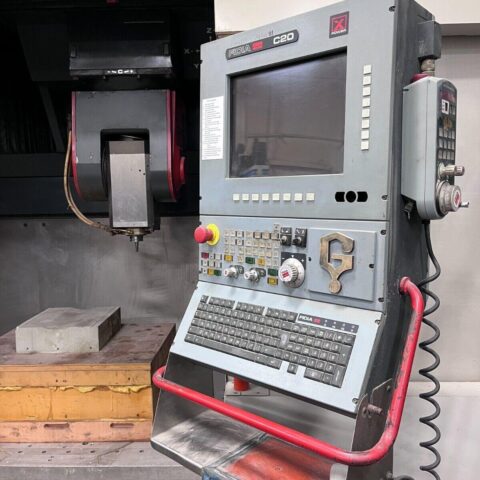

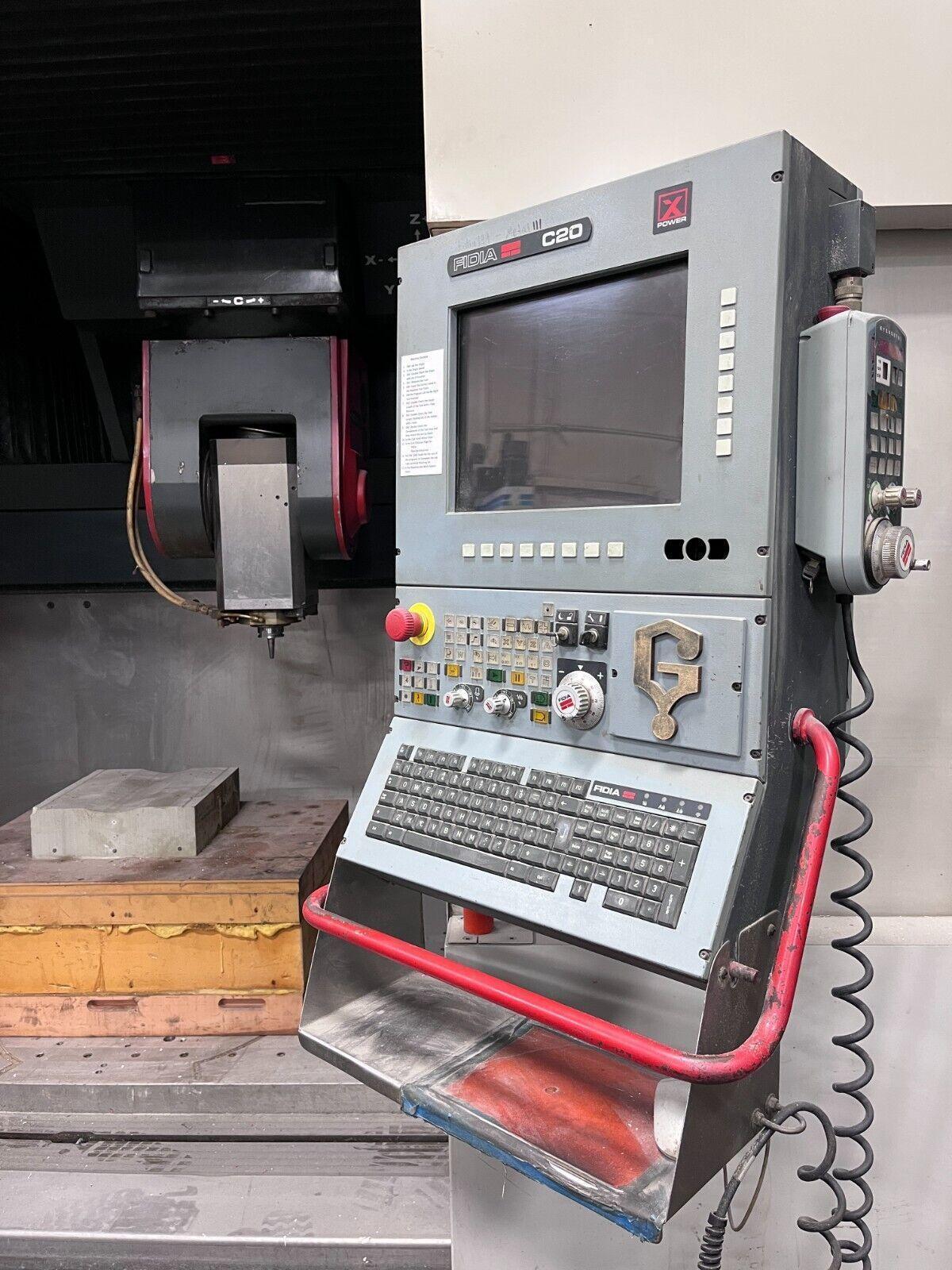

| FIDIA C-20 Series CNC Control |
| Simultaneous 5 Axis Cutting |

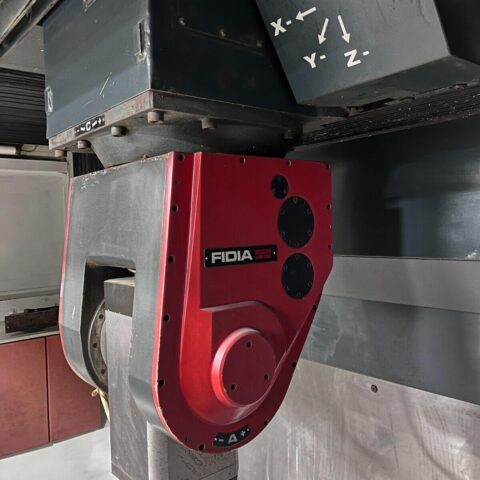

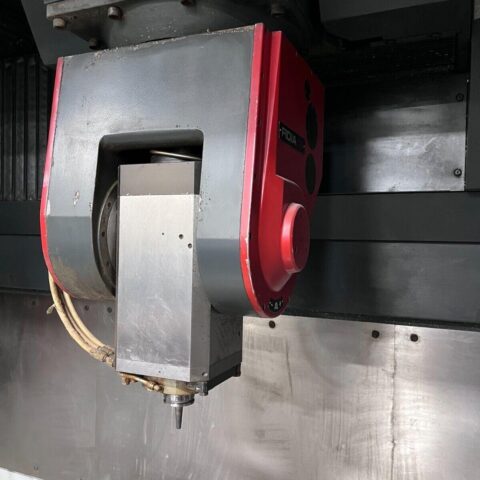

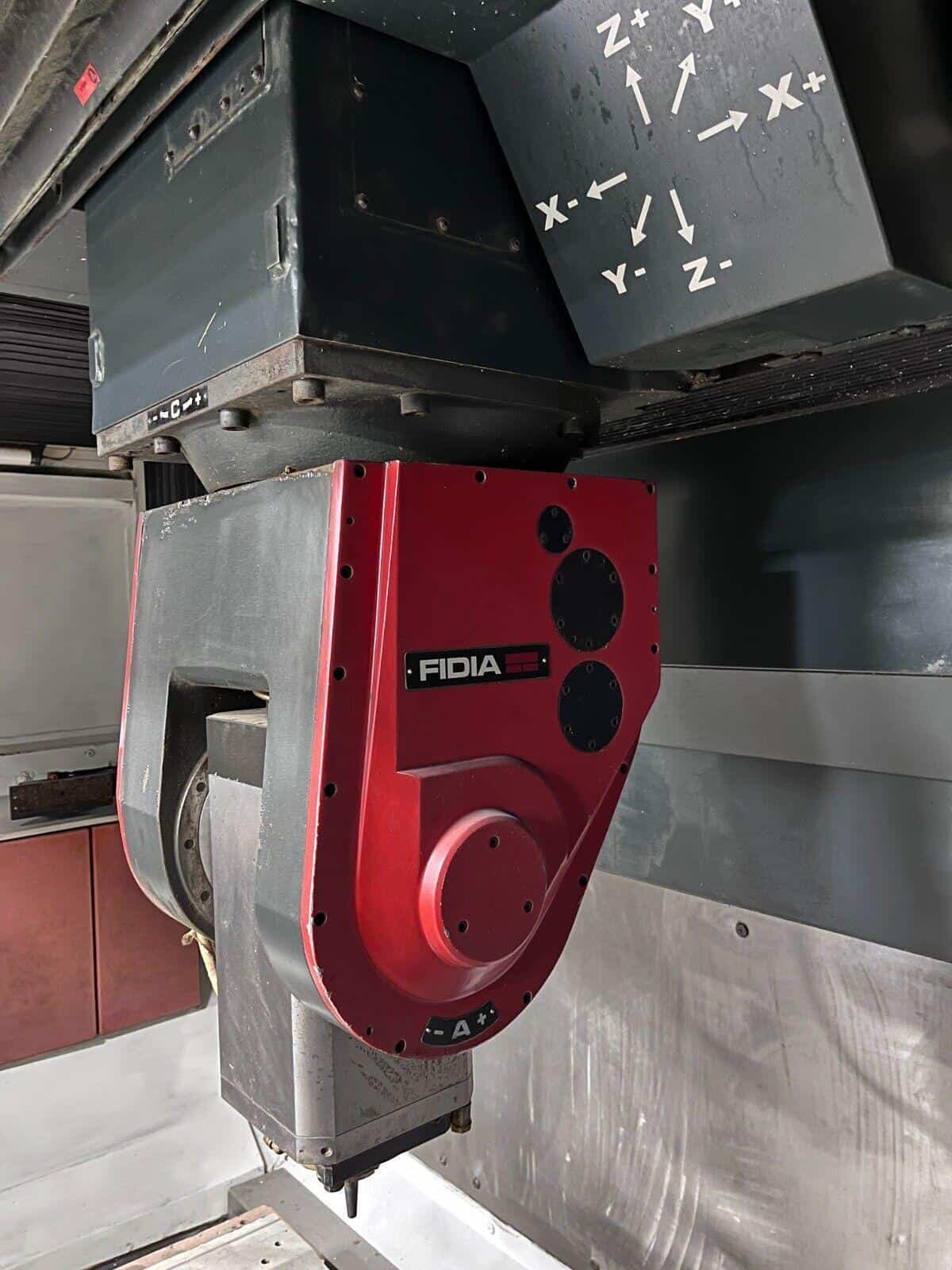

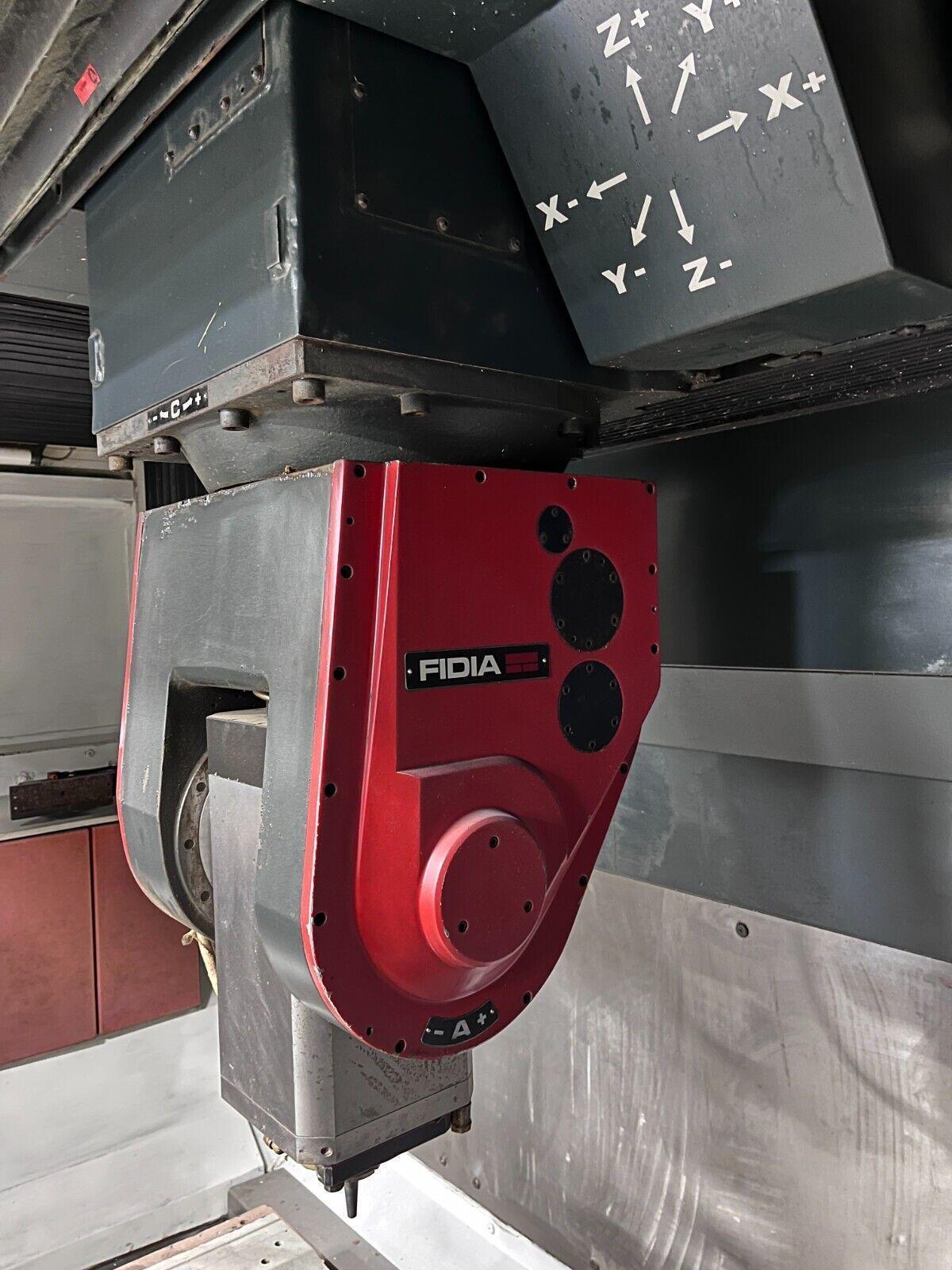

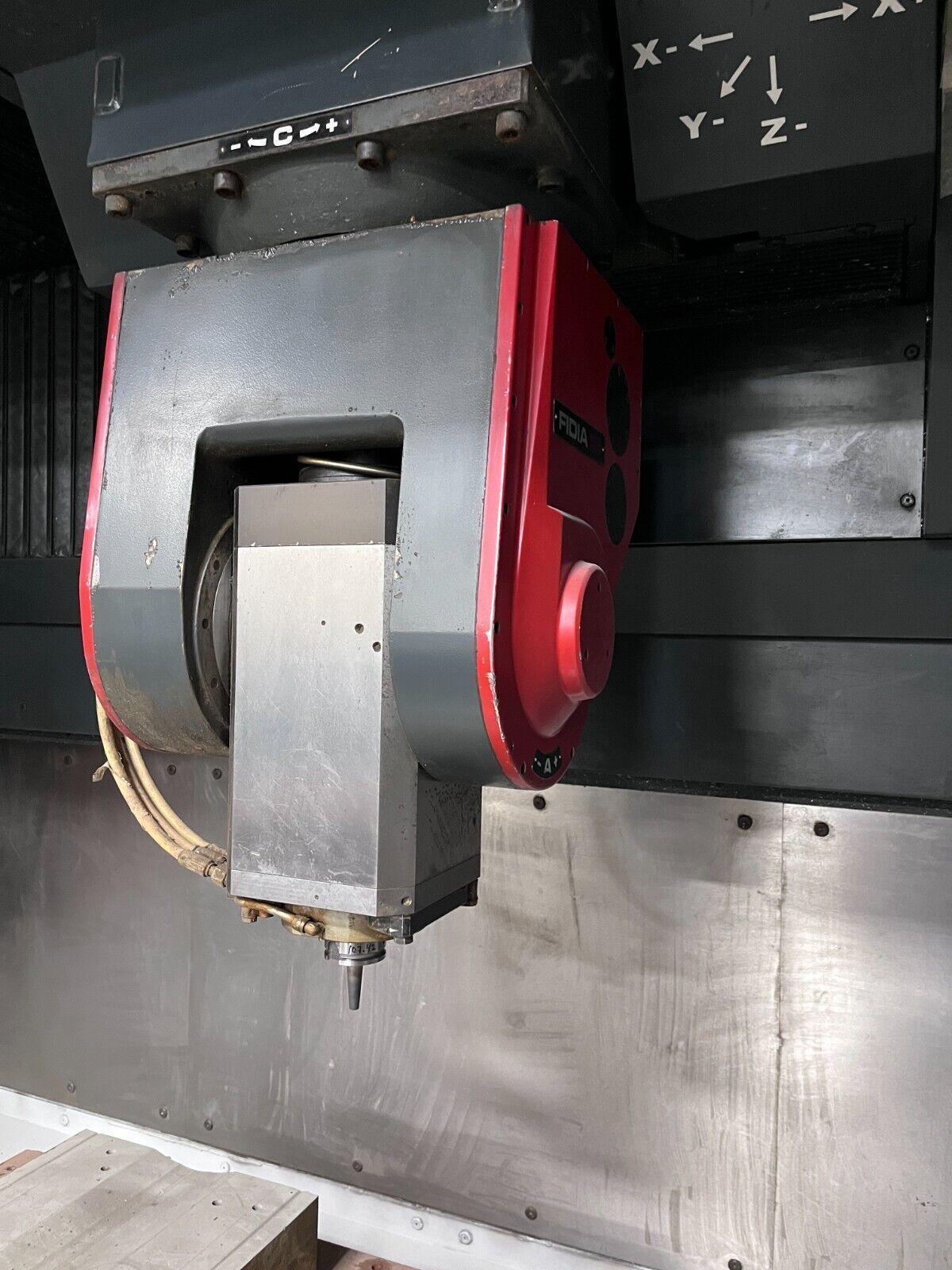

| Swivel Milling Head (A & C Axis) |
| Gantry/Bridge Column Movement |
| Three-Dimensional Milling on High Speed |
| Scanning of Models With Storing of Tool Path |
| Three-Dimensional Measuring System |
| 24000 RPM High Speed Spindle |
| 24 Station Automatic Tool Changer |
| 26455 lbs Heavy Table Load Capacity |
| Fast Rapid Traverse Rate |
| Coolant Through Spindle |
| Spindle Oil Cooler |
| Hand Wheel MPG Control |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Absolute Incremental Programming |
| Dust Collector |
| Coolant Tank |

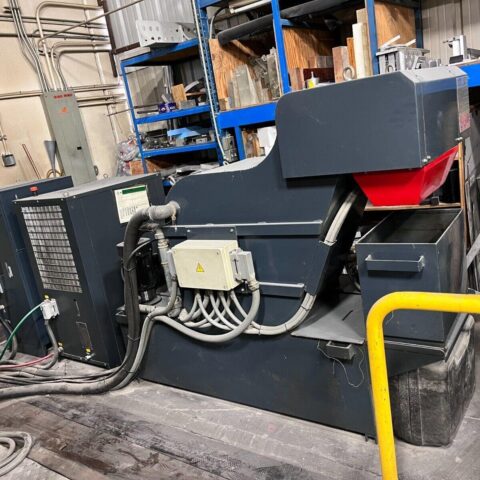

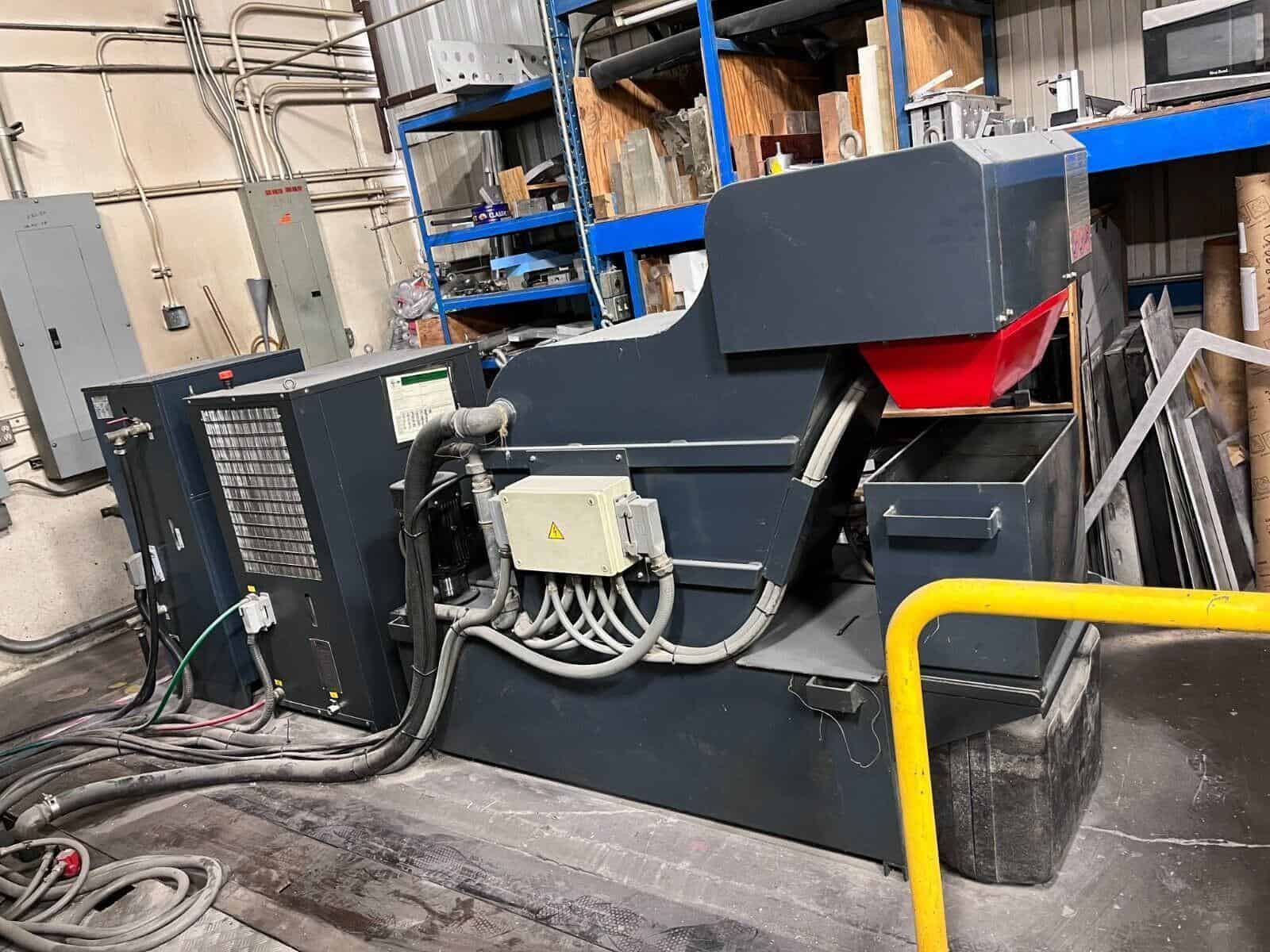

| Chip Conveyor |
| Books & Manuals |
| Travels: |
|---|
| X Axis: 71″ |
| Y Axis: 36″ |
| Z Axis: 33″ |
| A Axis: +95˚/ -110˚ (Swivelable) |
| C Axis: +200° / – 200° (Rotate) |
| Min. Increment: 0.001° |

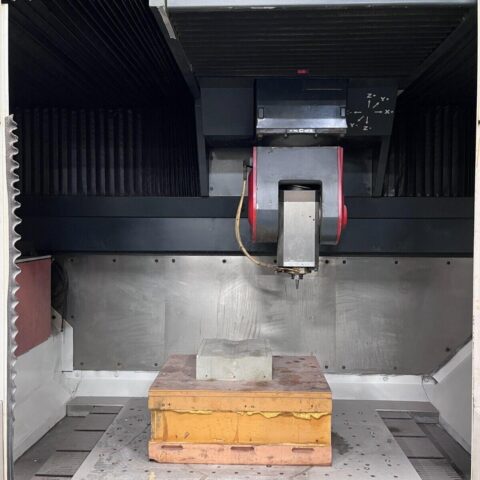

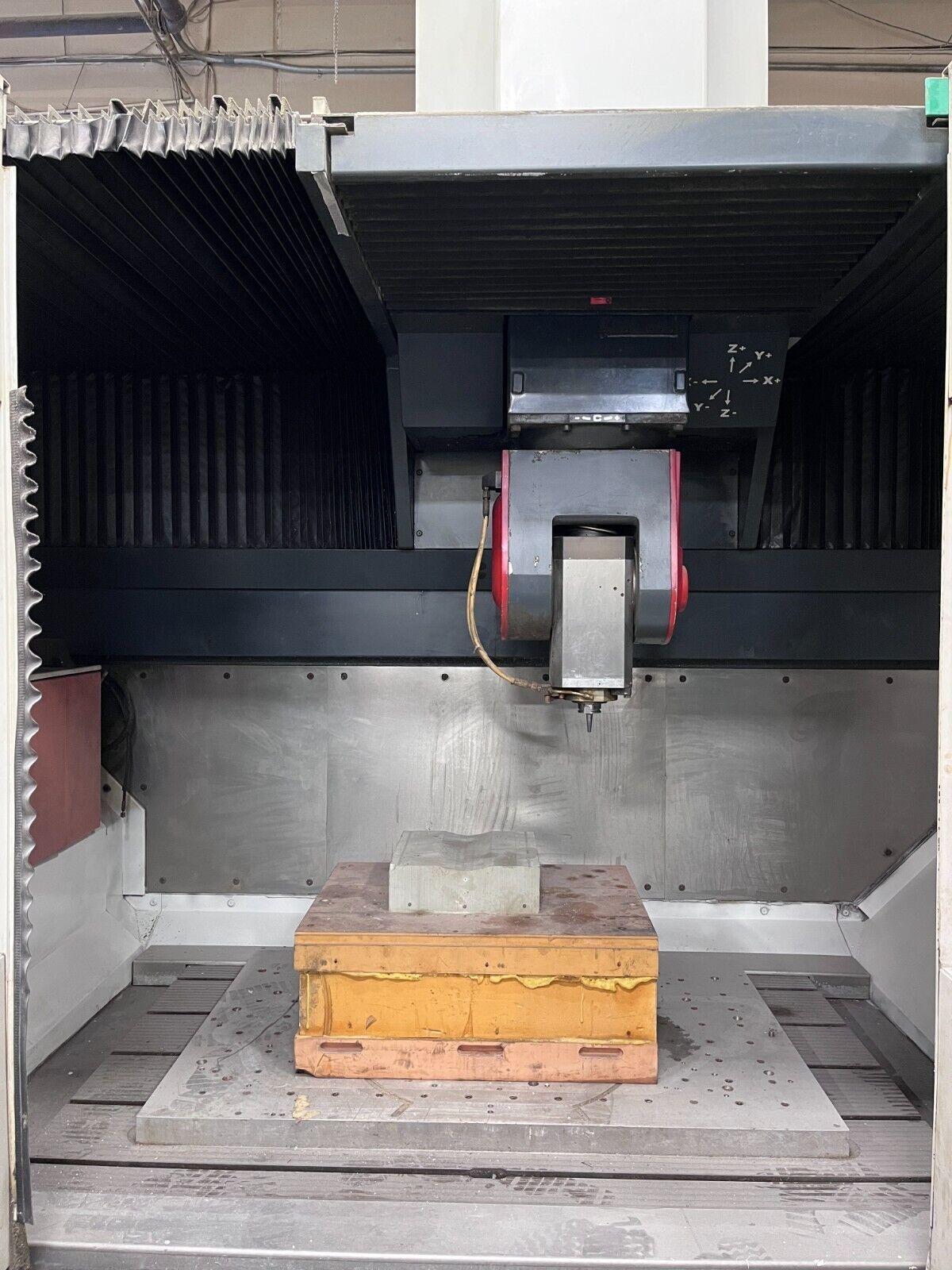

| Table: |
|---|
| Length: 79″ |
| Width: 49″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 0.70″ x 10″ |
| Max Weight on Table: 26455 lbs |
| Table to Spindle Nose: 3.9″ – 35.82″ |
| Spindle: |
|---|

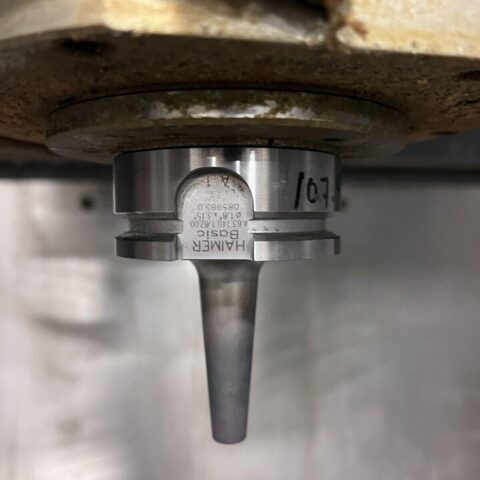

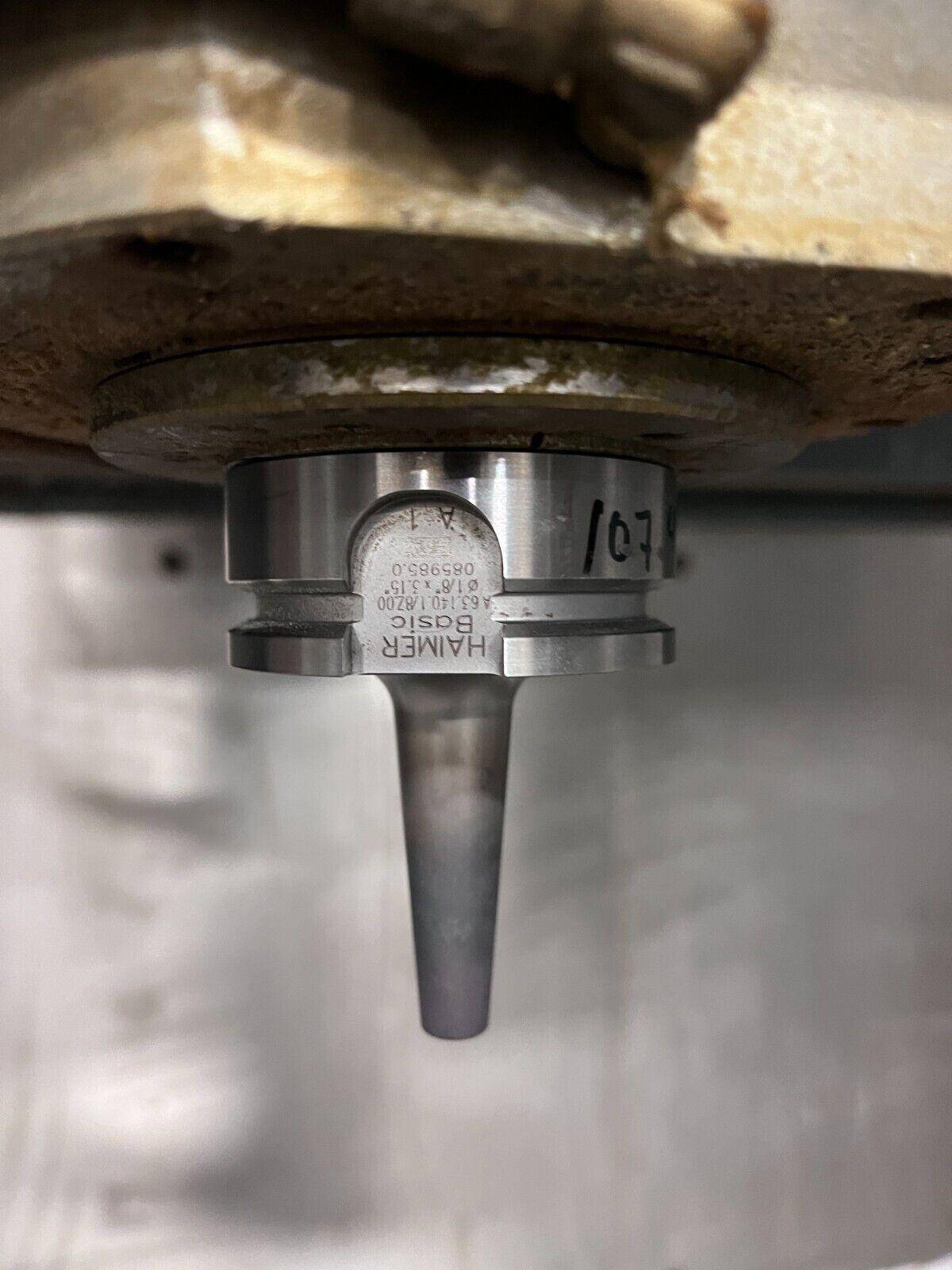

| Taper Size: HSK 63A |
| Speed Range: 24000 RPM |
| Spindle Power: 46 HP |
| Feed rates: |
|---|
| Rapid X Y Z Axis: 1181 IPM |
| Rapid A: 3.240˚ / min |
| Rapid C: 3.240˚ / min |
| Cutting Feed rate: 394 IPM |
| Tool changer: |
|---|
| Capacity: 24 Tools |
| Taper: HSK 63A |
| Max Tool Size: 4.92” x 12” |
| Max Tool Weight: 17.63 lbs. |
| Tool Change Time: 5.5 Second |
| General: |
|---|
| Air Required: 80 psi 4 scfm |

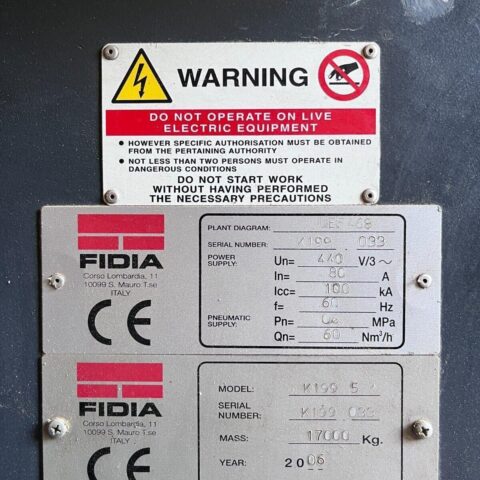

| Power: 100 kva /440v / 3-Phase |
| Overall Dimensions: 236” x 197” x 177″ High |
| Weight: 37478 lbs |
| “No Charges for loading at list Price” |
