Haas CL-1 CNC Turning Center – 2023 Bar Feeder Lathe
SKU
113511
Make/Model
Haas CL-1
Year
2023

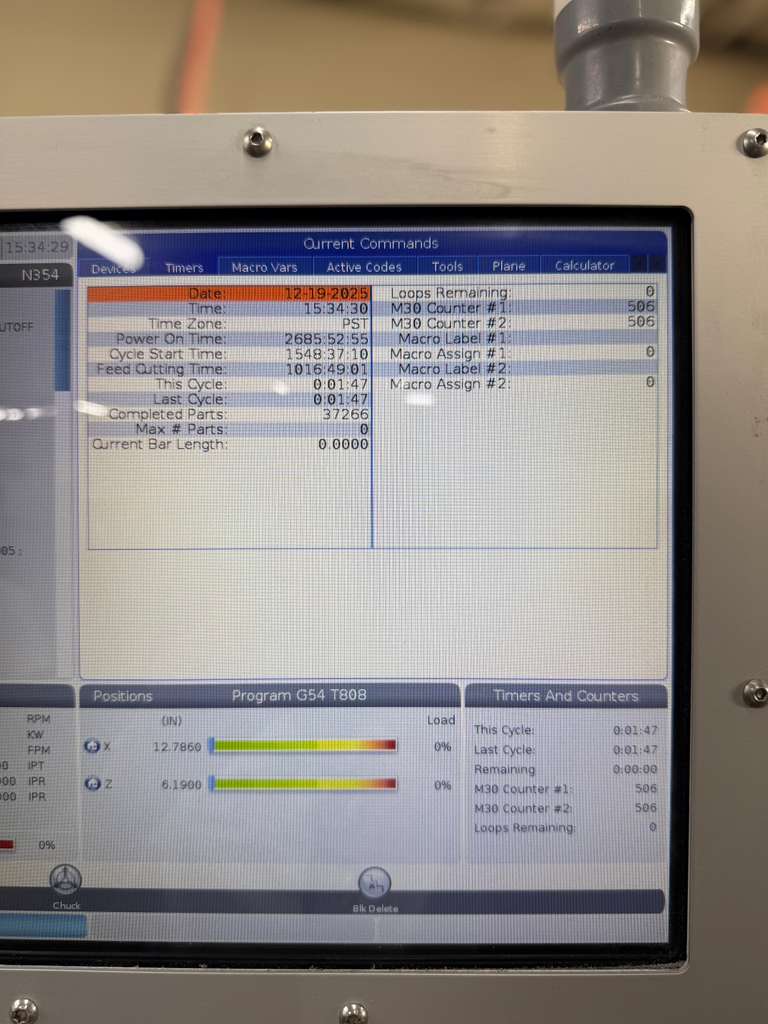

Cutting Time
1,548 Hours
Video
No Video
Out of stock
Avoid Paying More! New Haas prices just went up 5% as of May 1st — plus, long lead times on new machines mean delays and higher costs. This 2023 Haas CL-1 is fully equipped with Haas CL-1 Bar Feeder, Parts Catcher System, Rigid Tapping and Coolant System
“Replacement Cost Over $59,000 with Similar Options”
| SKU: | 113511 |
| Make/Model: | Haas CL-1 |
| Year: | 2023 |
| Cutting Time: | 1,548 Hours |
| Video: | No Video |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | CL-1 |
| Year: | 2023 |
| Equipped With: |
|---|

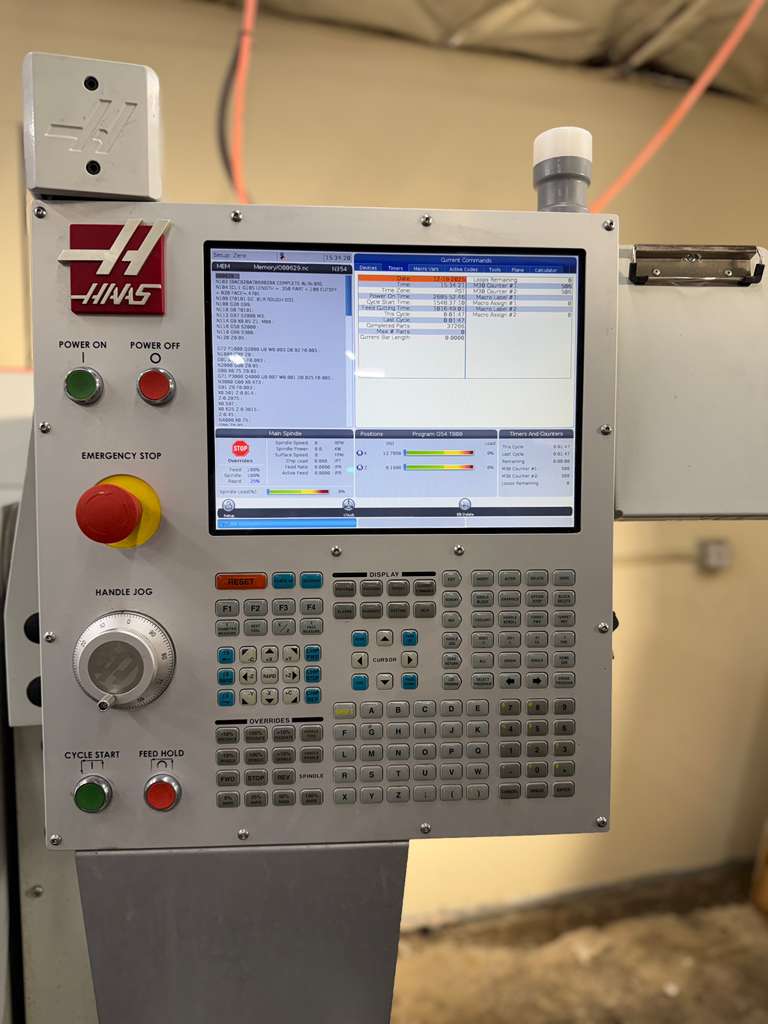

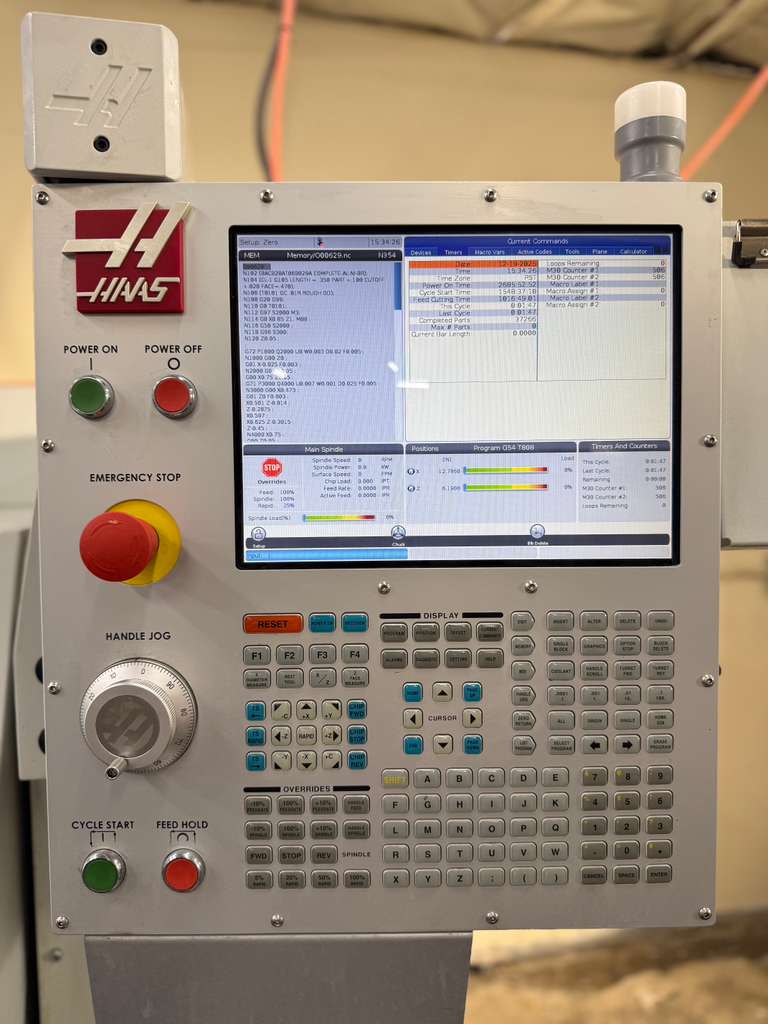

| Haas CNC Control |
| Haas CL-1 Bar Feeder (Upgraded $5,095 value Included) |

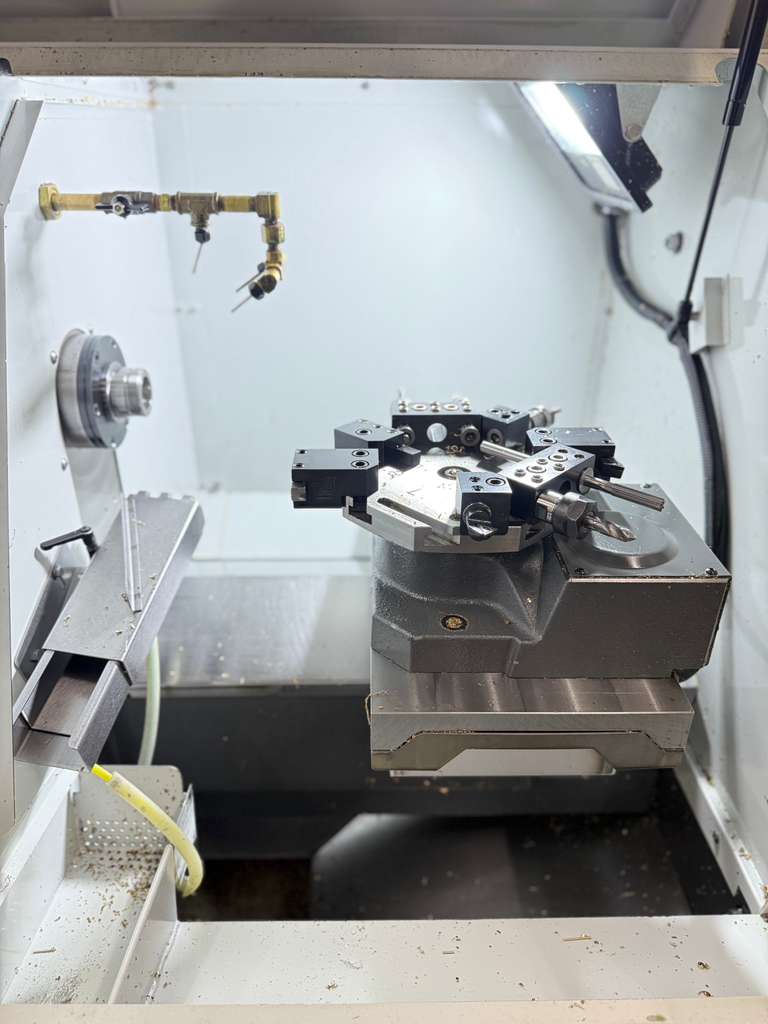

| 8 -Station Tool Turret |
| Collet Nose (Capable 4″ Chuck) |
| Parts Catcher (Upgraded $2,195 value Included) |
| 6,000 RPM Spindle |
| 5 HP Spindle Motor |

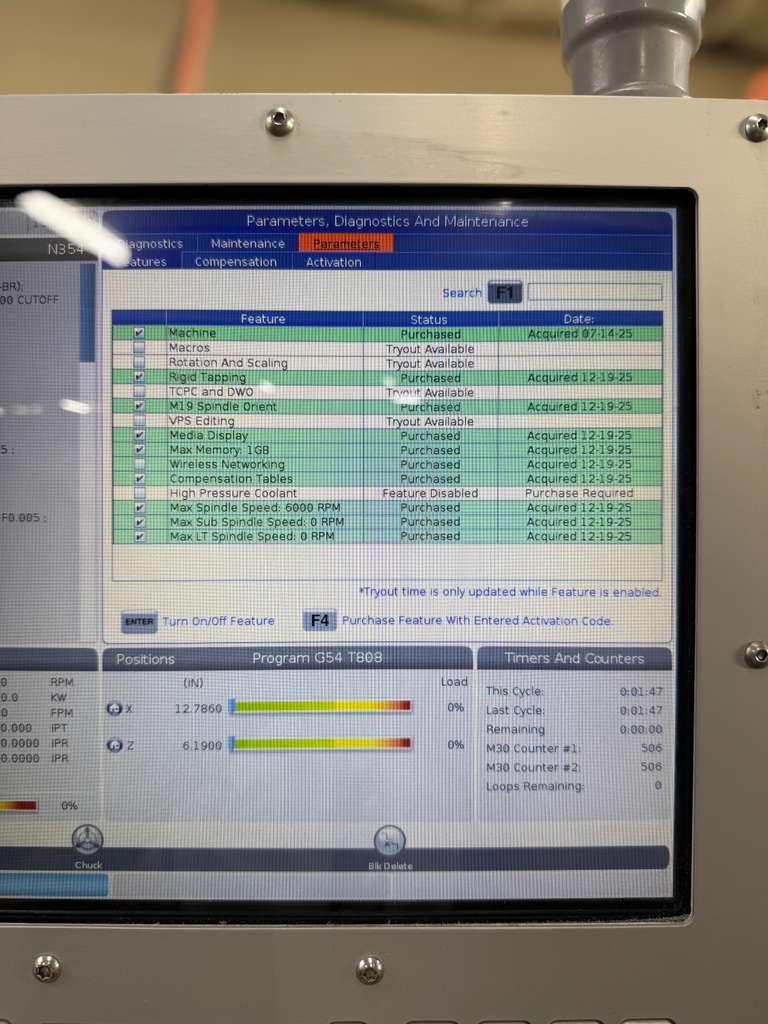

| Rigid Tapping |
| M19 Spindle Orientation |
| Media Display |
| 1 GB Max Memory |
| Compensation Tables |
| Coolant System |
| Capacity: |
|---|
| Max Turning Diameter: 5″ |
| Max Turning Length: 8″ |
| Max Bar Capacity: 1″ |
| Swing Over Cross Slide: 11.0″ |
| Swing Over Table: 4.95″ |
| Travel: |
|---|
| X Axis Travel: 12″ |
| Z Axis Travel: 8″ |
| Rapid Traverse X Axis: 757 IPM |
| Rapid Traverse Z Axis: 500 IPM |
| Spindle: |
|---|
| Spindle Nose: 5C |
| Spindle Bore: 1.25″ |
| Spindle Speed: 6000 RPM |
| Spindle Motor: 5 HP |
| Turret: |
|---|
| Type: Gang Tool Turret |
| Capacity: 8 Station |
| Index Time: 1 second |
| General: |
|---|
| Air Required: 70 psi, 1 scfm |

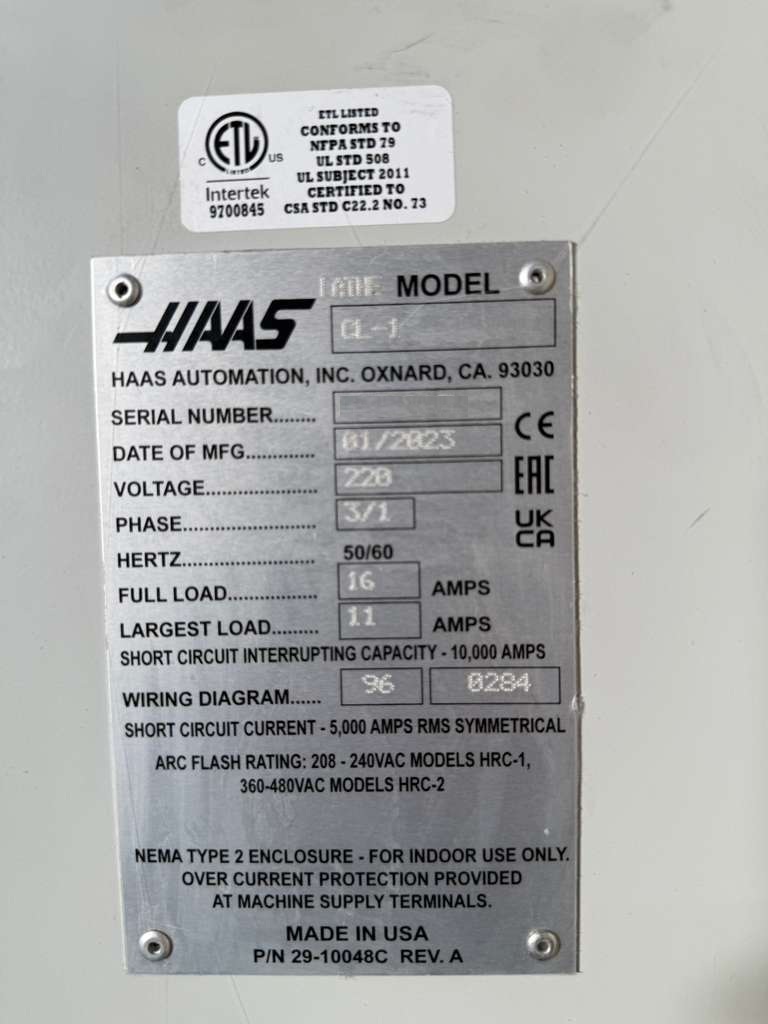

| Power: 220v / 3-Phase |
| Overall Dimensions: 78″ x 62″ x 80″ High |
| Weight: 1,940 lbs |
| Equipped With: |
|---|
| Haas CNC Control |
| Haas CL-1 Bar Feeder (Upgraded $5,095 value Included) |
| 8 -Station Tool Turret |
| Collet Nose (Capable 102 mm Chuck) |
| Parts Catcher (Upgraded $2,195 value Included) |
| 6,000 RPM Spindle |
| 5 HP Spindle Motor |
| Rigid Tapping |
| M19 Spindle Orientation |
| Media Display |
| 1 GB Max Memory |
| Compensation Tables |
| Coolant System |
| Capacity: |
|---|
| Max Turning Diameter: 127 mm |
| Max Turning Length: 203 mm |
| Max Bar Capacity: 25 mm |
| Swing Over Cross Slide: 279 mm |
| Swing Over Table: 126 mm |
| Travel: |
|---|
| X Axis Travel: 305 mm |
| Z Axis Travel: 203 mm |
| Rapid Traverse X Axis: 757 IPM |
| Rapid Traverse Z Axis: 500 IPM |
| Spindle: |
|---|
| Spindle Nose: 5C |
| Spindle Bore: 32 mm |
| Spindle Speed: 6000 RPM |
| Spindle Motor: 5 HP |
| Turret: |
|---|
| Type: Gang Tool Turret |
| Capacity: 8 Station |
| Index Time: 1 second |
| General: |
|---|
| Air Required: 70 psi, 1 scfm |
| Power: 220v / 3-Phase |
| Overall Dimensions: 1,981 mm x 1,575 mm x 2,032 mm High |
| Weight: 1,940 lbs |
| Make | Haas |
|---|
