Haas MDC-500 CNC Vertical Machining Center (2006) – Pallet Changer, TSC, 24 ATC
SKU
11347
Make/Model
Haas MDC-500
Year
2006
Video
On Request
Out of stock
| SKU: | 11347 |
| Make/Model: | Haas MDC-500 |
| Year: | 2006 |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

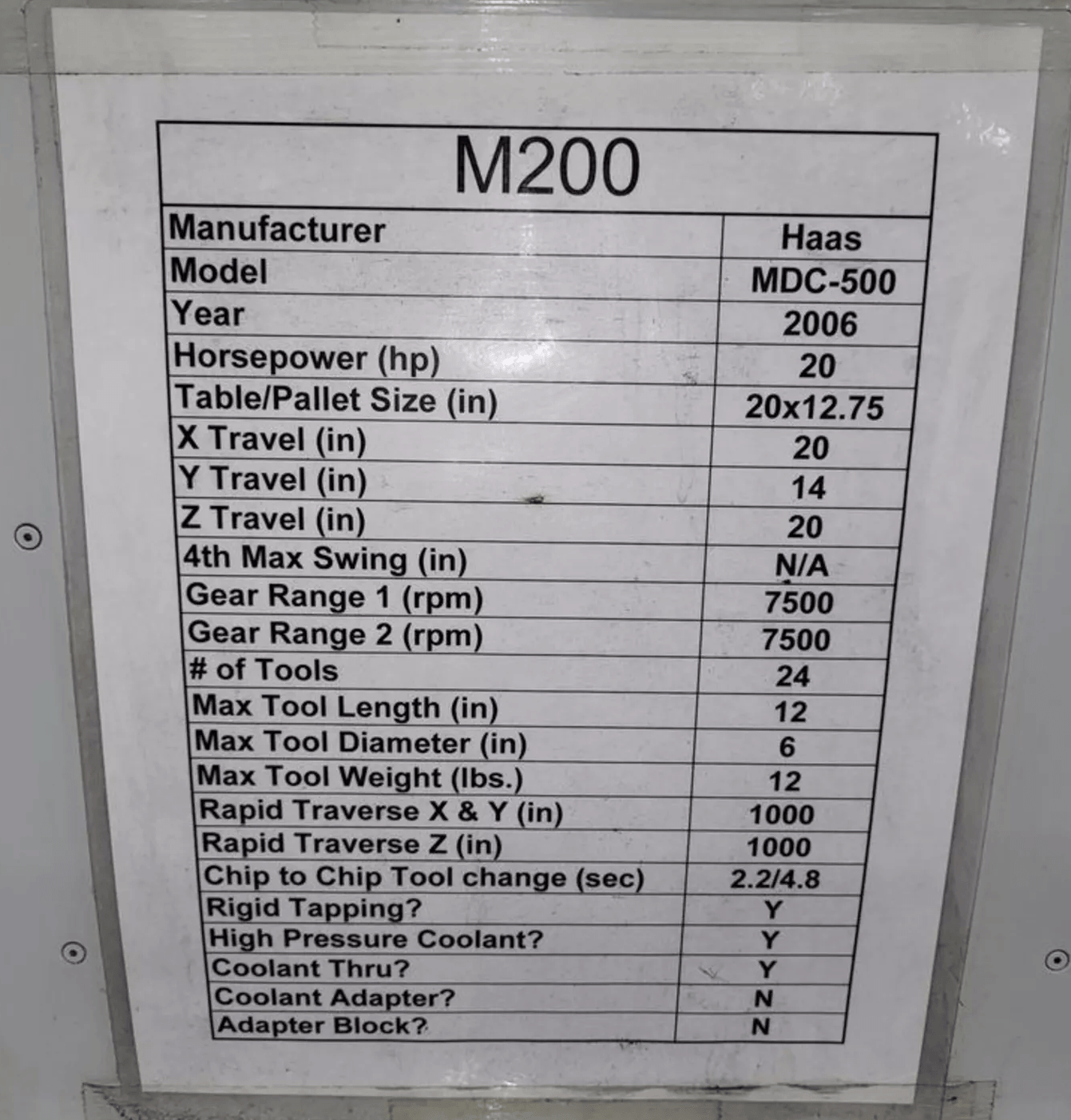

| Make: | Haas |
| Model No.: | MDC-500 |
| Year of Manufacture: | 2006 |
| Machine Type: | CNC Vertical Machining Center |

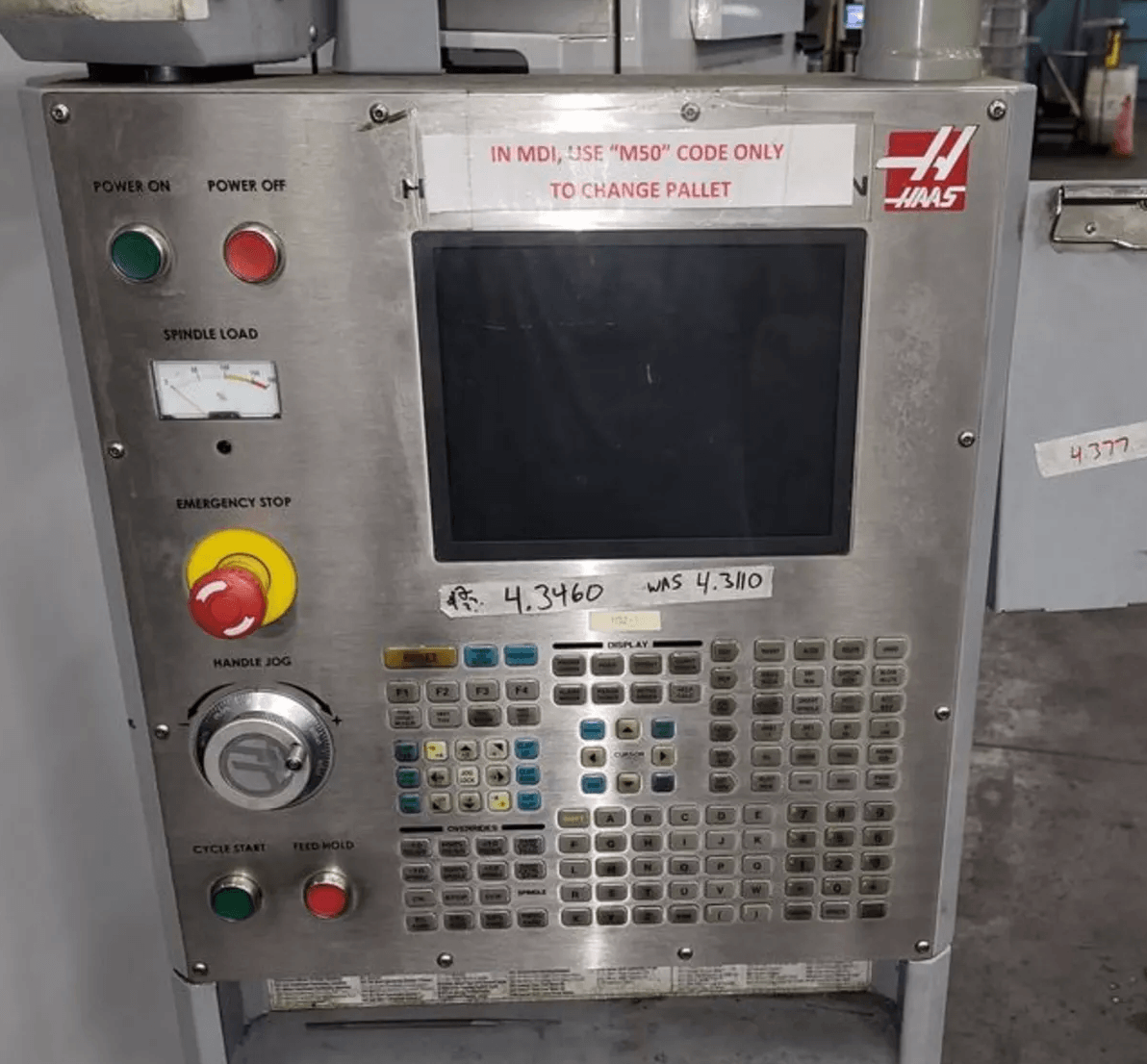

| CNC Control: | Haas CNC Control |
| Country of Origin: | USA |
| Equipped With: |
|---|
| Pallet Changer |
| 24-Position Automatic Tool Changer |
| Through-Spindle Coolant (TSC) |
| High-Pressure Coolant |
| Rigid Tapping |
| Chip Auger |
| Coolant & Filtration System |
| Full Enclosure |
| Capacity: |
|---|
| Table / Pallet Size: 20″ x 12.75″ |
| Number of Axes: 3-Axis |
| Travels: |
|---|
| X-Axis Travel: 20″ |
| Y-Axis Travel: 14″ |
| Z-Axis Travel: 20″ |
| Spindle: |
|---|
| Spindle Speed: Up to 7,500 RPM |
| Spindle Motor: 20 HP |
| Tool Changer: |
|---|
| Type: Automatic Tool Changer |
| Capacity: 24 Tools |
| Max Tool Length: 12″ |
| Max Tool Diameter: 6″ |
| Max Tool Weight: 12 lbs |
| Chip-to-Chip Time: 2.2 / 4.8 sec |
| Feed Rates: |
|---|
| Rapid Traverse (X & Y): 1,000 IPM |
| Rapid Traverse (Z): 1,000 IPM |
| Cutting Feed Rate: Programmable |
| General: |
|---|
| Power: AC 220V, 3-Phase, 50/60 Hz |
| Overall Dimensions: ~90″ x 85″ x 95″ High |
| Weight: ~10,000 lbs |
| Equipped With: |
|---|
| Pallet Changer |
| 24-Position Automatic Tool Changer |
| Through-Spindle Coolant (TSC) |
| High-Pressure Coolant |
| Rigid Tapping |
| Chip Auger |
| Coolant & Filtration System |
| Full Enclosure |
| Capacity: |
|---|
| Table / Pallet Size: 508 mm x 324 mm |
| Number of Axes: 3-Axis |
| Travels: |
|---|
| X-Axis Travel: 508 mm |
| Y-Axis Travel: 356 mm |
| Z-Axis Travel: 508 mm |
| Spindle: |
|---|
| Spindle Speed: Up to 7,500 RPM |
| Spindle Motor: 20 HP |
| Tool Changer: |
|---|
| Type: Automatic Tool Changer |
| Capacity: 24 Tools |
| Max Tool Length: 305 mm |
| Max Tool Diameter: 152 mm |
| Max Tool Weight: 12 lbs |
| Chip-to-Chip Time: 2.2 / 4.8 sec |
| Feed Rates: |
|---|
| Rapid Traverse (X & Y): 1,000 IPM |
| Rapid Traverse (Z): 1,000 IPM |
| Cutting Feed Rate: Programmable |
| General: |
|---|
| Power: AC 220V, 3-Phase, 50/60 Hz |
| Overall Dimensions: ~2,286 mm x 2,159 mm x 2,413 mm High |
| Weight: ~10,000 lbs |
| Categories | CNC Vertical Machining Center |
|---|---|
| Make | Haas |
| Model | MDC-500 |
